BTTC100BK - Receiver NEDIS - Free user manual and instructions

Product type	Bluetooth receiver (transceiver)
Brand	Nedis
Model	BTTC100BK
Power supply	5 VDC / 1 A
Battery type	Rechargeable lithium polymer
Battery life (usage)	Up to 6 hours
Standby battery life	Up to 220 hours
Charging time	Approximately 2 hours
Bluetooth version	5.1
Wireless range	Up to 10 meters
Supported Bluetooth profiles	A2DP, HFP, HSP
Audio codec	SBC
Connectors	3.5 mm AUX input/output, Micro-USB (charging)
Included cables	3.5 mm to 3.5 mm audio cable, 3.5 mm female to 2x RCA adapter, USB charging cable
Main functions	Receiver mode, transmitter mode, play/pause control
LED indicators	Bluetooth indicator, charging indicator
Approximate dimensions	70 x 70 x 20 mm
Approximate weight	50 g
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Do not expose to water, do not open the battery, avoid extreme temperatures.
Country of origin	China
Compliance	CE (RED 2014/53/EU)

Frequently Asked Questions - BTTC100BK NEDIS

How to use the BTTC100BK in receiver mode?

Set the mode switch to RX. Connect a 3.5 mm audio cable (included) from the AUX output of the receiver to your audio device (speaker, headphones). Turn on the receiver, then enable Bluetooth on your source (smartphone, tablet) and select 'BTTC100BK' from the list. The LED indicator blinks when pairing is successful.

How to pair the Bluetooth receiver with my smartphone?

Put the receiver in RX mode and turn it on. On your smartphone, enable Bluetooth and search for devices. Select 'BTTC100BK' from the list. If a PIN is requested, try '0000' or '1234'. The LED indicator on the receiver will blink to confirm connection.

What is the Bluetooth signal range?

The wireless range can reach up to 10 meters in open space. Obstacles (walls, furniture) may reduce this distance.

How to charge the battery of the BTTC100BK?

Connect the USB charging cable (included) to the Micro-USB port of the receiver. Plug the other end into a USB 5V/1A adapter (not supplied) and then into a mains socket. The charging LED lights up and turns off when the battery is fully charged (approximately 2 hours).

What to do if the LED indicator does not light up?

Check that the battery is charged. Connect the charging cable and make sure the USB adapter is working. If the indicator still does not light up, the product may be defective. Contact Nedis customer service.

Can I use the product while charging?

Yes, you can use the Bluetooth receiver while it is connected to the charger. However, the charging time may be slightly longer.

The product does not connect, what to do?

Make sure the receiver is in RX mode and that Bluetooth on your source is enabled. Reset the pairing by turning the receiver off and on again. Delete the device from the Bluetooth list on your source and restart the procedure.

What is the battery life?

Continuous usage battery life is approximately 6 hours. In standby, it can reach up to 220 hours. Actual battery life depends on volume and usage conditions.

How to switch to transmitter mode?

Set the mode switch to TX. Connect an audio source (TV, MP3 player) to the AUX input via the 3.5 mm cable. Turn on the receiver, then pair it with a Bluetooth headset or speaker. The LED indicator blinks when the connection is established.

What to do if the sound is jerky or of poor quality?

Check that the distance between the receiver and the source does not exceed 10 meters and that there are no major obstacles. Move away other wireless devices (Wi-Fi, microwaves) that may cause interference. Make sure the battery is sufficiently charged.

USER MANUAL BTTC100BK NEDIS

connection to stream audio

BTTC100BK

EN Quick start guide 5
DE Kurzanleitung 8
FR Guide de démarrage rapide 11
NL Verkorte handleiding 14
IT Guida rapida all'avvio 18
ES Guia de inicio=rápido 21
PT Guia de iniciação rápida 25
SV Snabbstartsguide 28
FI Pika-aloitusopas 31
NO Hurtigguide 34
DA Vejledning til hurtig start 37
HU Gyors beüzemelési utmutató 40
PL Przewodnik Szybki start 44
EL O8nyoc ypnyopnc EKKivnoon 47
SK Rychly námod 51
CS Rychly námod 54
RO Ghid rapid de initiere 57

A

B

C

Bluetooth Transmitter Receiver

BTTC100BK

For more information see the extended manual online:ned.is/bttc100bk

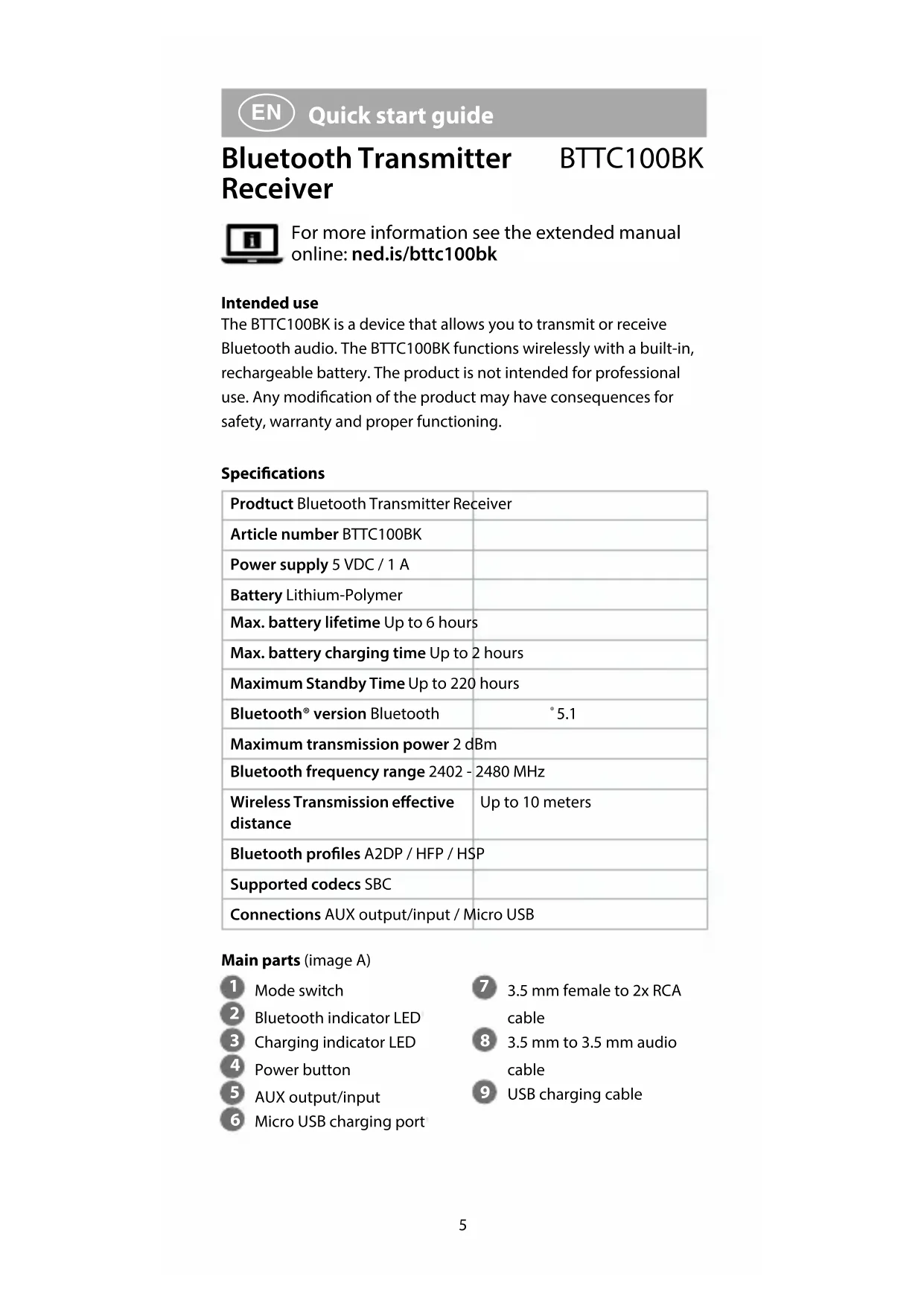

Intended use

The BTTC100BK is a device that allows you to transmit or receive Bluetooth audio. The BTTC100BK functions wirelessly with a built-in, rechargeable battery. The product is not intended for professional use. Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Bluetooth Transmitter Receiver
Article number BTTC100BK
Power supply 5 VDC / 1 A
Battery Lithium-Polymer
Max. battery lifetime Up to 6 hours
Max. battery charging time Up to 2 hours
Maximum Standby Time Up to 220 hours
Bluetooth® version Bluetooth	*5.1
Maximum transmission power 2 dBm
Bluetooth frequency range 2402 - 2480 MHz
Wireless Transmission effective distance	Up to 10 meters
Bluetooth profiles A2DP / HFP / HSP
Supported codesc SBC
Connections AUX output/output / Micro USB

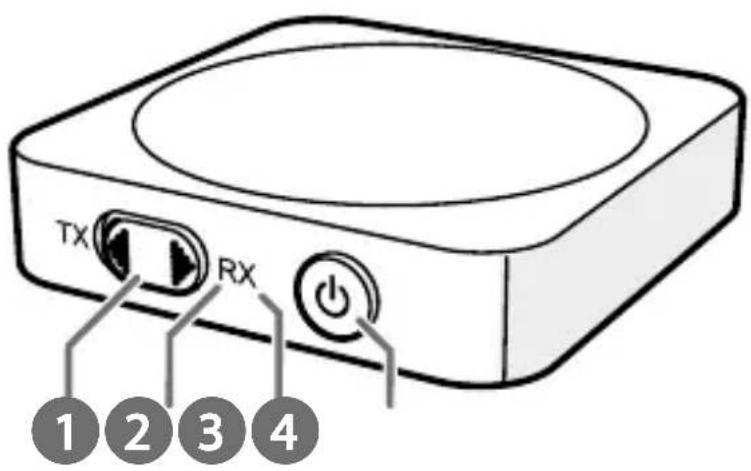

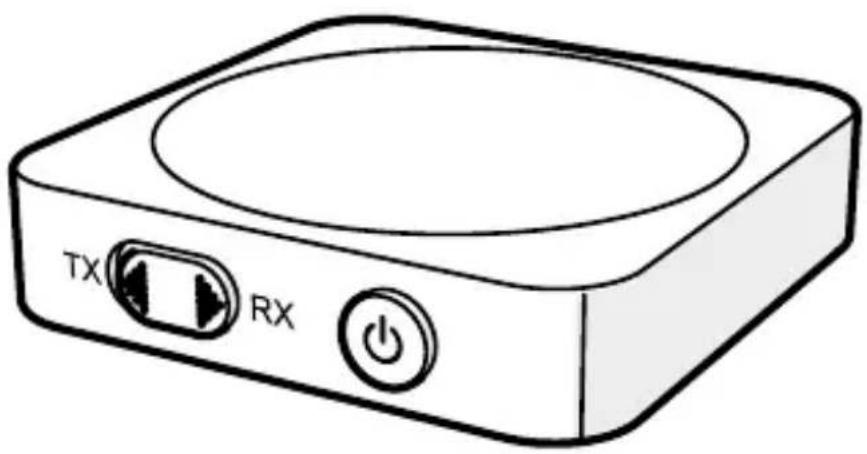

Main parts (image A)

1 Mode switch
2 Bluetooth indicator LED
3 Charging indicator LED
4 Power button

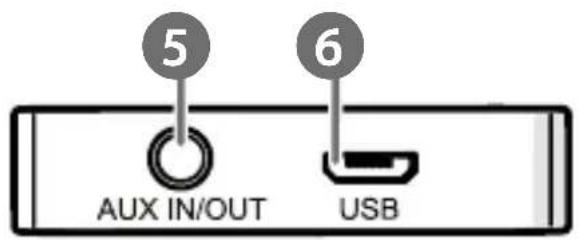

5 AUX output/output
Micro USB charging port

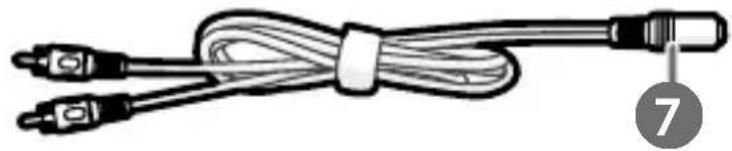

3.5 mm female to 2x RCA cable
8 3.5 mm to 3.5 mm audio cable

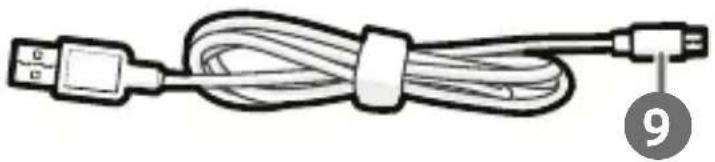

9 USB charging cable

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Disconnect the product from the power source and other equipment if problems occur.
• Do not expose the product to water or moisture.
• Do not dismantle, open or shred secondary cells or batteries.
• Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight.
• Retain the original product literature for future reference.
• Do not leave a battery on prolonged charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance.
• Batteries contain explosive gases. Prevent contact with flames and sparks. Provide adequate ventilation during charging.
• Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
• Read the manual carefully before use. Keep the manual for future reference.

Charging the product

1. Connect A 9 to A 6
2. Plug the other end of A 9 into a 5V/1A USB adapter (not provided).
3. Plug the USB adapter into a power outlet.

A ③ lights up to indicate that the product is charging.

A ③ switches off when the battery is fully charged.

Switching the product on/off

1. Press and hold A 4 for 3 seconds to switch the product on or off.

The product automatically switches off when it is not paired within 5 minutes.

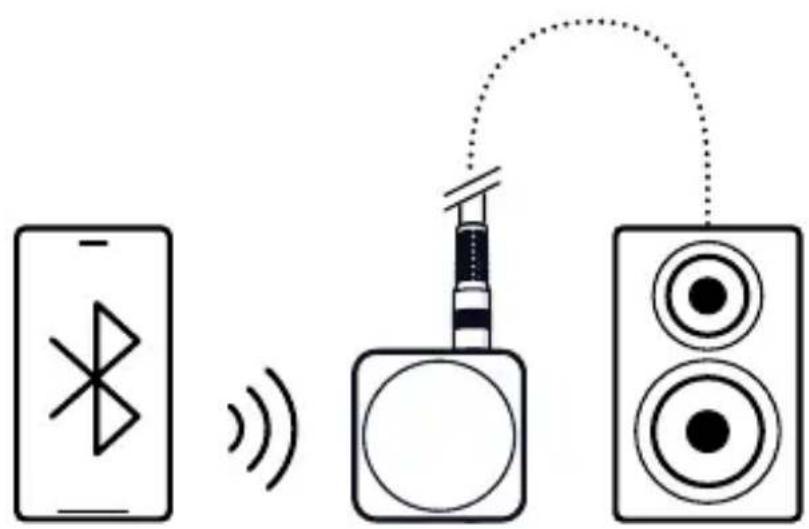

Receiver mode (image B)

1. Set the mode switch A ① to RX.

2. Plug the 3.5mm to 3.5mm audio cable A ⑧ into the aux output/ input A ⑤.

3. Plug the other end of A 8 into the audio device. You can also connect an audio device with the 3.5mm female to 2× RCA cable A7.

4. Switch on the product.

A② flashes quickly.

1. Enable Bluetooth on the device you want to pair.

2. Select "BTTC100BK" from the list of available Bluetooth devices on your device.

A② flashes slowly to indicate pairing is successful.

1. Press A 4 to play or pause music.

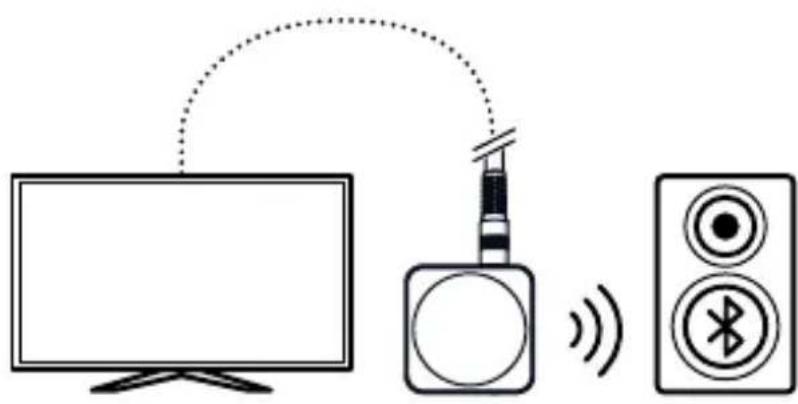

Transmitter mode (image C)

1. Set A ① to TX.
2. Plug A 8 into A5
3. Plug the other end of A 8 into your audio source.

You can also connect an audio device with the 3.5mm female to 2× RCA cable A7.

1. Switch on the product.
   A② flashes quickly.
2. Keep your Bluetooth audio device within range and switched on.

Pairing time will vary depending on the device used.

A5 flashes slowly to indicate pairing is successful.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product BTTC100BK from our brand Nedis, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

webshop.nedis.com/BTTC100BK#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands

5215 MC 's-Hertogenbosch, the Netherlands

5215 MC 's-Hertogenbosch, the Netherlands
