Intended use
The Nedis AAMP2411BK is a pre-amplifier that you can use to connect an (extra) turntable to your speakers.
The product is intended for indoor use only.
The product is not intended for professional use.
Any modification of the product may have consequences for safety, warranty and proper functioning.
Specifications
| Product Pre-Amplifier | |
| Article number AAMP2411BK | |
| Input impedance 47 KΩ / 220 pf | |
| RIAA deviation response ± 0.5 dB | |
| THD < 0.5 % | |
| Input sensitivity 3.0 mV | |
| Input overload margin 20 dB | |
| Nominal output 300 mV | |
| Maximum output power 1.8 V / 1 KHz | |
| Signal / noise ratio > 85 dB | |
| Output impedance 1 KΩ | |
| Connections 1 RCA input | 1 RCA output |
| Power input 12 VDC; 0.5 A |

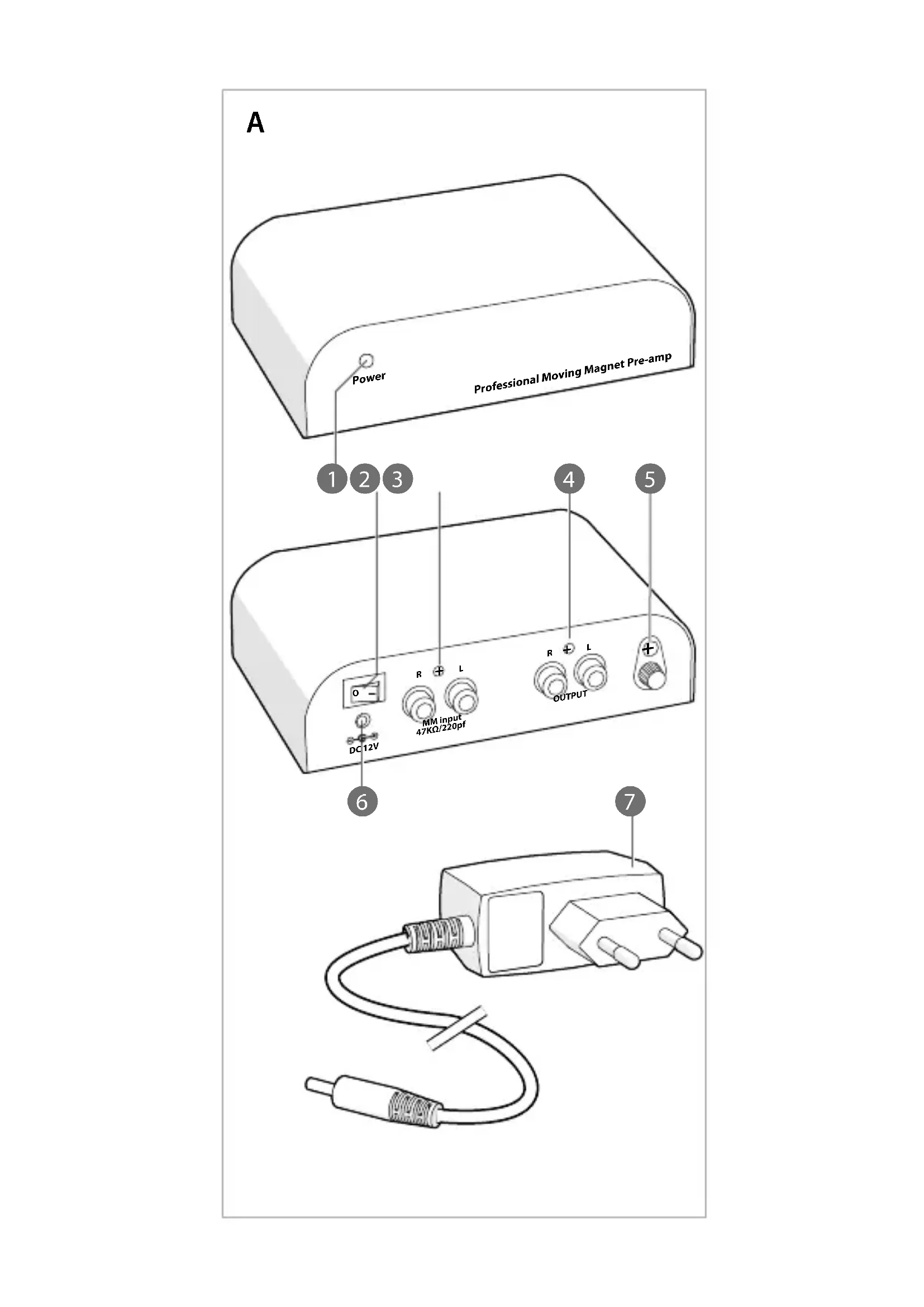

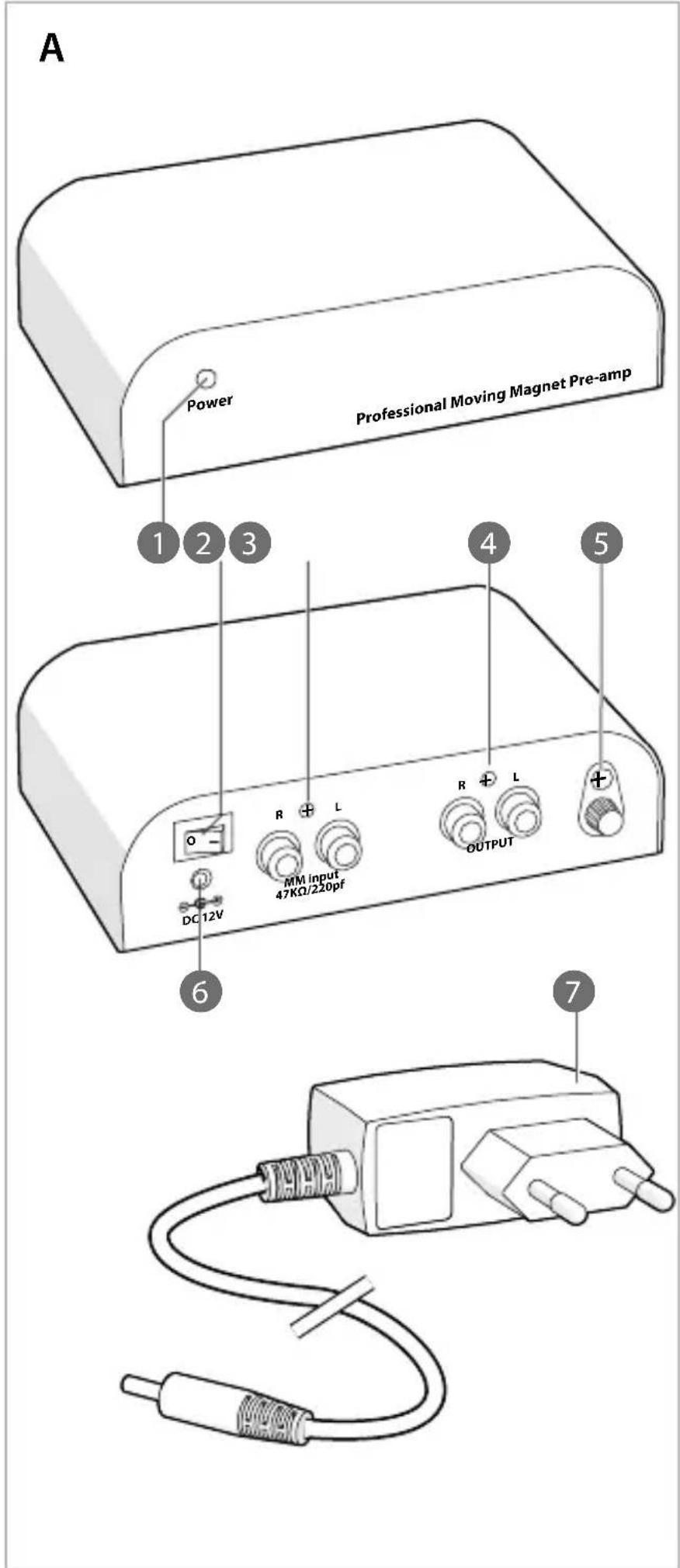

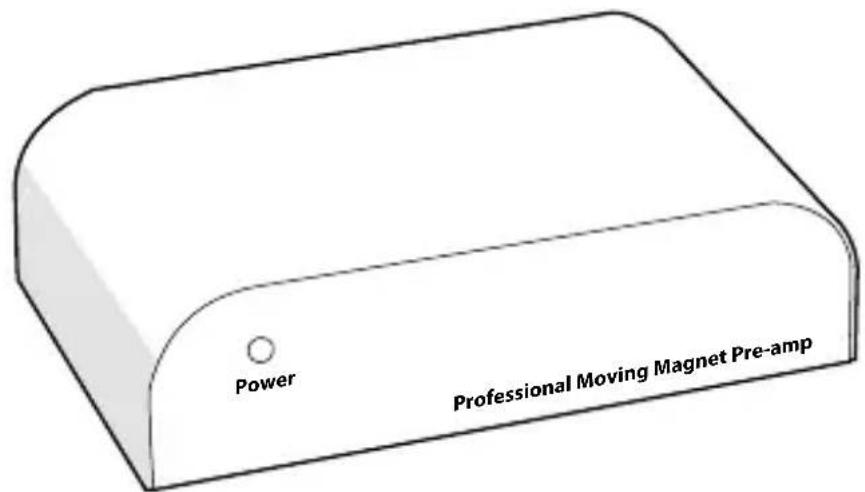

Main parts (image A)
Power indicator LED
Power switch
3 RCA input
4 RCA output
Ground wheel
Power input
7 Power adapter
Safety instructions
WARNING
- Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.
- Only use the product as described in this document.
- Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
- Do not drop the product and avoid bumping.
- This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
- Do not expose the product to water or moisture.
Using the ground wheel
- Check if your turntable got a built-in amplifier.
If you have got a built-in amplifier, you do not have to use the ground wheel A5, but if you want to use the pre-amplifier, switch off your built-in amplifier.
Follow these steps to connect earth to ground:
not use any tools.
- Turn A5 counter clockwise.
- Insert a ground cable (not included) from your turntable into A5.
- Turn A5 clockwise to fix A5 back in place.
Connecting the product
Make sure all the devices are switched off before connecting the product.
- Plug a turntable into the RCA input A 3 using a twin RCA cable (not included).
- Plug the speakers into the RCA output A using a twin RCA cable (not included).
- Plug the power adapter A7 into the power input A 6.
- Plug the power adapter into a power outlet.
Using the product
- Use the power switch A ② to switch the product on or off. The power indicator LED A ① lights up.
