Product type	Bluetooth receiver
Brand	Nedis
Model	BTRC100BK
Power supply	5 V DC via USB port (cable included, AC adapter optional)
Audio connector	3.5 mm stereo jack
Bluetooth range	Up to 10 meters
Pairing memory	Up to 8 devices
Indicator light	LED: flashes when waiting, steady when connected
Dimensions (approx.)	5 cm x 5 cm x 2 cm
Weight (approx.)	30 g
Main functions	Bluetooth audio reception, wired transmission to speaker/amp, automatic pairing
Care and cleaning	Clean with a dry cloth; do not use solvents or abrasive products
Safety	Do not modify the product; any alteration voids the warranty
Warranty	Warranty voided if modified or used incorrectly

Frequently Asked Questions - BTRC100BK NEDIS

How to pair the BTRC100BK with my phone?

Enable Bluetooth on your phone, search for devices and select "music receiver". The LED flashes during pairing. Once connected, the LED stays on continuously.

What is the Bluetooth range of the receiver?

The range is approximately 10 meters in open field. Obstacles (walls, furniture) may reduce the range.

Can I connect multiple devices at the same time?

No, the BTRC100BK only connects to one device at a time. However, it remembers up to 8 devices for quick pairing.

What does the LED flashing every 5 seconds mean?

The flashing indicates that the receiver is in pairing mode or waiting for connection. Once connected, the light stays steady.

No sound comes from my speakers, what should I do?

Check that the receiver is powered (LED on), the audio cable is properly connected to your amp/speaker input, the volume is adequate, both devices are within 10 m, and the Bluetooth on your source is enabled.

How to clean the Nedis BTRC100BK receiver?

Use a soft, dry cloth. Never use solvents, alcohol, or abrasive products that could damage the casing.

Can I use the BTRC100BK as a Bluetooth transmitter?

The BTRC100BK is a Bluetooth receiver designed to receive audio signal from a source device (phone, tablet) and transmit it to a wired audio system. It cannot function as a transmitter.

What type of audio cable is supplied with the receiver?

The receiver comes with a 3.5 mm male-to-male audio cable to connect the receiver to your amplifier or speaker.

How to reset the receiver to factory settings?

There is no specific reset function. You can simply forget the device in your source's Bluetooth settings and re-pair it.

Is the receiver compatible with all Bluetooth devices?

Yes, the BTRC100BK is compatible with most standard Bluetooth devices (smartphones, tablets, computers). Ensure your source supports the A2DP profile for stereo music.

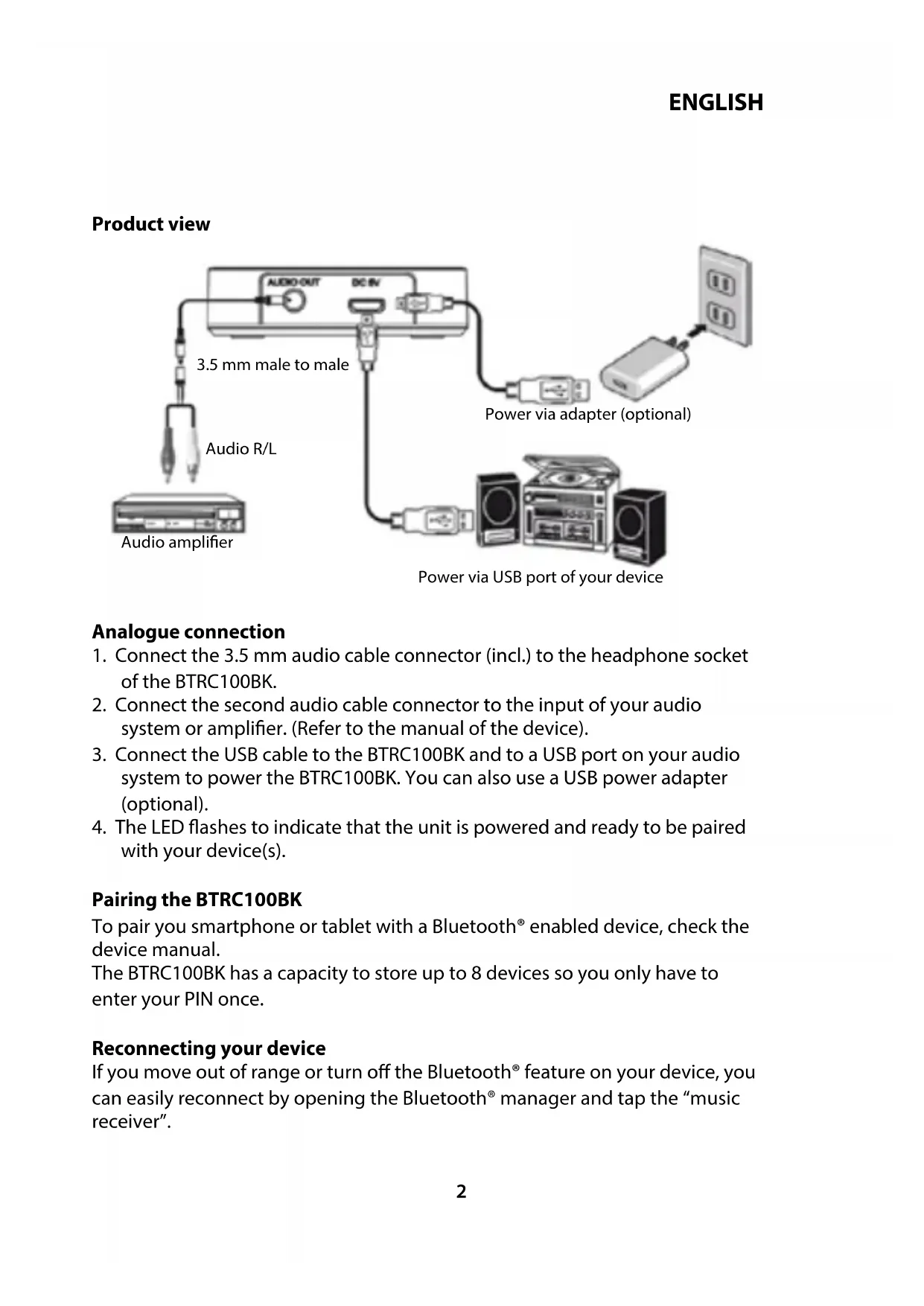

USER MANUAL BTRC100BK NEDIS

AUDIO-OUT DC IN 3.5 mm male to male Audio R/L Power via adapter (optional) Audio amplifier

Power via USB port of your device

Analogue connection

1. Connect the 3.5 mm audio cable connector (incl.) to the headphone socket of the BTRC100BK.
2. Connect the second audio cable connector to the input of your audio system or amplifier. (Refer to the manual of the device).
3. Connect the USB cable to the BTRC100BK and to a USB port on your audio system to power the BTRC100BK. You can also use a USB power adapter (optional).
4. The LED flashes to indicate that the unit is powered and ready to be paired with your device(s).

Pairing the BTRC100BK

To pair you smartphone or tablet with a Bluetooth® enabled device, check the device manual.

The BTRC100BK has a capacity to store up to 8 devices so you only have to enter your PIN once.

Reconnecting your device

If you move out of range or turn off the Bluetooth® feature on your device, you can easily reconnect by opening the Bluetooth® manager and tap the “music receiver”.

A connection is automatically established if the BTRC100BK is powered. If you want to switch from one device to another, follow the steps below:

1. End the existing Bluetooth ^® connection.
2. The BTRC100BK is now ready to be connected to another device.
3. Follow the instructions "Pairing the BTRC100BK" to connect the new device.

LED indication

Indication Meaning Description
Flash every 5 seconds Pairing	Searching the	device in pairing mode/waiting for a connection
Constantly switched on Connected BTRC100		BK and device are connected

Troubleshooting

If you do not hear any sound coming from your speakers, check the following:

• make sure the BTRC100BK is powered;
• make sure the audio cable is properly connected to the BTRC100BK;
• make sure the volume is correctly set;
• make sure the devices are at a maximum distance of 10 metres of the audio transmitter;
• make sure the Bluetooth® function on your device is activated;
• make sure that there is music playing on your device.

Maintenance:

Clean the product only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies to all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to:

Declaration of Conformity (and product identity), Material Safety Data Sheet, product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

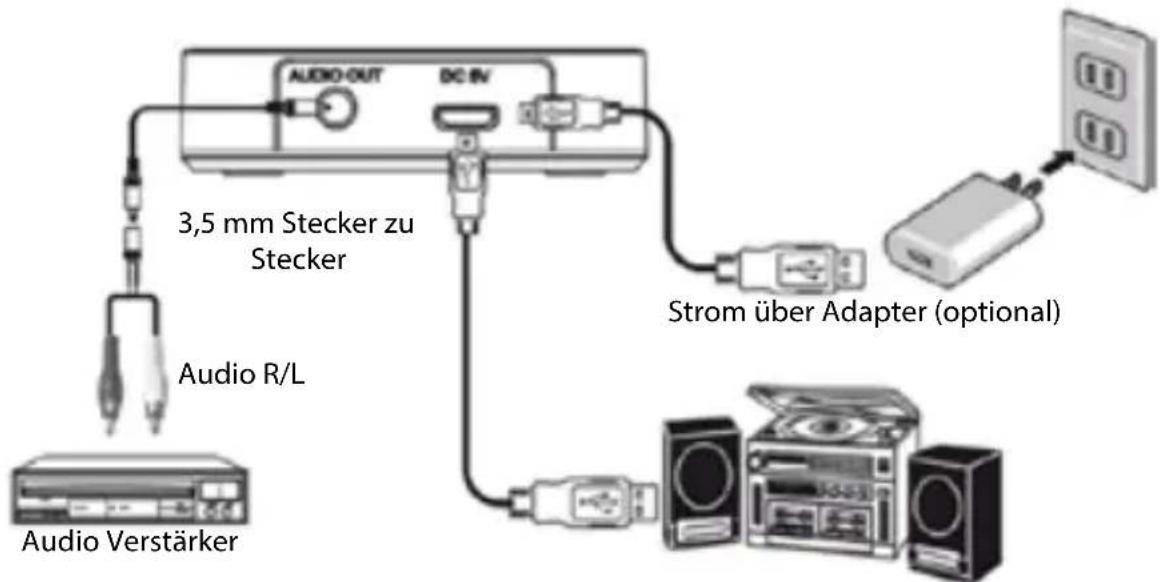

Produktansicht

AUDIO OUT DC IN 3,5 mm Stecker zu Stecker Audio R/L Strom über Adapter (optional) Audio Verstärker
