USER MANUAL HG03601 FLORABEST

Assembly, operating and safety instructions

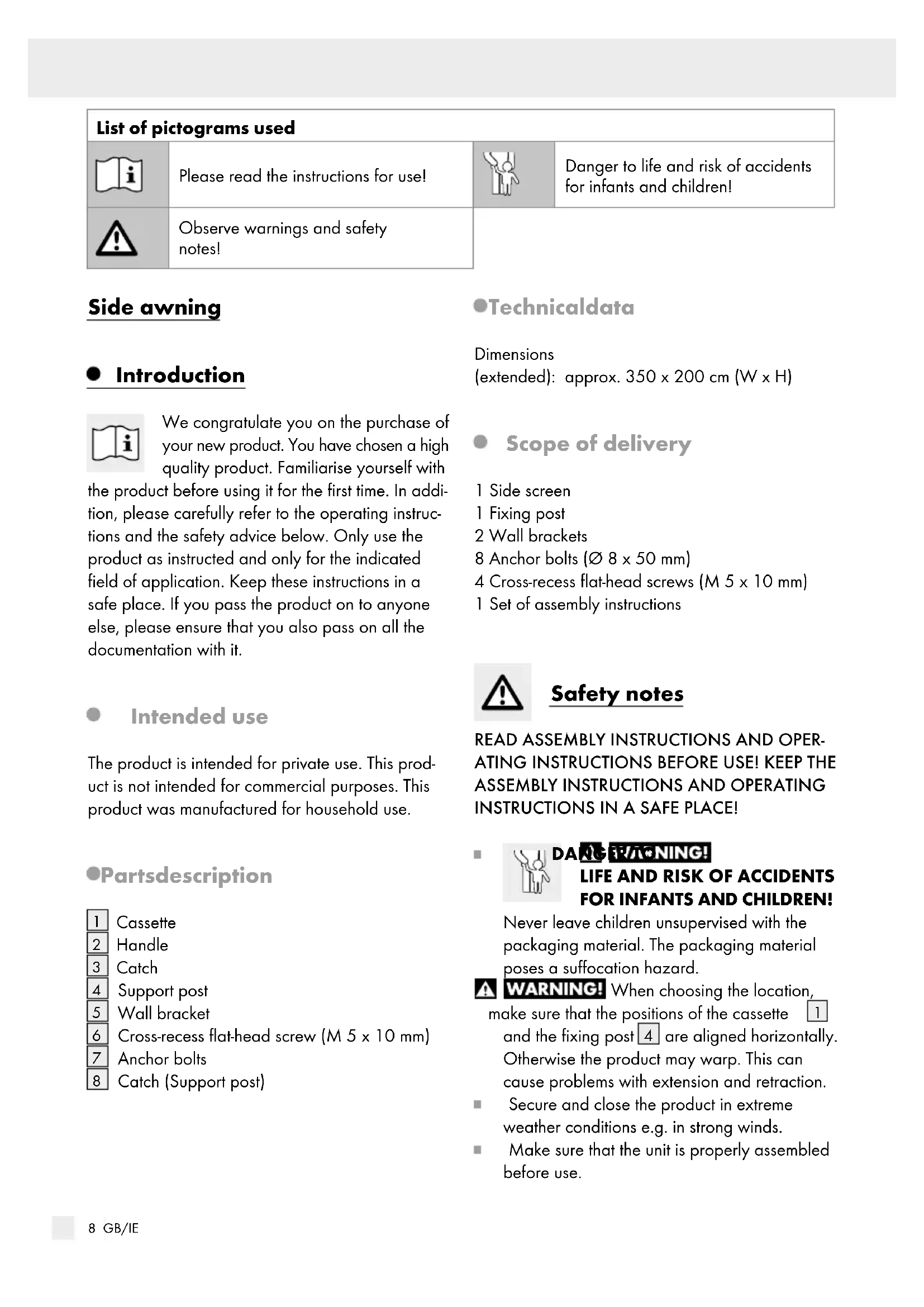

our new product. You have chosen a high quality product. Familiarise yourself with the product before using it for the first time. In addi- tion, please carefully refer to the operating instruc- tions and the safety advice below. Only use the product as instructed and only for the indicated field of application. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Intended use The product is intended for private use. This prod- uct is not intended for commercial purposes. This product was manufactured for household use. Parts description

Catch (Support post) Technical data Dimensions (extended): approx. 350 x 200 cm (W x H) Scope of delivery 1 Side screen 1 Fixing post 2 Wall brackets 8 Anchor bolts (Ø 8 x 50 mm) 4 Cross-recess flat-head screws (M 5 x 10 mm) 1 Set of assembly instructions Safety notes

READ ASSEMBLY INSTRUCTIONS AND OPER-

ATING INSTRUCTIONS BEFORE USE! KEEP THE

FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. When choosing the location, make sure that the positions of the cassette

are aligned horizontally. Otherwise the product may warp. This can cause problems with extension and retraction. Secure and close the product in extreme weather conditions e.g. in strong winds. Make sure that the unit is properly assembled before use.9 GB/IE Place the product on a solid, level surface. This product is not a toy and should only be used under adult supervision. Check the product for damage or wear before every use. Never use the product close to an open flame. We recommend that two people assemble the

roduct to avoid injury or damage to the product. Do not let go of the handle

after you have released it from the fixing post

. Only release it when the screen is securely in the cassette

Carelessly letting go of the handle

can cause damage and/or injury. The product can be damaged if used in frost. No maintenance work necessary. Wind resistance class 1 = Beaufort wind scale 4 = 20‒27 Km / h (branches move, loose paper is lifted from the ground) Assembly Use a cross-head screwdriver to attach the wall brackets

to the product using the screws

(see Fig. A). Choose a suitable installation area on a wall and mark four holes for the brackets

Make 5 cm deep holes at the marked points using a drill (see Fig. B). Important: Make sure that the anchor bolts are suitable for the material used. If they are not, enquire about suitable anchor bolts at a hardware store. Attach the product to the wall by driving the anchor bolts

into the drilled holes using a hammer. Securely tighten the anchor bolts

using a spanner. Choose a suitable installation area on the floor and mark four holes for the fixing post

choosing the location, make sure that the posi- tions of the cassette

are aligned horizontally. The fixing post

e installed at a maximum of 350 cm away from the cassette

. Make 5 cm deep holes at the marked points using a drill (Ø 8 mm) (see Fig. C). Secure the fixing post

by driving the anchor bolts

into the drilled holes using a hammer. Securely tighten the anchor bolts

and pull it to the fixing post

) into the recess provided on the fixing post

Insert it into the catch

on the fixing post. Closing the screen (see Fig. D) Hold the handle

, pull it back, and lift it. Follow the groove to disconnect the handle

and move it back to the cassette

slowly and horizontally. The fabric will retract into the cas- sette
