USER MANUAL HG06102 FLORABEST

Assembly, operating and safety instructions

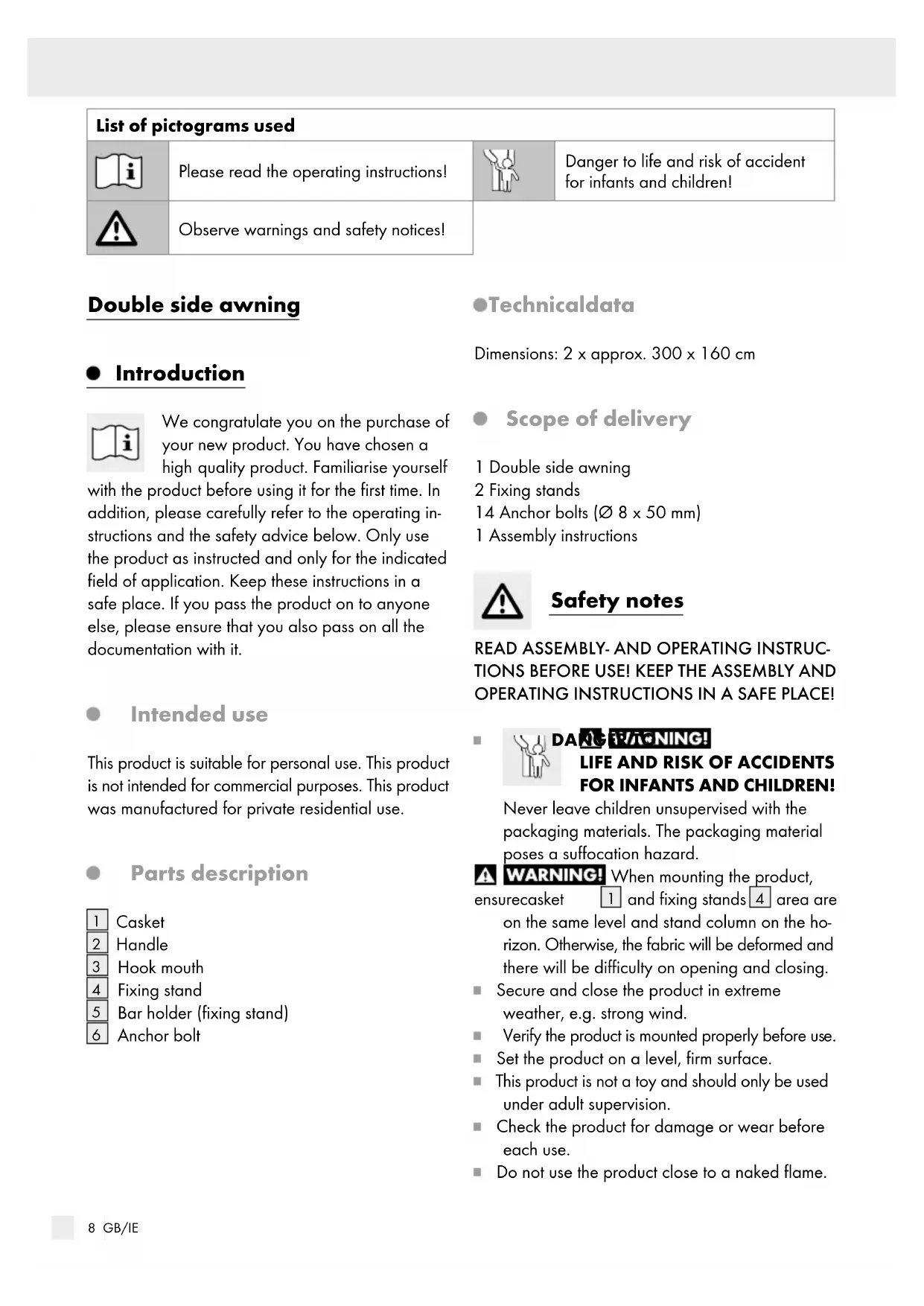

Anchor bolt Technical data Dimensions: 2 x approx. 300 x 160 cm Scope of delivery 1 Double side awning 2 Fixing stands 14 Anchor bolts (Ø 8 x 50 mm) 1 Assembly instructions Safety notes

FOR INFANTS AND CHILDREN! Never leave children unsupervised with the packaging materials. The packaging material poses a suffocation hazard. When mounting the product, ensure casket

area are on the same level and stand column on the ho- rizon. Otherwise, the fabric will be deformed and there will be difficulty on opening and closing. Secure and close the product in extreme weather, e.g. strong wind. Verify the product is mounted properly before us

Set the product on a level, firm surface. This product is not a toy and should only be used under adult supervision. Check the product for damage or wear before each use. Do not use the product close to a naked flame.9 GB/IE We recommend that two persons assemble the product together in order to avoid injuries or damage to people or the product. Do not release handle

after removing from stand

, until it is fixed in the casket

without attention may result in damage and / or injury. The operation in frosty conditions may damage the product. There is no maintenance required by the user. Wind resistance class 1 = wind beaufort scale 4 = 20–27 km / h (small branches start to move, loose paper is lifted) Assembly instructions First locate a suitable installation position on the ground and mark six hole positions of the casket

(see fig. A). Drill 5-centimeter-deep holes in the marked places with a broach which has a diameter of 8 millimeters (see fig. B). Important: Make sure before locating anchor bolts

are suitable for surface type. If not suit- able, consult your local hardware or DIY store. Fix the product on the ground with the anchor bolts

by hammering them into the pre-drilled holes with a hammer (see fig. C). Tighten the anchor bolts

with a wrench. Locate the fixing stand

are at same level and aligned. Fixing stand

can be mounted at max. 300 cm from casket

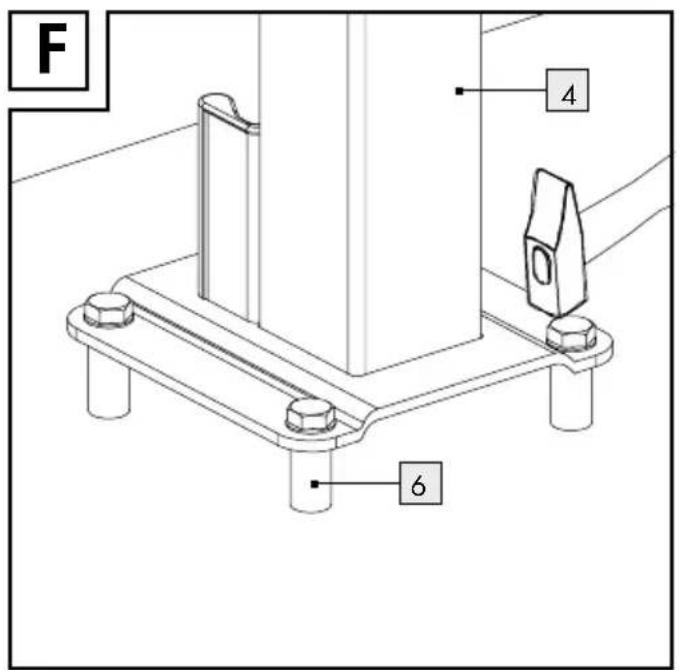

(see fig. D). Mark the fixing stand holes and drill 5-centimeter- deep holes in the marked places with a broach which has a diameter of 8 millimeters (see fig. E). Fix the stand

with the anchor bolts

hammering them into the pre-drilled holes with a hammer (see fig. F). Tighten the anchor bolts

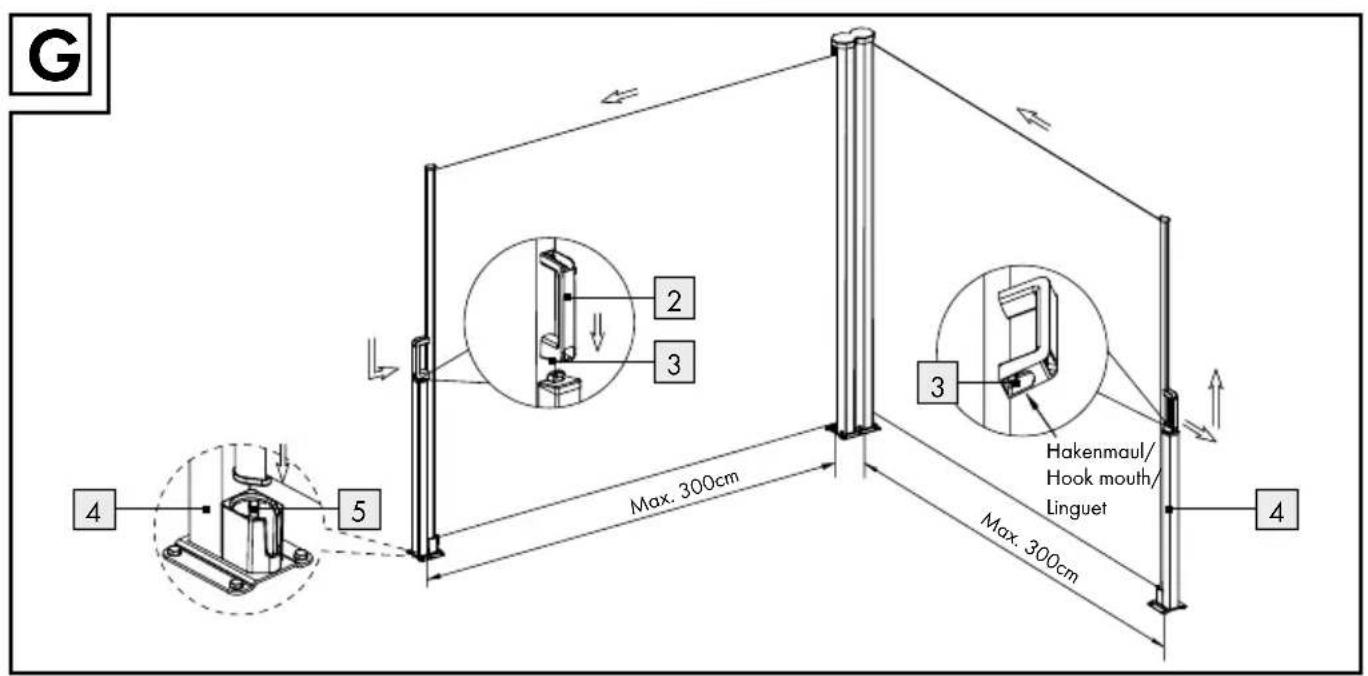

with a wrench. Opening awning (see fig. G) Hold the handle

and walk to the fixing stand

Insert the front bar into the bar holder

(bottom of stand). Closing awning Hold the handle

and pull back a little bit (There is a groove to lock the handle

, so it is hard to pull up directly.) and lift up. Grasp the handle

and walk to the casket

slowly and horizontally. The fabric will draw back itself into the casket
