IAN 332814 - Outdoor blind FLORABEST - Free user manual and instructions

Product type	Fan-shaped privacy screen (outdoor awning)
Brand	Florabest
Model	IAN 332814
Dimensions (H x D)	Approx. 140 x 140 cm
Material	Polyester (estimated)
Wind resistance class	Class 2 (up to 28 km/h)
Intended use	Privacy protection outdoors (balcony, terrace), private use
Scope of delivery	Fan-shaped privacy screen (1), protective cover (1), instruction manual
Assembly	Wall mounting, requires drill and suitable mounting hardware (not included)
Safety	Do not leave children unattended, do not use in strong wind (>28 km/h), risk of finger crushing
Care and cleaning	Clean with a damp cloth, do not use harsh chemicals; air dry before storing
Storage	Store in a dry, protected place, use the protective cover
Warranty	3 years from date of purchase
After-sales service	Belgium: 070 270 171 (€0.15/min), email: [e-mail]
Spare parts	Available during the warranty period (according to manual)
Manufacturing date	01/2020

Frequently Asked Questions - IAN 332814 FLORABEST

What are the dimensions of the Florabest IAN 332814 privacy screen?

Dimensions are approximately 140 cm height and 140 cm depth (H x D).

How to assemble the Florabest IAN 332814 outdoor awning?

Assembly is done by wall mounting. You need to drill 4 holes with a spacing of 53 mm horizontally and 48 mm vertically. Use a drill, tape measure, and a screwdriver or wrench. Fixing materials (plugs, screws) are not included.

Can I use the privacy screen in windy weather?

Yes, but only up to a wind speed of 28 km/h (wind resistance class 2). Beyond that, you must close it and put on the protective cover.

How to clean the fan-shaped privacy screen?

Clean it with a damp cloth and wipe it dry. Never use harsh cleaning products. Let it dry completely before storing.

Is the awning suitable for children?

No, it is not a toy or climbing equipment. Never leave children unattended with the packaging or the article. There is a risk of finger crushing when opening/closing.

Is the protective cover included?

Yes, a protective cover is supplied with the privacy screen. It serves to protect the article when not in use or in bad weather.

What is the warranty on the Florabest IAN 332814?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects. Keep the receipt.

How to contact after-sales service in Belgium?

By phone at 070 270 171 (€0.15/min) or by email at [e-mail].

Can I use the privacy screen for commercial use?

No, the article is designed only for private use, for example on a balcony or terrace.

What is the material of the privacy screen?

The exact material is not specified, but it is likely polyester or a similar UV-resistant fabric.

USER MANUAL IAN 332814 FLORABEST

Black fabric tent with triangular frame and small metal bracket at bottom (no text or symbols)

PDF ONLINE www.lidl-service.com

BALCONY/PATIO SIDE AWNING

GB IE NI

BALCONY/PATIO SIDE AWNING

Instructions for use

FR BE

PANNEAU OCCULTANT

Illustration of five different types of tools and objects: a male gender figure, a tool, a screwdriver, a flat screwdriver, and a wrench (no text or symbols present)

A 1 2

B 53 mm 48 mm 1a >140 cm + 15 cm >140 cm

c 1a

D 1a

E

2 2a 1

GB IE NI

IMPORTANT: RETAIN FOR LATER REFERENCE; PLEASE READ CAREFULLY!

DK

VIGTIG, GEM TIL SENERE BRUG: SKAL LÆSES GRUNDIGT!

FR BE

IMPORTANT. LIRE ATTENTIVEMENT! A CONSERVER POUR RÉFÉRENCE ULTÉRIEURE.

NL BE

BELANGRIJK, BEWAREN OM LATER TE KUNNEN NASLAAN; ZORGVULDIG LEZEN!

DE AT CH

WICHTIG, FÜR SPÄTERE BEZUGNAHME AUFBEWAHREN: SORGFÄLTIG LESEN!

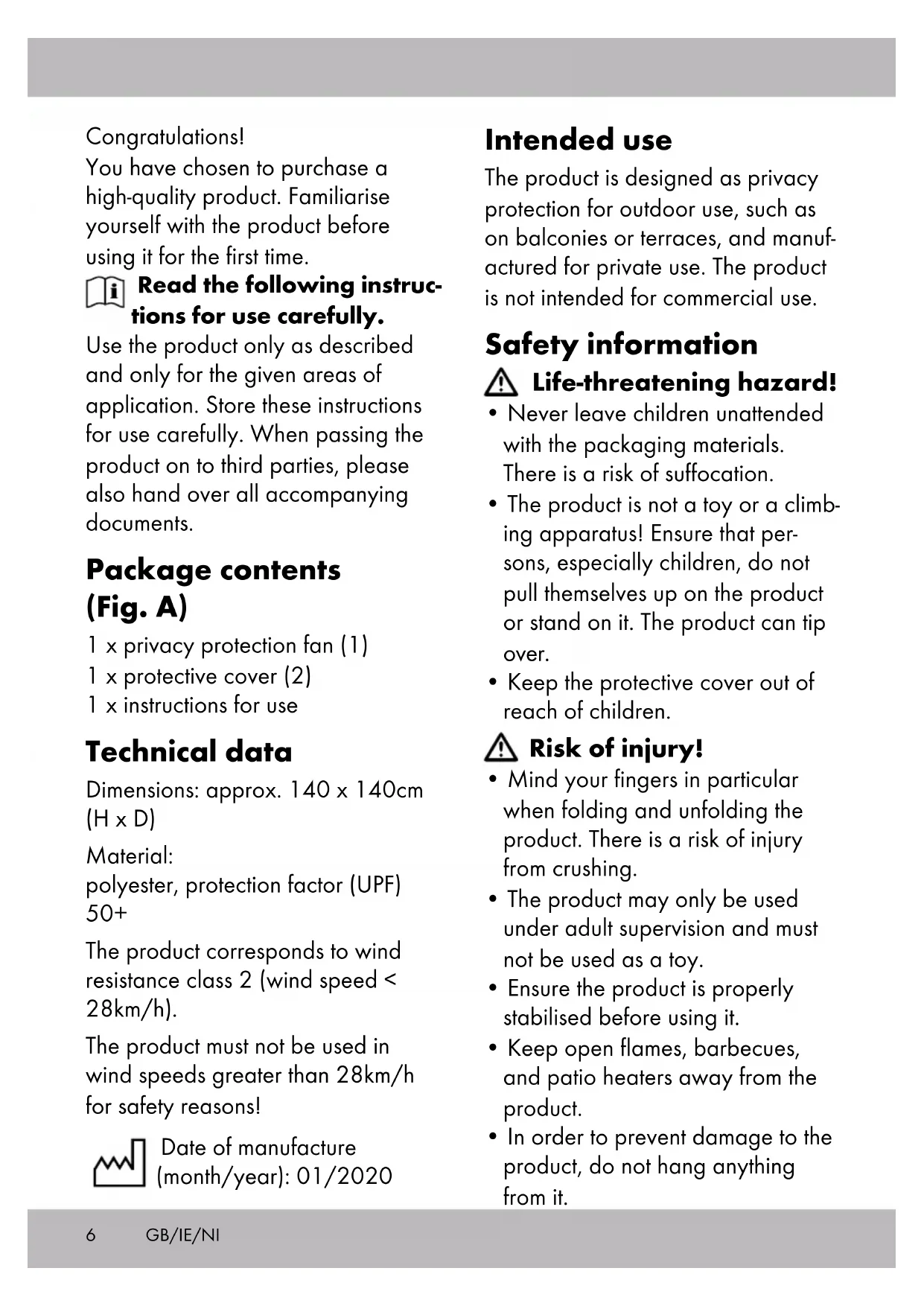

Congratulations!

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

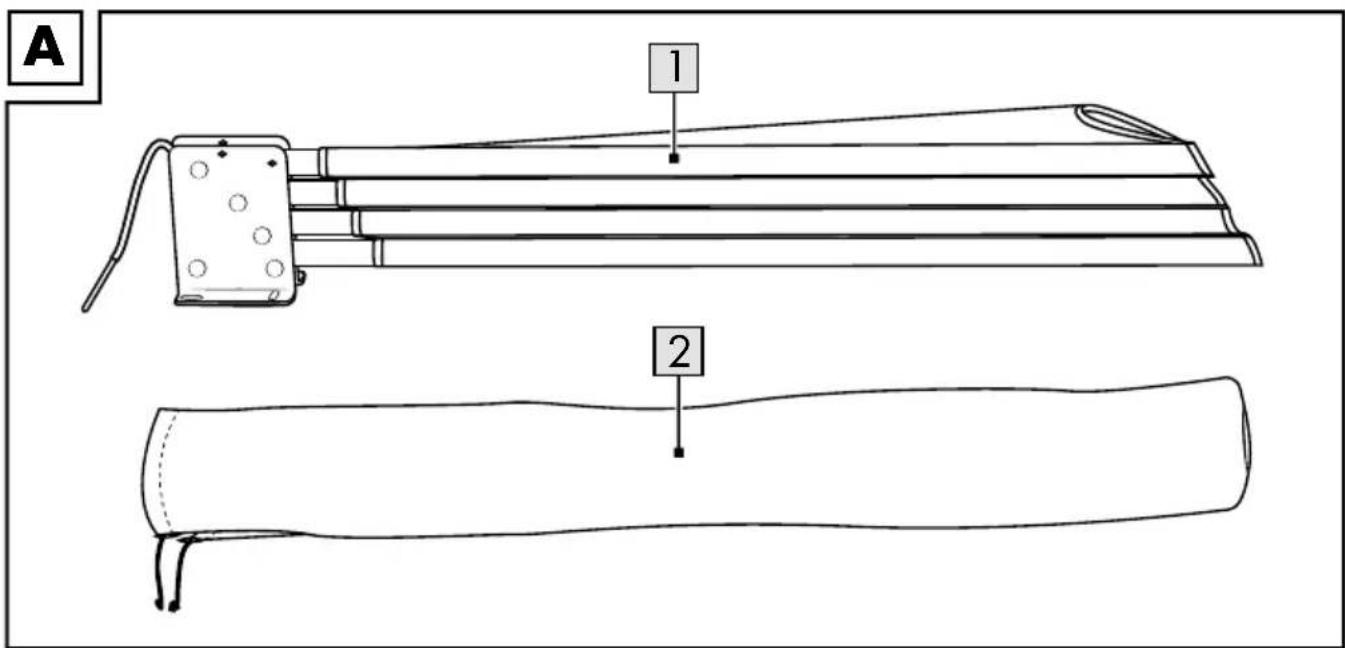

Package contents (Fig. A)

1 x privacy protection fan (1)
1 x protective cover (2)
1 x instructions for use

Technical data

Dimensions: approx. 140 x 140cm (H x D)

Material:

polyester, protection factor (UPF) 50+

The product corresponds to wind resistance class 2 (wind speed < 28km/h).

The product must not be used in wind speeds greater than 28km/h for safety reasons!

Date of manufacture

(month/year): 01/2020

Intended use

The product is designed as privacy protection for outdoor use, such as on balconies or terraces, and manufactured for private use. The product is not intended for commercial use.

Safety information

Life-threatening hazard!

• Never leave children unattended with the packaging materials. There is a risk of suffocation.
• The product is not a toy or a climbing apparatus! Ensure that persons, especially children, do not pull themselves up on the product or stand on it. The product can tip over.
• Keep the protective cover out of reach of children.

Risk of injury!

• Mind your fingers in particular when folding and unfolding the product. There is a risk of injury from crushing.
• The product may only be used under adult supervision and must not be used as a toy.
• Ensure the product is properly stabilised before using it.
• Keep open flames, barbecues, and patio heaters away from the product.

• In order to prevent damage to the product, do not hang anything from it.

• Check that the product has been properly assembled before each use. Improper assembly can impair the product's safety and functionality.

• The product must not be used in adverse weather conditions such as strong winds, rain or snow.
• Fold up the product if wind speeds higher than 28km/h are expected (strong breeze, larger branches and trees move, and the wind is clearly audible).
• Pull the protective cover over the product if the wind picks up or in other adverse weather conditions.
• Never use the product as shelter during storms.
• Before opening or closing the product, ensure that there are no persons or objects in the opening or closing areas.
• Check the product for damage or wear before each use.

The product may only be used if it is in perfect condition!

Preventing damage to the product!

• Secure the product during extreme weather conditions, e.g. strong wind. Store the product in a sheltered area.
• Check the product regularly for visible signs of wear and damage. Check the screwed connections regularly.

Important pre- installation information

WARNING! Before you start installing the product, measure the height and depth.

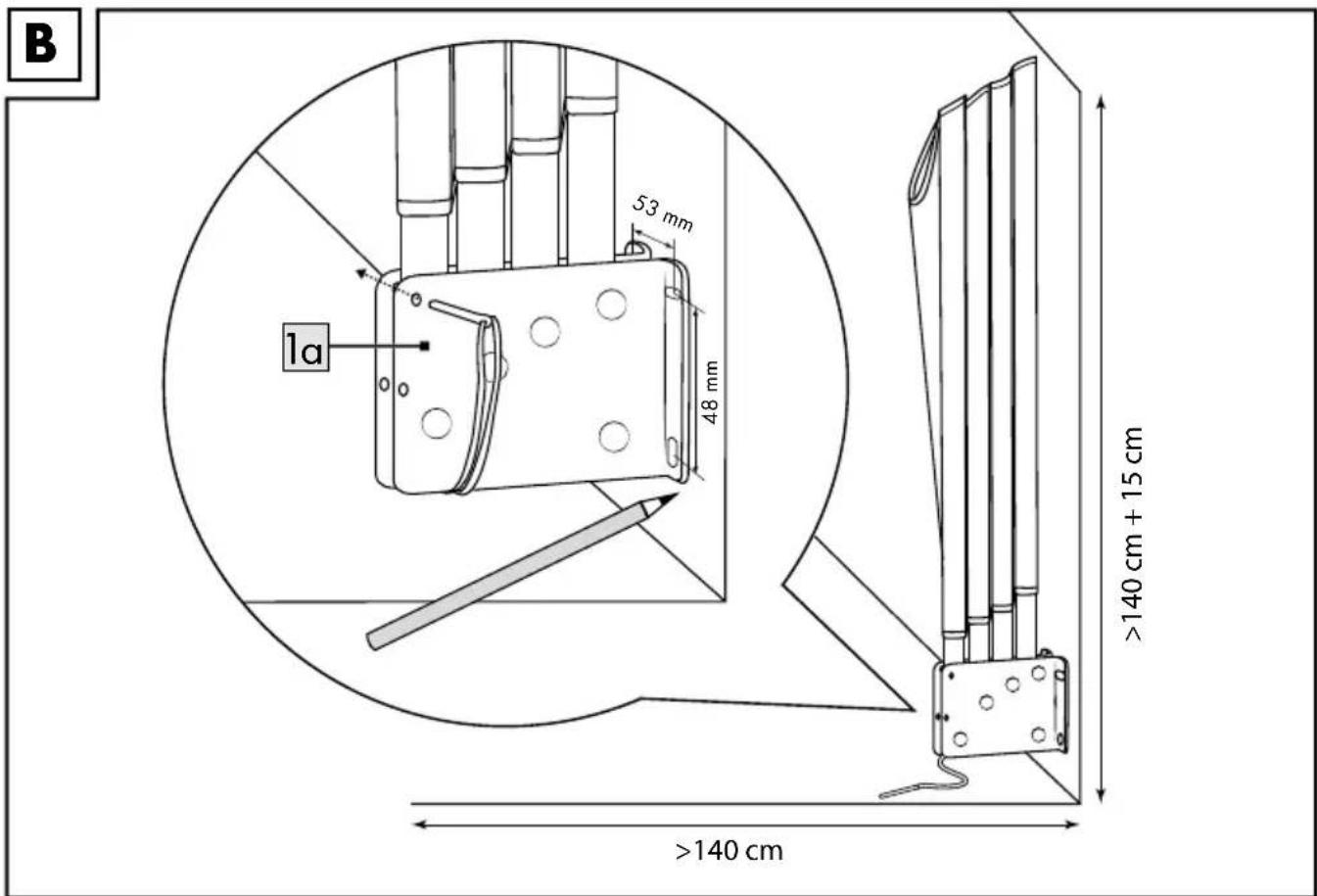

IMPORTANT! Ensure a minimum distance of 140cm in depth and 140cm + 15cm in height in the installation area so that you can pull the protective cover over the product (Fig. B).

WARNING! Assembling the product requires at least two people due to its size.

WARNING! As tools/machinery need to be used, manual skills are indispensable.

Suitable installation site

Masonry or a load-bearing timber beam ceiling are suitable for wall installation.

Note: alternative installation conditions require inspection of load-bearing capacity and durability by a specialist.

Suitable installation materials

Before installing the product, the installation material must be determined.

If the installation surface is load-bearing, the appropriate installation materials for fastening the product must be selected.

Note: ask your local dealer about which mounting materials (wall plugs and screws) to use for your masonry.

Assembly

To assemble the product you will need the following tools (not included in the package contents): a suitable drill, measuring tape, and a screwdriver or spanner.

1. Remove the protective cover (2).
2. Place the product (1) in the desired position and mark four holes with a pencil (Fig. B).

Note: for easier assembly, fold the product up and insert the locking pin (1a) into the top hole.

1. Use the corresponding tool to drill four holes into the marked points (Fig. B).

IMPORTANT! Ensure a distance of 53mm between the horizontal holes and 48mm between the vertical holes.

1. When installing the product on masonry, insert one wall plug (not included in the package contents) into each hole.

2. Mount the product onto the wall with suitable mounting materials (not included in the package contents).

Use

1. Remove the locking pin (1a) and fold the product out.

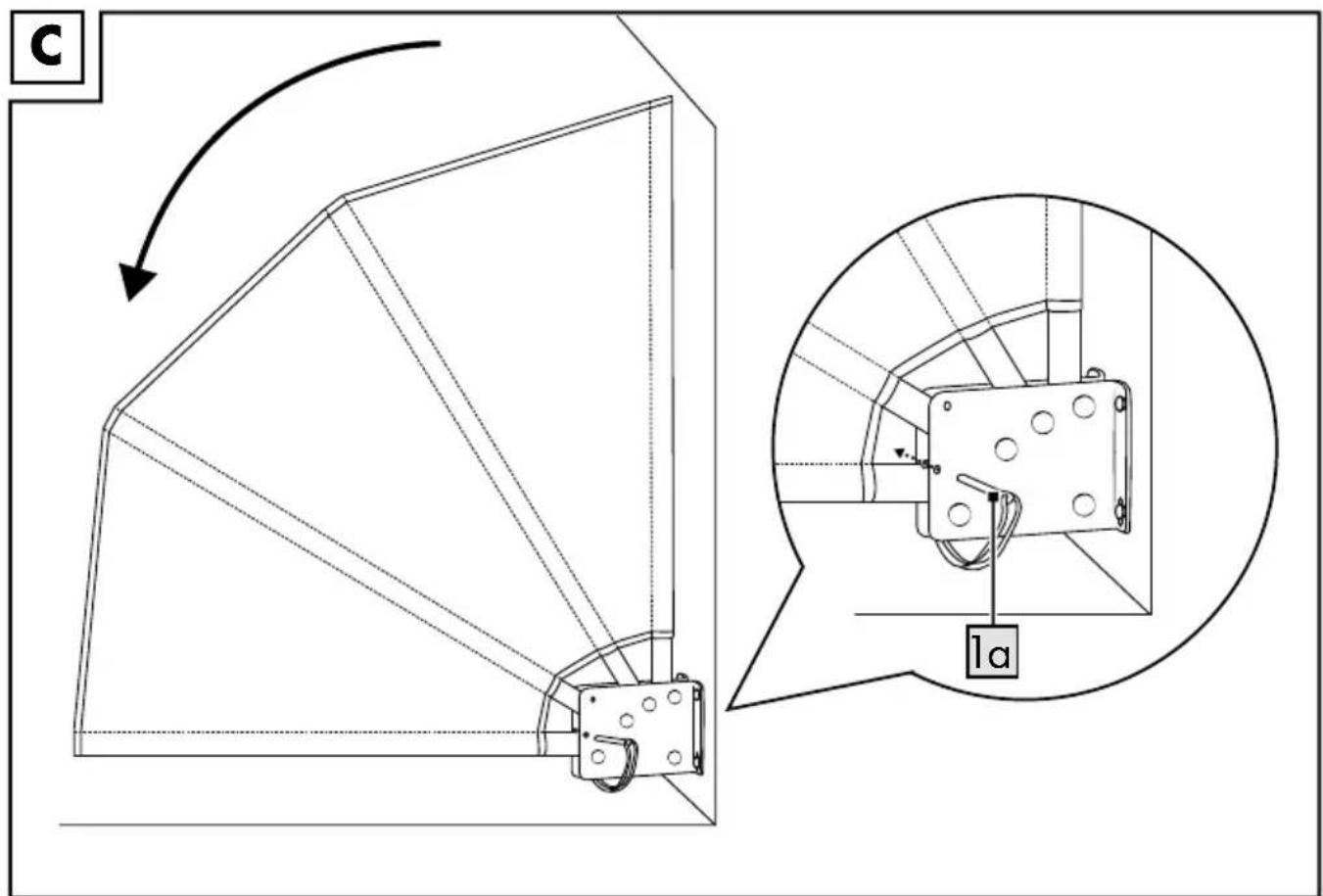

2. Insert the locking pin (1a) into the bottom hole between two of the product's steel struts (Fig. C).
3. When the product is not in use, remove the locking pin and fold the product up.

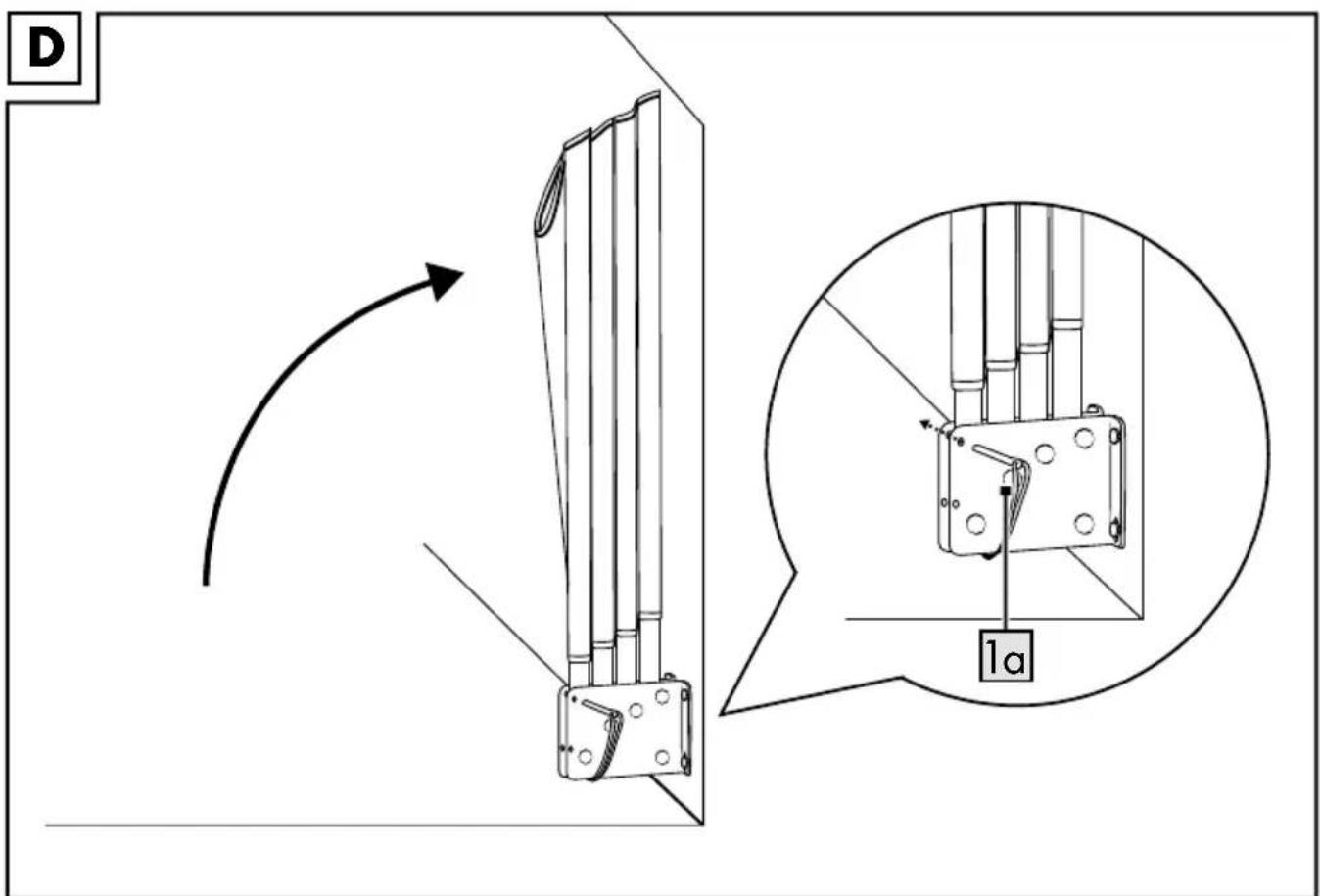

4. Insert the locking pin (1a) into the top hole to lock the product (Fig. D).

Note: fold the product up in the event of wind speed of 28km/h and higher!

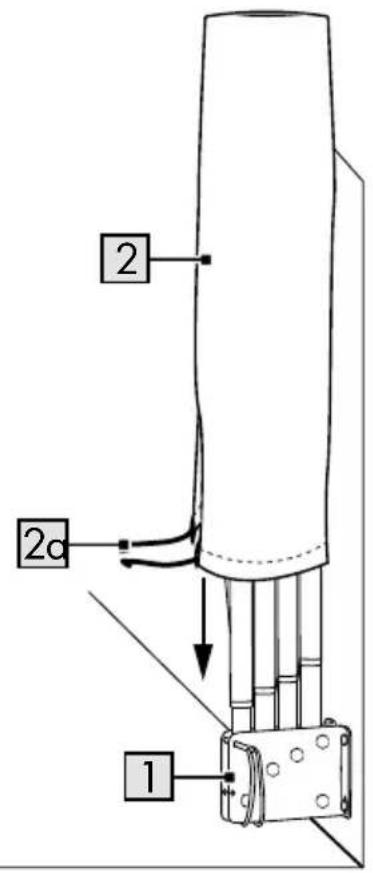

1. When the product is not in use, pull the protective cover (2) over the product (1) and tighten the protective cover with the cord (2a) (Fig. E).

Storage, cleaning

Leave the product open to dry. Only pull the protective cover over the product if it is dry.

Clean the product with a damp cloth and wipe dry afterwards.

IMPORTANT! Never clean the product with harsh cleaning agents.

Privacy protection fan and protective cover:

Five abstract geometric symbols arranged horizontally, each with a unique line drawing (no text or labels)

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for ling.

The code consists of the recycling symbol – which is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 332814_1907

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE Service Ireland

NI Tel.: [phone]

(0,08 EUR/Min.,

(peak))

(0,06 EUR/Min.,

(off peak))

E-Mail: [e-mail]
