IAN 352936 - Uncategorized FLORABEST - Free user manual and instructions

Product Type	Clamp Awning / Sun Shade
Dimensions (W x H)	Approx. 300 x 220-310 cm
Drop Arm Radius	Max. 150 cm
Wind Resistance Class	Class 0 (max. wind speed 20 km/h)
Max Load on Non-Retractable Parts	15 kg
Intended Use	Outdoor private use (balcony, terrace)
Operation	Manual hand crank
Frame Material	Aluminum
Fabric Material	Polyester (awning cloth)
Package Contents	Posts, drop arms, roller shaft, front bar, awning cloth, brackets, hardware, hand crank, tie rod, plastic piping, caps, assembly instructions
Assembly Required	Yes (2 people recommended)
Tools Needed (not included)	Drill, measuring tape, cross-head screwdriver, spanner, hex key
Safety Features	Retract in wind >20 km/h; max load 15 kg; keep children away
Cleaning	Water only; no harsh cleaners; dry before storage
Storage	Clean and dry at room temperature
Warranty	3 years from date of purchase
Service Contact (UK)	Tel: [phone], Email: [e-mail]
IAN Number	352936_2007
Date of Manufacture	12/2020
Disposal	Follow local regulations; recycle packaging

Frequently Asked Questions - IAN 352936 FLORABEST

What tools are required for assembly?

You will need a suitable drill, measuring tape, cross-head screwdriver, spanner, and hex key. These are not included in the package.

How many people are needed to install the awning?

At least two people are required due to the size and weight of the awning frame.

Can the awning be used in windy conditions?

No, the awning is rated for wind speeds up to 20 km/h (Wind Resistance Class 0). Retract the awning if stronger winds are expected to prevent damage or injury.

What is the maximum load on the non-retractable parts?

The maximum load on non-retractable parts is 15 kg. Do not hang or place heavy objects on the awning structure.

How do I clean the awning fabric?

Clean with water only and wipe dry with a cloth. Do not use harsh cleaning agents or leave the awning wet to avoid mildew.

How do I adjust the height of the posts?

The posts have 18 adjustment options. Connect the upper and lower posts at the desired length and fasten with screws, nuts, and washers as described in the assembly instructions.

Is it safe to install the awning on a balcony without screwing into the floor and ceiling?

No, for optimal stability, especially on balconies, the floor and ceiling brackets must be securely fastened with suitable mounting materials. Failure to do so voids liability.

What is the warranty period?

The awning comes with a 3-year warranty from the date of purchase. It covers material and workmanship, not misuse or improper handling.

What should I do if parts are missing or damaged?

Contact the service hotline at 0800 404 7657 (UK) or email [e-mail]. Provide your IAN number and proof of purchase.

Can the awning be used in rain or snow?

No, the awning is intended for sun protection only. Retract it during rain, snow, or adverse weather conditions to prevent damage and ensure safety.

USER MANUAL IAN 352936 FLORABEST

Exterior view of a gray outdoor awning structure with vertical supports (no text or symbols)

CLAMP AWNING

GB

CLAMP AWNING

Assembly instructions

②

KLÄMMARKIS

Monteringsanvisning

LT

|SPRAUDŽIAMOSIOS MARKIZÉS

Montavimo instrukcija

LV

LOGU MARKIZE

Salikianos pamáciba

π

TANKOKIINNITTEINEN MARKIISI

Kokoamisohje

PL

MARKIZA

Instrukcja montażu

II

TUGIRAAMIGA MARKIIS

Ulesseadmisjuhend

DE AT CH

KLEMMMARKISE

Aufbauanleitung

(24)

Before reading, told out the illustration page and get to know all of the functions of your unit.

H

GS Assembly and safety information Page 10

Pure technical diagram of a vertical support structure without any text, numbers, or symbols

Technical line drawing of a mechanical structure with vertical supports and a curved component, no text or symbols present.

GB

IMPORTANT: RETAIN FOR LATER REFERENCE; PLEASE READ CAREFULLY!

FI

TÄRKEÄÄ, SÄILYTÄ MYÖHEMPÄÄ TARVETTA VARTEN: LUE HUOLELLISESTI!

SE

VIKTIGT! SPARAS FÖR FRAMTIDA BRUK: LÄS NOGA!

PL

WAŻNE, PRZECHOWYWAĆ W CELU PÓŻNIEJSZEGO SKÓRZYSTANIA: PRZECZYTAĆ UWAŻNIE!

LT

SVARBU, IŠSAUGOKITE VĚLESNIAM NAUDOJIMUI: ATIDŽIAÍ PERSKAITYKITE!

EE

TÄHTIS, HOIDKE HILISEMAKS KASUTAMISEKS ALLES: LUGEGE HOOLIKALT LÄBI!

LV

SVARİGI, UZGLABÄJIET VELAKAM UZZINAM: RÜPIGI IZLASIET!

DE AT CH

WICHTIG, FÜR SPÄTERE BEZUGNAHME AUFBEWAHREN: SORGFÄLTIG LESEN!

GB

Package contents 10

Technical data 10

Intended use 10

Safety information 11-12

Life-threatening hazard 11

Risk of injury 11 - 12

Preventing damage to the product ..... 12

Important pre-installation information .... 12 - 13

Suitable installation site 12

Suitable installation materials ..... 12 - 13

Assembly 13-15

Installing the ceiling bracket 13

Installing the floor bracket 13 - 14

Installing the posts 14

Installing the awning frame 14

Fastening the awning frame into the bracket 14 - 15

Installing the drop arms and front bar .... 15

Use 15

Storage, cleaning 15

Disposal 16

Notes on the guarantee

and service handling 16

SE

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following as- sembly instructions and the safety information carefully.

Use the product only as described and only for the given areas of application. Store these assembly instructions carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents (Fig. A)

1 x upper post (1) with hand crank (1a)
1 x upper post (2)
2 x lower post (3)
2 x drop arm (4)
1 x roller shaft (5)
1 x roller shaft (6) incl. nut (6a) and washer (6b)
2 x front bar (7)/(8)
1 x awning cloth (9)
1 x plastic piping (10)
4 x plastic cap (11)
2 x ceiling bracket (12)
2 x floor bracket (13)
2 x lock nut (14)
8 x dowel ∅ 10/50 (15)
8 x screw ST6 x 50mm (16)

4 x screw M6 x 45mm (17)
4 x nut (18)
4 x plastic cap nut (19)
16 x washer M6 (20)
4 x screw ST3.5 x 9.5mm (21)
5 x screw ST3 x 9.5mm (22)
4 x washer M4 (23)
2 x knurled screw (24)
1 x tie rod (25)
1 x assembly instructions

Technical data

Dimensions:

approx. 300 x 220-310cm (W x H)

Radius of drop arms: max. 150cm

The product corresponds to wind resistance class 0 (wind speed < 20km/h).

The product must not be used in wind speeds greater than 20km/h for safety reasons!

Date of manufacture

(month/year): 12/2020

Intended use

The product is a sun shade designed for outdoor use, such as on balconies or terraces, and manufactured for private use.

The product is not intended for commercial use.

Safety information

Life-threatening hazard!

• Never leave children unattended with the packaging materials.
  There is a risk of suffocation.
• The product is not a toy or a climbing apparatus!
  Ensure that persons, especially children, do not pull themselves up on the product or stand on it. The product can tip over.
• The maximum load of the non-retractable parts of the awning must not exceed 15kg!
• Check the product for damage or wear before each use. Only use the product if it is in perfect condition!
• Ensure that the plastic caps have no external damage. Defective plastic caps must be replaced.
• When installing on balconies or installation sites not at ground level, the floor and ceiling brackets must be fastened with suitable mounting materials in order to prevent the product from falling.
• Because of the risk of falling, make sure that the person installing the product is sufficiently secured with a harness.

Risk of injury!

• Mind your fingers in particular when retracting and extending the product. There is a risk of injury from crushing.
• The product may only be used under adult supervision and must not be used as a toy.
• Ensure the product is properly stabilised before using it.
• Keep open flames, barbecues, and patio heaters away from the product.
• Check that all parts have been properly assembled before each use.
• Improper installation can impair the product's safety and functionality.
• The product must not be used in adverse weather conditions such as strong winds, rain or snow.
• Retract the product if wind speeds higher than 20km/h are expected (strong breeze, larger branches and trees move, and the wind is clearly audible).
• Never use the product as shelter during storms.
• Close the product if the wind picks up or in other adverse weather conditions.

• Before opening or closing the product, ensure that there are no persons or objects in the opening or closing areas.

• The product offers protection from direct sunlight outdoors. Due to reflecting UV radiation, appropriate sunscreen products should still be used.

• Place the product on a flat, level surface.
• Check regularly to make sure all screws are tight!
• The manufacturer accepts no liability for accidents which occur as a result of ignoring the safety information above or due to improper handling.

⚠️ Preventing damage to the product!

- Secure the product during extreme weather conditions, e.g. strong winds. Store the product in a sheltered area.

Important pre-installation information

WARNING! To ensure optimal stability of the product, we recommend fastening the floor and ceiling brackets, especially on balconies or installation sites that are not at ground level. If the product is not screwed to the floor and ceiling, the manufacturer is absolved of all liability.

WARNING! Before you begin installing the product, measure the height between the floor and the ceiling.

WARNING! Installing the product requires at least two people due to its size.

WARNING! As tools/machinery need to be used, manual skills are indispensable.

Suitable installation site

For ceiling installation, a concrete ceiling or a load-bearing wooden beam structure is suitable. For floor installation, a concrete foundation or concrete slab of at least 50 x 50 x 5cm (L x W x D) is suitable.

Note: if you attach the product to a wooden beam structure, you must firmly fasten the product to it as wood warps depending on the temperature and humidity. Enquire at a specialist retailer about suitable installation materials.

Note: alternative installation conditions must be checked by a specialist company for their load-bearing capacity and durability.

Suitable installation materials

Before installing the product, the installation material must be determined.

If the installation surface is load-bearing, the appropriate installation materials for fastening the product must be selected.

Fastening materials:

• Dowel ∅ 10/50 (15) and screw ST6 x 50mm (16) for concrete and load-bearing masonry.
• Screw ST6 x 50mm (16) for load-bearing wooden beam structures.

Note: inquire at a specialist retailer about suitable installation materials for the floor and ceiling brackets.

Assembly

To assemble the product you will need the following tools (not included in the package contents): a suitable drill, measuring tape, a cross-head screwdriver, a spanner and a hex key.

WARNING! Because of the risk of falling, make sure that the person installing the product is sufficiently secured with a harness.

Note: to ensure optimal stability of the product, we recommend fastening the floor and ceiling brackets.

Installing the ceiling bracket

Important: both ceiling brackets must be perfectly aligned and have a distance of exactly 290cm from each other (measured between the inner drill holes of both ceiling brackets) (Fig. E).

Place the ceiling bracket (12) in the desired position and mark 2 holes opposite each other with a pencil (Fig. B).

1. Using the appropriate tool, drill 2 holes in the marked places. Insert 1 dowel (15) into each hole (Fig. C).

Note: use other dowels and screws if required for the installation surface.

1. Place a plastic cap (11) onto each ceiling bracket (12) and insert 2 screws (16) through each washer (20) (Fig. D).

2. Mount the ceiling bracket onto the ceiling.

3. Mount the second ceiling bracket as described in steps 1-4.

Installing the floor bracket

1. Plumb the exact position of the floor bracket (13) with a cord (not included in the package contents). Mark the correct places and, using a pencil, mark 2 holes opposite each other (Fig. F).

Note: the floor bracket (13) must be positioned perpendicular to the ceiling bracket (12).

1. Using the appropriate tool, drill 2 holes in the marked places. Insert 1 dowel (15) into each hole (Fig. G).

Note: if necessary, use other dowels and screws if required for the mounting surface.

1. Place a plastic cap (11) onto each floor bracket (13) and insert 2 screws (16) through each washer (20) (Fig. H).
2. Mount the floor bracket onto the floor.
3. Mount the second floor bracket as described in steps 1-4.

Important: the floor brackets must be perfectly aligned and have a distance of exactly 290cm from each other (measured between the inner drill holes of both floor brackets).

Installing the posts (Fig. I)

There are 18 adjustment options for setting the correct length of the posts.

1. Connect each upper (1)/(2) and lower post (3) at the appropriate length.
2. Fasten each upper (1)/(2) and lower post (3) with 2 screws (17) and washers (20). Fasten each screw (17) with a nut (18) and washer (20). Then place a plastic cap (19) on each nut.

Installing the awning frame

1. Slot both drive shaft poles (5)/(6) together (Fig. J).
2. Fasten the drive shaft (5 + 6) with 4 screws (22).

3. Slot both front bars (7)/(8) together (Fig. J). The locking button must visibly and audibly click into place.

4. Run the plastic piping (10) through the narrower tunnel of the awning cloth (9).

5. Insert the awning cloth with plastic piping into the drive shaft (5 + 6) as shown.

Note: make sure that the bottom fold of the tunnel (front bar tunnel) is always facing upward during installation.

1. Insert the front bar (7 + 8) into the front bar tunnel in the awning cloth (9).
2. Place the end of the roller shaft (5) on the catch (2a) of the post (2) (Fig. K).

Note: the catch (2a) must be completely inside the roller shaft (5).

1. Remove the pre-mounted nut (6a) and washer (6b) from the roller shaft (6).
2. Insert the end of the roller shaft (6) into the post (1). Use the nut (6a) and washer (6b) to fasten it (Fig. K).

Note: make sure that the bolt on the roller shaft (6) is properly aligned.

1. Fasten the roller shaft (5) with 1 screw (22) (Fig. K).

Fastening the awning frame in the bracket

Important: assembling the product requires at least two people due to its size.

1. First insert the awning frame into the ceiling brackets (Fig. L).

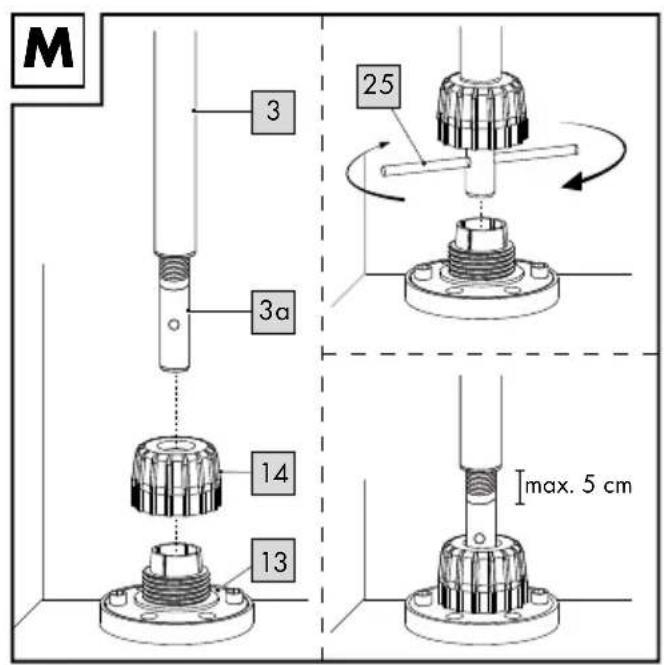

2. Place the lock nut (14) onto the threaded spindle (3a) (Fig. M).
3. Insert the tie rod (25) through the hole in the threaded spindle (3a) and turn it to change the height of the post (Fig. M).

Note: please note the maximum extension length (max. 5cm) of the threaded spindle (3a).

1. Turn the lock nut (14) in the floor bracket (13) to fasten the threaded spindle (Fig. M).

Note: please note that the threaded spindle (3a) may only be unscrewed by no more than 5cm (Fig. M).

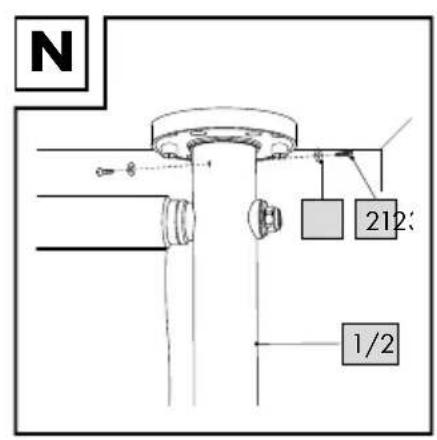

1. Finally, fasten the posts on each ceiling bracket with 2 screws (21) and washers (23) (Fig. N).

Note: for easier installation, drill two holes into each ceiling bracket before fastening the posts.

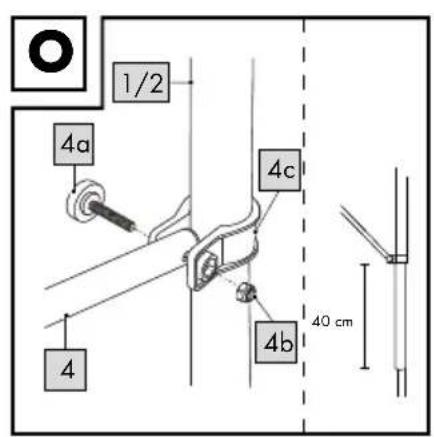

Installing the drop arms and front bar

1. Unscrew the knurled screw (4a), the corresponding nut (4b) and the drop arm bracket (4c) from each drop arm (4).
2. Place the drop arm bracket (4c) on a post (1/2) (Fig. O).

Note: ensure that both drop arm brackets (4c) are fixed at the same height on the posts (approx. 40cm from the bottom edge of the upper post to the bottom edge of the drop arm bracket).

1. Tightly screw the drop arms back into each drop arm bracket (4c) with the knurled screws (4a) and the corresponding nuts (4b).

Note: the knurled screw (4a) points outwards.

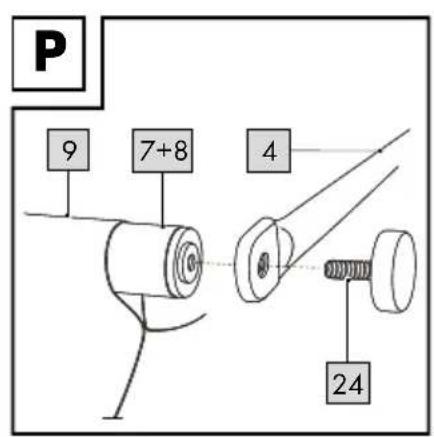

1. Fasten each drop arm (4) onto the front bar (7 + 8) with the knurled screws (24) (Fig. P).

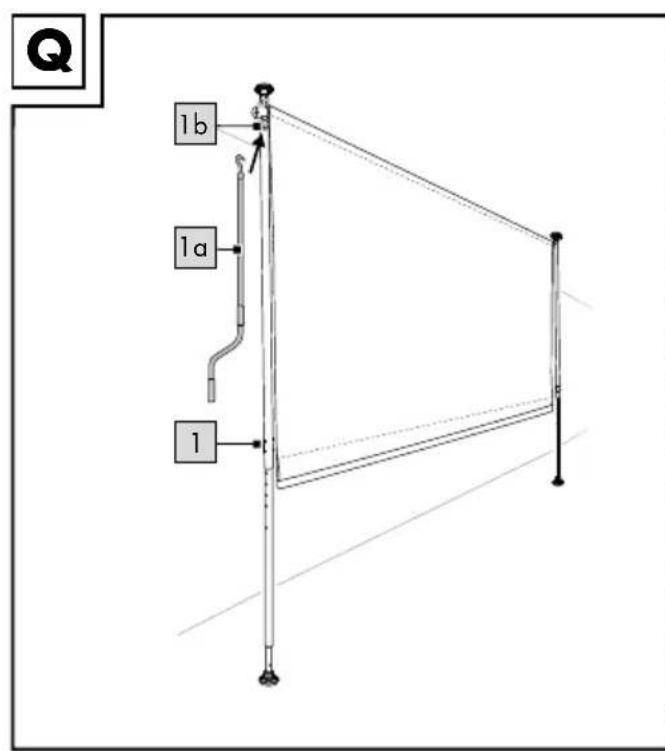

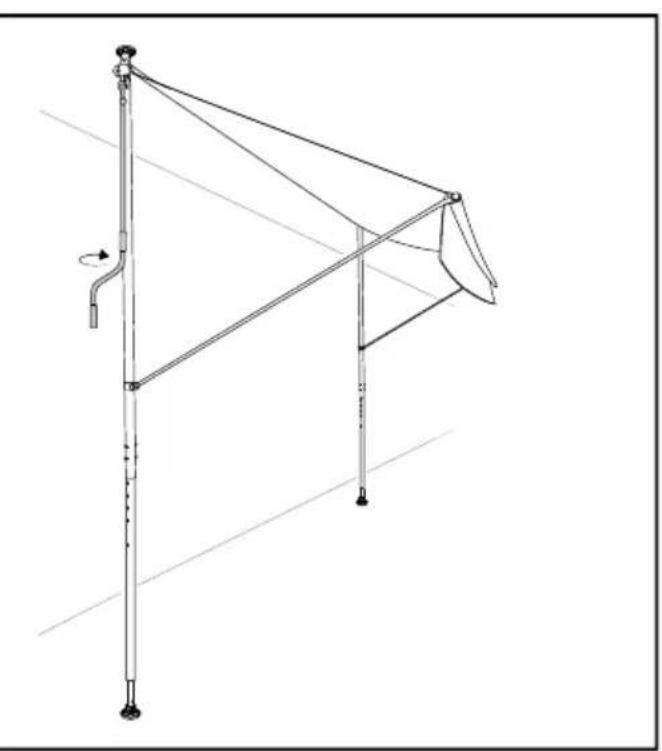

Use (Fig. Q)

1. Hook the hand crank (1a) into the crank lug (1b) of the upper post (1).
2. Turn the hand crank (1a) to open or close the product.
3. Remove the hand crank (1a) after each use and store it in a secure location.

Storage, cleaning

When not in use, always store the product clean and dry at room temperature.

Clean only with water and wipe dry afterwards with a cloth.

IMPORTANT! Never clean the product with harsh cleaning agents. Leave the product open to dry.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children.

Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which is meant to reflect the recycling cycle – and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 352936_2007

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Onneksi olkoon!

E-post: [e-mail]

Apsveicam!
