Product type	Fully wireless earphones
Brand	Nedis
Model	HPBT1050BK
Wireless technology	Bluetooth 5.0
Bluetooth version	5.0
Frequency response	20 Hz - 20 kHz
Impedance	32 Ω
Sensitivity	103 ± 3 dB
Speaker size	10 mm
Playback battery life	Up to 3 hours
Earphone battery capacity	2 x 40 mAh
Case battery capacity	300 mAh
Charging time	Up to 2 hours
Case charges	Up to 3 times
Power supply	5 V DC, 0.3 A
Charging port	Micro USB
Voice assistant	Siri, Google Assistant
Box contents	Micro USB cable, 3 pairs of ear tips (S/M/L)
Care	Clean with a soft dry cloth
Safety	Do not expose to water, heat or flames
Repairability	Built-in battery not removable, do not open

Frequently Asked Questions - HPBT1050BK NEDIS

How to pair the earphones with my phone?

Take the earphones out of the case. They turn on automatically. Activate Bluetooth on your phone and select HPBT1050BK from the device list.

How to charge the earphones and case?

Connect the micro USB cable to the case and to a charger. The LEDs indicate charging. Put the earphones in the case to recharge them. The case can recharge the earphones up to 3 times.

What is the battery life of the earphones?

The playback battery life is approximately 3 hours on a full charge.

How to control music?

Press once on the left or right earphone to play/pause. Press twice on the right earphone for the next track, twice on the left for the previous track. Press three times to adjust the volume (right to increase, left to decrease).

Can I use the earphones for phone calls?

Yes, calls are automatically redirected to the earphones. Press once on an earphone to answer, hold for 1 second to reject, and press once to hang up.

How to activate Siri or Google Assistant?

Press and hold the left or right earphone for 2 seconds to activate the voice assistant set on your phone.

What to do if one earphone does not work?

Make sure the earphones are charged. Reset by placing them in the case and closing the lid. If the problem persists, consult the online manual or contact customer service.

Are the earphones waterproof?

No, the earphones are not waterproof. Avoid any exposure to water or humidity.

Can I replace the battery myself?

No, the battery is built-in and not removable. Do not try to open it. At the end of its life, dispose of the product according to local regulations.

How to clean the earphones?

Use a soft dry cloth to clean the earphones and the case. Do not use chemicals or abrasives.

USER MANUAL HPBT1050BK NEDIS

Fully Wireless Earphones

with voice control

HPBT1050BK

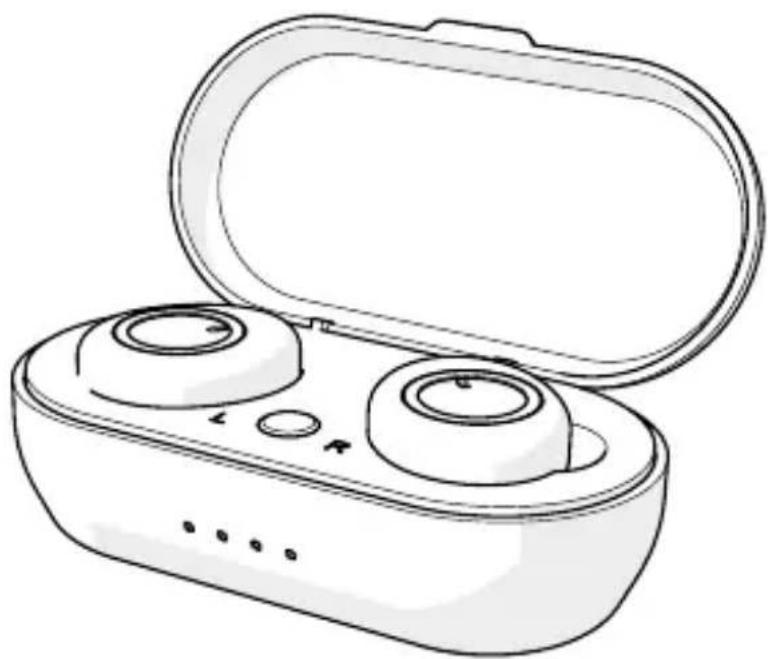

Line drawing of a wireless earbuds with open lid and buttons (no text or symbols)

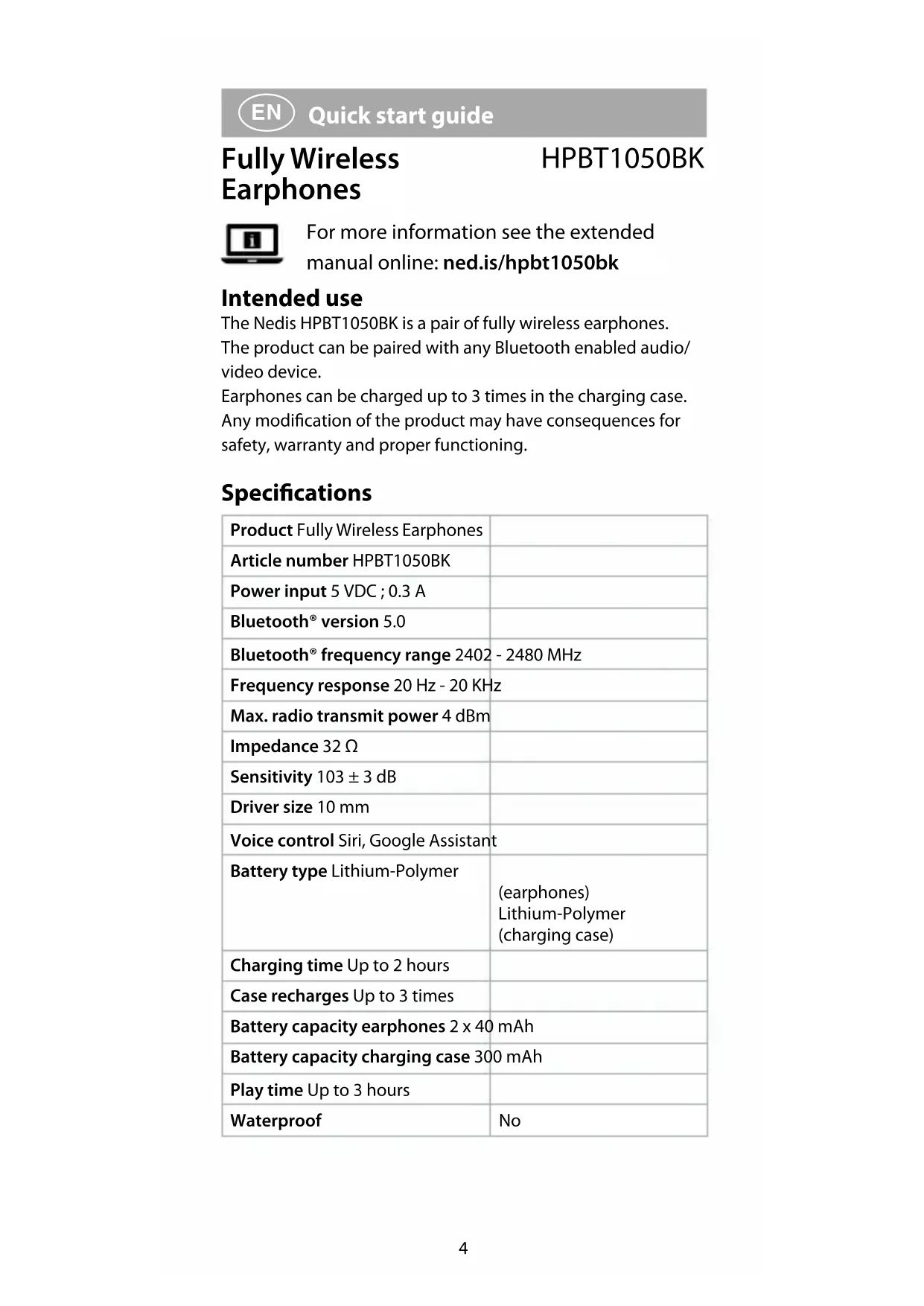

EN Quick start guide 4

DE Kurzanleitung 7

Diagram of a device with an open lid and plug, showing a mechanical assembly with directional arrows indicating motion (no text or symbols)

Fully Wireless

Earphones

HPBT1050BK

For more information see the extended

manual online: ned.is/hpbt1050bk

Intended use

The Nedis HPBT1050BK is a pair of fully wireless earphones.

The product can be paired with any Bluetooth enabled audio/video device.

Earphones can be charged up to 3 times in the charging case.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Fully Wireless Earphones
Article number HPBT1050BK
Power input 5 VDC; 0.3 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Frequency response 20 Hz - 20 KHz
Max. radio transmit power 4 dBm
Impedance 32 Ω
Sensitivity 103 ± 3 dB
Driver size 10 mm
Voice control Siri, Google Assistant
Battery type Lithium-Polymer	(earphones)Lithium-Polymer(charging case)
Charging time Up to 2 hours
Case recharges Up to 3 times
Battery capacity earphones 2 x 40 mAh
Battery capacity charging case 300 mAh
Play time Up to 3 hours
Waterproof	No

Main parts (image A)

1 Lid
2 Left earphone slot
3 Power indicator button
4 Charging indicator LED
5 Status indicator LED / Microphone

6 Left earphone button
7 Right earphone button
8 Micro USB port
9 Right earphone slot
10 Micro USB cable
11 3 Pairs of ear tips (S/M/L)

Safety instructions

WARNING

• Only use the product as described in this manual.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.
• Do not open the product.
• Keep the product out of reach from children.
• This product is not a toy. Never allow children or pets to play with this product.
• Using earphones with both ears covered while participating in traffic is discouraged and may be illegal in some areas.
• Listening on high volume for a long time will damage your hearing.
• Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• Do not short circuit.
• Do not repair the product. If damaged, it must be properly disposed of.
• Only use the product as described in this manual.

Pairing the earphones to a Bluetooth audio source

1. Take the earphones out of the charging case. The earphones switch on automatically.

Press and hold both earphone buttons A 6A 7 for 5 seconds to switch the earphones on manually.

1. The status indicator LED A 5 on the left earphone starts to blink blue/red while the right earphone blinks blue to indicate the earphones are pairing.
2. Enable bluetooth on the device you want to pair the earphones with.
3. Select "HPBT1050BK" from the list of available Bluetooth devices on your device.

Charging the product (image B)

1. Plug the micro USB cable A 10 into the micro USB port A 8.
2. Plug the other end of A 10 into a computer or power adapter.
3. Plug the power adapter into a power outlet.
4. The charging indicator LEDs A ④ indicate the charging progress of the battery.
5. Place the earphones into the respective slots A 2A 9 and close the lid A 1 to charge the earphones.
6. A 5 on the earphones lights up red.
7. A 5 switches off when the earphones are fully charged. The earphones and the charging case can charge simultaneously.

Switching on the product

- Press and hold A 6 and A 7 for 3 seconds to switch the product on or off.

Making phone calls

With the earphones connected to a mobile phone via Bluetooth, phone calls will automatically be redirected to the earphones.

• To answer an incoming call, press A 6 or A 7.
- To reject an incoming call, press and hold A 6 or A 7 for 1 second.
• To end a call, press A 6 or A 7.

Controlling the music

• Press A 6 or A 7 to play or pause the music.

• Triple press A 7 to increase the volume.

• Triple press A 6 to decrease the volume.

• Double press A 7 to skip to the next track.
• Double press A 6 to skip to the previous track.

Add Siri/Google Assistant function

- Press and hold A 6 or A7 for 2 seconds to activate Siri/Google Assistant.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product HPBT1050BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via webshop.nedis.com/hpbt1050bk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Phone: [phone] (during office hours)

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
