USER MANUAL HPBT2261BK NEDIS

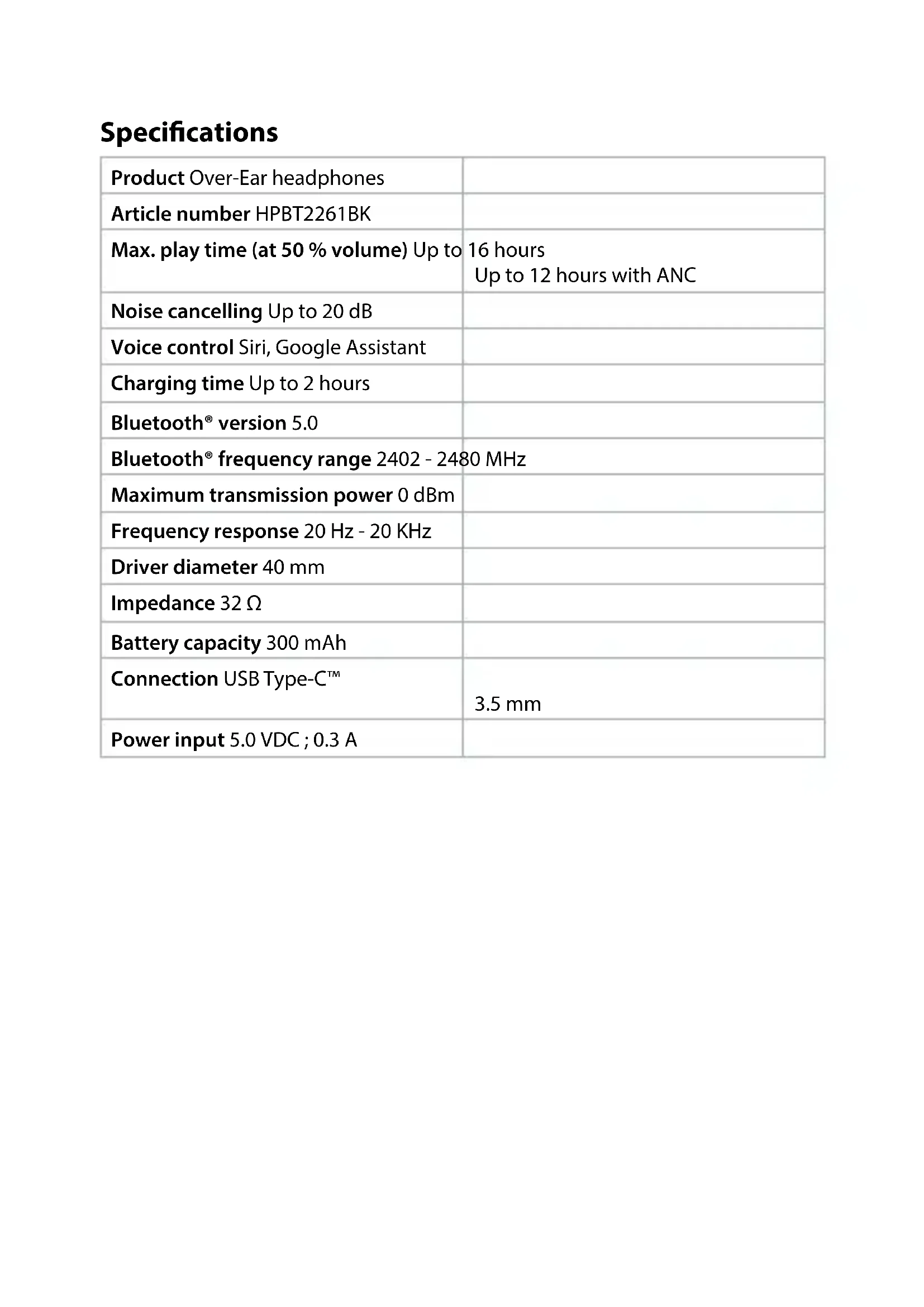

ASpecications Product Over-Ear headphones Article number HPBT2261BK Max. play time (at 50 % volume) Up to 16 hours Up to 12 hours with ANC Noise cancelling Up to 20 dB Voice control Siri, Google Assistant Charging time Up to 2 hours Bluetooth® version 5.0 Bluetooth® frequency range 2402 - 2480 MHz Maximum transmission power 0 dBm Frequency response 20 Hz - 20 KHz Driver diameter 40 mm Impedance 32 Ω Battery capacity 300 mAh Connection USB Type-C™

Quick start guide Over-Ear headphones HPBT2261BKFor more information see the extended manual online: ned.is/hpbt2261bk Intended use The Nedis HPBT2261BK are Bluetooth headphones with which you can enjoy music at any time and anywhere.This product can be paired with any Bluetooth® enabled audio/video device.The headphones can be used to make phone calls if they are connected to a phone.The product is intended for indoor use only.Any modication of the product may have consequences for safety, warranty and proper functioning. Main parts (image A) 1 headphones 2 Volume up / next track button 3 Multi-function button 4 Volume down / previous track button 5 Noise cancelling switch 6 USB-C charging port 7 3.5 mm input 8 Microphone 9 LED indicator q USB-C cable Safety instructions Icon DescriptionIndication to explain that the product can cause hearing damage. Do not listen at high volume levels for long periods. WARNING• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.• Only use the product as described in this document.6

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not drop the product and avoid bumping.

• This product may only be serviced by a qualied technician for maintenance to reduce the risk of electric shock.

• Do not expose the product to water or moisture.

• Using headphones with both ears covered while participating in trac is discouraged and may be illegal in some areas.

• The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before rst use.

• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.

• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

• Only use the provided USB charging cable.

• Do not dismantle, open or shred secondary cells or batteries.

• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.

• During charging, the battery must be placed in a well-ventilated area.

• The charger must only be plugged into an earthed socket-outlet.

• Only power the product with the voltage corresponding to the markings on the product.

• Children of less than 8 years should be kept away.

• Cleaning and user maintenance shall not be done by children without supervision.

• Do not leave a battery on prolonged charge when not in use. Charging the product

into the USB-C port A

2. Plug the other end of the USB-C cable A

into a computer or power adapter. The indicator LED A

lights up red when the battery is charging. The indicator LED A

switches o when the battery is fully charged.7 Switching on the product Press and hold the multi-function button A

for 3 seconds to switch on the product. Pairing the headphones to a Bluetooth audio source

1. Switch on the product to activate pairing mode.

ashes red and blue to indicate pairing mode is active.

2. Activate Bluetooth® on your audio source and connect with the product

ashes slowly to indicate pairing is successful.

4. Play music from a Bluetooth® connected audio source.

Controlling the music

• Press and hold the volume up / next track button A

for 2 seconds to skip to the next track.

• Press and hold the volume down / previous track button A

for 2 seconds to replay the previous track.

• Press the power multi-function button A

to play or pause the music. Controlling the volume Press the volume up / next track button A

to control the volume. Switching on ANC (active noise cancelling) Slide the ANC switch A

to “on” to switch on ANC (active noise cancelling). Making a call

• The headphones can be used to make phone calls if they are connected to a phone.

• Press the Multi-function button A

• Press the multi-function button A

twice to reject a call.

• Press the multi-function button A

during a call to hang up.

• Press the multi-function button A

three times to redial the number that was last dialed. Using voice assistant Press the Multi-function button A

for 1 second to launch Siri/Google Assistant.8 Switching o the product Press and hold the Multi-function button A

for 3 seconds to switch o the product. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product HPBT2261BK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/hpbt2261bk#support
