HPBT1202BK - Headphones NEDIS - Free user manual and instructions

Product type	Bluetooth over-ear headphone
Brand	Nedis
Model	HPBT1202BK
Dimensions (approx.)	180 x 200 x 80 mm
Weight (approx.)	200 g
Power supply	Rechargeable lithium-ion battery (micro USB)
Charging time	Approximately 2 hours
Battery life	Approximately 12 hours
Bluetooth version	Bluetooth 5.0
Bluetooth range	Up to 10 meters
Connectors	3.5 mm jack input, micro USB port, micro SD card slot
Microphone	Built-in microphone
Controls	Power/play/pause button, multi-function button, volume/track buttons
Voice assistant	Compatible with Siri and Google Assistant
Main functions	Wireless music listening, phone calls, micro SD card playback, wired input
Care and cleaning	Clean with a soft, dry cloth. Do not use chemicals.
Safety	Do not expose to water. Listen at moderate volume to avoid hearing damage.
Spare parts and repairability	Repair only by qualified technician. Non-removable battery.
General information	Indoor use only. CE certified.

Frequently Asked Questions - HPBT1202BK NEDIS

How to pair the Nedis HPBT1202BK headphone with my phone?

Turn on the headphone by holding the power button for 2 seconds. The blue LED flashes. Enable Bluetooth on your phone and select HPBT1202BK. The LED turns solid blue when paired.

How to charge the headphone?

Plug the included micro USB cable into the headphone's micro USB port and the other end into a USB charger (not included). The red LED indicates charging. Full charge takes approximately 2 hours.

Can I use the headphone with a cable?

Yes, you can plug a 3.5mm audio cable into the headphone's jack input for wired use, even if the battery is depleted.

How to adjust the volume?

Press the volume up button (A7) or volume down button (A6) to increase or decrease the volume.

How to make a phone call with the headphone?

Make sure the headphone is connected to your phone. Press the multi-function button (A5) to answer, hold to reject, or press twice to redial the last number.

Why does the LED flash rapidly without connecting?

The headphone is in pairing mode. Make sure Bluetooth on your device is enabled and select HPBT1202BK. If another device was already connected, turn it off.

How to use the voice assistant?

Press the power button (A4) for 1 second to launch Siri or Google Assistant on your connected phone.

Can I listen to music from an SD card?

Yes, insert a micro SD card into the slot (A3). The headphone will play audio files directly. Use the buttons to control playback.

What to do if the headphone does not turn on?

Check that the battery is charged. Plug it into the charger for a few minutes. If the problem persists, contact technical support.

How to clean the headphone?

Use a soft, dry cloth. Do not use abrasive products or liquids. Do not immerse the headphone in water.

USER MANUAL HPBT1202BK NEDIS

with foldable design

HPBT1202BK

EN Quick start guide 5
DE Kurzanleitung 8
FR Guide de démarrage rapide 12
NL Snelstartgids 15
IT Guida rapida all'avvio 19
ES Guia de inicio=rápido 22
PT Guia de iniciação=rapida 26
SV Snabbstartsguide 29
FI Pika-aloitusopas 32
NO Hurtiguide 36
DA Vejledning til hurtig start 39
HU Gyors beüzemelési utmutató 42
PL Przewodnik Szybki start 46
EL O8nyoc yrhoynopnc EKKivnoonc 49
SK Rychly námod 53
CS Rychlý námod 56
RO Ghid rapid de initiiere

A

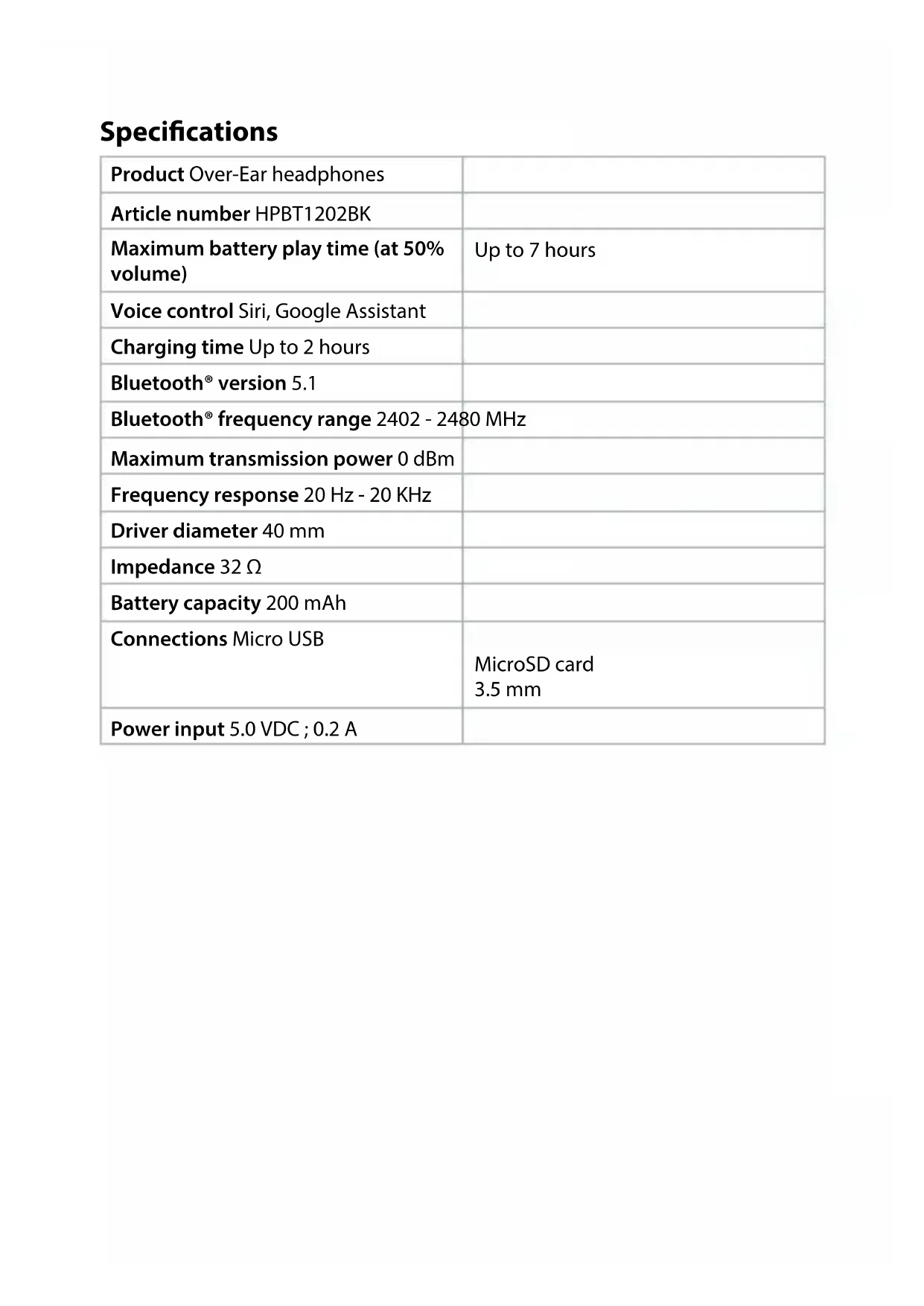

Specifications

Product Over-Ear headphones
Article number HPBT1202BK
Maximum battery play time (at 50% volume)	Up to 7 hours
Voice control Siri, Google Assistant
Charging time Up to 2 hours
Bluetooth® version 5.1
Bluetooth® frequency range 2402 - 2480 MHz
Maximum transmission power 0 dBm
Frequency response 20 Hz - 20 KHz
Driver diameter 40 mm
Impedance 32 Ω
Battery capacity 200 mAh
Connections Micro USB	MicroSD card 3.5 mm
Power input 5.0 VDC; 0.2 A

Over-Ear headphones

HPBT1202BK

For more information see the extended manual online:ned.is/hpbt1202bk

Intended use

The Nedis HPBT1202BK are Bluetooth headphones with which you can enjoy music at any time and anywhere.

The product can be paired with any Bluetooth® enabled audio/video device. The headphones can be used to make phone calls if they are connected to a phone.

The product is intended for indoor use only.

Any modification of the product may have consequences for safety, warranty and proper functioning.

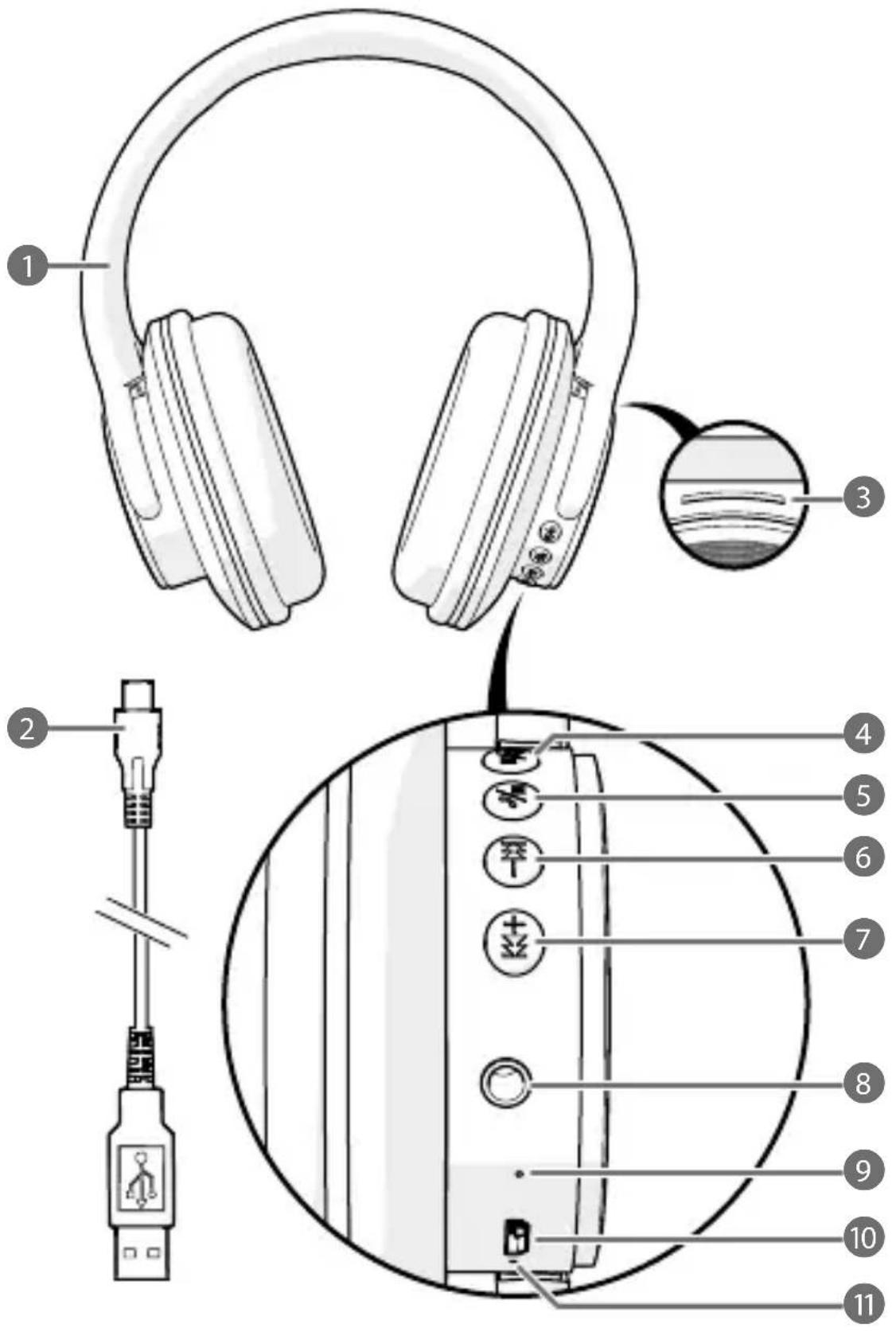

Main parts (image A)

1 Headphones
Micro USB cable
3 MicroSD card slot
4 On/off / play / pause button
5 Multi-function button
Volume down / previous track button

Volume up / next track button
3.5 mm input
9 Microphone
10 Micro USB port
11 LED indicator

Safety instructions

Icon Description

Indication to explain that the product can cause hearing damage. Do not listen at high volume levels for long periods.

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

• Only use the product as described in this document.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Do not expose the product to water or moisture.
• Using headphones with both ears covered while participating in traffic is discouraged and may be illegal in some areas.
• The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.
• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
• Only use the provided USB charging cable.
• Do not leave the product on prolonged charge when not in use.
• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• During charging, the battery must be placed in a well-ventilated area.
• The charger must only be plugged into an earthed socket-outlet.
• Only power the product with the voltage corresponding to the markings on the product.
  Children of less than 8 years should be kept away.

Charging the product

Plug the micro USB cable A2 into the micro USB port A10.

Switching on the product

Press and hold the on/off / play / pause button A4 for 2 seconds to switch on the product.

Pairing the headphones to a Bluetooth® audio source

1. Switch on the product to activate pairing mode.

The indicator LED A⑪ flashes quickly to indicate pairing mode is active.

1. Activate Bluetooth® on your audio source and connect with the product (HPBT1202BK).

If the headphones have been paired with another device before, make sure that device is switched off.

If the headphones lose connection to the Bluetooth® source, they will automatically reconnect when back in range and switched on.

The status indicator LED A lights up blue to indicate pairing is successful.

Controlling the music

• Press and hold the volume up / next track button A ⑦ for 1 second to skip to the next track.
• Press and hold the volume down / previous track button A 6 for 1 second to replay the previous track.
• Press the on/off / play / pause button A 4 to play or pause the music.

Controlling the volume

• Press the volume up / next track button A 7 or the volume down / previous track button A 6 to control the volume.

Making phone calls

The headphones can be used to make phone calls if they are connected to a phone.

• Press the multi-function button A 5 to answer a call.
• Press the multi-function button A 5 during a call to hang up.
• Press the multi-function button A ⑤ twice to redial the number that was last dialed.
• Press and hold the multi-function button A 5 to reject a call.

Using a voice assistant

• Press the on/off / play / pause button A 4 for 1 second to launch Siri/Google Assistant.

Switching off the product

• Press and hold the on/off / play / pause button A 4 for 5 seconds to switch off the product.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product HPBT1202BK from our brand Nedis®, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:
nedis.com/HPBT1202BK#support
