USER MANUAL CH 1 ECO STEBA

GB: This product is only suitable for well insulated spaces or occasional use.

Instructions for use 8

Mode d'emploi 13

Brugsanvisning 18

www.steba.instruktionsbok 23

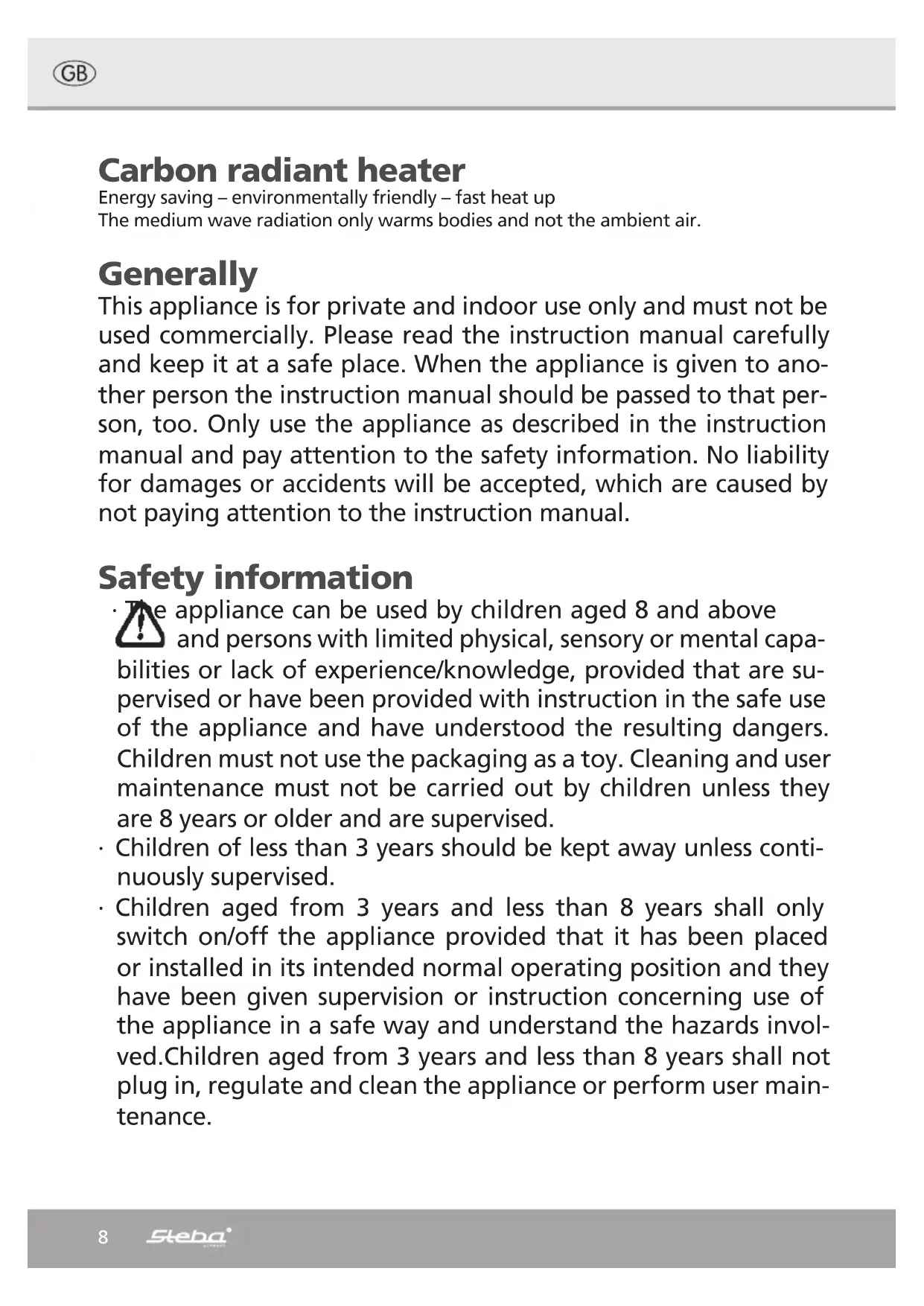

Carbonstrahler

Energy saving - environmentally friendly - fast heat up

The medium wave radiation only warms bodies and not the ambient air.

Generally

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

Children of less than 3 years should be kept away unless continuously supervised.
- Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

• The appliance must not be operated using a timer or a separate remote system, which starts the appliance automatically as there is danger of fire!

For your own safety

• This appliance is an extra-heating in the house. It must be used according to this concept.
• Make sure that your supply rating corresponds to what specified on the rating plate i.e. 230VAC, 50Hz .
• Don't leave your home while the appliance is in function: ensure in this case that the switch is in OFF (0) position.
  · During function, place the appliance in a safe position :

· far (1 mt.) from inflammable objects or furnitures;
- place on a flat and stable surface, otherwise the tumbler switch will disable the appliance.
- leaving the air outlet space free: 1 mt. of free space in front of the appliance and 50~cm . of free space behind it;
- not located immediately below a socket-outlet.

• Do not leave animals or children touch or play with the appliance.

Pay attention!

Parts of this product may be very hot and cause burns.

Special attention is needed when children or vulnera

ble persons are present.

• Take care, that children are not playing with packaging materials (e.g. Plastic Bags)

WARNING:

In order to avoid overheating, do not cover the appliance. Do not hang anything on the appliance and do not cover it while it's working.

• Do not use the appliance in rooms with explosive gas or while using inflammable solvents or varnish or glues.

• If the cordset is damaged and you have to change it, do not do the job yourselves! Take the product to an after sales authorised repair centre or to a person with similar skill and knowledge, in order to avoid any risk of danger.

• Do not use this appliance close to showers, baths, swimming pools.
• The appliance must be positioned so that the plug is always accessible.
• Do not use the appliance if the carbon heating element is fractured.

Installation of base plate

Put the oval base plate on the heating and clip the cable into the slots. Attach the two pieces with the two screws.

Safe positioning

The device is not equipped with a thermostat that monitors the room temperature. Do not use the device in small spaces when there are people in the room who are not able to leave the room independently, unless constant supervision is provided.
- The appliance must be used only on a flat, stable surface.
- The appliance must be not accessible for persons who are taking a bath or in the shower.
- Do not place the cable under a carpet.
- Mind that during function the cordset must be always completely pulled out.

Use of the appliance

① ON-OFF
② 500W
1000W

Oscillation

• Press the Oscillation-Button.
• Due to the oscillation (turning) a more equal temperature in the surrounding is achieved.
• Never block the oscillation movement.

Maintenance

• This appliance does not require any particular maintenance.
  In case you need to repair it, please contact an authorised repairing center.
• If you wish to clean the heater, protection grill or the reflector, unplug the appliance and leave it to cool, afterwards wipe the appliance with a humid cloth. Pay attention not to damage the heating rod.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Information requirements for electric local space heaters

Model identifier: CH 1 ECO
Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Heat output Auxiliary electricity consumption
Nominal heat output	Pnom0,85	-1,05	kW At	nominal heat output	elmax0 kW
Minimum heat output (indicative)	Pmin0,525	kW At	minimun	heat output	elmin0 kW
Maximum continuous heat output	Pmax,c	1,1 kW	in stand	by mode	els8	0 kW
Item							Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat							NO
manual heat charge control with room and/or outdoor temperature feedback							NO
electronic heat charge control with room and/or outdoor temperature feedback							NO
fan assisted heat output							NO
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control							NO
Two or more manual stages, no room temperature control							YES
with mechanic thermostat room temperature control							NO
with electronic room temperature control							NO
electronic room temperature control plus day timer							NO
electronic room temperature control plus week timer							NO
Other control options (multiple selections possible)
room temperature control, with presence detection							NO
room temperature control, with open window detection							NO
with distance control option							NO
with adaptive start control							NO
with working time limitation							NO
with black bulb sensor							NO
Contact details	Steba Elektrogeräte GmbH & Co.KG Pointstr. 2 96129 Strullendorf
