CH 2 ECO - Heating STEBA - Free user manual and instructions

Product type	Fan heater (supplementary heating) with oscillation
Brand	Steba
Model	CH 2 ECO
Nominal thermal power	0.9 kW (900 W)
Minimum thermal power	0.45 kW (450 W)
Power supply	220-240 V ~ 50/60 Hz (standard estimation)
Number of power levels	2 (450 W and 900 W)
Oscillation	Yes, 90°
Control type	Manual two-stage
Safety switch	Present (at the bottom of the device)
Overheat protection	Yes (do not cover)
Safety distance (front)	1 meter from flammable objects
Safety distance (rear)	50 cm from obstacles
Recommended use	Well-insulated rooms, occasional use
Cleaning	Unplug, let cool, wipe with a damp cloth
Do not immerse	Yes, never immerse in water
Seasonal energy efficiency	42.1%
Repairs	Reserved for authorized after-sales service, original spare parts
Minimum age for unsupervised use	8 years (supervised from 8 to 14 years)
Weight	Not communicated

Frequently Asked Questions - CH 2 ECO STEBA

What power levels are available on the Steba CH 2 ECO?

The Steba CH 2 ECO offers two power levels: 450 W (single heating element) and 900 W (both elements).

How does the oscillation work?

The oscillation allows the device to pivot 90° to distribute heat more evenly. Activate it with the selector on the OSC position. Never block the movement.

What safety distances must be observed?

Place the device at least 1 meter from flammable objects in front and 50 cm behind. Never place it under a power outlet.

Can I use an extension cord?

Yes, provided it has a cross-section of at least 1.5 mm². If you use a power strip, it must be GS tested and rated for 16 A (max 3680 W).

How to clean the device?

Unplug the device and let it cool completely. Wipe with a damp cloth. Never immerse in water and do not damage the infrared heater.

What to do in case of new smell?

Before first use, heat the device for about 15 minutes to eliminate the new smell. Ensure good ventilation.

Is the device safe for children?

The device can be used by children over 8 years under supervision. Children under 8 years must be kept away. The surface becomes very hot: risk of burns.

Can I use the device in a bathroom?

No, it must not be used near a shower, bathtub, or swimming pool. The buttons must not be touched with wet hands.

What is the standby consumption?

In off mode, the consumption is 0.00 W. There is no standby mode as such.

Where can I have the device repaired?

Repairs must be carried out by the authorized after-sales service. Contact Steba Elektrogeräte GmbH & Co. KG in Strullendorf (Germany). Use only original spare parts.

USER MANUAL CH 2 ECO STEBA

GB: This product is only suitable for well insulated spaces or occasional use.

Instructions for use 9

Mode d'emploi 16

Brugsanvisning 23

Instruktionsbok 30

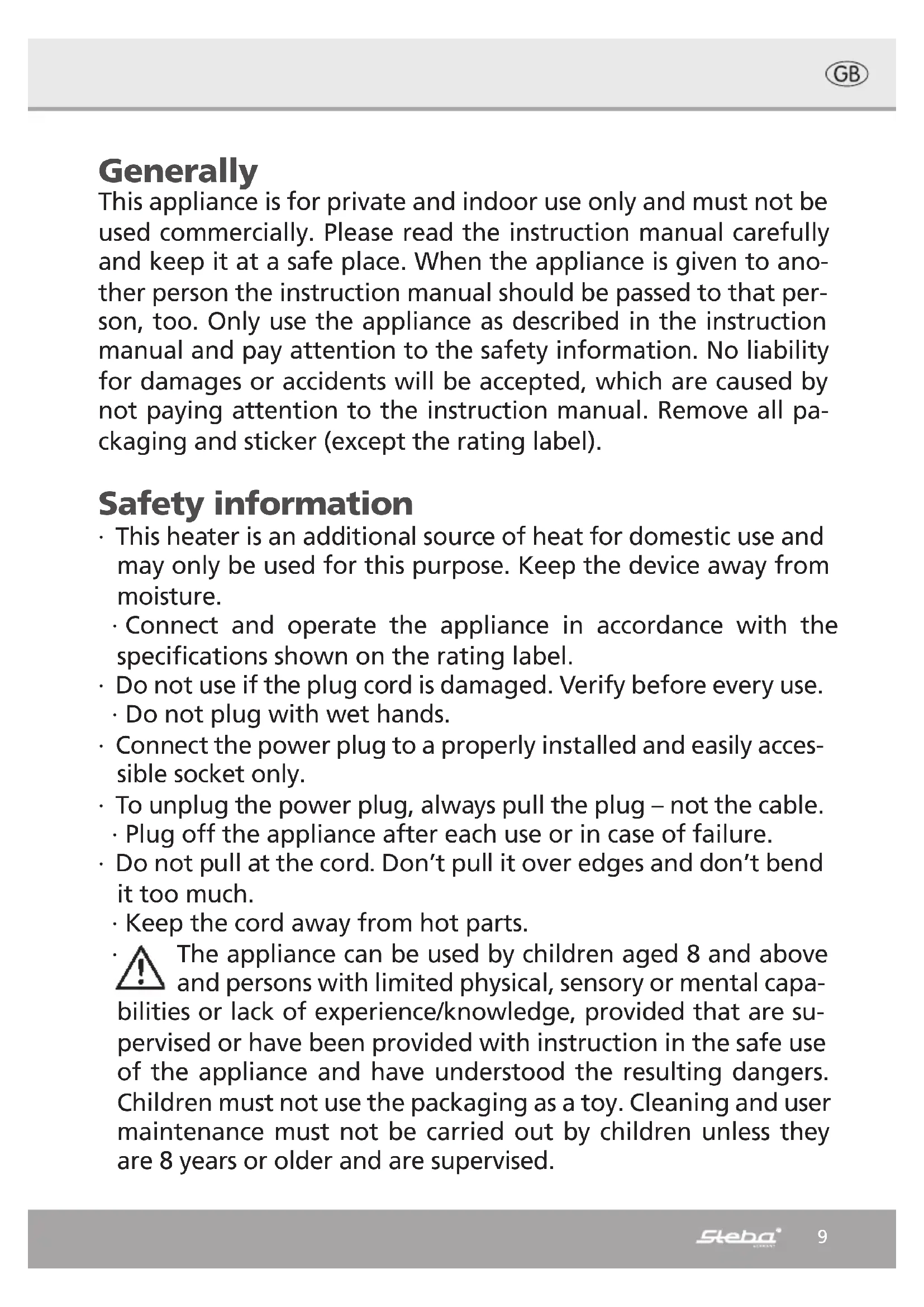

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker (except the rating label).

Safety information

• This heater is an additional source of heat for domestic use and may only be used for this purpose. Keep the device away from moisture.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

• Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Don't leave your home while the appliance is in function: ensure that the switch is in the OFF (0) position.

• Do not leave the appliance outdoors or in a damp area.

In order to avoid overheating, do not cover the heater. Do not hang anything on the heater and do not cover it while it's working.

• Never immerse the unit in water.
• During operation, place the heater in a safe position: o far (1 mt.) from inflammable objects or furniture. o leaving the air outlet space free: 1 mt. of free space in front of the heater and 50~cm of free space behind it. o not located directly below a socket-outlet.
• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.
• The device gets hot, only transport after it cooled down.
• Only use the device as described in this manual.
• You must not put any materials such as paper, cardboard, plastic etc. into the appliance.
  This appliance is intended to be used in household and similar applications such as: o staff kitchen areas in shops, offices and others working

environments

o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: Heat up the device for about 15 min. to eliminate the smell of newness.

Attention! Device gets hot. Risk of Burns! Parts of this product may be very hot during operation. The air outlet gets hot during operation. Special attention is when children or vulnerable persons are present.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more then 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Do not use the heater in rooms with explosive gas or while using inflammable solvents or varnish or glues.

Cleaning

·Attention!

Pull the plug before cleaning.

• Never immerse the unit into water.
• Do not let the device collect dust.
• If you wish to clean the heater, protection grill or the reflector, unplug the appliance and leave it to cool, afterwards wipe the appliance with a humid cloth.
• Pay attention not to damage the heating rod.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a

even, stable and a heat resisting surface. It is important that no inflammable items are

near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

The device is not equipped with a thermostat that monitors the room temperature. Do not use the device in small spaces when there are people in the room who are not able to leave the room independently, unless constant supervision is provided.
- The appliance must not be used near showers, bathtubs, sinks or swimming pools.
- The adjusting knobs should never be accessible to persons who are in the shower or bathtub to prevent any touching with wet hands.

• The fan heater only operates when the safety switch on the bottom of the unit is pressed.
• Do not place the cable under a carpet.
• Mind that during function the power cord must be always completely pulled out.

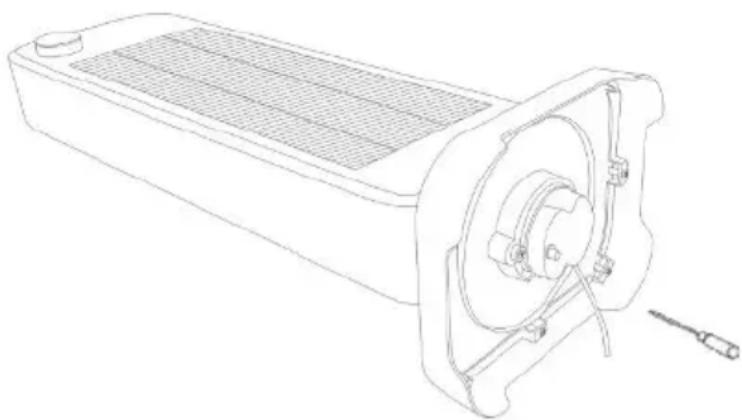

Installation

• Remove the two screws from the base plate.
• Pull the power cable through the hole in the base plate.
• Check that the plate is firmly attached to the device and screw it in place using the two screws.

Use of the appliance

OFF On/off

900W

450 W (only one heating element lights up)

900 W with oscillation

450 W with oscillation (only one heating element lights up)

Due to the oscillation (turning) a more equal temperature in the surrounding is achieved. Never block the oscillation movement.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return used device, please use the return and collection systems or contact the retailer the product was purchased. They can take this product for environmental safety.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Information requirement for the electric local space heaters

Contact details	Steba Elektrogeräte GmbH & Co. KG Pointstraße 2 96129 Strullendorf
Model identifier(s): CH 2 ECO
Item	Symbol	Value	Unit
Heat output Type of heat output/room temperature
Nominal heat output Pnom 0.9 kW
Minimum heat output (indicative)	Pmin	0.45	kW
Maximum continuous heat output	Pmax,c	0.9	kW
Power consumption
In off mode Po	0.00 W
In standby mode Psm	N/A W
In idle mode	Pidle	N/A	W
In network standby	Pnsm	N/A	W
Standby mode with display information or status			No
Seasonal space heating energy efficiency in active mode	ηs,on	42.1	%
			adaptive start control
			working time limitation
			black bulb sensor
			self-learning functionality
			control accuracy
