USER MANUAL QH 1800 STEBA

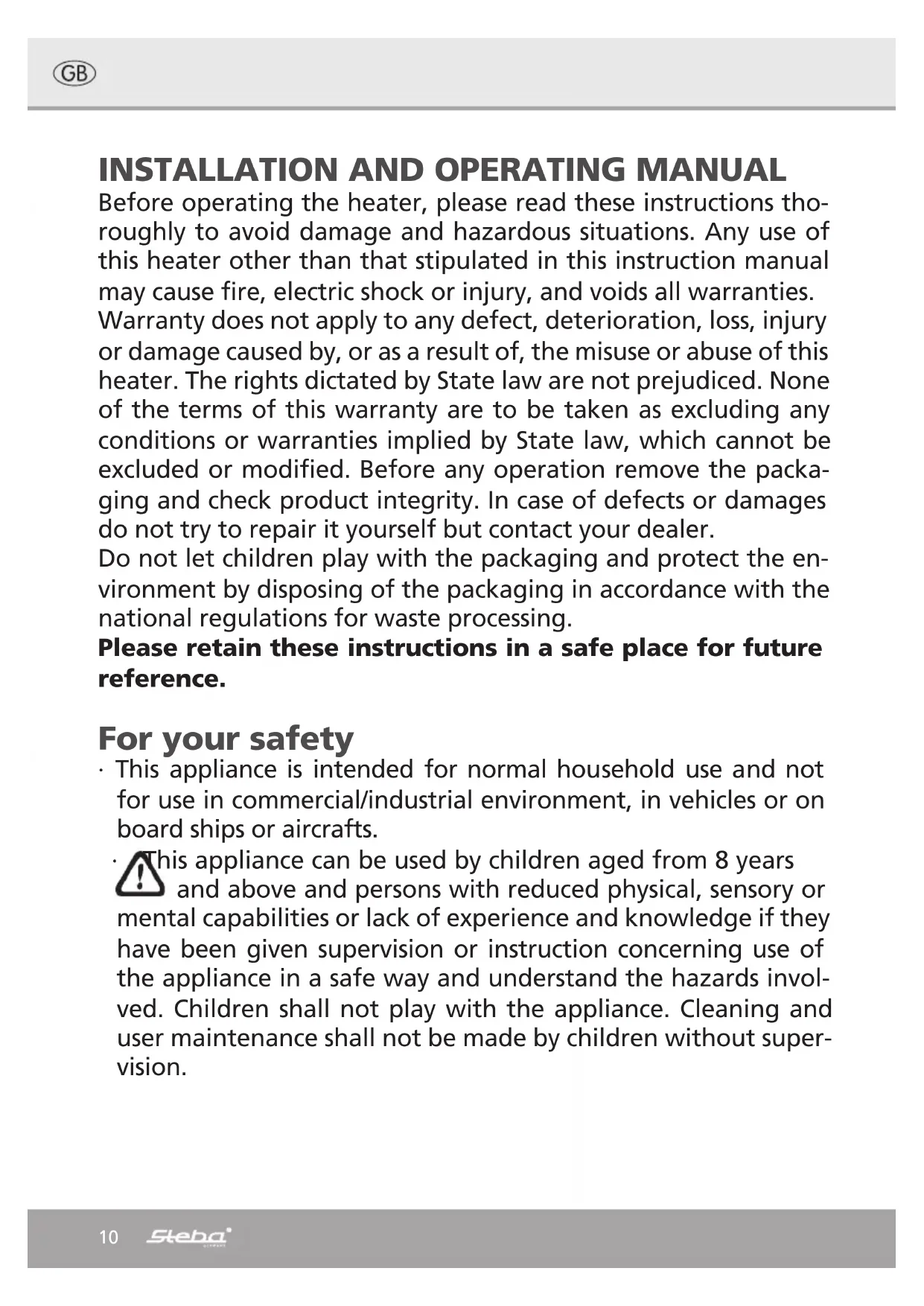

Before operating the heater, please read these instructions tho- roughly to avoid damage and hazardous situations. Any use of this heater other than that stipulated in this instruction manual may cause fire, electric shock or injury, and voids all warranties. Warranty does not apply to any defect, deterioration, loss, injury or damage caused by, or as a result of, the misuse or abuse of this heater. The rights dictated by State law are not prejudiced. None of the terms of this warranty are to be taken as excluding any conditions or warranties implied by State law, which cannot be excluded or modified. Before any operation remove the packa- ging and check product integrity. In case of defects or damages do not try to repair it yourself but contact your dealer. Do not let children play with the packaging and protect the en- vironment by disposing of the packaging in accordance with the national regulations for waste processing. Please retain these instructions in a safe place for future reference. For your safety ∙ This appliance is intended for normal household use and not for use in commercial/industrial environment, in vehicles or on board ships or aircrafts. ∙ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards invol- ved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without super- vision.11 ∙ Children of less than 8 years should be kept away unless conti- nuously supervised. ∙ Children aged less than 8 years shall not regulate the appliance.

CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be gi- ven where children and vulnerable people are present. ∙ Do not use this heater with a programmable switch, timer or any automatic switching device because of danger and/or fire hazard if the heater is covered or not correctly positioned. ∙ WARNING: the product is not equipped with a device to control the room temperature. Do not use the heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided by a person responsible for their safety. ∙ Make sure that your supply rating corresponds to what speci- fied on the rating plate: 230V~, 50Hz. ∙ This heater is water resistant to IPX4. It can therefore be used in bathrooms or other areas subject to humidity AS LONG AS IT IS NOT INSTA LLED WITHIN THE PERIMETER OF BAT H TUBS OR SHOWERS. This means that it cannot be installed in the areas marked as VOLUME 1 in picture #3. ∙ During function, place the heater in a safe position: ∙ at least 1m far from inflammable objects or furnitures; ∙ leaving not less than 1m of free space in front of the heater; ∙ not located immediately below a socket-outlet. ∙ WARNING: In order to avoid overheating, do not cover the he- ater. Do not hang anything on the heater and do not cover it while it’s working.12 ∙ Do not use the heater in rooms with explosive gas, while using inflammable solvents or varnish or glues or where inflammable materials are being used, such as wood block or PVC flooring is being laid or sealed. ∙ If the cordset is damaged and you have to change it, do not do the job yourselves! Take the product to an after sales authorised repair centre or to a person with similar skill and knowledge, in order to avoid any risk of danger. ∙ The appliance must be positioned so that the plug is always accessible. Positioning ∙ The product must be installed respecting the minimum distances from ceiling, floor and objects at the sides indicated in picture #1. ● This infrared wall mounted heater is only suitable for mounting horizontally on a solid vertical wall. Never install it vertically or on the ceiling as indicated in picture #2. ∙ The product must not be mounted on any inflammable surface such as wood or plastic. Any inflammable materials must be at least 100 cm. away from the front face. This is also the minimum distance the user has to keep from the product be- cause during use the front grille gets hot. ∙ Care should be taken to mount the appliance so that the product and the pull cord switch are out of the reach of children. If it is installed in a bathroom, it should be positioned so that it cannot be touched by anyone who is in the bath or in the shower. ∙ After use we recommend to leave the product cool down for at least 10 – 15 mi- nutes before touching it.13 Installation ∙ We recommend to switch off the mains electricity supply before proceeding with the following steps. ∙ Fix the wall bracket using it as a template to drill holes for the rawplugs. Mind that the 3 holes which hang the unit should be in the position shown in #4, NOT upside down. ∙ ●The unit can be oriented in 2 positions. ∙ Horizontally ∙ Downwards ∙ According to the orientation you prefer you have to fix the screws in position 1 if you want the unit to be horizontal, position 2 if you want the unit to be inclined downwards, as shown in #7. ∙ Remove the back plastic cover from the unit, as shown in #8. ∙ Remove the strain relief, as shown in #9 and feed the electric lead in from behind through the round opening under the connection block and make connections according to #9. Connect the 2 phases to the connection block. The blue wire to the N pole, the brown wire to the L pole. L and N symbols are marked under the connection block. ∙ Secure the supply powercord fixing the strain relief. ∙ Fix again in position the back plastic cover, as shown in #10. ∙ Hang the heater to the wall bracket and pull it down to securely fix it to the bracket in the direction shown by the arrow, as in #11. ∙ Check that the unit is correctly fixed pulling it towards you; it shouldn’t move. Connection to the mains electricity supply ∙ This product has a double electrical insulation protection (class II) and therefore does not require an earth connection. ∙ The appliance may only be connected to a 1/N/PE 230V AC 50 Hz supply. If the cord- set is to be used we recommend to use a rubber coated one (type H05RR-F) with at least a 2 x 1 mm2 section. Operation Pulling the switch the product gets in function. You can see from the front viewing window the following symbols: Product rating 0 I II III

230V 1800W OFF 600W 1200W 1800W14

Maintenance ∙ This product does not require any special maintenance. ∙ Clean the product with a dry cloth once every 6 months. ∙ If the product requires repairing, contact an authorised technical service centre. ∙ When replacing the power cable, use a 2x1,00mm2 H05RR-F HAR type. This opera- tion must be performed by qualified personnel and never by the end user in order to avoid damaging the appliance and jeopardising personal safety. Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the envi- ronment or human health from uncontrolled waste disposal, recycle it re- sponsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin. Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the spe- cial collection containers. Service and Repair: If the appliance must be repaired, please get in touch with your trader or with the manufacturer: STEBA Elektrogeräte GmbH & Co KG Pointstr. 2, 96129 Strullendorf / Germany Distribution-Tel.: 09543 / 449-17 / -18, Service-Tel.: 09543 / 449-44, Fax: 09543 / 449-19 e-Mail: [e-mail] Internet: http://www.steba.com1516
