Product type	Fan heater (thermoventilator)
Brand	Steba
Model	VTH 2 Hot & Cold
Heating power	1200 W / 2000 W (2 levels)
Nominal heat output	2 kW
Power supply	220-240 V ~ 50/60 Hz
Operating modes	Ventilation (low/high speed), Heating with thermostat
Temperature range	18 °C to 30 °C in 3 °C steps
Thermostat	Electronic, automatic shut-off at desired temperature
Power control	Manual two-step
Safety	Floor safety switch, overheat protection, safety grille
Cooling ventilation	Operates for 15 seconds after shutdown
Usage	Indoor only, on a flat and stable surface
Safety distance	Minimum 1 meter from flammable objects
Cleaning	Vacuum on grilles, do not immerse
Cleaning frequency	Every 6 months
Auxiliary power consumption (standby)	0.3 kW (300 W) in standby
Connection	Easily accessible power outlet
Children	Use by children over 8 years under supervision

Frequently Asked Questions - VTH 2 Hot & Cold STEBA

How to turn on the device?

Plug in the device, a beep sounds and the LED lights up. Press the ON/OFF button to start. The last setting is displayed.

What to do if the device does not turn on?

Check that the device is plugged in and the outlet works. Ensure the device is placed on a flat surface so the safety switch is pressed. If the problem persists, check the fuse and let the device cool down in case of overheating.

How to adjust the temperature?

Use the temperature button to select the desired temperature in 3 °C steps between 18 °C and 30 °C. The preset temperature of 18 °C lights up by default.

How to clean the device?

Unplug the device and let it cool completely. Use a vacuum cleaner to clean the air intake and outlet grilles. Never immerse the device in water.

Can I use the device in a bathroom?

No, the device must not be used near a shower, bathtub, sink, or swimming pool. The buttons must not be accessible from a bathtub or shower.

How to turn off the device?

Press the ON/OFF button. The ventilation continues to operate for about 15 seconds to cool the device, then it stops. Then remove the power plug.

Why does the device turn off by itself?

This may be due to the thermostat: when the room temperature reaches the set value, the device turns off and the value blinks. It turns back on if the temperature drops. Otherwise, check for overheating (blocked grilles) or the device position.

Can I use an extension cord?

Yes, but the extension cord must have a minimum cross-section of 1.5 mm². If you use a GS 16 A power strip, do not exceed 3680 W to avoid fire.

What is the maximum power of the device?

The nominal heat output is 2 kW (2000 W). There are two levels: 1200 W and 2000 W.

How to store the device?

Let the device cool completely before storing. Do not store it outdoors or in a damp room. Keep it out of reach of children under 8 years.

USER MANUAL VTH 2 Hot & Cold STEBA

Close-up of a jet engine fan blade with visible blades and central hub (no text or symbols)

220-240 V\~; 50 Hz; 2000 W

Ventilator-Heizlüfter VTH 2 Hot & Cold

Instructions for use 10

Mode d'emploi 18

Prohibition sign with crossed-out document and checkmark, indicating no document or report prohibition

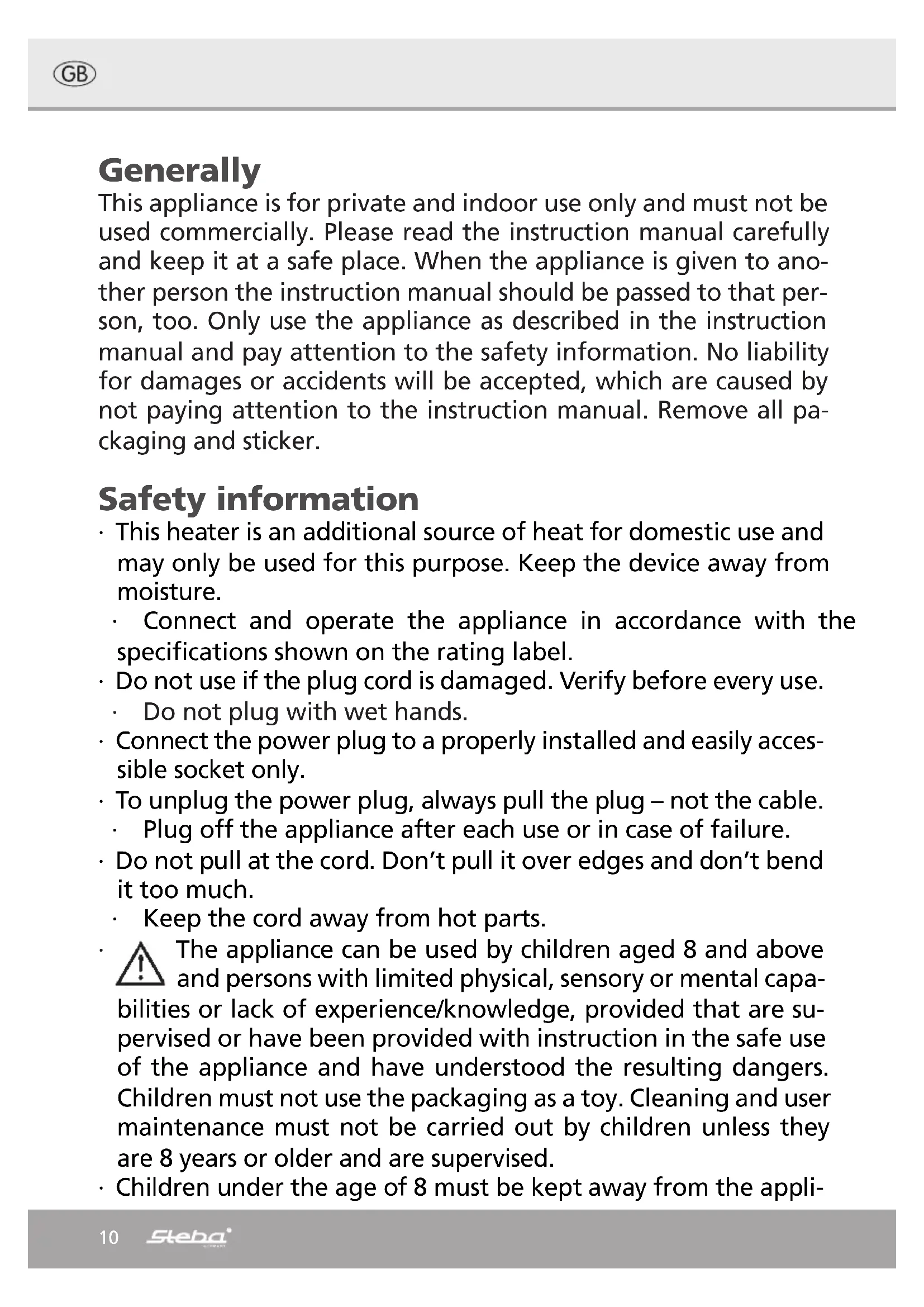

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker.

Safety information

• This heater is an additional source of heat for domestic use and may only be used for this purpose. Keep the device away from moisture.
• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
• Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
• Children under the age of 8 must be kept away from the appli-

ance and the connecting cable.

- Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

- The appliance must not be operated using a timer or a separate remote system!

- Don't leave your home while the appliance is in function: ensure that the switch is in the OFF (0) position.

- Do not leave the appliance outdoors or in a damp area.

Prohibition sign with crossed-out document and hand icon, indicating no text or document prohibition

WARNING: In order to avoid overheating, do not cover the heater. Do not hang anything on the heater and do not cover it while it's working.

- Never immerse the unit in water.

- During operation, place the heater in a safe position: o far (1 mt.) from inflammable objects or furniture. o not located directly below a socket-outlet.

- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• The device gets hot, only transport after it cooled down.

• Only use the device as described in this manual.

- You must not put any materials such as paper, cardboard, plastic etc. into the appliance.

- This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments

o by clients in hotels, motels and other residential type environments

o bed and breakfast type environments.

• Before initial use: Heat up the device for about 15 min. to eliminate the smell of newness.
  Attention! Device gets hot. Risk of Burns! Parts of this product may be very hot during operation. The air outlet gets hot during operation. Special attention is needed when children or vulnerable persons are present.
  Do not blow on people or animals directly. Do not use the device in small rooms if there are people or animals who are unable to leave the room.
• If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Do not use the heater in rooms with explosive gas or while using inflammable solvents or varnish or glues.

Cleaning

Attention! Pull the plug before cleaning.

- Never immerse the unit into water.

- We recommend to clean at least twice a year the air inlet and air outlet with a vacuum cleaner to remove dust from motor and heating element.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

The appliance must not be used near showers, bathtubs, sinks or swimming pools.

- The adjusting knobs should never be accessible to persons who are in the shower or bathtub to prevent any touching with wet hands.

Getting started

• The device only starts when it is placed on a flat, not high pile surface and thereby the safety switch is pressed.
• Connect the device, a signal sounds and the LED lights up
• Press the ON / OFF button to start the device. The last setting is displayed.
• The desired setting can be selected with the program button

Fan:

o o

Heater:

o heating power 1200 Watt
o heating power 2000 Watt
o The pre-set temperature 18°C lights up.

- By pressing the temperature button, the temperature can be selected in steps of 3^ between 18^ and 30^ .

• When the desired room temperature is reached, the device switches off and the set value flashes. If the temperature drops again, the device switches on again.
• Note: the air output cannot be changed in heating mode.
• When finished, press the ON / OFF button. The ventilation continues to run for approx. 15 seconds. Then pull out the plug.

Troubleshooting

Dear Client,

Thank you for buying this STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.

Problem Reason Solution
Device does not heat	·Device is not plugged in·Device is not turned on·Thermostat·Overheat	·Check fuse·Plug it in·Surface is not suitable for the safety switch·Set temperature is reached·Heat accumulation because device is too close to a wall or other objects·Let device cool down·Contact service

Information requirements for electric local space heaters

Model identifier: VTH 2
Item	Symbol	Value	Unit	Item	Symbol	Value	Unit
Heat output Auxiliary electricity consumption
Nominal heat output	P_nom 2 kW	At nominal heat	output	el_max 1,92	kW
Minimum heat output (indicative)	P_min 1,2 kW	At minimum	heat output	el_min 1,16	kW
Maximum continuous heat output	P_max,c 2 kW	In standby mode	el	SB 0,3 kW
Item							Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat							NO
manual heat charge control with room and/or outdoor temperature feedback							NO
electronic heat charge control with room and/or outdoor temperature feedback							NO
fan assisted heat output							NO
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control							NO
Two or more manual stages, no room temperature control							YES
with mechanic thermostat room temperature control							NO
with electronic room temperature control							YES
electronic room temperature control plus day timer NO
electronic room temperature control plus week timer							NO
Other control options (multiple selections possible)
room temperature control, with presence detection							NO
room temperature control, with open window detection							NO
with distance control option							NO
with adaptive start control							NO
with working time limitation							NO
with black bulb sensor							NO
Contact details	Steba Elektrogeräte GmbH & Co.KG Pointstr. 2 96129 Strullendorf

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Prohibition sign with crossed-out document and checkmark, indicating no text or document prohibition

Prohibition sign with crossed-out document and checkmark, indicating no text or document prohibition

Prohibition sign with crossed-out document and checkmark, symbolizing no document or book use

Information requirements for electric local space heaters
