| Product type | Household vacuum packaging machine |
| Brand | Steba |
| Model | VK 5 |
| Dimensions (L x W x H) | Approx. 40 x 20 x 10 cm |
| Weight | Approx. 2 kg |
| Power supply | 230 V ~ 50 Hz |
| Power | 120 W |
| Seal width | 28 cm |
| Housing material | ABS plastic |
| Main functions | Vacuum sealing, sealing, emergency stop |
| Compatible film types | Special vacuum rolls and bags (Steba ref. 93-xx-xx) |
| Drip tray capacity | Removable, easy to clean |
| Care and cleaning | Clean with a damp cloth and dish soap; do not immerse in water |
| Safety | Overheat protection, automatic shut-off, lockable lid |
| Spare parts available | Sealing gaskets, sealing bar, films (on request) |
| Repairability | Repair only by qualified electrician |
| Warranty | 2 years (subject to legal conditions) |
| Included accessories | Built-in cutting knife, drip tray |
| Sealing temperature | Approx. 150 °C |
| Recommended cooling time | 1 minute between each seal |
Frequently Asked Questions - VK 5 STEBA
User questions about VK 5 STEBA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum packaging machines in PDF format for free! Find your manual VK 5 - STEBA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VK 5 by STEBA.
USER MANUAL VK 5 STEBA
Instructions for use 7
Mode d'emploi 11

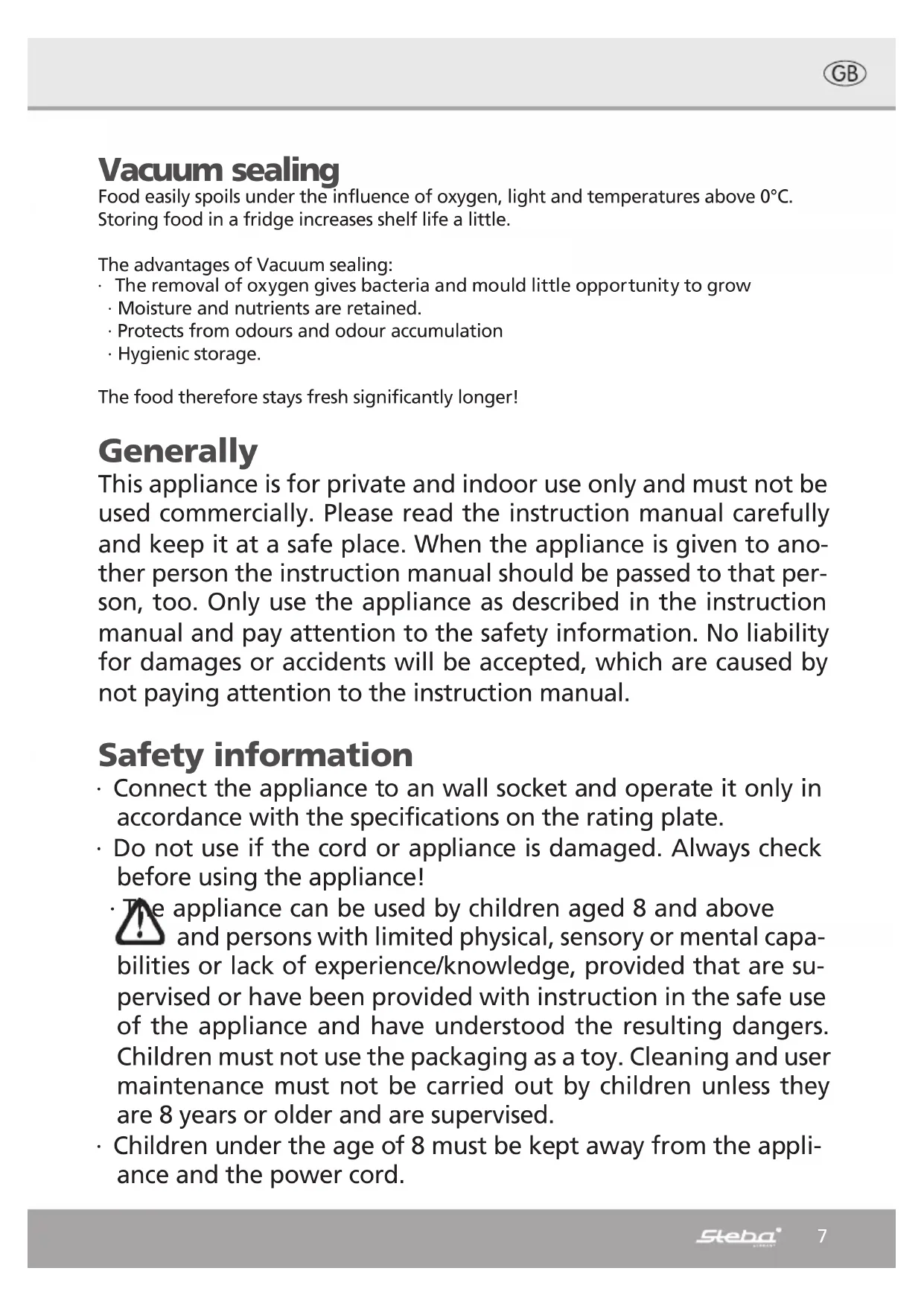

Food easily spoils under the influence of oxygen, light and temperatures above 0^ C. Storing food in a fridge increases shelf life a little.
The advantages of Vacuum sealing:
- The removal of oxygen gives bacteria and mould little opportunity to grow
- Moisture and nutrients are retained.
- Protects from odours and odour accumulation
- Hygienic storage.
The food therefore stays fresh significantly longer!
Generally
This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.
Safety information
- Connect the appliance to an wall socket and operate it only in accordance with the specifications on the rating plate.
- Do not use if the cord or appliance is damaged. Always check before using the appliance!
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
- Children under the age of 8 must be kept away from the appliance and the power cord.
- The appliance must not be operated using a timer or a separate remote system!
- After using the appliance or if the appliance malfunctions, always pull out the plug.
-
Never pull at the cord set. Do not chafe it over edges or squeeze it.
-
Keep the power supply cord away from hot parts.
- Never leave the appliance unattended when operating.
- Do not leave the appliance outdoors or in a damp area.
- Never immerse the appliance in water.
- Do not operate the appliance if it is damaged (for example if it felt down).
- The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made.
- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.
The foil sealing strip becomes hot. Do not transport until the equipment has cooled down.
- Disconnect plug from power supply when device is not in use.
- If an extension cable is being used, please ensure that children do not pull on it and that it is not a potential tripping hazard.
- The device is not intended for continuous use, always allow to cool between sealing operations.
Workspace:
Important: Never put the device on or next to a hot surface (e.g. the rings of a stove).
Always put the device on a surface that is level, stable, temperature-resistant and dry. Keep it away from the edge of work surfaces so that it cannot fall off during use.
Before initial use:
- Wipe off the device with a damp towel.
- The sealing rings and the bag sealing bar must be clean and level, otherwise it will not be possible to generate a vacuum.
Roll of film / bags
Use only the special rolls of film / plastic bags that are suitable for vacuuming and sealing. If the wrong film is used it will stick to the device and damage the sealing bar. The following special films are available from Steba, among other things:
Plastic bags: 22 x 30cm: Item no. 93-30-00 EAN: 4011833400574
Plastic bags: 28 x 40cm: Item no. 93-40-00 EAN: 4011833400581
Roll of film: 22 x 500cm: Item no. 93-22-00 EAN: 4011833400550
Roll of film: 28 x 500cm: Item no. 93-28-00 EAN: 401183340067
Making bags from rolls of film
- Connect the unit, and switch on using the on/off switch at the back.
- Push the cutting blade all the way to the right.
- Open the film holder and insert the film to the required bag length.
Take the following into account:
a) About 2cm is required for the bottom of the bag for perfect sealing.
b) Then leave enough room for the food
c) An additional 8cm is then required for vacuum sealing.
- Close the film holder and cut the film using the cutting blade by sliding it from right to left.
- Place the front end of this tube of film against the black oval sealing lip, ensuring that it is smooth and free of creases, and close the device.
- Engage the lid at the right and left sides (confirmed by an audible click).
- To begin sealing, press the ⏻ button and the red light will come on. When the light goes off, the sealing process is complete.
- To remove the bag, press the two buttons at the right and left sides and open the lid.
The sealing bar will be hot!
Vacuum Sealing
- Do not seal spoiled food or flammable liquids.
- Ensure that the vacuum pump does not suck up any liquids. If this occurs, press the stop button Ⓜimmediately.
- Place the food in the bag. Ensure that the bag is not damaged by any sharp objects.
Insert the bag up to half down the vacuuming tray, ensuring that it is free of creases, dry and free of residue. -
Engage the lid at the right and left sides (confirmed by an audible click), then press the button 🌐
Do not seal twice in the same place, since this may cause the film to burn. -
Allow the device to cool for one minute between sealing operations.
- If the device becomes overloaded, the overheating protection will switch the device off. If this happens, disconnect the device from the power supply and leave it to cool for about 20 minutes.
Cleaning
- Disconnect the device from the power supply.
Do not immerse the device in water or pour water over it. - Remove the drip pan from the device and rinse.
- Wipe the device with a damp cloth and a little washing-up liquid. Ensure that the sealing bar and the seal are not damaged during this process.
- Then dry the device.
Disposal:
Packaging disposal:
Do not throw away the package materials. Please put it in the recycling bin.
PS
PP
PE
Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Service and Repair:
If the appliance must be repaired, plaese get in touch with your trader or with the manufacturer:
