VK 3 - Vacuum packaging machines STEBA - Free user manual and instructions

Product type	Vacuum packaging machine
Brand	Steba
Model	VK 3
Power supply	220-240 V, 50 Hz
Power	Approx. 150 W
Weight	Approx. 1.5 kg
Dimensions (L x D x H)	Approx. 40 x 15 x 10 cm
Main functions	Vacuum and seal, seal only, stop
Compatible film types	Films with 3D structure or vacuum bags
Sealing width capacity	Approx. 30 cm
Overheating protection	Yes, automatic shut-off in case of overheating
Use	Household use only
Maintenance and cleaning	Remove the lower gasket, clean with warm soapy water; wipe the appliance with a damp cloth; do not immerse
Safety	Do not seal twice at the same spot, do not package flammable liquids, keep out of reach of children
Spare parts and repairability	Repairs by authorized after-sales service only
Sealing bar temperature	Hot during operation, wait for cooling
Usage cycle	One-minute pause between seals; 20-minute cooling in case of overheating
Included accessories	Not specified (film and bags sold separately)
Warranty	According to manufacturer's terms
After-sales service	Contact via www.steba.com

Frequently Asked Questions - VK 3 STEBA

How to use the Steba VK 3 for vacuum packaging?

Place the food in a suitable bag, insert the dry bag halfway into the vacuum chamber, close and lock the lid, then press the Vac/Seal button (1). Vacuum and sealing stop automatically.

What types of films or bags to use with the Steba VK 3?

Only use special 3D structure films or bags suitable for vacuum packaging. Unsuitable films may stick and damage the sealing bar. Bags and rolls are available from Steba.

Why does air remain in the bag after vacuuming?

This may be due to an unsuitable bag, a wet or dirty bag in the sealing area, a crease at the seal, or a dirty sealing bar. Check these points and clean the device if necessary.

How to clean the Steba VK 3?

Unplug the device and let it cool down. Remove the lower gasket from the vacuum chamber and clean it with warm soapy water. Wipe the appliance with a damp cloth and dish soap. Never immerse the appliance in water.

What are the important safety instructions?

Do not seal twice at the same spot (fire risk). Do not package products containing alcohol, gasoline, or explosive substances. Do not package live animals. Keep the device out of reach of children under 8 years.

What to do if the device does not turn on?

Check that power is available, the lid is pressed down, the bag is in the vacuum chamber and not covering the suction. If the problem persists, contact after-sales service.

Can I use the device continuously?

No, the device should not be used continuously. Let it cool between sealings (one-minute pause). In case of overheating, the overheating protection turns off the device; unplug it and wait about 20 minutes.

How to perform a seal only without vacuum?

Place the bag in the vacuum chamber, close the lid and press the Seal button (2). The device seals automatically without vacuum.

What to do in case of liquid leakage into the vacuum pump?

If the pump sucks liquid, immediately press the Stop button (1). Clean the device and ensure that bags are dry before using them.

Where to find spare parts or after-sales service?

All repairs must be carried out by a competent customer service. Contact Steba via www.steba.com for information on after-sales service and spare parts.

USER MANUAL VK 3 STEBA

220 - 240 V~, 50/60 Hz, 100 Watt

Vakuumierer VK 3

Instructions for use 10

Mode d'emploi 16

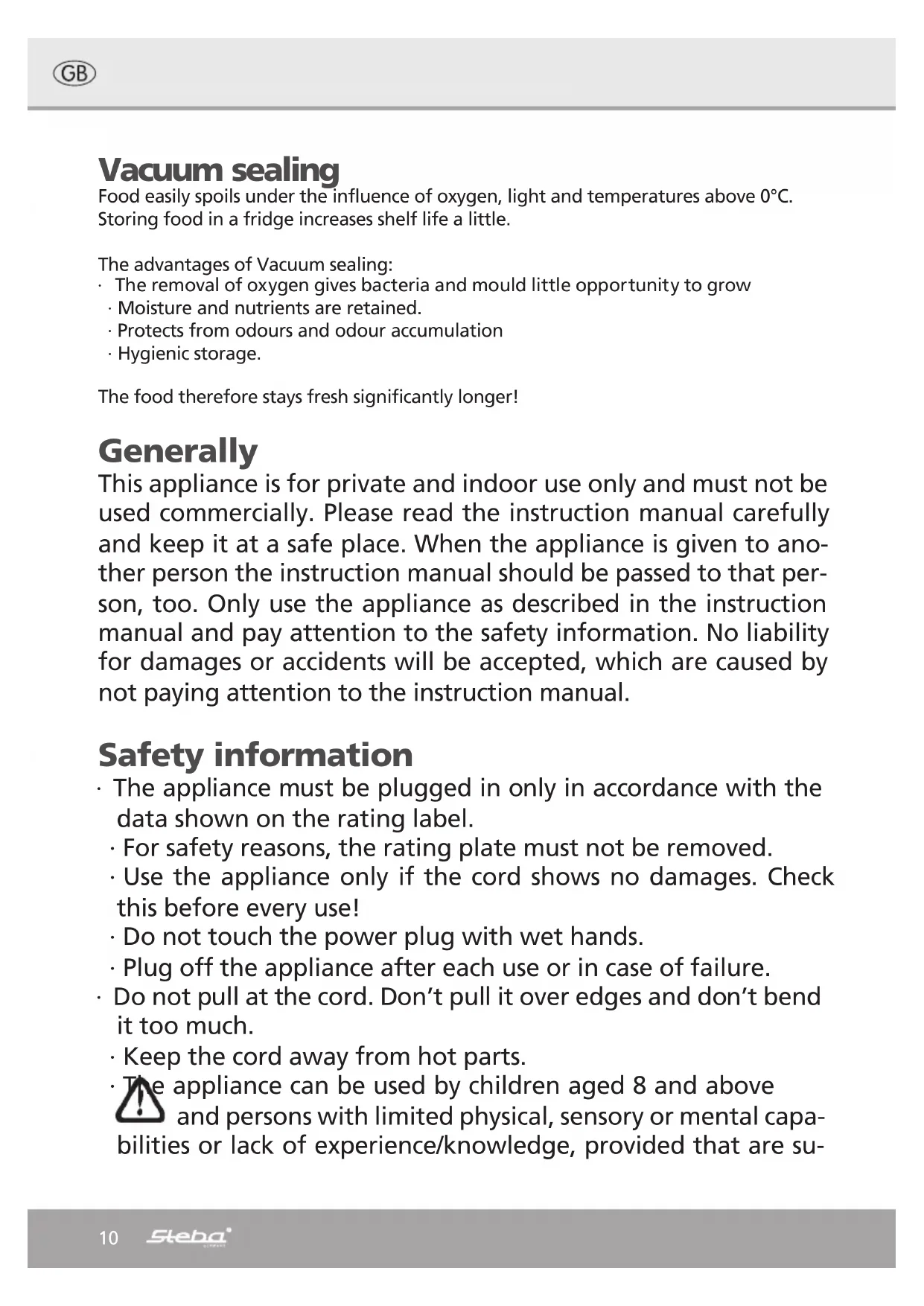

Food easily spoils under the influence of oxygen, light and temperatures above 0^ . Storing food in a fridge increases shelf life a little.

The advantages of Vacuum sealing:

• The removal of oxygen gives bacteria and mould little opportunity to grow

• Moisture and nutrients are retained.

• Protects from odours and odour accumulation

Hygienic storage.

The food therefore stays fresh significantly longer!

Generally

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• The appliance must be plugged in only in accordance with the data shown on the rating label.
• For safety reasons, the rating plate must not be removed.
• Use the appliance only if the cord shows no damages. Check this before every use!
• Do not touch the power plug with wet hands.
• Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.
  The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are su

pervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a plaything. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.
• The appliance must not be operated using a timer or a separate remote system!
• When using a powercord extension it is important that children are not pulling at it or a trip hazard occurs. A cable drum must always be unwound.
• Don't keep the appliance outside or in a humid environment.

Never immerse the appliance in water.

• Use the appliance never after a malfunction, e.g. when it fell down or was damaged in any other way.
• The producer takes no responsibility for wrong use, which comes from not obeying the instruction manual
• To avoid any dangers, any repairs at the appliance, e.g. an exchange of the cord, must only be done by customer service. Only use original spare parts.

Caution!

The foil sealing strip becomes hot. Do not transport until the equipment has cooled down.

Do not vacuum any products which may contain alcohol, the petrol or any other explosive substances. Do not vacuuming animals

• The device is not intended for continuous use, always allow to cool between sealing operations.

Workspace:

Important: Never put the device on or next to a hot surface (e.g. the rings of a stove).

Always put the device on a surface that is level, stable, temperature-resistant and dry.

Keep it away from the edge of work surfaces so that it cannot fall off during use.

Before initial use:

• Wipe off the device with a damp towel.
• The sealing rings and the bag sealing bar must be clean and level, otherwise it will not be possible to generate a vacuum.

Cleaning

Unplug the device and leave to cool down.

Do not immerse the device in water or pour water over it.

• For hygienic reasons, the device must be cleaned after every use.

• Remove the upper rubber lid and clean in warm soapy water, leave to dry and insert it again.

• Wipe the other parts with a damp cloth with detergent and dry. Do not use abrasive detergents.

Ensure that the welding strip and the upper seal are not damaged.
- Ensure that no liquids enter the vacuum extractor when cleaning.

Roll of film / bags

Use only the special rolls of film / plastic bags with 3D-structure that are suitable for vacuuming and sealing. If the wrong film is used it will stick to the device and damage the sealing bar. The following special films are available from Steba, among other things:

Please visit our homepage to get an overview about our current assortment of vacuum film rolls and bags.

How to use

A) Vacuum nozzle (should not be covered by films)
B) Gasket
C) Sealing bar
D) Vacuum chamber
E) Release button
F) Rubber lid
1) Vacuuming & sealing - stop
2) Sealing

Making bags from rolls of film

Determine the space required for the food
For the lower and the head welding, add 8cm length.

• Place the front end of this tube of film against the black oval sealing lip, ensuring that it is smooth and free of creases.
• Close the lid and press gently in the middle of the lid.
• Seal with the "Seal" button. The unit stops automatically when the welding has been done.
  Press the release button and remove the film bag.

The sealing bar will be hot!

Usage

Vacuum sealers are designed to vacuum food or other products in vacuum foil. If the device is used in any other way, it might get damaged and the warranty void.
- Do not seal spoiled food or flammable liquids.
Only use foils suitable for vacuuming.
- Place the food in the bag. Ensure that the bag is not damaged by any sharp objects, such as bones.
- Damp and in the area of the welding seam soiled bags are difficult to weld.
- Do not seal twice in the same place, since this may cause the film to burn. Instead, place a second weld.

Vacuum Sealing

• Place the food in the bag. Ensure that the bag is not damaged by any sharp objects, such as bones.
  Insert the bag up to half down the vacuuming tray, ensuring that it is free of creases, dry and free of residue.
• Damp bags are difficult to weld. Press excess air out of the bag so the pump does not pump unnecessarily.
  Gently press on the lid and press the "Vas/Seal button.
• Ensure that the vacuum pump does not suck up any liquids. If this occurs, press the stop button immediately.
  The aspiration and the welding stop automatically.

Do not seal twice in the same place,

this may cause the film to burn.

• Allow the device to cool for one minute between sealing operations.
• If the device becomes overloaded, the overheating protection will switch the device off. If this happens, disconnect the device from the power supply and leave it to cool for about 20 minutes.

Troubleshooting

Problem Solution
Device does not work	·Do you have power? ·Has the lid been pressed gently? ·Is the film placed in the oval vacuum chamber? ·Is the aspiration covered by a film?
Air in the films	·The weld is not closed ·Did you use an inappropriate film? (use only films suitable for vacuuming) ·Is the film soiled or wet in the area of the weld? ·Is a crease at the weld? ·Is the sealing bar clean?

Disposal:

Packaging disposal:

Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point.

Plastic packaging material and foils should be collected in the special collection containers.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
