USER MANUAL HPBT8053BK NEDIS

Fully Wireless Sports Earphones

with ear hooks for supreme comfort

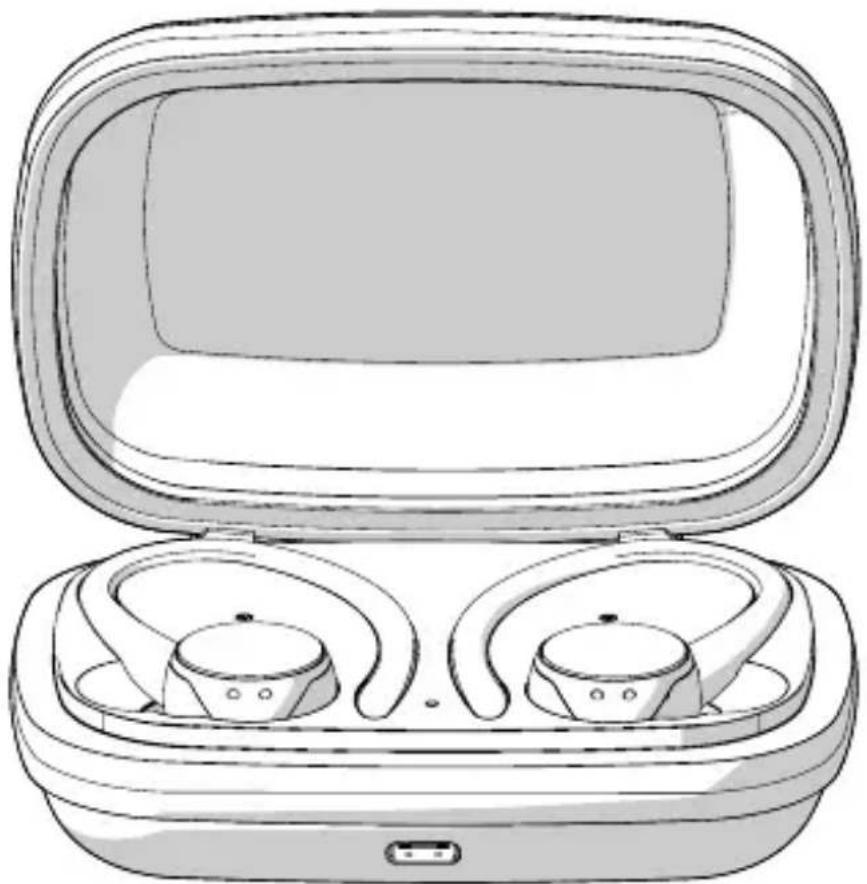

Line drawing of a wireless earbuds with two front speakers and open case (no text or symbols)

EN Quick start guide 4

DE) Kurzanleitung 8

Illustration of an open wireless earbuds with a plug inserted, showing internal components and a close-up of the device (no text or symbols)

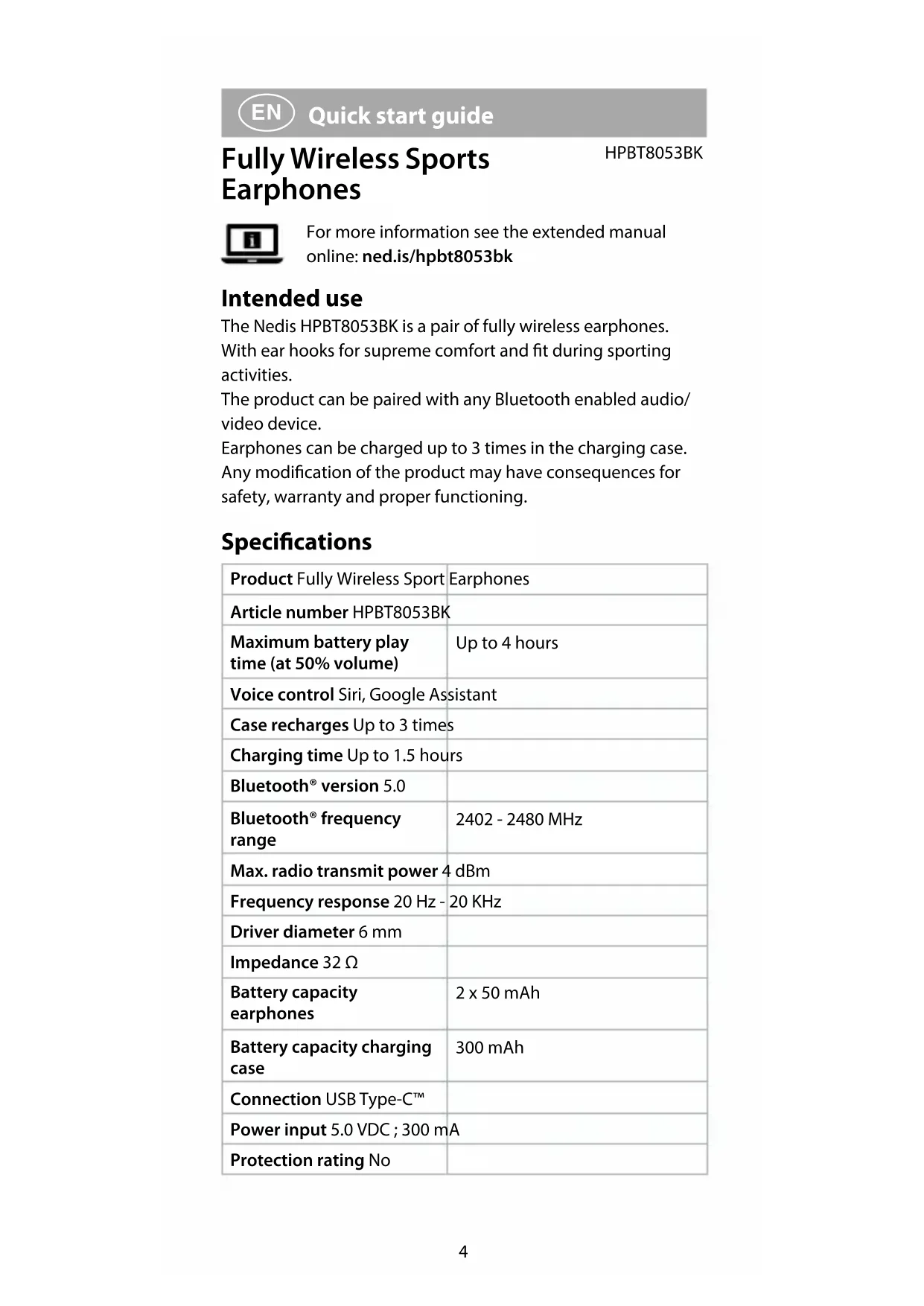

Fully Wireless Sports Earphones

HPBT8053BK

For more information see the extended manual online: ned.is/hpbt8053bk

Intended use

The Nedis HPBT8053BK is a pair of fully wireless earphones. With ear hooks for supreme comfort and fit during sporting activities.

The product can be paired with any Bluetooth enabled audio/video device.

Earphones can be charged up to 3 times in the charging case. Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Fully Wireless Sport	Earphones
Article number HPBT8053BK
Maximum battery play time (at 50% volume)	Up to 4 hours
Voice control Siri, Google Assistant
Case recharges Up to 3 times
Charging time Up to 1.5 hours
Bluetooth® version 5.0
Bluetooth® frequency range	2402 - 2480 MHz
Max. radio transmit power 4 dBm
Frequency response 20 Hz - 20 KHz
Driver diameter 6 mm
Impedance 32 Ω
Battery capacity earphones	2 x 50 mAh
Battery capacity charging case	300 mAh
Connection USB Type-CTM
Power input 5.0 VDC ; 300 mA
Protection rating No

Main parts (image A)

① Left earphone slot
② Right earphone slot
③ Charging case indicator LED
④ USB Type-C™ charging port
⑤ Left earphone button

⑥ Right earphone button
⑦ Microphone
⑧ Charging indicator LED
⑨ Connection indicator LED
⑩ USB to USB Type-C™ cable
⑪ 2 pairs of ear tips (M)

Safety instructions

To prevent possible hearing damage, do not listen at high volume levels for long periods.

WARNING

• Only use the product as described in this manual.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.
• Do not open the product.
• Keep the product out of reach from children.
• This product is not a toy. Never allow children or pets to play with this product.
• Using earphones with both ears covered while participating in traffic is discouraged and may be illegal in some areas.
• Listening on high volume for a long time will damage your hearing.
• Some wireless devices may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• Do not short circuit.
• Do not repair the product. If damaged, it must be properly disposed of.
• Only use the product as described in this manual.
• Listening on high volume for a long time will damage your hearing.

- To prevent possible hearing damage, do not listen at high volume levels for long periods.

Pairing the earphones to a Bluetooth audio source

1. Take the earphones out of the charging case. The earphones switch on automatically.

Press and hold both earphone buttons A⑤A⑥ for 2 seconds to switch the earphones on manually.

1. The charging and connection indicator LEDs A⑧⑨ start blinking respectively red and blue to indicate pairing mode is active.

2. Enable Bluetooth on the device you want to pair the earphones with.

3. Select "HPBT8053BK" from the list of available Bluetooth devices on your device.

Leave one earphone in the case to pair only one earphone instead of both.

Charging the product (image B)

The product is delivered with a partially charged battery. For optimal battery life, fully charge the battery before first use.

1. When the battery is low, the charging indicator LED blinks red and the earphones emit the voice alert "Please charge".

2. Place the earphones into the respective slots A① A② to charge the earphones.

3. A⑧ lights up red when charging.

4. When full charged, A⑧ goes off and A⑨ goes on for 15 seconds before going off.

The earphones and the charging case can charge simultaneously.

1. The earphones can be charged up to 3 times in the fully charged case.

To charge the product:

1. Plug the USB-C cable A⑩ into the USB-C port A④.

2. Plug the other end of A ^10 into a computer or power adapter.

3. Plug the power adapter into a power outlet.

4. A③ flashes when charging and A③ will be constant on when full charged.

Switching on the product

- Press and hold A⑤ and A⑥ for 2 seconds to switch the product on or off.

Making phone calls

With the earphones connected to a mobile phone via Bluetooth, phone calls will automatically be redirected to the earphones.

• To answer an incoming call, press A⑤ or A⑥.
• To reject an incoming call, press and hold A⑤ or A⑥ for 1 second.
  • To end a call, press A⑤ or A⑥.

Controlling the music

• Press A⑤ or A⑥ to play or pause the music.
• Double press A⑥ to skip to the next track.
• Double press A⑤ to skip to the previous track.

Add Siri/Google Assistant function

- Press and hold A⑤ or A⑥ for 1 seconds to activate Siri/Google Assistant.

Restore to default settings

1. Make sure that the earphones are switched off.
2. Press and hold A⑤ and A⑥ for 8 seconds.
   This function is suggested to be used when the earphones cannot connect to each other under the conditions of common use.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product HPBT8053BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/hpbt8053bk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands

5215 MC 's-Hertogenbosch, the Netherlands

5215 MC 's-Hertogenbosch, the Netherlands
