USER MANUAL HPBT3052WT NEDIS

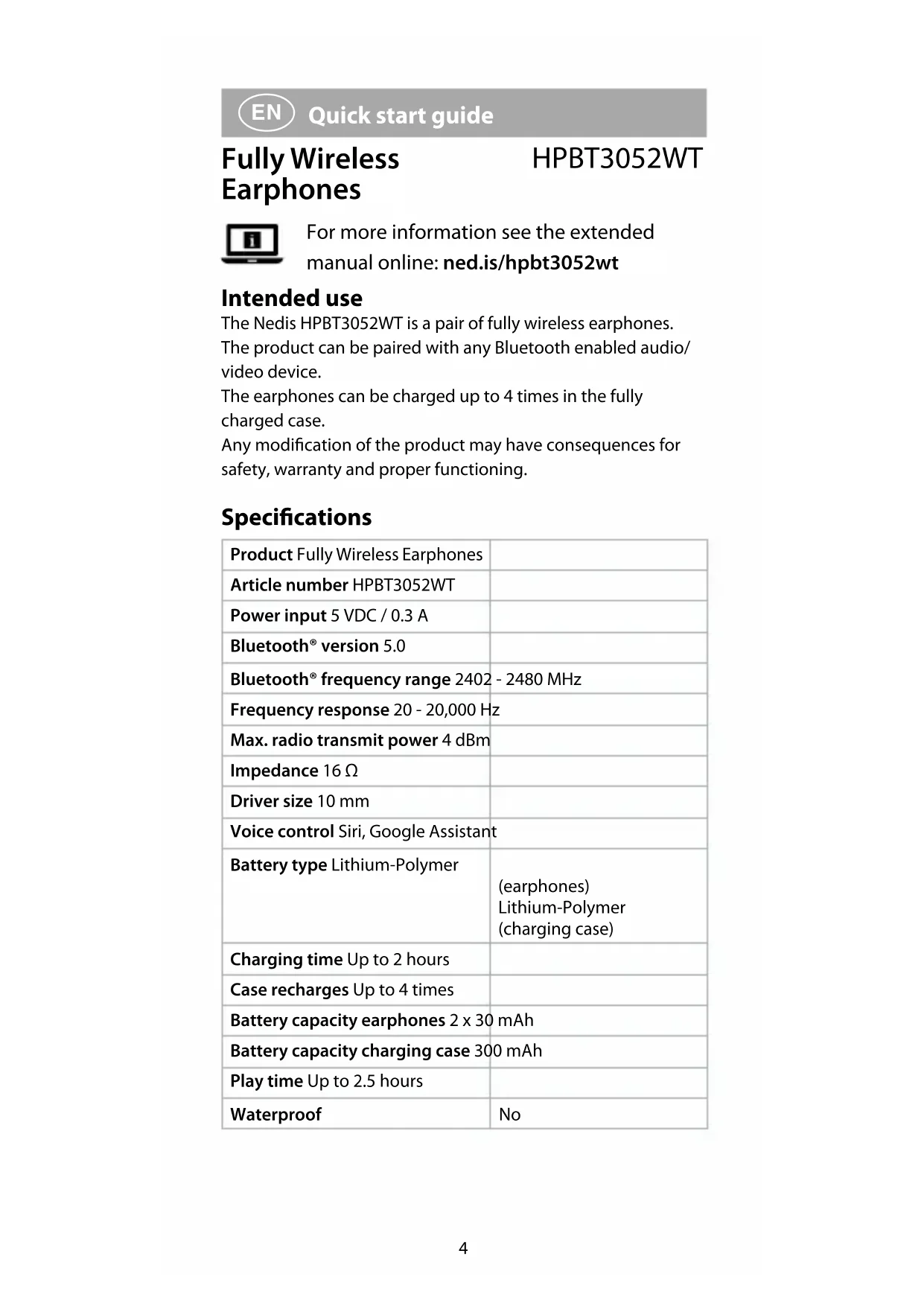

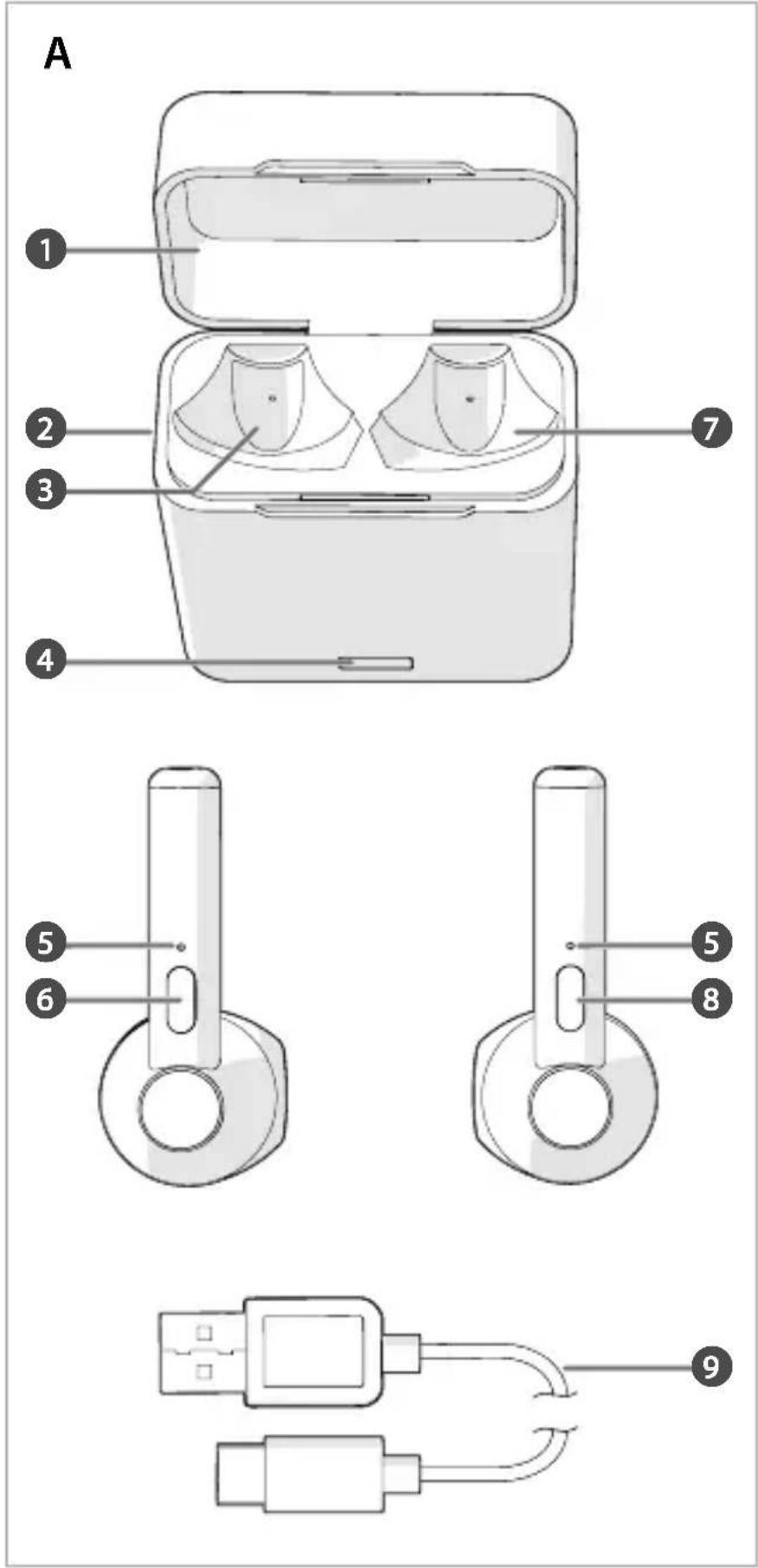

Quick start guide Fully Wireless Earphones HPBT3052WT For more information see the extended manual online: ned.is/hpbt3052wt Intended use The Nedis HPBT3052WT is a pair of fully wireless earphones. The product can be paired with any Bluetooth enabled audio/ video device. The earphones can be charged up to 4 times in the fully charged case. Any modication of the product may have consequences for safety, warranty and proper functioning. Specications Product Fully Wireless Earphones Article number HPBT3052WT Power input 5 VDC / 0.3 A Bluetooth® version 5.0 Bluetooth® frequency range 2402 - 2480 MHz Frequency response 20 - 20,000 Hz Max. radio transmit power 4 dBm Impedance 16 Ω Driver size 10 mm Voice control Siri, Google Assistant Battery type Lithium-Polymer (earphones) Lithium-Polymer (charging case) Charging time Up to 2 hours Case recharges Up to 4 times Battery capacity earphones 2 x 30 mAh Battery capacity charging case 300 mAh Play time Up to 2.5 hours Waterproof No5 Main parts (image A)

Charging indicator LED

Left earphone button

Right earphone button

WARNING To prevent possible hearing damage, do not listen at high volume levels for long periods.

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep the packaging and this document for future reference.

• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.

• Do not expose the product to direct sunlight, naked ames or heat.

• Do not expose the product to water or moisture.

• Do not drop the product and avoid bumping.

• Do not open the product.

• Keep the product out of reach from children.

• This product is not a toy. Never allow children or pets to play with this product.

• Using earphones with both ears covered while participating in trac is discouraged and may be illegal in some areas.

• Charge the battery for at least 2 hours when you use it for the rst time.

• Only use the provided USB charging cable.

• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.

• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

• Disconnect the product from the power source and other equipment if problems occur.6

• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.

• Do not short circuit.

• Do not repair the product. If damaged, it must be properly disposed of. Pairing the earphones to a Bluetooth audio source

1. Take the earphones out of the charging case. The earphones

switch on automatically.

Press and hold both earphone buttons A

for 2 seconds to switch the earphones on manually.

blinks red and blue to indicate pairing mode is active.

3. Enable Bluetooth on the device you want to pair the

4. Select "HPBT3052WT" from the list of available Bluetooth

devices on your device. Charging the product

into the Micro USB port A

of the charging case.

2. Plug the other end of A

into a computer or power adapter.

3. Plug the power adapter into a power outlet.

The charging indicator LED A

lights up red when charging.

switches o when the case is fully charged.

4. Place the earphones into the respective slots A

to charge the earphones.

on the earphones lights up red.

switches o when the earphones are fully charged.

The earphones and the charging case can charge simultaneously. Making phone calls With the earphones connected to a mobile phone via Bluetooth, phone calls will automatically be redirected to the earphones.

• To answer an incoming call, press A

• To reject an incoming call, press and hold A

Controlling the music

to play or pause the music.

to skip to the next track.

to skip to the previous track. Add Siri/Google Assistant function Press and hold A6 or A8 for 2 seconds to activate Siri/ Google Assistant. Declaration of Conformity We, Nedis B.V. declare as manufacturer that the product HPBT3052WT from our brand Nedis

, produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation. The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/hpbt3052wt#support For additional information regarding the compliance, contact the customer service: Web: www.nedis.com E-mail: service@nedis.com Nedis B.V., de Tweeling 28 5215 MC ’s-Hertogenbosch, the Netherlands
