Product type	Fully wireless earbuds
Brand	Nedis
Model	HPBT5054BK
Bluetooth version	5.0
Frequency response	20 Hz - 20 kHz
Impedance	16 Ω
Driver diameter	10 mm
Battery capacity (earbuds)	2 x 40 mAh (Lithium-ion)
Battery capacity (case)	400 mAh (Lithium-polymer)
Playback time	Up to 3 hours (at 50% volume)
Case recharges	Up to 4 full recharges
Charging time	Up to 2 hours
Power supply	5 V DC, 1.0 A
Charging port	USB-C
Touch control	Yes
Voice assistant	Siri, Google Assistant
Microphone	Built-in
Compatibility	Bluetooth-compatible audio/video devices
Cleaning	Wipe with a soft, dry cloth
Safety instructions	Do not expose to water, heat, or shock. Keep out of reach of children.
Spare parts	Not available separately; battery not replaceable
Repairability	Do not open or repair yourself
Warranty	According to applicable legislation
Country of origin	China

Frequently Asked Questions - HPBT5054BK NEDIS

How to pair the earbuds with my phone?

Remove the earbuds from the case. They automatically power on and enter pairing mode. Enable Bluetooth on your phone and select 'HPBT5054BK' from the list.

How to charge the earbuds and case?

Plug the included USB-C cable into the USB-C port on the case. Place the earbuds in their slots and close the lid. The LED indicator shows the charging progress.

What is the battery life of the earbuds?

Up to 3 hours of playback at 50% volume. The case provides up to 4 full recharges.

How to control music?

Press once on the left or right earbud to play/pause. Press twice on the left earbud for previous track, twice on the right for next track.

How to answer or reject a call?

Press once on an earbud to answer. Press and hold for 1.5 seconds to reject. Press once to hang up.

How to activate the voice assistant?

Press and hold the touch control on the left or right earbud for 1.5 seconds to activate Siri or Google Assistant.

How to reset the earbuds?

Turn on the earbuds, then quickly press the touch controls on both earbuds five times. Then turn them off. This resolves connection issues.

Are the earbuds water-resistant?

No, they are not water-resistant. Avoid any exposure to water or moisture.

Can I use a single earbud at a time?

Yes, the earbuds can be used individually. Pairing is done automatically.

What if the earbuds do not connect to each other?

Perform a reset: turn on the earbuds, quickly press both touch controls five times, then turn them off. Try pairing again.

USER MANUAL HPBT5054BK NEDIS

with voice and touch control

HPBT5054BK

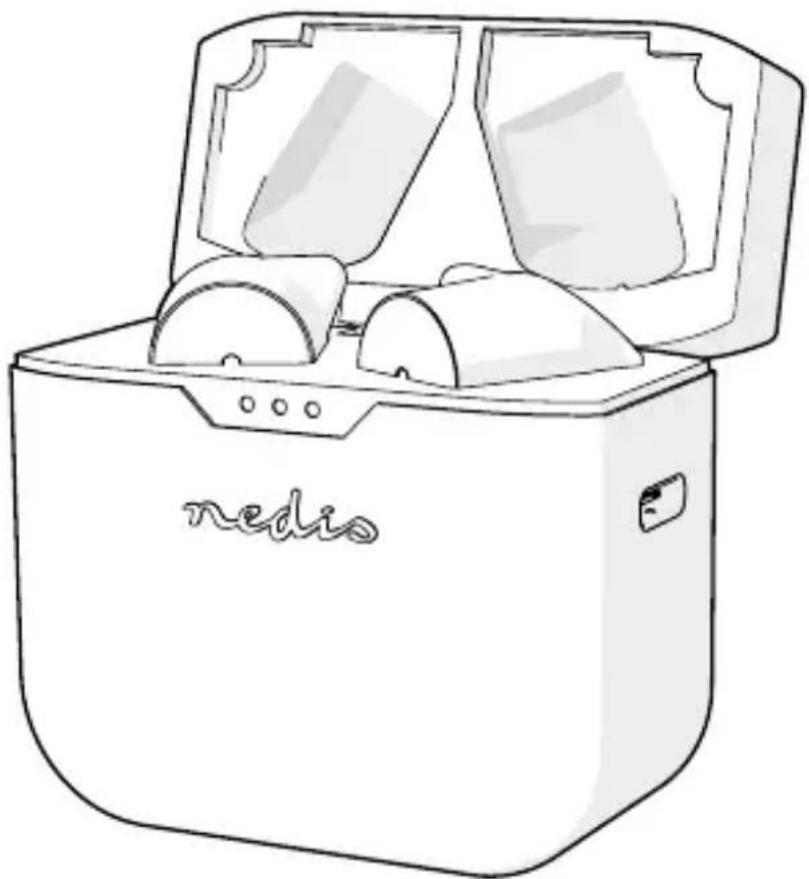

Line drawing of a closed electronic device with two open compartments and a 'nedio' logo on the front box (no text or symbols on the device itself)

EN Quick start guide 4
DE Kurzanleitung 7
FR Guide de démarrage rapide 11
NL Snelstartgids 16
IT Guida rapida all'avvio 20
ES Guía de inicio rápido 24
PT Guia de iniciação rápida 28
SV Snabbstartsguide 32
FI Pika-aloitusopas 36
NO Hurtigguide 40
DA Vejledning til hurtig start 43
HU Gyors beüzemelési útmutató 47
PL Przewodnik Szybki start 51
EL Οδηγός γρήγορης εκκίνησης 56
SK Rýchly návod 60
CS Rychlý návod 64
RO Ghid rapid de inițiere 68

Fully Wireless

Earphones

HPBT5054BK

For more information see the extended

manual online: ned.is/hpbt5054bk

Intended use

The Nedis HPBT5054BK is a pair of fully wireless earphones.

The product can be paired with any Bluetooth enabled audio/video device.

The earphones can be charged up to 4 times in the fully charged case.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Fully Wireless Earphones
Article number HPBT5054BK
Power input 5 VDC ; 1.0 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Frequency response 20 Hz - 20 KHz
Max. radio transmit power 4 dBm
Impedance 16 Ω
Driver size 10 mm
Voice control Siri, Google Assistant
Battery type Lithium-Ion (earphones)Lithium-Polymer(charging case)
Charging time Up to 2 hours
Case recharges Up to 4 times
Battery capacity earphones 2 x 40 mAh
Battery capacity charging case 400 mAh
Play time (at 50% volume) Up to 3 hours
Touch control	Yes

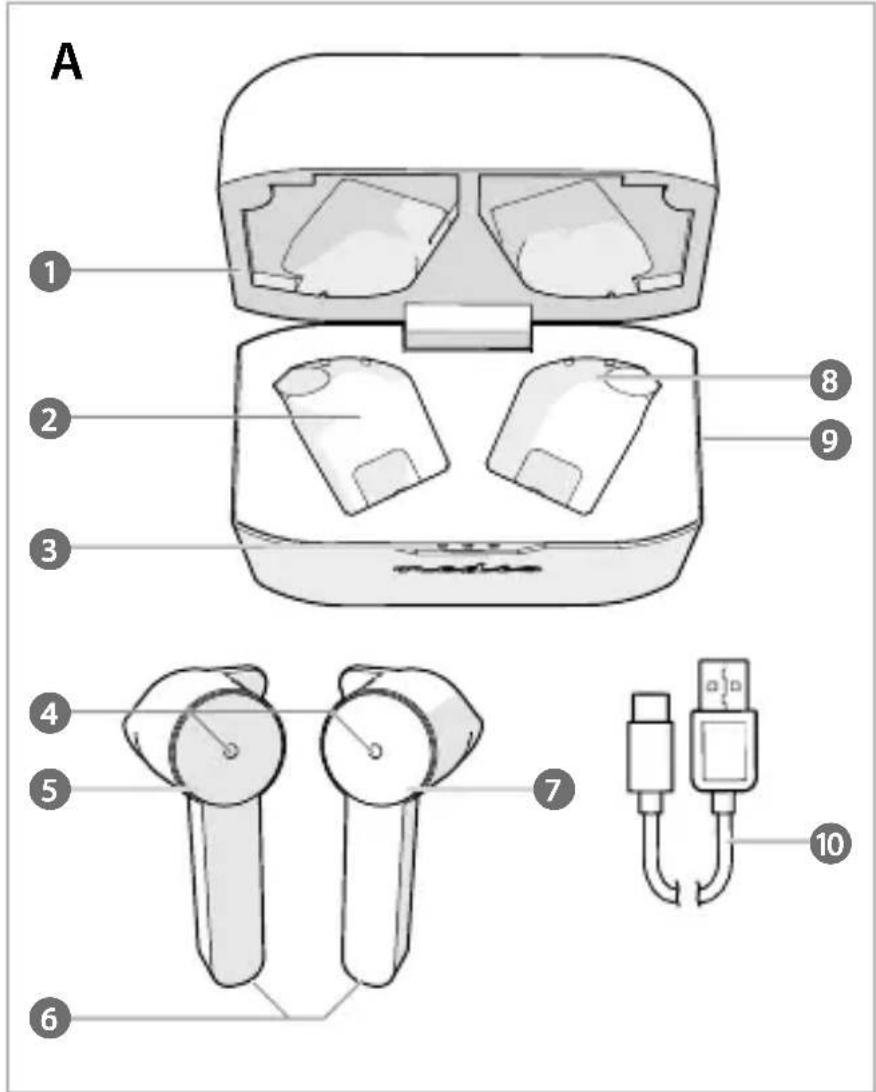

Main parts (image A)

1 Lid
2 Left earphone slot
3 Charging indicator LED
4 Status indicator LED
5 Left earphone touch control

6 Microphone
7 Right earphone touch control
8 Right earphone slot
9 USB-C port
10 USB-C cable

Safety instructions

WARNING

To prevent possible hearing damage, do not listen at high volume levels for long periods.

• Only use the product as described in this manual.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not expose the product to water or moisture.
• Do not drop the product and avoid bumping.
• Do not open the product.
• Keep the product out of reach from children.
• This product is not a toy. Never allow children or pets to play with this product.
• Using earphones with both ears covered while participating in traffic is discouraged and may be illegal in some areas.
• Charge the battery for at least 2 hours when you use it for the first time.
• Only use the provided USB charging cable.
• Some wireless products may interfere with implantable medical devices and other medical equipment, such as pacemakers, cochlear implants and hearing aids. Consult the manufacturer of your medical equipment for more information.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.

• Do not short circuit.

• Do not repair the product. If damaged, it must be properly disposed of.
• Only use the product as described in this manual.

Pairing the earphones to a Bluetooth audio source

1. Take the earphones out of the charging case. The earphones switch on automatically.
   Tap and hold both earphone touch controls A 5 A 7 for 2 seconds to manually switch on the earphones.
2. The status indicator LED A 4 starts blinking to indicate pairing mode is active.
3. Enable Bluetooth on the device you want to pair the earphones with.
4. Select "HPBT5054BK" from the list of available Bluetooth devices on your device.

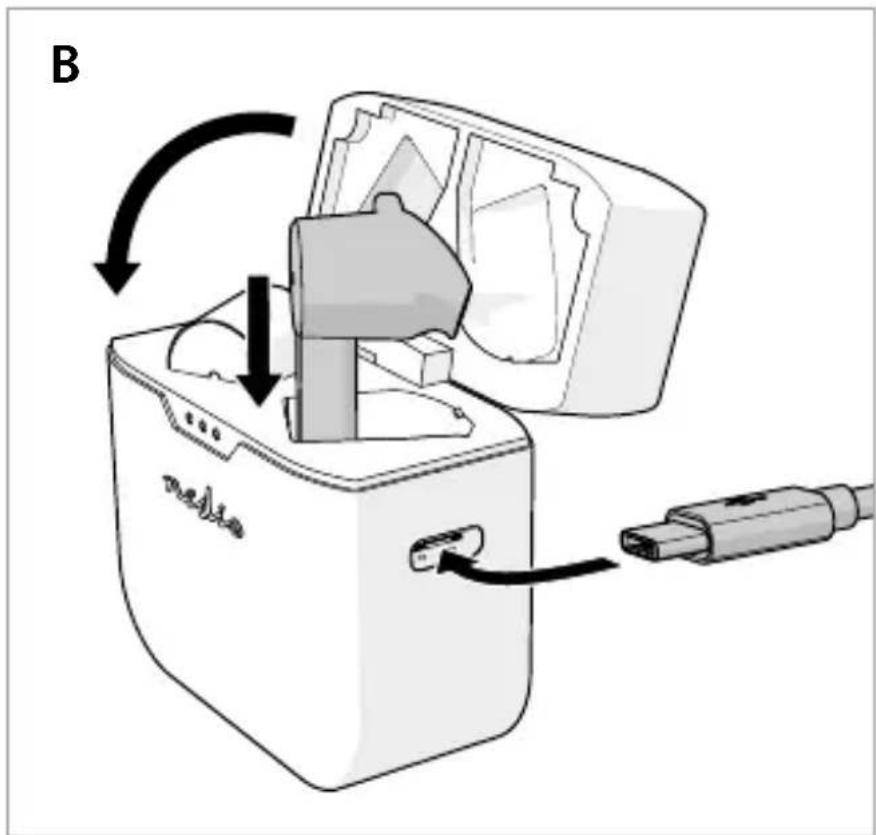

Charging the product (image B)

1. Plug the USB-C cable A 10 into the USB-C port A 9 of the charging case.
2. The charging indicator LED A 3 indicates the charging progress of the battery.
3. Place the earphones into the respective slots A 2A 8 and close the lid A 1 to charge the earphones.
   The earphones and the charging case can charge simultaneously.

Switching on the product

• Tap and hold A 5 and A7 for 2 seconds to switch the product on or off.
• Tap and hold A 5 and A 7 for 4 seconds to manually switch off the product.

Making phone calls

With the earphones connected to a mobile phone via Bluetooth, phone calls will automatically be redirected to the earphones.

• To answer an incoming call, tap A 5 or A 7.
- To reject an incoming call, tap and hold A 5 or A7 for 1.5 seconds.
• To end a call, tap A 5 or A7.

Controlling the music

• Tap A 5 or A 7 to play or pause the music.
• Double tap A 5 to skip to the previous track.
• Double tap A 7 to skip to the next track.

Activating voice assistant

- Tap and hold A 5 or A7 for 1.5 seconds to activate Siri/Google Assistant.

Restore to default settings

1. Switch on the earphones.
2. Quickly tap A 5 and A 7 five times.
3. Switch off both earphones.

This function is suggested to be used when the earphones cannot connect to each other under the conditions of common use.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product HPBT5054BK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via: nedis.com/hpbt5054bk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com

E-mail: [e-mail]

Nedis B.V., de Tweeling 28

5215 MC 's-Hertogenbosch, the Netherlands
