| Product type | LED construction site spotlight |
| Brand | Parkside |
| Model | PAS 10 A1 |
| Model reference | FCL-76003LI |
| Article number (IAN) | 343434_1910 |
| Power supply | 220-240 V ~ 50 Hz |
| Power consumption | 10 W |
| Luminous flux | 1000 lm |
| Color temperature | 4000 K (neutral white) |
| Beam angle | 110° |
| Protection rating | IP65 (protected against water jets) |
| Protection class | I |
| Cable length | 3 m |
| Dimensions (with bracket) | 20 x 16 x 5 cm |
| Dimensions (lamp only) | 10 x 12 x 4.6 cm |
| Weight | approx. 955 g |
| Maximum mounting height | 2.5 m |
| Maximum projected area | approx. 28 m² (3.5 x 8 m) |
| LED lifespan | 25,000 h |
| Mounting types | Folding stand, hook, tripod (not included), wall mount |
| Usage | Indoor and outdoor, not suitable for room lighting |
| Package contents | 1 LED spotlight, 1 instruction manual |
| Maintenance and cleaning | Disconnect, allow to cool, clean with a dry, lint-free cloth |
| Safety precautions | Risk of electric shock, hot surfaces, do not look directly at LED, do not cover, disconnect before maintenance |
| Spare parts and repairability | LED module and cable not replaceable; at end of life, replace entire product |
Frequently Asked Questions - PAS 10 A1 PARKSIDE
User questions about PAS 10 A1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your LED Lighting in PDF format for free! Find your manual PAS 10 A1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PAS 10 A1 by PARKSIDE.
USER MANUAL PAS 10 A1 PARKSIDE


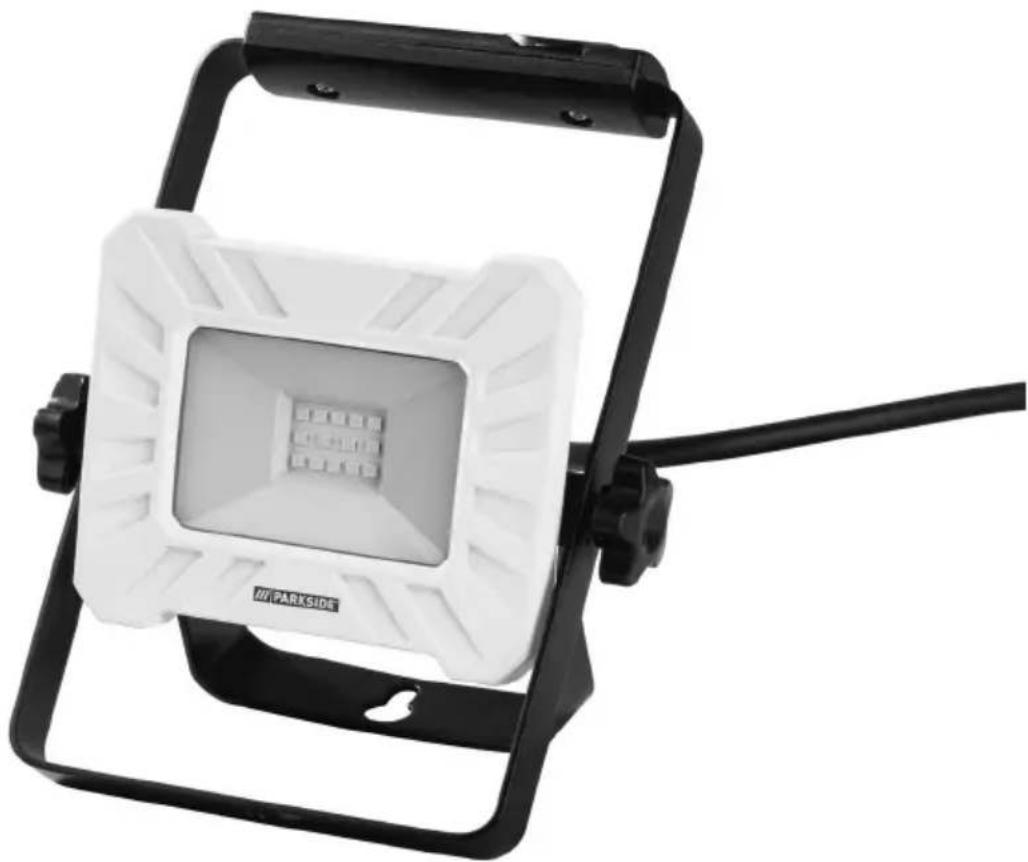

White outdoor light fixture with black frame and black cable, no visible text or symbols on the main bodyLED-ARBEITSSTRAHLER 10W / LED WORK SPOTLIGHT 10 W / PROJECTEUR DE CHANTIER LED 10 W PAS 10 A1
DE AT CH
Operation and safety notes
NL BE
LED-WERKSCHIJNWERPERIOW
PRACOVNÍ LED REFLEKTOR 10 W
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.
FR BE
Intended use......Page 12
Parts description Page 13
Technical data......Page 13
Scope of delivery....Page 13
General safety notes......Page 13
Before use......Page 14
Initial use....Page 14
Switching the product on/off Page 14
Installing the product....Page 14
Cleaning and care....Page 15
Disposal Page 15
Warranty and service......Page 15
Warranty Page 15
Service address......Page 16
| List of pictograms used | |||
 | Read the instructions! |  | This product is not suitable as residential room lighting. |
 | Volts (alternating voltage) |  | Switching cycles |
 | Hertz (frequency) |  | Protection type: protected from water jets |
 | Watts (effective power) Warning! Dang |  electric shock! | |
 | Protection class I |  | The built-in LEDs are not suitable for dimmers or electronic switches. |
 | Observe the warnings and safety notes! |  | A shattered protective covering must always be replaced. |
 | Danger to life and risk of accidents for infants and children! |  | Dispose of the packaging and product in an environmentally-friendly manner! |
 | Caution! Risk of burns due to hot surfaces! |  | Intertek / GS tested |
 | LED operating life: 25000 h Lights for h |  | |
 | Beam angle: 110 ° Cable length: 3 m |  | |
| RA>80: | Colour rendering: RA>80 | ||
LED Work Spotlight 10W PAS 10 A1
on to anyone else, please ensure that you also pass on all the documentation with it.
- Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for
use are part of the product. They contain important information concerning safety, use and disposal.
Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product
Intendeduse
This light is suitable for indoor and outdoor use and is not intended for use as a hand-held lamp. This product withstands extreme physical conditions in the form of shocks (1.0 m ^2 /s ^3 200-2000 Hz). This product is only intended for private household use. Any use other than that described or any product modification is prohibited and will result in damage. The manufacturer assumes no liability for damages
due to improper use. This product is not intended for commercial use.
The product is not suitable for use as residential room lighting.
- Parts description
1 Handle
2 LED module
3a Knurled screw
3b Knurled screw
4 Mains plug
5 Fold-out stand
6 Fold-out hook
7 Fixture for tripod installation
8 Fixture for wall installation
- Technical data
Model number: FCL-76003LI
Operating voltage: 220-240V\~50Hz
Illuminant: LED module (not re-placeable)
Power input: 10W
Luminous flux: 1000 lm (Φ 120°: 910lm)
Colour temperature
(light colour): 4000 K (neutral white)
Beam angle: 110°
Maximum installation height: 2.5 m
Maximum projected area: Approx.: 28 m ^4 (3.5 x 8 m)
Protection type: IP65 (protected from water jets)
Protection class: 1/ ⊥
Cable length: 3 m
Dimensions: 20 x 16 x 5 cm (including bracket) 10 x 12 x 4.6 cm (lamp only, without bracket)
Weight: approx. 955g
- Scope of delivery
Always check that all the parts are present and that the product is in perfect condition immediately after unpacking.
1 LED floodlight
1 Instructions for use
General safety notes
BEFORE USING THIS PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY NOTES AND INSTRUCTIONS FOR USE! PLEASE ALSO INCLUDE ALL DOCUMENTATION WHEN PASSING THIS PRODUCT ON TO OTHERS!
WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN!
Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Always keep children away from the product.
This product may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and/or knowledge, as long as they are supervised or instructed in the safe use of the product and they understand the associated risks. Do not allow children to play with the product. Never allow children to clean or maintain this product unsupervised.
The LED module cannot be replaced. If the LED module fails at the end of its service life, the entire product must be replaced.
This product's mains cable is non-replaceable. If the mains cable is damaged, the product must be disposed of.
Avoid the risk of fatal injury from electric shock
- Check the product for damages before connecting it to the power supply. Never use the product if it is damaged in any way.
■ Protect the mains cable from sharp edges, mechanical strain and hot surfaces. - Only touch the insulated part of the mains plug when connecting or disconnecting it from the mains supply!
■ Always unplug the mains plug from the socket before mounting, removing or cleaning it.
■ Disconnect the product from the mains power if you are not using it for long periods (e.g. when on holiday). - Never open any of the electrical equipment or insert any objects into this equipment. Such interferences pose a risk of fatal injury from electric shock.
Before use, ensure that the available mains voltage matches the operating voltage required by the product (220-240 V\~, 50 Hz).
Prevent fire and injury hazards
CAUTION! RISK OF BURNS DUE TO HOT
SURFACES! To prevent burns, make sure that the product has been switched off and has cooled down before touching it. Illuminants become very hot.
Do not cover the product with any objects. Excessive heat can result in fire.
■ Never leave the product unattended whilst in operation. Excessive heat can result in fire.
■ The LED module is not dimmable.
Do not look directly into the light source (illuminant, LED etc.). Do not look into the light source (illuminant, LED, etc.) with an optical instrument (e.g. magnifying glass).
A shattered protective covering must always be replaced.
- Never aim the LED light beam at reflective surfaces or at people or animals. Failure to observe this instruction can lead to eye injuries and / or loss of sight in people or animals. Even a weak LED light beam can cause eye damage.
■ Disconnect the product from the mains supply whenever you want to set it up in a different location.
The product is not suitable for use as room lighting.
●Beforeuse
Note: Remove all packaging materials from the product.
Note: Protect delicate surfaces before setting up the product.
☐ Loosen the knurled screw 3a/3b on the side of the product by turning it anticlockwise, in order to move the fold-out stand 5 to the desired position.
☐ Then re-tighten the knurled screw 3a/3b by turning it clockwise.
☐ Set up the product in the desired location.
Note: The lamp head can be continuously tilted.
- Initialuse
- Switching the product on / off
☐ To switch the product on, plug the mains plug 4 into a properly installed mains socket.
Note: Insert the mains plug 4 into an IPX4 plug socket to guarantee the protection against splashing water.
☐ To switch the product off, remove the mains plug 4 from the mains socket.
• Installing the product
You can mount the product on a tripod or a wall, or hang it up using the fold-out hook 6.
To mount the product on a tripod (not included in the scope of delivery), use the fixture for tripod installation 7. Proceed as described in the instructions for your tripod.
☐ To mount the product on a wall, use the fixture for wall installation 8. Information on suitable installation material can be obtained from specialist stores.
Note: Pay attention to the cable length (3 m) when mounting the product on a wall.
☐ If you would like to hang up the product using the fold-out hook 6, make sure that the chosen hanging location is suitable for bearing the weight of the product (approx. 960 g).
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
- Cleaning and care
WARNING! DANGER OF ELECTRIC
SHOCK!Remove the mains plug 4 from the mains socket before cleaning.
WARNING! DANGER OF ELECTRIC
SHOCK! To ensure electrical safety, never clean the product with harsh cleaning products or immerse it in water.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the product to cool down completely.
Do not use solvents, petrol, etc. Doing so would damage the product.
☐ Only clean with a dry, lint-free cloth.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board / 80-98: composite materials.
● Warranty and service
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
Service address
* Free of charge number
IAN 343434\_1910
Please have your receipt and the item number (IAN
343434_1910) ready as your proof of purchase
when enquiring about your product.
