USER MANUAL HG04103 SILVERCREST
Operation and Safety Notes
NL BE
ELEKTRISCHEZEEPDSPENSER
GB/IEOperation and Safety NotesPage 19
Intended use.. Page 20
Description of parts.. Page 20
Technical data.. Page 21
Included items . Page 21
Safety
Safety instructions for batteries/rechargeable batteries ....... Page 23
Before first use. Page 26
Removing the insulation strip.. Page 26
Operation 27
Inserting/replacing the batteries.. Page 27
Filling the container with soap.. Page 27
Using the product.. 28
Cleaning and care.. Page 28
Troubleshooting Page 29
Disposal. Page 29
Warranty.. Page 31

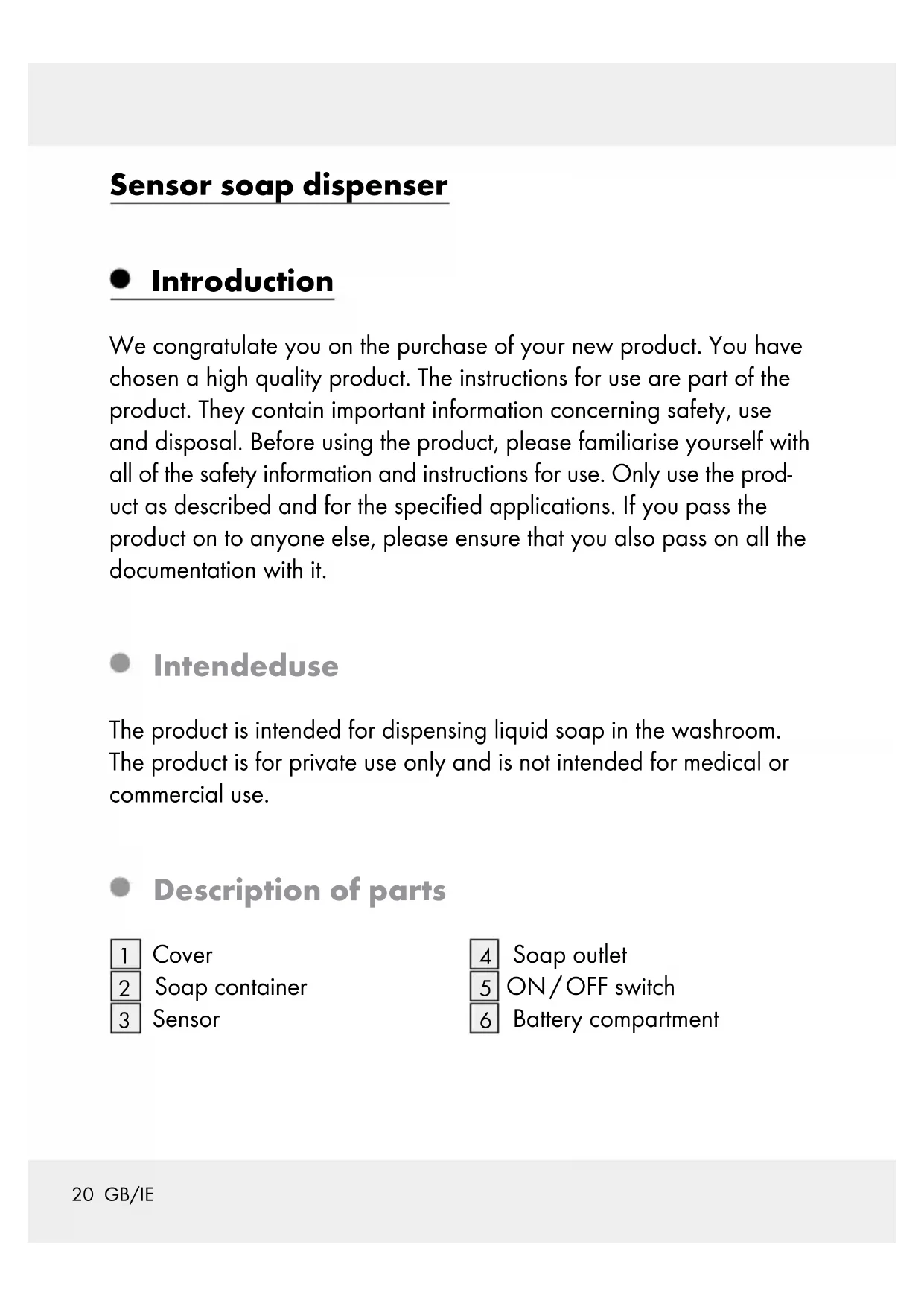

Sensor soap dispenser
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intendeduse
The product is intended for dispensing liquid soap in the washroom. The product is for private use only and is not intended for medical or commercial use.
Description of parts
Cover
Soap container
Sensor
Soap outlet
ON/OFF switch
Battery compartment
Technical data
Battery: 4 × 1.5 ~V (direct current) AAA / LRO3 (included in delivery)
Capacity: approx. 330 ml
- IncludedItems
1 Automatic Soap Dispenser
4 Batteries
1 Directions for use
Safety
KEEP ALL THE SAFETY ADVICE AND INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE!
WARNING! DANGER TO LIFE AND ACCIDENT HAZARD
FOR TODDLERS AND SMALL CHIL
DREN! Never allow children to play unsupervised with the packaging material. There is a danger of suffocation from the packaging material. Children frequently underestimate
the dangers. Children should be kept away from the packaging material at all times. This is not a toy.
Do not subject the product to
- any extreme temperatures,
-severe mechanical stress.
Otherwise damage to the product may result.
- Never open up the product! Have repairs carried out only by an electrician or the relevant service centre. Failure to observe this advice may result in damage to the product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
Children shall not play with the product.
Cleaning and user maintenance shall not be made by children without supervision.
-
Do not use the product if it is damaged. Check at regular intervals for damage to the housing and battery compartment. Please note that damage arising from improper handling, non-observation of the operating instructions or interference with the inside of the product by unauthorised persons is excluded from the warranty.
-
Keep the product clean.
Fill the product with liquid soap only.
WARNING! Do not immerse the product in water. Failure to observe this advice may result in damage to the product.
Only intended for use indoors.
Safety instructions for batteries/ rechargeable batteries
DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children.
If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION! Never
recharge non-rechargeable batteries.
Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
- Never throw batteries / rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush
immediately the affected areas with fresh water and seek medical attention!
Wear PROTECTIVE GLOVES!
Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries / rechargeable batteries, immediately remove them from the product to prevent damage.
Only use the same type of batteries / rechargeable batteries. Do not mix used and new batteries / rechargeable batteries.
Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
- Remove exhausted batteries / rechargeable batteries from the product immediately.
Before first use
Note: Remove all packaging materials from the product.
- Removing the insulation strip
Note: The product is supplied with the batteries already in place.
Remove the insulating strip from the battery compartment 6 before first use.
Operation
- Inserting/replacing the batteries
Make sure the soap container 2 is empty and the ON/OFF switch 5 at "O" (OFF) position.
Turn the product over and place it on a soft underlay to avoid scratching the surface.
Open the battery compartment 6 (see Fig. B).
Insert four 1.5 V (direct current) batteries (AAA / LRO3) (included) into the battery compartment [6] (see Fig. C). Note: Make sure you fit the batteries the right way round (polarity). The correct polarity is shown inside the battery compartment [6].
Then close the battery compartment 6 again.
- Filling the container with soap
Make sure the soap container 2 is empty and the ON/OFF switch 5 at "O" (OFF) position.
Remove the cover 1.
Fill the soap container 2 up to the Max. mark with soap.
Ensure that no soap enters the battery compartment or the inner workings of the product. This could damage the product.
Place the cover 1 back into position and close it tightly.
Using the product
Turn on the product by sliding the ON/OFF switch 5 to "I" (ON) position.
Place the product on a solid level and non slip surface.
Hold your hand between the two sensors 3 and the soap outlet 4 and catch the soap on your hand.
During the soap dispensing process, a white status indicator light will light up in the soap container 2. As soon as you move your hand away, the status indicator light will goes off automatically. If the product has just been filled, repeat the process until soap issues from the soap outlet 4.
Note: To avoid soap become dry out at the soap outlet, frequently clean the soap outlet.
Switch off the product by sliding the ON/OFF switch 5 to "O" (OFF) position, clean the soap outlet with a dry fluff-free cloth. Then, switch on the product by sliding the ON/OFF switch 5 to "I" (ON) position.
- Cleaning and care
WARNING! DANGER OF EXPLOSION! Do not immerse the product in water.
Note: If no longer use, clean the empty soap container 2 by rinsing it with clean water. Fill the soap container 2 with clean water and repeat this step several times to remove the soap completely. The product may get damaged if the soap is not removed completely.
Use a dry, fluff-free cloth when you are cleaning or polishing the outside of the product.
Use a slightly moist, fluff-free cloth and a mild detergent to remove stubborn dirt.
Do not use corrosive cleaning agents. These substances may damage the basic material of the product.
- Troubleshooting
= Problem
Cause
O = Remedy
The soap is dispensed slower than usual from the soap outlet 4 or the product does not work.
The batteries are too weak.
Replace the batteries (see "Inserting/replacing the batteries")
Water has entered the battery compartment.
- Allow the battery compartment to dry completely. Insert new batteries (see "Inserting/replacing the batteries").
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg =
mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE
Introduction
1 sensor-zeepdispenser
