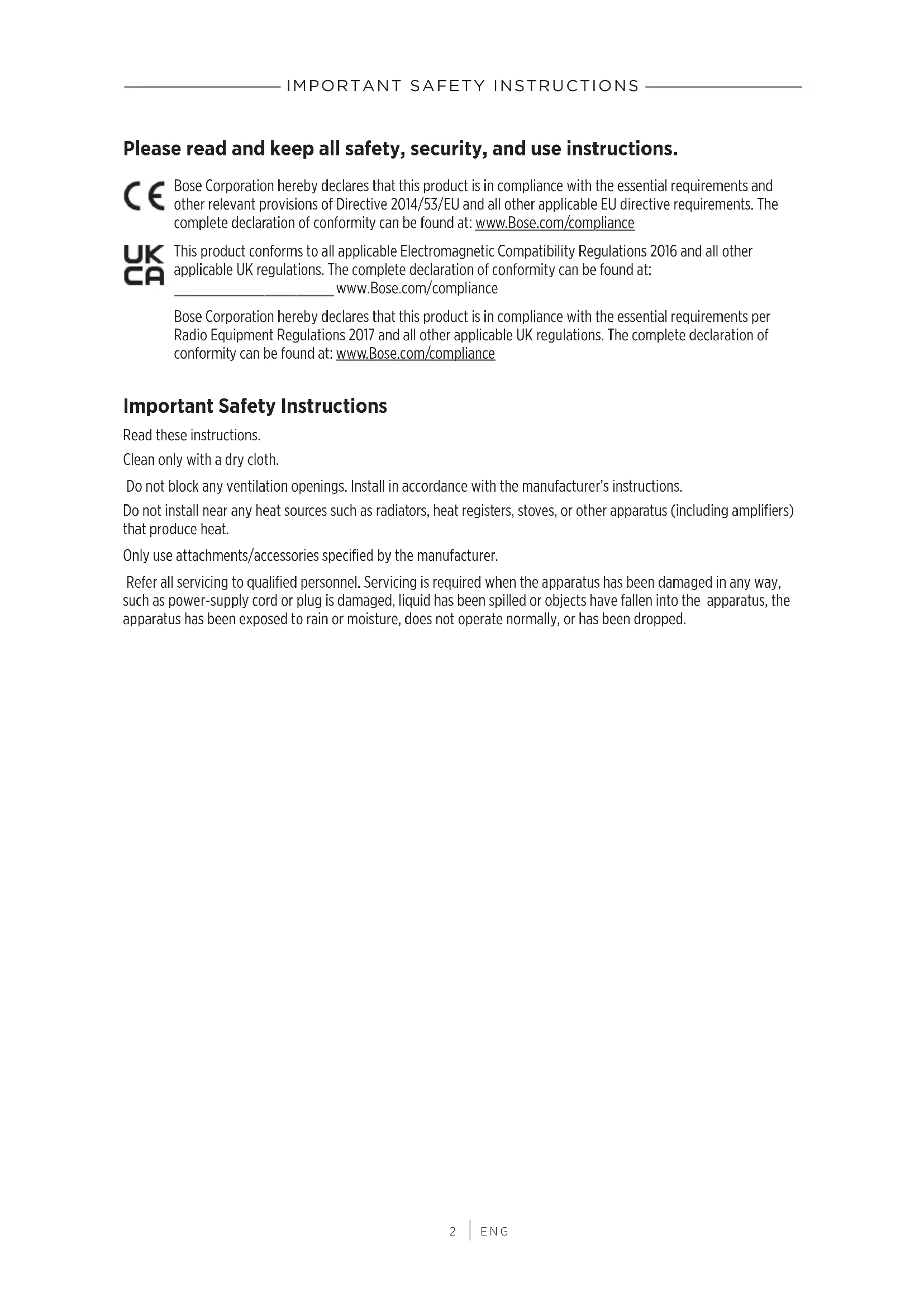

USER MANUAL Smart Soundbar 900 BOSE

Please read and keep all safety, security, and use instructions.

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance

This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: ____ www.Bose.com/compliance

Bose Corporation hereby declares that this product is in compliance with the essential requirements per Radio Equipment Regulations 2017 and all other applicable UK regulations. The complete declaration of conformity can be found at: www.Bose.com/compliance

Important Safety Instructions

Read these instructions.

Clean only with a dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Only use attachments/accessories specified by the manufacturer.

Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS

This symbol on the product means there is uninsulated, dangerous voltage within the product enclosure that may present a risk of electrical shock.

This symbol on the product means there are important operating and maintenance instructions in this guide.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

This product contains a tempered glass surface. Use caution to avoid impact. In the event of breakage, use care in handling broken glass.

• To reduce the risk of fire or electrical shock, do NOT expose this product to rain, liquids or moisture.
• Do NOT expose this product to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.
• Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
• Do NOT make unauthorized alterations to this product.
• Do NOT use a power inverter with this product.
• Do NOT use in vehicles or boats.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Only use the following hardware to mount this product: Bose Soundbar Wall Bracket.
• When positioning the product, make sure it is not blocking any ventilation openings on your TV or monitor. Refer to the owner's guide that came with your TV or monitor and install in accordance with the manufacturer's instructions.
• Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.
• Keep batteries out of reach of children.
• Batteries may cause a fire or chemical burn if mishandled. Do not recharge, disassemble, heat, or incinerate.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Bose Corporation could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules and with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment should be installed and operated with a minimum distance of 20 cm between radiator and your body.

This device for operation in the band 5150 – 5250 MHz is only for indoor use to reduce the potential for harmful interference to other co-channel mobile satellite systems.

CAN ICES-3(B)/NMB-3(B)

The product, in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC and the Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2020, is in compliance with the following norm(s) or document(s): Regulation (EC) No. 1275/2008, as amended by Regulation (EU) No. 801/2013.

Required Power State Information	Power Modes
	Standby Networked Standby
Power consumption in specified power mode, at 230V/50Hz input	< 0.5 W	all network types ≤2.0 W
Time after which equipment is automatically switched into mode	< 2.5 hours	≤20 minutes
Power consumption in networked standby if all wired network ports are connected and all wireless network ports are activated, at 230V/50Hz input	N/A	≤2.0 W
Network port deactivation/activation procedures. Deactivating all networks will enable standby mode.	Wi-Fi*: Deactivate by pressing and holding the Bose Music and Skip Forward buttons on the remote simultaneously. Repeat to activate. Bluetooth^* : Deactivate by clearing the pairing list by pressing and holding the Bluetooth^* button on the remote for 10 seconds. Activate by pairing with a Bluetooth^* source. Ethernet : Deactivate by removing the Ethernet cable.Activate by inserting the Ethernet cable.

For Europe:

Frequency bands of operation 2400 to 2483.5 MHz, 5150 to 5350 MHz, and 5470 to 5725 MHz.

Maximum transmit power less than 20 dBm EIRP.

Frequency band of operation 5725 to 5850 MHz.

Maximum transmit power less than 14 dBm (25mW) EIRP.

Maximum transmit power is below regulatory limits such that SAR testing is not necessary and exempt per applicable regulations.

This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range in all EU Member States listed in the table.

BE DK IE UK(NI) FR CY SK HU AT SE
BG DE PT EL HR LV LT MT PL
CZ EE FI ES IT RO LU NL SI

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Management Regulation for Low-power Radio-frequency Devices

Article XII

According to “Management Regulation for Low-power Radio-frequency Devices” without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio-frequency devices.

Article XIV

The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications operated in compliance with the Telecommunications Act.

The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices.

Please dispose of used batteries properly, following local regulations. Do not incinerate.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X 0 0 0 0 0
Metal Parts X 0 0 0 0 0
Plastic Parts 0 0 0 0 0	0
Speakers X 0 0 0 0 0
Cables X 0 0 0 0 0
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: Powered Speaker, Type designation: 433829
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1:“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; “1” is 2011 or 2021.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Phone Number: [phone]

Mexico Importer: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Phone Number: [phone]

UK Importer: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Input Rating: 100 - 240V 50/60Hz, 65W

The CMIIT ID is located on the product label on the back of the soundbar.

Please complete and retain for your records

The serial and model numbers are located on the back of the soundbar.

Serial number:

Model number: 433829

Please keep your receipt with your owner's guide. Now is a good time to register your Bose product.

You can easily do this by going to global.Bose.com/register

Security Information

This product is capable of receiving automatic security updates from Bose. To receive automatic security updates, you must complete the product setup process in the Bose Music app and connect the product to the Internet. If you do not complete the setup process, you will be responsible for installing security updates that Bose makes available.

Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon.com, Inc. or its affiliates.

Apple, the Apple logo, Apple Music, and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bose Corporation is under license.

Dolby Atmos

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2020 Dolby Laboratories. All rights reserved.

Google and Google Play are trademarks of Google LLC.

HDMI™

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

This product contains the iHeartRadio service. iHeartRadio is a registered trademark of iHeartMedia, Inc.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Pandora is a trademark or registered trademark of Pandora Media, Inc. used with permission.

QuickSet is a registered trademark of Universal Electronics Inc. in the United States and Internationally. © UEI 2000-2021

This product incorporates Spotify software which is subject to third-party licenses found here: ____ www.spotify.com/connect/third-party-licenses

Spotify is a registered trademark of Spotify AB.

Wi-Fi is a registered trademark of Wi-Fi Alliance®.

ADAPTiQ, Bose, Bose Bass Module, Bose Music, the Bose Music logo, Bose Noise Cancelling Headphones, Bose Smart Soundbar, Bose Soundbar Wall Bracket, Bose Surround Speakers, QuietComfort, SimpleSync, SoundLink, SoundLink Revolve, and Voice4Video are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2021 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.

To view the license disclosures that apply to the third-party software packages included as components of your Bose Smart Soundbar 900 product:

1. On the remote, press and hold the Bluetooth button ✝ and Skip backward button K for 5 seconds.
2. Connect a USB cable to the SERVICE connector on the back of the soundbar.
3. Connect the other end of the cable to a computer.
4. On the computer, enter http://203.0.113.1/opensource in a browser window to display the EULA and license disclosure.

WHAT'S IN THE BOX

Contents 14

DOLBY ATMOS® TECHNOLOGY 15

SOUNDBAR PLACEMENT

Recommendations.... 16

Wall mount the soundbar.... 17

Adjust audio for wall mounting.... 17

SET UP THE SOUNDBAR

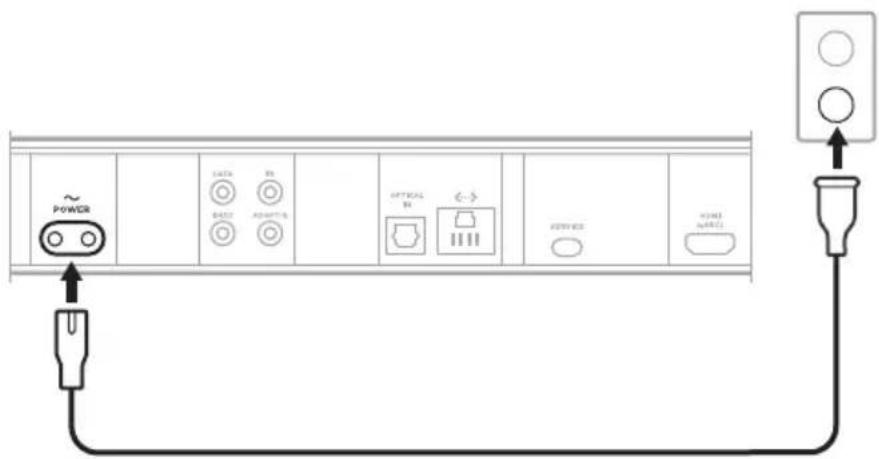

Connect the soundbar to power.... 18

Network standby.... 18

BOSE MUSIC APP SETUP

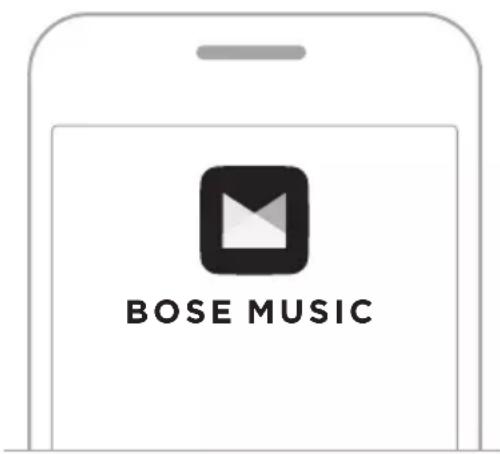

Download the Bose Music app.... 19

EXISTING BOSE MUSIC APP USERS

Add the soundbar to an existing account.... 20

Connect to a different Wi-Fi ^® network.... 20

ADAPTIQ AUDIO CALIBRATION

Run ADAPTiQ audio calibration.... 21

SOUNDBAR CONTROLS

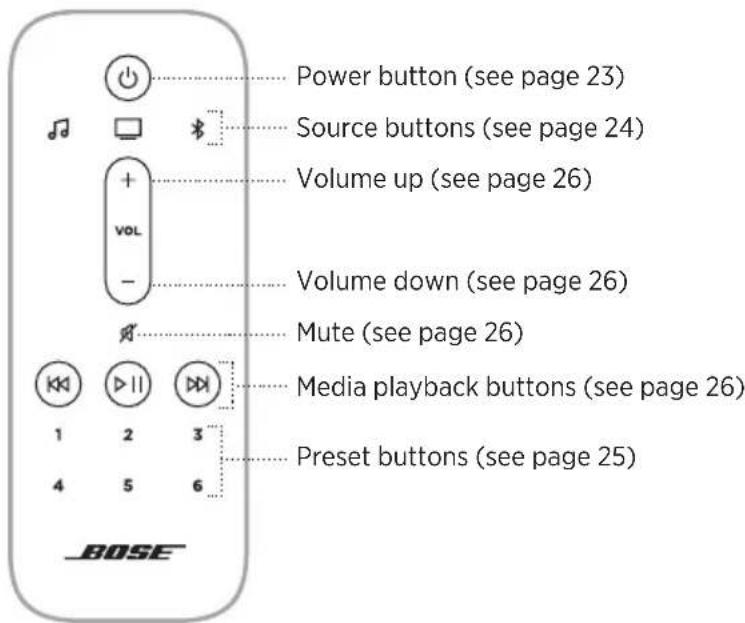

Remote functions.... 22

Power on/off.... 23

Auto-wake (optical connection only).... 23

Sources 24

Presets 25

Media playback and volume.... 26

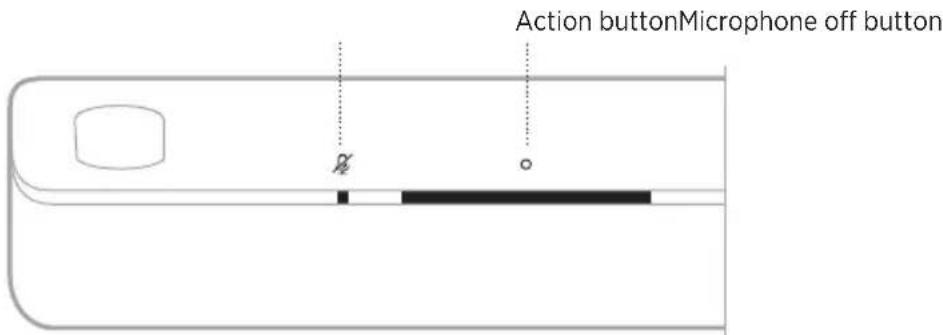

Voice assistant controls.... 27

Adjust the audio.... 27

VOICE ASSISTANT

Voice assistant options.... 28

Set up your voice assistant.... 28

Access Google Assistant.... 29

Use your voice 29

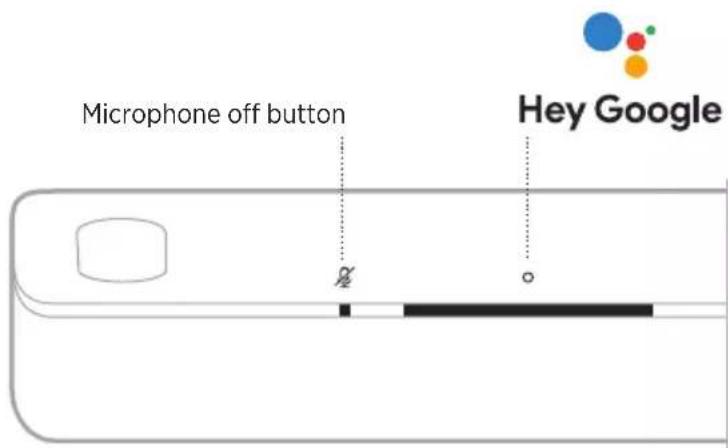

Use the soundbar controls.... 30

Play music with Google Assistant 31

Choose a default audio service.... 31

Access Amazon Alexa.... 32

Use your voice 32

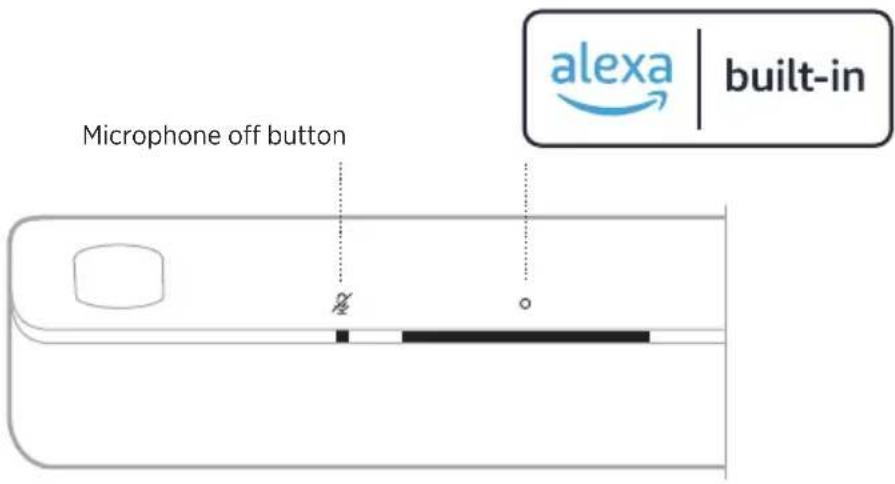

Use the soundbar controls.... 33

Calling and Messaging with Amazon Alexa 34

Set up Alexa Calling and Messaging 34

Use your voice 34

Set up Do Not Disturb 35

Use your voice 35

Control audio with Voice4Video™ 35

Set up Voice4Video™ 35

Use your voice 36

PRESET PERSONALIZATION

Set a preset 37

Play a preset 38

BLUETOOTH® CONNECTIONS

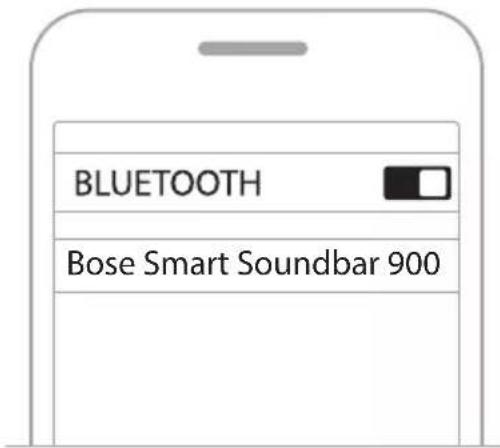

Connect a mobile device 39

Disconnect a mobile device.... 40

Reconnect a mobile device.... 40

Connect an additional mobile device 40

Clear the soundbar device list 40

STREAM AUDIO WITH AIRPLAY

Stream audio from the Control Center.... 41

Stream audio from an app 41

SOUNDBAR STATUS

Wi-Fi status 42

Bluetooth status 42

Voice assistant status.... 43

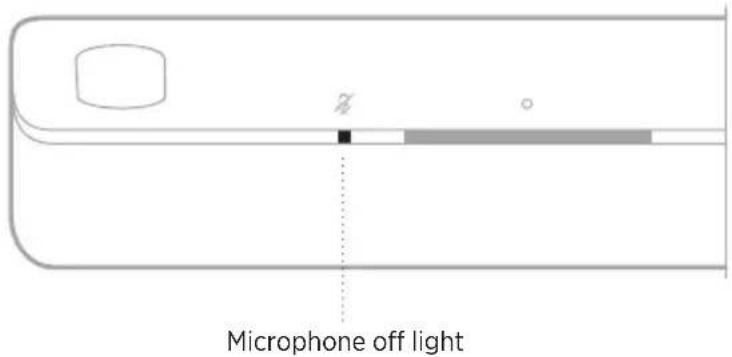

Microphone off light 44

Media playback and volume status 44

Update and error status 45

ADVANCED FEATURES

Disable/enable Wi-Fi capability 46

CONNECT BOSE PRODUCTS

Connect accessories (optional).... 47

Connect a Bose SoundLink Bluetooth speaker or Bose headphones using SimpleSync™ technology.... 47

Benefits.... 47

Compatible products 47

Connect using the Bose Music app 48

Reconnect a Bose SoundLink Bluetooth speaker or Bose headphones... 48

CARE AND MAINTENANCE

Update the soundbar 49

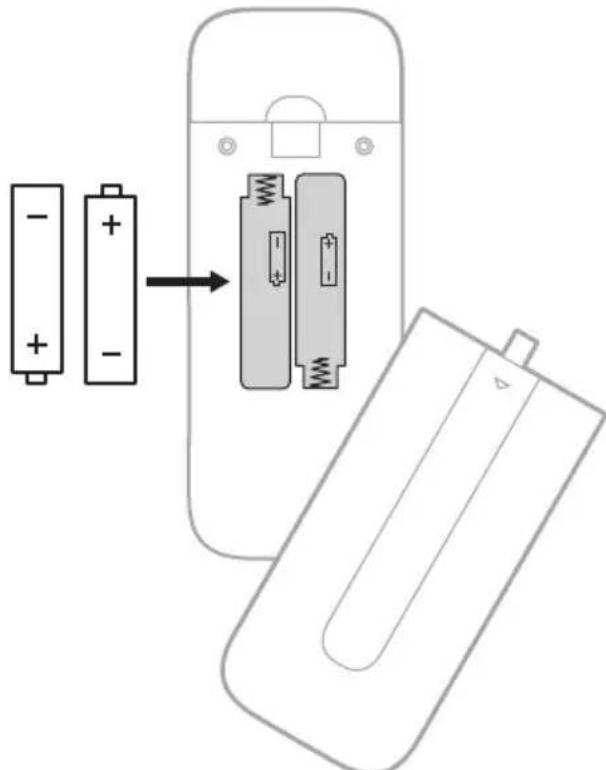

Install the remote batteries.... 49

Clean the soundbar.... 50

Replacement parts and accessories.... 50

Limited warranty....50

TROUBLESHOOTING

Try these solutions first 51

Other solutions 51

Reset the soundbar.... 59

APPENDIX: SETUP REFERENCE

Connection options.... 60

Connect the soundbar to your TV 61

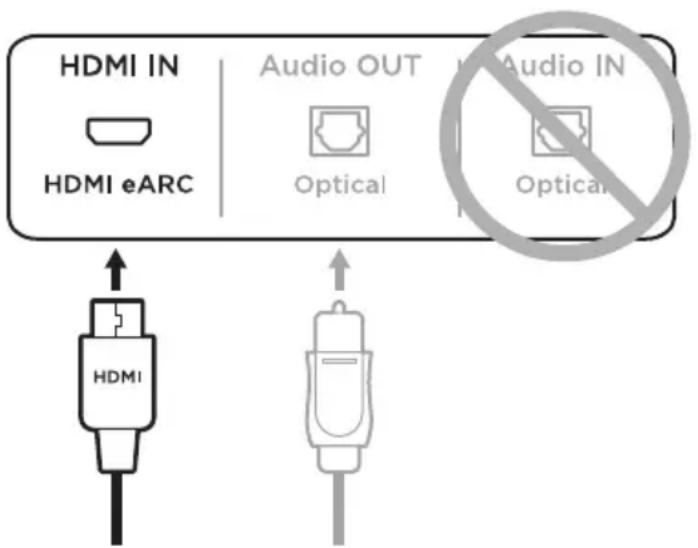

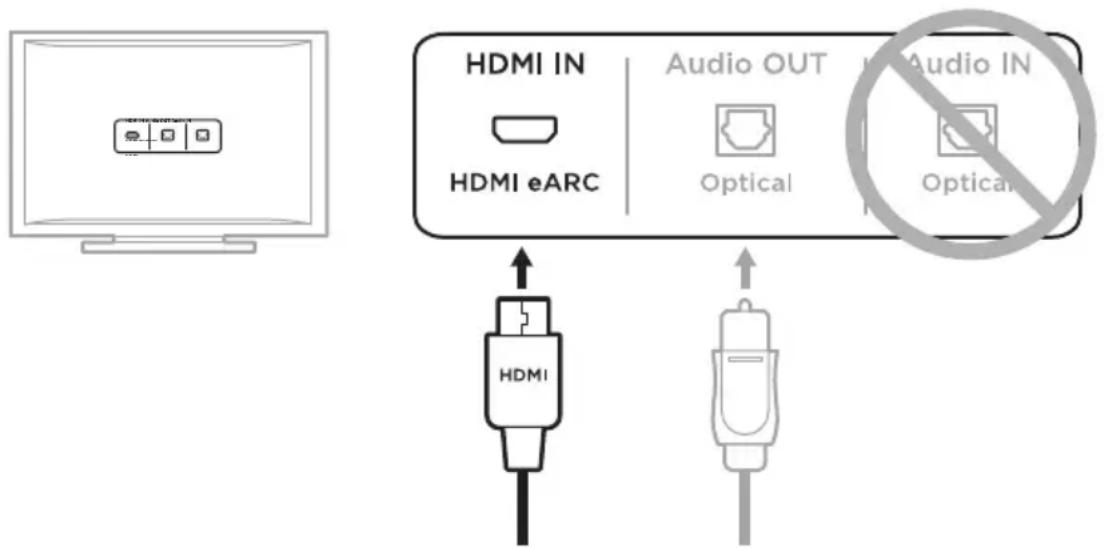

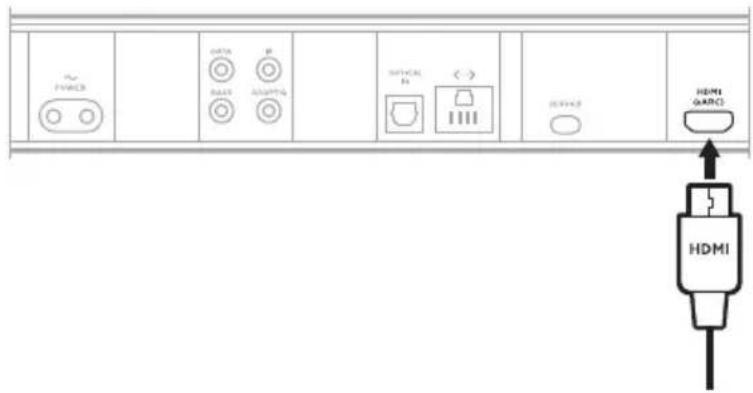

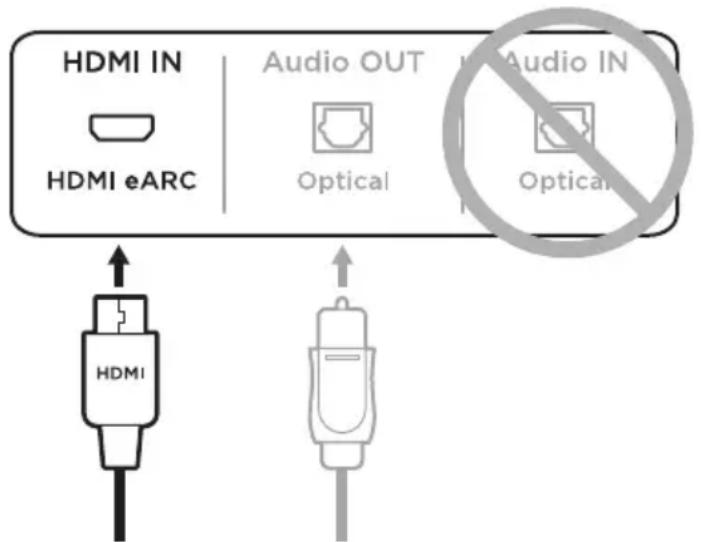

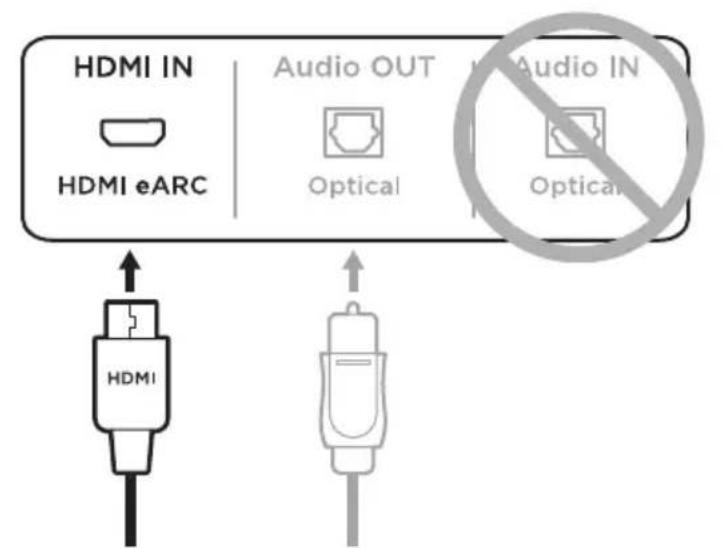

Option 1 (preferred): HDMI eARC or ARC.... 61

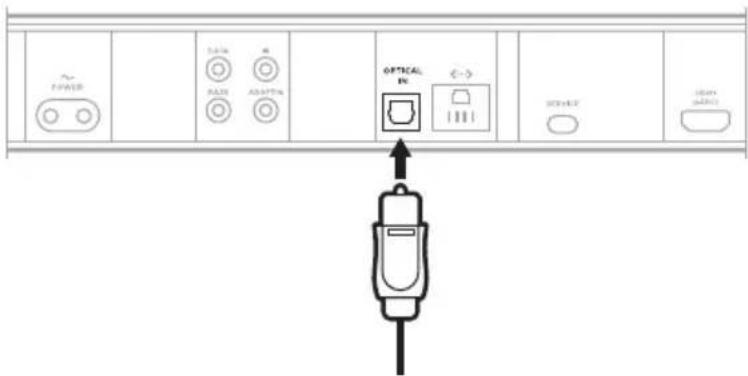

Option 2: Optical.... 62

Check for sound 63

CONTENTS

Confirm that the following parts are included:

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

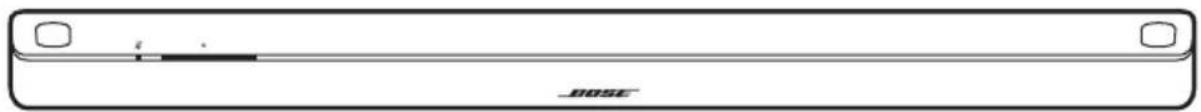

Bose Smart Soundbar 900

+ - + 1 2 3 4 5 6 BOSE

Remote AAA Battery (2)

Power cord* HDMI cable

Optical cable ADAPTiQ headset

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

* May ship with multiple power cords. Use the power cord for your region.

NOTE: If any part of the product is damaged or if the glass on the soundbar is broken, don't use it. Contact your authorized Bose dealer or Bose customer service.

Visit: ____ worldwide.Bose.com/Support/SB900

The Bose Smart Soundbar 900 supports Dolby Atmos® technology. The soundbar uses additional up-firing speakers to deliver high-quality sound from all directions, achieving a superb, immersive, and fully-encompassing surround-sound experience.

NOTE: To deliver the Dolby Atmos surround-sound experience, you must connect the HDMI cable to the HDMI eARC port on your TV. If your TV doesn't have an HDMI eARC port, you can connect the cable to the HDMI ARC port or the optical cable to the optical port to receive spacious and life-like sound.

RECOMMENDATIONS

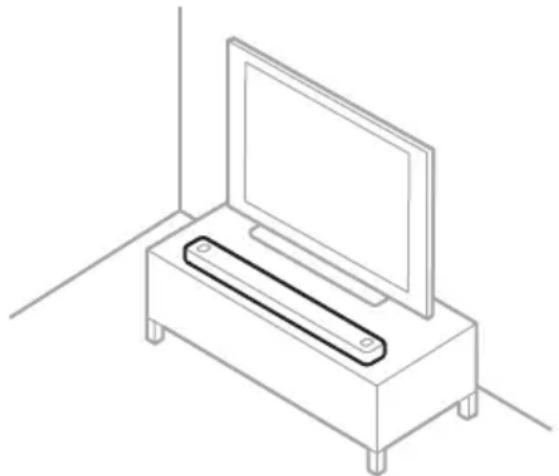

• Place the soundbar below and in front of the TV (preferred) or above your TV with the front of the soundbar facing into the room.
• For best sound quality, make sure the speakers on top of the soundbar (up-firing speakers) aren't blocked.
• When the soundbar is mounted to the wall, make sure the top of the soundbar is at least 4 in (10 cm) away from the TV.
• If placing the soundbar on a shelf or TV stand, position the front of the soundbar as close as possible to the front edge of the shelf or stand for best sound quality.
• Place the soundbar outside of and away from metal cabinets, other audio/video components, and direct heat sources.
• Place the soundbar on its rubber feet on a stable and level surface. For proper support, both feet must be resting on the surface. Vibration can cause the soundbar to move, particularly on smooth surfaces like marble, glass, or highly polished wood.
• Keep the back side of the soundbar at least 0.4 in (1 cm) from any other surface. Blocking the port(s) on this side affects sound quality.
• Make sure there is an AC (mains) outlet nearby.
• To avoid wireless interference, keep other wireless equipment at least 1 - 3 ft (0.3 - 0.9 m) away from the soundbar.
• To avoid wireless interference, some Wi-Fi access points may need to be placed up to 8 – 10 ft (2.4 – 3.0 m) away from the soundbar, optional bass module, and optional surround speakers.
• For best sound quality, don't place the soundbar in an enclosed cabinet or diagonally in a corner.
• Don't place any objects on top of the soundbar.

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

CAUTION: Do NOT place the soundbar on its front, back, or top when in use.

Two crossed-out electronic devices with no visible text or symbols, one crossed out by a diagonal line and the other by a circle (no text or symbols)

WALL MOUNT THE SOUNDBAR

You can mount the soundbar on a wall. To purchase the Bose Soundbar Wall Bracket, contact your authorized Bose dealer.

Visit: ____ worldwide.Bose.com/Support/SB900

NOTE: Make sure the top of the soundbar is at least 4 in (10 cm) away from the TV.

4" / 10 cm

CAUTION: Do NOT use any other hardware to mount the soundbar.

Adjust audio for wall mounting

After you mount the soundbar, you must run ADAPTiQ (see page 21).

NOTE: If you remove the soundbar from the wall, run ADAPTiQ again.

1. Connect the power cord to the POWER port on the back of the soundbar.
2. Plug the other end of the power cord into an AC (mains) power outlet.

POWER DATA BAS27 ADJ0115 OPTICAL B OPTICAL WOME WOME WOME

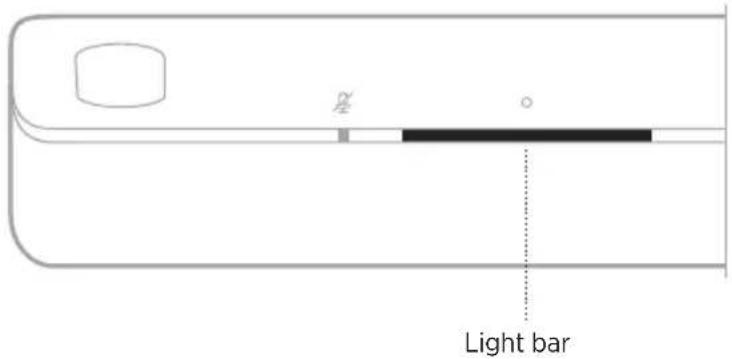

The soundbar powers on, and the light bar glows solid amber.

NETWORK STANDBY

The soundbar transitions to network standby when audio has stopped and you have not pressed any buttons or talked to your voice assistant for 20 minutes.

To wake the soundbar from network standby:

• On the remote, press the Power button ⏻, a source button (see page 24), or the Bose Music button ⌈ then a preset button (see page 25).
• Play or resume audio using your mobile device or using the Bose Music app.
  • Talk to Google Assistant or Amazon Alexa.

NOTES:

• To access your voice assistant in network standby, make sure the soundbar has been set up using the Bose Music app (see page 19) and the microphone is on (see page 44).
• You can disable the standby timer using the Bose Music app. You can access this option from the Settings menu.

The Bose Music app lets you set up and control the soundbar from any mobile device, such as a smartphone or tablet.

Using the app, you can stream music, set and change presets, add music services, explore internet radio stations, configure Google Assistant or Amazon Alexa, choose your voice prompt language, manage soundbar settings, and get new features.

NOTE: If you have already created a Bose Music account for another Bose product, add the soundbar to your existing account (see page 20).

DOWNLOAD THE BOSE MUSIC APP

1. On your mobile device, download the Bose Music app.

BOSE MUSIC

GET IT ON Google Play

1. Follow the app instructions.

ADD THE SOUNDBAR TO AN EXISTING ACCOUNT

To add your Bose Smart Soundbar 900, open the Bose Music app and add your soundbar.

CONNECT TO A DIFFERENT WI-FI NETWORK

Connect to a different network if your network name or password has changed, or if you want to change or add another network.

1. On the remote, press and hold the TV button □ and Skip backward button ≪ until the light bar glows amber.
2. On your mobile device, open your Wi-Fi settings.
3. Select Bose Smart Soundbar 900.
4. Open the Bose Music app and follow the app instructions.

NOTE: If the app doesn't prompt you for setup, go to the main screen and add the soundbar.

After you set up the soundbar using the Bose Music app, the app prompts you to run ADAPTiQ audio calibration for best sound quality. ADAPTiQ audio calibration customizes the sound of the system to the acoustics of your listening area by taking audio measurements at multiple locations in the room. To run an audio calibration, you need 10 minutes when the room is quiet.

During ADAPTiQ audio calibration, a microphone on the top of the ADAPTiQ headset (provided with the soundbar) measures the sound characteristics of your room to determine optimal sound quality.

RUN ADAPTIQ AUDIO CALIBRATION

If you later connect an optional bass module or surround speakers, move the soundbar, or move any furniture, run ADAPTiQ audio calibration again to ensure optimal sound quality.

To run ADAPTiQ audio calibration, use the Bose Music app. You can access this option from the Settings menu.

The soundbar controls are located on the top of the soundbar and on the remote.

TIP: You can also control your soundbar using the Bose Music app.

REMOTE FUNCTIONS

Use the remote to control the soundbar, Bluetooth connections, and presets.

Power button (see page 23) Source buttons (see page 24) Volume up (see page 26) Volume down (see page 26) Mute (see page 26) Media playback buttons (see page 26) Preset buttons (see page 25)

Power on/off

On the remote, press the Power button ⏻ to power the soundbar on/off.

BOSE

When powered on, the soundbar defaults to the last active source.

NOTES:

• When you plug the soundbar into an AC (mains) outlet, the soundbar automatically powers on.
• You can still access your voice assistant when the soundbar is powered off.

TIP: You can also use Voice4Video™ to power the soundbar on/off (see page 35).

Auto-wake (optical connection only)

You can set the soundbar to power on whenever a sound signal is received.

To toggle between auto-wake and default power settings, press and hold ⏻ for 10 seconds until you hear a tone and the light bar pulses white twice.

TIP: You can also control auto-wake using the Bose Music app. You can access this option from the Settings menu.

Sources

You can control your TV, Bluetooth connections, and Bose Music app audio using your remote.

To select a source, press the appropriate button (Bose Music app ⌘, TV □, or Bluetooth *) on the remote.

BOSE

TIPS:

• You can also use Voice4Video™ to select your Bluetooth source (see page 35).
• You can also use the Bose Music app to select a source.

Presets

The soundbar includes 6 presets that you can set to play audio from your favorite music services. Once set, you can access your audio, at any time, with a simple touch of a button on the remote or using the Bose Music app.

BOSE

For more information about presets, see "Preset Personalization" on page 37.

Media playback and volume

+ VOL - ∞ 1 2 3 4 5 6 BOSE

FUNCTION WHAT TO DO

Play/Pause	Press ▷II .NOTES:When audio is paused, two lights in the center of the light bar glow solid white until audio resumes.You can only play/pause audio when the Bose Music app or a Bluetooth connection is your source.
Skip forward	Press ▷II.
Skip backward	Press KKl.
Volume up	Press +.NOTE: To quickly increase the volume, press and hold +.
Volume down	Press —.NOTE: To quickly decrease the volume, press and hold —.
Mute/Unmute	Press √.When audio is muted, the left end of the light bar glows solid white until audio resumes.TIP: You can also press + to unmute audio.

TIP: You can also use Voice4Video™ to control media playback and volume for certain sources (see page 35).

VOICE ASSISTANT CONTROLS

You can use the Action button and Microphone off button to control Google Assistant (see page 29) or Amazon Alexa (see page 32).

Action buttonMicrophone off button

ADJUST THE AUDIO

To adjust the bass, treble, center channel, and height channel, use the Bose Music app. You can access these options from the Settings menu.

VOICE ASSISTANT OPTIONS

You can set the soundbar to quickly and easily access Google Assistant or Amazon Alexa.

NOTE:

• You can't set the soundbar to access Google Assistant and Amazon Alexa at the same time.
• Google Assistant and Amazon Alexa aren't available in certain languages and countries.

PROGRAMMING OPTIONS HOW TO USE

Google Assistant	Use your voice and/or the Action button ○ (see page 29).
Amazon Alexa	Use your voice and/or the Action button ○ (see page 32).

SET UP YOUR VOICE ASSISTANT

Before you begin, make sure your mobile device and the soundbar are connected to the same Wi-Fi network.

To set up your voice assistant, use the Bose Music app. You can access this option from the Settings menu.

NOTES:

• When setting up your voice assistant, make sure you use the same audio service account that you used in the Bose Music app.
• If you have multiple Bose Music products in your household, for a seamless voice assistant experience, Bose recommends one person use their Bose Music account and voice assistant account to set up the voice assistant for all Bose Music products.

ACCESS GOOGLE ASSISTANT

With the soundbar, you can easily enjoy music at home just with your voice. You can play your favorite music, control volume, and find information about the song that you are listening to, hands-free. You can also plan your day, set alarms, and control smart devices around your home – just by using your voice. Just say “Hey Google” or tap the Action button ○ to talk to Google.

For more information on what Google Assistant can do, visit: ____ https://support.google.com/assistant

NOTES:

• Google Assistant isn't available in certain languages and countries.
• For more information about playing music with Google Assistant, see page 31.

Use your voice

Start with "Hey Google," then say:

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Enjoy entertainment Play some music
Plan your day What's on my calendar today?
Manage tasks Set an alarm for 7am tomorrow
Control your smart home Turn on the lights
Get answers What's the weather this weekend?

Use the soundbar controls

You can use the Action button and Microphone off button ♀ to control Google Assistant. They are located on the top of the soundbar.

Microphone off button Hey Google

THINGS TO TRY WHAT TO DO

Talk to Google	Tap ○ then say your request.For a list of things to try, visit:____https://support.google.com
Stop alarms and timers	Tap ○.
Stop Google Assistant	Tap ○.
Turn the microphone on/off	Tap ⚠.When the microphone is off, the Microphone off light glows solid red, and you can’t access Google Assistant.

PLAY MUSIC WITH GOOGLE ASSISTANT

Ask Google to play music from your default audio service or from a specific audio service.

Start with "Hey Google," then say:

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Play music	Play some music. NOTE: Google Assistant uses your default audio service. To change the default audio service, use the Google Assistant app.
Control your speaker Turn up the volume.
Play from a specific audio service	Play NPR on Tuneln. NOTE: Google Assistant doesn't support all audio services.
Play on a specific speaker	Play some jazz on the living room speakers. NOTE: Make sure you say the speaker name you assigned in the Bose Music app. If multiple speakers have the same name, use the name assigned in the Google Assistant app or change the name in the Bose Music app.

Choose a default audio service

During initial setup for Google Assistant, the Google Assistant app prompts you to select a default audio service. When asking Google to play music on Bose products, only Pandora and Spotify are supported default services. Although other audio services are listed as available during setup, they are not supported.

For the best experience, choose Pandora or Spotify as your default audio service. If you choose an unsupported audio service, you hear an error message when requesting to play music.

ACCESS AMAZON ALEXA

With Alexa on your soundbar, you can simplify your life and use your voice to control your music and much more. Using Alexa is as easy as asking a question. Just ask and Alexa can play your favorite song, skip to the next track, change the volume, read you the news and more. Alexa on your soundbar makes it easier then ever to control your smart home, just by using your voice.

For more information about what Alexa can do, visit: ____ https://www.amazon.com/usealexa

NOTE: Alexa isn't available in all languages and countries.

Use your voice

Start with "Alexa," then say:

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Talk to Alexa Help me get started.
Play audio	Play rock music.NOTE: Amazon Music is set as the default music service. To change the default music service, use the Alexa app.
Pause audio Pause.
Control volume Turn the volume up.
Skip to the next song Skip.
Play from a specific audio service	Play NPR on Tunein.NOTE: Amazon Alexa doesn’t support all audio services.
Play on a specific speaker	Play jazz in the “Kitchen.”NOTE: Make sure you say the speaker name you assigned in the Bose Music app. If multiple speakers have the same name, use the name assigned in the Alexa app or change the name in the Bose Music app.
Set a timer Set a timer for 15 minutes.

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Discover more skills Help me get started with skills.

Stop Alexa Stop.

Use the soundbar controls

You can use the Action button ○ and Microphone off button ⌘ to control Amazon Alexa. They are located on the top of the soundbar.

microphone off button alexa built-in

THINGS TO TRY WHAT TO DO

Talk to Alexa	Tap ○ then say your request.For a list of things to try, visit: https://www.amazon.com/u
Stop alarms and timers	Tap ○.
Stop Alexa	Tap ○.
Turn the microphone on/off	Tap ♂.NOTE: When the microphone is off, the Microphone off light glows solid red, and you can't access Alexa.

CALLING AND MESSAGING WITH AMAZON ALEXA

Help your household and family stay better connected. Let Alexa turn your device into an intercom to open up instant two-way conversations between rooms or homes, or send one-way announcements from any room. Use Alexa to call or message almost anyone for free on your supported Alexa device or the Alexa app on your supported mobile phone or tablet.

NOTE: Both parties must have an Alexa-enabled device, the Alexa Calling and Messaging feature available and enabled, and given permission to the other party in the Alexa app.

Set up Alexa Calling and Messaging

To set up Alexa Calling and Messaging, use the Alexa app.

Use your voice

Start with "Alexa," then say:

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Drop in on a device in your home	Drop in on “Kitchen.”NOTE: If the device is a Bose product, make sure you say the speaker name you assigned in the Bose Music app. If multiple speakers have the same name, use the name assigned in the Alexa app or change the name in the Bose Music app.
Drop in on a family member or friend outside your home	Drop in on “Mom’s Kitchen.”NOTE: Make sure you say the speaker name assigned in the owner’s Bose Music app and/or Alexa app.
Make a call Call Mom.
Answer a call Answer.
Decline a call or message Decline.
End a call End call.
Play a message Play message.

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Call an emergency contact Call my emergency contact.

Make an announcement Announce that dinner is ready.

SET UP DO NOT DISTURB

You can temporarily disable all incoming notifications, announcements, and calls to the soundbar.

Use your voice

Start with "Alexa," then say:

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Enable Do Not Disturb Turn on Do Not Disturb.

Disable Do Not Disturb Turn off Do Not Disturb.

TIP: You can also set up Do Not Disturb using the Alexa app.

CONTROL AUDIO WITH VOICE4VIDEO™

Bose Voice4Video™ technology expands your Amazon Alexa voice capabilities like no other soundbar can. In addition to controlling your smart soundbar, you can control your TV and cable or satellite box with just your voice. With one simple ask of Alexa, you can turn on your TV and smart soundbar, switch to your video source, tune to a station by network name or channel number, and start watching your favorite shows instantly. Say goodbye to missing remotes and remote tutorials, because Bose Voice4Video™ will make everyone feel like experts — even the babysitter or your tech-troubled in-laws.

Set up Voice4Video™

To set up Voice4Video™, use the Bose Music app.

NOTE: Before setting up Voice4Video™, you must set up Alexa in the Bose Music app (see page 28).

Use your voice

Start with "Alexa," then say:

THINGS TO TRY EXAMPLES OF WHAT TO SAY

Power on TV Turn on TV.
Power off TV Turn off TV.
Play video Play.
Pause video Pause.
Resume video Resume.
Skip video forward Next.
Skip video backward Previous.
Switch input to Bluetooth audio	Switch to Bluetooth.
Watch a specific network* Watch NFL Network.
Watch a specific channel number* Watch channel 802.
Skip to the next channel* Next channel.
Skip backward to the previous channel*	Previous channel.

*Only available for cable or satellite boxes.

You can control presets using the Bose Music app or the remote.

NOTE: You can't set presets when your source is a Bluetooth connection.

SET A PRESET

1. Stream music using the Bose Music app.
2. On the remote, press the Bose Music button ♩.

BOSE

1. Press and hold a preset button until you hear a tone.

1 2 3 4 5 6 BOSE

PLAY A PRESET

Once you personalize presets, press a preset button on the remote to play music.

1 2 3 4 5 6 BOSE

CONNECT A MOBILE DEVICE

1. On the remote, press the Bluetooth button ✝.

BOSE

The light bar pulses blue.

1. On your mobile device, turn on the Bluetooth feature.

NOTE: The Bluetooth menu is usually found in the Settings menu.

1. Select your soundbar from the device list.

NOTE: Look for the name you entered for your soundbar in the Bose Music app. If you didn't name your soundbar, the default name appears.

BLUETOOTH Bose Smart Soundbar 900

Once connected, you hear a tone, and the light bar glows solid white then fades to black. The soundbar's name appears in the mobile device list.

DISCONNECT A MOBILE DEVICE

Use the Bose Music app to disconnect your mobile device.

TIP: You can also use Bluetooth settings on your mobile device. Disabling the Bluetooth feature disconnects all other devices.

RECONNECT A MOBILE DEVICE

On the remote, press the Bluetooth button ✝.

The soundbar tries to connect with the most recently-connected devices.

NOTES:

• Make sure the Bluetooth feature is enabled on your mobile device.
• The device must be within 30 ft (9 m) and powered on.

CONNECT AN ADDITIONAL MOBILE DEVICE

You can store up to eight devices in the soundbar device list.

NOTE: You can play audio from only one device at a time.

1. On the remote, press and hold the Bluetooth button ✝ until the light bar pulses blue.
2. On your mobile device, select your soundbar from the device list.

NOTE: Make sure the Bluetooth feature is enabled on your mobile device.

CLEAR THE SOUNDBAR DEVICE LIST

1. On the remote, press and hold ✝ for 10 seconds until the light bar pulses white twice then fades to black.
   The light bar pulses blue.
2. Delete the soundbar from the Bluetooth list on your device.
   All devices are cleared, and the soundbar is ready to connect (see page 39).

The soundbar is capable of playing AirPlay 2 audio, which allows you to quickly stream audio from your Apple device to the soundbar or multiple speakers.

NOTES:

• To use AirPlay 2, you need an Apple device running iOS 11.4 or later.
• Your Apple device and soundbar must be connected to the same Wi-Fi network.
• For more information about AirPlay, visit: https://www.apple.com/airplay

STREAM AUDIO FROM THE CONTROL CENTER

1. On your Apple device, open the Control Center.
2. Tap and hold the audio card in the top-right corner of the screen, then tap the AirPlay icon 🔒.
3. Select your soundbar.

STREAM AUDIO FROM AN APP

1. Open a music app (like Apple Music), and select a track to play.
2. Tap 🔒.
3. Select your soundbar.

The LED light bar located on the front of the soundbar shows the soundbar status.

p Light bar

NOTE: The light bar displays one status at a time of the selected source.

WI-FI STATUS

Shows the Wi-Fi connection status of the soundbar.

LIGHT BAR ACTIVITY SYSTEM STATE

Pulsing white		Connecting to Wi-Fi
Solid white then fades to black		Connected to Wi-Fi

BLUETOOTH STATUS

Shows the Bluetooth connection status of mobile devices.

LIGHT BAR ACTIVITY SYSTEM STATE

Pulsing blue		Ready to connect to mobile device
Pulsing white		Connecting to mobile device
Solid white then fades to black		Connected to mobile device
White light pulses twice then fades to black		Clearing device list

VOICE ASSISTANT STATUS

Shows the status of your voice assistant.

LIGHT BAR ACTIVITY SYSTEM STATE

Off		Voice assistant is idle
White light slides to the center then glows solid		Voice assistant is listening
White light slides to the sides		Voice assistant is thinking
Pulsing white (full)		Voice assistant is speaking
Pulsing yellow		Notification from voice assistant
Solid white then white light slides to the sides		Alert from voice assistant
Pulsing green		Receiving or making callNOTE: Amazon Alexa only.
Solid green		Connected to callNOTES:When the call is disconnected, the light bar fades to black.Amazon Alexa only.
Solid purple then fades to black		Do Not Disturb is enabledNOTES:When Do Not Disturb is enabled, the light bar pulses purple each time you try to interact with Alexa.Amazon Alexa only.

Microphone off light

Microphone off light

LIGHT ACTIVITY SYSTEM STATE

Solid red The microphone is off

MEDIA PLAYBACK AND VOLUME STATUS

Shows the soundbar status when controlling media playback and volume.

LIGHT BAR ACTIVITY SYSTEM STATE

Two center lights glow solid white		Pause
Right end of the light bar pulses white		Volume up
Left end of the light bar pulses white		Volume down
Left end of the light bar glows solid white		Mute

UPDATE AND ERROR STATUS

Shows the status of software updates and error alerts.

LIGHT BAR ACTIVITY SYSTEM STATE

Solid amber		Wi-Fi setup in progress
White light slides from right to left		Downloading update
White light slides from left to right		Updating soundbar
Pulses amber 4 times		Source error - refer to the Bose Music app
Pulses red 4 times		Request is temporarily unavailable - try again later
Solid red		Error - contact Bose customerservice

DISABLE/ENABLE WI-FI CAPABILITY

On the remote, press and hold the Bose Music button ⏻ and Skip forward button ⌘ until the light bar pulses white twice then fades to black.

1 2 3 4 5 6 BOSE

CONNECT ACCESSORIES (OPTIONAL)

You can connect any of these accessories to your soundbar. For more information, refer to your accessory owner's guide.

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

CONNECT A BOSE SOUNDLINK BLUETOOTH SPEAKER OR BOSE HEADPHONES USING SIMPLESYNC™ TECHNOLOGY

With Bose SimpleSync™ technology, you can connect certain Bose SoundLink Bluetooth speakers or Bose headphones to the soundbar for a new way to hear your music and movies.

Benefits

• A personal TV listening experience: Listen to TV without disturbing others by connecting your Bose headphones to the soundbar. Use independent volume controls on each product to lower or mute the soundbar while keeping your headphones as loud as you like.
• Another room of audio: Listen to the same song in two different rooms at the same time by connecting your Bose SoundLink Bluetooth speaker to the soundbar.

NOTE: SimpleSync™ technology has a Bluetooth range of up to 30 ft (9 m). Walls and construction materials can affect reception.

Compatible products

You can connect most Bose SoundLink Bluetooth speakers to the soundbar, as well as Bose headphones.

Popular compatible products include:

• Bose SoundLink Revolve+ Bluetooth speaker
• Bose SoundLink Mini Bluetooth speaker
• Bose SoundLink Color Bluetooth speaker
• Bose Noise Cancelling Headphones 700
• Bose QuietComfort 35 wireless headphones

New products are added periodically. For a complete list and more information, visit: worldwide.Bose.com/Support/Groups

Connect using the Bose Music app

To connect your Bose SoundLink Bluetooth speaker or Bose headphones to the soundbar, use the Bose Music app. For more information, visit:

_worldwide.Bose.com/Support/Groups

NOTES:

• Make sure that the product you're connecting is powered on, within 30 ft (9 m) of the soundbar, and ready to connect to another device. For more information, refer to your product owner's guide.
• You can connect only one product at a time to the soundbar.

RECONNECT A BOSE SOUNDLINK BLUETOOTH SPEAKER OR BOSE HEADPHONES

Power on your Bose SoundLink Bluetooth speaker or Bose headphones.

Your speaker or headphones try to connect to the most recently-connected Bluetooth device, including the soundbar.

NOTES:

• The soundbar must be within range (30 ft or 9 m) and powered on.
• If your speaker doesn't connect, see "Soundbar doesn't reconnect to a previously-connected Bose SoundLink Bluetooth speaker" on page 58.
• If your headphones don't connect, see "Soundbar doesn't reconnect to previously-connected Bose headphones" on page 58.

UPDATE THE SOUNDBAR

The soundbar updates automatically when connected to the Bose Music app and your Wi-Fi network.

INSTALL THE REMOTE BATTERIES

1. Slide open the battery compartment cover on the back of the remote.

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

1. Insert the two provided AAA (IEC-LR3) 1.5V batteries. Match the + and — symbols on the batteries with the + and — markings inside the compartment.

Diagram showing two batteries connected to a device with internal components, no text or symbols present

1. Slide the battery compartment cover back into place.

CLEAN THE SOUNDBAR

Wipe the outside surfaces of the soundbar with a soft, dry cloth.

CAUTIONS:

• Do NOT allow liquids to spill onto the soundbar or into any openings.
• Do NOT blow air into the up-firing speakers or soundbar.
• Do NOT use a vacuum to clean the up-firing speakers or soundbar.
• Do NOT use any sprays near the up-firing speakers or soundbar.
• Do NOT use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
• Do NOT allow objects to drop into any openings.

REPLACEMENT PARTS AND ACCESSORIES

Replacement parts and accessories can be ordered through Bose customer service.

Visit: ____ worldwide.Bose.com/Support/SB900

LIMITED WARRANTY

The soundbar is covered by a limited warranty. Visit our website at global.Bose.com/warranty for details of the limited warranty.

To register your product, visit ____ global.Bose.com/register for instructions. Failure to register will not a ect your limited warranty rights.

TRY THESE SOLUTIONS FIRST

If you experience problems with the soundbar:

- Make sure the soundbar is connected to a live AC (mains) outlet.

- Secure all cables.

- Check the state of the soundbar (see page 42).

- Download the Bose Music app and run available software updates.

- Place the soundbar according to the placement guidelines (see page 16).

- Move the soundbar within the recommended range of your mobile device for proper operation.

- Make sure the soundbar is at least 1 – 3 ft (0.3 – 0.9 m) away from wireless equipment.

- Check that any Wi-Fi access points are placed up to 8 – 10 ft (2.4 – 3.0 m) away from the soundbar, optional bass module, and optional surround speakers.

- To deliver the Dolby Atmos entertainment experience, make sure you connect the HDMI cable to the HDMI eARC port on your TV.

OTHER SOLUTIONS

If you could not resolve your issue, see the table below to identify symptoms and solutions to common problems. If you are unable to resolve your issue, contact Bose customer service.

Visit: ____ worldwide.Bose.com/contact

SYMPTOM SOLUTION

No HDMI eARC port on your TV	Use your TV's HDMI ARC port.Use the optical cable to connect the soundbar to your TV.
No HDMI eARC, HDMI ARC, or optical port on your TV	Connect to your TV using an audio converter and separate audio cable, such as a coaxial, 3.5 mm or analog audio cable (not provided). The type of converter and cable you need depends on the audio output ports available on your TV.
Soundbar doesn't power on	Plug the power cord into a different AC (mains) outlet.Use the remote control to power on the soundbar (see page 23).Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and plug them firmly into a live AC (mains) outlet.
Soundbar doesn't power off	The soundbar may be in network standby mode. On the remote, press the Power button ⏻ to wake the soundbar. Press ⏻ again to power off the soundbar.

SYMPTOM SOLUTION

Audio isn't playing in Dolby Atmos	Check the audio stream in the Bose Music app.Make sure the HDMI cable is connected to your TV's HDMI eARC port.
Remote is inconsistent or doesn't work	Match the + and — symbols on the batteries with the + and — markings inside the compartment (see page 49).Replace the batteries (see page 49).Make sure the remote is within operating range (20 ft or 6 m) of the soundbar.Make sure there are no obstructions between the remote and the soundbar.
Intermittent or no audio from soundbar	If the left end of the light bar is glowing solid white, the soundbar is muted. Press the Mute button % to unmute the soundbar.Make sure your mobile device isn't muted.Increase the volume on the soundbar (see page 26) or your mobile device.Switch to a different source (see page 24).Play audio from a different application or music service.If the audio is from a Wi-Fi source, reset the router.Restart your mobile device.Make sure you're using a compatible Bluetooth mobile device.Make sure that the soundbar's HDMI cable is inserted into a port on your TV labeled HDMI eARC (Enhanced Audio Return Channel), not a standard HDMI port. If your TV doesn't have an HDMI eARC port, connect to the HDMI ARC port. If your TV doesn't have an ARC port, connect to the soundbar using the optical cable (see page 62).If the soundbar is connected to your TV's HDMI eARC (or ARC) port, make sure that Consumer Electronics Control (CEC) is enabled in your TV system menu. Your TV may refer to CEC by a different name. Refer to your TV owner's guide.Disconnect the HDMI cable from your TV's HDMI eARC (or ARC) port and reconnect it.Insert the optical cable into a port on your TV labeled Output or OUT, not Input or IN.Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and plug them firmly into a live AC (mains) outlet.Set CEC to Alternate On using the Bose Music app.

SYMPTOM SOLUTION

Soundbar doesn't connect to bass module or surround speakers	Refer to your bass module or surround speakers owner's guide for troubleshooting (see page 47).Make sure your bass module or surround speakers are compatible with the soundbar (see page 47).Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and firmly plug them into the AC (mains) outlet.
No audio from bass module or surround speakers	Make sure your bass module or surround speakers are compatible with the soundbar (see page 47).Make sure the software is current in the Bose Music app.Adjust the bass level using the Bose Music app (see page 27).Switch to a different source (see page 24).
Sound is coming from TV speaker	Make sure that the soundbar's HDMI cable is inserted into a port on your TV labeledHDMI eARC(Enhanced Audio Return Channel), not a standard HDMI port. If your TV doesn't have an HDMI eARC port, connect to the HDMI ARC port. If your TV doesn't have an ARC port, connect to the soundbar using the optical cable (see page 62).Disconnect the HDMI cable from your TV's HDMI eARC (or ARC) port and reconnect it.Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and firmly plug them into the AC (mains) outlet.Turn off your TV speakers. Refer to your TV owner's guide.Decrease your TV volume to its lowest setting.If the soundbar is connected to your TV's HDMI eARC (or ARC) port, make sure thatConsumer Electronics Control (CEC)is enabled in your TV system menu. Your TV may refer to CEC by a different name. Refer to your TV owner's guide.Set CEC toAlternate Onusing the Bose Music app.
Poor or distorted audio	Test different sources if available.Make sure that your TV can output surround sound audio. Refer to your TV owner's guide.If the audio is being played from another device, reduce the volume of that device.Adjust the bass level using the Bose Music app (see page 27).Power off your TV speakers. Refer to your TV owner's guide.Check for sound (see page 63).Run ADAPTiQ audio calibration (see page 21).

SYMPTOM SOLUTION

Soundbar doesn't play audio from the correct source or selects the incorrect source after a delay	Set CEC toAlternate Onusing the Bose Music app.Disable CEC on your source. Refer to the source owner's guide.
Soundbar and source don't power on/off simultaneously	On the remote, press the source button for the source that is out of sync.Press the Power button ⏻ to power on/off the source.
Soundbar doesn't connectto Wi-Fi network	In the Bose Music app, select the correct network name, and enter the network password (case-sensitive).Make sure the soundbar and your mobile device are connected to the same Wi-Fi network.If your network information has changed, see page 20.Enable Wi-Fi on the mobile device you are using for setup.Close other open applications on your mobile device.Restart your mobile device and router.If your router supports both 2.4GHz and 5GHz bands, make sure both the device (mobile or computer) and soundbar are connecting to the same band.NOTE: Give each band a unique name to make sure you're connecting to the correct band.Reset the router.Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and firmly plug them into the AC (mains) outlet. Uninstall the Bose Music app on your mobile device, reinstall the app, and restart setup.Connect to the network using an Ethernet cable.If connecting to a different network and the app doesn't prompt you for setup, go to the main screen and add the soundbar.
Soundbar doesn't connect withBluetoothdevice	On your mobile device, turn theBluetoothfeature off and then on.Delete the soundbar from theBluetoothlist. Connect again (see page 39).Connect a different mobile device (see page 40).Make sure you're using a compatibleBluetoothmobile device.Delete the soundbar from your mobile deviceBluetoothlist. Connect again (see page 39).Clear the soundbar device list (see page 40). Connect again (see page 39).

SYMPTOM SOLUTION

Soundbar doesn’t stream audio using AirPlay	Make sure your soundbar is powered on and in range (see page 23).Make sure your Apple device and your soundbar are connected to the same Wi-Fi network.Update your Apple device.Make sure the soundbar is up-to-date (see page 49).If you can’t find the AirPlay icon 📷 in the music app you are streaming from, stream audio from the Control Center.For additional support, visit: https://www.apple.com/airplay
Bose Music app doesn’t work on mobile device	Make sure your mobile device is compatible with the Bose Music app and meets minimum system requirements. For more information, refer to the app store on your mobile device.Uninstall the Bose Music app on your mobile device then reinstall the app (see page 19).
Soundbar isn’t visible to add to a nother Bose account	Make sure sharing is enabled on your soundbar using the Bose Music app.Make sure the soundbar and your mobile device are connected to the same Wi-Fi network.

SYMPTOM SOLUTION

Google Assistant doesn't respond

Make sure the Microphone off light isn't glowing red. To turn on the microphone, see page 30.Make sure Google Assistant has been set up using the Bose Music app (see page 28).NOTE:The soundbar must be set up and connected to your Wi-Fi network using the Bose Music app. Connect your mobile device to Wi-Fi.Connect your mobile device to Wi-Fi.Make sure you're in a country where Google Assistant is available.Make sure you are using the most up-to-date version of the Google Assistant app.Make sure the wake word is enabled (see page 29).Make sure your mobile device is compatible.Remove Google Assistant from the soundbar using the Bose Music app. Add Google Assistant again.Choose Pandora or Spotify as your default audio service (see page 31).Make sure you use the same audio service account on the Bose Music app and Google Assistant app.Google Assistant may not support your request. New features are added periodically.For additional support, visit: https://support.google.com/assistant

Change Google Assistantpersonal result settings

To turn off personal results or change the account for personal results, use the Settings menu in the Google Assistant app.

SYMPTOM SOLUTION

Alexa doesn't respond	Make sure the Microphone off light isn't glowing red. To turn on the microphone, see page 33.Make sure Alexa has been set up using the Bose Music app (see page 28).NOTE:The soundbar must be set up and connected to your Wi-Fi network using the Bose Music app.Connect your mobile device to Wi-Fi.Make sure you're in a country where Amazon Alexa is available.Make sure you are using the most up-to-date version of the Alexa app.Make sure your mobile device is compatible.Make sure the wake word is enabled (see page 32).Remove Alexa from the soundbar using the Bose Music app. Add Alexa again.Make sure you say the name you assigned in the Bose Music app. If multiple soundbars have the same name, use the name assigned in the Alexa app or change the name in the Bose Music app.If using Voice4Video:Make sure there are no obstructions between the soundbar, your TV, and/or cable or satellite box.Make sure the soundbar is connected using the HDMI cable (see page 61).Make sure you have set up this feature using the Bose Music app and connected your TV and/or cable or satellite box.Make sure you have entered your postal code and service provider for your cable/satellite box.Alexa may not support your request. New features are added periodically.For additional support, visit:____https://www.ai
Preset doesn't respond	Make sure the preset has been set (see page 37).
Soundbar doesn't connect to a Bose SoundLink Bluetooth speaker or Bose headphones	Make sure that your speaker or headphones are powered on, within 30 ft (9 m) of the soundbar, and ready to connect to another device. For more information, refer to your product owner's guide.

SYMPTOM SOLUTION

Soundbar doesn’t reconnect to a previously-connected Bose SoundLink Bluetooth speaker	On your speaker, use the product controls to cycle through the product device list until you hear the name for your soundbar. For product-specific instructions, refer to your speaker owner’s guide.
Soundbar doesn’t reconnect to previously-connected Bose headphones	Connect using the Bose Music app. You can access this option from the Settings menu.
Delayed audio from a connected Bose SoundLink Bluetooth speaker or Bose headphones	Not all Bose SoundLink Bluetooth speakers can play audio in perfect sync when connected to the soundbar. To check if your product is compatible, visit: worldwide.Bose.com/Support/GroupsInstall any available software updates for your speaker or headphones. To check for updates, open the appropriate Bose app for your product on your mobile device or visit btu.Bose.com on your computer.

RESET THE SOUNDBAR

Factory reset clears all source, volume, network, and ADAPTiQ audio calibration settings from the soundbar and returns it to original factory settings.

1. On the remote, press and hold the Power button ⏻ and Skip forward button ⌘ for 5 seconds until light bar pulses white twice then fades to black.

BOSE

The soundbar reboots. When the reset is complete, the light bar glows solid amber.

1. To restore the soundbar's network and audio settings:

a. Launch the Bose Music app on your mobile device and add the soundbar to your network (see “Add the soundbar to an existing account” on page 20).
b. Run ADAPTiQ audio calibration using the Bose Music app (see page 21).

CONNECTION OPTIONS

Connect the soundbar to your TV using one of the following connection options:

- Option 1 (preferred): HDMI eARC (Enhanced Audio Return Channel) or ARC

- Option 2: Optical

NOTES:

• To deliver the Dolby Atmos surround-sound experience, you must connect the HDMI cable to the HDMI eARC port on your TV. If your TV doesn't have an HDMI eARC port, you can connect the cable to the HDMI ARC port or the optical cable to the optical port to receive spacious and life-like sound (see page 62).

• Using your TV's HDMI eARC port allows you to use your TV remote to control the power, volume, and mute functions of the soundbar.

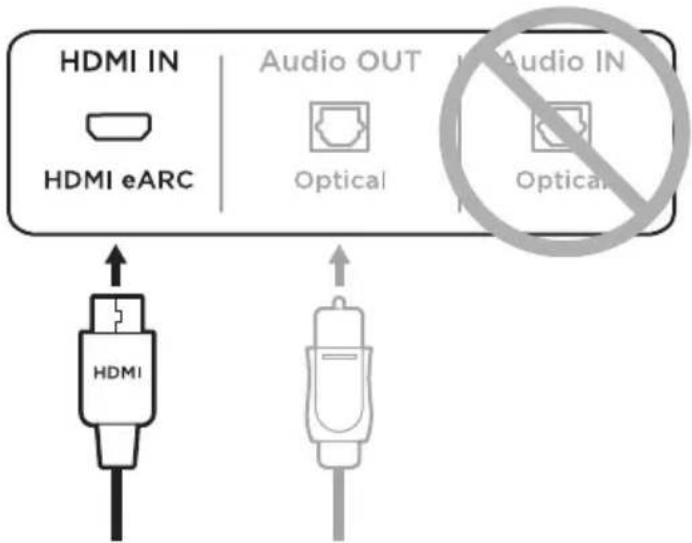

• On the back of your TV, locate the HDMI IN and Audio OUT (optical) ports.

NOTE: Your TV port panel may not appear as shown. Look for the shape of the port.

HDMI IN HDMI eARC Audio OUT Optical Audio IN Optical HDMI

Option 1 (Preferred) HDMI eARC (or ARC): Use the HDMI cable for this connection.
Option 2 Optical: If your TV doesn't have an HDMI eARC (or ARC) port, use the optical cable for this connection.

1. Choose an audio cable.

CONNECT THE SOUNDBAR TO YOUR TV

After choosing an audio cable, connect the soundbar to your TV.

Option 1 (preferred): HDMI eARC or ARC

1. Insert one end of the HDMI cable into your TV's HDMI eARC or ARC port.

NOTE: To deliver the Dolby Atmos surround-sound experience, you must connect the HDMI cable to the HDMI eARC port on your TV. If your TV doesn't have an HDMI eARC port, you can connect the cable to the HDMI ARC port to receive spacious and life-like sound.

1. Insert the other end of the cable into the HDMI (eARC) port on the soundbar.

POWER DATA MAX ADAPPTA HIVICAL > HDMI GARD HDMI

Option 2: Optical

If your TV doesn't have an HDMI eARC (or ARC) port, use the optical cable to connect the soundbar to your TV.

1. Remove the protective cap from both ends of the optical cable.

CAUTION: Inserting the plug with the cap attached can damage the plug and/or the port.

1. Insert one end of the optical cable into your TV's Optical OUT port.

CAUTION: Inserting the plug with the wrong orientation can damage the plug and/or the port.

1. Hold the plug at the other end of the optical cable.

2. Align the plug with the soundbar's OPTICAL IN port, and insert the plug carefully.

PPTC PLC PLC PLC PLC OPTICAL PLC 200+400 100+400 PLC

NOTE: The port has a hinged door that swings inward when inserting the plug.

1. Firmly push the plug into the port until you hear or feel a click.

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

CHECK FOR SOUND

1. Power on your TV.
2. Turn off your TV speakers.

NOTE: Refer to your TV owner's guide for more information.

1. If you are using a cable/satellite box or other secondary source:

a. Power on this source.
b. Select the appropriate TV input.

1. Power on the soundbar (see page 23).

You hear sound coming from the soundbar.

1. On the remote, press the Mute button ✗.

You don't hear sound coming from the TV speakers or soundbar.

NOTE: If you hear sound coming from your TV after your soundbar is muted, see "Sound is coming from TV speaker" on page 53.

Management Regulation for Low-power Radio-frequency Devices

Artikel XII

Importor i Kina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, Kina (Shanghai) Pilot Free Trade Zone

Importør i EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holland

Importør i Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefonnummer: [phone]

Importar i Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Importør i UK: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, Storbritannien

Inputklassifikation: 100-240 V 50/60 Hz, 65 W

HVAD ER DER I AESKEN?

Indhold 14

DOLBY ATMOS®-TEKNOLOGI 15

PLACERING AF SOUNDBAR

Anbefalinger 16

STREAM LYD MED AIRPLAY

TILSLUT PRODUKTER FRA BOSE

Simple line drawing of a rectangular object with two square holes and a horizontal bar labeled 'ROSE' (no text or symbols beyond the label)

Bose Smart Soundbar 900

BOSE

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

* Leveres muligvis med flere netledninger. Anvend netledningen til din region.

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

FORSIGTIG: Placer IKKE soundbaren på dens front, bagside eller top, när den er i brug.

Two prohibition symbols: a smartphone icon and a rectangular object with dots, both crossed out by a diagonal line (no text or labels)

MONTERING AF SOUNDBAR PÅ VÆGGEN

FÅ ADGANG TIL GOOGLE ASSISTENT

Find flere færdigheder Help me get started with skills.

Stop Alexa Stop.

Kom med en meddelelse Announce that dinner is ready.

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a motor case, illustrating charging mechanism

1. Skub låget til batterirummet på plads.

RENG∅RING AF SOUNDBAR

Line drawing of a monitor displaying a small rectangular device with three buttons on its screen (no text or symbols)

HDMI IN HDMI eARC Audio OUT Optical HDMI Audio IN Optical

TILSLUTNING AF SOUNDBAREN TIL DIT TV

China-Import: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU-Import: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Niederlande

Taiwan-Import: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefonnummer: [phone]

Mexiko-Import: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Simple line drawing of a horizontal rectangular object with rounded corners and a central label 'ROSE' (no other text or symbols)

Bose Smart Soundbar 900

+ - NOSE 1 2 3 4 5 6 ROSE

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Line drawing of a flat-screen TV set with a black cable, placed on a wooden box (no text or symbols)

Two crossed-out electronic devices with no visible text or symbols, one without a prohibition symbol.

WANDMONTAGE DER SOUNDBAR

4" / 10 cm

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

BOSE SOUNDLINK BLUETOOTH-LAUTSPRECHER ODER BOSE-KOPFHÖRER MITHILFE VON SIMPLESYNC™- TECHNOLOGIE VERBINDEN

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a device casing, illustrating charging mechanism

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefoonnummer: [phone]

Importeur in Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefoonnummer: [phone]

Importeur in het VK: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Ingangsspecificaties: 100-240 V 50/60 Hz, 65 W

AUDIO STREAMEN MET AIRPLAY

Simple line drawing of a rectangular object with two square handles and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

BOSE

Afstandsbediening AAA-batterij (2)

Netsnoer* HDMI-kabel

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two crossed-out electronic components with no accompanying text or symbols

DE SOUNDBAR AAN DE MUUR BEVESTIGEN

Meer skills ontdekken Help me get started with skills.

Alexa stoppen Stop.

Alexa Calling and Messaging instellen

Gebruik de Alexa-app om Alexa Calling and Messaging in te stellen.

Uw stem gebruiken

AFSPEEL- EN VOLUMESTATUS

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

EEN BOSE SOUNDLINK BLUETOOTH-LUIDSPREKER OF BOSE-HOOFDTELEFOON VERBINDEN MET SIMPLESYNC™-TECHNOLOGIE

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a motor case (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

CONTROLEREN OF ER GELUID IS

Importador en China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - + 1 2 3 4 5 6 BOSE

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Visite: ____ worldwide.Bose.com/Support/SB900

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two prohibition symbols: a smartphone icon and a rectangular object with holes, both crossed out by a diagonal line (no text or labels)

MONTAR LA BARRA DE SONIDO EN LA PARED

Visite: ____ worldwide.Bose.com/Support/SB900

Pure technical line drawing of a rectangular device with no text, numbers, or symbols

AJUSTAR EL AUDIO

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

CONECTAR UN ALTAVOZ BOSE SOUNDLINK BLUETOOTH O AURICULARES BOSE USANDO LA TECNOLOGÍA SIMPLESYNC™

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing two batteries connected to a device with internal components, no text or symbols present

Visite: ____ worldwide.Bose.com/Support/SB900

GARANTÍA LIMITADA

Visite: ____ worldwide.Bose.com/contact

SÍNTOMA SOLUCIÓN

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

VERIFIQUE EL SONIDO

Maahantuoja Kiinassa: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Maahantuoja EU:ssa: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Maahantuoja Taiwanissa: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Puhelin: [phone]

Maahantuoja Meksikossa: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Puhelinnumero: [phone]

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - + 1 2 3 4 5 6 BOSE

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two crossed-out electronic devices with no visible text or symbols, one crossed out by a diagonal line and the other by a horizontal line (no text or symbols present)

SOUNDBARIN KIINNITTÄMINEN SEINÄÄN

KAUKOSÄÄTIMEN TOIMINNOT

Pure technical line drawing of a rectangular device with no text, numbers, or symbols

ÄÄNEN SÄÄTÄMINEN

Tiedotteen tekeminen Announce that dinner is ready.

ÄLÄ HÄIRITSE -TILAN KÄYTTÖÖNOTTO

Turn off Do Not Disturb.

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

BOSE SOUNDLINK BLUETOOTH -KAIUTTIMEN TAI BOSE-KUULOKKEIDEN YHDISTÄMINEN SIMPLESYNC™- TEKNOLOGIALLA

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery connection to a remote control panel with internal components (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, no text or symbols present

ÄÄNEN TARKISTAMINEN

CONNEXION DES PRODUITS BOSE

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - NO 1 2 3 4 5 6 BOSE

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Isometric line drawing of a TV set with a flat-screen monitor and a curved screen mounted on a base (no text or symbols)

Two prohibition symbols: one with a diagonal line and the other with a horizontal line, both without any text or labels.

FIXATION MURALE DE LA BARRE DE SON

Pure technical line drawing of a rectangular device with no text, numbers, or symbols

RÉGLAGE DU SON

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a device casing, illustrating charging mechanism

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

VÉRIFICATION DU SON

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Importatore per Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Numero di telefono: [phone]

Importatore per il Messico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Numero di telefono: [phone]

www.spotify.com/connect/third-party-licenses

STREAMING AUDIO CON AIRPLAY

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - NO 1 2 3 4 5 6 BOSE

Telecomando Batteria AAA (2)

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Visitare: ____ worldwide.Bose.com/Support/SB900

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular device on a base (no text or symbols)

Two crossed-out electronic devices with no visible text or symbols, each marked with a prohibition symbol (no text present)

MONTARE A PARETE LA SOUNDBAR

Visitare: ____ worldwide.Bose.com/Support/SB900

CONNETTERSI A UNA RETE WI-FI DIVERSA

Pure technical line drawing of a rectangular device with no text, numbers, or symbols

ACCEDERE AD ASSISTENTE GOOGLE

STREAMING AUDIO DAL CENTRO DI CONTROLLO

STREAMING AUDIO DA UN'APP

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

CONNETTERE UN DIFFUSORE BLUETOOTH BOSE SOUNDLINK O LE CUFFIE BOSE MEDIANTE LA TECNOLOGIA SIMPLESYNC™

Simple line drawing of a test tube submerged in liquid with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a motor case, illustrating charging mechanism

Visitare: ____ worldwide.Bose.com/Support/SB900

GARANZIA LIMITATA

Visitare: ____ worldwide.Bose.com/contact

SINTOMO SOLUZIONE

POWER Data Radio Optical OFFICAL INT SENSOR Signal Signal

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

VERIFICARE IL SUONO

Kínai importör: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, Kína (Shanghai) Pilot Free Trade Zone

EU-importör: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Hollandia

Tajvani importör: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Tajvan. Telefonszám: [phone]

Mexikói importör: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonszám: [phone]

UK-importör: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - + 1 2 3 4 5 6 BOSE

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

worldwide.Bose.com/Support/SB900

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two prohibition symbols: one with a phone icon and another with a rectangular block (no text or labels)

A HANGSUGÁRZÓ FELSZERELÉSE A FALRA

https://support.google.com/assistant

MEGJEGYZÉSEK:

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a device casing (no text or symbols)

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

ELLENÖRIZZE A HANGOT

Management Regulation for Low-power Radio-frequency Devices

Artikkel XII

Importor for Kina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, Kina (Shanghai) Pilot Free Trade Zone

Importør for EU: Bose Products B.V., Gorslaan 60, NL-1441 RG Purmerend, Nederland

Importor for Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefonnummer: [phone]

Importor for Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Importør for UK: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, Storbritannia

Strøminngang: 100-240 V 50/60 Hz, 65 W

KONFIGURERE LYDPLANKEN

STR∅M LYD MED AIRPLAY

KOBLE TIL BOSE-PRODUKTER

STELL OG VEDLIKEHOLD

Oppdatere lydplanken 49

Sette batterier i fjernkontrollen.... 49

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - NO 1 2 3 4 5 6 BOSE

Fjernkontroll AAA-batteri (2)

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

* Kan leveres med flere strømledninger. Bruk strømledningen for ditt område.

MERKNAD: Ikke bruk produktet hvis deler av det er skadet eller glasset på lydplanken er ødelagt. Kontakt en autorisert Bose-forhandler eller kundestøtte for Bose.

Gå til ____ worldwide.Bose.com/Support/SB900

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two prohibition symbols: a smartphone icon and a rectangular block with dots, both crossed out by a diagonal line (no text or labels)

VEGGMONTERING AV LYDPLANKEN

Du kan montere lydplanken på veggen. Du kan kjøpe Bose Soundbar Wall Bracket hos en autorisert Bose-forhandler.

Gå til ____ worldwide.Bose.com/Support/SB900

KOBLE LYDPLANKEN TIL STR∅M

Oppdage flere ferdigheter Help me get started with skills.

Stoppe Alexa Stop.

Bruke lydplankekontrollene

Foreta et kunngjøring Announce that dinner is ready.

KONFIGURERE IKKE FORSTYRR

KOBLE TIL MOBILENHETER PÅ NYTT

Trykk på Bluetooth-knappen ✝ på fjernkontrollen.

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

KOBLE TIL BOSE SOUNDLINK BLUETOOTH SPEAKER ELLER BOSE-HODETELEFONER MED SIMPLESYNC™-TEKNOLOGI

• Bose SoundLink Revolve+ Bluetooth speaker
• Bose SoundLink Mini Bluetooth speaker
• Bose SoundLink Color Bluetooth speaker
• Bose Noise Cancelling Headphones 700
• Bose QuietComfort 35 wireless headphones

OPPDATERE LYDPLANKEN

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a device, illustrating charging mechanism

TILBAKESTILLE LYDPLANKEN

KOBLE LYDPLANKEN TIL TV-EN

Pure electrical circuit lines without any symbols

FORSIKTIG: Hvis du setter inn pluggen med hetten på, kan det føre til skade på pluggen og/eller porten.

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

KONTROLLERE LYDEN

Importer — Chiny: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer — UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Importer — Tajwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Numer telefonu: [phone]

Importer — Meksyk: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Numer telefonu: [phone]

Importer — Wielka Brytania: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Zasilanie: 100–240 V 50/60 Hz, 65 W

Simple line drawing of a rectangular object with two square handles and a label 'NOSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - NOSE 1 2 3 4 5 6 ROSE

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Line drawing of a flat-screen TV mounted on a box, no text or symbols present

Two prohibition symbols: a smartphone and a rectangular object, both crossed out by a diagonal line (no text or labels)

MONTAŻ GŁOŚNIKA SOUNDBAR NA ŚCIANIE

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing two batteries connected to a device with internal components, no text or symbols present

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

SPRAWDZANIE DŻWIĘKU

Importador na China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importador na CE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Importador em Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan – Número de telefone: [phone]

Instalar as pilhas do controle remoto 49

Limpar a barra de som.... 50

Simple line drawing of a rectangular object with two square holes and a label 'NOSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - NOSE 1 2 3 4 5 6 ROSE

Controle remoto Pilha AAA (2)

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Visite: ____ worldwide.Bose.com/Support/SE

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two prohibition symbols: a smartphone icon and a rectangular object with holes, both crossed out by a diagonal line (no text or labels)

MONTAGEM DA BARRA DE SOM NA PAREDE

Visite: ____ worldwide.Bose.com/Support/SB900

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
  • Alto-falantes surround Bose: Bose.com/SS

CONECTAR UM ALTO-FALANTE BOSE SOUNDLINK BLUETOOTH OU FONES DE OUVIDO BOSE USANDO A TECNOLOGIA SIMPLESYNC™

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a device casing, illustrating charging mechanism

Visite: ____ worldwide.Bose.com/Support/SB900

GARANTIA LIMITADA

Visite ____ worldwide.Bose.com/contact

SINTOMA SOLUÇÃO

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

VERIFICAR O ÁUDIO

Kinaimportör: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU-importör: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederländerna

Taiwanimportör: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, telefonnummer Taiwan: [phone]

Mexikoimportör: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

UK-importör: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Märkspänning: 100-240 V 50/60 Hz, 65 W

DET FINNS I FÖRPACKNINGEN

Innehåll.... 14

DOLBY ATMOS®-TEKNIK 15

PLACERING AV DIN SOUNDBARHÖGTALARE

Rekommendationer.... 16

Väggmontering av soundbarhögtalaren.... 17

ANSLUTA BOSE-PRODUKTER

Simple line drawing of a rectangular object with two square holes and a label 'ROSE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

+ - + 1 2 3 4 5 6 BOSE

Fjärrkontroll AAA-batteri (2)

Elkabel* HDMI-kabel

Optisk kabel ADAPTiQ-headset

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two prohibition symbols: one with a smartphone icon and another with a rectangular object, both without any text or labels.

VÄGGMONTERING AV SOUNDBARHÖGTALAREN

Hitta nya färdigheter Help me get started with skills.

Stoppa Alexa Stop.

Gör ett utrop Announce that dinner is ready.

STÄLLA IN STÖR EJ

SPELA UPP ETT FÖRVAL

UPPDATERING OCH FELSTATUS

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose-surroundhögtalare: Bose.com/SS

ANSLUTA EN BOSE SOUNDLINK BLUETOOTH-HÖGTALARE ELLER BOSE-HÖRLURAR MED SIMPLESYNC™-TEKNIK

UPPDATERA SOUNDBARHÖGTALAREN

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a device casing, illustrating charging mechanism

1. Sätt tillbaka batterifackets lucka.

RENGÖRA SOUNDBARHÖGTALAREN

Line drawing of a flat-screen monitor with a control panel (no text or symbols)

HDMI IN HDMI eARC Audio OUT Optical HDMI Audio IN Optical HDMI

ANSLUTA SOUNDBARHÖGTALAREN TILL TV:N

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, no text or symbols present

KONTROLLERA LJUDET

Simple line drawing of a rectangular object with rounded corners and a central label 'SOSE' (no text or symbols on the object itself)

Bose Smart Soundbar 900

ROSE

รีโมท

แบตเตอร์ AAA (2)

สายไฟ*

สายเคบิล HDMI

สายออฟติคัล

Simple line drawing of a U-shaped connector or connector (no text or symbols)

ชุดหูฟัง ADAPTiQ

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two crossed-out electronic devices with no visible text or symbols, one without a prohibition symbol.

4" / 10 mm.

https://www.amazon.com/usealexa

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a motor case, illustrating charge transfer or charging mechanism.

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

การตรวจสอบเสียง

중국 수입업체: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU 수입업체: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

대만 수입업체: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan 전화 번호: [phone]

멕시코 수입업체: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. 전화 번호: [phone]

영국 수입업체: Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

입력 정격: 100-240V 50/60Hz, 65W

Simple line drawing of a horizontal rectangular object with rounded corners and a central label 'NOSE' (no text or symbols beyond the label)

Bose Smart Soundbar 900

+ - #1 2 3 4 5 6 #0 #1 #2 #3 #4 #5 #6 #7 #8 #9 #10 #11 #12 #13 #14 #15 #16 #17 #18 #19 #20 #21 #22 #23 #24 #25 #26 #27 #28 #29 #30 #31 #32 #33 #34 #35 #36 #37 #38 #39 #40 #41 #42 #43 #44 #45 #46 #47 #48 #49 #50 #51 #52 #53 #54 #55 #56 #57 #58 #59 #60 #61 #62 #63 #64 #65 #66 #67 #68 #69 #70 #71 #72 #73 #74 #75 #76 #77 #78 #79 #80 #81 #82 #83 #84 #85 #86 #87 #88 #89 #90 #91 #92 #93 #94 #95 #96 #97 #98 #99 ROSE

리모콘 AAA 배터리 (2)

전원 코드* HDMI 케이블

광케이블 ADAPTiQ 헤드셋

Simple line drawing of a U-shaped tube with a small connector (no text or symbols)

worldwide.Bose.com/Support/SB900에서 확인하십시오.

Line drawing of a flat-screen TV set with a horizontal screen and a rectangular panel on top, placed in a corner room (no text or symbols)

Two prohibition symbols: a smartphone icon and a rectangular block with dots, both crossed out by a diagonal line (no text or labels)

사운드바 월 마운팅

worldwide.Bose.com/Support/SB900에서 확인하십시오.

추가 기능 검색 Help me get started with skills.

Alexa 중지 Stop.

사운드바 콘트롤 사용

• Bose Bass Module 700: ____ Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

_worldwide.Bose.com/Support/Groups

참고:

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a device, illustrating charging sequence

worldwide.Bose.com/Support/SB900에서 확인하십시오.

제한 보증

Line drawing of a flat-screen monitor with a central control panel (no text or symbols)

HDMI IN HDMI eARC Audio OUT Optical Audio IN Optical HDMI HDMI

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

사운드 확인

英国进口商：Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

输入额定值：100-240V 50/60 Hz, 65W

Simple line drawing of a rectangular object with rounded corners and a label 'NOISE' at the bottom (no other text or symbols)

Bose Smart Soundbar 900

DO + - d 1 2 3 4 5 6 BOSE

遥控器 AAA 电池 (2)

电源线 *HDMI 连接线

光缆 ADAPTiQ 耳机

Simple line drawing of a U-shaped connector or clamp (no text or symbols)

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two prohibition symbols: one with a phone icon and another with an eraser (no text or labels)

墙式安装条形音箱

+ VOL - kHz 1 2 3 4 5 6 BOSE

操作按钮麦克风关闭按钮

调整音频

https://support.google.com/assistant

注意：

享受娱乐 Play some music
制定行程 What's on my calendar t	oday?
管理任务 Set an alarm for 7am tomorrow
控制您的智能家居 Turn on the lights
获取答案	What's the weather this weekend?

使用条形音箱控件

https://www.amazon.com/usealexa

发现更多技能 Help me get started with skills。

停止 Alexa Stop。

使用条形音箱控件

麦克风关闭按钮 alexa built-in

尝试方式 操作方法

• Bose Bass Module 700: __Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

_worldwide.Bose.com/Support/Groups

使用 Bose Music 应用连接

Simple line drawing of a test tube inside a container with an arrow indicating downward motion (no text or symbols)

Diagram showing battery charging process with two batteries and a motor case, illustrating charging mechanism

1. 滑上电池舱盖，确保卡到位。

清洁条形音箱

用柔软的干布擦拭条形音箱外表面。

小心：

Line drawing of a flat-screen monitor with three buttons on the front panel (no text or symbols)

HDMI IN HDMI eARC Audio OUT Optical HDMI Audio IN Optical HDMI

Pure electrical circuit lines without any symbols

Illustration of a flashlight with radiating lines indicating electrical discharge (no text or symbols)

检查声音

1. 打开电视。
2. 关闭电视扬声器。

www.Bose.com/compliance

英國進口商：Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

輸入額定：100-240V 50/60Hz, 65W
