USER MANUAL Solo Soundbar Series II BOSE

Please read and keep all safety, security, and use instructions.

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance

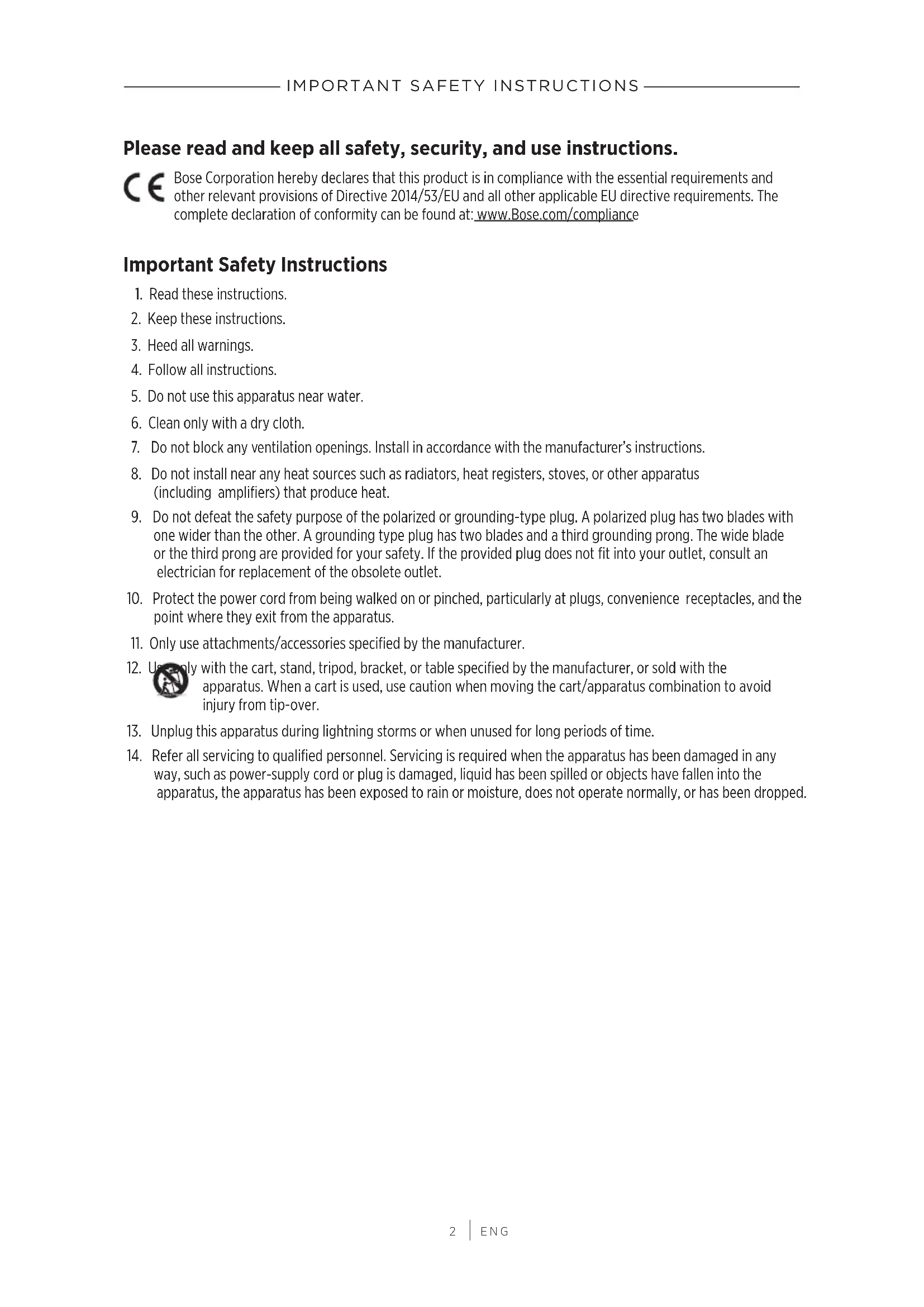

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Usually with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS

This symbol on the product means there are important operating and maintenance instructions in this guide.

Do not ingest battery, chemical burn hazard. The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the remote control and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. To avoid risk of explosion, fire or chemical burn, use caution in replacing the battery and replace only with an agency approved (e.g., UL) CR2032 or DL2032 3-volt lithium battery. Properly and promptly dispose of used batteries. Do not recharge, disassemble, heat above 212°F (100°C) or incinerate.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• To reduce the risk of fire or electrical shock, do NOT expose this product to rain, liquids or moisture.

- Do NOT expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the product.

- Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.

- Do NOT make unauthorized alterations to the product.

- Do NOT use a power inverter with this product.

- Do NOT use in vehicles or boats.

- The speaker wire and interconnect cables included with this system are not approved for in-wall installation. Please check your local building codes for the correct type of wire and cable required for in-wall installation.

- Use this product only with the power supply provided.

- Where the mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

- The product label is located on the bottom of the product.

- Do NOT expose products containing batteries to excessive heat (e.g. from storage in direct sunlight, fire or the like).

- Only use the mounting hardware supplied with this product.

- Do NOT mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.

- Only for mounting on the following surfaces:

- Wallboard ≥ 3/8'' (10 mm)

—Masonry

If mounted on surfaces other than stated above please contact a professional installer.

- Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.

- Do not place or install the bracket or product near any heat sources, such as fireplaces, radiators, heat registers or other apparatus (including amplifiers) that produce heat.

Solvent, lubricant, and cleaning agent warning

WARNING: Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around Bose speakers, and associated mounting hardware, during installation. The use of such hydrocarbon based lubricants, solvents or cleaning agents on or around the mounting anchors and screws can lead to degradation of the plastic material, possibly resulting in cracking and premature failure of the product.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Bose Corporation could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules and with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

CAN ICES-3(B)/NMB-3(B)

The product, in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC, is in compliance with the following norm(s) or document(s): Regulation (EC) No. 1275/2008, as amended by Regulation (EU) No. 801/2013.

Required Power State Information	Power Modes
	Standby Networked Standby
Power consumption in specified power mode, at 230V/50Hz input	≤ 0.5 W N/A*
Time after which equipment is automatically switched into mode	< 2.5 hours N/A*
Power consumption in networked standby if all wired network ports are connected and all wireless network ports are activated, at 230V/50Hz input	N/A N/A*
Network port deactivation/activation procedures.Deactivating all networks will enable standby mode.	Bluetooth®: Deactivate by clearing the pairing list by pressing and holding the Bluetooth button for 10 seconds. Activate by pairing with a Bluetooth source.*product does not utilize a networked standby mode for a Bluetooth connection and does not have the ability to be configured to a network via Wi-Fi® or Ethernet.

External Power Supply Technical Information

The external power supply provided with the product, in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC, is in compliance with the following norms(s) or documents(s): Commission Regulation (EU) 2019/1782.

Manufacturer Bose Products B.V.
Commercial registration number 36037901
Address	Gorslaan 601441 RG PurmerendThe Netherlands
Model identifier DT20V-1.8C-DC
Input voltage 100V-240V
Input AC frequency 50Hz/60Hz
Output voltage 20V DC
Output current	1.8A
Output power	36W
Average active efficiency 89.6%
Efficiency at low load (10%) 90.1%
No-load power consumption 0.08W

For Europe:

Frequency band of operation 2400 to 2483.5 MHz.

Maximum transmit power less than 20 dBm EIRP.

Maximum transmit power is below regulatory limits such that SAR testing is not necessary and exempt per applicable regulations.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Management Regulation for Low-power Radio-frequency Devices

Article XII

According to “Management Regulation for Low-power Radio-frequency Devices” without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio-frequency devices.

Article XIV

The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications operated in compliance with the Telecommunications Act.

The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "0" is 2010 or 2020.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Phone Number: [phone]

Mexico Importer: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Phone Number: [phone]

Input Rating: 20V --- 30W MAX

The CMIIT ID is located on the bottom of the soundbar.

California: Contains lithium ion battery with Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X 0 0 0 0 0
Metal Parts X 0 0 0 0 0
Plastic Parts 0 0 0 0 0 0
Speakers X 0 0 0 0 0
Cables X 0 0 0 0 0
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: Powered Speaker, Type designation: 418775
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1:“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Please complete and retain for your records

The serial and model numbers are located on the bottom of the soundbar and on the packaging for the remote.

Serial number:

Model number: 418775

Please keep your receipt with your owner's guide. Now is a good time to register your Bose product.

You can easily do this by going to global.Bose.com/register

Security Information

This product contains software. Bose may provide updates from time to time, including those to address security issues that may impact product functionality. You are responsible for applying updates for the products you own, and may access them by contacting Bose customer service.

Visit: worldwide.Bose.com/contact

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bose Corporation is under license.

DOLBY AUDIO ^TM

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories.

HDMI

a. No. 10000000

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Bose, Bose Home Speaker, Bose Music, Bose Portable Home Speaker, Bose Solo Soundbar Series, Bose Soundbar, and SimpleSync are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2020 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.

WHAT'S IN THE BOX

Contents 12

SOUNDBAR PLACEMENT

Recommendations.... 13

Wall mount the soundbar.... 14

Adjust audio for wall mounting.... 14

SET UP THE SOUNDBAR

Cable options 15

Connect the soundbar to your TV 16

Option 1: Optical (preferred).... 16

Option 2: Coaxial (not provided) 17

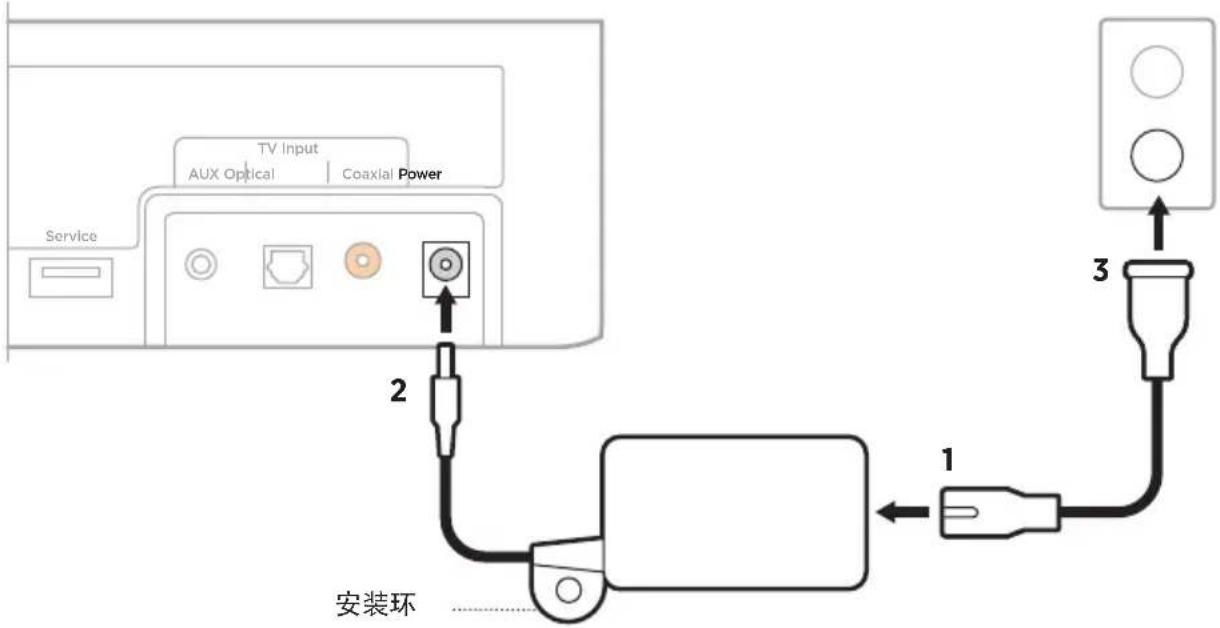

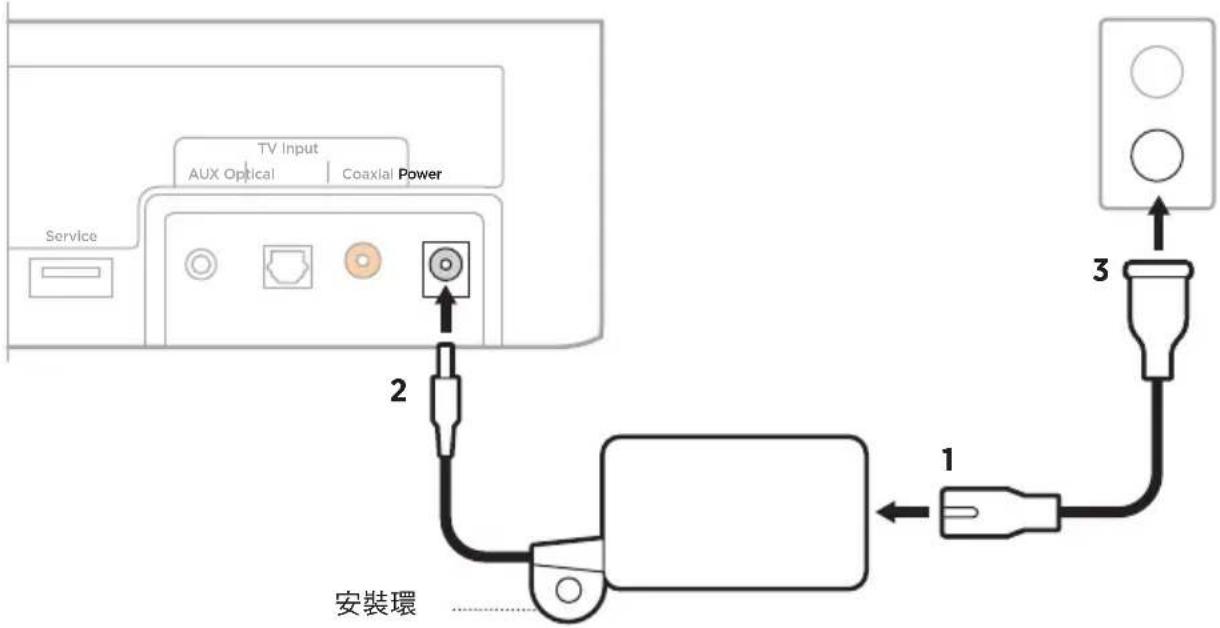

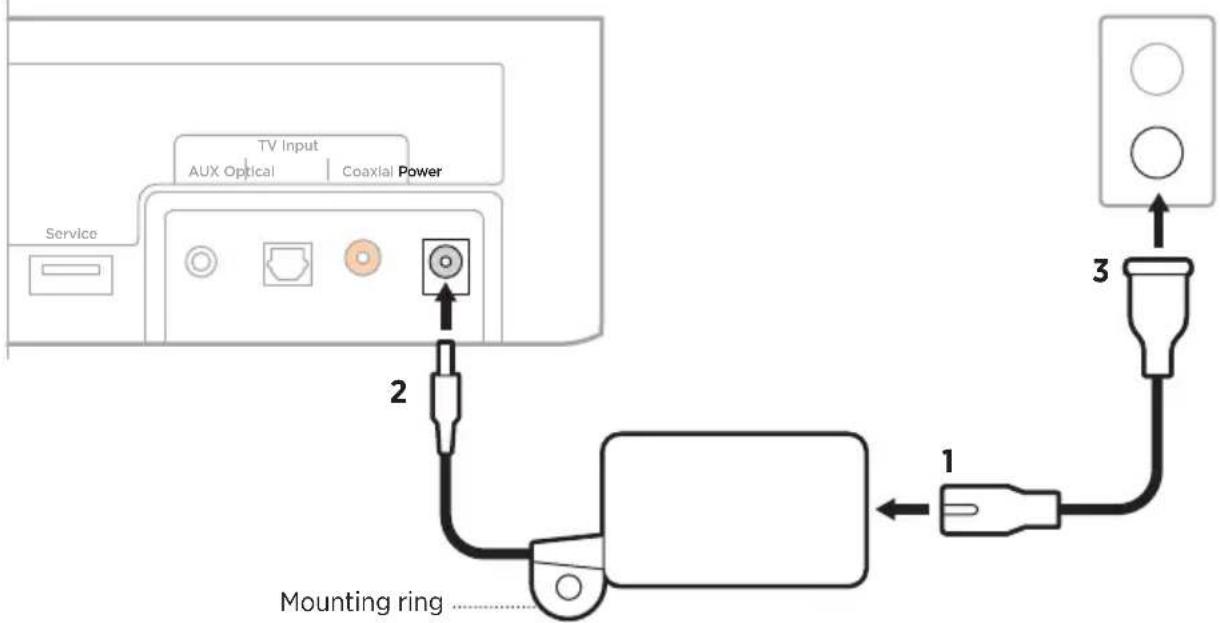

Connect the soundbar to power.... 18

Mounting ring.... 18

Turn off your TV speakers 19

Check for sound 19

SOUNDBAR CONTROLS

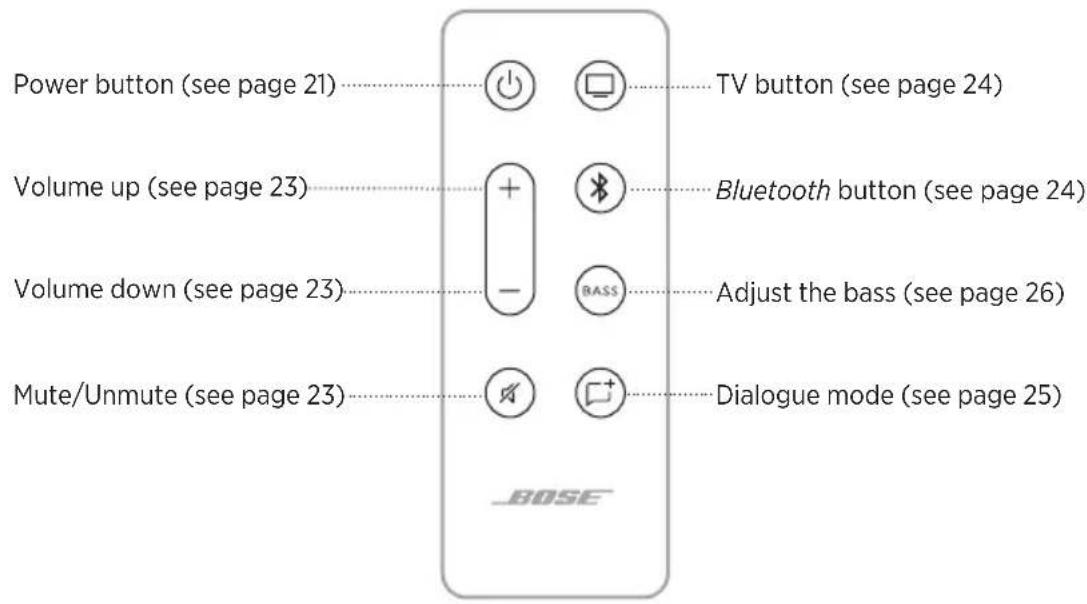

Remote functions.... 20

Power 21

Auto-wake 22

Volume 23

Sources 24

Dialogue mode.... 25

Adjust the bass 26

Reset the bass.... 27

Program a third-party remote 27

BLUETOOTH® CONNECTIONS

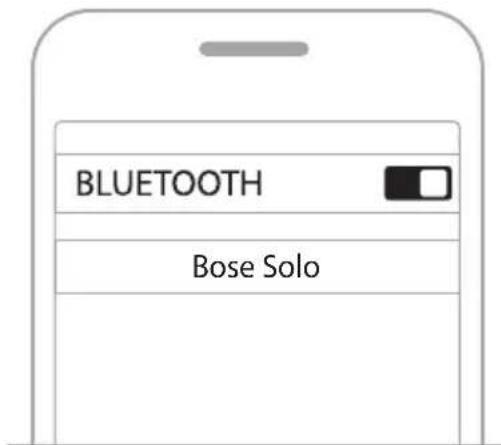

Connect a mobile device 28

Disconnect a mobile device.... 29

Reconnect a mobile device.... 29

Connect an additional mobile device 30

Switch between connected devices.... 30

Clear the soundbar device list 30

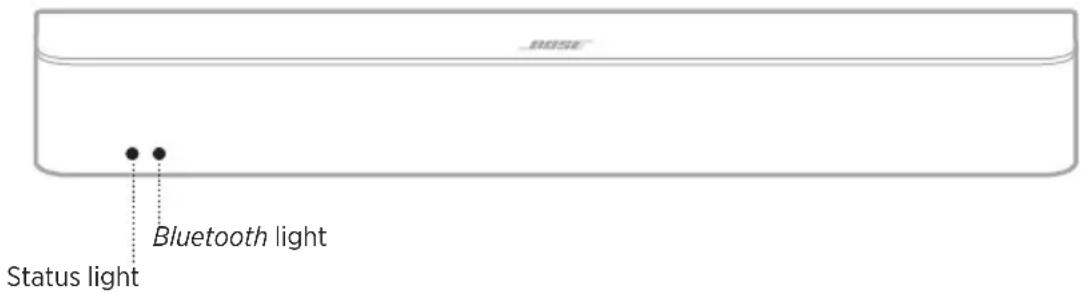

SOUNDBAR STATUS

Power, volume, and error status.... 31

Bluetooth status 31

ALTERNATE SETUP

No sound from a source(s) connected to your TV 32

No optical or coaxial ports on your TV 32

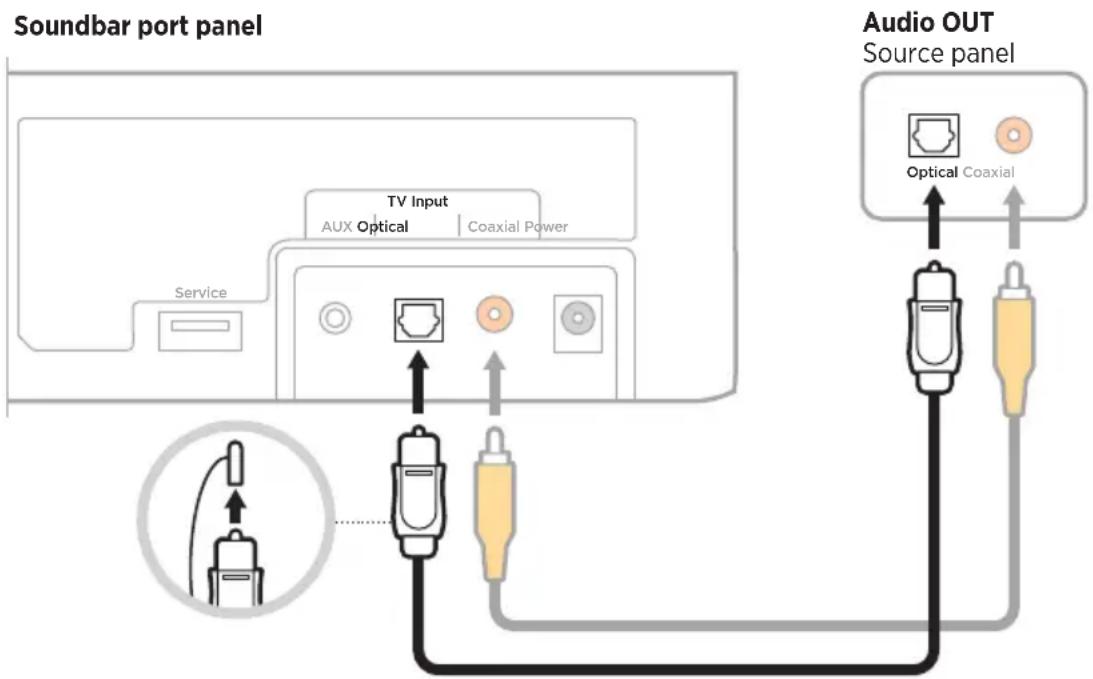

Connect a source to the soundbar 33

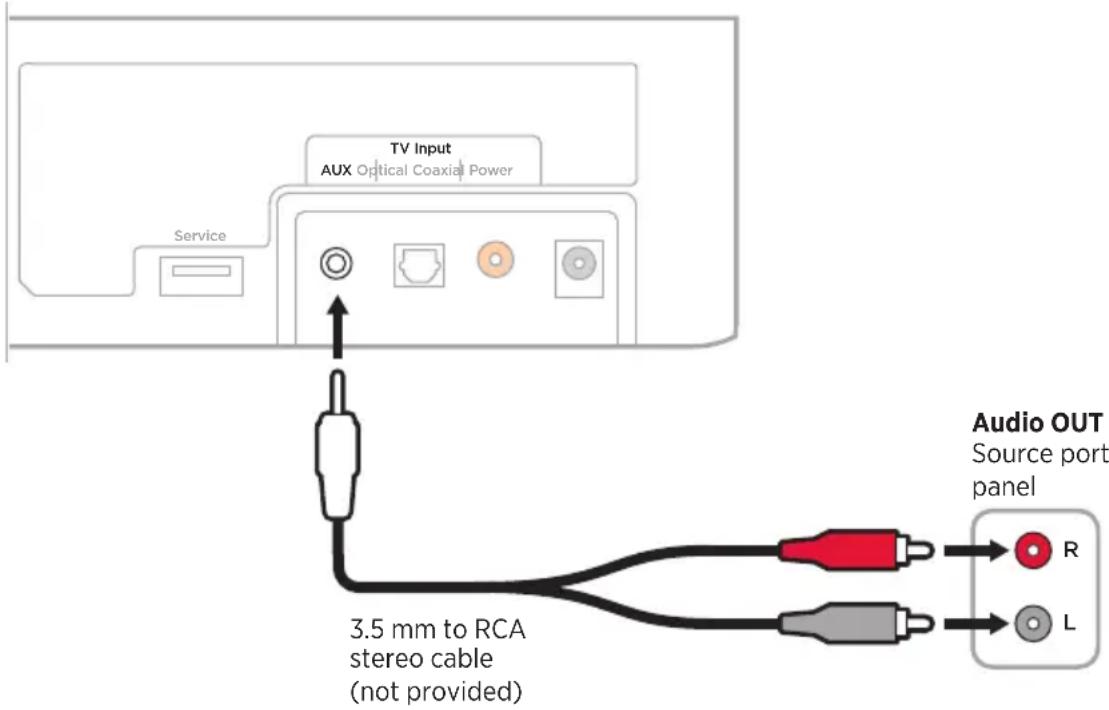

Connect a source's analog port to the soundbar 34

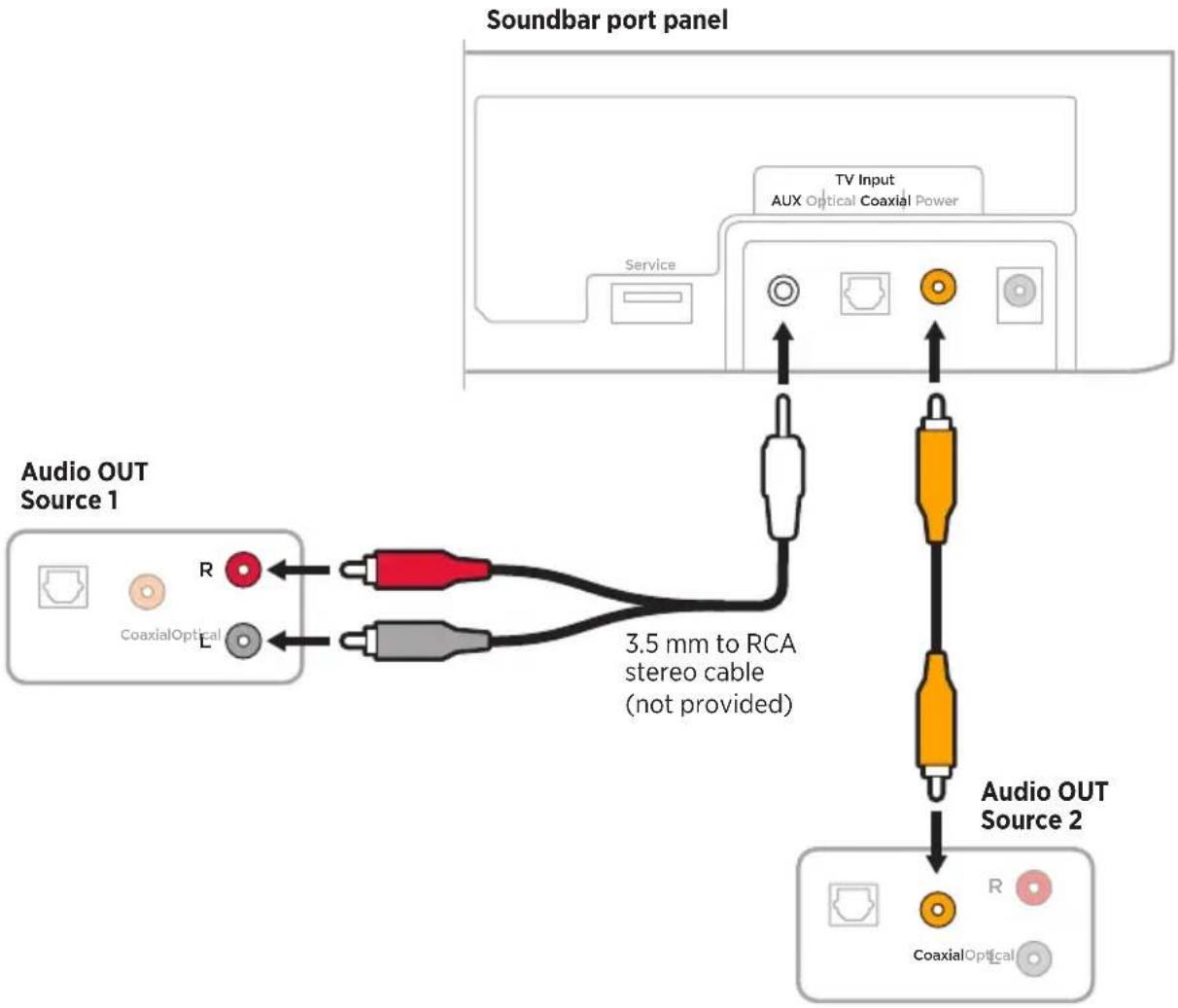

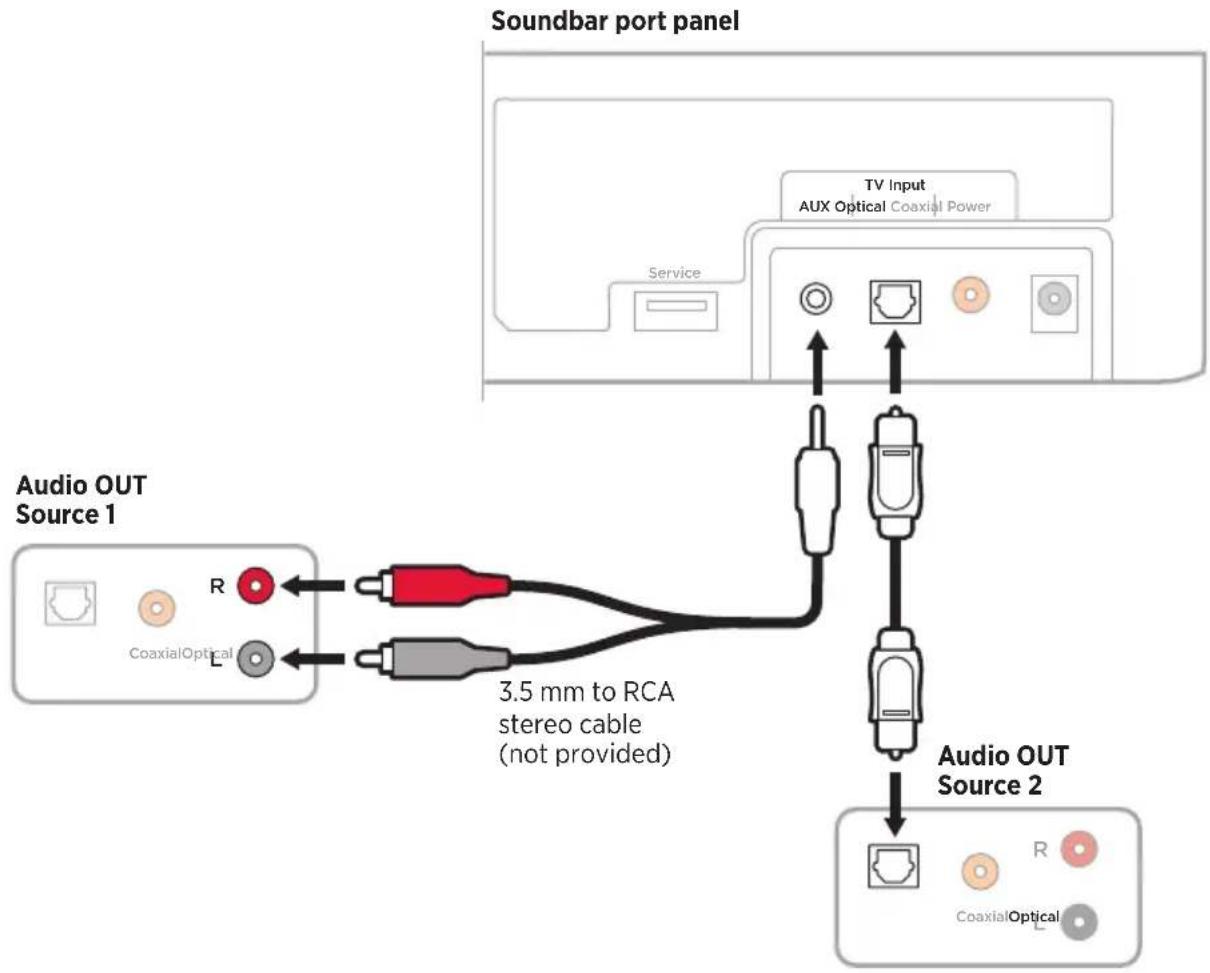

Connect two sources to the soundbar.... 35

Use two sources connected to the soundbar.... 37

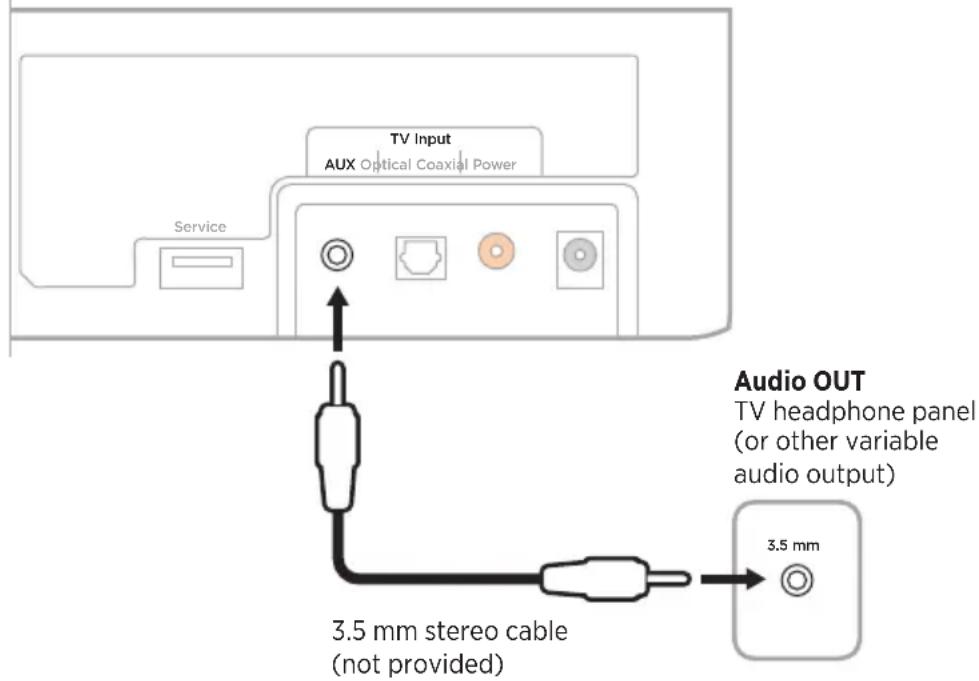

Connect a TV headphone port to the soundbar.... 38

CONNECT BOSE PRODUCTS

Connect a Bose Home Speaker or Soundbar 39

Compatible products 39

Connect using the Bose Music app 39

Reconnect to a Bose Home Speaker or Soundbar.... 40

CARE AND MAINTENANCE

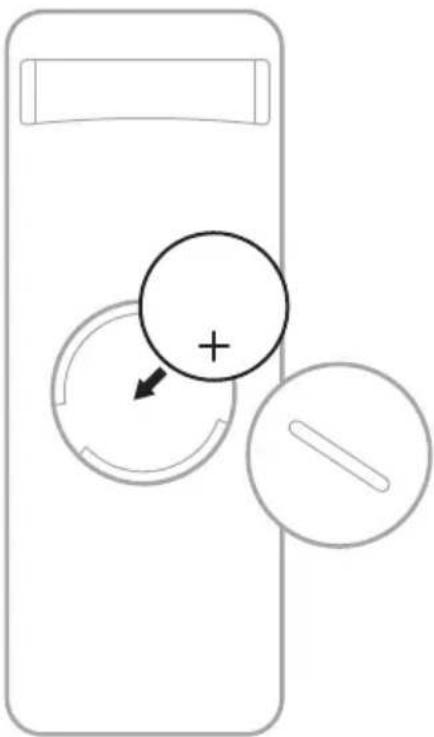

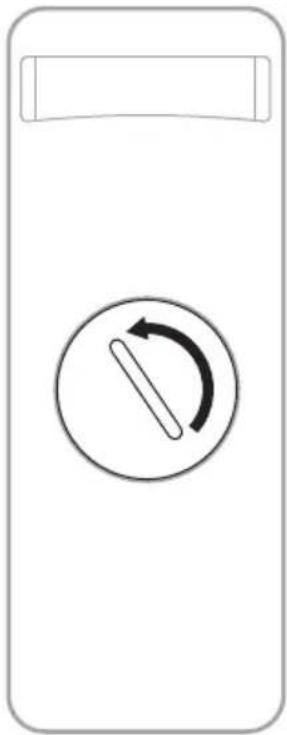

Replace the remote battery.... 41

Clean the soundbar 42

Replacement parts and accessories.... 42

Limited warranty 42

TROUBLESHOOTING

Try these solutions first 43

Other solutions 43

CONTENTS

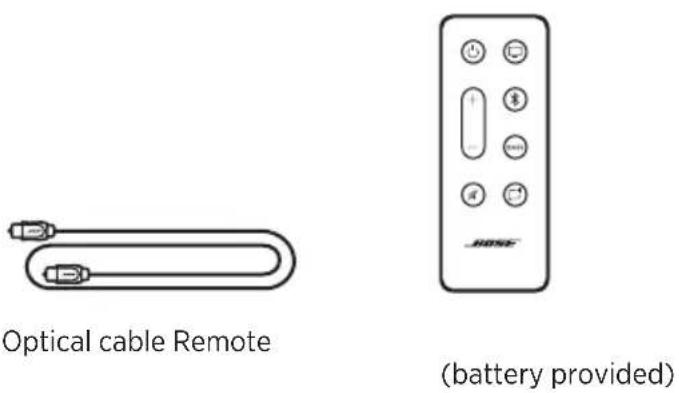

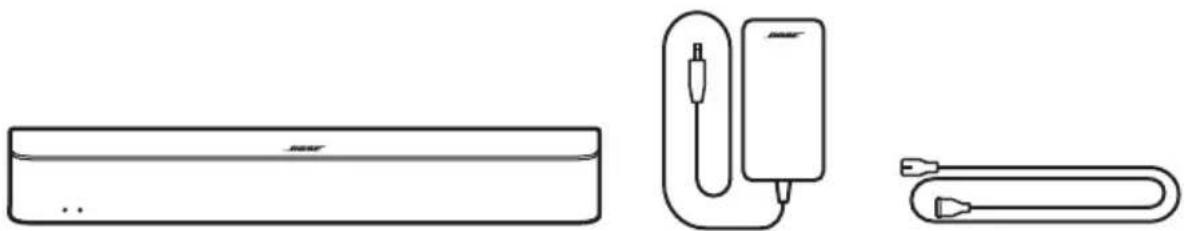

Confirm that the following parts are included:

Three technical line drawings: a rectangular container, a U-shaped charging device with plug, and a coiled cable (no text or symbols)

Bose Solo Soundbar Series II Power supply Power cord*

Optical cable Remote (battery provided)

* May ship with multiple power cords. Use the power cord for your region.

NOTE: If any part of the product is damaged, don't use it. Contact your authorized Bose dealer or Bose customer service.

Visit: worldwide.Bose.com/Support/SBSoloii

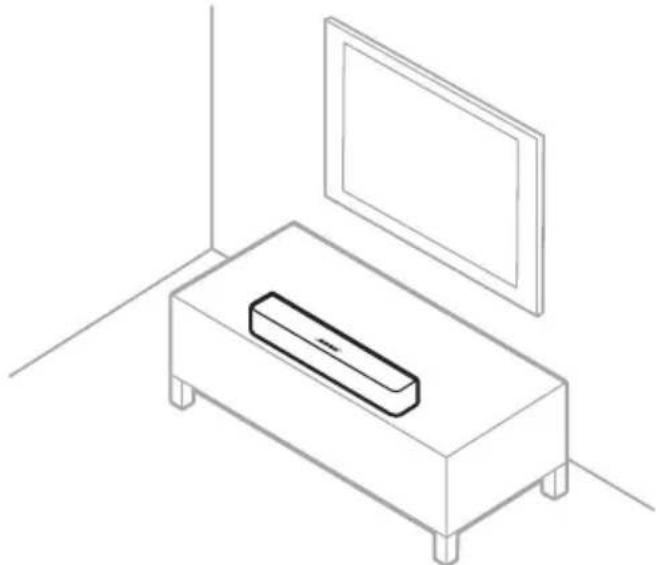

RECOMMENDATIONS

- Place the soundbar outside of and away from metal cabinets, other audio/video components, and direct heat sources.

- Place the soundbar directly below (preferred) or above your TV with the grille facing into the room.

- Place the soundbar on its rubber feet on a stable and level surface. For proper support, both feet must be resting on the surface. Vibration can cause the soundbar to move, particularly on smooth surfaces like marble, glass, or highly polished wood.

- If placing the soundbar on a shelf or TV stand, position the front of the soundbar as close as possible to the front edge of the shelf or stand for best sound quality.

- Keep the back side of the soundbar at least 0.4 in (1 cm) from any other surface. Blocking the ports on this side affects sound quality.

• Make sure there is an AC (mains) outlet nearby.

- To avoid wireless interference, keep other wireless equipment 1 – 3 ft (0.3 – 0.9 m) away from the soundbar.

- For best sound quality, don't place the soundbar in an enclosed cabinet or diagonally in a corner.

- Don't place any objects on top of the soundbar.

Line drawing of a simple TV setup with a box and monitor, no text or symbols present

CAUTION: Do NOT place the soundbar on its front, back, or top when in use.

Two safety symbols: a block with no diagonal line and an eraser, both crossed out by a prohibition sign.

WALL MOUNT THE SOUNDBAR

You can mount the soundbar on a wall. Follow the installation instructions included with the soundbar.

CAUTION: Do NOT use any other hardware to mount the soundbar.

Adjust audio for wall mounting

On the remote, press and hold the Dialogue mode button ☐ for 5 seconds until the status light on the soundbar blinks amber (see page 31).

Power + - BASS -

NOTE: If you remove the soundbar from the wall, repeat to return the soundbar to default audio settings.

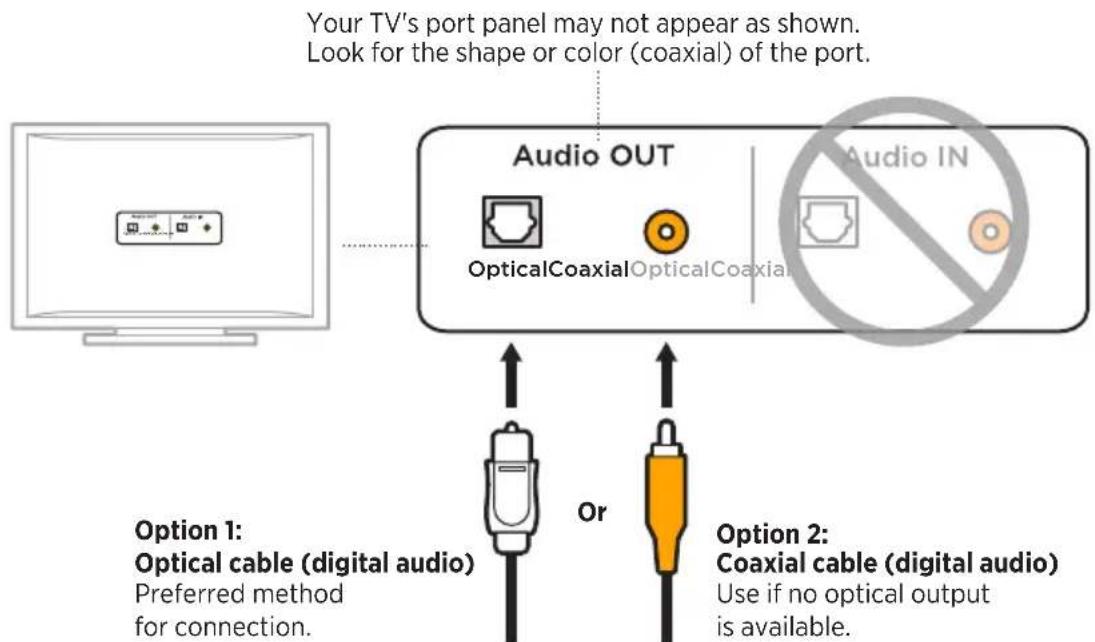

CABLE OPTIONS

Connect your TV to the soundbar using one of the two cable options.

• Option 1: Optical (preferred)
- Option 2: Coaxial (not provided)

NOTE: If your TV does not have an optical or coaxial port, see "Alternate Setup" on page 32.

1. On the back of your TV, locate the Audio OUT (optical) port panel.

NOTE: You must connect the audio cable through your Audio OUT panel.

Your TV's port panel may not appear as shown. Look for the shape or color (coaxial) of the port. Audio OUT OpticalCoaxial OpticalCoaxial Audio IN Option 1: Optical cable (digital audio) Preferred method for connection. Or Option 2: Coaxial cable (digital audio) Use if no optical output is available.

1. Choose an audio cable.

CONNECT THE SOUNDBAR TO YOUR TV

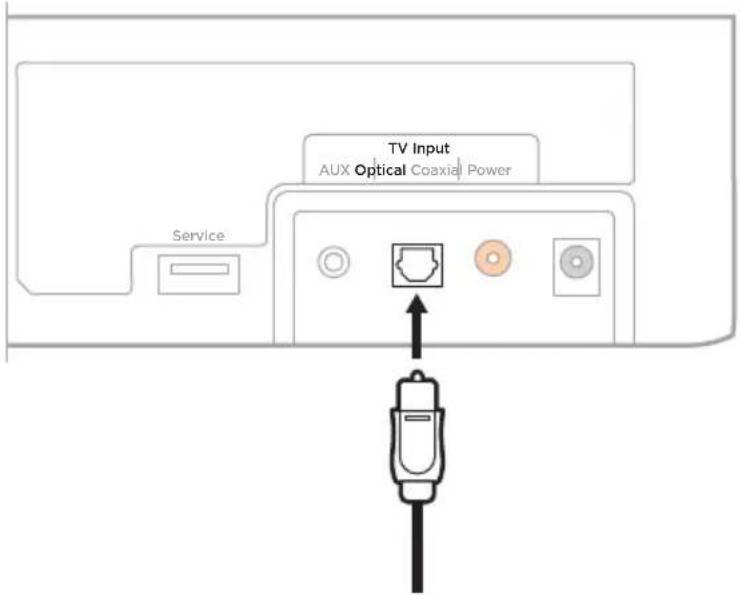

Option 1: Optical (preferred)

1. Remove the protective cap from both ends of the optical cable.

CAUTION: Make sure you have removed the protective cap from both ends of the optical cable. Inserting the plug with the cap on or in the wrong orientation can damage the plug and/or the port.

1. Align the plug on one end of the cable with your TV's Optical OUT port and insert the plug carefully.

2. Hold the plug at the other end of the optical cable with the Bose logo facing down.

3. Align the plug with the soundbar's OPTICAL port and insert the plug carefully.

TV Input AUX Optical Coaxial Power Service

NOTE: The port has a hinged door that swings inward when inserting the plug.

1. Firmly push the plug into the port until you hear or feel a click.

Illustration of a flashlight with radiating lines indicating illumination (no text or symbols)

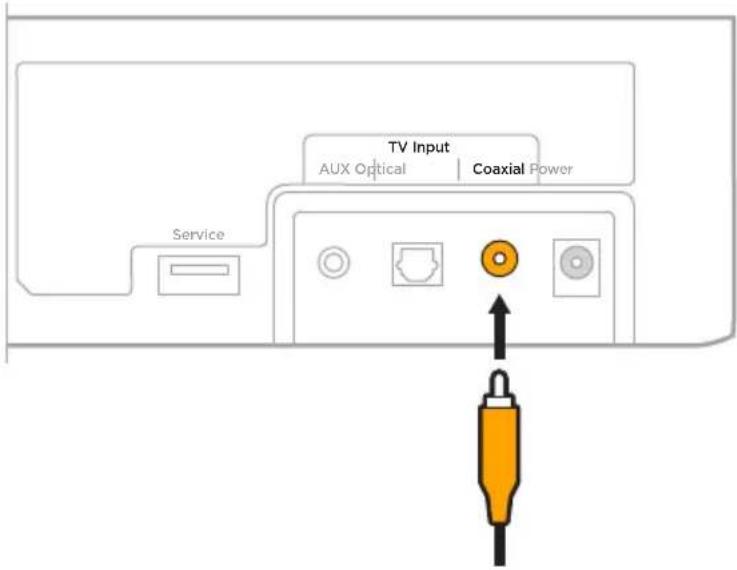

Option 2: Coaxial (not provided)

1. Insert one end of the coaxial cable into your TV's coaxial port.
2. Insert the other end of the coaxial cable into the Coaxial port on the soundbar.

TV Input AUX Optical | Coaxial Power Service

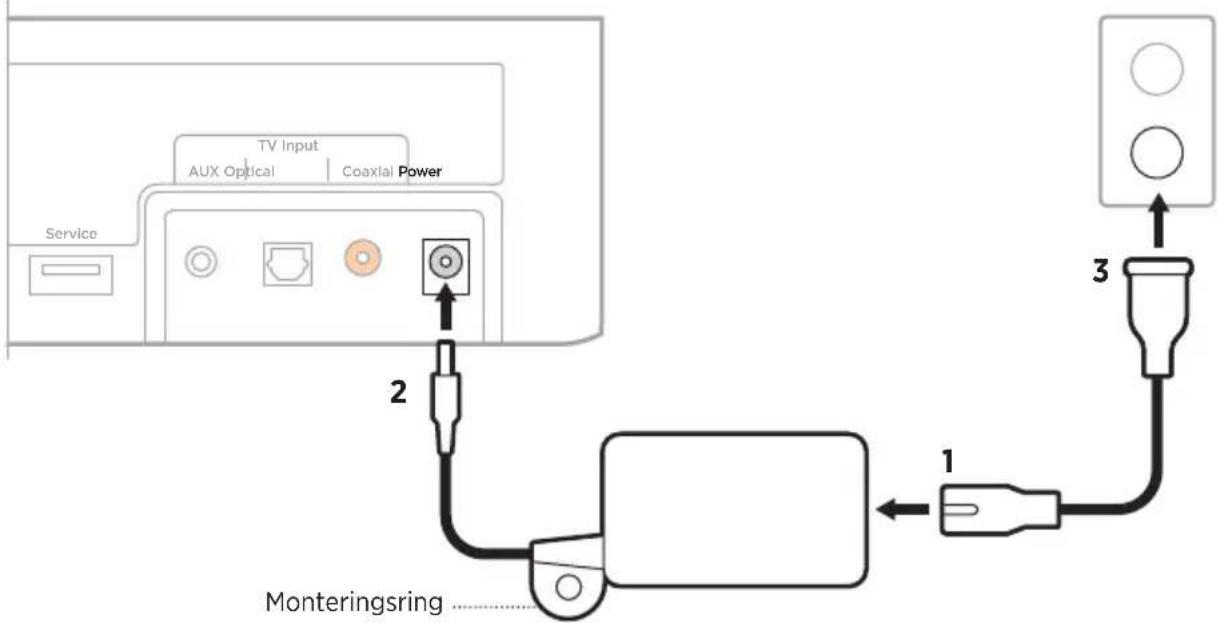

1. Connect the power cord to the power supply.

TV Input AUX Optical | Coaxial Power Service 2 Mounting ring ...... 1 3

1. Connect the power supply into the Power port on the back of the soundbar.

2. Plug the other end of the power cord into a live AC (mains) outlet.

The soundbar powers on, and you hear a tone.

Mounting ring

To hide the power supply behind your mounted TV, attach the mounting ring to your TV's wall mount using zip ties or bread ties (not provided).

To avoid hearing distorted sound, turn off your TV speakers.

For more information, refer to your TV owner's guide.

TIP: The audio settings are usually found in the TV menu.

CHECK FOR SOUND

1. Power on your TV.
2. If you are using a cable/satellite box or other secondary source:

a. Power on this source.

b. Select the appropriate TV input.

1. Power on the soundbar (see page 21).

You hear sound coming from the soundbar.

1. On the remote, press the Mute button ✗.

You don't hear sound coming from the TV speakers or soundbar.

NOTE: If you don't hear sound coming from the soundbar or hear sound coming from your TV speakers, see “Troubleshooting” on page 43.

REMOTE FUNCTIONS

Use the remote to control the soundbar and Bluetooth connections.

Power button (see page 21) TV button (see page 24) Volume up (see page 23) Bluetooth button (see page 24) Volume down (see page 23) Adjust the bass (see page 26) Mute/Unmute (see page 23) Dialogue mode (see page 25)

Power

On the remote, press the Power button ⏻ to power the soundbar on/off.

BOSE

When powered on, the soundbar defaults to the last active source.

NOTES:

- When you plug the soundbar into an AC (mains) outlet, the soundbar automatically powers on.

- The first time the soundbar is powered on, the soundbar defaults to the TV □ source.

• The soundbar powers off after 60 minutes of inactivity.

Auto-wake

You can set the soundbar to power on whenever a sound signal is received.

On the remote, to toggle between auto-wake and default power settings, press and hold the Power button ⏻ until you hear three tones and the status light on the soundbar blinks 3 times (see page 31).

BOSE

The status light glows dim amber when the soundbar is off and auto-wake is enabled.

Volume

+ - BASS BOSE

FUNCTION WHAT TO DO

Volume up	Press +.NOTE: To quickly increase the volume, press and hold +.
Volume down	Press —.NOTE: To quickly decrease the volume, press and hold —.
Mute/Unmute	Press ⚠.When audio is muted, the status light blinks green until audio resumes.NOTE: When Dialogue mode is enabled and audio is muted, the status light blinks amber.Tip: You can also press + to resume audio.

Sources

You can control your TV and Bluetooth connections using your remote.

To select a source, press the button (TV button □ or Bluetooth button *) on the remote.

BOSE

DIALOGUE MODE

Dialogue mode improves the clarity of dialogue and vocals in movies, TV programs, and podcasts by adjusting the audio balance of the system.

On the remote, press the Dialogue mode button ☐ to switch between Dialogue mode and your default audio settings.

Power + - RASS - + - + -

When Dialogue mode is enabled, the status light glows amber (see page 31).

NOTE: When you enable Dialogue mode, it stays enabled for your current source even if you switch to another source or turn off the soundbar. To disable Dialogue mode for a source, press ☐ again.

ADJUST THE BASS

1. On the remote, press BASS.

+ - BASS BOSE

On the soundbar, the status and Bluetooth lights blink white 3 times.

1. Adjust the bass by doing one of the following:

2. Press Volume up + to increase the bass.

3. Press Volume down — to decrease the bass.

The status and Bluetooth lights on the soundbar glow to show the current bassetting.

BASS SETTING STATUS LIGHT BLUETOOTH LIGHT

2 (maximum)
1
0 (default)
-1
-2 (minimum)

1. Press BASS.

The soundbar saves the current bass setting.

NOTE: For best sound quality for dialogue-only programs, such as news and talk shows, see "Dialogue mode" on page 25.

RESET THE BASS

On the remote, press and hold BASS until the status and Bluetooth lights on the soundbar blink 3 times.

+ - BASS BOSE

The bass setting reset to original factory settings.

PROGRAM A THIRD-PARTY REMOTE

You can program a third-party remote, such as your cable/satellite box remote, to control the soundbar. Refer to your third-party remote owner's guide or website for instructions.

Once programmed, the third-party remote performs basic functions such as power on/off and volume.

Bluetooth wireless technology lets you stream music from mobile devices such as smartphones, tablets, and laptop computers. Before you can stream music from a device, you must connect your device to the soundbar.

CONNECT A MOBILE DEVICE

1. On the remote, press and hold the Bluetooth button ✝ until the Bluetooth light on the soundbar blinks blue.

BOSE

1. On your mobile device, turn on the Bluetooth feature.

TIP: The Bluetooth menu is usually found in the Settings menu.

1. Select your soundbar from the device list.

BLUETOOTH Bose Solo

Once connected, you hear a tone. The Bluetooth light glows solid white. Your soundbar appears in the mobile device list.

DISCONNECT A MOBILE DEVICE

Use your mobile device's Bluetooth menu to disconnect from the soundbar.

TIP: You can also disable the Bluetooth feature on your mobile device to disconnect. Disabling the Bluetooth feature disconnects all other devices.

RECONNECT A MOBILE DEVICE

On the remote, press the Bluetooth button ✝.

The soundbar tries to reconnect with the two most recently-connected devices. When connecting, the Bluetooth light on the soundbar blinks white.

NOTES:

• Make sure the Bluetooth feature is enabled on your mobile device.
• The device must be within 30 ft (9 m) of the soundbar and powered on.

CONNECT AN ADDITIONAL MOBILE DEVICE

You can store up to eight devices in the soundbar device list, and the soundbar can be actively connected to two devices at a time.

NOTE: You can play audio from only one device at a time.

1. On the remote, press and hold the Bluetooth button ✝ until the Bluetooth light on the soundbar blinks blue.
2. On your mobile device, select your soundbar from the device list.

NOTE: Make sure the Bluetooth feature is enabled on your mobile device.

SWITCH BETWEEN CONNECTED DEVICES

1. Pause audio on your first device.
2. Play audio on your second device.

CLEAR THE SOUNDBAR DEVICE LIST

1. On the remote, press and hold ✗ for 10 seconds until the Bluetooth light on the soundbar blinks blue.
2. Delete your soundbar from the Bluetooth list on your device.

All devices are cleared, and the soundbar is ready to connect (see page 28).

The LED lights located on the front of the soundbar show the soundbar status.

BOSE Bluetooth light Status light

POWER, VOLUME, AND ERROR STATUS

Shows the power, media volume, and error status.

STATUS LIGHT ACTIVITY SYSTEM STATE

Off Power off (standby)
Glows solid green Power on
Blinks green Audio muted
Glows dim amber Standby, auto-wake enabled
Glows solid amber Dialogue mode
Blinks amber Dialogue mode, audio muted
Blinks red Error - contact Bose customer service

BLUETOOTH STATUS

Shows the Bluetooth connection status of mobile devices.

BLUETOOTH LIGHT ACTIVITY SYSTEM STATE

Blinks blue Ready to connect
Blinks white Connecting
Glows solid white	Connected

You may need to use an alternate setup method for the following reasons:

• No sound from a source(s) connected to your TV.
• No optical or coaxial port on your TV.

NO SOUND FROM A SOURCE(S) CONNECTED TO YOUR TV

Some TVs don't deliver sound from connected sources to the soundbar. Use an alternate setup method to connect your source(s) to the soundbar.

PROBLEM WHAT TO DO

No sound from a source connected to your TV	Connect your source to the soundbar using one of the two cable options (see page 33).
No sound from two sources connected to your TV	Connect your sources to the soundbar using Option 1 or Option 2 (see page 35).

NO OPTICAL OR COAXIAL PORTS ON YOUR TV

Some TVs don't have optical or coaxial ports. Use an alternate setup method to connect your TV to the soundbar.

PROBLEM WHAT TO DO

TV only has an analog port	Connect your TV using a 3.5 mm to RCA stereo cable (not provided). See page 34.
TV only has a headphone port	Connect your TV using a 3.5 mm stereo cable (not provided). See page 38.
TV doesn’t have audio outputs	Use the audio outputs on another source, such as a cable/satellite box, to connect to the soundbar (see page 33).

Connect a source to the soundbar

If you don't get sound from a source that's connected to your TV, such as a DVD/Blu-ray Disc™ player, cable/satellite box, game system, or DVR, connect the source directly to the soundbar using an audio cable.

CAUTION: If using an optical cable, remove the protective caps from both ends. Inserting the plug in the wrong orientation can damage the plug and/or the port.

1. On the back of your source, locate the Audio OUT (digital) panel.

1. Choose an audio cable.
2. If you haven't already, disconnect your TV from the soundbar.
3. Connect the audio cable from your source's Audio OUT (digital) panel to the soundbar.

NOTE: Don't disconnect your source's video cable, such as an HDMI cable, from your TV.

Connect a source's analog port to the soundbar

If your source doesn't have an optical or coaxial port and only has analog ports (red and white), use a 3.5 mm to RCA stereo cable (not provided) to connect to the soundbar.

1. If you haven't already, disconnect your TV from the soundbar.
2. Insert the RCA analog cable into the Audio OUT RCA (red and white) ports on your source.
3. Insert the stereo plug into the soundbar's AUX port.

Soundbar port panel

TV Input AUX Optical Coaxial Power Service 3.5 mm to RCA stereo cable (not provided) Audio OUT Source port panel R L

Connect two sources to the soundbar

If you don't get sound from any source that's connected to your TV, such as a DVD/Blu-ray Disc™ player, cable/satellite box, game system, or DVR, connect the source directly to the soundbar. Use only one audio cable for each source.

1. On the back of each source, locate the Audio OUT (digital) panel.

2. Choose a separate audio cable for each source using either Option 1 or Option 2 (see page 36).

NOTE: You MUST use either Option 1 or Option 2. Do not use the coaxial cable (not provided) and optical cable at the same time.

1. If you haven't already, disconnect your TV from the soundbar.

2. Separately connect the audio cable from each source's Audio OUT (digital) panel to the soundbar.

NOTE: Do not disconnect your source's video cable, such as an HDMI cable, from your TV.

Option 1

This figure shows two source connections using an optical cable and 3.5 mm to RCA stereo cable (not provided).

CAUTION: If using an optical cable, remove the protective caps from both ends. Inserting the plug in the wrong orientation can damage the plug and/or the port.

Option 2

This figure shows two source connections using a coaxial cable (not provided) and 3.5 mm to RCA stereo cable (not provided).

Use two sources connected to the soundbar

Power off sources when not in use. In order for one source to deliver audio to the soundbar, your other source must be off.

Connect a TV headphone port to the soundbar

If your TV only has a headphone port, use a 3.5 mm stereo cable (not provided) to connect to the soundbar.

1. Insert one end of a 3.5 mm stereo cable into the TV headphones port.
2. Insert the other end of the cable into the AUX port on the soundbar.

Soundbar port panel

TV Input AUX Optical Coaxial Power Service Audio OUT TV headphone panel (or other variable audio output) 3.5 mm stereo cable (not provided) 3.5 mm

1. Make sure your TV speakers are on.
   Refer to your TV owner's guide for more information.

2. To ensure optimal volume control from the soundbar:

a. Set your TV volume to 75% of maximum.
b. Set the soundbar volume using the remote.

CONNECT A BOSE HOME SPEAKER OR SOUNDBAR

With Bose SimpleSync technology, you can connect your Bose Solo Soundbar Series II to a Bose Home Speaker or Bose Soundbar to listen to the same song in two different rooms at the same time.

NOTE: SimpleSync technology has a Bluetooth range of 30 ft (9 m). Walls and construction materials can affect reception.

Compatible products

You can connect your Bose Solo Soundbar Series II to any member of the Bose Home Speaker family.

Popular compatible products include:

• Bose Soundbar 700
• Bose Soundbar 500
• Bose Home Speaker 500
• Bose Home Speaker 300
• Bose Portable Home Speaker

New products are added periodically. For a complete list and more information, visit: worldwide.Bose.com/Support/Groups

Connect using the Bose Music app

1. On your Bose Solo Soundbar Series II remote, press and hold the Bluetooth button ✝ until the Bluetooth light on your Bose Solo Soundbar Series II blinks blue.
2. In the Bose Music app, from the My Bose screen, select your Bose Home Speaker or Bose Soundbar.

NOTE: To return to the My Bose screen, tap 6 in the top-left corner of the screen.

1. Tap the product image in the bottom-right corner of the screen.
2. Tap Group Speakers.
3. Follow the app instructions to connect a new Bluetooth device using SimpleSync.

NOTES:

• Make sure that your Bose Solo Soundbar Series II is within 30 ft (9 m) of your Bose Home Speaker or Bose Soundbar.
• You can connect your Bose Solo Soundbar Series II to only one product at a time.

RECONNECT TO A BOSE HOME SPEAKER OR SOUNDBAR

Power on your Bose Solo Soundbar Series II (see page 21).

Your Bose Solo Soundbar Series II tries to connect to the two most recently- connected Bluetooth devices, including your Bose Home Speaker or Bose Soundbar.

NOTES:

• Your Bose Home Speaker or Bose Soundbar must be within range (30 ft or 9 m) and powered on.
• If your Bose Solo Soundbar Series II doesn't connect, connect using the Bose Music app. You can access this option from the Settings menu.

REPLACE THE REMOTE BATTERY

The soundbar remote uses coin cell battery CR2032.

1. Turn the battery compartment cover left (counter-clockwise) and remove the cover.

Simple line drawing of a smartphone with a circular button containing an 'I' and an arrow, no text or symbols present.

1. Insert the new battery flat side up, with the + symbol facing up.

Diagram showing a smartphone with a plus sign and two circular buttons, one with an arrow pointing to it.

1. Reset the cover and turn it right (clockwise) to lock in place.

CLEAN THE SOUNDBAR

Clean the exterior of the soundbar with a soft dry cloth.

CAUTION:

• Do NOT allow liquids to spill onto the soundbar or into any openings.
• Do NOT blow air into the soundbar.
• Do NOT use a vacuum to clean the soundbar.
• Do NOT use any sprays near the soundbar.
• Do NOT use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
• Do NOT allow objects to drop into any openings.

REPLACEMENT PARTS AND ACCESSORIES

Replacement parts and accessories can be ordered through Bose customer service.

Visit: worldwide.Bose.com/support/SBSoloii

LIMITED WARRANTY

The soundbar is covered by a limited warranty. Visit our website at global.Bose.com/warranty for details of the limited warranty.

To register your product, visit global.Bose.com/register for instructions. Failure to register will not affect your limited warranty rights.

TRY THESE SOLUTIONS FIRST

If you experience problems with the soundbar:

• Make sure the soundbar is connected to a live AC (mains) outlet.
• Secure all cables and make sure all connections are correct.
• Check the status lights (see page 31).
• Move the soundbar 1 – 3 ft (0.3 – 0.9 m) away from possible interference (wireless routers, cordless phones, televisions, microwaves, etc.).
• Move the soundbar within the recommended range of your mobile device for proper operation.
• Place the soundbar according to the placement guidelines (see page 13).
• Unplug the power cord for at least 1 minute and reconnect.

OTHER SOLUTIONS

If you could not resolve your issue, see the table below to identify symptoms and solutions to common problems. If you are unable to resolve your issue, contact Bose customer service.

Visit: worldwide.Bose.com/contact

SYMPTOM SOLUTION

Remote is inconsistent or doesn’t work

Check the battery to see if it’s installed properly or if it needs to be replaced (see page 41).Point the remote directly at the soundbar.Check that the status light blinks when you press the Volume up, Volume down, or Mute/Unmute buttons on the remote.Unplug the power cord for at least 1 minute and reconnect.

SYMPTOM SOLUTION

No sound

Unmute the soundbar.Increase the volume.Plug the audio cable into a port on your TV labelled Audio Output or Audio OUT, not Audio Input or Audio IN.Use only one audio cable.If you are using a cable/satellite box or other secondary source for sound, select the correct TV input.Enable your TV's audio output and select the correct setting, such as Stereo or 5.1 Channel Audio. Refer to your TV owner's guide for more information.Use an alternate setup method (see page 32).If connecting to two sources:Power off the other source.Make sure that you are not using an optical cable and coaxial cable.If the soundbar is connected to a TV output labelled VARIABLE (VAR), turn off your TV speakers, set your TV volume to 75% of maximum, and unmute your TV.If connecting through a TV headphone output, increase your TV volume to the maximum limit.

Sound is coming from TV speaker

Turn off your TV speakers (see page 19).Mute or decrease the TV volume.

SYMPTOM SOLUTION

Soundbar doesn't play audio from Bluetooth device	On the soundbar:-Connect a device (see page 28).-Clear the soundbar device list (see page 30).-Try connecting a different device.On your Bluetooth device:- Turn the Bluetooth feature off and then on.- Remove the soundbar from the Bluetooth menu. Connect again.-Use a different music source.- Check your Bluetooth device for compatibility. Refer to your Bluetooth device owner's guide.Increase the volume on the soundbar, mobile device, and music source.Make sure you are using the correct device.If more than one Bluetooth device is connected, pause audio on one device and play audio on the second device.Disconnect other Bluetooth devices when not in use.See “No sound” on page 44 or “Distorted sound.”
Distorted sound	If the soundbar is connected to a TV output labeled VARIABLE (VAR), reduce the TV volume.Connect your source to the soundbar (see page 33).If wall mounting the soundbar, adjust the audio (see page 14).
Soundbar doesn't connect with a Bose Home Speaker or Bose Soundbar	Make sure your soundbar is ready to connect:On your Bose Solo Soundbar Series II remote, press and hold the Bluetooth button > until the Bluetooth light on your Bose Solo Soundbar Series II blinks blue.Make sure that your Bose Solo Soundbar Series II is within 30 ft (9 m) of your Bose Home Speaker or Bose Soundbar.
Soundbar doesn't reconnect to a previously-connected Bose Home Speaker or Bose Soundbar	Connect using the Bose Music app. You can access this option from the Settings menu.
Delayed audio when connected to a Bose Home Speaker or Bose Soundbar	Visit btu.Bose.com and check for available software updates.

China-Import: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU-Import: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Niederlande

Taiwan-Import: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefonnummer: [phone]

Mexiko-Import: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Three technical line drawings: a rectangular container, a U-shaped tube with plug, and a separate cable with plug (no text or symbols)

Line drawing of a U-turn cable and a BOSE remote control with buttons (no text or symbols)

Line drawing of a simple TV setup with a box and monitor, no text or symbols present

Two crossed-out safety symbols: one with a diagonal line and the other with an open pill, both marked as no prohibition.

WANDMONTAGE DER SOUNDBAR

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, no text or symbols present

TV Input AUX Optical | Coaxial Power Service

SCHLIESSEN SIE DIE SOUNDBAR AN DEN STROM AN

+ - BASS +

FUNKTION VORGEHENSWEISE

+ - BASS BOSE

BOSE BASS

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an 'S' and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Telefoonnummer: [phone]

Importeur in Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefoonnummer: [phone]

Ingangsspecificaties: 20 V --- 30 W MAX

Three technical line drawings: a rectangular container, a U-shaped charging device with plug, and a coiled cable (no text or symbols)

Bose Solo Soundbar Series II Voeding Netsnoer*

Line drawing of a remote control with a USB cable and a power cord (no text or symbols)

Isometric line drawing of a box with a rectangular object on top, placed on a wall next to an open screen (no text or symbols)

Two crossed-out rectangular objects with diagonal lines, no text or symbols present

DE SOUNDBAR AAN DE MUUR BEVESTIGEN

Power + - BASS -

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

TV Input AUX Optical | Coaxial Power Service

DE SOUNDBAR OP HET LICHTNET AANSLUITEN

TV Input AUX Optical | Coaxial Power Service 2 Bevestigingsring 1 3

+ - + - BASS -

+ - BASS BOSE

FUNCTIE WAT TE DOEN

+ - BASS BOSE

+ - BASS BOSE

BLUETOOTH Bose Solo

AAN/UIT-, VOLUME- EN FOUTSTATUS

Simple line drawing of a smartphone with a circular button containing a white bar and a curved arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Importador en China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Simple line drawing of a rectangular container with no text or symbols

Simple line drawing of a connected device with a cable and plug (no text or symbols)

alimentación

Visite: worldwide.Bose.com/Support/SBSoloii

RECOMENDACIONES

Line drawing of a simple TV setup with a box and monitor, no text or symbols present

Two crossed-out safety symbols: one with a diagonal line and circle, the other with an open rectangle and circle.

MONTAR LA BARRA DE SONIDO EN LA PARED

Power + - BASS -

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

Opción 2: Coaxial (no suministrado)

TV Input AUX Optical | Coaxial Power Service

+ - BASS +

FUNCIÓN QUÉ HACER

+ - BASS BOSE

BOSE BASS

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an arrow and a diagonal bar, no text or symbols present.

Diagram showing a smartphone with a plus sign and two circular buttons, one with an arrow pointing to it.

Visite: worldwide.Bose.com/support/SBSoloii

GARANTÍA LIMITADA

Visite: worldwide.Bose.com/contact

SÍNTOMA SOLUCIÓN

CONNEXION DES PRODUITS BOSE

Three line drawings of household appliances: a rectangular tank, a plug-in transformer, and a U-shaped tube (no text or symbols)

Line drawing of a USB cable and a wireless device (no text or symbols)

Consultez le site worldwide.Bose.com/Support/SBSoloii

RECOMMANDATIONS

Line drawing of a simple TV setup with a box and monitor, no text or symbols present

Two crossed-out safety symbols: no prohibition and no rejection, each with a corresponding rectangular block.

FIXATION MURALE DE LA BARRE DE SON

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

Option 2 : câble coaxial (non fourni)

TV Input AUX Optical | Coaxial Power Service

RACCORDEMENT DE BARRE DE SON À LA PRISE SECTEUR

TV Input AUX Optical | Coaxial Power Service 2 Bague de montage ...... 1 3

Power + - BASS BOSE

+ - BASS BOSE

FONCTION ACTION

+ - BASS BOSE

+ - BASS BOSE

+ - BASS BOSE

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an arrow and a diagonal bar, no text or symbols present.

Diagram showing a smartphone with a plus sign and two circular buttons, one with an arrow pointing to it.

Consultez le site worldwide.Bose.com/support/SBSoloii

GARANTIE LIMITÉE

Consultez le site worldwide.Bose.com/contact

SYMPTÔME SOLUTION

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Importatore per Taiwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Numero di telefono: [phone]

Importatore per il Messico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Numero di telefono: [phone]

Assorbimento in entrata: 20V --- 30 W MAX

Bose, Bose Home Speaker, Bose Music, Bose Portable Home Speaker, Bose Solo Soundbar Series, Bose Soundbar e SimpleSync sono marchi commerciali di Bose Corporation.

Three technical line drawings: a rectangular container, a U-shaped tube with plug, and a separate cable with plug (no text or symbols)

Line drawing of a U-shaped cable with two connectors and a side-mounted device (no text or symbols)

Visitare: worldwide.Bose.com/Support/SBSoloii

CONSIGLI

Isometric line drawing of a box with a rectangular object on top, placed in a room with a monitor and corner legs (no text or symbols)

Two pictograms showing a no-smoking sign: one with a crossed-out rectangular block and another with an open rectangular block, both without any text or symbols.

MONTARE A PARETE LA SOUNDBAR

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

TV Input AUX Optical | Coaxial Power Service

COLLEGARE LA SOUNDBAR ALL'ALIMENTAZIONE

+ - BASS +/-

FUNZIONE AZIONE

+ - BASS BOSE

+ - BASS -

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an 'I' and a curved arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and circular loading control buttons, indicating addition or cancellation.

Visitare: worldwide.Bose.com/support/SBSoloii

GARANZIA LIMITATA

Visitare: worldwide.Bose.com/contact

SINTOMO SOLUZIONE

Importer — Chiny: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer — UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Importer — Tajwan: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Numer telefonu: [phone]

Importer — Meksyk: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Numer telefonu: [phone]

Zasilanie: 20 V --- maks. 30 W

Three technical line drawings: a rectangular container, a U-shaped tube with plug, and a separate cable with plug (no text or symbols)

Line drawing of a remote control with a USB cable and a mounted device (no text or symbols)

Line drawing of a simple TV set with a box and monitor, no text or symbols present

Two crossed-out safety symbols: one with a diagonal line and the other with a rectangle and a cross, both marked as 'No' in Chinese.

MONTAŻ ŚCIENNY GŁOŚNIKA SOUNDBAR

+ - BASS +/-

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

TV Input AUX Optical | Coaxial Power Service

PODŁĄCZANIE GŁOŚNIKA SOUNDBAR DO ZASILANIA

+ - BASS +

FUNKCJA PROCEDURA

+ - BASS -

BOSE BASS

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an 'S' and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Kinaimportör: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU-importör: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederländerna

Taiwanimportör: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, telefonnummer Taiwan: [phone]

Mexikoimportör: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Telefonnummer: [phone]

Indata: 20 V --- 30 W MAX

ANSLUTA BOSE-PRODUKTER

Ansluta en Bose Home Speaker eller soundbarhögtalare.... 39

Kompatibla produkter 39

Three technical line drawings: a rectangular container, a U-shaped tube with plug, and a separate cable with plug (no text or symbols)

Bose Solo Soundbar Series II Nätadapter Elkabel*

Line drawing of a remote control with a USB cable and a blackboard (no text or symbols)

Isometric line drawing of a rectangular box with a rectangular cutout on top, placed on a flat surface next to a flat-screen monitor (no text or symbols)

Two crossed-out safety symbols: no prohibition and no rejection, each with a corresponding icon.

VÄGGMONTERING AV SOUNDBARHÖGTALAREN

Power + - BASS -

ANSLUTA SOUNDBARHÖGTALAREN TILL TV:N

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

TV Input AUX Optical | Coaxial Power Service

ANSLUT SOUNDBARHÖGTALAREN TILL STRÖMKÄLLA

1. Anslut elkabeln till nätadaptern.

TV Input AUX Optical | Coaxial Power Service 2 Monteringsring ...... 1 3

STÄNG AV TV-HÖGTALARNA

+ - BASS BOSE

FUNKTION ÅTGÄRD

+ - BASS BOSE

2 (max)
1
0 (standard)
-1
-2 (min)

1. Tryck på BASS.

+ - BASS BOSE

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an 'I' and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Simple line drawing of a rectangular container with no text or symbols

Bose Solo Soundbar Series II

Simple line drawing of a medical device with a plug and tubing (no text or symbols)

แหล่งจ่ายไฟ

สายไฟ*

สายออพติคัล รีโมท

Line drawing of a simple TV setup with a box and monitor, no text or symbols present

Two pictograms showing a no-smoking sign: one with a crossed-out rectangular block and another with an open rectangular block, both enclosed in a circle.

+ - BASS BOSE

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

TV Input AUX Optical | Coaxial Power Service

+ - BASS BOSE

+ - BASS BOSE

BOSE BASS

BLUETOOTH Bose Solo

HOSE We Storage Bluetooth

Simple line drawing of a smartphone with a circular button containing a diagonal bar and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

중국 수입업체: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU 수입업체: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

대만 수입업체: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan 전화 번호: [phone]

멕시코 수입업체: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. 전화 번호: [phone]

Three technical line drawings of household appliances: a rectangular box, a U-shaped tube with plug, and a plug with cable (no text or symbols)

Line drawing of a remote control with a USB cable and a power cord (no text or symbols)

광케이블 리모콘(배터리 제공됨)

Isometric line drawing of a box with a rectangular object on top, placed in a room with a flatboard and wall (no text or symbols)

Two pictograms showing a no-smoking sign: one with a crossed-out rectangular block and the other with an open rectangular block, both enclosed in a circle.

사운드바 월 마운팅

+ - BASS BOSE

TV Input AUX Optical Coaxial Power Service

Illustration of a flashlight with radiating lines indicating illumination (no text or symbols)

옵션 2: 동축(제공되지 않음)

TV Input AUX Optical | Coaxial Power Service

사운드바 전원 연결

TV Input AUX Optical | Coaxial Power Service 2 장착 링 1 3

+ - BASS BOSE

기능 해결 방법

+ - BASS +

BOSE BASS

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an 'I' and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Three technical line drawings: a rectangular container, a U-shaped device with plug, and a coiled cable (no text or symbols)

Line drawing of a remote control with a USB cable and a power cord (no text or symbols)

光缆 遥控器（自带电池）

请访问：worldwide.Bose.com/Support/SBSoloii

建议

Isometric line drawing of a rectangular box with a rectangular cutout on top, placed near a flat wall (no text or symbols)

Two crossed-out safety symbols: one with a diagonal line and circle, the other with an open rectangle and circle.

墙式安装条形音箱

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

选项 2: 同轴（未提供）

TV Input AUX Optical Coaxial Power Service

将条形音箱连接到电源

1. 将电源线连接到电源。

TV Input AUX Optical | Coaxial Power Service 2 安装环 1 3

+ - BASS BOSE

BOSE BASS

低音设置即重置为原始出厂设置。

编程第三方遥控器

BLUETOOTH Bose Solo

worldwide.Bose.com/Support/Groups

使用 Bose Music 应用连接

Simple line drawing of a smartphone with a circular button containing an arrow and a bar, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

www.Bose.com/compliance

重要安全指示

Simple line drawing of a medical device with a bulb and plug (no text or symbols)

光纜 遙控器（含電池）

請造訪：worldwide.Bose.com/Support/SBSoloii

建議

Isometric line drawing of a rectangular box with a rectangular cutout on top, placed in a room with a flat wall and a flat panel (no text or symbols)

Two crossed-out safety symbols: one with a diagonal line and circle, the other with an open rectangle and circle.

牆式安裝條形音箱

TV Input AUX Optical Coaxial Power Service

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

選項 2：同軸電纜（未提供）

TV Input AUX Optical Coaxial Power Service

將條形音箱連接到電源

1. 將電源線連接到電源供應器。

TV Input AUX Optical | Coaxial Power Service 2 安装環 1 3

+ - BASS 80SE

功能 操作

+ - BASS -

低音設定即重設為初始出廠狀態。

程式設計協力廠商遙控器

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an 'I' and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

中国における輸入元: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおける輸入元: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

台湾における輸入元: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan Phone Number: [phone]

Bose Corporation Headquarters: 1-877-230-5639

Three technical line drawings of household appliances: a rectangular box, a U-shaped charging device, and a plug (no text or symbols)

Line drawing of a U-turn cable and a blackboard-mounted device (no text or symbols)

光ケーブル リモコン(電池付属)

Isometric line drawing of a simple TV setup with a box and monitor (no text or symbols)

Two crossed-out safety symbols: one with a diagonal line and circle, the other with an open rectangle and circle.

サウンドバーを壁に取り付ける

TV Input AUX Optical Coaxial Power Service

Illustration of a flashlight with radiating lines indicating illumination (no text or symbols)

オプション2: 同軸ケーブル(別売)

TV Input AUX Optical | Coaxial Power Service

サウンドバーを電源に接続する

+ - BASS +/-

機能 操作方法

+ - BASS BOSE

+ - BASS -

Power + - BASS -

BLUETOOTH Bose Solo

Simple line drawing of a smartphone with a circular button containing an arrow and a diagonal bar, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Black and white barcode image with vertical lines and a small number '1' at the bottom right.

850858-0010
