USER MANUAL SECSA200 KONIG

KÖNIG ELECTRONIC

SEC-SA200

White circular object with a curved top and two small rectangular cutouts, resembling a ceiling or ventilation unit (no text or symbols visible)

MANUAL (p. 2)

Interconnectable Optical Smoke Alarm

MODE D'EMPLOI (p. 14)

MANUAL DE USO (p. 32)

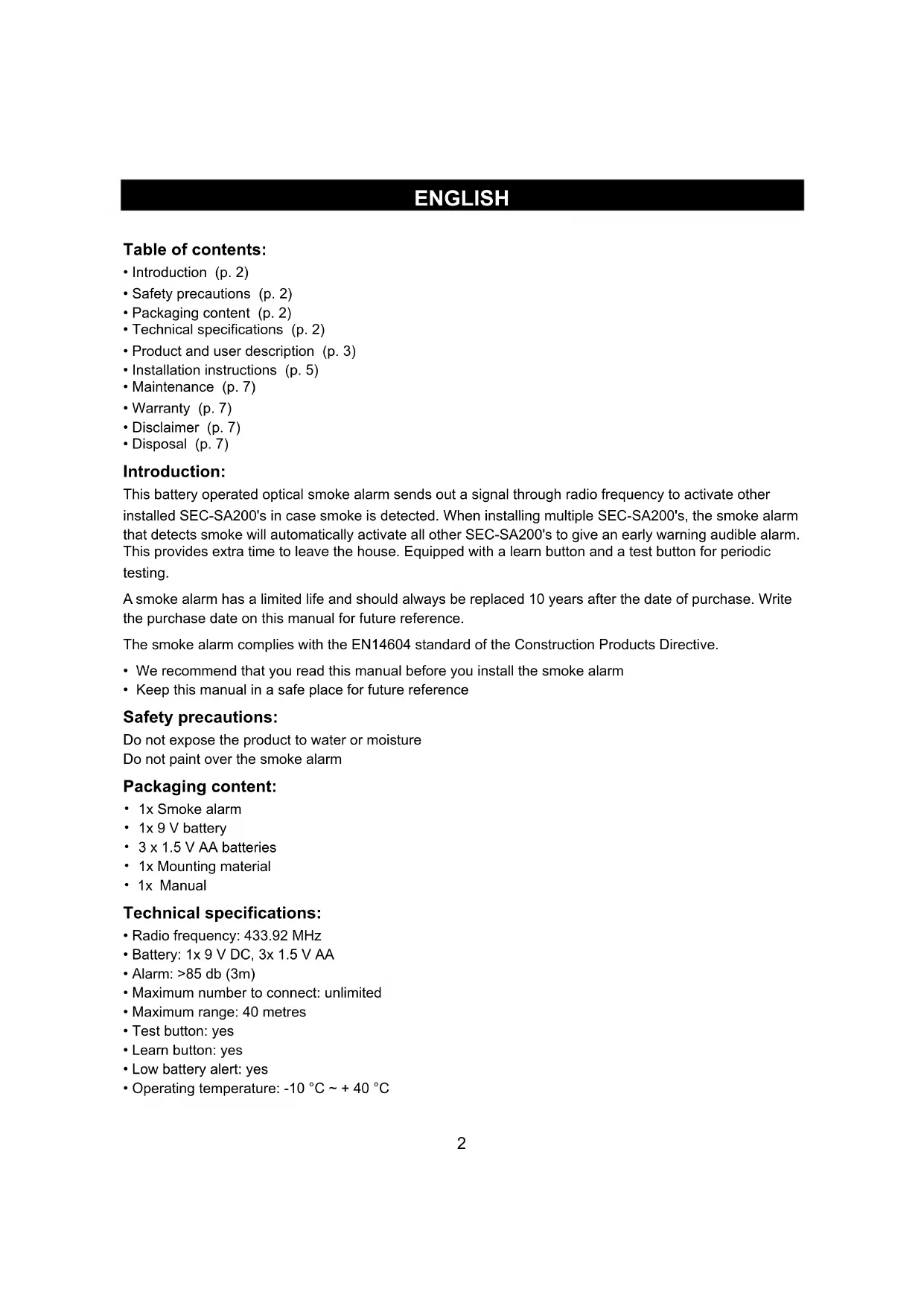

• Introduction (p. 2)
  • Safety precautions (p. 2)
  • Packaging content (p. 2)
  • Technical specifications (p. 2)
  • Product and user description (p. 3)
  • Installation instructions (p. 5)
• Maintenance (p. 7)
• Warranty (p. 7)
• Disclaimer (p. 7)
• Disposal (p. 7)

Introduction:

This battery operated optical smoke alarm sends out a signal through radio frequency to activate other installed SEC-SA200's in case smoke is detected. When installing multiple SEC-SA200's, the smoke alarm that detects smoke will automatically activate all other SEC-SA200's to give an early warning audible alarm. This provides extra time to leave the house. Equipped with a learn button and a test button for periodic testing.

A smoke alarm has a limited life and should always be replaced 10 years after the date of purchase. Write the purchase date on this manual for future reference.

The smoke alarm complies with the EN14604 standard of the Construction Products Directive.

• We recommend that you read this manual before you install the smoke alarm
- Keep this manual in a safe place for future reference

Safety precautions:

Do not expose the product to water or moisture

Do not paint over the smoke alarm

Packaging content:

• 1x Smoke alarm
• 1x 9 V battery
• 3 x 1.5 V AA batteries
• 1x Mounting material
• 1x Manual

Technical specifications:

• Radio frequency: 433.92 MHz
- Battery: 1x 9 V DC, 3x 1.5 V AA
- Alarm: >85 db (3m)
• Maximum number to connect: unlimited
• Maximum range: 40 metres
- Test button: yes
- Learn button: yes
- Low battery alert: yes
- Operating temperature: -10^ +40^

Product and user description:

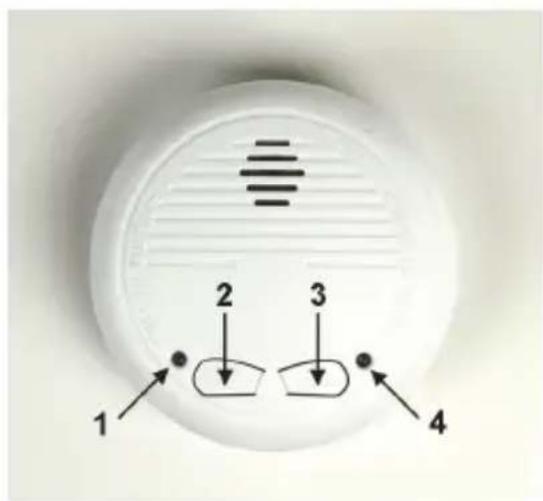

1 2 3 4

Circular object with a central dimension labeled '5' and four small dots, no readable text or symbols present.

1. ALARM indicator

2. TEST button

Testing the smoke alarm

Like any other electronic device, smoke alarms are not foolproof. Smoke alarms contain electronic components that can fail or wear out at any time.

We recommended that you test the smoke alarm every week to make sure it is working properly.

Push and hold the test button until the alarm sounds for a few seconds. The (red) alarm indicator (1) and (green) learn indicator (4) will flash for a moment. If the alarm does not sound, check if the battery indicator flashes once every 45 seconds. If this is not the case and testing fails, please replace the batteries immediately.

Battery indicator

The battery indicator flashes every 45 seconds to show that the smoke alarm is working properly. When the battery indicator flashes and gives a short beeping sound, it indicates that the battery has a low capacity and should be replaced immediately.

3. LEARN button

Follow the next steps to set the MAIN smoke alarm and ASSISTANT smoke alarm(s) to create a smoke alarm system with 2 or more SEC-SA200's.

1. Press the LEARN button two times. The LEARN indicator turns from red to green. This smoke alarm will be the MAIN smoke alarm. Ensure the LEARN indicator is green before proceeding.
2. Press the LEARN button of the ASSISTANT smoke alarm(s) once. The ALARM indicator(s) turns on red. Ensure the ALARM indicator(s) are red before proceeding.
3. Press the TEST button of the MAIN smoke alarm for several seconds in order to send out the learn signal to the ASSISTANT smoke alarm(s). The ALARM indicator flashes and the smoke alarm sounds. The ASSISTANT smoke alarm(s) receive the signal and sounds.
4. Press the TEST button on each ASSISTANT smoke alarm(s) for several seconds in order to send out the learn signal to the MAIN smoke alarm. The MAIN smoke alarm receives the signal and sounds.

Note: the number of smoke alarms is unlimited. The maximum range between 2 smoke alarms to communicate with each other is 40 metres.

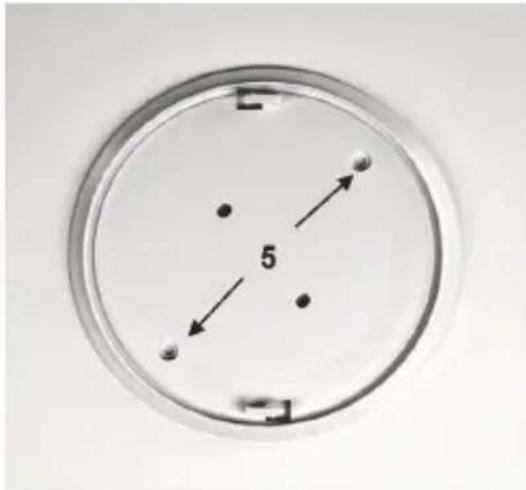

5. Mounting plate and holes

Use the supplied screws and plugs to mount the mounting plate to the ceiling.

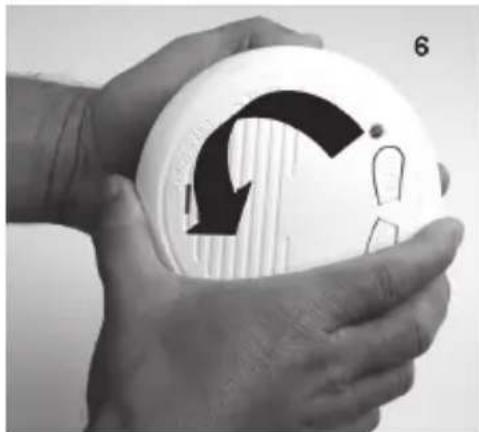

6. Remove the mounting place

Turn the mounting plate of the smoke alarm counter clockwise to get access to the battery compartment of the smoke alarm.

Close-up of hands holding a white circular object with a curved arrow and a small lightbulb icon, no visible text or symbols.

7. Battery compartment 9 V battery

8. Battery compartment 1.5 V AA battery

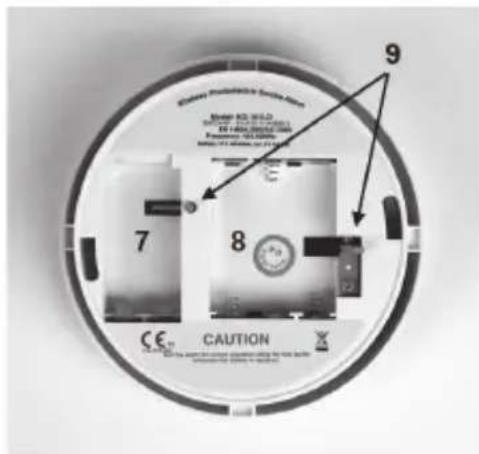

9. Safety catch

The safety catch prevents installing the smoke alarm on the mounting plate without inserting the battery first. Note: push the safety catch of the 1.5 V AA battery into the battery compartment when placing the batteries.

9 7 8 CE CAUTION

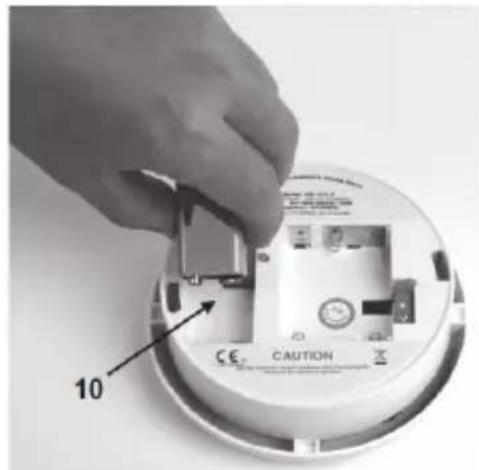

10. Placing the 9V battery

Take off the plastic seal of the 9 V battery and place the 9 V battery in the battery compartment. Conform to the polarity markings inside the battery compartment.

10 CAUTION

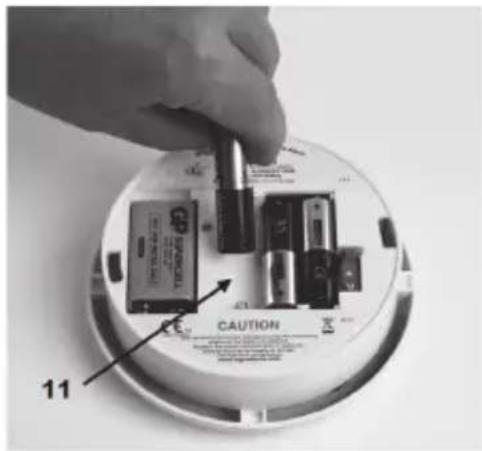

11. Placing the 1.5 V AA batteries

Take off the plastic seal of the 1.5 V AA batteries and place the 1.5 V AA batteries in the battery compartment. Place the 1.5 V AA batteries conforming to the polarity markings inside the battery compartment.

11 CAUTION

After placing the battery, use the test button to see if the smoke alarm works properly.

(See Testing the smoke alarm.)

When the mounting plate is mounted on the ceiling and the smoke alarm is tested after inserting the batteries, place the smoke alarm on the mounting plate by turning it clockwise.

See the following chapter for where to mount the smoke alarm(s).

Installation instructions:

Install a smoke alarm in every room or area on every level of the home.

Smoke may not reach the smoke alarm if it's installed in only one room or area. If a fire starts in another room or area to where the smoke alarm is installed, the smoke alarm will not detect the smoke, or will detect it too late to alert the household members. A smoke alarm will not promptly detect a fire except in the room or area in which it is installed.

Place at least one smoke alarm in every room/area between the bedroom and the exit of the house.

We recommended that you make an emergency escape plan, and practice this with the members of your household, in case of an emergency.

The requirements for the installation of the smoke alarm may differ slightly by region. Please contact your local authorities for any additional requirements.

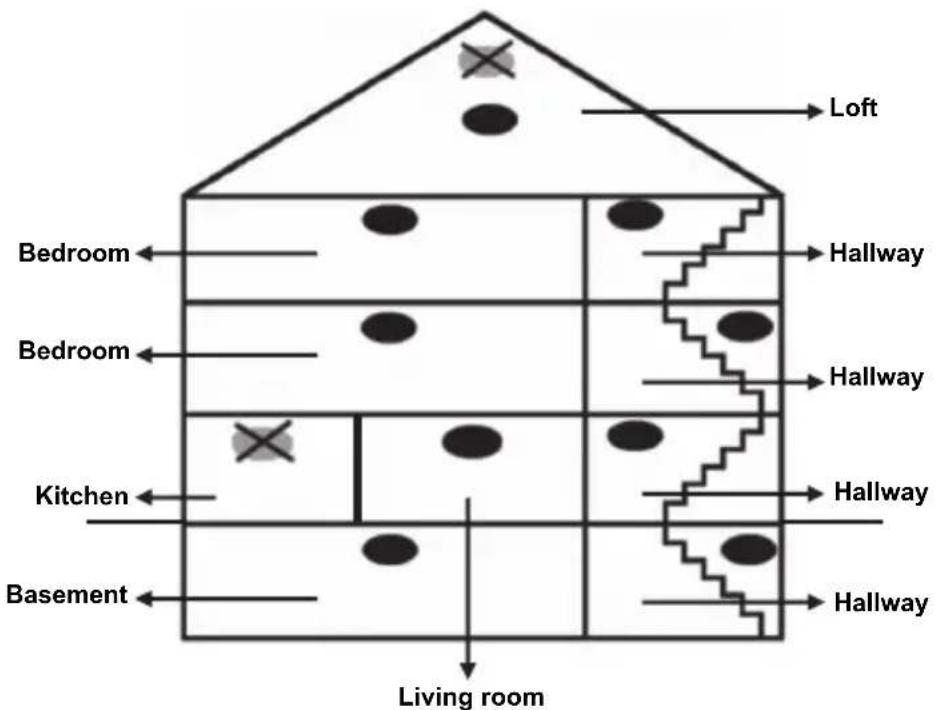

Example installation of smoke alarms:

Loft Bedroom Hallway Bedroom Hallway Kitchen Hallway Basement Hallway Living room

On ceilings

Install smoke alarms as close to the centre of the ceiling as possible. If this is not possible, install the smoke alarm at least 30 to 50 cm from the wall. (Due to dead air spaces)

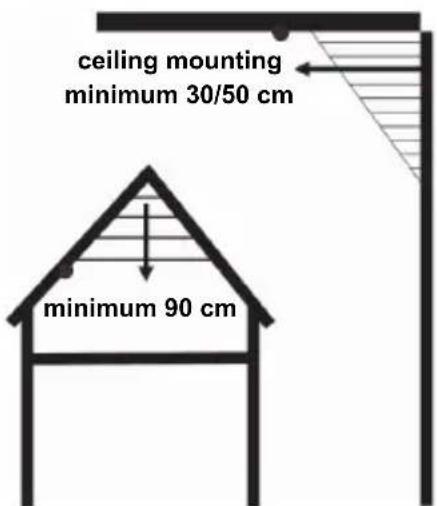

Rooms with a gabled ceiling

Install the smoke alarm 90 cm from the highest point (Due to dead air spaces).

ceiling mounting minimum 30/50 cm minimum 90 cm

Note: when installing a smoke alarm in a hallway that is 7.5 metres or longer, we recommended that you install a smoke alarm at the beginning and at the end of the hallway.

Do not install a smoke alarm

• In a humid, dusty and smoky environment
• In rooms or areas where temperatures are below 4 °C or above 38 °C
• In the kitchen, bathroom or garage
• In drafty places
• Near a fan or air vent
• Above heating

Note: when installing a smoke alarm in a hallway that is 7.5 metres or longer, we recommended that you install a smoke alarm at the beginning and at the end of the hallway.

Maintenance:

We recommended that you clean the smoke alarm once a month. Gently vacuum the outside of the smoke alarm with the soft brush attachment of the vacuum cleaner. Do not use water, cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without prior notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such.

Disposal:

• This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies with all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet and product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: [e-mail]

via telephone: [phone] (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS

Model : LM-101LG

DoP: 201308060001

0832-CPR-FR0033

EN 14604:2005/AC:2008

Smoke alarm devices

Intended fire safety and installed in buildings

Essential characteristic 1: Pass

Essential characteristic 2: Pass

Essential characteristic 3: Pass

Essential characteristic 4: Pass

Essential characteristic 5: Pass

Essential characteristic 6: Pass

Essential characteristic 7: Pass
