Product Type	Heat Detector
Brand	Konig
Model	SASHA100
Power Supply	9V (PP3) alkaline or zinc-carbon battery
Battery Life	1 year (typical)
Standby Current	< 30 μA
Alarm Current	< 30 mA
Alarm Volume	> 85 dB(A) at 3 m
Ambient Temperature	4 to 44 °C
Relative Humidity	25 to 85 %
Usage	Indoor only
Main Functions	Heat detection, audible alarm >85 dB, red LED indicator, test button, low battery warning
Maintenance and Cleaning	Clean the exterior with a vacuum brush once a month; replace the battery at least once a year
Safety	Do not expose to water or moisture; install out of reach of children; do not block ventilation openings
Spare Parts and Repairability	Not repairable; replace the device if it malfunctions
General Information	Conforms to European directives; design and specifications subject to change

Frequently Asked Questions - SASHA100 KONIG

Where to install the SASHA100 heat detector?

Install the device on the ceiling, away from radiators, doors, windows and curtains. Avoid bathrooms, kitchens and dusty areas. Place at least one device per floor.

How to test the alarm?

Press and hold the test button for 3 seconds. The alarm should sound (3 short beeps, 2-second pause) and the indicator flash red. Release the button to stop.

What to do if the alarm goes off for no reason?

Check for a heat source (radiator, oven, etc.). Eliminate the heat and the alarm will stop. If the problem persists, clean the device or replace the battery.

When to replace the battery?

Replace the battery at least once a year. When the device beeps and the indicator flashes every 60 seconds, it indicates a low battery. Use a 9V alkaline (6LR61) or zinc-carbon (6F22) battery.

Does this device detect smoke or gas?

No, the SASHA100 is a heat detector only. It does not detect smoke or gas. It is designed to complement or replace smoke detectors in areas where they are unsuitable (e.g. kitchen).

How to clean the detector?

Clean the exterior once a month with a vacuum fitted with a brush attachment. Do not use solvents or abrasive products. Do not clean the interior and do not attempt to repair it.

Can you paint the detector?

No, never paint the device. Paint could block the ventilation openings and prevent proper heat detection.

What to do if the detector stops working?

First check the battery. If the problem persists, replace the device with a new one. The SASHA100 detector is not repairable.

What is the sound volume of the alarm?

The alarm emits a sound of at least 85 dB at 3 meters, which is sufficient to be heard in most homes. Test the alarm regularly to ensure it is working properly.

Can the detector be used outdoors?

No, the device is designed exclusively for indoor use. Do not expose it to water, moisture or weather.

USER MANUAL SASHA100 KONIG

Top-down view of a white fire shield with ventilation slots and a circular vent (no text or symbols visible)

SAS-HA100

Heat alarm

Description

The heat alarm was designed to detect heat. The heat alarm does not detect smoke or gas. Heat alarms are intended to be supplementary to smoke alarms, located in areas where smoke alarms cannot be used. The device is suitable for indoor use only.

If the device detects heat, the alarm will sound and the indicator will flash red continuously until the heat is eliminated.

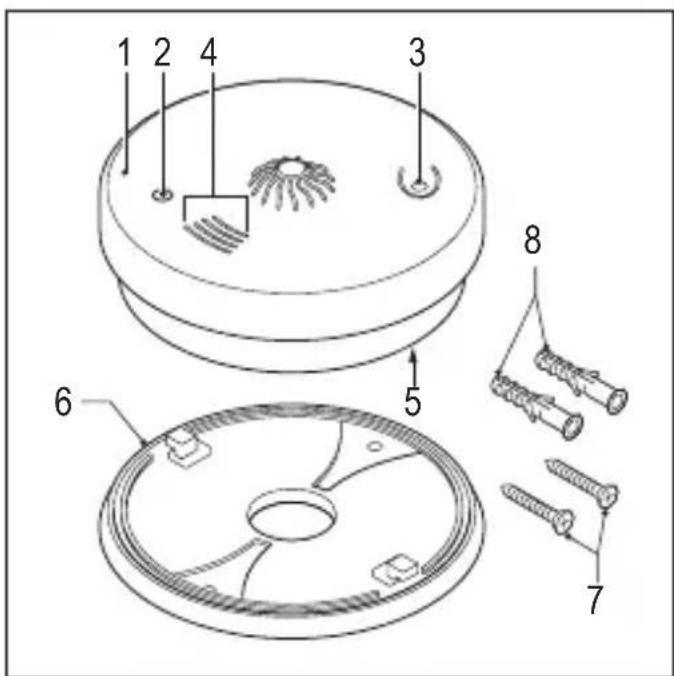

Technical diagram of a mechanical component with numbered parts and exploded view, likely for assembly or manufacturing documentation.

1. Heat alarm
2. Heat indicator
3. Test button
4. Ventilation openings
5. Battery compartment
6. Mounting plate
7. Screw
8. Plug

Safety

• Read the manual carefully before use. Keep the manual for future reference.
• Only use the device for its intended purposes. Do not use the device for other purposes than described in the manual.
• Do not use the device if any part is damaged or defective. If the device is damaged or defective, replace the device immediately.

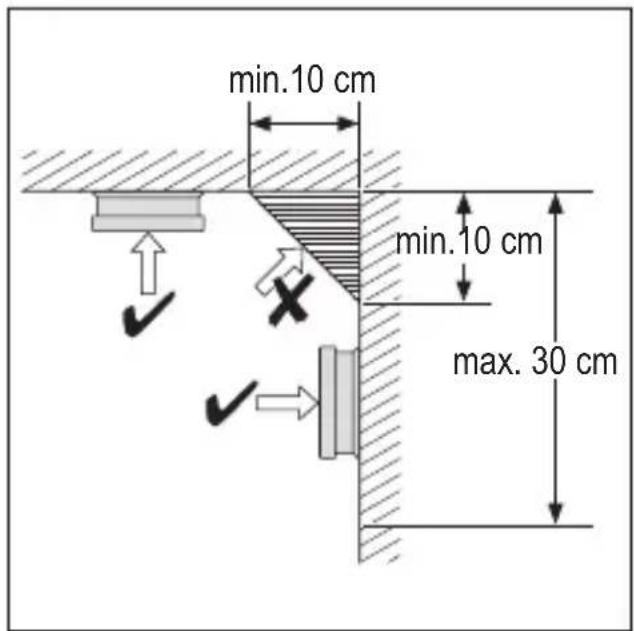

Installation

Warning!

• Do not use the device outdoors.
• Do not expose the device to water or moisture.
  • Install the device out of the reach of children.
  • Install at least one device at each floor level. Preferably install one device in each recommended area.
  • Install the device in the bedroom or in the hallway adjacent to the bedroom. Make sure that you can hear the alarm in all bedrooms. Install devices at both ends of the hallway or room if the hallway or room is longer than 9 metres.

- Do not install the device in bathrooms, toilets or other rooms where the device can be triggered by steam or condensation.

- Do not install the device in dusty or dirty environments.

- Do not install the device near radiators or air vents in walls or ceilings.

- Do not install the device near doors and windows.

- Do not install the device behind curtains or furniture.

- Do not block the ventilation openings.

- Do not paint the device.

Area Yes No
Living room X
Dining room X
Kitchen X
Bathroom / Toilet X
Bedroom X
Hallway X
Attic X
Basement X
Garage X
Boiler room X

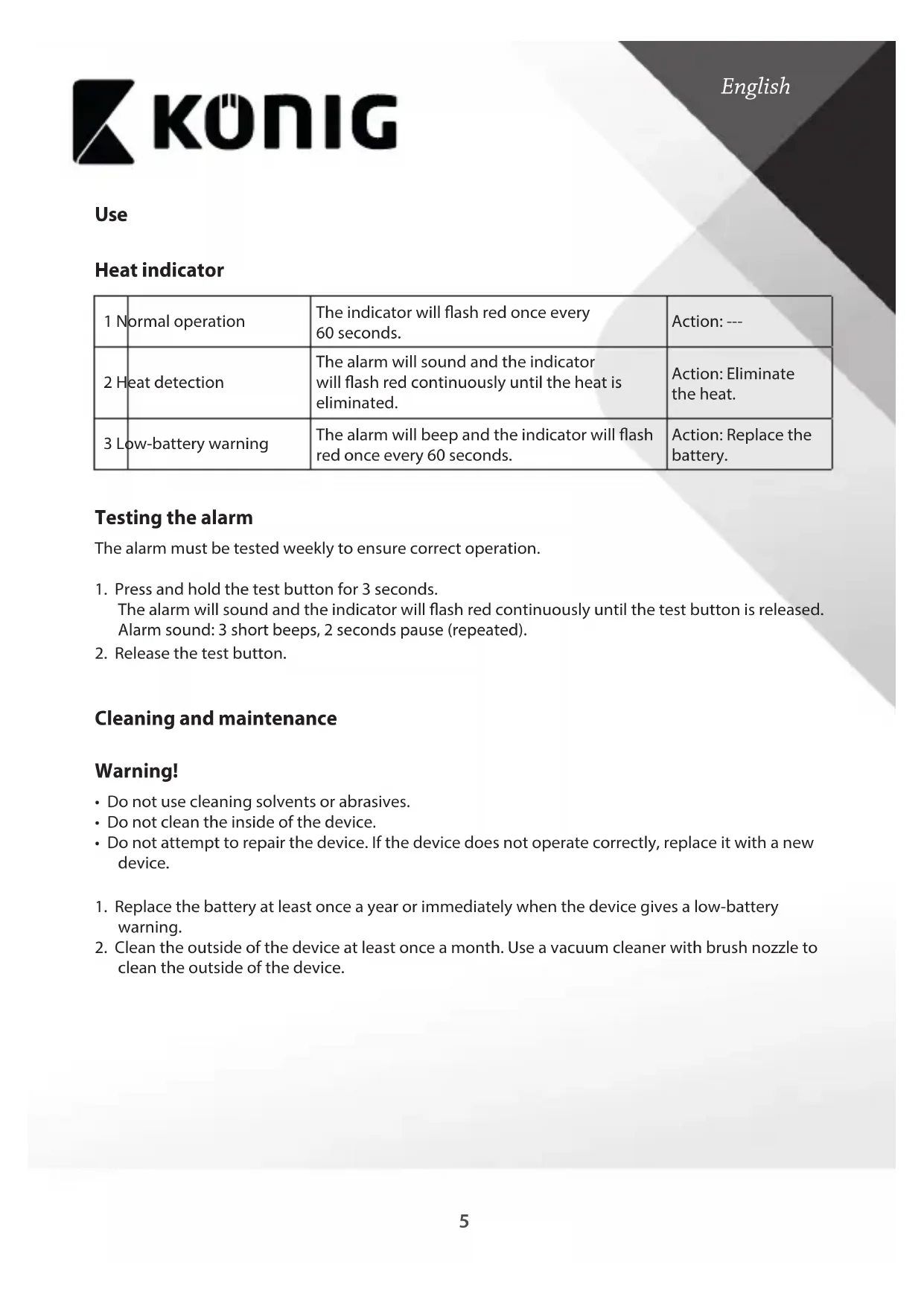

1 Normal operation	The indicator will flash red once every 60 seconds.	Action: ---
2 Heat detection	The alarm will sound and the indicator will flash red continuously until the heat is eliminated.	Action: Eliminate the heat.
3 Low-battery warning	The alarm will beep and the indicator will flash red once every 60 seconds.	Action: Replace the battery.

Testing the alarm

The alarm must be tested weekly to ensure correct operation.

1. Press and hold the test button for 3 seconds. The alarm will sound and the indicator will flash red continuously until the test button is released. Alarm sound: 3 short beeps, 2 seconds pause (repeated).

2. Release the test button.

Cleaning and maintenance

Warning!

• Do not use cleaning solvents or abrasives.
• Do not clean the inside of the device.

• Do not attempt to repair the device. If the device does not operate correctly, replace it with a new device.

• Replace the battery at least once a year or immediately when the device gives a low-battery warning.

• Clean the outside of the device at least once a month. Use a vacuum cleaner with brush nozzle to clean the outside of the device.

Technical data

Battery type	9V battery (PP3)
	Alkaline battery:6LR61 (IEC) / 1604A (ANSI/NEDA)
	Zinc-carbon battery:6F22 (IEC) / 1604D (ANSI/NEDA)
Battery life 1 year
Standby current < 30 μA
Alarm current < 30 mA
Alarm volume >85 dB(A) (3 m)
Ambient temperature 4~44 °C
Relative humidity 25~85%

Warranty

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of the product.

Disposal

• The product is designated for separate collection at an appropriate collection point. Do not dispose of the product with household waste.
• For more information, contact the retailer or the local authority responsible for waste management.

Documentation

The product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. The product complies with all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. The formal documentation includes, but is not limited to the Declaration of Conformity, the Material Safety Data Sheet and the product test report.

Disclaimer

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.
