S355HCX29E - Dishwasher NEFF - Free user manual and instructions

Product type	Built-in dishwasher
Brand	Neff
Model	S355HCX29E
Dimensions (H x W x D)	81.5 cm x 59.8 cm x 55.0 cm
Net weight	Approximately 40 kg
Electrical supply	220-240 V, 50 Hz, 10 A
Energy efficiency class	E (former class A+++)
Wash programs	Eco, Intensive, Quick 45°C, Automatic, Delicate, Prewash
Number of place settings	14 place settings
Noise level	44 dB(A)
Child safety	Yes, lock function
Anti-leak system	Aqua-Stop safety
Control panel	Electronic with LED display
Interior lighting	EmotionLight and TimeLight
Installation type	Under-counter integrated
Front panel	Replaceable (front door)
Filters	Coarse filter and removable microfilter
Spray arms	Upper and lower, replaceable
Salt reservoir	Yes, with lid
Repairability	Spare parts available, repair manual provided
Warranty	2 years (standard)

Frequently Asked Questions - S355HCX29E NEFF

What is the energy efficiency class of the Neff S355HCX29E dishwasher?

The Neff S355HCX29E is classified as energy class E (former class A+++).

How to install the dishwasher under a worktop?

The appliance is designed for built-in installation. You must remove the existing worktop by following the steps in the manual: unscrew the rear screws, push the locking levers, then slide the worktop forward.

What to do if the dishwasher does not turn on?

First check the power supply: make sure the plug is connected and the circuit breaker has not tripped. If the problem persists, unplug the appliance for 60 seconds then plug it back in. Consult the manual for safety tests.

How to clean the dishwasher filters?

Turn the coarse filter counterclockwise to remove it. Lower the microfilter and clean both under running water. Reassemble by aligning the arrows and turning the coarse filter clockwise until it clicks.

What are the available programs on this model?

The programs include: Eco, Intensive, Quick 45°C, Automatic, Delicate, and Prewash. Choose according to the level of soiling and type of dishes.

How to replace the upper spray arm?

Unscrew the upper spray arm and pull it downward to remove it. Insert the new arm and screw it on firmly. For the lower arm, simply lower it to unclip it and snap the new one in place.

The salt indicator lights up, what to do?

Open the salt reservoir (located under the lower basket) and add regenerating salt. Close the lid and run a rinse cycle. If the indicator remains on, check that the cap is tightly closed.

How to change the front door?

Remove the screws from the inner door, then disconnect the cables. Mount the new front panel by aligning the hinges and screwing back. Make sure the cables are properly positioned to avoid damage.

What does error code E15 mean?

Code E15 indicates an activated anti-leak protection. Close the water supply, unplug the appliance and check for any leaks. If the code persists, contact customer service.

Where to find spare parts for this model?

Original Neff spare parts are available from customer service or on specialized websites. Use the model number S355HCX29E to identify the exact references.

USER MANUAL S355HCX29E NEFF

4.2 Mounting the system from the chimney

4.2.1 Mounting the flue gas outlet for the 86-cm model 4.2.2 Mounting the fixing bracket for the chimney 10

4.3 Replacing the varioDrawer drawer 11

4.3.1 Removing the varioDrawer drawer 11 4.3.2 Mounting the varioDrawer drawer 12

4.4 Replacing the spray arm 13

4.4.1 Removing the spray arm 13 4.4.2 Mounting the spray arm 13

4.5 Replacing the filters 14

4.5.1 Removing the filter 14 4.5.2 Mounting the filters 14

4.6 Mounting the front panel for the table 15

4.7 Replacing the power cable 16

4.7.1 Disconnecting the power cable 16 4.7.2 Connecting the power cable 16

4.8 Replacing the detergent dispenser 17

4.8.1 Removing the detergent dispenser 17 4.8.2 Installing the spring 17 4.8.3 Mounting the detergent dispenser 17

4.9 Replacing the drain pump cover 18

4.9.1 Removing the drain pump cover 18 4.9.2 Mounting the drain pump cover 18

4.10 Replacing the door leaf 19

4.10.1 Removing the door leaf 19 4.10.2 Installing the door leaf 20

4.11 Replacing the outer door 21

4.11.1 Unlocking the outer door 21 4.11.2 Installing the outer door 21

4.12 Replacing the control panel 23

4.12.1 Removing the control panel 23 4.12.2 Installing the control panel 23

4.13 Fixing the door springs 24

4.14 Replacing the lower panel 26

4.14.1 Removing the lower panel 26 4.14.2 Installing the lower panel 26

4.15 Replacing the main contact plate 27

4.15.1 Removing the main contact plate 27 4.15.2 Installing the main contact plate 27

4.16 Replacing the flushing pipe 28

4.16.1 Removing the flushing channel 28 4.16.2 Installing the flushing pipe 29

4.17 Replacing the inner door 31

4.17.1 Removing the inner door 31 4.17.2 Installing the inner door 31

4.18 Replacing the door hinge 32

4.18.1 Removing the door hinge 32 4.18.2 Installing the door hinge 32

4.19 Replacing the door seal (bottom) 34

4.19.1 Removing the door seal 34 4.19.2 Installing the door seal... 35

4.20 Replacing the door seal (top) 36

4.20.1 Removing the door seal 36 4.20.2 Installing the door seal 36

Repair tips - Washing machine

4.21 Replacing EmotionLight 37

4.21.1 Removing EmotionLight 37 4.21.2 Installing EmotionLight 37

4.22 Replacing TimeLight 40

4.22.1 Removing TimeLight 40 4.22.2 Installing TimeLight 40

4.23 Replacing Gap illumination (door gap lighting) 41

4.23.1 Removing Gap illumination 41 4.23.2 Installing Gap illumination 42

About this document

1.1 Important information

1.1.1 Key

The repair kit is intended for the consumer and is designed in accordance with the regulations for environmentally sound product design (OT03.2021).

The information about the changes defines the spare parts, including the pressure switch.

If you have any questions, please contact our customer service department. We are not responsible for damage unless the repair instructions have been followed correctly.

1.2 Explanation of symbols

1.2.1 Hazard

The warning symbol is used to indicate danger. The symbol indicates the severity of the hazard.

1.2.3 Structure of warnings

The warnings in this document are standardized according to the standard structure.

DANGER

Type of hazard!

Possible consequence of the hazard/warning.

Measures to prevent the hazard.

The example shows a warning that warns of electric shock, which can cause injury or death. Follow the measures to avoid the hazard.

DANGER

Risk of electric shock from live parts!

Risk of electric shock

Disconnect the device from the electrical supply for 60 seconds before starting repairs.

1.2.4 Symbols

This document uses the following symbols:

Оьи симвовл 3начениe
I	Идениф magnipanaе на спесниен съет( tekt w/плг радика)
I	Идениф magnipanaе на постс съет (самоTekт)
I	Идениф magnipanaе на врьзka кьм вideоурок
I	Идениф magnipanaе на необхочимite истру金融市场
I	Идениф magnipanaе на неobxodimiteпраздарителни усювия
If	Идениф magnipanaе на усювie (ako ...,Тога... )
I	Идениф magnipanaе на рeshунтAT
[Стар]	Идениф magnipanaе на Клиочни 6ытуон
[00123456]	Идениф magnipanaе на Каталожен Homep
Статус	Идениф magnipanae на по��азаняTekct/ птоэрор (на диспега на урда)

Table 3: Symbols

Safety

2.1 General safety instructions

2.1.1 All devices

Risk of electric shock from live parts!

Before repairs, switching on electrical components may cause electric shock! Disconnect the device from the electrical supply for 60 seconds before starting repairs. The manufacturer must be notified in case of safety issues according to standard 0701 or in accordance with national regulations.

Risk of injury from sharp edges!

Wear protective gloves

Risk of injury during repair, maintenance, or adjustment of moving parts. Disconnect the power supply and secure moving components.

Wear protective footwear. Secure the components so they do not fall. Do not allow contact of body parts with moving components.

Risk of danger/injury and damage!

• Use only original spare parts. Risk of damage to electrostatic sensitive components (ESD)! Do not touch the modules, including connectors and conductor tracks.

Tools and aids

4.2 Mounting the system from the console

Removal:

The corresponding console has been removed from the device.

4.2.1 Mounting the console bracket for the 86-cm model

Special tools:

Guide pin [00614935] Fixing screw [00618565]

1. Place the console bracket diagonally into the front part of the console. 2. Center and press the bracket onto the mast.

4.2.2 Mounting the fixing screw

Special tools:

Guide pin [00614935] Fixing screw [00618565]

When you have the screw, the fixing screw can be tightened. The tightening torque is specified in the instructions. For safety and high torque, we recommend leaving the fixing screw tightened. If your console has an additional plastic cover, you must first remove it.

1. Remove the plastic cover.

2. Tighten the fixing screw.

3. Tighten the fixing screw.

Repair

1. Place the item in front of me

4.2.3 Mounting the generator block

Special tools:

Water pump pliers [00614935] Fixing screw [00618565]

Secure the generator block with the end parts under the system.

Repair

4.3 Replacing the varioDrawer socket

1. Open the lid of the box inward.

4.3.1 Removing the varioDrawer socket

2. Pull the handle upward.

1. Press the plastic parts inward and pull upward out of the frame.

Mounting is reversed.

4.4 Replacing the frame

4.4.1 Removing the frame

1. Pull the upper frame (1) and the lower part, to remove it (2).

1. Pull the lower frame, to remove it.

4.4.2 Installing the frame

1. Place the lower frame. The frame is magnetic.
2. Place the upper frame and press it firmly into place.

4.5 Replacing the filter

4.5.1 Removing the filter

1. Turn the filter counterclockwise (1) and remove the filter system (2).

Make sure there is a gasket in the cartridge.

2. Pull the filter, to remove it.

4.5.2 Installing the filter

1. Remove the old filter element.

Make sure that the filter element is installed correctly.

1. Install the filter system in the direction indicated by the arrow on the housing.

Make sure that the markings with arrows match.

Repair

4.6 Installing the spray lance for tablets

1. Remove the top cover. 2. Install the spray lance for tablets on top (1) and tighten it (2).

The spray lance for tablets is installed.

4.10.2 Installing the side panel

1. Install the side panel in the slot of the base (1).

Fig. 2: Installation

2. Press the side panel onto the device (2). 3. Secure the side panel with screws (3).

Repair

4.11 Replacing the main valve

Removal:

The hinges do not require lubrication. The hinges are protected from the water supply.

4.11.1 Adjusting the outer door

Simply turn the screws, as described in the following steps.

1. Open the door 2. Loosen the four screws.

3.

Close the door, holding the front side.

Tighten the screws.

WARNING!

4.11.2 Mounting the outer door

Cables that are not routed correctly and are not secured!

Damage to the cabling

Place the cables and fix them with the cable ties.

Repair

Inspection:

The hinge is correctly positioned and the outer side of the outer door. The door is equipped with hinges.

1.3 Open the outer door, without pulling it sharply.

1. Press the outer door against the control panel (1).

1. Press the outer door towards the outer lock (2).

4.

Secure the door, then tighten the other side.

Remove the door and secure it with the screws (metal 4 x 11 mm screws).

5. Secure the outer door with the screws (metal 4 x 11 mm screws).

Repair

4.12 Replacement of the control panel

If the control panel is defective, the control panel must be replaced.

Removal:

Disconnect the power supply. Disconnect from the mains. The outer door is closed. The outer door is closed (normally closed/closed).

4.12.1 Replacing the control panel

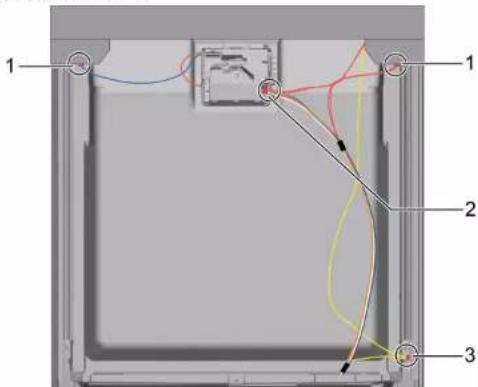

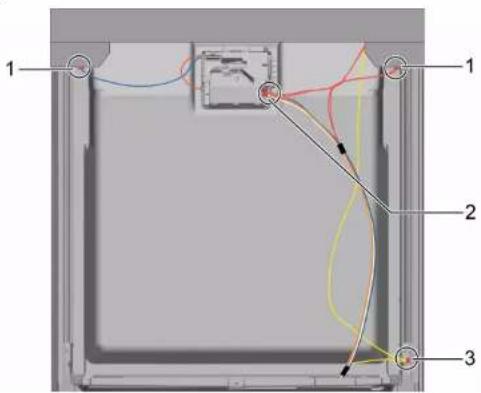

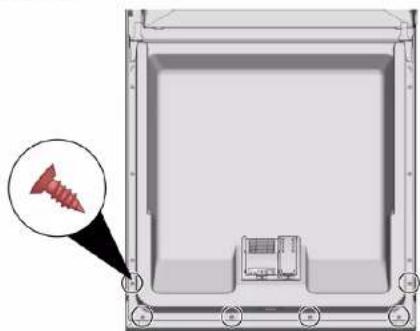

1. Disconnect the electrical connections from the control panel, then remove the sensor for the locking device (1,2).

2. Disconnect the grounding cable (3) (optional). 3. Open the door of the device. 4. Secure the control panel, then prevent it from moving (lock it).

5. Check the control panel.

6. Connect the control panel.

4.12.2 Mounting the control panel

Use screws 4x16 mm.

Mount the return spring.

Repair

4.13 Fixing the door spring

1. Guide the cable through the cable duct.

2.1. Open the door slightly (1).

2. Fix the spring to the base (2).

1. Close the door firmly (3).

The cable system is automatically attached to the door panel.

Repair

3.1. Close the door slightly (4).

1. Pull the left lever to release the door panel (5). 3. Open the door (6).

1. Turn the device over to the other side.

4.14.2 Mounting the bottom panel

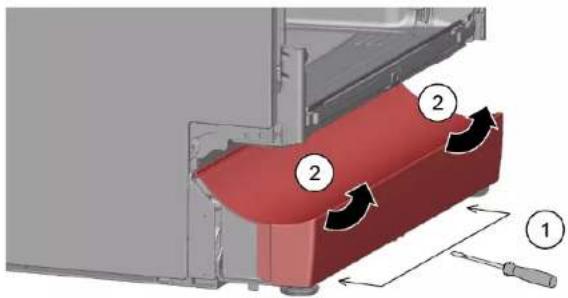

1. Place the brackets. 2. Attach the bottom panel to the opening (1) and press it down until it clicks into place (2).

Repair

4.15 Removing the main contact cover

The main contact cover is located in the lower part of the device.

Requirement:

The device is disconnected from the power supply. The device is disconnected from the mains. The front panel (optional) is removed. The front door is removed. The front door is removed (optional integrated/integrated). The bottom panel is removed (optional). →26

4.15.1 Removing the main contact cover

1. Remove the screws (1).

2. Loosen the clamping elements (2).

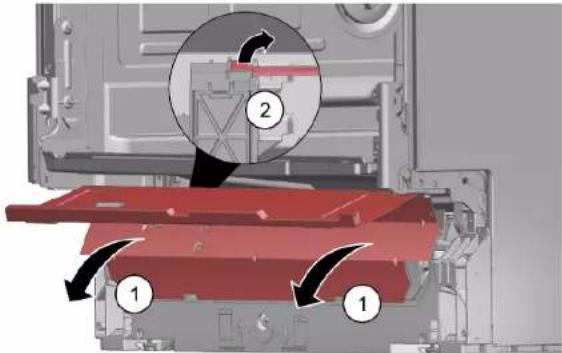

1. Carefully tilt the main contact cover forward (1).

4.

Depending on the series and model, the cover may be secured to the base.

Release the cover of the actuator and the front panel (optional) (2).

4.15.2 Mounting the main contact pump

Mount the main contact pump facing the opening.

Repair

4.16 Removing the overflow hose

The overflow hose is located in the front lower part of the device.

Removal:

The device is disconnected from the power supply. The device is disconnected from the water supply. The furniture panel is removed (if any). The height adjusters are removed. The bottom panel is removed (if any, see 26). The main power cable is removed (see 27).

4.16.1 Removing the overflow channel

Residual water

When removing the drain hose, residual water may leak out. Catch the water in a suitable container.

1. Release the locking mechanism (1,2).

4.20.2 Mounting the door hinge

Before mounting the door hinge, it must be adjusted to the correct height. That is 1750 mm for devices with a height of 81 cm and 1850 mm for devices with a height of 86 cm.

1. Prepare the hinge for the door. 2. Check the correct position for mounting the hinge.

1. The current must be at the level of the hinge.

4

The seal does not need to be inflated. The seal is detached automatically at the ends and is stretched to the height of the container.

Place the crane at the seal and align it with the inner door. The seal must be in the possible position for the container.

Correctly installed seal on the door:

Repair

4.21 Replacement of EmotionLight

EmotionLight is located in the upper front part of the reservoir for irrigation.

Removal:

The device is disconnected from the power supply. The device is disconnected from the water supply. The devices are freely accessible. The working light is switched off. The pressure hose is switched off. →19

4.21.1 Removal of EmotionLight

1. Remove the hook of the fastener from the rear (1).

1. Press the lever upwards (2).
2. Disconnect the plug from the connector (red on the front side of the device).

4. Disconnect the electrical connection from the power module.

1. Remove EmotionLight from the device.

4.21.2 Mounting the EmotionLight

1. Place the bracket in the frame recess (1).

Repair

2. Engage the hook of the fixator (2).

3

Mount the cable on the lower side.

4.23 Removing the illumination bar (product lighting)

Requirement:

Disconnect from power supply. Disconnect from water supply. The front door is open. The filter is removed.

4.23.1 Removing the illumination bar

1.1. Detach the fixator (1).

2. Disconnect the electrical connection from the operating module (2).

2.1. Detach the hook of the fixator from the rear (1).

2. Disconnect the optional plug (2).

Repair

3.1. Replacing the top panel (1).

1. Lift the printed circuit board by the holders and remove it from the one-piece module (N).

4.23.2 Installing the bar illumination

1. Place the printed circuit board in the frame of the operating module.

Tighten it until you hear a click.

1. Install the optional cover and tighten it until you hear a click.

4. Connect the cable to the operating module.

4.1 Replacing the top panel 90

4.1.1 Removing the top panel 90 4.1.2 Installing the top panel 90

4.2 Installing the drawer system 91

4.2.1 Installing the tablet holder on the 86 cm model.. 91 4.2.2 Installing the cup holder 91 4.2.3 Installing the steam insert 92

4.3 Replacing the varioDrawer drawer 93

Fig.2: Fully integrated appliance

1. Press the side panel into the appliance (2).
2. Secure the side panel with screws (3).

Repair

4.11 Replacing the outer door

Requirement:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply.

4.11.1 Removing the outer door

4.23 Replacing Gap Illumination

Requirement:

4.22.1 Removing timeLight 163 4.22.2 Installing timeLight 163

4.23 Replacing Gap illumination 164

4.23.1 Removing Gap illumination 164 4.23.2 Installing Gap illumination 165

4.21.2 Installing emotionLight

1. Hold the rinse tank frame (1).

Repair

1. Activate the latch hook (2).

3.

BEMERKI

Incorrect installation!

4.22 Replacing timeLight

4.22.1 Removing timeLight

4.22.2 Installing timeLight

4.23 Replacing Gap illumination

Presetting:

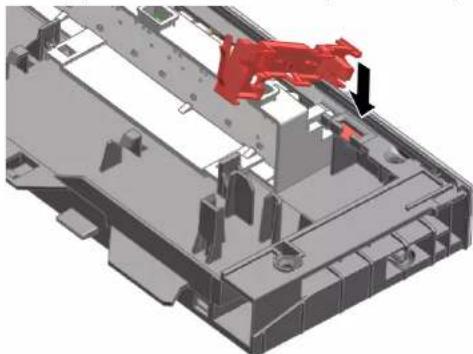

4.23.2 Installing Gap illumination

1. Insert the circuit board holder into the frame of the control module.

2.1 General Safety instructions 212 2.1.1 All domestic appliances 212

Tools and aids. 213

Repair 214

4.1 Replacing worktop 214

4.1.1 Removing worktop 214 4.1.2 Installing worktop 214

4.2 Installing basket system 215

4.2.1 Installing a tab slide for the 86 cm model 215 4.2.2 Installing cup support clip 215 4.2.3 Installing steamer insert 216

4.3 Replacing varioDrawer 217

4.3.1 Removing varioDrawer 217 4.3.2 Installing varioDrawer 218

4.4 Replacing spray arms 219

4.4.1 Removing spray arm 219 4.4.2 Installing spray arm 219

4.5 Replacing filters 220

4.5.1 Removing filter 220 4.5.2 Installing filters 220

4.6 Installing baking sheet spray head 221

4.7 Replacing power cord 222

4.7.1 Unplugging power cord 222 4.7.2 Plugging in power cord 222

4.8 Replacing detergent cover 223

4.8.1 Removing detergent cover 223 4.8.2 Inserting spring 223 4.8.3 Installing detergent cover 223

4.9 Replacing wastewater pump cover 224

4.9.1 Removing wastewater pump cover 224 4.9.2 Installing wastewater pump cover 224

4.10 Replacing side panel 225

4.10.1 Removing side panel 225 4.10.2 Installing side panel 226

4.11 Replacing outer door 227

4.12 Replacing control panel 229

4.12.1 Removing control panel 229 4.12.2 Installing control panel 229

4.19 Replacing (lower) door seal 240

4.19.1 Removing the door seal 240 4.19.2 Installing the door seal 241

4.20 Replacing (upper) door seal 242

4.20.1 Removing door seal 242 4.20.2 Installing door seal 242

Repair hints - Dishwasher

4.21 Replacing EmotionLight 243

4.21.1 Removing EmotionLight 243 4.21.2 Installing EmotionLight 243

4.22 Replacing TimeLight 246

4.22.1 Removing TimeLight 246 4.22.2 Installing TimeLight 246

4.23 Replacing Gap illumination 247

4.23.1 Removing Gap illumination 247 4.23.2 Installing Gap illumination 248

About this document

1.1 Important information

1.1.1 Purpose

These repair instructions help consumers repair appliances themselves in accordance with the applicable eco-design regulation (as of 03/2021).

They contain information on how to replace defined spare parts, including warnings and risks.

If you have any questions, please contact our customer service. We will only be liable for damages if the repair instructions have been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations that indicate the type of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

About this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardized appearance and structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger/warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
i	Identification of a special tip (text and/or graphic)
j	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Table 3: General symbols

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
Start Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Insulated Screw- driver Torx T15 with bore hole [15000626]	Blade length 125 mm, for screws with safety pin
Slotted screwdriver	Blade 10 mm x 1.6 mm x 200 mm
Needle nose pliers [00340871]	Length: 200 mm, straight

4.1 Replacing worktop

Prerequisite:

Appliance is disconnected from the power supply. Appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).
2. Press both catch levers under the worktop upwards (2).

1. Lift the worktop slightly at the front (3).
2. Push worktop away towards the rear (4).
3. Remove worktop.

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

1. Push worktop forwards (2).
2. Press the front of the worktop downwards until both catch levers click audibly into place (3).
3. Screw in the two screws again (4) (optional).

Repair

4.2 Installing basket system

Prerequisite:

The relevant basket has been removed from the appliance.

4.2.1 Installing a tab slide for the 86 cm model

Required tools:

Tab guide [00614935] Cup support clip [00618565]

1. Insert the tab slide diagonally at the front of the basket.
2. Center and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools:

Tab guide [00614935] Cup support clip [00618565]

When washing cups, the cup support clip can be folded up. The additional angle reduces the collection of water on the bottom of cups. In the case of tall glasses, we recommend leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be removed.

1. Remove the plastic insert.

1. Click the cup support clip into place.

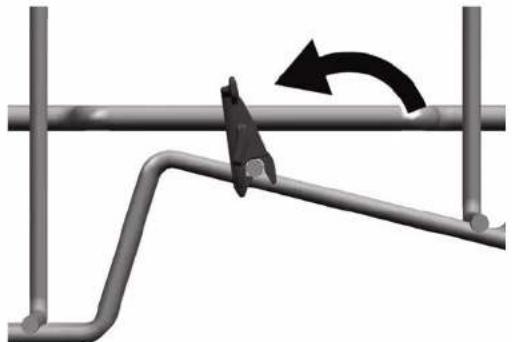

1. Fold up the clip.

Repair

1. Position the items to be washed.

4.2.3 Installing steamer insert Required tools:

Tab guide [00614935] Cup support clip [00618565]

• Wedge the steamer insert with the end pieces under the basket system.

Repair

4.3 Replacing varioDrawer

4.3.1 Removing varioDrawer

1. Bend the handle flaps inwards.

1. Remove the handle upwards.
2. Press plastic side inserts outwards and press them upwards out of the frame.

1. Carefully bend the guide tabs outwards.

1. Pull the folding spines out of the tabs.
2. Press metal frame at the front out of the holders.

1. Push metal frame back out of the guide.

4.3.2 Installing varioDrawer

Install in reverse order.

Repair

4.4 Replacing spray arms

4.4.1 Removing spray arm

1. Unscrew the upper spray arm (1) and pull down to remove (2).

1. Pull down the lower spray arm to remove.

4.4.2 Installing spray arm

1. Insert the lower spray arm. The spray arm clicks into position.
2. Insert the upper spray arm and screw it firmly in place.

Repair

4.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Check that no foreign objects fall into the sump.

1. Pull down the micro filter to remove.

4.5.2 Installing filters

1. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position.
2. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

Repair

4.6 Installing baking sheet spray head

1. Remove top basket.
2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

The baking sheet spray head clicks into position.

Repair

4.7 Replacing power cord

Prerequisite:

1. Appliance is disconnected from power supply. 2. Appliance is disconnected from water supply. 3. Appliance is freely accessible.

4.7.1 Unplugging power cord

• Move the plug of the power cord carefully up and down and pull it out of the mains socket.

4.7.2 Plugging in power cord

Notice

Overheating of main connection!

Risk of fire

Firmly insert the power cord until it clicks.

• Insert the plug of the power cord into the mains socket until the plug clicks audibly into place.

Repair

4.8 Replacing detergent cover

A small screwdriver can be used as a levering tool.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The door has been opened. The detergent cover has been opened.

4.8.1 Removing detergent cover

1. Slide the detergent cover in 5 mm.
2. Lever the detergent cover on the lower side out of the guide rails and take the detergent cover on the upper side out of the guide rails.
3. Remove the spring.

4.8.2 Inserting spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

1. Insert the short end of the spring into the mounting hole of the detergent cover (2).
2. Press cover into the dispenser device (3).

4.8.3 Installing detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide rails on one side. Applying gentle force, press the opposite side into the guide rails.
2. Check the function of the detergent cover.

Repair

4.9 Replacing wastewater pump cover

Prerequisite:

Basket has been removed. Filters have been removed. → Page 220

4.9.1 Removing wastewater pump cover

1. Scoop out any water. Use a sponge if necessary.
2. Pry off the pump cover using a spoon and grip it by the crosspiece.

1. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

Insert the pump cover (1) and press down (2).

The pump cover clicks into position.

Repair

4.10 Replacing side panel

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Free-standing appliances: Worktop has been removed. See page 214.

4.10.1 Removing side panel

1. Remove screws from the side panel (1).

Fig. 1: Fully integrated

1. Tilt the side panel slightly outwards at the top (2).
2. Lower the side panel and pull it out of the base trough (3).

Repair

4.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Fig. 2: Fully integrated

2. Press the side panel onto the appliance (2). 3. Secure the side panel with screws (3).

Repair

4.11 Replacing outer door

Prerequisite:

The appliance is disconnected from power supply. The appliance is disconnected from water supply.

Just remove the screws which are described in the following steps.

1. Open door.
2. Remove four screws.

3

Secure the door by holding it on one side.

Remove two screws.

Insulating fleece has been correctly positioned and fixed on the inside of the outer door. Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.
2. Push the outer door upwards underneath the control panel (1).

1. Press the outer door against the inner door and hold (2).

4.

Secure the door by holding it on one side.

Open the door and secure it with two screws (4 x 11 mm metal screws).

1. Secure the outer door with four screws (4 x 11 mm metal screws).

Repair

4.12 Replacing control panel

If an operating module is defective, the entire control panel must be replaced.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid sensor (1, 2).

1. Disconnect the earth cable (3) (optional).
2. Open the appliance door.
3. Secure the control panel to prevent it from falling down (hold on to it).
4. Remove six screws.

1. Remove the control panel.

4.12.2 Installing control panel

Use screws 4 × 16 mm .

Install in reverse order.

Repair

1. Remove cord guide cover out.

2.1.Open door slightly (1).

1. Fix in the groove of the base trough (2).
2. Slowly close the door (3).

The cord system attaches itself automatically to the door hinge.

Repair

3.1. Slightly close the door (4).

1. Move the groove to the back and release the door hinge (5).
2. Open the door (6).

1. Repeat the process again on other side of appliance.

Repair

4.14 Replacing toe panel

The feet are identical and can be swapped over.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.14.1 Removing toe panel

1.

Incorrect removal. If the toe panel is loosened at the side and removed, the two brackets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

1. Reach into the guides (1) with a screwdriver and release the catch by pushing downwards.

1. Lift the panel off.
2. Remove the feet forwards (1).

4.14.2 Installing toe panel

1. Insert the feet.
2. Attach the toe panel at the top (1) and press it down until it audibly clicks into place (2).

Repair

4.15 Replacing base socket plate

The base socket plate is located in the lower area at the front.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel (optional) has been removed. Outer door has been removed. Outer door has been removed (fully integrated/integrated). Toe panel has been removed (optional). → Page 232

4.15.1 Removing base socket plate

1. Remove two screws (1).

1. Disengage catch elements (2).
2. Tilt the base socket plate carefully forwards (1).

4.

Depending on the model series, the plug to the EmotionLight is still secured to the base.

Unlock the plug on the catch tappet and pull to the rear (optional) (2).

4.15.2 Installing base socket plate

Install the base socket plate in reverse order.

Repair

4.16 Replacing overflow conduit

The overflow conduit is located in the front lower area of the appliance.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel has been removed (optional). Outer door has been removed. Toe panel has been removed (optional). → Page 232 Base socket plate has been removed. → Page 233

4.16.1 Removing overflow channel

Residual water

• When the drainage hose is removed, residual water may run out. Catch water or remove from the base pan with suction syringe.
• Lever out of the catch mechanism at the top (1, 2).

1. Release catch element at top.

3.1. Insert screwdriver below metal brake (1).

1. Gently release metal clip (2).

Repair

1. Lift overflow conduit off.

4.16.2 Installing overflow conduit

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

1. Place overflow conduit (1).
2. Move overflow conduit into seal (2).
3. Press overflow conduit in guide of seal (3).
4. Insert overflow conduit concisely (4).
5. Clip in overflow conduit (5).

Repair

1. Check installation left and right. 3. Check firm seat.

1. Clip in metal clip on left and right side.

Repair

4.17 Replacing inner door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.17.1 Removing inner door

1. Remove screws (1).
2. Remove inner door upwards (2).

4.17.2 Installing inner door

1. Flap door seal to front.
2. Move inner door behind door seal.
3. Close inner door.
4. Flap door seal upwards. Side parts show up.
5. Move door hinge upwards.
6. Secure door hinge with screws.
7. Place inner door on door hinge.
8. Secure inner door with screws.

Repair

4.18 Replacing door hinge

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Side panel has been removed. (See page 225) Outer door has been removed. Inner door has been removed. Control panel has been removed. (See page 229) Door springs have been fixed. (See page 230) Toe panel has been removed. (See page 232) Base socket plate has been removed. (See page 233) Overflow channel has been removed. (See page 234)

1. Release catch hook with a screwdriver (1).
2. Pull door hinge forwards (2).

1. Release ground connection on door hinge.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repairs.

Electric parts should be repaired by a qualified electrician. After the repair, have a safety test according to VDE 0701 or country-specific regulations performed.

Repair

1. Place hinge on appliance (1).
2. Move hinge downwards (2) until it is latched to the appliance.

2.

A missing ground connection can lead to mains potential on door.

Establish ground connection.

Repair

4.19 Replacing (lower) door seal

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door has been removed. The base socket plate has been removed. (See page 233) The toe panel has been removed (optional). (See page 232) The door springs have been removed. The control panel has been removed. The cable harness holder on the bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

1. Detach the overflow channel.

1. Lift the overflow gutter off.

Repair

1. Remove the lower door seal from the inner door.

4.19.2 Installing the door seal

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

1. Insert the door seal with the sealing flap in the inner door.
2. Secure the door seal with two retaining clips.

Repair

4.20 Replacing (upper) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.20.1 Removing door seal

Remove door seal from inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare appropriate door seal.
2. Ensure correct installation position of sealing profile.

1. White dot must be on level with sealing bed strip.

4

Sealing must not be wavy or stretched at corners. Seal is cut off diagonally at ends and tapers away into bottom of container at front.

Position end of seal straight to front underneath inner door. Seal should lie against side of container as far as possible.

Correctly installed door seal:

Repair

4.21 Replacing EmotionLight

The EmotionLight is situated in the upper front exterior area of the rinsing tank.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible. The worktop has been removed (optional). The right-hand side panel has been removed (optional). → Page 225

4.21.1 Removing EmotionLight

1. Detach the catch hook at the rear (1).

1. Remove the holder upwards (2).
2. Pull the plug out of the connector (bottom right at the front of the appliance).
3. Remove the electrical connection from the power module.

1. Remove EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Repair

1. Engage the catch hook (2).

3

Install the cable on the right lower side.

Repair

Fig. 3: Flat cable

1. Insert the plug.

Repair

4.22 Replacing TimeLight

Replace the TimeLight only as a complete part.

The TimeLight module is fixed to the rear of the base socket plate.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Toe panel has been removed. (see page 232) Base socket plate has been removed and turned. (see page 233)

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

1. Pull the TimeLight module upwards out of the guide (2).

4.22.2 Installing TimeLight

1. Bend the catch elements (1) back again.

1. Push the TimeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door is disassembled. The operation panel has been removed.

4.23.1 Removing Gap illumination

1. Detach catch (1).
2. Remove the electrical connection from the operation module (2).

1. Detach the catch hook at the rear (1).
2. Remove the light fibre (2).

Repair

3.1. Detach catch hook (1).

1. Lift up PCB with holder and remove it from operation module frame (2).

4.23.2 Installing Gap illumination

1. Insert PCB holder to operation module frame.

1. Tighten it with a "click" sound.

1. Install light fibre and tighten it with a "click" sound.

1. Connect wire to operation module.

Table 1: Safety devices

1.2.2 Safety symbols

Safety symbols are symbolic images that indicate the nature of the hazard. The following safety symbols are used in this document.

Work and aids

3. Open the cover.

1. Place the objects for storage

4.2.3 Place the objects inside the container with the following aids:

Symbols [00614935] and container lid [00618565] - Open the container and place the objects at the bottom of the system.

Storage

4.3 Replacing the battery drawer

The head is sealed with a cover

Storage

4.7 Replacing the fuse

Rounded:

The following instructions apply to the device. The device must be installed by qualified personnel. The installation must comply with local regulations.

4.7.1 Replacing the drive belt

Move the drive belt to the motor pulley and the driven pulley, and check the belt tension.

4.7.2 Adjusting the belt tension

CAUTION!

1. The "EmotionLight" is optional.

4.2.1.2 Installing "EmotionLight"

4.23.2 Mounting the illumination bar

4.17.1 Remove an interior door 731 4.17.2 Install the interior door 731

4.18 Replace the door hinge 732

4.18.1 Remove the door hinge 732 4.18.2 Install the door hinge 732

4.19 Replace the door seal (lower) 734

4.19.1 Remove the door seal 734 4.19.2 Install the door seal 735

4.20 Replace the door seal (upper) 736

4.20.1 Remove the door seal 736 4.20.2 Install the door seal 736

Resolution tips - Dishwasher

4.21 Replacing the EmotionLight 737

4.21.1 Removing the EmotionLight 737 4.21.2 Installing the EmotionLight 737

4.22 Replacing the TimeLight 740

4.22.1 Removing the TimeLight 740 4.22.2 Installing the TimeLight 740

4.23 Replacing the Gap Illumination 741

4.23.1 Removing the Gap Illumination 741 4.23.2 Installing the Gap Illumination 742

DANGER

Risk of electric shock due to live parts!

4.17.1 Removing the inner door

4.17.2 Installing the inner door

4.23.1 Removing the Gap Illumination

1. Release the clip (1).
2. Remove the electrical connection from the operating module (2).

2.1. Release the rear snap hook (1). 2. Remove the optical fiber (2).

Repair

3.1. Release the snap hook (1).

4.23 Replacing Gap illumination 823

4.23.1 Removing Gap illumination 823 4.23.2 Installing Gap illumination 824

About this document

4.23 Replacing Gap illumination

Requirement:

4.23 Replacing Gap illumination

Prerequisite:

4.23.2 Installing Gap illumination

1. Insert the circuit board into the frame of the operating module.

Special auxiliary equipment:

Tab Guide [00614935] Snap-in part [00618565]
