USER MANUAL StackandShred 200XL Swingline

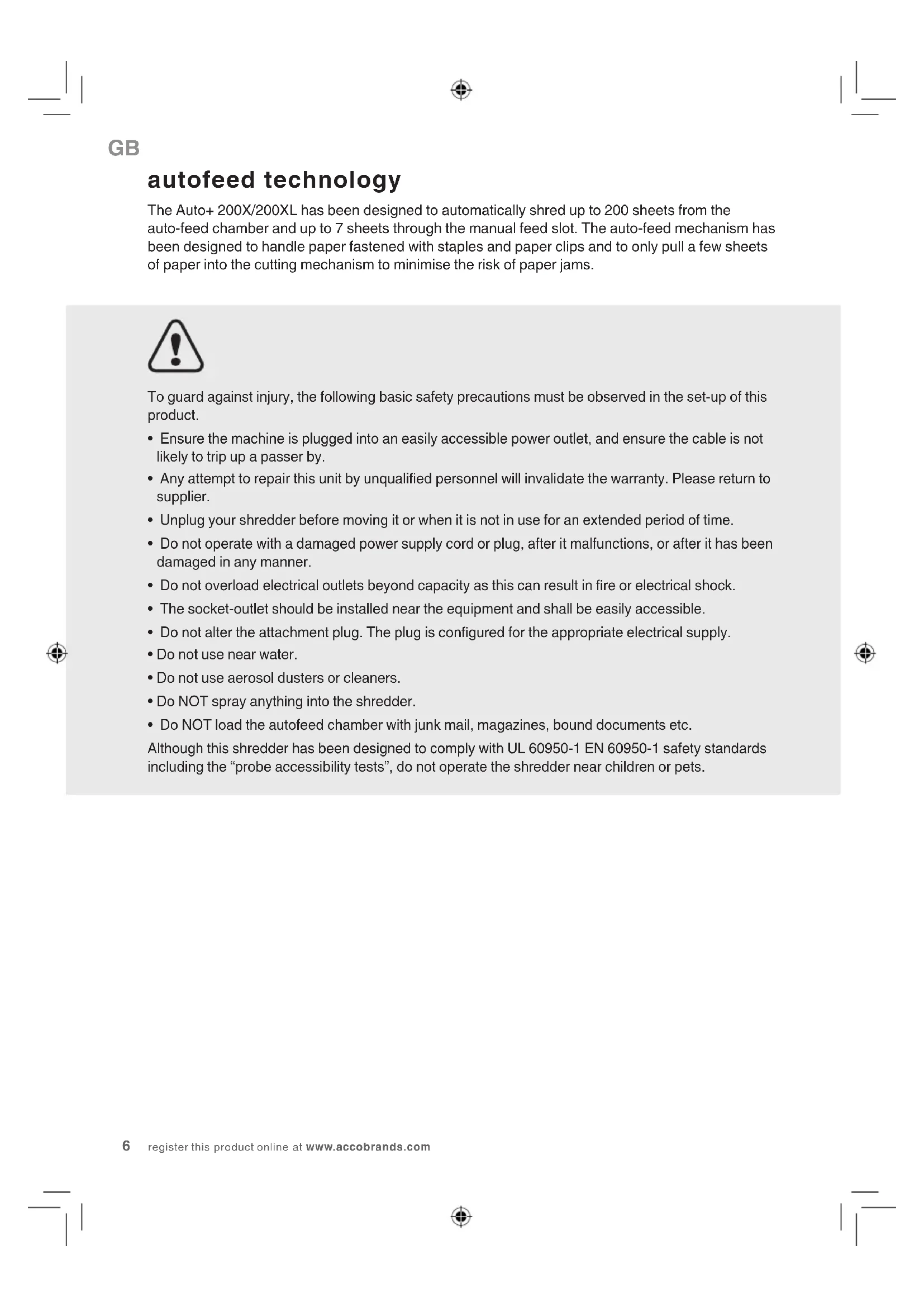

™GB 6 register this product online at www.accobrands.com autofeed technology The Auto+ 200X/200XL has been designed to automatically shred up to 200 sheets from the auto-feed chamber and up to 7 sheets through the manual feed slot. The auto-feed mechanism has been designed to handle paper fastened with staples and paper clips and to only pull a few sheets of paper into the cutting mechanism to minimise the risk of paper jams. To guard against injury, the following basic safety precautions must be observed in the set-up of this product.

• Ensure the machine is plugged into an easily accessible power outlet, and ensure the cable is not likely to trip up a passer by.

• Any attempt to repair this unit by unqualied personnel will invalidate the warranty. Please return to supplier.

• Unplug your shredder before moving it or when it is not in use for an extended period of time.

• Do not operate with a damaged power supply cord or plug, after it malfunctions, or after it has been damaged in any manner.

• Do not overload electrical outlets beyond capacity as this can result in re or electrical shock.

• The socket-outlet should be installed near the equipment and shall be easily accessible.

• Do not alter the attachment plug. The plug is congured for the appropriate electrical supply.

• Do not use near water.

• Do not use aerosol dusters or cleaners.

• Do NOT spray anything into the shredder.

• Do NOT load the autofeed chamber with junk mail, magazines, bound documents etc. Although this shredder has been designed to comply with UL 60950-1 EN 60950-1 safety standards including the “probe accessibility tests”, do not operate the shredder near children or pets.GB

SHREDDERS 7 warning symbols This means no aerosols. This means keep children away from shredder. This means you should be careful because long hair can become entangled in the cutting head. This means don’t reach into the feed opening of the cutting head. This means be careful of loose jewellery which could become entangeld in the cutting head. This means no oil lubrication, use Rexel oil sheets only. This means be careful of ties and other loose clothing which could become entangled in the cutting head. This means the shredder can accept small paperclips. This means the shredder can accept small staples. Safety First Sheet capacity of manual feed entry slot.

control panel and indicators Continuous Jam BoostReverse Auto Cool Down indicator – This means the machine is cooling down. This means the shredder can accept credit cards. Bin Full indicator – This means the bin is full. Paper Loading Door/Bin Door Open indicator – This means either:

• Loading door is open

• Bin is open Lock indicator – This means the paper loading door is locked (during shredding). Paper jam indicator – This means there is a paper jam in the auto feed chamber. If this symbol is ashing the shredder is attempting to clear a paper jam automatically. If this symbol is permanently illuminated red please follow the instructions under ‘Rare Occasion of Jamming’. Loading Door Locking Mechanism – PIN Password Buttons – Enter a four digit code to lock the loading door during shredding.GB 8 register this product online at www.accobrands.com Auto+ 200X/200XL shredding capability Auto+ 200X/200XL CAN shred the following:

• Stapled paper, 25mm within the corner

• 26/6 and 24/6 or smaller staples

• Small sized paper loaded centrally

• Paper clip paper, 25mm within the corner

• Capable of shredding small/medium paper clips (max. wire thickness = 0.9 mm)

• >80/100gsm paper (through manual feed slot ONLY)

• A3 folded in half max. 2 sheets

• 80 gsm paper - A4 - 210mm x 297mm - A5 - 148mm x 210mm - A3 single sheet folded in half to make A4 Auto+ 200X/200XL CAN shred (through the manual feed slot): Thick paper or card. Multiple folded sheets (e.g. A3 sheets folded in half). Unopened mail (e.g. junk mail). Glossy paper or a sheet covered with print on both sides. Auto+ 200X/200XL CANNOT shred the following: Large clips. Check the length of the paperclip is not longer than 32mm. Heavy duty staples. Check the staple leg length is not greater than 6mm. Bound documents Bulldog clips Magazines or other documents bound by multiple staples or clips. Adhesive labels. Plastic sheets, laminated documents, plastic folders.GB

SHREDDERS 9 bin or loading door open safety function As a safety precaution, if the bin or loading door is opened during shredding, the shredder will stop and the bin full indicator will illuminate ( ). intelligent help 1 In the unlikely event of the shredder jamming, the Auto+ 200X & 200XL will stop shredding, and the jam icon will blink in orange. 2 The shredder will illuminate the FWD (

) and REV ( ) buttons in the sequence necessary to clear the jam. 3 If the jam cannot be intelligentally cleared, the jam icon ( ) will illuminate in red. At this point open the auto feed chamber to clear any jammed material. automatic jam clearance Intelligent Jam Clearance: In the unlikely event of the shredder jamming, the Auto+ 200X & 200XL will automatically reverse and forward the engine three times to clear a jam. During this operation the Paper Jam indicator will ash (

** 200XL only locking the paper loading door For additional security the paper loading door can be locked during the shredding of condential material. To lock shredder:

• 4 digit code is re-entered.

• Shredding is complete.

• Shredder is inactive for 30 minutes (but documents remain in tray)GB 10 register this product online at www.accobrands.com

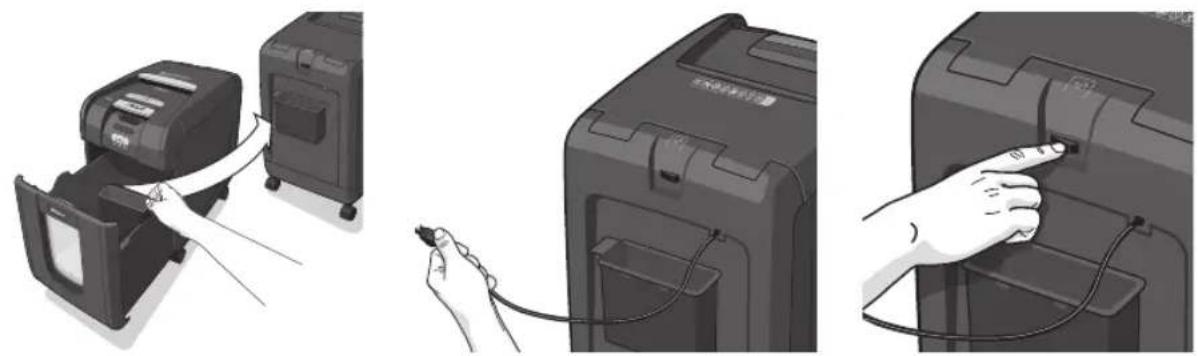

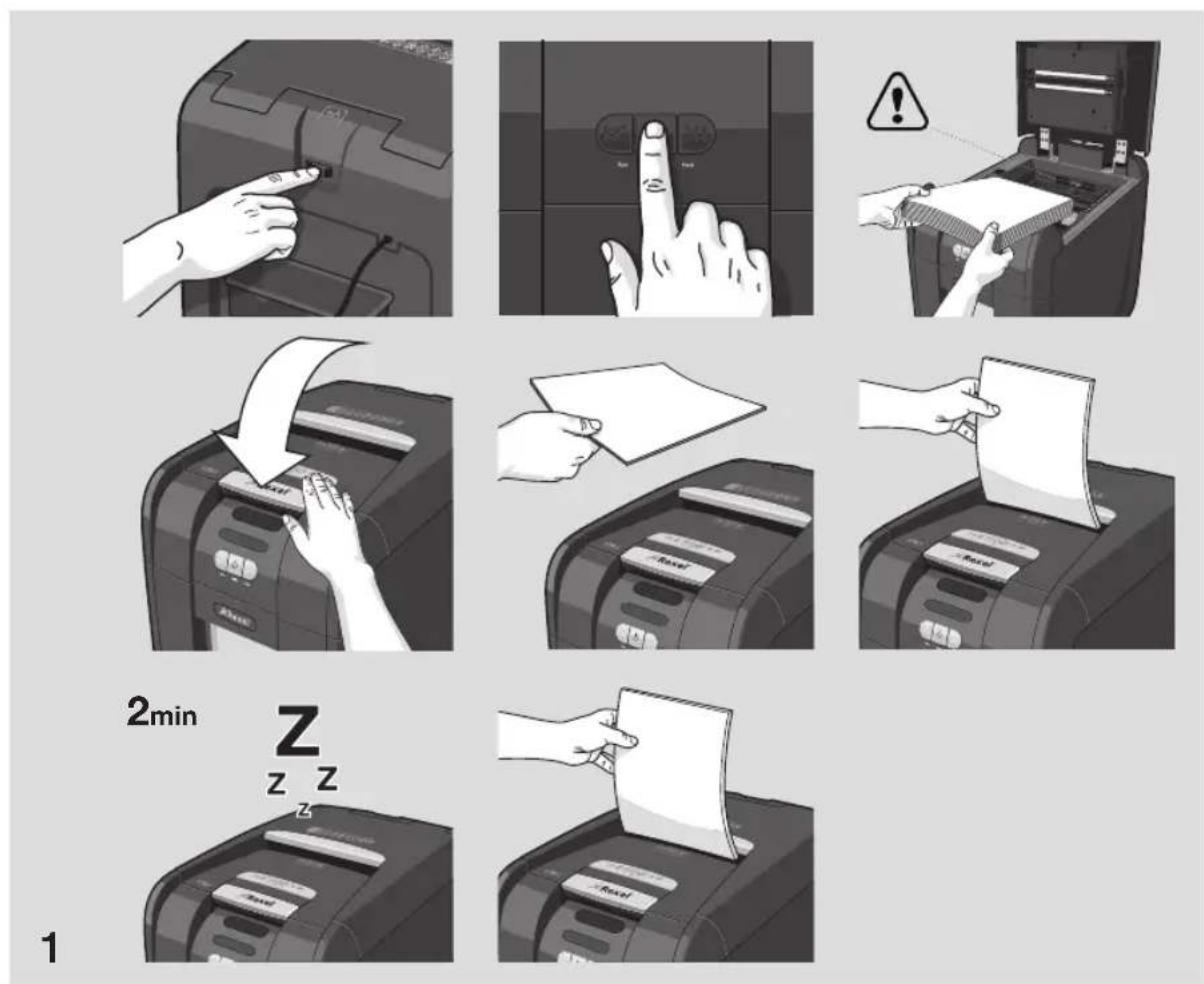

1 Unpack the product. 2 Connect the shredder to mains supply. 3 Ensure the ON/OFF button on the back of the machine is in the ON position, which will illuminate the blue standby symbol (

), which sets the shredder into auto mode. You are now ready to shred. 5 To load the shredder, simply lift the loading door handle to open the loading door and insert documents. You can open the door further to 90 degrees for easier access if required Load up to 200 sheets at a time into the feed chamber. Do not ll above the 200 MAX level, this could damage the shredder. 6 The shredder will start the shredding cycle automatically ONLY after closing the loading door. If there is still paper in the Autofeed chamber after rst attempt open and reclose the paper loading door a second time. 200XL only Attention: If required you can now lock the loading door by entering a 4 digit code (see Locking the Paper Loading Door section). 7 If you only have up to 7 sheets to shred, you can use the manual feed slot, provided the auto feed chamber is empty. 8 Insert paper to be shredded into the feed area. The shredder will detect the paper and start automatically. 9 If the shredder is left in auto mode for more than 2 minutes without being used, the shredder will automatically turn back to standby mode in order to save power. 10 The shredder will automatically ‘wake up’ from sleep mode when paper is inserted into the shred mouth or you open the loading door. There is no need to press the Auto button (

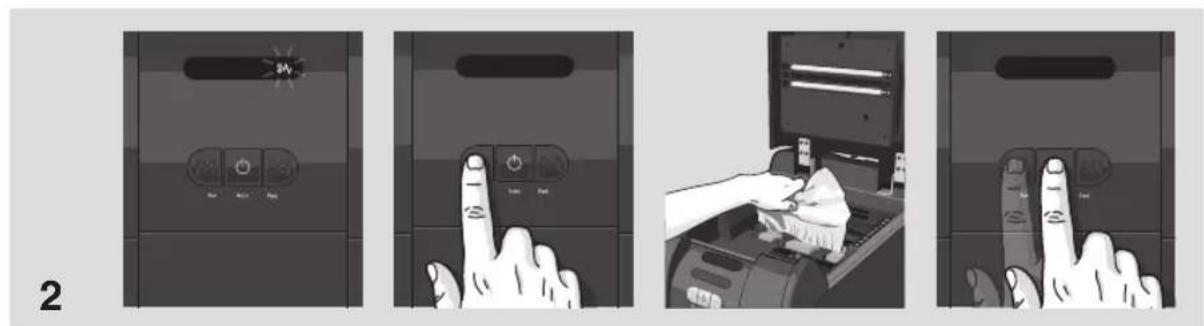

1 Should you wish to reverse paper out whilst shredding, a reverse button ( ) has been tted for your convenience. 2 Reverse the paper out then turn the machine o using the ON/OFF switch at the rear of the shredder. Remove the paper from the manual feed slot (if being used) or open the loading door, remove the remaining stack of paper, then pull the jammed paper free of the cutting mechanism. 3 To resume shredding, turn the shredder on using the ON/OFF switch at the rear of the shredder. Return the switch to the auto position (

SHREDDERS 11 Rexel encourages customers to recycle shredded paper. Please note that shredded paper cannot be recycled if mixed with credit card shards. If recycling, please separate shredded paper and credit cards.

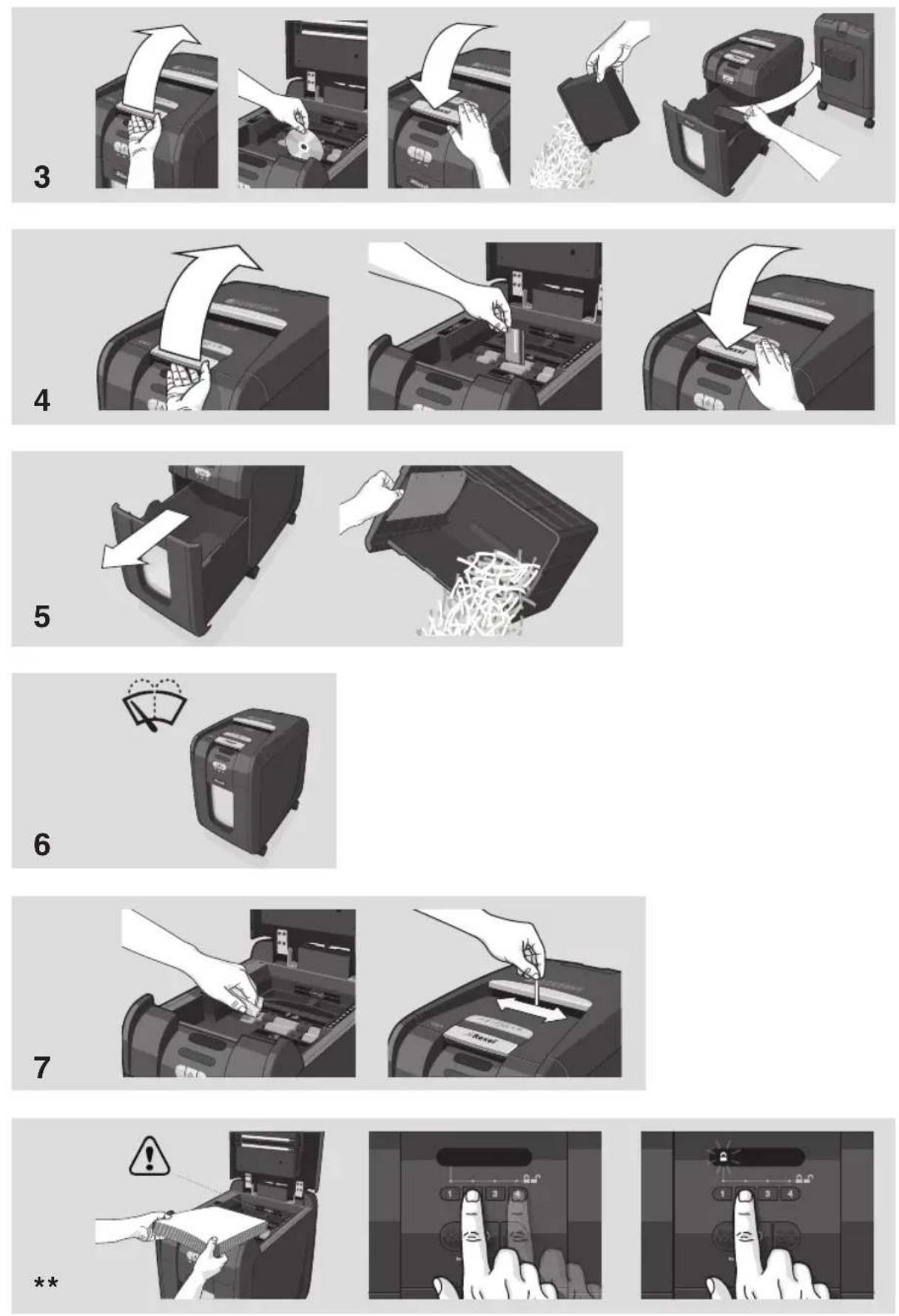

The shredder will not function when the bin is full and the bin full symbol ( ) is illuminated. You should empty the bin.

• Pull open the bin slowly to empty.

• Push the empty bin back into place and press the auto button to resume shredding. over heating If the Auto+ 200X & 200XL is used continuously for over 10 minutes the shredder may overheat and the cool down indicator will ash red ( ). Please allow the shredder to cool down. When the shredder is ready to be used the thermometer symbol will no longer illuminate. If the shredder needs to cool down while shredding, no action is needed. The shredder will automatically restart shredding paper once it has cooled down after periods of continuous use. All you need to do is ensure paper is loaded into the chamber and the bin is empty when the machine is cooling down.

6. self-cleaning cutters

After emptying and replacing a full bin, the shredder will run in forward for 4 seconds, stop for 2 seconds and then reverse for 4 seconds to clear away any remaining paper from the cutter mechanism. This unique ‘self-cleaning’ mechanism is additional jam prevention technology from Rexel.

A separate CD/DVD tray is provided to collect the shredded CD/DVD shards, ensure that this is correctly mounted onto the bin before shredding. 1 Lift up the paper loading door. 2 Always insert CDs/DVDs in the CD/DVD slot. Only shred one CD/DVD at a time. 3 Close the paper loading door. 4 Empty the CD/DVD bin after 8 CDs/DVDs to avoid waste spilling over into the paper waste bin. 5 Remove the CD/DVD tray before recommencing to shred paper.

4. credit card shredding

1 Lift up the paper loading door. 2 Insert the credit card into the roller as shown. Only shred one credit card at a time. 3 Close the paper loading door.GB 12 register this product online at www.accobrands.com shredder accessories We recommend that a paper waste sack for recycling shredded paper is used on all models. Accessory Part Number Box Quantity Recycling Waste Sack Plastic Waste Sack Oil Sheets 1765031EU

lubrication of the shredder Only use Rexel Oil Sheets (2101948 & 2101949) to lubricate. ACCO Brands Europe accepts no liability for product performance or safety when other types or brands of lubricants are used on any part(s) of this machine. Rexel recommend using an oil sheet after the bin has been emptied three times (and for on-going three bin cycle thereafter). Insert the oil sheet into the manual feed slot and NOT in the auto-feed chamber. Using an oil sheet in the auto-feed chamber will contaminate the feed rollers preventing the auto-feed mechanism shredding. Follow the maintenance instructions if the rollers become contaminated.

The rollers on the auto-feed mechanism may become dirty over time, please wipe clean with a dry cloth to maintain maximum product performance. The auto-start infra-red sensor, located in the paper feed entry-slot, can occasionally become covered in paper-dust causing the shredder to run despite no paper being fed into the machine. Switch the shredder o at the rear of the machine and carefully clean the sensor using a cotton- swab. service We recommend these machines are serviced every 6 to 12 months by a Rexel service engineer – see back of this booklet for the contact details of your local service centre and for enquiries about maintenance contracts.GB

SHREDDERS 13 guarantee ACCO Brands Europe (ACCO) warrants its products and their parts against defects in materials and workmanship under normal use for a period of 24 months from the original date of purchase. During this period we will repair or replace a defective product or part subject to the following warranty conditions: The warranty applies only to defects in materials and workmanship under normal use and does not extend to damage to the Product or parts which result from:- - alteration, repair, modication or service carried out by anyone other than an authorised ACCO service centre. - accident, neglect, abuse or misuse owing to failure to comply with the normal operating procedures for a product of this type. Depending on the diagnostics and the model type, we will either arrange a service call by an engineer or arrange with you return of the product to ACCO. ACCO will, at its discretion, in accordance with law, either - repair the shredder using either new or refurbished parts, or - replace the shredder with a new or refurbished shredder that is equivalent to the shredder being replaced. Nothing in this Warranty shall have the eect of excluding the liability of ACCO in respect of death and personal injury caused by the negligence of ACCO. This Warranty is oered (subject to these terms and conditions) in addition to, and does not aect, your statutory rights. If you experience a technical fault, please contact the ACCO customer helpdesk (see back cover) Additional Guarantee ACCO Brands Europe guarantees the cutting blades of the shredder to be free from defects in material and workmanship for 10 years from the date of purchase by the original consumer. *Please note that the cutter blades will be progressively worn down by shredding fastened sheets (staples and paperclips) - this is not covered in the warranty. The Auto+ 200X/200XL has been design to shred up to 50 credit cards in the standard 2 year warranty period. Any excessive credit card shredding will invalidate the extended cutter warranty. These conditions shall in all respects be governed and construed in accordance with English Law and subject to the exclusive jurisdiction of the English Courts. Australian Customers This guarantee does not apply to Australian customers. See warranty on page 144. Sheet capacity: Manual feed slot 7 sheets (80gsm) Sheet capacity: Autofeed chamber 200 sheets (80gsm) Duty Cycle 10 min ON / 40 min OFF Run time from cold 14 minutes Volts / Hz 230V / 50Hz Amperage 1.2 Amps Motor Watts 270 Watts technical specifications Rexel Auto+ 200X/200XL14 enregistrez ce produit en ligne à www.accoeurope.com

warranty (in Australia) ACCO Australia warrants its products and their parts against defects in materials and workmanship under normal use for a period of 24 months from the original date of purchase (please retain proof of purchase). During this period we will repair or replace a defective product or part subject to the following warranty conditions: The warranty applies only to defects in materials and workmanship under normal use and does not extend to damage to the Product or parts which result from:-

• Alteration, repair, modication or service carried out by anyone other than an authorised ACCO service centre.

• Accident, neglect, abuse or misuse owing to failure to comply with the normal operating procedures for a product of this type. Nothing in this warranty shall have the eect of excluding the liability of ACCO in respect of death and personal injury caused by the negligence of ACCO. This Warranty is oered (subject to these terms and conditions) in addition to, and does not aect your rights and remedies under the Australian Consumer Law and other laws. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. For any questions relating to your warranty, please contact your local service agent. Additional Guarantee ACCO Australia guarantees the cutting blades of the shredder to be free from defects in material and workmanship for an extended warranty period from the date of purchase by the original consumer. Please refer to the table below for the cutter warranty period applicable to your shredder model. Shredder Models Extended Cutter Warranty Period Style, Style+, V35WS, V30WS, Alpha 3 Auto+50, Auto+60 5 Promax V65WS, Promax V60WS, Prostyle, Prostyle+, RES1223, REX1023, REM723, SC170, CC175, Auto+80

RDS2250, RDX1850, RDSM750, RDM1150, RDS2270, RDX2070, RDSM770, RDM1170, Auto+250, Auto+300, Auto+500, Auto+750, RLS32, RLX20, RLM11, RLSM9, RLWX19, RLWX30, RLWSFM9, RLWM26,

RLWX39, RLWS47, RLWX25, RLWS35

*Please note that the cutter blades will be progressively worn down by shredding fastened sheets (staples and paperclips)- this is not covered by this warranty. Excessive credit card and CD shredding will also invalidate the extended cutter warranty. Some shredder models are NOT designed to shred CDs. Any attempt to do so will invalidate the warranty. How to Make a Claim To make a claim under this warranty, contact the ACCO Australia Customer Service Team with your proof of original purchase handy: ACCO Australia Level 2, 8 Lord St Botany NSW 2019 Ph: 1300 366 376 E: [e-mail] F: 1300 360 944 The customer service team member will advise whether your product should be repaired, replaced or returned and advise the next step for you to take. If the product is validated as still under warranty and deemed faulty, ACCO will bear costs involved with the warranty process. To claim expenses incurred in making a claim under this warranty, contact our Customer Service Team on the details above.www.accobrands.com
