USER MANUAL DesignMax DM2CLP BOSE

Two black electronic devices with perforated lids: a circular base and a grid-patterned cover (no visible text or symbols)

DesignMax DM2C-LP

In-ceiling Loudspeaker

Installation Guide....2

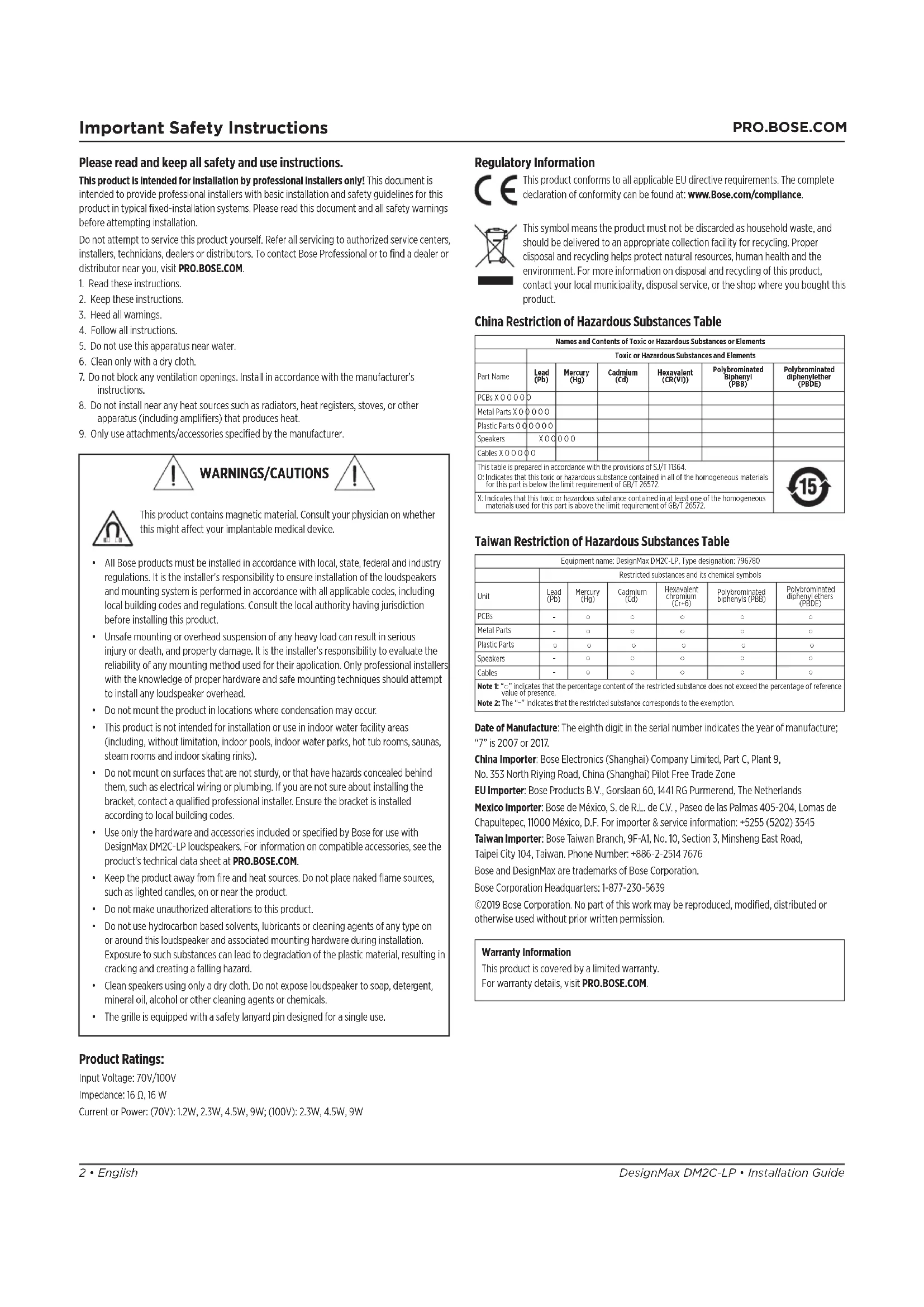

Please read and keep all safety and use instructions.

This product is intended for installation by professional installers only! This document is intended to provide professional installers with basic installation and safety guidelines for this product in typical fixed-installation systems. Please read this document and all safety warnings before attempting installation.

Do not attempt to service this product yourself. Refer all servicing to authorized service centers, installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or distributor near you, visit PRO.BOSE.COM.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produces heat.
9. Only use attachments/accessories specified by the manufacturer.

WARNINGS/CAUTIONS

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• All Bose products must be installed in accordance with local, state, federal and industry regulations. It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.
• Unsafe mounting or overhead suspension of any heavy load can result in serious injury or death, and property damage. It is the installer's responsibility to evaluate the reliability of any mounting method used for their application. Only professional installers with the knowledge of proper hardware and safe mounting techniques should attempt to install any loudspeaker overhead.
• Do not mount the product in locations where condensation may occur.
• This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).
• Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.
• Use only the hardware and accessories included or specified by Bose for use with DesignMax DM2C-LP loudspeakers. For information on compatible accessories, see the product's technical data sheet at PRO.BOSE.COM.
• Keep the product away from fire and heat sources. Do not place naked flame sources, such as lighted candles, on or near the product.
• Do not make unauthorized alterations to this product.
• Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around this loudspeaker and associated mounting hardware during installation. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.
• Clean speakers using only a dry cloth. Do not expose loudspeaker to soap, detergent, mineral oil, alcohol or other cleaning agents or chemicals.
  • The grille is equipped with a safety lanyard pin designed for a single use.

Regulatory Information

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X 0 0 0 0 0	0
Metal Parts X 0 0 0 0 0
Plastic Parts 0 0 0 0 0
Speakers	X 0 0 0 0 0
Cables X 0 0 0 0 0
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: DesignMax DM2C-LP, Type designation: 796780
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PSB)	Polybrominated diphenyl ethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "7" is 2007 or 2017.

China Importer: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EU Importer: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

Mexico Importer: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. For importer & service information: [phone]

Taiwan Importer: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose and DesignMax are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2019 Bose Corporation. No part of this work may be reproduced, modified, distributed or otherwise used without prior written permission.

Warranty Information

This product is covered by a limited warranty.

For warranty details, visit PRO.BOSE.COM.

Product Ratings:

Input Voltage: 70V/100V

Impedance: 16 Ω, 16 W

Current or Power: (70V): 1.2W, 2.3W, 4.5W, 9W; (100V): 2.3W, 4.5W, 9W

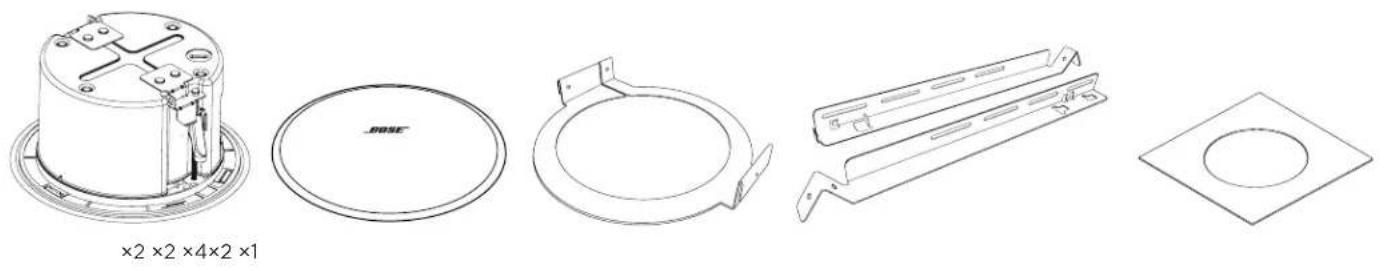

Package Contents

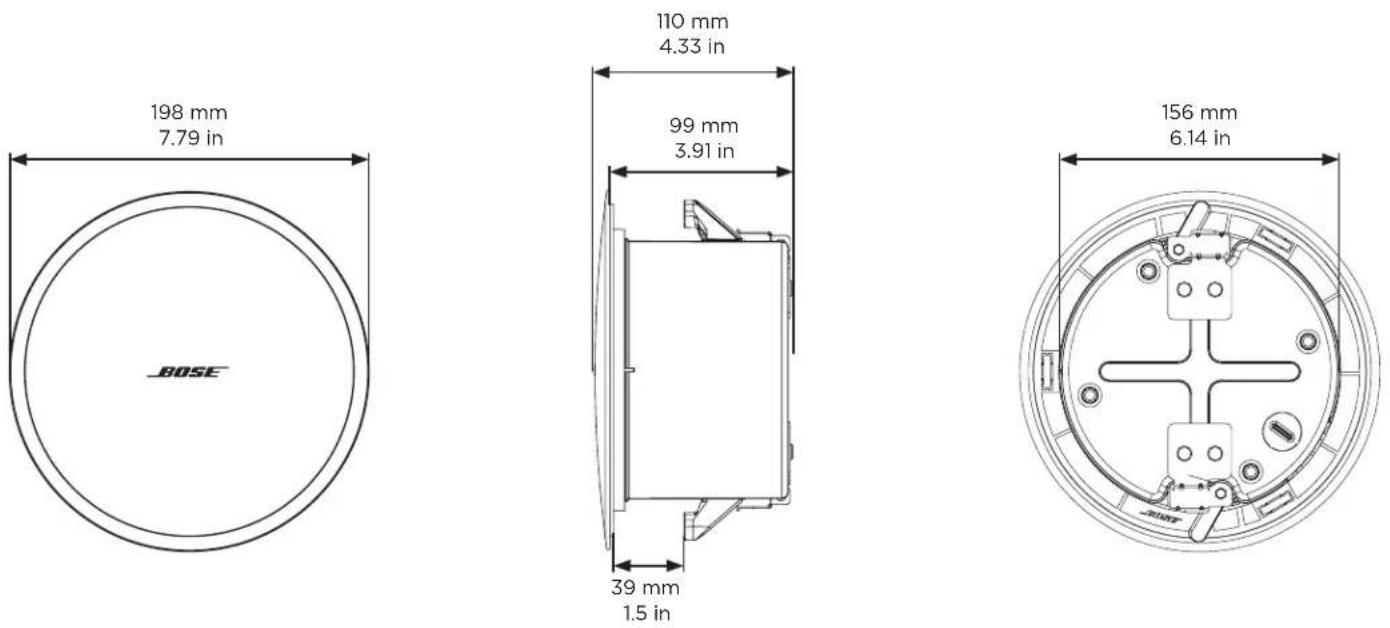

Product Dimensions

Technical Specifications

For additional specifications, see the DesignMax DM2C-LP technical data sheet at PRO.BOSE.COM.

Physical

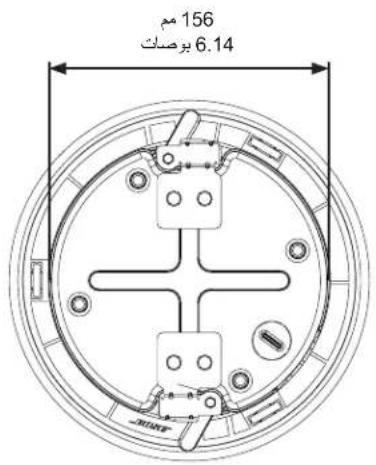

Product Dimensions Grille diameter: 198 mm (7.79 in)
	Enclosure diameter: 156 mm (6.14 in)
	Backcan depth: 99 mm (3.91 in)
Hole cutout 165 mm (6.5 in)
Maximum Ceiling Thickness	39 mm (1.5 in)
Net Weight, Loudspeaker with grille (single)	1.63 kg (3.6 lb)
Net Weight, Tile Bridge (single)	0.72 kg (1.6 lb)
Shipping Weight (pair)	5.99 kg (13.2 lb)

Important Installation Information

It is the installer's responsibility to ensure installation of the loudspeakers and mounting system is performed in accordance with all applicable codes, including local building codes and regulations. Consult the local authority having jurisdiction before installing this product.

It is the responsibility of the installer to ensure the safety of the loudspeaker installation. Failure to properly install the loudspeaker could result in damage, injury, or death.

Do not mount the product in locations where condensation may occur.

This product is not intended for installation or use in indoor water facility areas (including, without limitation, indoor pools, indoor water parks, hot tub rooms, saunas, steam rooms and indoor skating rinks).

Do not mount on surfaces that are not sturdy, or that have hazards concealed behind them, such as electrical wiring or plumbing. If you are not sure about installing the bracket, contact a qualified professional installer. Ensure the bracket is installed according to local building codes.

Do not use hydrocarbon based solvents, lubricants or cleaning agents of any type on or around this loudspeaker and associated mounting hardware during installation. Exposure to such substances can lead to degradation of the plastic material, resulting in cracking and creating a falling hazard.

Installation Options

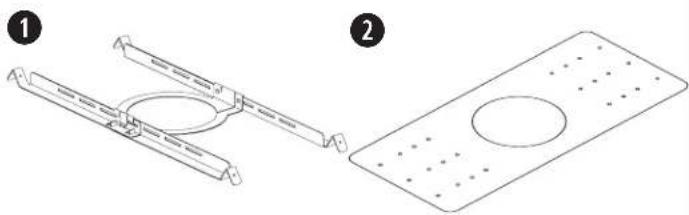

Installation Options and Accessories

① Adjustable Tile Bridge (included)
② Rough-in Pan (optional)

Technical line drawings of two mechanical components: a bracket with circular cutout and a plate with holes (no text or symbols)

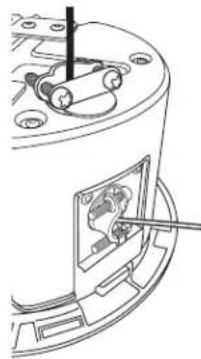

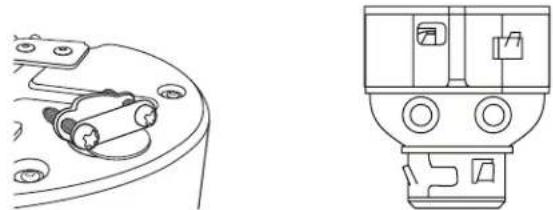

Conduit Fitting

If using a flexible metal conduit, use with a 38 -inch conduit fitting or a 38 -inch dual (duplex) connector.

Note: Conduit fittings are not provided.

Technical line drawing of a mechanical component with mounting holes and internal components (no text or symbols)

38 -inch single in 38 -inch duplex in/loop

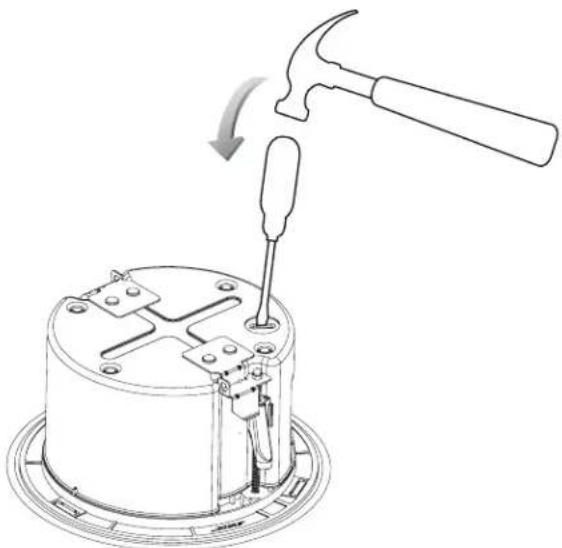

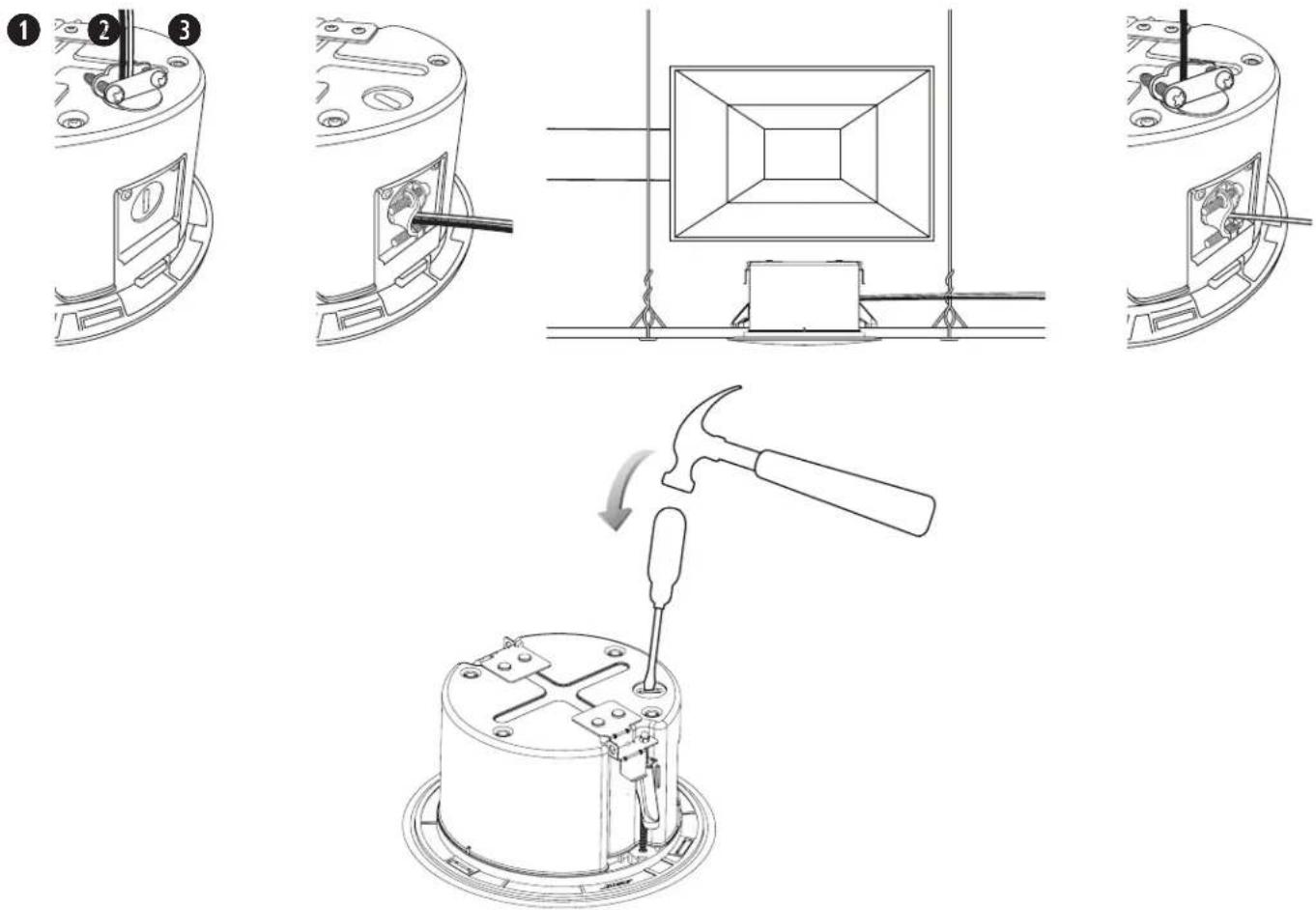

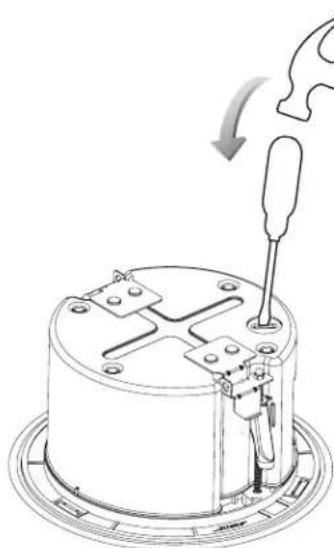

Choosing an Installation Method

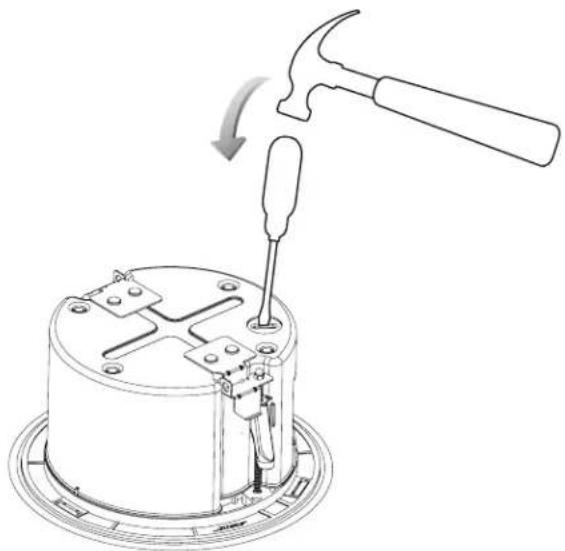

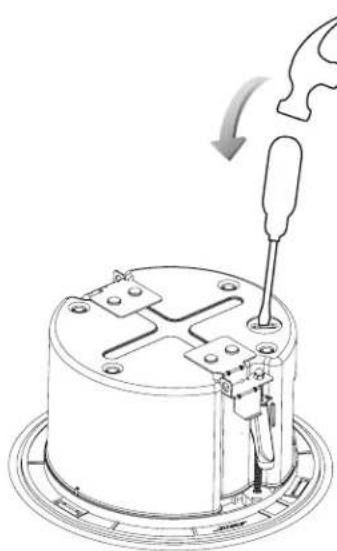

① Top Knockout

Use the top knockout when there is available space above the ceiling.

② Side Knockout

Use the side knockout when there is limited space above the ceiling.

③ Both Knockouts

Use both knockouts when an independent signal-in and signal-out wiring scheme is required and there is available space above the ceiling.

Technical diagram illustrating the step-by-step installation of a mechanical component, showing steps from pinning to hammering.

Wiring the Loudspeaker

Wire Gauge

The DesignMax DM2C-LP loudspeaker is designed to work with 18 AWG (0.8 mm²) to 14 AWG (2.1 mm²) size wire only.

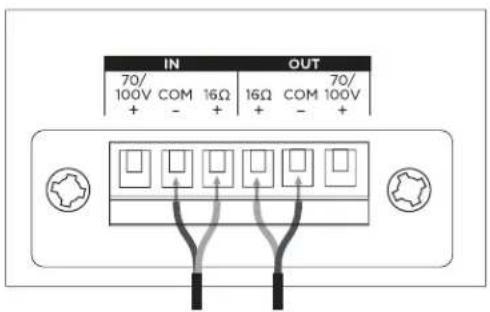

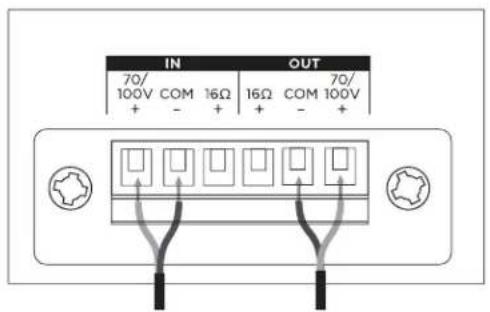

Connection Diagrams

Expose six millimeters (¼ inch) of bare wire to attach to the terminals.

IN 70/ 100V COM 16Ω 16Ω COM 100V + - + + - + OUT 70/

70V/100V 16Ω

IN 70/ 100V COM 16Ω 16Ω COM 70/ + - + + - + OUT

Loudspeaker Settings

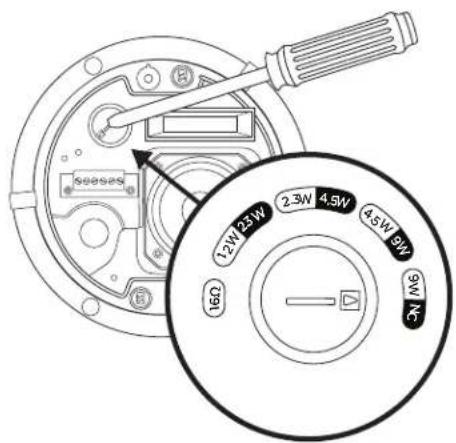

Transformer Tap Setting

Set tap by turning. Use a flat head screwdriver.

Preparing the Installation

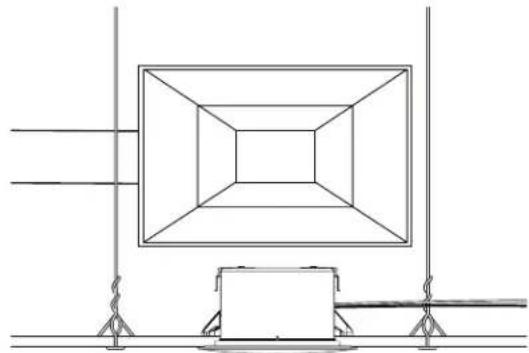

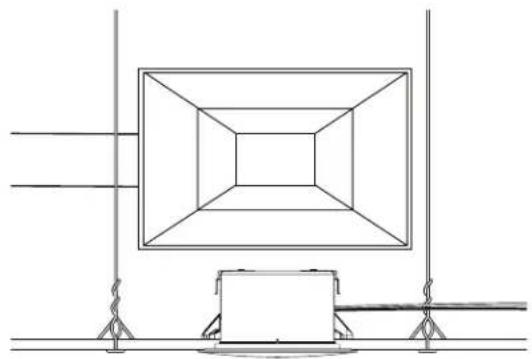

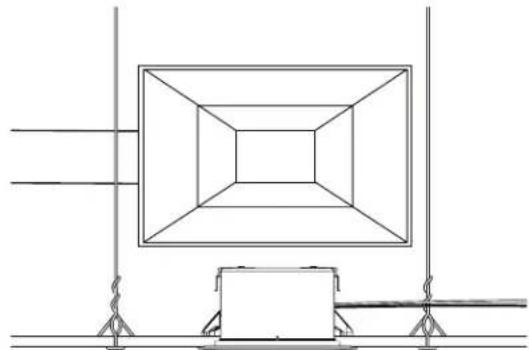

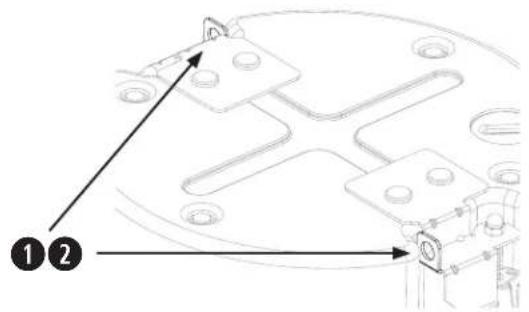

Using a Safety Cable

Some regional construction codes require the use of a secondary method of securing loudspeakers to support structures to provide additional safety. Choose a mounting position, method, and hardware consistent with local building codes and regulations.

Bose recommends using (1) a safety wire or (2) a safety cable as a secondary securing mechanism. See the diagrams below for safety attachment points.

Follow the manufacturer's instructions for any secondary securing mechanism implemented.

Technical diagram showing mechanical components with numbered annotations pointing to features

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

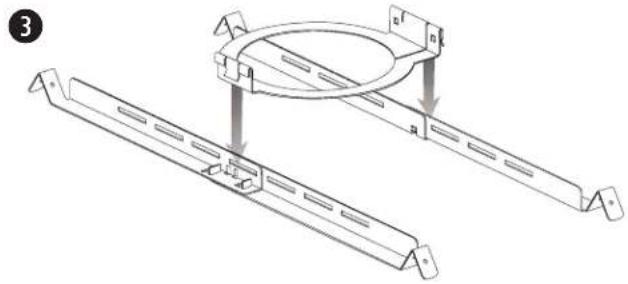

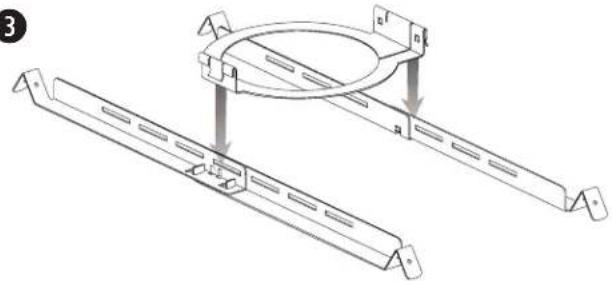

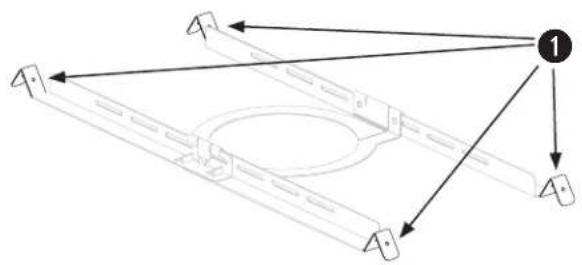

Assembling the Tile Bridge

Note: If you are installing in a hard ceiling, assemble the tile bridge after inserting the rails and ring through the hole cutout (see page 7).

1. Align the rails and insert the tabs into the slots.
2. Pull the rails outward to secure them together.

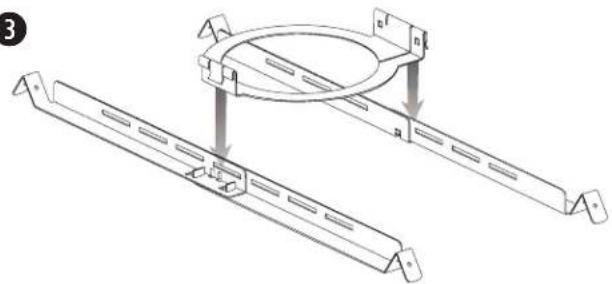

3. Align the rails parallel to each other and press the tile bridge ring down to secure the ring to the rails.

1

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

2

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

3

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

Note: Installation in close proximity to cooking surfaces where the loudspeaker may be directly exposed to cooking oils, such as in commercial cooking environments, may decrease the performance or functionality of the loudspeaker.

Preparing Acoustic Ceiling Tile

Cutting the Ceiling Tile

1. Remove the tile and use the template to trace a loudspeaker hole onto the tile. To center the template on the tile, draw an X by connecting the corners diagonally and center the template using the crossing point.
2. Cut a hole into the tile.

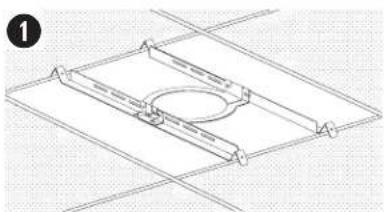

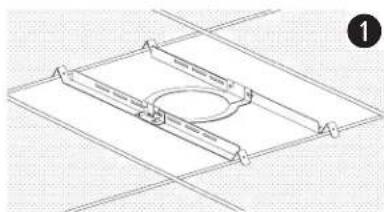

Installing the Tile Bridge

1. Place the assembled tile bridge across the ceiling grid. If necessary, adjust the tile bridge so the rails rest on the ceiling grid.
2. Replace the tile in the ceiling.

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a crosshairs (no text or symbols)

2

Simple line drawing of a hand holding a pipette above a square base with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing two hands interacting with a large rectangular object, one open and one raised, with no visible text or symbols.

Preparing Hard Ceiling (Existing Construction)

Cutting the Ceiling

1. Use the template to trace a hole onto the ceiling.
2. Cut a hole into the ceiling.

Simple line drawing of a hand holding a paper with a circle inside, placed on a table (no text or symbols)

Simple line drawing of a hand holding a pointer above a vertical axis, with no text or symbols present.

Installing the Tile Bridge

1. Insert the tile bridge rails and ring through the hole and place the rails parallel to each other across the ceiling grid or ceiling furring.
2. Assemble the tile bridge.

Technical line drawing of a structural frame with supports and a central oval component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

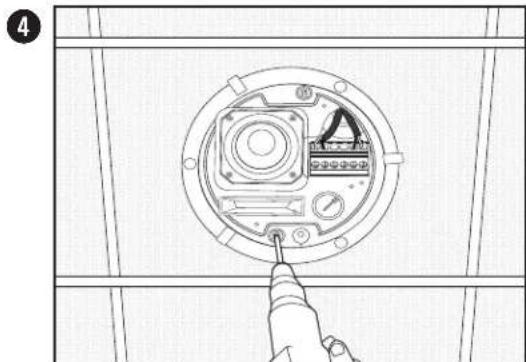

Mounting the Loudspeaker

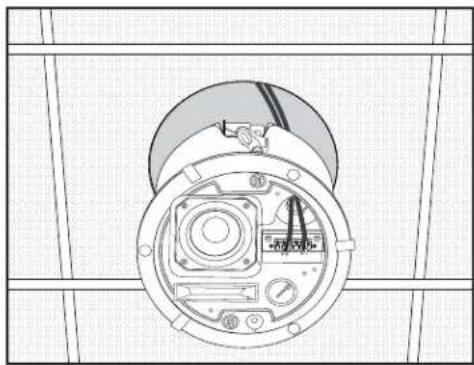

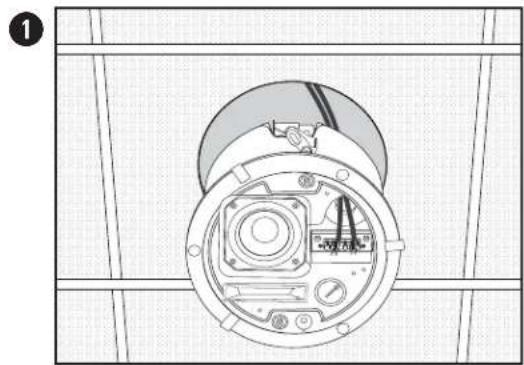

1. Pass the audio wire through the wire opening.

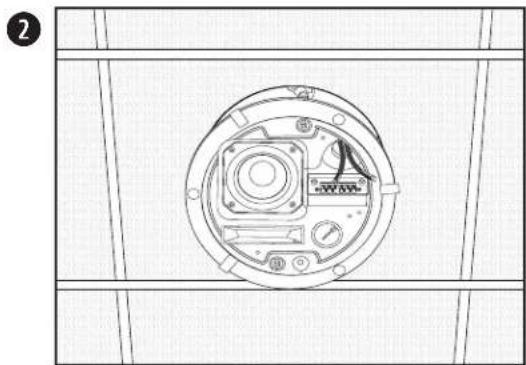

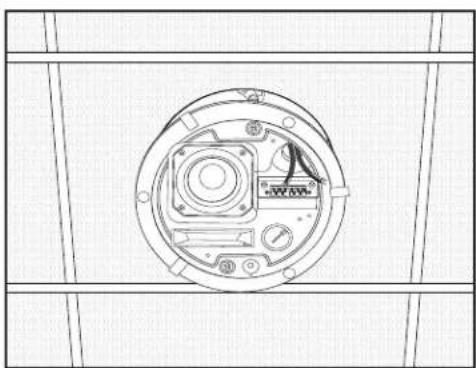

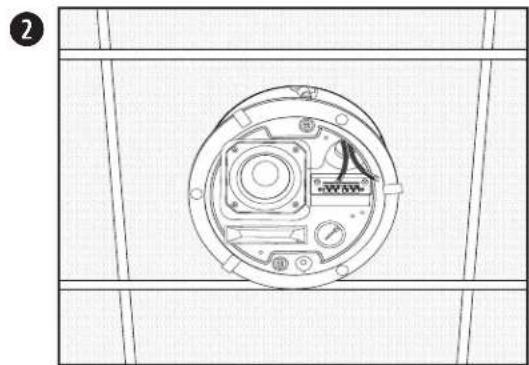

2. Insert the loudspeaker through the hole and into the tile bridge. Make sure the anchors engage on the tile bridge before loosening your grip on the loudspeaker.

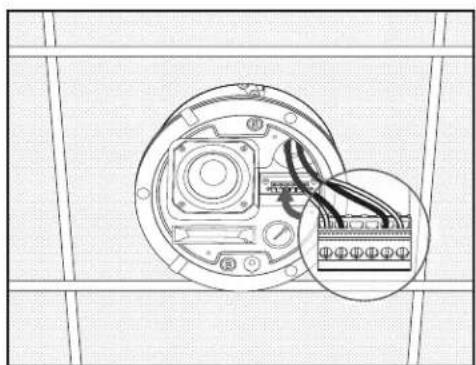

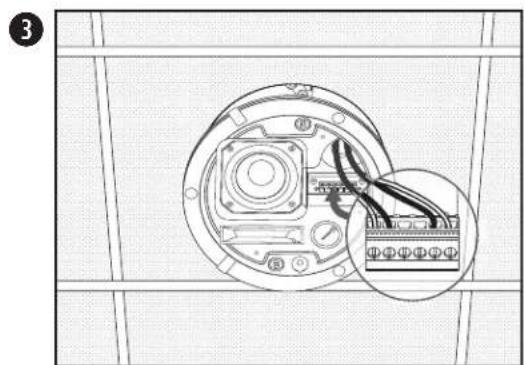

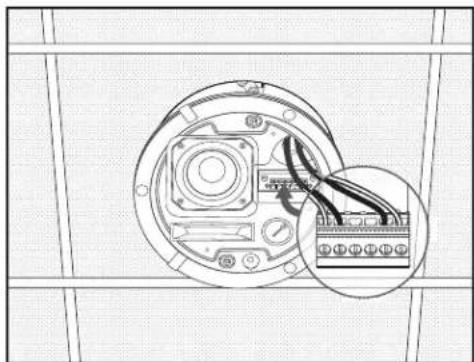

3. Remove the connector, wire the connector, and reinsert the connector into the loudspeaker. For wiring information, see Wiring the Loudspeaker on page 5.

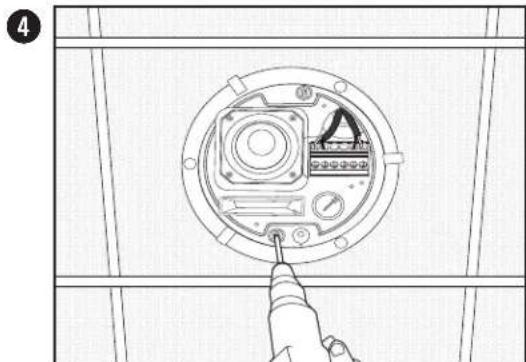

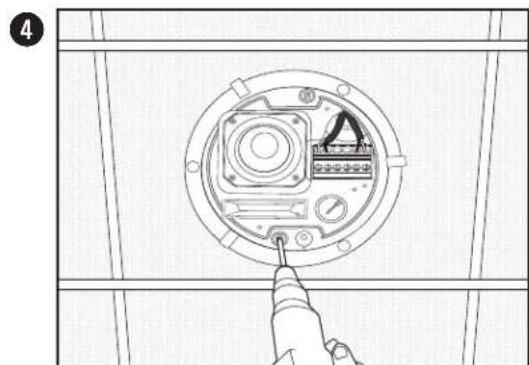

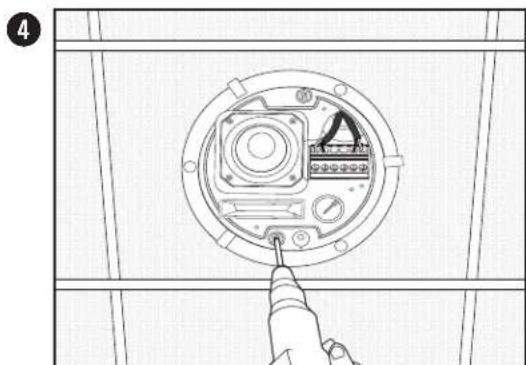

4. Tighten the anchor arm screws to secure the loudspeaker. If using a power drill, set to a low torque setting. WARNING: Over-tightening the screws may result in damage to the anchor attachment point or the ceiling, which could lead to a falling hazard.

Top-down diagram of a circular device with internal components and wiring, placed on a grid-patterned surface (no text or symbols)

Top-down schematic of a circular device with internal components, mounted on a grid background (no text or symbols)

Technical diagram showing a circular component inserted into a grid, with a magnified inset highlighting internal wiring (no text or symbols present)

Hand inserting a component into a circular housing panel (no text or symbols visible)

Installing in Hard Ceiling Using a Rough-in Pan (New Construction)

For information on installing a rough-in pan, see the DesignMax Rough-in Pan installation guide at PRO.BOSE.COM. Once the rough-in pan is installed, see Mounting the Loudspeaker on page 7.

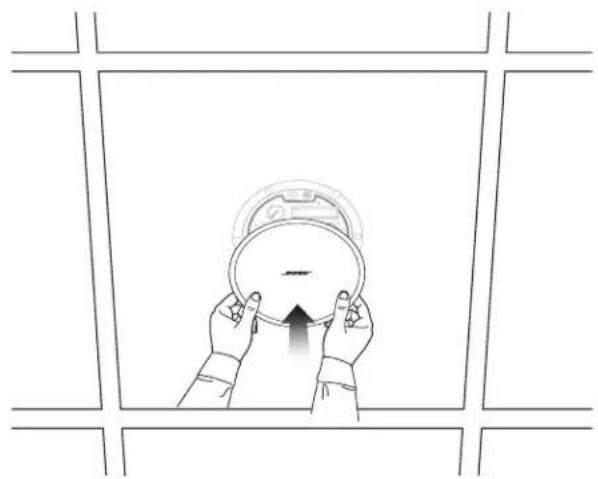

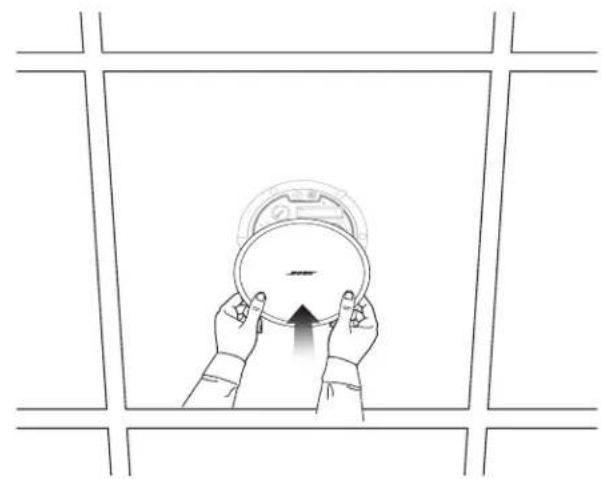

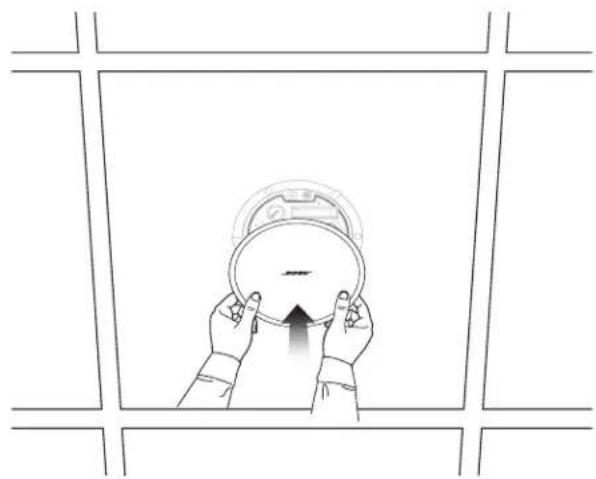

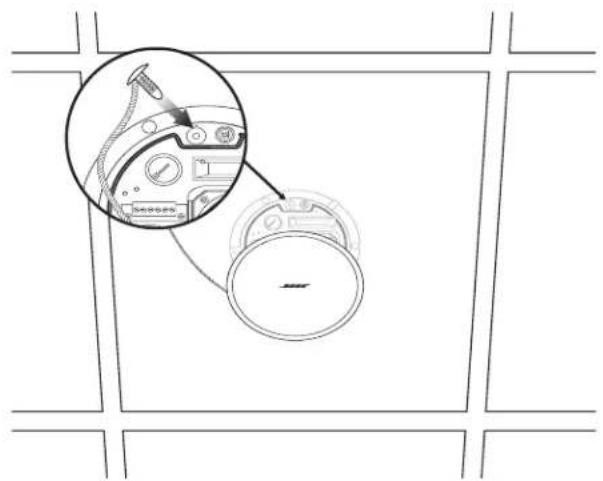

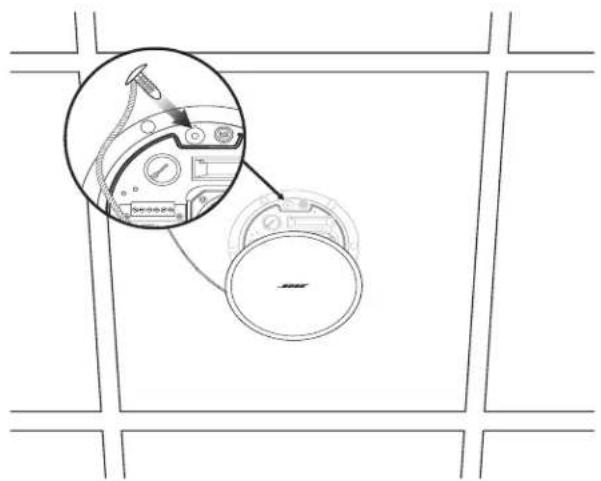

Attaching the Grille

Insert the safety lanyard pin into the hole in the loudspeaker. Using both hands, position the grille against the loudspeaker. The grille secures to the loudspeaker magnetically.

Technical diagram showing a device with a magnified inset highlighting internal components, including a tool and labeled parts.

Line drawing of two hands holding a circular object with an arrow, enclosed in a grid frame (no text or symbols)

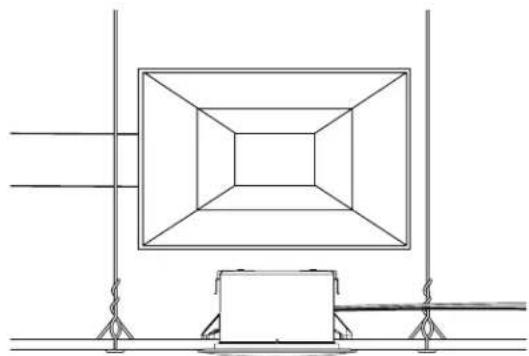

Safety and Regulatory Compliance

The Bose DesignMax DM2C-LP loudspeaker has passed testing and complies with the following specifications and uses:

Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89

UL-2043, 2013, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces. Suitable for use in air handling (plenum) spaces.

Suitable for installation using Class 1, Class 2, Class 3 wiring methods in accordance with NFPA 70, National Electrical Code, 2017, Article 640

NFPA 70, National Electrical Code, 2017, Article 300-22(c)

NFPA 90-A, 2015, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.11.2.6.5

The DesignMax DM2C-LP loudspeaker has been designed to the requirements defined in the following European regulatory specification for combination systems:

Tested to IEC60268-5, 2007

Technical line drawings of two mechanical components: a bracket with circular cutout and a plate with holes (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Pure architectural line drawing of a rectangular structure with diagonal divisions and support beams, no text or symbols present

Technical line drawing of a mechanical component with internal wiring and a cable inserted (no text or symbols)

Technical line drawing of a hammer striking a cylindrical mechanical component with a screwdriver (no text or symbols)

70 V 1.2 W 2.3 W 4.5 W 9 V* 2.3 W 4.5 W 9 W NC** 100 V 16 Ω

** NC: Sin conexión (no utilizar)* Predeter

Technical diagram showing mechanical components with numbered annotations pointing to features

Technical diagram of a mechanical frame with directional arrows and labeled point (1), no text or symbols present.

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

2

Pure diagram of a mechanical component with directional arrows, no text or symbols present

3

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a cross (no text or symbols)

2

Simple line drawing of a hand holding a tool above a square with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Diagram showing two hands holding a large rectangular object with a circular hole and an upward arrow, enclosed in a frame (no text or symbols)

Two line drawings showing a hand holding a circular object, one with a magnifying glass, the other holding a pointer (no text or symbols)

Two technical diagrams showing structural components with circular holes, labeled 'q' and 'w', no text or symbols present.

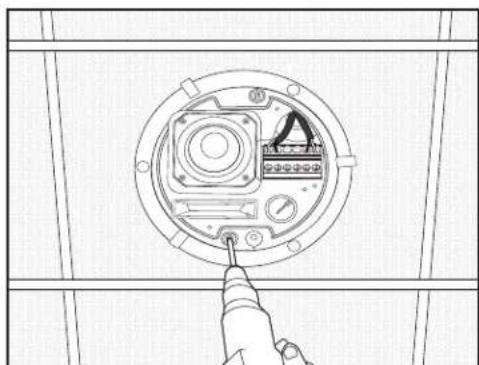

Montaje del altavoz

Top-down schematic of a mechanical device with internal components and wiring (no text or symbols)

W

Technical line drawing of a circular mechanical component with mounting holes and internal components (no text or symbols)

e

Technical line drawing of a mechanical component with a close-up inset showing wiring (no text or symbols)

Γ

Hand inserting a plug into a circular device component (no text or symbols visible)

Technical diagram showing a device with a magnified inset highlighting internal components, including a labeled component and a circular dial.

Line drawing of hands holding a circular object with an arrow, enclosed in a rectangular frame (no text or symbols)

Technical line drawings of two mechanical components: a bracket with circular cutout and a rectangular plate with holes (no text or symbols)

Raccord de conduit

Line drawing of a mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical diagram illustrating the step-by-step installation of a mechanical component, showing steps from mounting to herring and fastening.

Technical diagram showing two labeled components (1 and 2) with directional arrows indicating movement or assembly.

Technical diagram of a mechanical frame structure with labeled components (no text or symbols)

Diagram of a mechanical assembly with two components and directional arrows, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a crosshairs (no text or symbols)

Simple line drawing of a hand holding a needle inserted into a square plate with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing two hands interacting with a large rectangular object, one open and one raised, with no visible text or symbols.

Simple line drawing of a hand holding a square object with a circle on top, placed on a flat surface (no text or symbols)

Simple line drawing of a hand holding a blank oval object above two perpendicular lines (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with no visible text or symbols

Top-down diagram of a circular device with internal components and wiring, placed on a grid-patterned surface (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and internal components, mounted on a grid-patterned surface (no text or symbols)

Technical diagram of a circular electronic component with internal wiring, no text or symbols present

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to it.

Diagram showing a device with a magnified inset highlighting a component labeled '防爆报警设备' (protection device).

Line drawing of hands holding a circular object with an arrow, enclosed in a rectangular frame (no text or symbols)

NFPA 70, National Electrical Code, 2017, Article 300-22(c)

Importeur aus China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Technical line drawings of two mechanical components: a bracket with circular cutout and a plate with holes (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Pure architectural line drawing of a rectangular structure with diagonal divisions and support beams, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and screwdriver (no text or symbols)

Technical diagram showing mechanical components with numbered annotations pointing to features

Technical diagram of a mechanical frame assembly with labeled components (no text or symbols present)

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

2

Pure diagram of a mechanical component with directional arrows, no text or symbols present

3

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a square (no text or symbols)

2

Simple line drawing of a hand holding a tool above a square with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Diagram showing two hands holding a large rectangular object with a circular hole and an upward arrow, enclosed in a frame (no text or symbols)

Simple line drawing of a hand holding a square with a circle on top, placed on a table (no text or symbols)

Simple line drawing of a hand holding a pointer above a 3D coordinate axis, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with no visible text or symbols

Top-down schematic of a mechanical device with internal components and wiring, no visible text or symbols

Technical line drawing of a circular mechanical component with internal components, mounted on a grid-patterned surface (no text or symbols)

Technical diagram showing a circular component inserted into a connector with wires, no text or symbols present

Hand inserting a component into a circular housing panel (no text or symbols visible)

Diagram showing a device with labeled ports and a magnified inset highlighting a specific component.

Line drawing of hands holding a circular gauge or dial with an upward arrow, framed by a grid (no text or symbols)

NFPA 70, National Electrical Code, 2017, Article 300-22(c)

NFPA 90-A, 2015, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.11.2.6.5

www.Bose.com/compliance.

Importatore per la Cina: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importatore per l'UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Paesi Bassi

Technical line drawings of two mechanical components: a bracket with circular cutout and a plate with holes (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Ingresso duplex/ad anello da 9,5 mm

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Pure architectural or engineering diagram showing a rectangular structure with internal divisions and support beams (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with a tool and screwdriver (no text or symbols)

Technical diagram showing mechanical components with numbered annotations pointing to features

Diagram of a mechanical assembly with two components and directional arrows, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a crosshairs (no text or symbols)

Simple line drawing of a hand holding a needle inserted into a square plate with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Illustration of two hands holding a tilted rectangular object with a circular hole and an upward arrow, no text or symbols present.

Simple line drawing of a hand holding a paper with a circle inside, placed on a table (no text or symbols)

Simple line drawing of a hand holding a pointer above a vertical axis, with no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with no visible text or symbols

Top-down schematic of a mechanical device with internal components and wiring, no visible text or symbols

Technical line drawing of a circular mechanical component with internal components, mounted on a grid-patterned surface (no text or symbols)

Technical diagram showing a circular component inserted into a connector with wires, no text or symbols present

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to the component.

Diagram showing a device with a magnified inset highlighting a component labeled '防爆报警设备' (protection device).

Line drawing of hands holding a circular object with an arrow, enclosed in a rectangular frame (no text or symbols)

Importeur in China: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importeur in de EU: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Nederland

Importeur in Mexico: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F. Gegevens importeur en service-informatie: [phone]

Importeur in Taiwan: Bose Taiwan Branch, 9F-A1, No.10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Telefoonnummer: [phone]

Technical line drawings of two mechanical components: a bracket with circular cutout and a plate with holes (no text or symbols)

Geleiding

Technical line drawing of a mechanical component with mounting holes and a top view showing internal components (no text or symbols)

^3/6 -inch enkel in ^3/6 -inch duplex in/lus

Technical diagram illustrating the step-by-step installation of a mechanical component, showing steps from pinning to hammering.

De luidspreker bekabelen

Bekabelingsdiameter

Technical diagram showing mechanical components with numbered annotations pointing to features

Diagram of a mechanical frame with directional arrows and a numbered point (1), no text or symbols present.

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

2

Pure diagram of a mechanical component with directional arrows, no text or symbols present

3

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

Two geometric diagrams showing a hand drawing on a square plane and a circle inscribed in a larger square (no text or symbols)

2

Simple line drawing of a hand holding a tool above a square with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Diagram showing two hands holding a large rectangular object with a circular hole and an upward arrow, enclosed in a frame (no text or symbols)

Simple line drawing of a hand holding a paper with a circle inside, placed on a table (no text or symbols)

Simple line drawing of a hand holding a pointer above a vertical axis, with no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

Top-down schematic of a mechanical device with internal components and wiring, no visible text or symbols

Technical line drawing of a circular mechanical component with internal components, mounted on a grid-patterned surface (no text or symbols)

Technical diagram showing a circular component inserted into a connector with wires, no text or symbols present

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to the component.

Technical diagram showing a device with a magnified inset highlighting internal components, including a tool and labeled parts.

Line drawing of hands holding a circular object with an arrow, enclosed in a grid frame (no text or symbols)

ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use

General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89

UL-2043, 2013, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces, geschikt voor gebruik in luchtbehandelingsruimten.

NFPA 90-A, 2015, Installation of Air Conditioning and Ventilation Systems, Paragraph 4.3.11.2.6.5

Technical line drawings of two mechanical components: a bracket with circular cutout and a rectangular plate with holes (no text or symbols)

Rørforbindelse

Line drawing of a mechanical component with no visible text or symbols

^3/_8 -tommers enkel inngang

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

^3/_0 -tommers dobbel inngang / sløyfe

Technical diagram illustrating the step-by-step installation of a mechanical component, showing steps from mounting to herring and fastening.

Kable høyttaleren

Kabeldiameter

Technical diagram showing mechanical components with numbered annotations pointing to specific parts

Pure technical diagram of a mechanical frame structure with no text, numbers, or symbols

Sette sammen monteringsbroen

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

2

Pure diagram of a mechanical component with directional arrows, no text or symbols present

3

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a crosshairs (no text or symbols)

2

Simple line drawing of a hand holding a pipette above a square base with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing two hands interacting with a large rectangular object, one open and one raised, with no visible text or symbols.

Simple line drawing of a hand holding a square object with a circle on top, placed on a flat surface (no text or symbols)

Simple line drawing of a hand holding a pointer above a 3D coordinate axis, no text or symbols present

Installere monteringsbroen

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with two circular components mounted on metal supports (no text or symbols)

Montere høyttaleren

Top-down diagram of a circular device with internal components and wiring, placed on a grid-patterned surface (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and internal components, mounted on a grid-patterned surface (no text or symbols)

Technical diagram of a circular electronic component with internal wiring, no text or symbols present

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to it.

Technical diagram showing a device with a magnified inset highlighting internal components, likely for assembly or maintenance instructions.

Line drawing of two hands holding a circular object with an arrow, enclosed in a grid frame (no text or symbols)

Importer na terenie Chin: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

Importer na terenie UE: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, Holandia

Technical line drawings of two mechanical components: a bracket with circular cutout and a rectangular plate with holes (no text or symbols)

Przepust kablowy

Line drawing of a mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Technical diagram illustrating a mechanical assembly process with numbered steps and a hammer tool for tooling a component.

Technical diagram showing mechanical components with numbered annotations pointing to features

Technical line drawing of a mechanical frame assembly with labeled components (no text or symbols)

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

2

Pure diagram of a mechanical component with directional arrows, no text or symbols present

3

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a square (no text or symbols)

2

Simple line drawing of a hand holding a tool above a square with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Diagram showing two hands interacting with a large panel and a circle, with an upward arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a paper with a circle inside, placed on a table (no text or symbols)

Simple line drawing of a hand holding a pointer above a vertical axis, with no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with two circular components mounted on metal supports (no text or symbols)

Montaż głośnika

Top-down diagram of a circular device with internal components, placed on a grid-patterned surface (no text or symbols)

Top-down schematic of a circular electronic device with labeled components, placed on a grid-patterned surface (no text or symbols)

Technical diagram showing a circular component inserted into a grid, with an inset close-up of its internal wiring (no text or symbols present)

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to the component.

Diagram showing two steps of a device operation: adding a component to a circular device, then adjusting a circular device with an upward arrow.

NFPA 70, National Electric Code, 2017, art. 300-22(c).

Technical line drawing of two mechanical components with a central circular feature (no text or symbols)

2

Simple line drawing of a rectangular plate with a circular hole and evenly spaced dots (no text or symbols)

导管配件

Pure mechanical component diagram without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

选择安装方法

① 顶部进线

Technical diagram of a mechanical component with numbered parts labeled 1, 2, and 3

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

Pure technical line drawing of a structural frame with supports and a central rectangular component (no text or symbols)

Technical line drawing of a mechanical component with a cable inserted into a housing (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and screwdriver (no text or symbols)

扬声器接线

线规

Technical diagram showing mechanical components with numbered annotations pointing to features

Diagram of a mechanical frame with directional arrows and a numbered label (1), no text or symbols present.

组装桥板

Diagram of a mechanical assembly with two components and directional arrows, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a cross (no text or symbols)

Simple line drawing of a hand holding a tool above a circular hole on a square base (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Illustration of two hands holding a square frame with a circle and an upward arrow, no text or symbols present.

准备硬顶天花板（现有结构）

切割天花板

Simple line drawing of a hand holding a paper with a circle on top, placed on a table (no text or symbols)

Simple line drawing of a stick figure holding a pointer above a vertical axis, with no text or symbols present.

安装桥板

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with mounting brackets and a central circular component (no text or symbols)

安装扬声器

Top-down view of a circular electronic device with internal components and wiring, placed on a grid-patterned surface (no text or symbols visible)

Technical line drawing of a circular mechanical component with internal components, mounted on a grid background (no text or symbols)

Technical diagram showing a circular component inserted into a grid, with an inset close-up of its internal wiring (no text or symbols present)

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to the component.

Diagram showing a device with a magnified inset highlighting a component labeled '防爆报警器' (protection device).

Line drawing of hands holding a circular object with an arrow, enclosed in a grid frame (no text or symbols)

安全与法规遵从

Technical line drawings of two mechanical components: a bracket with circular cutout and a plate with holes (no text or symbols)

導管接頭

Technical line drawing of a mechanical component with no visible text or symbols

% 时單工連接器

3% 时雙工連接器/

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Loop 連接器

選擇安裝方法

① 頂部線孔

Technical diagram illustrating the step-by-step installation of a mechanical component, showing steps from pinning to tooling and assembly.

揚聲器接線

線規

Technical diagram showing mechanical components with numbered annotations pointing to features

Technical diagram of a mechanical assembly with labeled components and directional arrows (no text or symbols)

組裝天花板跨橋板

Diagram of a mechanical assembly with two components and directional arrows, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with two views (top and side), no text or symbols present

Line drawing of two geometric shapes with a hand holding a pencil, one containing a circle and the other a crosshairs (no text or symbols)

Simple line drawing of a hand holding a needle inserted into a square plate with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Diagram showing two hands holding a large rectangular object with a circular hole and an upward arrow, no text or symbols present.

硬式天花板（現有工程）準備工作

裁切天花板

Simple line drawing of a hand holding a circular object over a square, with no text or symbols present.

Simple line drawing of a hand holding a pointer above a vertical axis, with no text or symbols present.

安装天花板跨橋板

Technical line drawing of a structural frame with supports and a central oval component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

安裝揚聲器

Top-down diagram of a mechanical component with internal components and wiring, placed on a grid-patterned surface (no text or symbols)

Top-down schematic of a circular electronic device with internal components, mounted on a grid background (no text or symbols)

Technical diagram of a speaker component with wiring, showing internal components and connection (no text or symbols)

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to it.

Technical diagram showing a device with a magnified inset highlighting internal components, including a labeled component and a circular dial.

Line drawing of hands holding a circular object with an arrow, enclosed in a grid frame (no text or symbols)

安全與規章遵循

This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at: www.Bose.com/compliance.

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

中国における輸入元: Bose Electronics (Shanghai) Company Limited, Part C, Plant 9, No. 353 North Riying Road, China (Shanghai) Pilot Free Trade Zone

EUにおける輸入元: Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands

メキシコにおける輸入元: Bose de México, S. de R.L. de C.V., Paseo de las Palmas 405-204, Lomas de Chapultepec, 11000 México, D.F.輸入元およびサポート情報: [phone]

台湾における輸入元: Bose Taiwan Branch, 9F-A1, No. 10, Section 3, Minsheng East Road, Taipei City 104, Taiwan. Phone Number: [phone]

Bose Corporation: 1-877-230-5639

Technical line drawings of two mechanical components: a bracket with circular cutout and a plate with holes (no text or symbols)

導管器具の設置

Technical line drawing of a mechanical component with cylindrical parts and mounting holes (no text or symbols)

Technical diagram illustrating the step-by-step installation of a mechanical component, showing steps from mounting to hangering.

スピーカーの配線

ケーブルゲージ

Technical diagram showing mechanical components with numbered annotations pointing to features

Technical diagram of a mechanical frame assembly with labeled components (no text or symbols present)

タイルブリッジを組み立てる

Pure mechanical assembly diagram showing two components with arrows indicating direction (no text or symbols)

2

Pure technical diagram of a mechanical component with directional arrows, no text or symbols present

3

Technical line drawing of two metal frame assemblies with mounting brackets and a circular component (no text or symbols)

Line drawing of two geometric shapes with a central circle and crosshair, no text or symbols present

2

Simple line drawing of a hand holding a pipette above a square base with a circular hole (no text or symbols)

Pure technical line drawing of a mechanical component or bracket assembly without any text, numbers, or symbols

Illustration of two hands holding a large rectangular object with a circular hole and an upward arrow, no text or symbols present.

硬い天井にタイルブリッジを設置する

天井を切り抜く

Simple line drawing of a hand holding a circular object over a square, with no text or symbols present.

Simple line drawing of a hand holding a pointer above two lines, with no text or symbols present.

タイルブリッジを設置する

Technical line drawing of a structural frame with supports and a central oval component (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

スピーカーの取り付け

Top-down schematic of a mechanical device with internal components and wiring, mounted on a grid-patterned surface (no text or symbols)

Technical line drawing of a circular mechanical component with mounting holes and internal components, mounted on a grid-patterned surface (no text or symbols)

Technical diagram showing a component inserted into a housing panel with wiring (no text or symbols)

Diagram showing a hand inserting a component into a circular device with labeled parts and a pointer pointing to it.

Technical diagram showing a device with a magnified inset highlighting internal components, including a tool and labeled parts.

Line drawing of hands holding a circular object with an arrow, enclosed in a grid frame (no text or symbols)

安全上のコンプライアンス

Technical line drawing of two metal bracket components (no text or symbols)

Simple line drawing of a circular mechanical component with two side brackets (no text or symbols)

Technical line drawing of a cylindrical mechanical component with mounting holes and a central fastener (no text or symbols)

2×2×4×2×1×

أبعاد المنتج

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

8/3 بوصات، مزنوجة

Line drawing of a mechanical component with no visible text or symbols

8/3 Bosnia، فرنية

Technical line drawings of two mechanical components: a rectangular plate with circular holes and a multi-pronged clamp (no text or symbols)

Technical line drawing of a mechanical component with a highlighted section (no text or symbols)

3

Pure architectural line drawing of a rectangular structure with diagonal divisions and support beams, no text or symbols present

Technical line drawing of a mechanical component with a tool inserted (no text or symbols)

2

Technical line drawing of a mechanical component with mounting holes and a central shaft (no text or symbols)

1

Technical line drawing of a hammer turning a cylindrical component with a screwdriver (no text or symbols)

Technical diagram of a mechanical frame assembly with directional arrows and a numbered component (no text or symbols)

Technical diagram showing mechanical components with numbered annotations and directional arrows

تجمع عارضة الألواح

Technical line drawing of a mechanical assembly with two metal brackets and a circular component (no text or symbols)

3

Pure diagram of a mechanical component with directional arrows, no text or symbols present

2

Pure technical diagram of a mechanical assembly with no text, numbers, or symbols

Simple line drawing of a hand pouring liquid into a circular pipe on a square base (no text or symbols)

2

Two geometric diagrams showing a hand drawing a square with internal lines and a circle, no text or symbols present.

قص لوح الس town

Diagram showing two hands pointing at a circular object on a rectangular frame, with an upward arrow indicating direction (no text or symbols)

Isometric line drawing of a mechanical component with no text or symbols

تركيب عارضة الألواح

Top-down schematic of a circular mechanical component with mounting holes and internal components, enclosed within a grid-patterned frame (no text or symbols)

2

Technical line drawing of a mechanical component with circular housing and internal components (no text or symbols)

1

Hand inserting a component into a circular housing panel (no text or symbols visible)

4

Technical line drawing of a mechanical component with a close-up inset showing internal wiring (no text or symbols)

3

Line drawing of hands holding a circular object with an upward arrow, framed by a grid (no text or symbols)

Technical diagram showing a device with a magnified inset highlighting internal components, including a tool and control panel.
