SGS4HVI33E - Dishwasher BOSCH - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Bosch
Model	SGS4HVI33E
Height	86 cm (86 cm model)
Width	60 cm (approx.)
Depth	60 cm (approx.)
Weight	Approx. 50 kg (approx.)
Power Supply	220-240 V, 50/60 Hz, 10 A
Capacity	12 place settings (standard)
Main Features	Filtration system, rotating spray arms, Vario drawer, EmotionLight, TimeLight, Gap illumination
Safety	Unplug the appliance before any repair; wear protective gloves and shoes; use only original parts
Maintenance	Clean the filters and spray arms regularly
Spare Parts (examples)	Tablet guide [00614935], cup shelf [00618565], detergent cover, spray arm, filters, door seal, etc.
Repairability	Detailed repair instructions for replacing many parts (worktop, basket, drawer, arm, filters, power cord, etc.)

Frequently Asked Questions - SGS4HVI33E BOSCH

How to start the Bosch SGS4HVI33E dishwasher?

Make sure the appliance is properly plugged in and the water supply is open. Select a program using the control panel and press the start button. Refer to the user manual for program details.

What to do if the dishwasher does not drain?

Check that the coarse filter and microfilter are not clogged. Clean them if necessary. Ensure the drain hose is not kinked or blocked. If the problem persists, the waste water pump cover may need replacement.

How to clean the dishwasher filters?

Turn the coarse filter counterclockwise (1) and remove the filter system. Separate the microfilter and clean both under running water. Reassemble in reverse order, aligning the arrows.

How to replace the spray arm?

For the upper arm, unscrew it and pull it downward. For the lower arm, lower it to remove. Assembly is the reverse: snap the lower arm in place, then screw in the upper arm.

How to change the detergent cover?

Open the detergent cover and push it 5 mm. Lift it at the bottom of the guide rails and remove the spring. Insert the new spring with the long end into the fixing hole of the dispenser, the short end into the cover hole, then reposition the cover in the rails.

How to replace the power cord?

Unplug the appliance and disconnect it from the water supply. Gently move the connection cable up and down to remove it from the socket. Plug in the new cable until you hear a click. Ensure it is properly engaged.

How to disassemble the control panel?

First remove the front door. Disconnect the electrical connections of the control panel and the rinse aid level sensor. Remove the six screws and detach the panel. Assembly is in reverse order.

How to replace the door seal (lower)?

Remove the two retaining clips on the lower seal, detach the overflow channel and lift it. Remove the old seal. Place the sealing caps on the new seal, insert it into the inner door and secure it with the clips.

How to change the EmotionLight?

Unclip the stop pin, remove the socket from above, disconnect the electrical connection from the power module. Insert the new socket into the frame of the tub and clip the pin. Place the cable correctly at the door hinge.

Where to find the complete user manual for the Bosch SGS4HVI33E?

The user manual and instructions are available free in PDF format at notice-facile.com. You can also request a translation in your language by providing your email address.

USER MANUAL SGS4HVI33E BOSCH

4.2 Mounting the system from the chimney. 9

4.2.1 Mounting the wall bracket for 86-cm models 9 4.2.2 Mounting the fixing bracket for the chimney 9 4.2.3 Mounting the vapor generator insert 10

4.3 Replacing the varioDrawer drawer 11

4.3.1 Removing the varioDrawer drawer 11 4.3.2 Mounting the varioDrawer drawer 12

4.4 Replacing the spray arms 13

4.4.1 Removing the spray arm 13 4.4.2 Mounting the spray arm 13

4.5 Replacing the filters 14

4.5.1 Removing the filter 14 4.5.2 Mounting the filters 14

4.6 Mounting the spray head for tablets 15

4.7 Replacing the power cable 16

4.7.1 Disconnecting the power cable 16 4.7.2 Connecting the power cable 16

4.8 Replacing the detergent dispenser cap 17

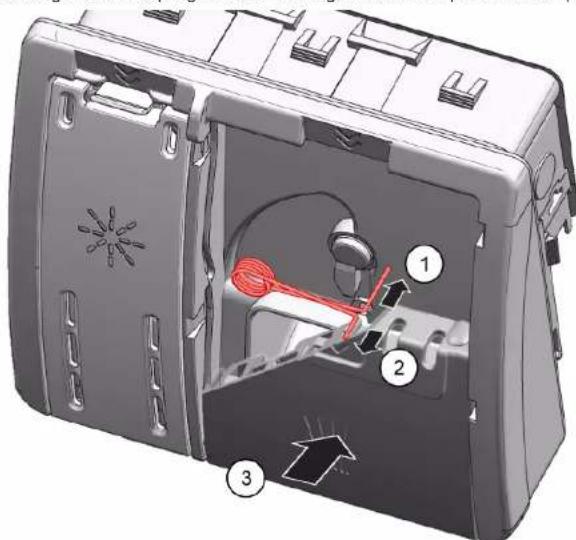

4.8.1 Removing the detergent dispenser cap 17 4.8.2 Placing the spring 17 4.8.3 Mounting the detergent dispenser cap 17

4.9 Replacing the drain pump cover 18

4.9.1 Removing the drain pump cover 18 4.9.2 Mounting the drain pump cover 18

4.10 Replacing the door leaf on page 19

4.10.1 Removing the door leaf on page 19 4.10.2 Installing the door leaf on page 20

4.11 Replacing the outer door on page 21

4.11.1 Removing the outer door on page 21 4.11.2 Installing the outer door on page 21

4.12 Replacing the control panel on page 23

4.12.1 Removing the control panel on page 23 4.12.2 Installing the control panel on page 23

4.13 Fixing the door springs on page 24 4.14 Replacing the bottom panel on page 26

4.14.1 Removing the bottom panel on page 26 4.14.2 Installing the bottom panel on page 26

4.15 Replacing the main contact plate on page 27

4.15.1 Removing the main contact plate on page 27 4.15.2 Installing the main contact plate on page 27

4.16 Replacing the overflow pipe on page 28

4.16.1 Removing the overflow channel on page 28 4.16.2 Installing the overflow pipe on page 29

4.17 Replacing the inner door on page 31

4.17.1 Removing the inner door on page 31 4.17.2 Installing the inner door on page 31

4.18 Replacing the door handle on page 32

4.18.1 Removing the door panel 32 4.18.2 Mounting the door panel 32

4.19 Replacing the door seal (bottom) 34

4.19.1 Removing the door seal... 34 4.19.2 Mounting the door seal 35

4.20 Replacing the door seal (top) 36

4.20.1 Removing the door seal 36 4.20.2 Mounting the door seal... 36

Repair tips - Washing machine

4.21 Replacing the EmotionLight 37

4.21.1 Removing the EmotionLight 37 4.21.2 Mounting the EmotionLight 37

4.22 Replacing the TimeLight 40

4.22.1 Removing the TimeLight 40 4.22.2 Mounting the TimeLight 40

4.23 Replacing the Gap illumination (lighting of the gap) 41

4.23.1 Removing the Gap illumination 41 4.23.2 Mounting the Gap illumination 42

About this document

1.1 Important information

1.1.1 Purpose

The repair kit is intended for the user to repair the device themselves in accordance with the regulations for environmentally sound design and repair (from 03.2021).

The information about the spare parts is defined in the spare parts section, including the repair and troubleshooting.

If you have any questions, please contact our customer service. We are not liable for damage unless the repair instructions have been followed correctly.

1.2 Explanation of symbols

1.2.1 Hazard types

Warning systems consist of symbols and signal words. The signal word indicates the severity of the hazard.

Ниво на п dedурждени 3начени
ОПАСHОCT	Есnasbaанeto на п dedурждени до сMbт ипсерноши Нараловanity.
ПРEDУРPEЖДЕНЕ	Есnasbaанeto на п dedурждени до сMbт ипсерноши Нараловanity.
ВИМATEЛНО	Есnasbaанeto на п dedурждени до сMbт ипсерноши Нараловanity.
ВИМAHINEI	Есnasbaанeto на п dedурждени до сMbт ипсерноши Нараловanity.

Table 1: Hazard types

1.2.2 Hazard symbols

The hazard symbols are graphic representations that provide information about the type of hazard.

The following hazard symbols are used in this document:

Симboл за опасост 3начени	Овци поедуридатello сбобчине
	Опасост от[eilektprucecco наржени
	Риск ot[eckллозия
	Опасost от[nорязвени

Regarding this document

Симbol 3a onachoct 3начени	Опachoct ot пемарази Опachoct ot горец поьхочten
	Опachoct ot симно магнитою пол Опachoct ot неонисяць льчени

Table 2: Hazard symbols

1.2.3 Structure of the warnings

The warnings in this document have a standardized format and structure.

The following example shows a warning that warns of electric shock, which can cause injury from voltage. The instructions for avoiding the hazard are followed.

1.2.4 06uCNMBOJI

BTO3NIOKYMENTceH3NON3BATcNEdHNTeO6UINCNMBONI:

4.2 Mounting the system from the housing

Removal:

The corresponding housing is removed from the device.

4.2.1 Mounting the rail for the 86-cm model

Special tools:

Guide rail [00614935] Cup holder [00618565]

1. Place the rail on the housing diagonally in the front part of the housing.
2. Center and press the rail into place.

4.2.2 Mounting the cup holder

Special tools:

Guide rail [00614935] Cup holder [00618565]

When you have a cup, the holder can be removed. The additional insert is pressed to collect the water at the bottom of the cup. When changing the cup, we recommend leaving the holder removed. If the housing has an additional plastic insert, it must be removed first.

1. Remove the plastic insert.

2. Tighten the fixator.

3. Tighten the fixator.

Repair

1. Place the item for me

4.2.3 Mounting the generator block

Special tools:

Guide pin [00614935] Fixator for the shaft [00618565]

Secure the generator block with the end parts under the system and tighten.

Repair

4.3 Replacing the varioDrawer socket

1. Open the cover of the drawer inward.

4.3.1 Removing the varioDrawer socket

2. Remove the drawer holder.

1. Press the plastic sides inward and remove the holder from the frame.

Mount the return.

4.4 Replacing the frame

4.4.1 Removing the frame

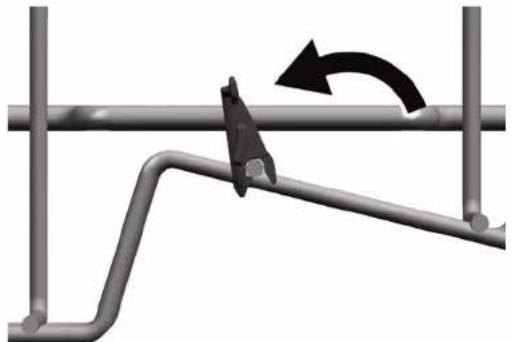

1. Turn the frame (1) and press the button to remove it (2).

1. Press the button on the frame to remove it.

4.4.2 Installing the frame

1. Place the frame. The frame snaps into place.
2. Place the upper frame and press it firmly into place.

4.5 Replacing the filter

4.5.1 Removing the filter

1. Turn the filter counterclockwise (1) and remove the filter system (2).

Make sure there is no debris in the cartridge.

2. Press the filter release button to remove it.

4.5.2 Installing the filter

1. Connect the material supply hose.

Make sure the connector or filter for the grain tank is not closed.

1. Place the filter system in the direction of the grain tank filter for the grain tank according to the pump flow direction arrow.

Make sure the markings with arrows match.

Repair

4.6 Mounting the pressure head for the tank

1. Remove the top cover. 2. Place the pressure head for the tank on the top (1) and close the cover (2).

The pressure head for the tank is installed.

4.10.2 Mounting the side panel

1. Place the side panel in the groove of the base (1).

Fig. 2: Installation

2. Press the side panel onto the groove (2). 3. Secure the side panel with screws (3).

Repair

4.11 Replacing the outlet valve

Removal:

Remove the lock. Remove the lock from the supply pipe.

4.11.1 Adjusting the outer door

Loosen the screws, which are located in the side joints.

1. Open the door. 2. Remove the four screws.

3.

Close the door, holding the front side.

Tighten the four screws.

WARNING!

4.11.2 Mounting the outer door

Cables that are not properly routed must not be secured! The procedure is as follows:

Place the cable and fix it with the mounting tape.

Repair

Removal:

The insulating cover must be correctly positioned and fixed to the inner side of the outer door. The outer door has hinges.

1. Close the inner door, without slamming it.

1. Open the inlet valve (1).

1. Open the inlet valve to the charging port (2).

4.

Secure the valves by tightening the screws.

Open the valves and secure them with the screws (metal 4 x 11 mm screws).

5. Secure the inlet valve with the screws (metal 4 x 11 mm screws).

Repair

4.12 Replacement of the control panel

If the control panel is defective, the control panel must be replaced.

Warning:

Disconnect the device from the power supply. Disconnect the device from the water supply. The inlet valve is closed. The inlet valve is closed (manual/automatic).

4.12.1 Replacing the control panel

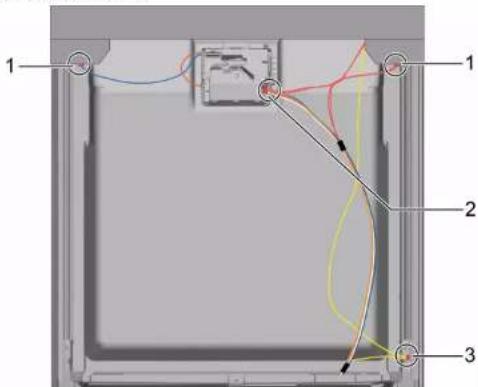

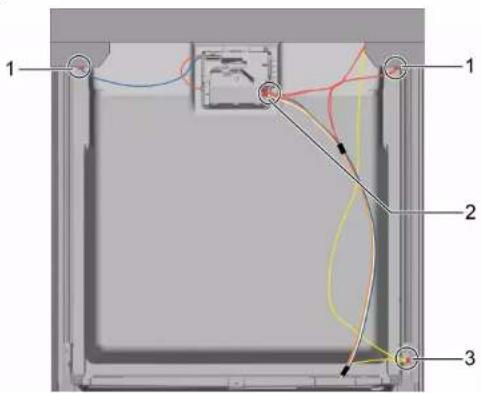

1. Disconnect the electrical connections to the control panel and follow the safety instructions for the device (1,2).

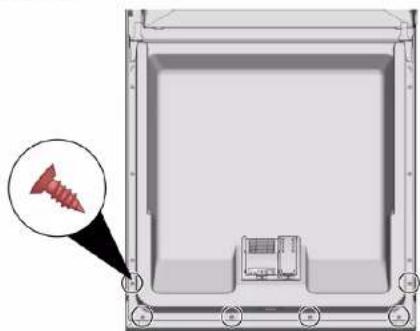

2. Disconnect the grounding cable (3) (optional). 3. Open the device cover. 4. Secure the control panel, to prevent it from falling (charge it).

5. Tighten the six screws.

6. Control panel.

4.12.2 Mounting on the control panel

Use 4x16 mm screws.

Mount the device.

Repair

4.14.2 Mounting on the floor

1. Place the brackets.
2. Attach the floor brackets (1) and press them down until they click into place (2).

Repair

4.15 Removing the main contact cover

The main contact cover is located in the lower part of the device.

Removal:

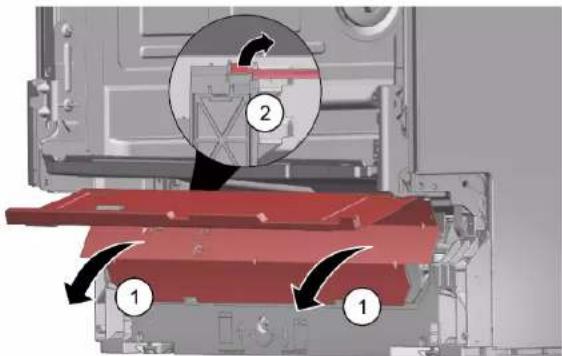

Disconnect from the power supply. Disconnect from the mains. The main switch (optional) is switched off. The door is closed. The door is closed (with optional interlock). The floor panel is closed (optional).

4.15.1 Removing the main contact cover

1. Remove the screw (1).

2. Remove the retaining element (2).

1. Carefully observe the marking on the main contact (1).

4.

Depending on the model of the EmotionLight, all connections are made on the base.

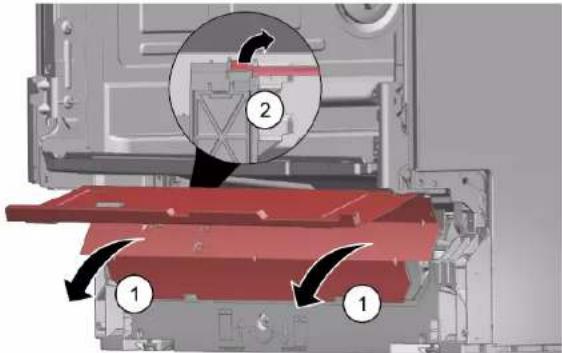

Release the locking lever and remove the cover (1) (2).

4.15.2 Mounting the main contact

Mount the main contact in the reverse order.

Repair

4.16 Removing the supply hose

The supply hose is located in the front part of the device.

Removal:

Disconnect the device from the power supply. Disconnect the device from the mains. The furniture panel is removed (1). The cover is removed. The bottom panel is removed (1, →26). The main contact is disconnected. →27

4.16.1 Removing the supply hose

Residual water

When removing the supply hose, residual water may leak. Collect the water in a suitable container.

1. Tighten the door hinge mechanism (1,2).

4.20.2 Mounting the door seal

Before mounting the door seal, it must be adjusted to the correct height. 1750 mm for doors with a height of 81 cm and 1850 mm for doors with a height of 86 cm.

1. Prepare the door seal. 2. Check the correct position for mounting the seal profile.

1. The seal must be level with the sealing surface.

4

The seal must not be twisted or bent. The seal is cut diagonally and the ends are glued together at the end of the container.

Place the seal in the groove and press it in along the entire length. The seal must be as tight as possible against the container.

Correctly installed door seal:

Repair

4.21 Replacing the EmotionLight

The EmotionLight is located in the upper front part of the cooking reservoir.

Removal:

The device is disconnected from the power supply. The device is disconnected from the water supply. The devices are freely accessible. The work area is clean (dry). The work area is clean (dry).→19

4.21.1 Removing the EmotionLight

1. Remove the hook from the holder (1).

1. Press the lever upward (2).
2. Select the target from the connector (the red one from the front side of the device).

4. Disconnect the electrical connection from the power supply.

1. Remove the EmotionLight from the device.

4.21.2 Mounting the EmotionLight

1. Place the bracket on the frame through the reserve opening (1).

Repair

2. Grasp the hook of the holder (2).

3

Mount the cable from the tension side.

4.23 Replacing the gap illumination (product lighting)

Requirement:

The device is disconnected from the power supply. The device is disconnected from the water supply. The front door is open. The protective cover is removed.

4.23.1 Replacing the gap illumination

1.1. Remove the cover (1).

2. Disconnect the electrical connection from the operating module (2).

2.1. Remove the cover from the rear (1).

2. Disconnect the optional module (2).

Repair

3.1. Remove the cover (1).

1. Pull the circuit board with the holder and remove it from the frame of the operating module (N).

4.23.2 Mounting of the bar illumination

1. Place the circuit board in the frame of the operating module.

2. Tighten the screws, then check the operation.

1. Mount the optional module and tighten it, then check the operation.

4. Connect the wire to the operating module.

4.23 Replacing the bar illumination

Requirement:

4.22.1 Removing the timeLight 163 4.22.2 Mounting the timeLight 163

4.23 Replacing Gap illumination 164

4.23.1 Removing Gap illumination 164 4.23.2 Installing Gap illumination 165

4.21.2 Installing emotionLight

1. Insert the holder into the frame of the flush tank (1).

Repair

1. Activate the locking hook (2).

3.

NOTE!

Incorrect installation!

4.22 Replacing timeLight

4.22.1 Removing timeLight

4.22.2 Installing timeLight

4.23 Replacing Gap illumination

Presetting:

4.23.2 Installing Gap illumination

1. Insert the circuit board holder into the frame of the operating module.

2.1 General Safety instructions 212 2.1.1 All domestic appliances 212

Tools and aids. 213

Repair 214

4.1 Replacing worktop 214

4.1.1 Removing worktop 214 4.1.2 Installing worktop 214

4.2 Installing basket system 215

4.2.1 Installing a tab slide for the 86 cm model 215 4.2.2 Installing cup support clip 215 4.2.3 Installing steamer insert 216

4.3 Replacing varioDrawer 217

4.3.1 Removing varioDrawer 217 4.3.2 Installing varioDrawer 218

4.4 Replacing spray arms 219

4.4.1 Removing spray arm 219 4.4.2 Installing spray arm 219

4.5 Replacing filters 220

4.5.1 Removing filter 220 4.5.2 Installing filters 220

4.6 Installing baking sheet spray head 221

4.7 Replacing power cord 222

4.7.1 Unplugging power cord 222 4.7.2 Plugging in power cord 222

4.8 Replacing detergent cover 223

4.8.1 Removing detergent cover 223 4.8.2 Inserting spring 223 4.8.3 Installing detergent cover 223

4.9 Replacing wastewater pump cover 224

4.9.1 Removing wastewater pump cover 224 4.9.2 Installing wastewater pump cover 224

4.10 Replacing side panel 225

4.10.1 Removing side panel 225 4.10.2 Installing side panel 226

4.11 Replacing outer door 227

4.12 Replacing control panel 229

4.12.1 Removing control panel 229 4.12.2 Installing control panel 229

4.19 Replacing (lower) door seal 240

4.19.1 Removing the door seal 240 4.19.2 Installing the door seal 241

4.20 Replacing (upper) door seal 242

4.20.1 Removing door seal 242 4.20.2 Installing door seal.. 242

Repair hints - Dishwasher

4.21 Replacing EmotionLight 243

4.21.1 Removing EmotionLight 243 4.21.2 Installing EmotionLight 243

4.22 Replacing TimeLight 246

4.22.1 Removing TimeLight 246 4.22.2 Installing TimeLight 246

4.23 Replacing Gap illumination 247

4.23.1 Removing Gap illumination 247 4.23.2 Installing Gap illumination 248

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumers to repair appliances by themselves according to the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts, including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
i	Identification of a special tip (text and/or graphic)
j	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Table 3: General symbols

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Insulated Screw- driver Torx T15 with bore hole [15000626]	Blade length 125 mm, for screws with safety pin
Slotted screwdriver	Blade 10 mm x 1.6 mm x 200 mm
Needle nose pliers [00340871]	Length: 200 mm, straight

Repair

4.1 Replacing worktop

Prerequisite:

Appliance is disconnected from the power supply. Appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).
2. Press both catch levers under the worktop upwards (2).

1. Lift the worktop slightly at the front (3).
2. Push worktop away towards the rear (4).
3. Remove worktop.

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

1. Push worktop forwards (2).
2. Press the front of the worktop downwards until both catch levers click audibly into place (3).
3. Screw in the two screws again (4) (optional).

Repair

4.2 Installing basket system

Prerequisite:

The relevant basket has been removed from the appliance.

4.2.1 Installing a tab slide for the 86 cm model

Required tools:

Tabguide [00614935] Cup support clip [00618565]

1. Insert the tab slide diagonally at the front of the basket.
2. Centre and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools:

Tabguide [00614935] Cup support clip [00618565]

When washing cups, the cup support clip can be folded up. The additional angle reduces the collection of water on the bottom of cups. In the case of tall glasses we recommended leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be removed.

1. Remove the plastic insert.

1. Click the cup support clip into place.

1. Fold up the clip.

Repair

1. Position the items to be washed.

4.2.3 Installing steamer insert Required tools:

Tabguide [00614935] Cup support clip [00618565]

• Wedge the steamer insert with the end pieces under the basket system.

Repair

4.3 Replacing varioDrawer

4.3.1 Removing varioDrawer

1. Bend the handle flaps inwards.

1. Remove the handle upwards.
2. Press plastic side inserts outwards and press them upwards out of the frame.

1. Carefully bend the guide tabs outwards.

1. Pull the folding spines out of the tabs.
2. Press the metal frame at the front out of the holders.

1. Push the metal frame back out of the guide.

4.3.2 Installing varioDrawer

Install in reverse order.

Repair

4.4 Replacing spray arms

4.4.1 Removing spray arm

1. Unscrew the upper spray arm (1) and pull down to remove (2).

1. Pull down the lower spray arm to remove.

4.4.2 Installing spray arm

1. Insert the lower spray arm. The spray arm clicks into position.
2. Insert the upper spray arm and screw it firmly in place.

Repair

4.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Check that no foreign objects fall into the sump.

1. Pull down the micro filter to remove.

4.5.2 Installing filters

1. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position.
2. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

Repair

4.6 Installing baking sheet spray head

1. Remove top basket.
2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

The baking sheet spray head clicks into position.

Repair

4.7 Replacing power cord

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible.

4.7.1 Unplugging power cord

• Move the plug of the power cord carefully up and down and pull it out of the mains socket.

4.7.2 Plugging in power cord

Notice

Overheating of main connection!

Risk of fire

Firmly insert the power cord until it clicks.

• Insert the plug of the power cord into the mains socket until the plug clicks audibly into place.

Repair

4.8 Replacing detergent cover

A small screwdriver can be used as a levering tool.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Door has been opened. Detergent cover has been opened.

4.8.1 Removing detergent cover

1. Slide the detergent cover in 5 mm.
2. Lever the detergent cover on the lower side out of the guide rails and take the detergent cover on the upper side out of the guide rails.
3. Remove the spring.

4.8.2 Inserting spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

1. Insert the short end of the spring into the mounting hole of the detergent cover (2).
2. Press cover into the dispenser device (3).

4.8.3 Installing detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide rails on one side. Applying gentle force, press the opposite side into the guide rails.
2. Check the function of the detergent cover.

Repair

4.9 Replacing wastewater pump cover

Prerequisite:

Basket has been removed. Filters have been removed. See page 220.

4.9.1 Removing wastewater pump cover

1. Scoop out any water. Use a sponge if necessary.
2. Pry off the pump cover using a spoon and grip it by the crosspiece.

1. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

Insert the pump cover (1) and press down (2).

The pump cover clicks into position.

Repair

4.10 Replacing side panel

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Free-standing appliances: Worktop has been removed. See page 214.

4.10.1 Removing side panel

1. Remove screws from the side panel (1).

Fig. 1: Fully integrated

1. Tilt the side panel slightly outwards at the top (2).
2. Lower the side panel and pull it out of the base trough (3).

Repair

4.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Fig. 2: Fully integrated

2. Press the side panel onto the appliance (2). 3. Secure the side panel with screws (3).

Repair

4.11 Replacing outer door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

Just remove the screws which are described in the following steps.

1. Open door.
2. Remove four screws.

3

Secure the door by holding it on one side.

Remove two screws.

Insulating fleece has been correctly positioned and fixed on the inside of the outer door. Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.
2. Push the outer door upwards underneath the control panel (1).

1. Press the outer door against the inner door and hold (2).

4.

Secure the door by holding it on one side.

Open the door and secure it with two screws (4 x 11 mm metal screws).

1. Secure the outer door with four screws (4 x 11 mm metal screws).

Repair

4.12 Replacing control panel

If an operating module is defective, the entire control panel must be replaced.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door has been removed. The outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid sensor (1, 2).

1. Disconnect the earth cable (3) (optional).
2. Open the appliance door.
3. Secure the control panel to prevent it from falling down (hold on to it).
4. Remove six screws.

1. Remove the control panel.

4.12.2 Installing control panel

Use screws 4 x 16 mm.

Install in reverse order.

Repair

1. Remove cord guide cover out.

2.1. Open door slightly (1).

1. Fix in the groove of the base trough (2).
2. Slowly close the door (3).

The cord system attaches itself automatically to the door hinge.

Repair

3.1. Slightly close the door (4).

1. Move the groove to the back and release the door hinge (5).
2. Open the door (6).

1. Repeat the process again on other side of appliance.

Repair

4.14 Replacing toe panel

The feet are identical and can be swapped over.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door has been removed. The outer door has been removed (fully integrated/integrated).

4.14.1 Removing the toe panel

1.

Incorrect removal. If the toe panel is loosened at the side and removed, the two brackets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

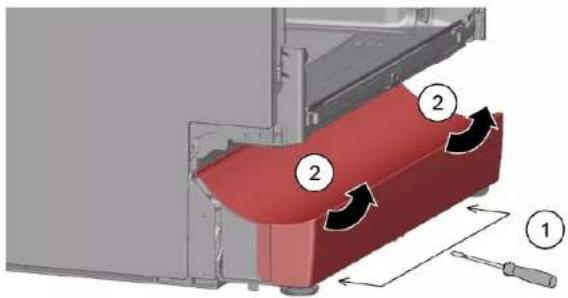

1. Reach into the guides (1) with a screwdriver and release the catch by pushing downwards.

1. Lift the panel off.
2. Remove the feet forwards (1).

4.14.2 Installing the toe panel

1. Insert the feet.
2. Attach the toe panel at the top (1) and press it down until it audibly clicks into place (2).

Repair

4.15 Replacing the base socket plate

The base socket plate is located in the lower area at the front.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. Furniture panel (optional) has been removed. Outer door has been removed. Outer door has been removed (fully integrated/integrated). Toe panel has been removed (optional). → Page 232

4.15.1 Removing base socket plate

1. Remove two screws (1).

1. Disengage catch elements (2).
2. Tilt the base socket plate carefully forwards (1).

4.

Depending on the model series, the plug to the EmotionLight is still secured to the base.

Unlock the plug on the catch tappet and pull to the rear (optional) (2).

4.15.2 Installing base socket plate

Install the base socket plate in reverse order.

Repair

4.16 Replacing overflow conduit

The overflow conduit is located in the front lower area of the appliance.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel has been removed (optional). Outer door has been removed. Toe panel has been removed (optional). → Page 232 Base socket plate has been removed. → Page 233

4.16.1 Removing overflow channel

Residual water

• When the drainage hose is removed, residual water may run out. Catch water or remove from the base pan with suction syringe.
• Lever out of the catch mechanism at the top (1, 2).

1. Release catch element at top.

3.1. Insert screwdriver below metal brake (1).

1. Gently release metal clip (2).

Repair

1. Lift overflow conduit off.

4.16.2 Installing overflow conduit

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

1. Place overflow conduit (1).
2. Move overflow conduit into seal (2).
3. Press overflow conduit in guide of seal (3).
4. Insert overflow conduit concisely (4).
5. Clip in overflow conduit (5).

Repair

1. Check installation left and right. 3. Check firm seat.

1. Clip in metal clip on left and right side.

Repair

4.17 Replacing inner door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.17.1 Removing inner door

1. Remove screws (1).
2. Remove inner door upwards (2).

1. Secure door hinge with screws.
2. Place inner door on door hinge.
3. Secure inner door with screws.

4.17.2 Installing inner door

1. Flap door seal to front.
2. Move inner door behind door seal.
3. Close inner door.
4. Flap door seal upwards. Side parts show up.
5. Move door hinge upwards.

Repair

4.18 Replacing door hinge

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible. The side panel has been removed. (See page 225) The outer door has been removed. The inner door has been removed. The control panel has been removed. (See page 229) The door springs have been fixed. (See page 230) The toe panel has been removed. (See page 232) The base socket plate has been removed. (See page 233) The overflow channel has been removed. (See page 234)

1. Release the catch hook with a screwdriver (1).
2. Pull the door hinge forwards (2).

1. Disconnect the ground connection on the door hinge.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repairs.

Electrical parts should be repaired by qualified electricians. After the repair, have a safety test performed according to VDE 0701 or country-specific regulations.

Repair

1. Place the hinge on the appliance (1).
2. Move the hinge downwards (2) until it is latched to the appliance.

2.

A missing ground connection can lead to mains potential on the door.

Establish ground connection.

Repair

4.19 Replacing (lower) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Base socket plate has been removed. (See page 233) Toe panel has been removed (optional). (See page 232) Door springs have been removed. Control panel has been removed. Cable harness holder on bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

1. Detach the overflow channel.

1. Lift the overflow gutter off.

Repair

1. Remove the lower door seal from the inner door.

4.19.2 Installing the door seal

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

1. Insert the door seal with the sealing flap in the inner door.
2. Secure the door seal with two retaining clips.

Repair

4.20 Replacing (upper) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

4.20.1 Removing door seal

• Remove door seal from inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare appropriate door seal.
2. Ensure correct installation position of sealing profile.

1. White dot must be on level with sealing bed strip.

4

Sealing must not be wavy or stretched at corners. Seal is cut off diagonally at ends and tapers away into bottom of container at front.

Position the end of the seal straight to the front underneath the inner door. The seal should lie against the side of the container as far as possible.

Correctly installed door seal:

Repair

4.21 Replacing EmotionLight

The EmotionLight is situated in the upper front exterior area of the rinsing tank.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible. The worktop has been removed (optional). The right-hand side panel has been removed (optional). → Page 225

4.21.1 Removing EmotionLight

1. Detach the catch hook at the rear (1).

1. Remove the holder upwards (2).
2. Pull the plug out of the connector (bottom right at front of appliance).
3. Remove the electrical connection from the power module.

1. Remove the EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Repair

1. Engage the catch hook (2).

3

Install the cable on the right lower side.

Repair

Fig. 3: Flat cable

1. Insert the plug.

Repair

4.22 Replacing TimeLight

Replace the TimeLight only as a complete part.

The TimeLight module is fixed to the rear of the base socket plate.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The toe panel has been removed. (See page 232) The base socket plate has been removed and turned. (See page 233)

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

1. Pull the TimeLight module upwards out of the guide (2).

4.22.2 Installing TimeLight

1. Bend the catch elements (1) back again.

1. Push the TimeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door is disassembled. The operation panel has been removed.

4.23.1 Removing Gap illumination

1. Detach catch (1).
2. Remove the electrical connection from the operation module (2).

1. Detach catch hook at rear (1).
2. Remove light fibre (2).

Repair

3.1.Detach catch hook (1).

1. Lift up PCB with holder and remove it from operation module frame (2).

4.23.2 Installing Gap illumination

1. Insert PCB holder to operation module frame.

1. Tighten it with a "click" sound.

1. Install light fibre and tighten it with a "click" sound.

1. Connect wire to operation module.
