| Product Type | Cordless Air Pump |
| Brand | Blaupunkt |
| Model | BP5171 |
| Power Supply | 18V Li-Ion Battery (not included) |
| Voltage | 18V DC |
| Maximum Pressure | 10.4 bar / 150 PSI |
| Air Flow | 14 L/min |
| Hose Length | 550 mm |
| Duty Cycle | 5 min on, 5 min off |
| Sound Pressure Level | 69 dB(A) |
| Sound Power Level | 80 dB(A) |
| Vibration Level | 2.342 m/s² |
| Weight (approx.) | Approx. 1.5 kg |
| Dimensions (approx.) | Approx. 26 x 16 x 18 cm |
| Warranty | 3 years |
| Usage | Domestic use only |
| Included Accessories | Air hose, ball needle, conical adapter, pump adapter, locking collar |
| Safety | Overload protection, automatic shut-off after 5 min |
| Maintenance | Clean with a dry cloth, store in a dry place |
| Repairability | Have repaired by an authorized technician, use genuine Blaupunkt parts |
| Certifications | CE, RoHS |
Frequently Asked Questions - BP5171 BLAUPUNKT
User questions about BP5171 BLAUPUNKT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Wireless air pump in PDF format for free! Find your manual BP5171 - BLAUPUNKT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BP5171 by BLAUPUNKT.
USER MANUAL BP5171 BLAUPUNKT
Power Tools - General Safety Guidelines
This guidance is general guidance for all electrical power tools and accessories such as chargers, other advice specific to the supplied power tool is contained in the relevant section of this manual. Failure to adhere to the following may result in electric shock or serious injury.
- Wear Protective Equipment: Ensure you wear all personal protective equipment as directed in this manual.
- Eye Protection: Always wear eye protection. Any power tool can throw foreign objects into your eyes and cause permanent eye damage. ALWAYS wear safety goggles (not glasses) that comply with EU safety standard EN166. Everyday glasses have only impact resistant lenses. They ARE NOT safety glasses.
- Hand Protection: Always wear suitable gloves compliant with EU safety standard EN388
- Hearing Protection: Always wear suitable hearing protection compliant with EU safety standard EN352
- Dust Masks: Always wear a dust mask compliant with EN149/EN405 suitable for the material you are working with.
- Before each use: You must inspect the condition of the tool. If any damage is found you must not use the tool and have it repaired by a suitably qualified person.
- Check Working Area: Check your work area to ensure it is clear of hazards and people, always maintain a tidy area while working to reduce risk of injury.
- Wet and Damp: Electrical tools must not be used in wet, damp conditions or during rain, neither should they be left or stored outside. Never touch the plug or operate the machine with wet hands.
- Dress properly: Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Take Regular Breaks: Tiredness can result in loss of concentration and makes working with tools dangerous.
Adults Only: Power tools are designed for use by able bodied ADULTS only. If you are in any way unsure of your ability to use the tool - do not use it. - Training: Never use a power tool unless you have undertaken formal training in its use, there are often unforeseen factors that may put you or others in danger.
- Loaning Tools: Only loan tools to people you are sure are trained to use them. Always provide the instruction manual along with the tool.
- Medicines and Drugs: Never operate tools or machinery if you are taking medication that may leave you drowsy, or if you are under influence of alcohol or illegal drugs.
- Store in a Safe Place: When not in use or once you have finished using, Power tools must always be stored in a safe place away from damp/water and not accessible to children or others. In between breaks or tasks it is important to ensure that tools are placed in a safe location.
- For Intended Use Only: Power tools should be used for their intended use only – always check the manual if unsure.
- Dust: If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
- Water: Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Explosion Hazard: Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Service: Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Electrical Tools - General Safety Guidelines
These are still relevant if you have purchased a battery tool and it is supplied with a battery charger.
- Use an RCD: For safe operation it is always necessary to use and RCD device which will protect you in the case of an electrical emergency.
- Operating voltage: Before putting the tool into operation, make sure that the voltage stated on the rating plate is the same as that of your electricity supply.
- Extension cables: Always ensure a cable is does not become a trip hazard by routing it safely to your work location. Do not walk, ride or place objects on the cable as it will result in damage. It is important that you are aware of the location of an extension cable whenever you are working to prevent accidents. Always protect power cables from sharp edges, heat and oil. Do not allow the cable to become knotted or kinked.
- If the extension cord becomes damaged: Pull the plug immediately from the socket outlet, do not touch the cable until you have done so.
Battery Tools - General Safety Guidelines
These guidelines are relevant for all tools supplied with a battery.
- Battery Acid Hazard: If accidental damage occurs to the battery or it is used under abusive conditions, liquid may be ejected from the battery; avoid contact. Liquid ejected from the battery may cause irritation or burns.
- If Contact Occurs, quickly flush with water. If liquid contacts eyes flush with water for a minimum of 10 minutes and seek medical help. Inform the medical staff that the liquid is a 25 - 35% solution of potassium hydroxide.
- Connecting A Battery: Before connecting a battery to a power tool always ensure that the on/off switch is locked in the off position. Unintentional activation of the tool may result in serious personal injury.
- Transporting The Tool: Always remove the battery before transporting the tool when transporting the tool to avoid unintentional activation.
- Charger: Recharge only with the charger specified by the BLAUPUNKT. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
- Correct Battery: Use BLAUPUNKT power tools only with BLAUPUNKT battery packs. Use of any other battery packs may create a risk of injury and fire.
- Short Circuit Hazard: When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- Do Not Open: Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks open or cracks, immediately discontinue its use and do not recharge it.
- Disposal: When the battery reaches the end of its life or is disposed of for any other reason, it must not be disposed of in household waste. In order to protect the environment please take to your local waste recycling centre or other authorised collection and disposal facility.
Battery Tools - Charging The Battery
The following guidelines will ensure the lifetime of the battery and charger is not reduced.
- Charge Before Use: The battery pack for this tool has been shipped in a low charge condition. You should charge the battery pack fully before use.
- Charge Cycles: Batteries will not reach full charge the first time they are charged. Allow several cycles (operation followed by recharging) for them to become fully charged.
- Indicator Lights: The red LED on the front right hand side of the charger will illuminate to indicate charging is in progress. A green LED will illuminate when the battery is fully charged. If at any point during the charging process none of the LEDs are lit, remove the battery pack from the charger to avoid damaging the product. DO NOT insert another battery.
Overcharging: Once the battery is charged and the green light is illuminated remove the battery immediately. - Temperature: Do not charge batteries when the work area or the battery temperature is at or below 0^ or above 45^ .
- Charger Care: When charging more than one battery pack in succession allow at least 30 minutes for the charger to cool down before charging an additional battery.
Battery Tools - Battery Charge Level Lights
The battery is fitted with a charge level indicator so you can check the remaining power during use. To display the remaining charge press the button on the side of the battery and refer to the following table.
| Number of Lights Illuminated Charge Remaining | |
| 0 0-10% | |
| 1 10-25% | |
| 2 25-50% | |
| 3 50-75% | |
| 4 75-100% | |

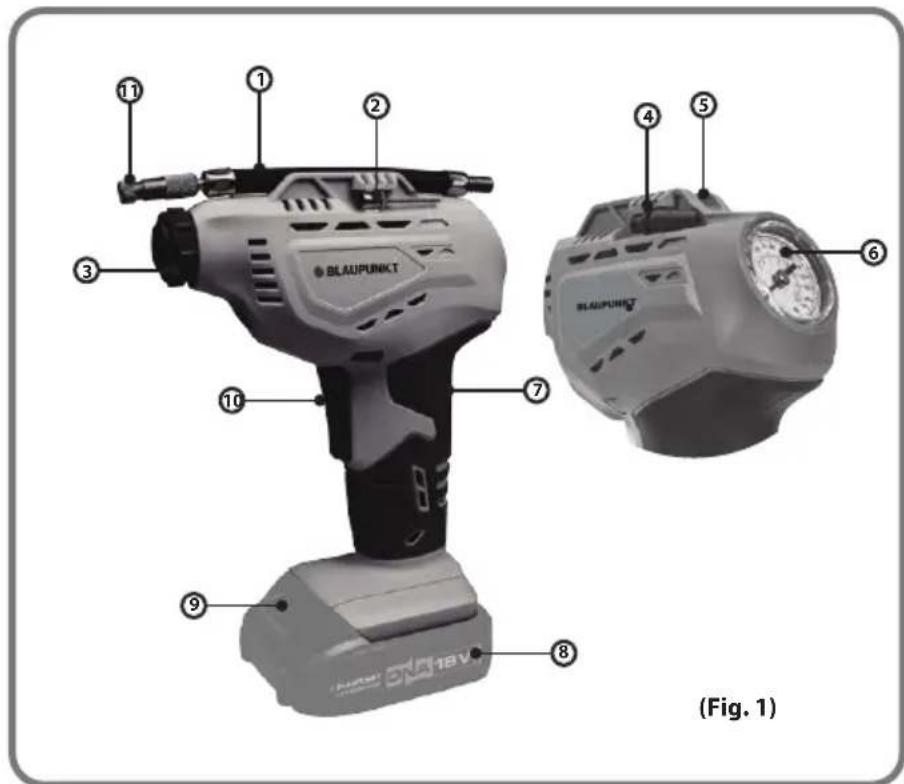

Parts Diagram
- Air Hose
- Sports Ball Needle
- Adaptor Locking Collar
- Tapered Adaptor
- Hose Storage Area
- Pressure Gauge
- Handle
- Battery
- Battery Release
- On/Off Trigger
- Tyre Adaptor
Machine Specific Safety Instructions
Know your cordless inflator. Do not plug in the charger or install the battery in the tool until you have read and understand this Instruction Manual. Learn the tool's applications and limitations, as well as the specific potential hazards related to this tool. Following this rule will reduce the risk of electric shock, fire, or serious injury.
- Do not operate air pump to result in output pressure greater than marked maximum pressure of item to be inflated. Do not use at pressure greater than 150 PSI.
- Inspect unit for cracks, holes, or other defects that could cause the air pump to become unsafe.
Make sure the hose is free of twists or kinks. - Use the air pump only for its intended use. Do not alter or modify the unit from the original design or function.
- Never leave an air pump unattended with the air hose attached to the item being inflated.
- Do not continue to use an air pump or hose that leaks air or does not function properly.
- Always disconnect the air supply and battery before making adjustments, servicing an air pump, or when an air pump is not in use.
- Do not attempt to pull or carry the air pump by the hose.
Household use only. - Do not use air pump as a breathing device.
- Never direct a jet of compressed air toward people or animals.
Take care not to blow dust and dirt towards yourself or others. - Do not use this air pump to spray chemicals.
- Risk of bursting. Carefully monitor objects during inflation.
- To reduce the risk of over inflation, occasionally compare pressure reading with a calibrated gauge.
- Allow pump to cool for five minutes after each five minutes of continuous use.
OPERATING INSTRUCTIONS
Installing the Battery Pack

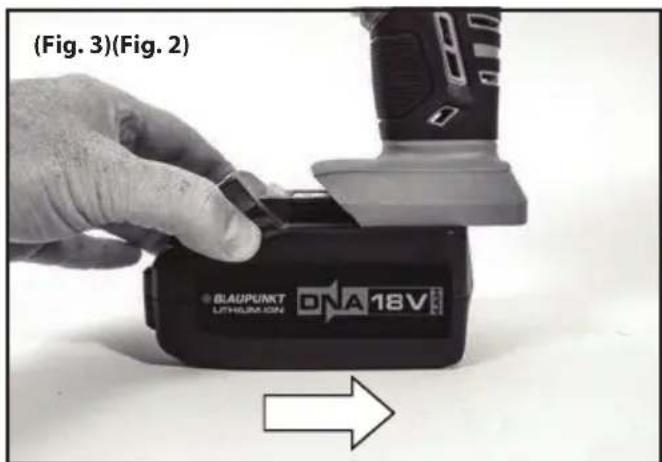

- Slide the battery pack into the tool base, Fig.3. (Note the battery has raised grooves which allows it to fit into the inflator only one way).
- Make sure the battery pack snaps into place and that battery pack is secured in the tool before beginning operation. Improper installation of the battery pack can cause damage to internal components.
Removing the Battery Pack

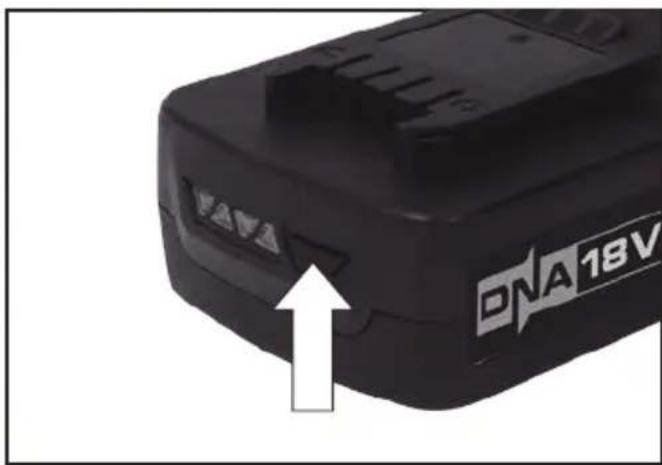

- Locate the battery release catch on the top of the battery and press downwards, Fig.4.
Whilst holding down the battery release catch slide the battery pack away from the tool.
Using the Air Pump

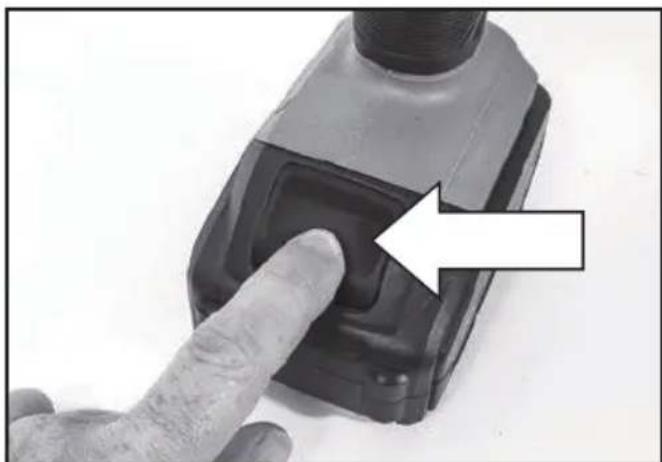

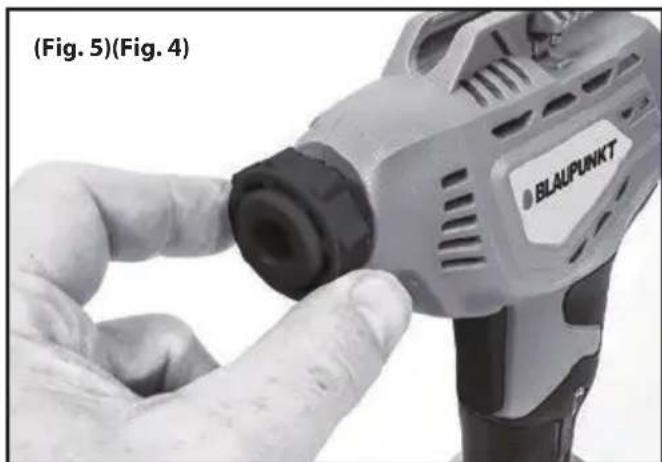

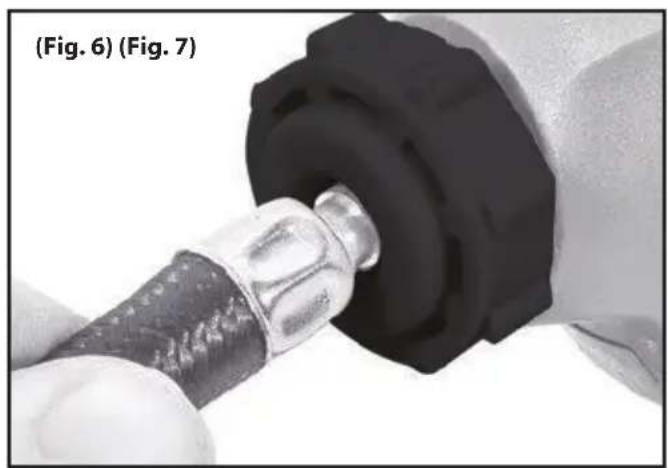

- To secure the air hose to the air pump loosen the adaptor locking collar by turning it counter-clockwise, Fig.5.

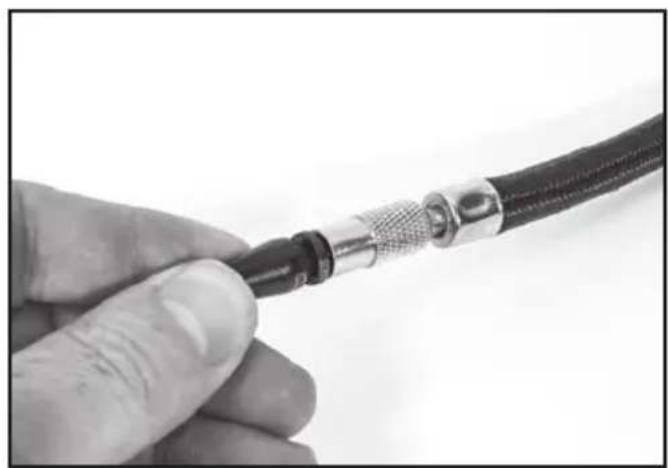

- Insert the air hose into the adaptor locking collar, Fig.6 and tighten clockwise.
- Attach the chosen adapter to the air hose and screw clockwise until it is securely in place, Fig.7.
- Warning! Improperly attached hoses or accessories can become detached under pressure and cause serious injury. Possible air leaks can cause faulty pressure readings. Make sure all connections are tightly secured.
Turning the Air Pump On & Off

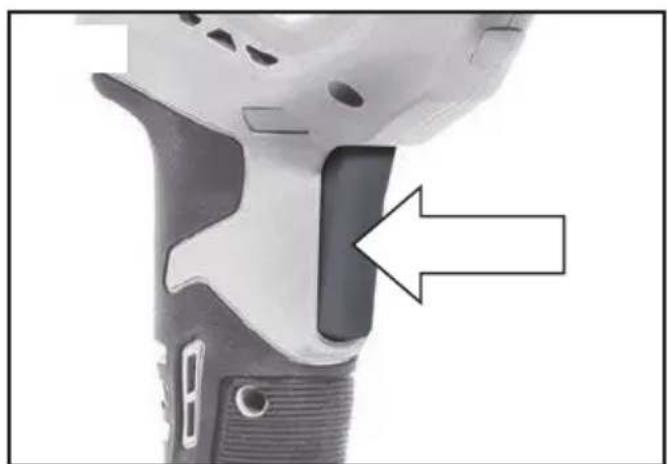

- Squeeze the trigger to start the air pump, Fig.8.

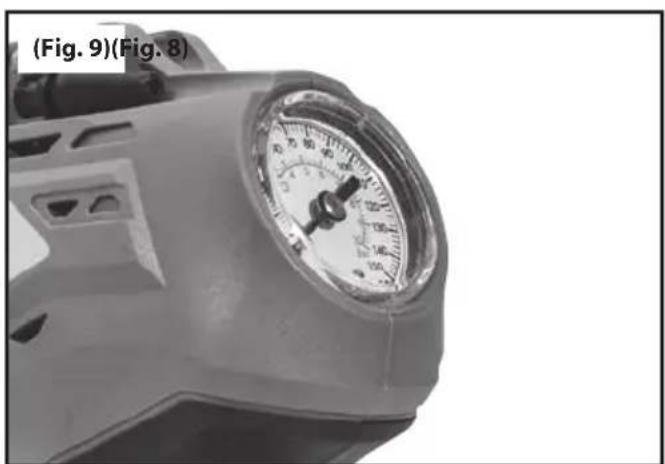

- During use check the pressure gauge, Fig.9 for the desired pressure. When desired pressure is achieved release the trigger to stop the air pump. NEVER over inflate as damage or injury may occur.
Accessories
The supplied accessories perform a variety of functions. The tapered adaptor can be used on smaller pinch valves to inflate small items like floats and children's toys, which usually require the user to inflate them by blowing air into them. The sports ball needle can be used to inflate any type of sports ball or any other item that requires an inflation sport ball needle.
NOTE: When inflating items of 10 PSI or less, inflate in short bursts and check after each burst by feel or with a calibrated measuring device to determine accurate pressure.
Sport Ball Needle
- The sports ball needle can be used to inflate any type of sports ball or any other item that requires an inflation sport ball needle.
- Insert the sports ball needle into the sports ball valve and inflate. Remove the sports ball needle after inflation.
NOTE: Pressure required for most sports balls is too low for accurate reading on tool pressure gauge.
Tyre Adaptor
Screw the threaded connector onto tire's valve stem quickly.
- When connected, the gauge will show current tyre pressure.
| Product Specifications | |
| Voltage 18V DC | |
| Hose Length 550mm | |
| Maximum pressure 10.4bar/150PSI | |
| Air Flow Rate 14l/min | |
| Duty cycle 5 mins On, 5 mins Off | |
| Sound Pressure Level LpA 69 dB(A) K=3dB(A) | |
| Sound Power Level LWA 80 dB(A) K=3dB(A) | |
| Vibration Level 2.342 m/s2, K=1.5m/s2 | |
Symbols
The manual or rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
| You must read the instruction manua Wear protective footwear | |||
| CE | Product is compliant with CE safety standards | Wear ear protection | |
| RoHS COMPLIANT | Product is compliant with RoHS safety standards | Wear safety gloves | |
| General warning | Wear protective clothing | ||
| Disposition of in compliance with WEEE standards | Wear safety mask | ||
| LHION | Contains Lithium-ion battery | Wear eye protection | |
| Product is double insulated | Wear head protection | ||
| Fire hazard | Wear respiratory protection | ||
| Electrocution hazard | |||
DISPOSAL
Do not dispose of in general waste.
As stated in European Directive 2012/19/EU for Waste Electrical and Electronic Equipment, this product must be disposed of in an environmentally safe manner. We recommend taking it to a recycling facility.
Warranty
This product has 3 Years Warranty (except batteries) for manufacturing defects. The warranty period will be counted from the date of purchase of the product, according to purchase invoice. Product warranty only covers manufacturing defects, defects resulting from improper use, such as dropping, improper transportation, connection to the mains power supply not in compliance with the voltage specified in this manual, insertion of foreign objects and natural wear of parts and parts Such as plastic parts (caps, buttons, handles, latch locks, power cables, etc.) and metal parts (wires, motors, etc.).
Also not covered are damages due to agents of nature, lightning, food, sea, oxidation, humidity etc.). The product will lose its warranty if it presents defects, which after analysis by our technicians, are characterised as being improperly used, used for professional use or for the purpose for which it is not intended (according to the Owner's Manual). This warranty will be void if it is found that the device has been tampered with, has been repaired by a person or service not authorised by Blaupunkt. The guarantee is only valid with the receipt/invoice provided at purchase.
We undertake to provide the above-mentioned services within the warranty period only in places where it maintains an authorised service. Consumers not located near an authorised service centre are responsible for the costs and risks of transport to an authorised service.
Territorial Limitations: Any repair, replacement, or support of the Products provided under the Warranty (or any other support service offered in our sole discretion), shall be restricted to, and provided solely within, the Distribution Territory as then in effect on the date the Product is delivered to you. If you purchase a Product within a defined Distribution Territory and later transport the Product outside of the Distribution Territory, we cannot provide returns, warranty, out-of-warranty, or aftermarket support of any kind outside the Distribution Territory.
Natural 'wear and tear' is not covered under warranty.
This product is for domestic use only.
SAVE THESE INSTRUCTIONS
Imported and distributed by:
UNOLD AG
Mannheimer Straße 4
68766 Hockenheim
Tel.: 06205 94180
E-Mail: info@unold.de
