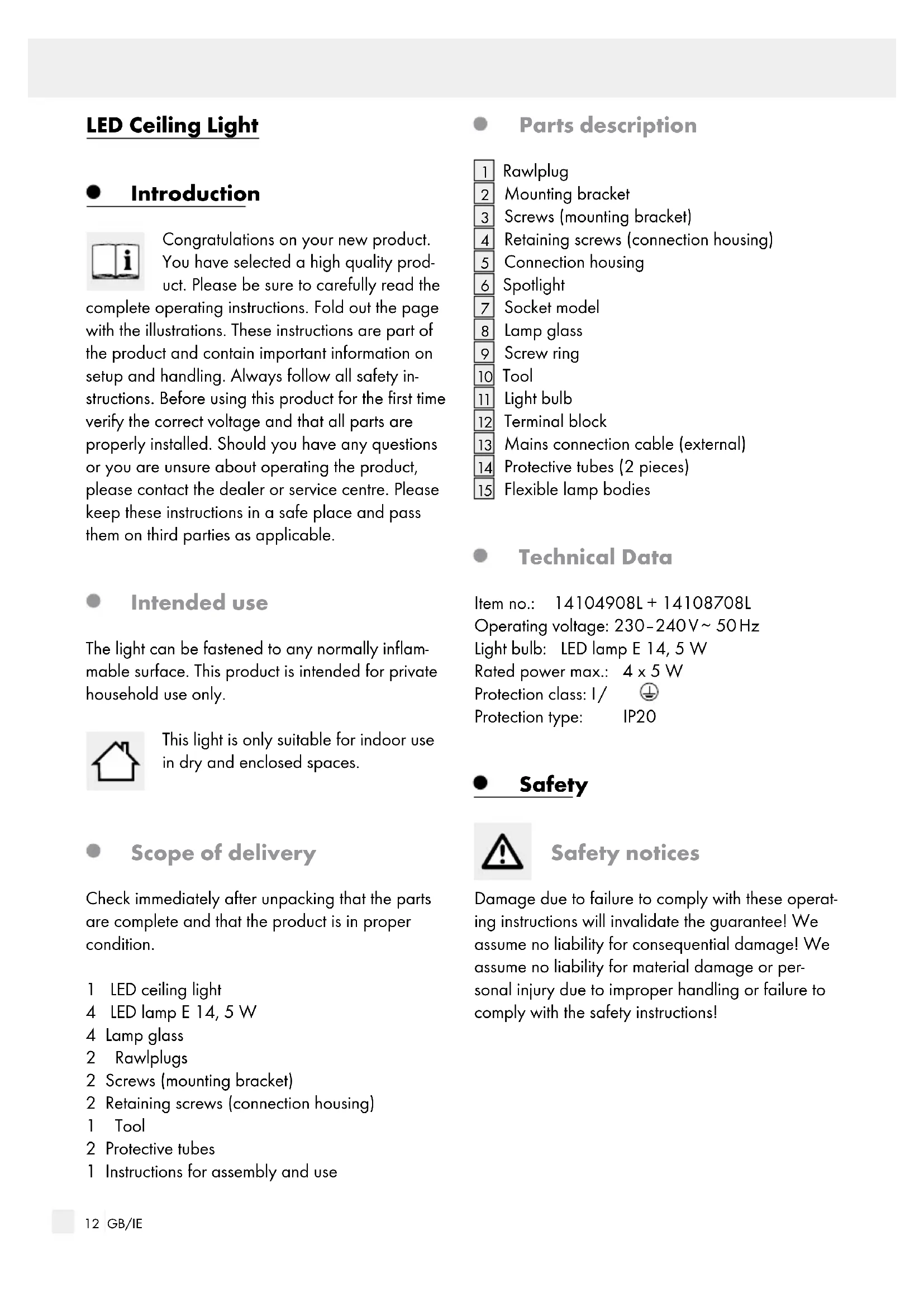

USER MANUAL IAN 273725 Livarno Lux

Screws (mounting bracket)

Retaining screws (connection housing)

Mains connection cable (external)

Protective tubes (2 pieces)

Flexible lamp bodies Technical Data Item no.: 14104908L + 14108708L Operating voltage: 230–240 V ∼ 50 Hz Light bulb: LED lamp E 14, 5 W Rated power max.: 4 x 5 W Protection class: I / Protection type: IP20 Safety Safety notices Damage due to failure to comply with these operat- ing instructions will invalidate the guarantee! We assume no liability for consequential damage! We assume no liability for material damage or per- sonal injury due to improper handling or failure to comply with the safety instructions!13 GB/IE Safety / Preparation Introduction / Safety Avoid the risk of fatal injury from electric shock Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation. Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage. CAUTION! A damaged mains cable indi- cates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician. Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box. Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (230–240 V ∼). Ensure that the light does not come into contact with water or other liquids under any circum- stances. Never open any of the components of the elec- trical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock. Do not install the light on a wet or conductive substrate! Prevent fire and injury hazards RISK OF INJURY! Check each lamp and lamp glass for damage immediately after un- packing. Do not mount the light with defective lamps and/or lamp lenses. In this case contact the service centre for a replacement. RISK OF BURNS! Ensure that the luminaire has been switched off and has cooled before touching it, to avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head. Allow the lamp to cool off completely. Replace defective bulbs with new ones immedi- ately. Before changing bulbs, always first re- move the fuse or switch off the circuit breaker.

FIRE HAZARD! Fit the light so that it is at least 0.5 m away from the material to be illuminated. Excessive heat can result in a fire. Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can be dangerous for children to play with. ATTENTION! Do not look into the LED from a close distance during operation. Do not look at the LED with an optical instrument (e.g. magnifier). The type of lamp included is not suitable for dimmer or electronic switches. Safe working Only use 230–240 V∼ LED lamps with E14 base and a maximum output of 5 Watt. Mount the light so that it is protected from moisture and dirt. Carefully prepare for assembly and allow your- self adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach. Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having diffi- culty concentrating or do not feel well. Preparation Required tools and material The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.14 GB/IE Start-up / Maintenance and Cleaning / Disposal / Warranty and ServicePreparation / Prior to installation / Start-up - Pencil/making tool - Voltage tester - Screwdriver - Electric drill - Bit (ø approx. 0.6 cm) - Side cutting pliers - Ladder Prior to installation Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This per- son must be familiar with the properties of the light and the connection regulations. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Before installation ensure that the circuit, to which the light will be connected, is not ener- gised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). Use the voltage tester to verify the de-ener- gised status. Start-up Mounting the light Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box. Remove the screws

visible at the side of the connection housing

at the back. Use the slotted holes in the mounting bracket

intended for the screws

to mark the bores. Now drill the fixing holes (ø approx. 6 mm, depth approx. 40 mm). Ensure that you do not damage the supply line. Insert the rawlplugs

into the bores. Fasten the mounting bracket

with the provided screws

through the protective tubes

Now connect the connection cable of the light to the mains connection cable (external)

using the included terminal block

Also ensure to connect the correct coloured wires (live wire, black or brow = symbol L, neutral wire, blue = symbol N). Now connect the earth conductor (green- yellow) to the earth terminal marked inside the connection housing

to connect the light to the mounting bracket

Carefully slide the lamp glass

and secure by tightening the screw ring

using the included tool

Use a clean, lint-free cloth to insert the lamp

Screw the E14 LED lamp clockwise into the socket. Replace the fuse or switch on the circuit breaker in the fuse box (position I). Your light is now ready to use. Align the spotlight / lamp bodies Only change the direction of the spotlights

when the light is switched off. Allow the lamp to cool off completely. Position the individual spotlights

by their base. The spots can be turned by approx. 320°. Turn both lamp bodies

in the desired direction. Changing the bulb CAUTION! RISK OF ELECTRIC SHOCK! First disconnect the light from the mains when replacing the lamp. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0). Allow the lamp to cool off completely. Unscrew the E14 LED lamp from the socket counter-clockwise. Use a clean, lint-free cloth to replace a bulb.15 GB/IE Start-up / Maintenance and Cleaning / Disposal / Warranty and ServicePreparation / Prior to installation / Start-up Only use 230–240 V∼ LED lamps with E14 base and a maximum output of 5 Watt. Turn the new E14 LED lamp clockwise into the socket. Verify it is correctly seated. Replace the fuse or switch on the circuit breaker (Position I) inside the fuse box. Maintenance and Cleaning CAUTION! RISK OF ELECTRIC SHOCK! Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position). CAUTION! RISK OF ELECTRIC SHOCK! For electrical safety, never clean the light with water or other liquids, or immerse it in water.
