USER MANUAL IAN 78528 Livarno Lux
User manual and service information
SE
Introduction. 3
Intended use. 3
Supplied items. 3
Technical data 4
Safety instructions 4
Copyright 5
Prior to use 5
Assembly. 6
First use 7
Cleaning / maintenance. 7
Maintenance. 7
Cleaning. 7
Environmental and disposal information 7
Conformity information 7
Warranty and servicing advice. 8

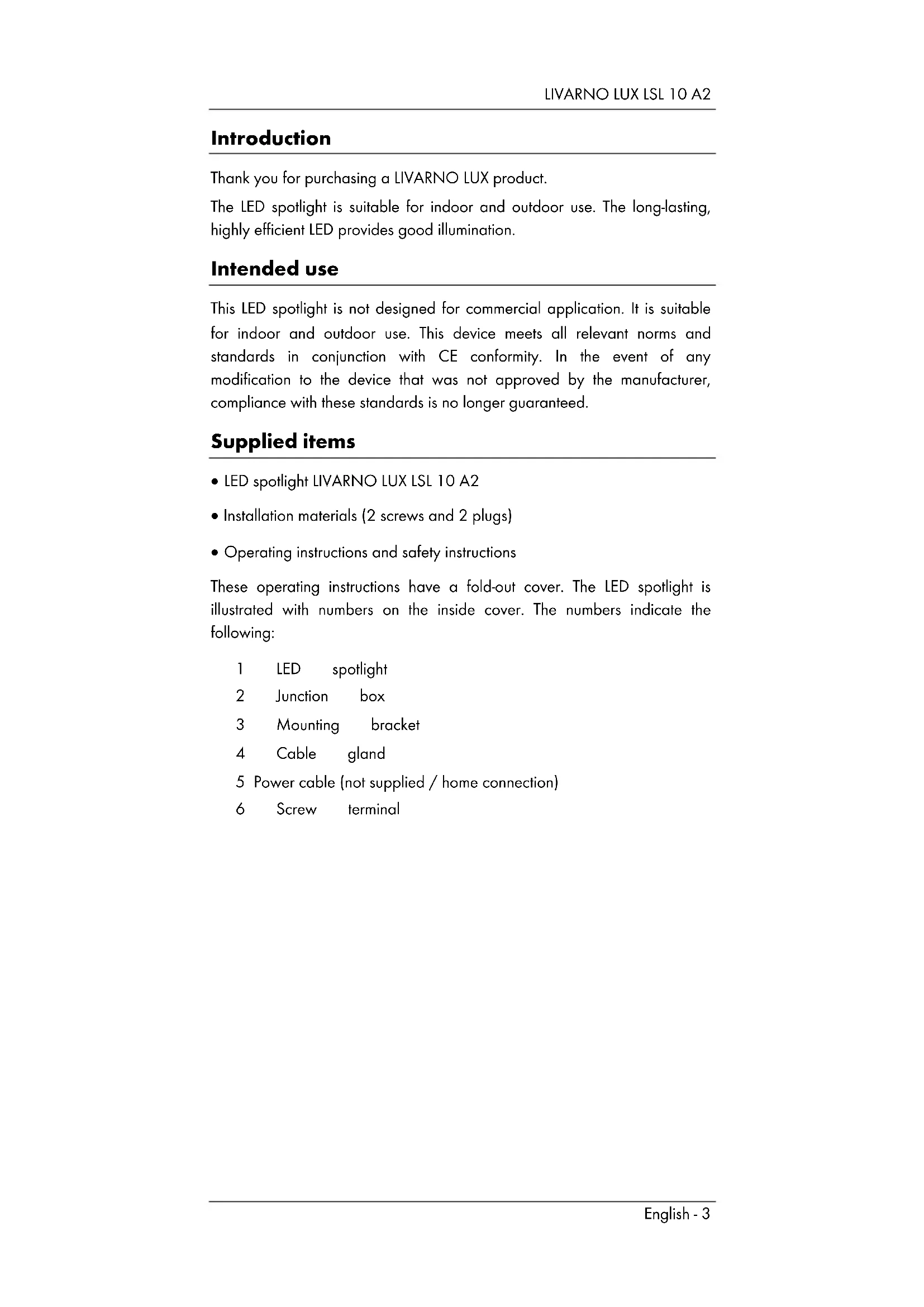

Introduction
Thank you for purchasing a LIVARNO LUX product.
The LED spotlight is suitable for indoor and outdoor use. The long-lasting, highly efficient LED provides good illumination.
Intended use
This LED spotlight is not designed for commercial application. It is suitable for indoor and outdoor use. This device meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the device that was not approved by the manufacturer, compliance with these standards is no longer guaranteed.
Supplied items
LED spotlight LIVARNO LUX LSL 10 A2
- Installation materials (2 screws and 2 plugs)
- Operating instructions and safety instructions
These operating instructions have a fold-out cover. The LED spotlight is illustrated with numbers on the inside cover. The numbers indicate the following:
1 LED spotlight
2 Junction box
3 Mounting bracket
4 Cable gland
5 Power cable (not supplied / home connection)
6 Screw terminal
Technical data
Brand:
LIVARNO
LUX
Model designation: LSL 10 A2
Operating voltage: 220 - 240V
-, 50/60Hz
Power consumption of complete
battery LED spotlight: 12.5W (+/- 8%)
Power consumption of LED: 9.6W (+/- 8%)
Protection class: I (with earth conductor)
Protection rating: IP65
Light bulb: Citizen LED
Total luminous flux: 700lm + / - 5% (with cover)
Colour temperature: approx. 5000K (neutral white)
LED beam angle: approx. 120^
Ra (colour rendering index): 80
LED service life: approx. 20000 hours
Dimensions (W× H× D) : approx. 11.5× 16× 9.6cm
(with bracket)
Weight:
approx.
495g
Safety tested by:
Safety instructions
Before using this LED spotlight for the first time, please read the following instructions carefully and take note of the safety warnings, even if you are familiar with the use of electronic devices. Store these operating instructions in a safe place for future reference. If you sell the device or pass it on, always include these operating instructions.
Any cracked protective cover must be replaced.
The LED spotlight has an earth conductor. The earth conductor (yellow/green) must be connected to the indicated terminal.
WARNING! This symbol indicates important information for safe operation of the LED spotlight and the safety of the user.
Electrical devices do not belong in the hands of children. Never allow children to use electrical devices unsupervised. Children may not recognise potential risks. Always keep plastic packaging away from children. It poses a suffocation risk.
If smoke is produced, or there are any unusual sounds or smells, turn the LED spotlight off immediately. In such cases, the device should not be used until it has been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.
The housing of the LED spotlight must not be damaged. There is a risk of an electric shock if the housing is damaged.
Never open the housing of the LED spotlight because it does not contain any parts that require maintenance. There is a risk of an electric shock if the housing is open.
You must not hang any objects on the LED spotlight. The housing is not designed to carry loads. Otherwise, the LED spotlight could be damaged.
Never use such optical instruments as a magnifying glass to look directly into the light beam. This can lead to eye injuries. In the event of a suspected eye injury, consult a doctor.
Copyright
All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change.
Prior to use
Remove the LED spotlight and the installation materials from the packaging. Check the LED spotlight for signs of damage. If damaged, the LED spotlight must not be used.
Assembly
The installation must be performed only by an authorised electrician!
The circuit must be switched off during the installation!
Use suitable tools for the installation.
When drilling the holes, make sure that no cables or pipes in the wall are damaged.
Use a H05RN-F power cable [5], for example.
- Remove the mounting bracket [3] from the LED spotlight [1].
- Use the mounting bracket [3] as a template to mark the two outer holes.
- Then drill two holes and attach the mounting bracket [3] using the supplied plugs and screws.
- Open the junction box [2] by loosening the four screws and removing the cover.
- Loosen the cable gland [4] and remove the rubber seal.
- Put the nut of the cable gland [4] and then the rubber seal with the flat side first on the power cable [5].
- Run the power cable [5] through the cable gland [4].
- Connect the power cable [5] using the screw terminal [6]. Make sure that the individual wires of the power cable [5] are connected correctly.
| Wire | Symbol | Designation |
| Black or brown L Phase | ||
| Blue | N | Neutral |
| Yellow/green | ⊕ | Earth conductor |
- Then screw the power cable [5] with the rubber seal tightly in the cable gland [4].
- Close the junction box [2] by screwing the cover again tightly with the four screws that you previously removed. When closing the junction box [2], ensure that the sealing ring lies correctly in the groove. Otherwise, IP protection is not guaranteed.
- Then attach the LED spotlight to the mounting bracket [3]. To do so, use the previously removed screws and washers. Make sure that the spring washers are located between the LED spotlight [1] and the mounting bracket [3]. The other washers must be between the screw head and the mounting bracket [3].
First use
After you have installed the LED spotlight as previously described, you can connect the circuit again. You can now switch the LED spotlight on and off via the corresponding light switch of your home lighting system.
Cleaning / maintenance
Maintenance
The light bulb of the LED spotlight is a long-lasting LED. It cannot be replaced and does not require maintenance.
Cleaning
Ensure that no liquid can penetrate the housing. There is a risk of an electric shock.
To clean the LED spotlight, use a soft, dry cloth and never use any solvent or cleaner that would corrode the plastic materials. Use a slightly damp cloth for more stubborn dirt.
Environmental and disposal information
When the crossed out wheelie bin symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The light bulb must also be disposed of properly.
The device must not be disposed of with the household or bulky waste. You can obtain information regarding collection points or collection times via your local administration or local disposal services.
Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.
Conformity information
This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of these operating instructions.
Warranty and servicing advice
Warranty of TARGA GmbH
This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.
Your statutory rights towards the seller are not affected or restricted by this warranty.
Service
Phone: 0207-3650744
E-Mail: service.GB@targa-online.com
Phone: 01-2421583
E-Mail: service.IE@targa-online.com
Phone: 800-62175
E-Mail: service.MT@targa-online.com
Phone: 800-92496
E-Mail: service.CY@targa-online.com
IAN:104499
Manufacturer
TARGA
GmbH
Coesterweg 45
59494 SOEST
GERMANY
Innehåll
Inledning 10
EU Declaration of Conformity
Address:
TARGA GmbH
Coesterweg 45
59494 Soest, Germany
Product:
Flood Light LED
Model:
LivarnoLux LSL 10 A2
Identification number:
IAN 104499
The product complies with the requirements of the following European directives:
2004/108/EC
Electromagnetic Compatibility
2006/95/EC
Low Voltage
2009/125/EC
Energy Related Products
This declaration of conformity is issued under the sole responsibility of the manufacturer
The object of the declaration described above is in conformity with Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
Compliance was proved by the application of the following standards:
EMC:
EN 55015:2013
EN 61000-3-2: 2006 + A1:2009 + A2:2009
EN 61000-3-3:2013
EN 61547:2009
Safety:
EN 60598-1:2008 + A11:2009
EN60598-2-5:1998
EN 60598-2-6:1994+A1:1997
EN 61347-1:2008+A1:2011+A2:2013
EN 61347-2-13: 2006
EN 62493:2010
EN 62471:2008
ErP:
Regulation 1194/2012
RoHS:
EN 62321:2009
Year of CE marking:
15
Soest, 1stof June 2015
Matthias Klauke, Managing Director
