USER MANUAL IAN 279089 Livarno Lux

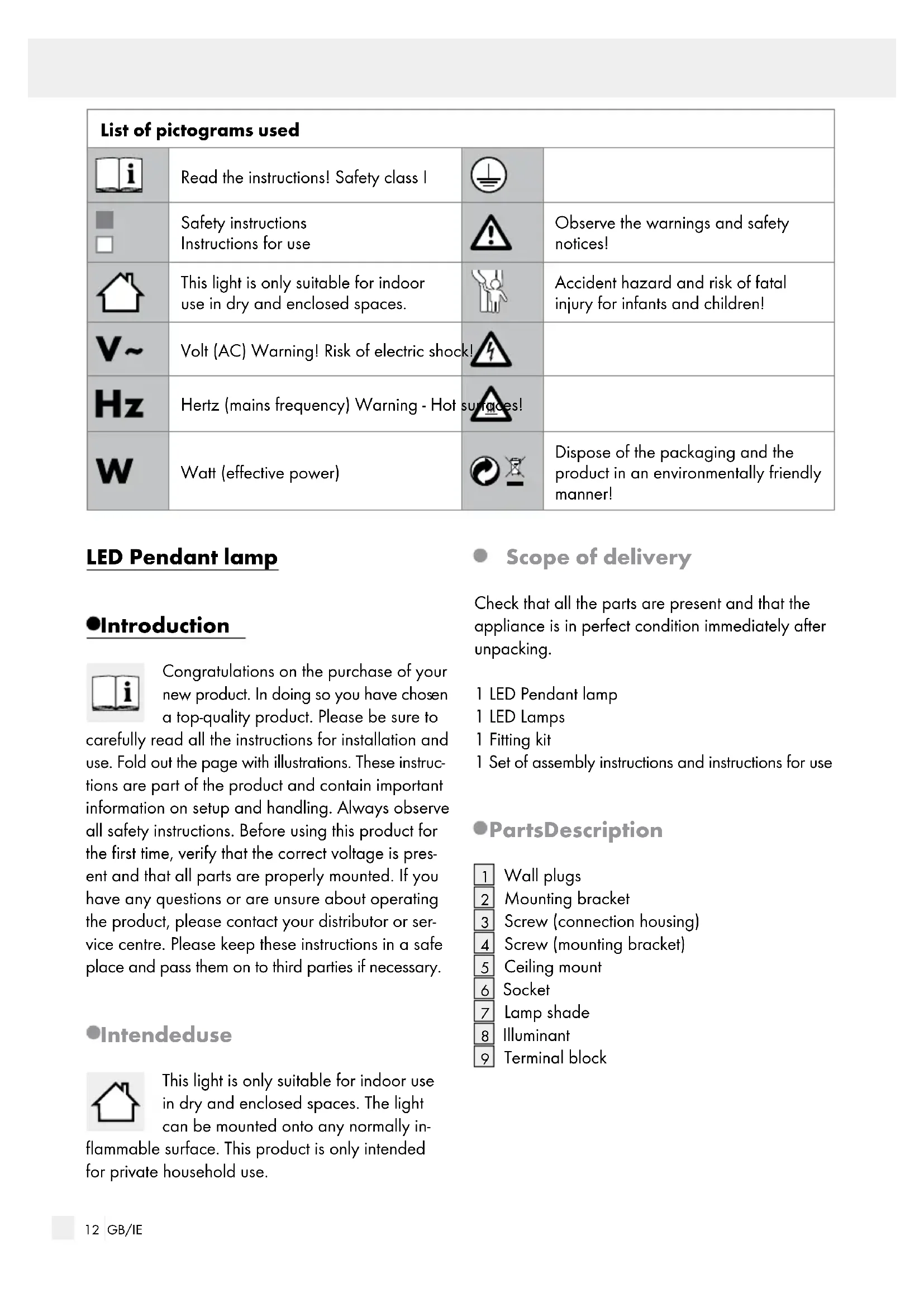

a top-quality product. Please be sure to carefully read all the instructions for installation and use. Fold out the page with illustrations. These instruc- tions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is pres- ent and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or ser- vice centre. Please keep these instructions in a safe place and pass them on to third parties if necessary. Intended use This light is only suitable for indoor use in dry and enclosed spaces. The light can be mounted onto any normally in- flammable surface. This product is only intended for private household use. Scope of delivery Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking. 1 LED Pendant lamp 1 LED Lamps 1 Fitting kit 1 Set of assembly instructions and instructions for use Parts Description

Screw (connection housing)

Screw (mounting bracket)

Terminal block List of pictograms used Read the instructions! Safety class I Safety instructions Instructions for use Observe the warnings and safety notices! This light is only suitable for indoor use in dry and enclosed spaces. Accident hazard and risk of fatal injury for infants and children! Volt (AC) Warning! Risk of electric shock! Hertz (mains frequency) Warning - Hot surfaces! Watt (effective power) Dispose of the packaging and the product in an environmentally friendly manner!13 GB/IE Introduction / Safety / PreparationIntroduction Technical Data Item number: 54511 / 54512 Operating voltage: 220–240 V∼ 50 / 60 Hz Illuminant: LED, E27, 4 W Rated power max.: 40W Protection class: I / Dimensions: 54511 Length: max. approx. 120 cm, Ø Lamp shade: approx. 38 cm

Length: max. approx. 120 cm, Ø Lamp shade: approx. 24.5 cm Distributor: Edi Light GmbH, Heiligkreuz 22, A-6136 Pill Safety Safety Notices Damage due to failure to comply with these operat- ing instructions will invalidate the warranty! We as- sume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!

CIDENT AND DANGER TO LIFE

FOR INFANTS AND CHILDREN! This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the as- sociated risks. Do not allow children to play with the device. Cleaning and user maintenance must not be performed by children without su- pervision. Avoid the risk of fatal injury from electric shock Ensure that a qualified electrician, or a person trained to carry out electrical installations, per- forms the electrical installation. We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices! Never use the light if any defects have been identified. Prior to installation, remove the fuse or switch off the circuit breaker 0 setting in the fuse box. Ensure that the light does not come into contact with water or other liquids under any circum- stances. Prior to installation, ensure that the mains voltage on site corresponds with the operating voltage required for the light (220–240 V∼). Be sure not to damage any wires during installation. Prevent fire and injury hazards To prevent burns, be sure the light is switched off and cooled down before touching it. Do not attach the light to a damp or conductive substrate. Do not leave the light or packaging material ly- ing about unattended. Plastic film / bags, plastic parts etc. are dangerous for children to play with. Do not look directly into the light source (light bulb, LED etc.). Do not use optical instruments to look at the light. Preparation Required tools and material The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference. The nature of the material is determined by the individual local conditions.14 GB/IE Maintenance … / Disposal / Declaration of Conformity / Warranty / Service centrePreparation / Prior to installation / Initial use / Maintenance and Cleaning - Pencil / marking tool - Voltage tester - Screwdriver - Electric drill - Bit (ø approx. 0.6 cm) - Side cutting pliers - Ladder Prior to installation Important: The electrical connection must be es- tablished by a qualified electrician. This person must be familiar with the properties of the light and the connection regulations. Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it. Make careful preparations for mounting and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach. Always be attentive! Always pay attention to what you are doing and proceed with caution at all times. Never install the light if you are having difficulty concentrating or do not feel well. Before installation ensure that the circuit to which the light will be connected is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0). Verify that the components are not energised using a voltage tester. Ensure that you do not damage any electrical cables, gas or water pipes when you drill into the wall. Please refer to the instructions for use for your power drill. Initial use Mounting the light Prior to installation, remove the fuse or switch off the circuit breaker 0 setting in the fuse box (see Fig. A). Install the light as shown in figure B. Reinstall the fuse or switch on the circuit breaker in the fuse box (position I) (see Fig. C). Your light is now ready to use. Installing / replacing the illuminant

WARNING! RISK OF ELECTRIC

SHOCK! When installing / replacing the illuminant, first disconnect the light from the mains. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0). Replace the illuminant as shown in figure B. Please refer to chapter “Technical Data“ for which illuminant is required for the respective model. Replace the fuse or switch on the circuit breaker in the fuse box (I position). Switching the light on / off Use the wall switch to switch the light on or off. Maintenance and Cleaning

WARNING! RISK OF ELECTRIC

SHOCK! Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).

WARNING! RISK OF ELECTRIC

SHOCK! For electrical safety reasons do not clean the lamp with harsh detergents and never immerse it in water.

CAUTION! RISK OF BURNS DUE

TO HOT SURFACES! Allow the light to cool down completely. Do not use solvents such as petrol and the like, as they could damage the lamp. Only use a dry, lint-free cloth for cleaning.15 GB/IE Maintenance … / Disposal / Declaration of Conformity / Warranty / Service centrePreparation / Prior to installation / Initial use / Maintenance and Cleaning Replace the fuse or switch on the circuit breaker in the fuse box (I position). Disposal The packaging is made of entirely recy- clable materials, which you may dispose of at local recycling facilities. Contact your local community or municipal administra- tion for more details on how to dispose of your worn-out product. The symbol of the wheelie bin with a line through it means that the product has to be disposed of in a separate refuse col- lection within the European Union. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead take them to be recycled at a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the envi- ronment. Declaration of Conformity This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act. We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted. Warranty / Service centre Warranty We provide a 3 year warranty from the date of purchase. Our products are manufactured using modern pro- duction methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified. The warranty does not extend to damage due to improper handling as well as wear items and con- sumables. These can be ordered from the telephone number listed for a charge. Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service ad- dress listed. The product will be repaired at the specified service location. Timely processing and return can only be ensured by sending the product directly to this ad- dress. For additional product information, to order acces- sories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product. Service address Great Britain / Ireland EGLO UK Ltd. Unit 12 Cirrus Park Lower Farm Road Moulton Park Industrial Estate Northampton NN3 6UR T: +44 1604 790 986 E: info-greatbritain@eglo.com IAN 279089 Please have your receipt and item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about the product.16 GB/IE Warranty / Service centre Warranty card Return address: Name/First name: Country/Postal code/City/Street address: Phone: Item number/Description: Purchase date/Point of purchase: Description of the defect: Date/Signature:
