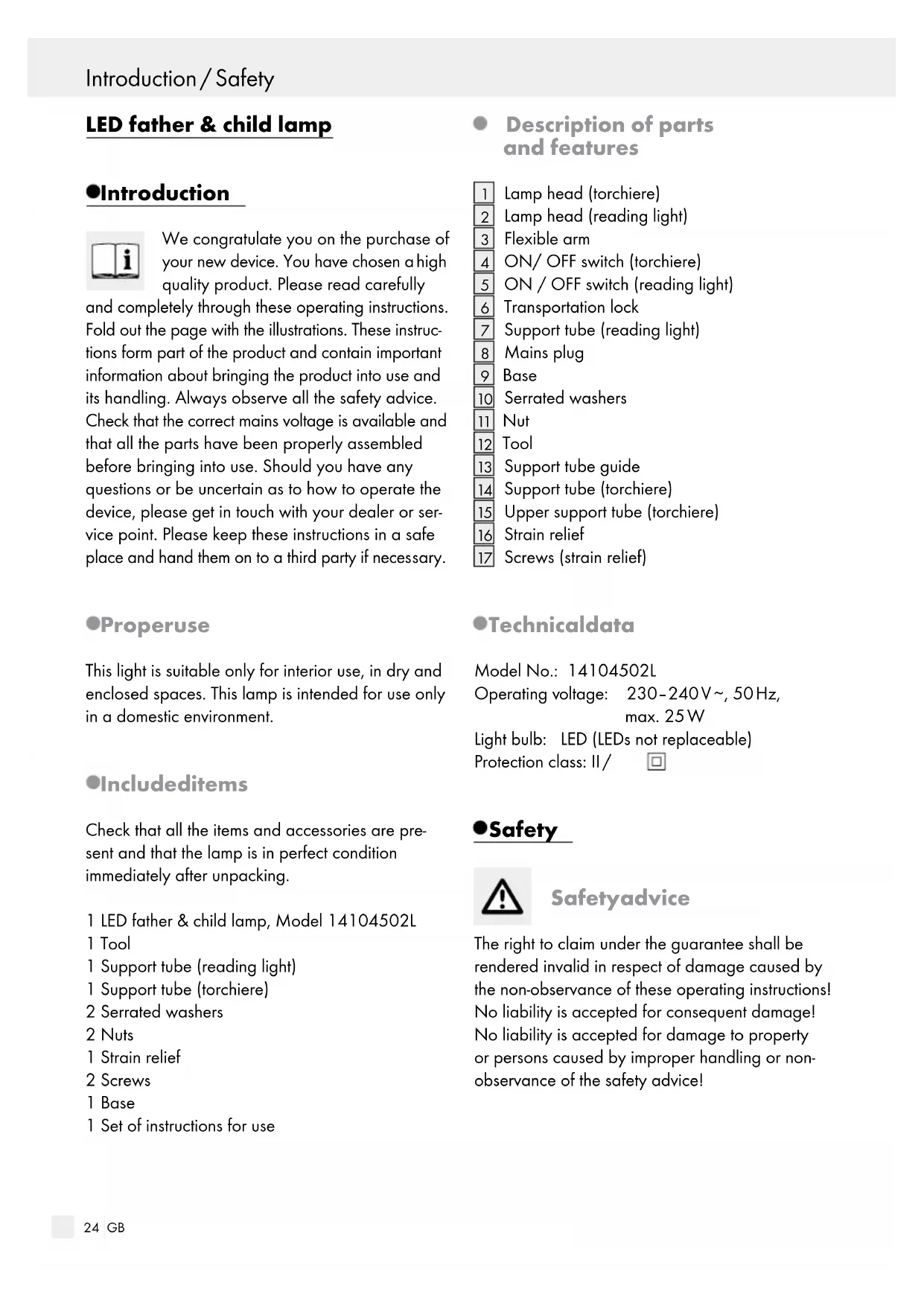

USER MANUAL IAN 273018 Livarno Lux

Lamp head (reading light)

ON / OFF switch (reading light)

Support tube (reading light)

Upper support tube (torchiere)

Screws (strain relief) Technical data Model No.: 14104502L Operating voltage: 230–240 V ∼, 50 Hz, max. 25 W Light bulb: LED (LEDs not replaceable) Protection class: II / Safety Safety advice The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non- observance of the safety advice!25 GB Safety / Preparing the product for use To avoid danger to life from electric shock Every time before connecting the lamp the mains, check it and the mains lead for damage. Never use your light if you find it is damaged in any way. CAUTION! A damaged light bulb means your life is at risk from electric shock. If there is any damage, repairs to be carried out or other problems related to the light bulb, please contact the service centre or a qualified electrician. In order to prevent hazards, if the outer flexible cable of this lamp becomes damaged it may only be replaced by the manufacturer, a service representative of the manufacturer or a similar specialist! Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary of the light (230–240 V ∼). Never let the lamp come into contact with water or other liquids. Always unplug the light from the mains prior to assembly, disassembly, cleaning or if the light will not be used for extended periods. Never open or insert anything into electrical fittings or equipment. Doing this sort of thing can lead to a serious danger to life from electric shock. To avoid danger of fire and injury CAUTION! RISK OF INJURY! Check bulbs for damage immediately after unpacking. Do not fit defective bulbs into the light. If they are, contact the service point for a replacement.

CAUTION! RISK OF INJURY FROM

BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Bulbs give off a lot of heat around the top of the lamp. Do not cover the light or the mains plug with objects. Excessive heat can result in a fire. Never leave the lamp operating unattended. Do not allow the lamp or the packaging materials to lie around unattended. Plastic film or bags, Styrofoam etc. can turn into dangerous toys for children. ATTENTION! Do not look into the LED from a close distance during operation. Do not look at the LED with an optical instru- ment (e.g. magnifier). The LED lights cannot be replaced. Working safely Install the light so that it is protected from moisture and dirt. Prepare carefully before assembly and allow yourself enough time. Lay out all the individual components and additional tools or materials required so that you can see and reach them. Remain alert at all times and always watch what you are doing. Always proceed with caution and do not assemble the lamp if you cannot concentrate or feel unwell. Preparing the product for use Assembling the lamp Note: You will require a second person to help with the assembly of the product. Note: Please ensure that you pull the cable during fitting slowly through the base. Remove the transport lock

from the support tube. First insert the support tube

into the upper support tube

of the torchiere and tighten. Ensure not to pinch the mains lead running through the support tube

Insert the support tube

for the reading light into the flexible arm

and tighten. Slide the support tube guide

over the support tubes. Insert the floor lamp with both support tubes

into the designated holes in the base

Place the serrated washers

over the support tubes

on the underside of the base

.26 GB Preparing the ... / Care and cleaning / Disposal / Warranty and Service Screw the nuts

clockwise over the support tubes

to secure the floor lamp to the base

Note: Verify the support tubes

remain steady when tightening the nuts

Note: Be sure to screw in the support tubes

as far as possible so the light is stable. Note: Ensure the cable is inside the desig- nated opening in the base

so it cannot be pinched. Secure the supply cable with the strain relief

Tighten the strain relief

into a properly installed socket. Your lamp is now ready for operation. Switching the lamp on / off Use the ON / OFF switch

to switch the uplight on or off. Use the ON / OFF switch

to switch the reading lamp on or off. Directing the lamp CAUTION! RISK OF BURNS! First allow the lamp to cool completely. Bend the flexible arm

to bring the reading lamp into the desired position. Care and cleaning RISK OF ELECTRIC SHOCK! First pull the mains plug

out of the mains socket. CAUTION! RISK OF BURNS! First allow the lamp to cool completely. RISK OF ELECTRIC SHOCK! For electrical safety reasons, never clean the lamp with water or other fluids nor immerse it in water. Do not use any solvents, petrol or similar. This would cause damage to the light. Always use a dry, fluff-free cloth for cleaning. Plug the mains plug

into the socket again. Disposal The packaging and ancillary packing consist entirely of environmentally- friendly materials. They can be disposed of at your local recycling facility. The symbol of the wheelie bin with the line through it means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Products marked in this way may not be disposed of along with normal domestic waste but have to be handed in at a recycling collection point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and to ease the burden on the environment. Warranty and Service Warranty Declaration This product has a 3-year warranty from the date of purchase; the warranty is only valid for the origi- nal purchaser and is not transferable. Please keep your receipt as proof of purchase. The warranty applies to material or manufacturing defects only. It does not cover wear parts or damage caused by improper use. The guarantee lapses in cases of un- authorized tampering. Your statutory rights are not restricted in any way by this warranty. Please con- tact the service centre by telephone. In the event of any claims under the warranty. This is the only way to ensure that your instrument can be returned free of charge. Service address Briloner Leuchten GmbH Im Kissen 2, 59929 Brilon, Germany Tel.: +49 (0) 29 61 / 97 12–800 Fax: +49 (0) 29 61 / 97 12–1 99 E-Mail: kundenservice@briloner.com www.briloner.com27 GB Warranty and Service IAN 273018 Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase. Declaration of Conformity This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004 / 108 / EC, Low Voltage Directive 2006 / 95 / EC, Ecodesign Directive 2009 / 125 / EC, RoHS Directive 2011/ 65 / EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer. Manufacturer Briloner Leuchten GmbH Im Kissen 2 59929 Brilon Germany28IAN 273018
