USER MANUAL USUW186K3A0 LG

Please read this manual carefully before operating your set and retain it for future reference.

TYPE : WALL MOUNTED

TIPS FOR SAVING ENERGY

Here are some tips that will help you minimize the power consumption when you use the air conditioner. You can use your air conditioner more efficiently by referring to the instructions below:

• Do not cool excessively indoors. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or weaken the cooling / dehumidifying functions.

For your records

Staple your receipt to this page in case you need it to prove the date of purchase or for warranty purposes. Write the model number and the serial number here:

Model number :

Serial number :

You can find them on a label on the side of each unit.

Dealer's name :

Date of purchase :

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product

WARNING

It can result in serious injury or death when the directions are ignored

CAUTION

It can result in minor injury or product damage when the directions are ignored

WARNING

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children of less than 3 years should be kept away unless continuously supervised

- Use a recognized circuit breaker between the power source and the unit. A disconnecting device to adequately disconnect all supply lines must be fitted.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Installation or repairs made by unqualified persons can result in hazards to you and others.

- Appliance shall be installed in accordance with national wiring regulations.

- The information contained in the manual is intended for use by a qualified service technician familiar with safety procedures and equipped with the proper tools and test instruments.

- Failure to carefully read and follow all instructions in this manual can result in equipment malfunction, property damage, personal injury and/or death.

- When the power cord is to be replaced, replacement work shall be performed by authorized personnel only using only genuine replacement parts.

Installation

- Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Failure to do so may result in electric shock or product failure.

- Contact an authorized service center when you install or relocate the air conditioner. Failure to do so may result in serious injury or product failure.

• Always use a power plug and socket with a ground terminal. Failure to do so may result in electric shock or product failure.

• Install the panel and the cover of the control box safely. Failure to do so may result in explosion or fire.

• Install a dedicated electric outlet and circuit breaker before you use the air conditioner. Failure to do so may result in electric shock or product failure.

- Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Failure to do so may result in electric shock or product failure.

- Do not modify or extend the power cable. If the power cable or cord has scratches or skin peeled off or deteriorated then it must be replaced, it may result in fire or electric shock.

- Be cautious when you unpack or install the air conditioner. Failure to do so may result in serious injury or product failure.

- Do not install the air conditioner on an unstable surface or where there may be a danger of falling. It may result in death, serious injury, or product failure.

- Use inflammable gas (nitrogen) to inspect leak and to purge air, using compressed air or flammable gas may cause fire or explosion.

Operation

• Do not let the air conditioner run for a long time when the humidity is very high or when a door or window has been left open. Failure to do so may result in product failure.
• Make sure that the power cord is not pulled or damaged while the air conditioner is operating. Failure to do so may result in fire, electric shock, or product failure.
• Do not place any objects on the power cord. It may result in electric shock or product failure.
• Do not turn on or off the air conditioner by plugging in or unplugging the power plug. It may result in fire or electric shock.
• Do not touch, operate or repair the air conditioner with wet hands. It may result in electric shock or product failure.
• Do not place a heater or other heating appliances near the power cable. It may result in fire, electric shock, or product failure.
• Do not allow water to run into the air conditioner. It may result in explosion or fire.
• Do not leave flammable substances such as gasoline, benzene and thinner near the air conditioner. It may result in explosion or fire.
• Do not use the air conditioner for an extended period of time in a small place without ventilation. Ventilate the place regularly. Failure to do so may result in explosion or fire.
• When there is a gas leak, ventilate sufficiently before using the air conditioner again. Failure to do so may result in explosion or fire.
• Unplug the power plug if there is a noise, smell or smoke coming from the air conditioner. Failure to do so may result in explosion or fire.
• Stop operating and close the window in storm or hurricane. If possible remove the product from the window before hurricane arrives
• Do not touch the electrostatic filter after opening the front grille. Failure to do so may result in electric shock or product failure.
• Contact an authorized service center when the air conditioner is submerged into water due to flooding. Failure to do so may result in explosion or fire.
• Be cautious water could not enter the product
• Make sure to ventilate sufficiently when this air conditioner and a heating appliance such as a heater are used simultaneously. Failure to do so may result in fire, serious injury, or product failure.
• Turn the main power off and unplug the power plug when you clean or repair the air conditioner. Failure to do so may result in death, serious injury, or product failure.
• Unplug the power plug when the air conditioner is not used for an extended period of time. Failure to do so may result in product failure.
• Do not place any objects on the air conditioner. It may result in product failure.
• For inner cleaning, contact an Authorized Service Center or a dealer. Do not use harsh detergent that causes corrosion or damage on the unit. Harsh detergent may also cause failure of product, fire, or electronic shock.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

CAUTION

Installation

- Make sure to check if there is a refrigerant leak after you install or repair the air conditioner. Failure to do so may result in product failure.

• Install the drain hose properly for smooth drainage of condensed water. Failure to do so may result in product failure.

- Keep level even when installing the product.

• Install the air conditioner where the noise from the outdoor unit or the exhaust gas will not be inconvenience the neighbors. Failure to do so may result in conflict between neighbors.

- When transporting the equipment, there should be at least 2 or more people, or a forklift. It may result in serious injury.

- Do not install the air conditioner where it is exposed to sea wind (salt spray) directly. It may result in product failure.

Operation

- Do not expose people, animals or plants to the cold or hot wind from the air conditioner. It may result in serious injury.

- Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a consumer air conditioner, not a precision refrigeration system. It may result in death, fire or electric shock.

- Do not block the inlet or outlet of air flow. It may result in explosion or product failure.

- Do not use strong cleaning agents or solvents when you clean the air conditioner, or spray water. Use a smooth cloth. It may result in serious injury or product failure.

- Never touch the metal parts of the air conditioner when you remove the air filter. It may result in serious injury or product failure.

- Do not place any objects on the air conditioner. It may result in product failure.

• Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if necessary.

- Do not insert hands or other objects through the air inlet or outlet while the air conditioner is operating. It may result in electric shock.

- Do not drink the water drained from the air conditioner. It may result in serious health complications.

- Use a sturdy stool or ladder when you clean, maintain or repair the air conditioner at a height. Failure to do so may result in serious injury or product failure.

- Do not mix the batteries for the remote control with other types of batteries or mix new batteries with used batteries. Failure to do so may result in product failure.

- Do not recharge or disassemble the batteries. Failure to do so may result in explosion, fire or serious injury.

- Stop using the remote control if there is a battery fluid leak. If your cloth or skin is exposed to the battery fluid from a leak, wash it off with clean water. Failure to do so may result in serious injury.

- If you swallow the battery fluid from a leak, wash out the inside of your mouth thoroughly and then consult a doctor. Failure to do so may result in serious health complications.

Operation ranges

The table below indicates the temperature ranges the air conditioner can be operated within.

Capacity Mode Indoor temperature Outdoor temperature
9,12k	Cooling 18	°C~32 °C -10 °C~48 °C
	Heating 16	°C~30 °C -10 °C~24 °C
18,24k	Cooling 18	°C~32 °C -15 °C~48 °C
	Heating 16	°C~30 °C -10 °C~24 °C

TABLE OF CONTENTS

2 TIPS FOR SAVING ENERGY

2 IMPORTANT SAFETY INSTRUCTIONS

7 BEFORE USE

7 Components

8 Using the remote control

10 BASIC FUNCTIONS

10 Cooling your room
10 Heating your room
10 Removing humidity
11 Airing your room
11 Adjusting the fan speed
11 Adjusting the air flow direction
11 Setting the timer
11 - Setting the current timer
12 - Turning on the air conditioner automatically at a set time
12 - Turning off the air conditioner automatically at a set time
12 - Canceling the timer setting
12 - Setting sleep mode

13 ADVANCED FUNCTIONS

13 Changing room temperature quickly

13 Indoor air purification

13 Auto Clean operation

13 Display the current energy usage

14 Auto operation

14 Auto Changeover operation

15 Silent mode

15 Energy Control mode

15 Display screen brightness

16 Using the 1 Touch soft air

16 Operating the air conditioner without the remote control

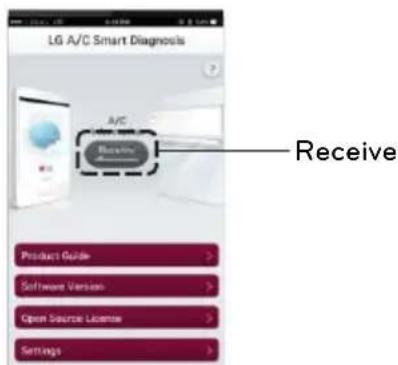

17 Smart Diagnosis

18 Restarting the air conditioner automatically

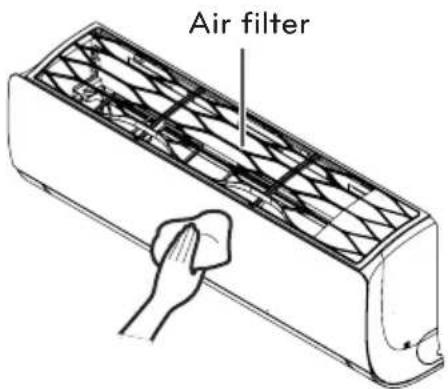

19 MAINTENANCE

22 TROUBLESHOOTING

21 Clean the air filter

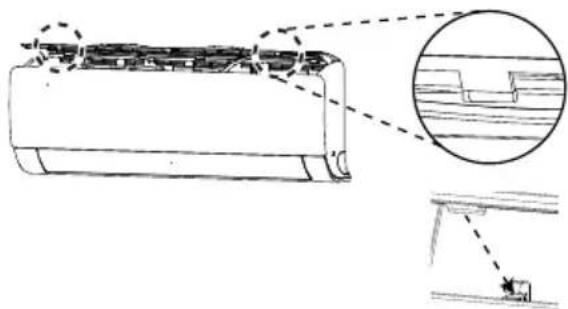

21 Assemble the air filter
22 Self-diagnosis function
22 Before requesting service

BEFORE USE

Components

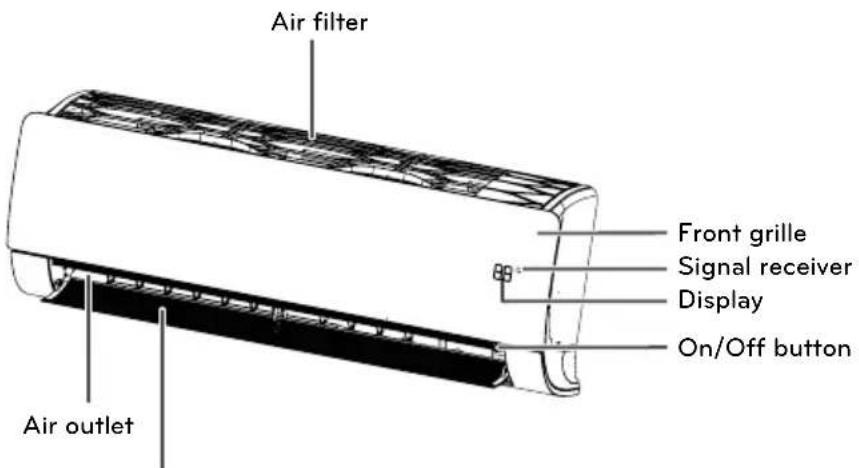

Indoor unit

Air filter Front grille Signal receiver Display On/Off button Air outlet

Air deflector (Vertical louver & Horizontal vane)

* The feature can be changed according to the type of model.

NOTE

The number of operation lamps and their locations may vary, depending on the model of the air conditioner.

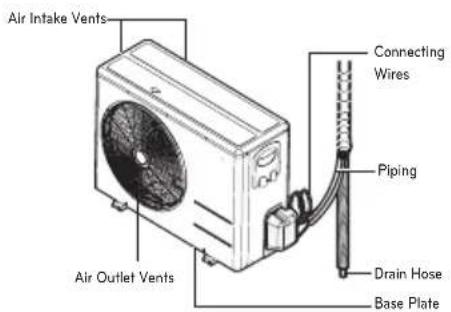

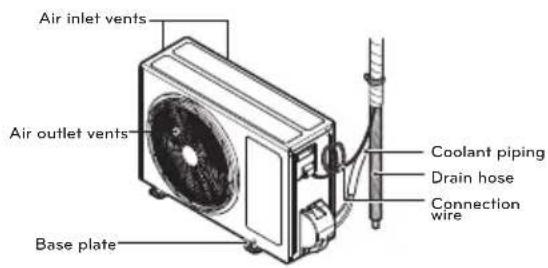

Outdoor unit

9,12k 18k

Air inlet vents Air outlet vents Base plate Coolant piping Drain hose Connection wire

Air Intake Vents Connecting Wires Piping Air Outlet Vents Drain Hose Base Plate

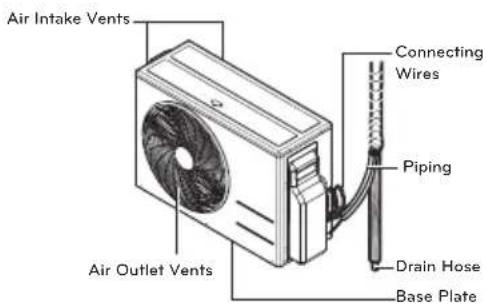

24k

Air Intake Vents Connecting Wires Piping Air Outlet Vents Drain Hose Base Plate

* The feature can be changed according to type of model.

Using the remote control

You can operate the air conditioner more conveniently with the remote control. You will find the buttons for the additional functions under the cover of the remote control.

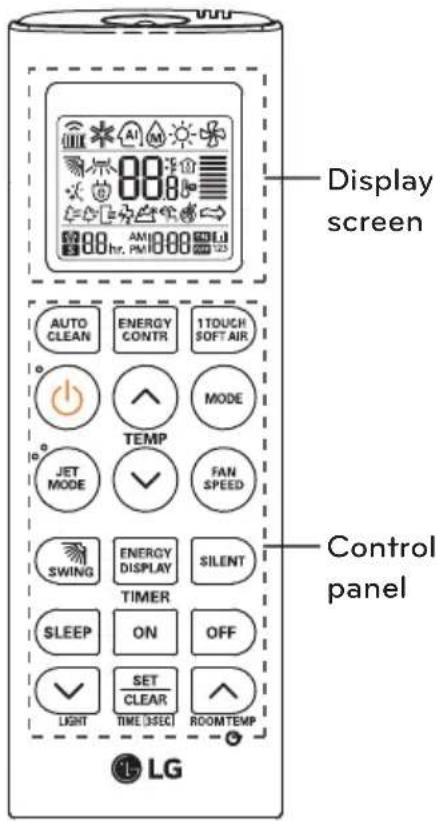

Wireless remote control

Display screen AUTO CLEAN ENERGY CONTR 1TOUCH SOFT AIR TEMP JET MODE FAN SPEED SWING ENERGY DISPLAY SILENT TIMER SLEEP ON OFF SET CLEAR ROOMTEMP LIGHT TIME [SEC] LG

CAUTION

The following cautions are relevant when it comes to models for France.

If Heating Only Mode function is set up, Cooling / Auto Changeover / Dehumidifying operation is unavailable and Heating / Air Circulation operation is available.

If the product gets turned off while the wireless remote control is set at Cooling / Auto Changeover / Dehumidifying operation, the product will not get turned back on.

Turn off the product after the wireless remote control is set at Heating / Air Circulation operation and then turn back on.

Control panel	Display screen	Description
		Auto Clean button: Set the special function.
		1 Touch soft air button: Easily adjust the air flow to deflect direct wind away.
		Sleep mode auto button*: Sets the sleep mode auto operation.
		Temperature adjustment buttons: Adjusts the room temperature when cooling and heating.
	- On/Off button: Turns the power on/off.
		Indoor fan speed button: Adjusts the fan speed.
		Operation mode selection button*: Selects the operation mode.Cooling operation (※) / Auto operation or auto changeover (AI) / Dehumidifying operation (◇) / Heating operation (◇) / Air circulation (◇)
		Jet cooling/heating button*: Warms up or cools down the indoor temperature within a short period of time.
		Air flow direction button: Adjusts the air flow direction horizontally.
		Timer button: Sets the start / end time.
		Navigation and functions button*: Adjusts the time and sets the special functions.Operates SILENT mode / Operates E/Control mode / Silent mode and E/Control are not available at the same time.
	-	Adjusts the brightness of the indoor unit display
		Energy Display button: Set whether or not to display information regarding Energy.
	-	Set/clear button: Sets or cancels functions. Also set the current time if held for 3seconds.
	-	Reset button: Resets the air conditioner settings.

* Some functions may not be supported, depending on the model.

Inserting batteries

Insert batteries before using the remote control. The battery type used is AAA (1.5 V).

1 Remove the battery cover.

Technical diagram of a remote control casing with labeled parts 1, 2, and directional arrows indicating movement or force.

2 Insert the new batteries and make sure that the + and - terminals of the batteries are installed correctly.

Technical line drawing of a remote control device with internal components and a directional arrow (no text or symbols)

3 Reattach the battery cover.

NOTE

If the display screen of the remote control starts to fade, replace the batteries.

Installing the remote control holder

Install the holder where there is no direct sunlight to protect the remote control.

1 Choose a safe and easily-accessible place.

2 Fix the holder by fastening the 2 screws firmly with a screwdriver.

Line drawing of a mechanical device with a handle and lever (no text or symbols)

3 Slide the remote control into the holder.

Operating method

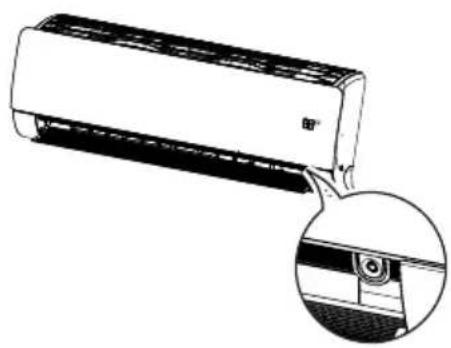

Point the remote control towards the signal receiver at the bottom of the air conditioner to operate it.

Line drawing of a wall-mounted air conditioner with a remote control and wireless signal icon (no text or symbols)

NOTE

- The remote control may operate other electronic devices if pointed towards them. Make sure to point the remote control towards the signal receiver of the air conditioner.

- For proper operation, use a soft cloth to clean the signal transmitter and receiver.

BASIC FUNCTIONS

Cooling your room

(Cooling operation)

1 Press ⏻ to turn on the power.
2 Press MODE repeatedly to select the cooling operation.
- *is displayed on the display screen.

18°C AM 12:00

3 Press ⬇ or ⬇ to set the desired temperature.

- The temperature range is 18 °C (64 °F) \~ 30 °C (86 °F).

Heating your room

(Heating operation)

1 Press ⏻ to turn on the power.
2 Press MODE repeatedly to select the heating operation.
-☀is displayed on the display screen.

30°C AM 12:00

3 Press ⬇ or ⬇ to set the desired temperature.

- The temperature range is 16^ C ( 60^ F) \~ 30^ C ( 86^ F).

NOTE

Cooling-only models do not support this function.

Removing humidity (Dehumidifying operation)

This mode removes excess moisture from an environment with high humidity or in the rainy season, in order to prevent mold from setting in. This mode adjusts the room temperature and the fan speed automatically to maintain the optimal level of humidity.

1 Press ⏻ to turn on the power.
2 Press MODE repeatedly to select the dehumidifying operation.
- △ is displayed on the display screen.

Water Dip = AM 12:00

NOTE

- In this mode you cannot adjust the room temperature, as it is adjusted automatically. Also, the room temperature is not displayed on the display screen.

Airing your room (Air Circulation operation)

This mode only circulates the indoor air without changing the room temperature.

1 Press ⏻ to turn on the power.
2 Press MODE repeatedly to select the air circulation operation.
- ✿is displayed on the display screen.

AM 12:00

3 Press Ⓗ to adjust the fan speed.

Adjusting the fan speed

1 Press 🟢 repeatedly to adjust the fan speed.

- Select ⇌ if you want natural air. The fan speed adjusts automatically.

Display Screen		Speed
Remocon	Indoor unit
		High
		Medium-High
		Medium
		Medium-Low
		Low
	Setting Temperature	Natural Wind

NOTE

Indoor unit display is displayed only 5 sec and then return to the setting temperature.

Adjusting the air flow direction

1 To adjust the direction of the air flow horizontally, press 📂 repeatedly and select the desired direction.

- Select 🔍 to adjust the direction of the air flow automatically.

NOTE

• Adjusting the air flow direction vertically may not be supported, depending on the model.
• Adjusting the air deflector arbitrarily may cause product failure.
• If you restart the air conditioner, it starts to operate with the previously set direction of air flow, so the air deflector may not match the icon displayed on the remote control. When this occurs, press to adjust the direction of the air flow again.

Setting the timer

You can use the timer function to save energy and to use the air conditioner more efficiently.

Setting the current time

1 Press SET CLEAR and hold it for longer than 3 seconds.

- The AM/PM icon flickers at the bottom of the display screen.

2 Press √ or ∧ to select the minutes.
3 Press SET CLEAR to finish.

Turning on the air conditioner automatically at a set time

1 Press ON.

- The icon below flickers at the bottom of the display screen.

2 Press √ or ∧ to select the minutes.
3 Press SET CLEAR to finish.
4 When setting the timer, current time and ON icon are displayed on the display screen indicating that the desired time is set.

Turning off the air conditioner automatically at a set time

1 Press OFF.

- The icon below flickers at the bottom of the display screen.

2 Press √ or ∧ to select the minutes.
3 Press SET CLEAR to finish.
4 When setting the timer, current time and OFF icon are displayed on the display screen indicating that the desired time is set.

Canceling the timer setting

1 Press ON or OFF to select the timer setting to cancel
2 Press SET CLEAR.

- To cancel all timer settings, press SET CLEAR.

Setting sleep mode

Use the sleep mode to turn off the air conditioner automatically when you go to sleep.

1 Press ⏻ to turn on the power.
2 Press SLEEP
3 Press √ or ∧ to select the hour (up to 7 hours).
4 Press to finish.

- ☆ is displayed on the display screen in sleep mode.

* Examples) 1 Hr

[Display screen] [Indoor unitdisplay]

18°C 1hr. AM 12:00

NOTE

• In the Cooling and Dehumidifying modes, the temperature increases by 1 °C after 30 minutes and by a further 1 °C after another 30 minutes for a more comfortable sleep.
• The temperature increases with up to 2^ from the preset temperature.
• Fan speed can't be changed in case of sleep mode. Super low fan speed is set up at cooling and low fan speed is set up at heating.
• Indoor unit display is displayed from 1H to 7H, which is displayed only 5 sec and then return to the setting temperature.

ADVANCED FUNCTIONS

The air conditioner offers some additional advanced functions.

Changing room temperature quickly

(Jet Cool/Heat operation)

This mode allows you to cool indoor air quickly in summer or warm it quickly in winter.

1 Press ⏻ to turn on the power.

2 Press ⒽJET MODE.

- P is displayed on the display screen.

Po AM 12:00

• In jet cooling mode, strong air blows out at a temperature of 18 °C (64 °F) for 30 minutes.
• In jet heating mode, strong air blows out at a temperature of 30 °C (86 °F) for 30 minutes.

NOTE

• In Air Circulation, Auto, or Auto Changeover mode, this function cannot be used.
• This function may not be supported, depending on the model.

Indoor air purification

Auto Clean operation

In the cooling and dehumidifying operations, moisture is generated inside the indoor unit. Use the auto cleaning function to remove such moisture.

1 Press ⏻ to turn on the power.

2 Press AUTO CLEAN.

-≡is displayed on the display screen.

18°C AM 12:00

- If you turn off the power, the fan operates for 30 minutes and cleans the inside of the indoor unit.

NOTE

Some buttons cannot be used while the auto cleaning function is in operation.

Display the current energy usage

It is a function displaying the amount of electricity generated on the indoor display as the product operates.

1 Press ⏻ to turn on the power.

2 Press ENERGY DISPLAY

- The instantaneous power consumption is displayed for a while on the indoor unit display.

NOTE

• When entering a function, it is not displayed separately on the wireless remote control.
• The actual power may differ from its displayed power.

Auto operation (Artificial intelligence)

Cooling-only models

In this mode, the fan speed and the temperature adjust automatically, based on the room temperature.

1 Press ⏻ to turn on the power.
2 Press MODE repeatedly to select auto operation.
3 Press ⬇ or ⬇ to select the desired operation code if the temperature is higher or lower than the desired temperature.

Code Description 2 Cool 1 Cool slightly 0 Maintain room temperature -1 Heat slightly -2 Heat

NOTE

• In this mode, you cannot adjust the fan speed, but you can set the air deflector to rotate automatically.
• This function may not be supported, depending on the model.

Auto Changeover operation

This mode changes the operation mode automatically to maintain the set temperature at ±2 ^ .

1 Press ⏻ to turn on the power.
2 Press NODE repeatedly to select the auto changeover operation.
- AI is displayed on the display screen.

AI 22°C AM12:00

3 Press ⬇ or ⬇ to set the desired temperature.
- The temperature range is 18^ C ( 64^ F) \~ 30^ C ( 86^ F).
4 Press 📂 repeatedly to select the fan speed.

NOTE

This function may not be supported, depending on the model.

Silent mode

It is to prevent potential claims by neighbors, reducing noise from outdoor units.

The outdoor unit sound pressure in cooling and heating mode is decreased by 3dB compared to the rated sound pressure

1 Press ⏻ to turn the power on.

2 Press SILENT.

- is displayed on the display screen.

18°C AM 12:00

Silent Mode Function available under the below temperature set

- Cooling-possible temperature range: Indoor 18 °C (64 °F) \~ 30 °C (86 °F), Outdoor 18 °C (64 °F) \~ 43 °C (109 °F)

- Heating-possible temperature range: Indoor 16 °C (60 °F) \~ 30 °C (86 °F), Outdoor 6 °C (43 °F) \~ 24 °C (75 °F)

NOTE

• Setting available only under operation-ON Silent Mode and E/Control are not available at the same time. If E/Control is pressed under Silent Mode, Silent Mode is released and E/Control works.
• Capacity may decrease when outdoor unit silent mode is selected.
• In Air Circulation, Humidity mode, this function cannot be used.

Energy Control mode

It Brings the effect of the power saving.

(Setting available in air cooling mode)

1 step : The power Input in cooling mode is decreased by 20% compared to rated power Input

2 step : The power Input in cooling mode is decreased by 40% compared to rated power Input

1 Press ⏻ to turn the power on.

2 Press ENERGY CONTR.

- is displayed on the display screen.

80 AM12:00

60 AM12:00

1 Step Entrance 2 Step Entrance

80 60

Energy Control mode Function available under the below temperature setting.

- Cooling-possible temperature range: Indoor 18 °C (64 °F) \~ 30 °C (86 °F), Outdoor 21 °C (70 °F) \~ 32 °C (90 °F)

NOTE

• In Cooling mode, this function can be used.
• Every time E/Control on wireless remote controller is pressed, 1Step, 2Step, functions release are repeated and switched. Wanted temperature appears for 5 sec.
• Capacity may decrease when outdoor unit Energy Control mode is selected.

Display screen brightness

You can adjust the brightness of the indoor unit display screen.

1 Press

Turn on/off the Display screen.

NOTE

This function may not be supported, depending on the model.

Using the 1 Touch soft air (Comfort Vane operation)

The comfort vane option conveniently sets the vane to a preset position that deflects the supply air away from blowing directly onto room occupants.

1 Press ⏻ to turn on the power.

2 Press TROUGH SOFT AIR repeatedly and select the desired direction.

- or is displayed on the display screen.

[Display screen] [Indoor unit display]

18°C AM12:00

[Display screen] [Indoor unit display]

18°C AM12:00

NOTE

- Pressing NCDE or 5 NCDE during comfort vane operation will turn off the comfort vane feature.

- Pressing during comfort vane operation will turn off the comfort vane feature and set up the auto swing of vertical direction.

- When this feature is off, the horizontal vane operates automatically depending on the set mode.

- Indoor unit display is displayed only 5 sec and then return to the setting temperature.

Operating the air conditioner without the remote control

You can use the On/Off button of the indoor unit to operate the air conditioner when the remote control is unavailable. However, the fan speed is set to high.

1 Open the Horizontal vane.

2 Press the On/Off Button.

NOTE

The stepping motor can be broken, the Horizontal vane open rapidly.

Diagram of a car air conditioner unit with a magnified inset showing the internal structure (no text or symbols)

* The feature can be changed according to type of model.

- For cooling and heating models, the operation mode changes, depending on the room temperature.

Room temp.	Set temp.	Operation mode
Below 21 °C	24 °C	Heating operation
Above 21 °C and below 24°C	23 °C	Dehumidifying operation
Above 24 °C	22 °C	Cooling operation

- For cooling-only models, the temperature is set to 22 °C.

Smart Diagnosis

Smart Diagnosis allows users to conveniently check maintenance information of a product.

• Easily checking operational status of the air conditioner.
• Easily understanding the error messages.
• Helping to improve device performance and expand product life.

1 Search and download "LG A/C Smart Diagnosis" in Google play or App store.
2 Click the "Receive" button on the main screen on your phone.

LG A/C Smart Diagnosis A/C Receive Receive Product Guide > Software Version > Open Source License > Settings >

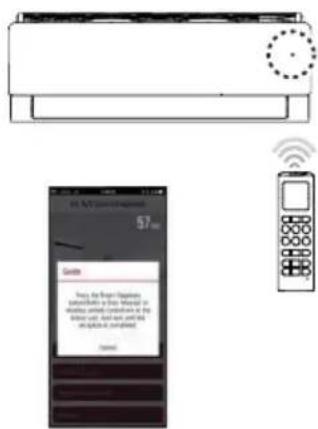

3 Press the Ⓗ of wireless remote control simultaneously for 5 seconds aim at the indoor unit.

57 Guide Please be aware of weather. Weather is in the wind. We will not want to use weather conditions at the window. And you can't use weather conditions. Named

4 Hold your phone close to the indoor unit. Buzzer beeps will be received by your phone.

Diagram showing a CD-ROM with musical notes being inserted into a CD, illustrating the music industry's role in digital audio.

5 Confirm the received information on your phone.

Lfd A/C Smart Diagnostics A/D Diagnostics: Pcs/10 Temperature: 28.0 °C Sensitivity: Normal Cool: 30.0 °C Temperature: 29.0 °C Heat Standard: 28.3 °C LfdW Pressure Discharge: A temperature range from 30.0 to 29.0 degrees Celsius; B temperature range from 29.0 to 29.0 degrees Celsius; C temperature range from 29.0 to 29.0 degrees Celsius; D temperature range from 29.0 to 29.0 degrees Celsius; E temperature range from 29.0 to 29.0 degrees Celsius; F temperature range from 29.0 to 29.0 degrees Celsius; G temperature range from 29.0 to 29.0 degrees Celsius; H temperature range from 29.0 to 29.0 degrees Celsius; I temperature range from 29.0 to 29.0 degrees Celsius; J temperature range from 29.0 to 29.0 degrees Celsius; K temperature range from 29.0 to 29.0 degrees Celsius; L temperature range from 29.0 to 29.0 degrees Celsius; M temperature range from 29.0 to 29.0 degrees Celsius; N temperature range from 29.0 to 29.0 degrees Celsius; O temperature range from 29.0 to 29.0 degrees Celsius; P temperature range from 29.0 to 29.0 degrees Celsius; Q temperature range from 29.0 to 29.0 degrees Celsius; R temperature range from 29.0 to 29.0 degrees Celsius; S temperature range from 29.0 to 29.0 degrees Celsius; T temperature range from 29.0 to 29.0 degrees Celsius; U temperature range from 29.0 to 29.0 degrees Celsius; V temperature range from 29.0 to 29.0 degrees Celsius; W temperature range from 29.0 to 29.0 degrees Celsius; X temperature range from 29.0 to 29.0 degrees Celsius; Y temperature range from 29.0 to 29.0 degrees Celsius; Z temperature range from 29.0 to 29.0 degrees Celsius; AA temperature range from 29.0 to 29.0 degrees Celsius; AB temperature range from 29.0 to 29.0 degrees Celsius; AC temperature range from 29.0 to 29.0 degrees Celsius

NOTE

Be sure to keep ambient noise to a minimum or the phone may not correctly receive the buzzer beeps from the indoor unit.

Restarting the air conditioner automatically

When the air conditioner is turned on again after a power failure, this function restores the previous settings. This function is a factory default setting.

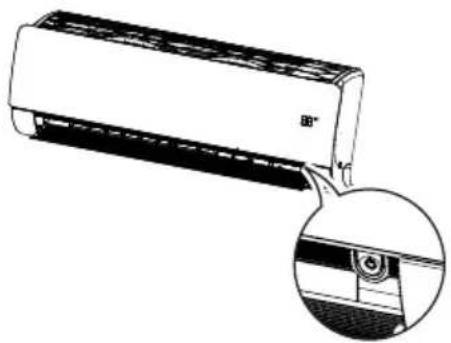

Disabling auto restart

1 Open the Horizontal vane.
2 Press the On/Off button and hold it for 6 seconds.
- The unit will beep twice and the lamp will blink twice 4 times.

Diagram of a wall-mounted air conditioner unit with a magnified inset showing internal components (no text or symbols)

* The feature can be changed according to type of model.
- To re-enable the function, press the On/Off button and hold it for 6 seconds. The unit will beep twice and the lamp will blink 4 times.

NOTE

If you press and hold the On/Off button for 3 – 5 seconds instead of 6 seconds, the unit will switch to the test operation. In the test operation, the unit blows out strong air for cooling for 18 minutes and then returns to the factory default settings.

MAINTENANCE

If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain it in best condition.

1 Dry the air conditioner in Fan mode for 3 to 4 hours and disconnect the power plug. There may be internal damage if moisture is left in components.
2 Before using the air conditioner again, dry the inner components of the air conditioner in Fan mode for 3 to 4 hours. This will help to remove odor which is generated from moisture.

Clean the product regularly to maintain optimal performance and to prevent possible breakdown

Air filter

* The feature can be changed according to the type of model.

Type Description Interval
Air filter See	“Cleaning the filter.” 2 weeks
Indoor unit	Clean the Indoor unit surface by using a soft, dry cloth. Regularly
	Clean the condensate drain pipe. Every 4 months
	Clean the condensate drain pan. Once a year
	Thoroughly clean the heat exchanger. Once a year
	Replace the remote control batteries. Once a year
Outdoor unit	Use steam to clean the heat exchanger coils and the panel vents. (consult with technician)	Regularly
	Clean the fan. Once a year
	Clean the condensate drain pan. Once a year
	Verify that all the fan assembly is firmly tightened. Once a year
	Verify that electric components with air. Once a year
	Clean the electric components with air. Once a year

! CAUTION

• Turn off the power and unplug the power cord before you perform any maintenance; otherwise it may cause electric shock.
• Never use water that is hotter than 40°C when you clean the filters. It may cause deformation or discoloration.
• Never use volatile substances when you clean the filters. They may damage the surface of the product.
• Do not wash the 3M filter with water, because the filter can be damaged(Optional)

NOTE

• The location and shape of the filters may differ, depending on the model.
• Make sure to clean the heat exchanger coils of the outdoor unit regularly, as dirt collected in the coils may decrease the operational efficiency or increase energy costs.

Clean the air filter

Clean the air filter once every 2 weeks or more if necessary.

1 Turn off the power and unplug the power cord.
2 Hold the knob of air filter, Lift it up slightly.

Simple line drawing of a rectangular container with two upward arrows indicating flow or movement (no text or symbols)

* The feature can be changed according to type of model.

3 Hold the knob of the air filter, lift it up slightly and remove it from the unit.

Line drawing of a car air conditioner unit with airflow arrows (no text or symbols)

* The feature can be changed according to type of model.

4 Clean the filter with a vacuum cleaner or with warm water.

- If dirt is difficult to remove, wash the filter in lukewarm water with detergent.

5 Dry the filter in the shade.

NOTE

The air filter can be broken when it is bended.

Assemble the air filter

Clean the air filter once every 2 weeks or more if necessary.

1 Turn off the power and unplug the power cord.

2 Insert the hooks of the air filter into the front grille.

Line drawing of a cylindrical object with a flat top and side panels (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

3 Push down hooks to assemble the air filter.

Line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Line drawing of a rectangular air conditioner unit with two circular vent indicators (no text or symbols)

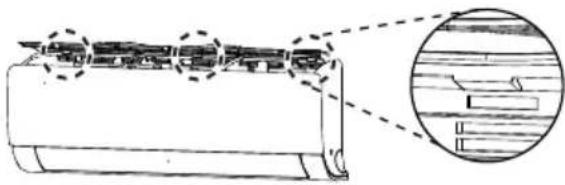

4 Check side of the front grille for the air filter assembled correctly.

Technical line drawing of a rectangular air conditioner unit with side profile view (no text or symbols)

NOTE

The air filter is not assembled correctly, Dust and other substance come into the indoor unit. If look at the indoor unit from higher than it, can assemble the top filter easily.

TROUBLESHOOTING

Self-diagnosis function

This product has a built-in self-diagnosis function. If an error occurs, the lamp of the indoor unit will blink in 2 second intervals. If this occurs, contact your local dealer or service center.

Before requesting service

Please check the following before you contact the service center. If the problem persists, contact your local service center.

Problem Possible	causes Corrective action
There is a burning smell and a strange sound coming from the unit.	-	Turn off the air conditioner, unplug the power cord and contact the service center.
Water leaks from the indoor unit even when the humidity level is low.
The power cord is damaged or generating excessive heat.
A switch, a circuit breaker (safety, ground) or a fuse is not operated properly.
The air conditioner does not work.	The air conditioner is unplugged.	Check whether the power cord is plugged into the outlet.
	A fuse is blown or the power supply is blocked.	Replace the fuse or check if the circuit breaker has tripped.
	A power failure has occurred.	Turn off the air conditioner when a power failure occurs. When the power is restored, wait for 3 minutes, and then turn on the air conditioner.
	The voltage is too high or low.	Check if the circuit breaker has tripped.
	The air conditioner turned off automatically at a preset time.	Press the power button again.
The air conditioner does not generate cool air.	Air is not circulating properly.	Make sure that there are no curtains, blinds or furniture blocking the front of the air conditioner.
	The air filter is dirty.	Clean the air filter once every 2 weeks. See “Cleaning Air Filter” for more information.
	The room temperature is too high.	In summer, it may take some time to cool indoor air. In this case, select the jet cool operation to cool indoor air quickly.
	Cold air is escaping from the room.	Make sure that no cold air is escaping through ventilation points in the room.
	The desired temperature is higher than the set temperature.	Set the desired temperature to a level lower than the current temperature.
	There is a heating source nearby.	Avoid using a heat generator such as an electric oven or a gas burner while the air conditioner is in operation.
	Air circulation operation is selected.	In the air circulation operation, air blows from the air conditioner without cooling or heating the indoor air. Switch the operation mode to the cooling operation.
It is not possible to adjust the fan speed.	The auto operation, jet operation or dehumidifying operation is selected.	In some operation modes, such as the jet or dehumidifying operation modes, you cannot adjust the fan speed. Select an operation mode in which you can adjust the fan speed.
It is not possible to adjust the temperature.	The air circulation operation or jet operation is selected.	In some operation modes, such as the air circulation or jet operation mode, you cannot adjust the temperature. Select an operation mode in which you can adjust the temperature.

MANUALE DEL'UTENTE

CLIMATIZZATORE

Technical diagram of a remote control casing with labeled parts 1, 2, and 3

Technical line drawing of a remote control device with internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical device with a handle and lever (no text or symbols)

Line drawing of a wall-mounted air conditioner with a remote control unit and wireless signal icon (no text or symbols)

NOTA

18°C AM12:00

Water droplet = AM 12:00

18°C AM 12:00

AI 22°C AM12:00

3 Premere ⬇ o √ per impostare la temperatura desiderata.

18°C AM 12:00

18°C AM 12:00

18°C AM 12:00

NOTA

Line drawing of a rectangular air conditioner unit with a magnified inset showing the internal structure (no text or symbols)

57 mm Status Press the Air Condition Description: In order to be checked for Air Condition, which is checked at the Air Condition. And not use the Air Condition to check. Cancel

Illustration of a sound streaming device emitting music notes from a wall-mounted air conditioner (no text or symbols)

5.0 A/C Smart Diagnosis A/C Disgustion Period S Diagnosis: 10.0 Patients: 20.0 Medications: 30.0 Cock: 29.0 Cock Pain: 28.3 High Spaced Low Prior Transplantation If the following findings are not shown in the patient's blood pressure: 0.0 mmHg Postoperative Transplantation 0.0 mmHg Postoperative Transplantation 4095.9 Normal Time 3 sec Prior information Normal Normal Transplantation OK

NOTA

Technical illustration of a wall-mounted air conditioner unit with an inset close-up showing internal components (no text or symbols)

Simple line drawing of a rectangular container with two upward arrows indicating flow or movement (no text or symbols)

Technical line drawing of a car air duct or duct assembly with two upward arrows indicating flow direction (no text or symbols present)

Line drawing of a cylindrical object with a flat top and side panel (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view showing internal structure (no text or symbols)

Technical line drawing of a wall-mounted air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Simple line drawing of a rectangular container with two circular indentations on top (no text or symbols)

Simple line drawing of a rectangular air conditioner unit (no text or symbols)

NOTA

Technical diagram of a remote control casing with labeled parts 1, 2, and directional arrows indicating movement or positioning.

Technical line drawing of a remote control device with internal components and a switch (no text or symbols)

Line drawing of a mechanical device with a handle and lever (no text or symbols)

Line drawing of a wall-mounted air conditioner with a remote control unit and wireless signal icon (no text or symbols)

NOTA

18°C AM 12:00

Water = AM12:00

NOTA

Po AM 12:00

18°C AM 12:00

2 Pulse ENERGY DISPLAY.

AI 22°C AM 12:00

18°C AM12:00

18°C AM12:00

[Pantalla] [pantalla de unidad interior]

18°C AM12:00

NOTA

Technical illustration of a wall-mounted air conditioner unit with a magnified inset showing internal components (no text or symbols)

57 mm Close Press the limit of guidance Describe to store the best of minutes vehicle control unit of the window with the next and the equipment commands. Close

Illustration of a sound streaming device emitting music notes from a wall-mounted air conditioner (no text or symbols)

S.D. A/C Smart Diagnostics A/C Smart Diagnostics Model 10.0000 Standard Deviation Special Value: 30.0° Cool: 30.0° Indian Power: 28.3° High Speed: Low Power Dissemination 4095.9 T Normalization Time: 3 sec. Safety Identification Normal Normal (Standard Deviation) ISO

NOTA

Technical illustration of a car air conditioner unit with a magnified inset showing the internal structure (no text or symbols)

Simple line drawing of a rectangular appliance with two upward arrows indicating airflow or movement (no text or symbols)

Line drawing of a car air conditioner unit with two upward arrows indicating airflow or heat flow (no text or symbols)

Line drawing of a cylindrical object with a textured top surface (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

Technical line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Line drawing of a rectangular air conditioner unit with two circular vent slots (no text or symbols)

Technical line drawing of a rectangular air conditioner unit with side and top views (no text or symbols)

NOTA

Technical diagram of a cylindrical device with labeled components 1, 2, and internal features

Technical line drawing of a remote control device with internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a wall-mounted air conditioner with a remote control unit and signal icon (no text or symbols)

REMARQUE

18°C AM 12:00

30°C AM 12:00

Water = AM 12:00

! REMARQUE

1 Appuyez sur SET CLEAR and hold it for longer than 3 seconds.

Po AM 12:00

18°C AM 12:00

AI 22°C AM 12:00

18°C AM 12:00

18°C AM 12:00

18°C AM 12:00

! REMARQUE

Technical illustration of a car air conditioner unit with a magnified inset showing the internal structure (no text or symbols)

57 mm Guide Apply the Board's Diagnostics Information on the Board's Air and opening screen control in the airway room. And it is on the phone to complete. Named

Illustration of a sound conditioner unit emitting music notes into a microphone (no text or symbols)

A/C A/C Smart Diagnosis A/C Diagnostics Score 1/2 Patient Ratings Nuclear Inhibitors Nuclear Inhibitors Cool 30.0° Cancer 28.0° Cancer 28.3° First Scored 1.0W First Scored 4095.9 ° Cancer 3 cm. Cancer Normal Normal Scored (All Patients) 1/8

! REMARQUE

Simple line drawing of a rectangular container with two upward arrows indicating flow or movement (no text or symbols)

Technical line drawing of a car air duct or duct with two upward arrows indicating flow direction (no text or symbols)

Line drawing of a cylindrical object with a textured top and base, resembling a mechanical component or housing (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

Technical line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Simple line drawing of a rectangular container with two circular openings and dashed lines indicating internal features (no text or symbols)

Technical line drawing of a front view and side profile of a rectangular air conditioner unit (no text or symbols)

REMARQUE

Technical diagram of a cylindrical device with labeled parts 1, 2, and internal components

Technical line drawing of a remote control device with internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Line drawing of a wall-mounted air conditioner next to a remote control with wireless signal icons (no text or symbols)

HINWEIS

18°C AM 12:00

30°C AM 12:00

Water = AM12:00

HINWEIS

18°C AM 12:00

AI 22°C AM12:00

18°C AM 12:00

60 AM 12:00

Stufe 1 Stufe 2

80 +

60 外

18°C AM1200

18°C AM 12:00

! HINWEIS

Line drawing of a wall-mounted air conditioner unit with a magnified inset showing the internal structure (no text or symbols)

Diagram showing a wall-mounted air conditioner unit, a mobile phone with a notification dialog, and a wireless signal icon.

Illustration of a sound streaming device emitting music notes from a wall-mounted air conditioner (no text or symbols)

1.0 A/C Patient Diagnosis A/C Diagnostics Report AOP Patient Information Diagnosis: COVID Cool 29,0° 30,0° Follow-up 29,0° 28,3° Frequent Low Patient Information AOP 4095.9 ° Follow-up 3 mm High Normal Normal Normal Description CER

HINWEIS

Diagram of a car air conditioner unit with a magnified inset showing the internal structure (no text or symbols)

Simple line drawing of a rectangular container with two upward arrows indicating flow or movement (no text or symbols)

Line drawing of a car air conditioner unit with airflow arrows (no text or symbols)

Technical line drawing of a car air conditioner unit showing internal structure and airflow path (no text or symbols)

Technical line drawing of a car air conditioner unit with internal components and mounting details (no text or symbols)

Technical line drawing of a mechanical component with three views (front, side, and top), no text or symbols present.

! HINWEIS

Technical diagram of a remote control panel with labeled components 1, 2, and directional arrows indicating movement or operation.

Technical line drawing of a remote control panel with internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a wall-mounted air conditioner with a remote control unit and a circular indicator (no text or symbols)

ΣΗΜΕΙΩΣΗ

18°C AM 12:00

30°C AM 12:00

Water droplet = AM 12:00

! ΣΗΜΕΙΩΣΗ

Po AM 12:00

18°C AM 12:00

AI 22°C AM12:00

18°C AM12:00

18°C AM12:00

[μήνυμα οθόνης]

18°C AM12:00

ΣΗΜΕΙΩΣΗ

Technical illustration of a car air conditioner unit with an inset close-up showing the internal components (no text or symbols)

57 pm Search Press the Air Condition Description is to find this of an air condition. We can check it on the Air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We can get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the air condition. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane. We cannot get the airplane.

Illustration of a sound conditioner unit emitting music notes into a digital audio device (no text or symbols)

5.0 A/C Smart Diagnosis A/C Diagnosis: P-value S = 3 Diagnosis: 28.3 Disease: 28.3 Nanobiasis: 30.0 Cool: 29.0 Influenza: 28.3 High Speed: Low Pvalue: Normalized p-value: Normalized p-value: Normalized p-value: Normalized p-value: Normalized p-value: Normalized 4095.9 $ Normalized: 3 p-value: Normalized p-value: Normalized Normal Normalized: 3 p-value: Normalized

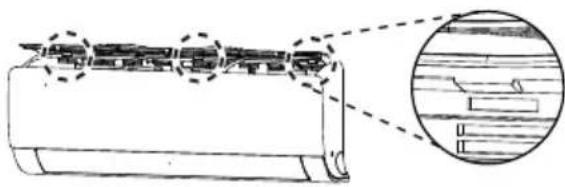

! ΣΗΜΕΙΩΣΗ

Technical illustration of a car air conditioner unit with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a rectangular device with two upward arrows indicating top and bottom edges (no text or symbols)

Line drawing of a car air conditioner unit with two arrows indicating airflow direction (no text or symbols)

Line drawing of a cylindrical object with a flat top and side panel (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

Line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Simple line drawing of a rectangular container with two circular openings and dashed lines indicating internal features (no text or symbols)

Technical line drawing of a rectangular air conditioner unit with side profiles (no text or symbols)

! ΣΗΜΕΙΩΣΗ

Technical diagram of a device with numbered components and directional arrows indicating motion or movement

Technical line drawing of a remote control unit with internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Line drawing of a wall-mounted air conditioner with a remote control unit and wireless signal icon (no text or symbols)

NOTA

18°C AM 12:00

3 Pressionar ⬇ ou ⬇ para definir a temperatura desejada.

Water Dip = AM12:00

NOTA

Po AM 12:00

18°C AM 12:00

AI 22°C AM 12:00

3 Pressionar ⬆ ou ⬇ para definir a temperatura desejada.

18°C AM12:00

18°C AM12:00

18°C AM 12:00

NOTA

Technical illustration of a car air conditioner unit with a magnified inset showing internal components (no text or symbols)

LG A/C Smart Diagnosis A/C Receber Product Guide > Software Version > Open Source License > Settings > Receiver

Illustration of a sound conditioner unit emitting music notes into a microphone (no text or symbols)

Lfd A/C Smart Diagnostics M2 Diagnostics Period 1/2 Temperature: 30.0 °C Nanational Velocity: 500000000000000000000000000000000000000000000000000000000000000000000000000 Cool: 30.0° Current Power: 28.3° 49.5V Current Power Current (1) 6.0 Vdc 4095.9 Vdc Standard Temp 3 Vdc Total Discharge Normal Not Rated (Not Rated) 116

57 min Display Hang on Door App Store Available in the Home, or outside available store or the store or store and the accessible app store Customer

NOTA

Diagram of a car air conditioner unit with an inset close-up showing the internal structure (no text or symbols)

Simple line drawing of a front-mounted air conditioner unit with two upward arrows indicating airflow or heat flow (no text or symbols)

Line drawing of a car air conditioner unit with airflow arrows (no text or symbols)

Technical line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Simple line drawing of a rectangular air conditioner unit with two fans (no text or symbols)

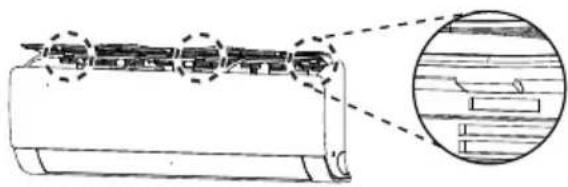

4 Verifique a lateral da grelha frontal para o filtro de ar ser montado corretamente.

Technical line drawing of a front-end air conditioner unit (no text or symbols)

NOTA

Technical diagram of a remote control casing with labeled parts 1, 2, and directional arrows indicating movement or force.

Technical line drawing of a remote control unit with internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Simple line drawing of a wall-mounted air conditioner with a remote control unit below (no text or symbols)

N.B.

18°C AM 12:00

30°C AM 12:00

Water = AM 12:00

N.B.

Po AM 12:00

18°C AM 12:00

AI 22°C AM12:00

18°C AM 12:00

18°C AM 12:00

[schermweergave] [scherm binnenunit]

18°C AM 12:00

N.B.

Line drawing of a rectangular air conditioner unit with a magnified inset showing internal components (no text or symbols)

57 µm Close Please be aware of diagnosis Is recommended to find a financial or financial service provider at the bottom level, you will find it treatments available. Close

Diagram showing a CD-ROM emitting music notes into a digital audio device, illustrating the sound streaming principle.

5.0 A/C Smart Diagnosis A/C Diagnosis Period 1st 2nd 3rd 4th 5th 6th 7th 8th 9th 10th 11th 12th 13th 14th 15th 16th 17th 18th 19th 20th 21st 22nd 23rd 24th 25th 26th 27th 28th 29th 30th 31st 32nd 33rd 34th 35th 36th 37th 38th 39th 40th 41st 42nd 43rd 44th 45th 46th 47th 48th 49th 50th 51st 52nd 53rd 54th 55th 56th 57th 58th 59th 60th 61st 62nd 63rd 64th 65th 66th 67th 68th 69th 70th 71st 72nd 73rd 74th 75th 76th 77th 78th 79th 80th 81st 82nd 83rd 84th 85th 86th 87th 88th 89th 90th 91st 92nd 93rd 94th 95th 96th 97th 98th 99th 100th

! OPMERKING

Technical illustration of a wall-mounted air conditioner unit with a magnified inset showing internal components (no text or symbols)

Simple line drawing of a rectangular container with two upward arrows indicating flow or movement (no text or symbols)

Line drawing of a car air conditioner unit with airflow arrows (no text or symbols)

Line drawing of a cylindrical object with a flat top and side panel (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

Technical line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Simple line drawing of a rectangular container with two circular indentations on top (no text or symbols)

Technical line drawing of a rectangular electronic component with three side views (no text or symbols)

! N.B.

Technical diagram of a remote control casing with labeled parts 1, 2, and 3

Technical line drawing of a remote control device with internal components and a directional arrow (no text or symbols)

Line drawing of a mechanical device with a handle and base, no text or symbols present

Line drawing of a wall-mounted air conditioner with a remote control unit and wireless signal icon (no text or symbols)

UWAGA

18°C AM 12:00

30°C AM 12:00

Water droplet = AM 12:00

! UWAGA

Po AM 12:00

18°C AM 12:00

AI 22°C AM 12:00

18°C AM 12:00

Technical illustration of a wall-mounted air conditioner unit with a magnified inset showing the internal structure (no text or symbols)

Diagram showing a CD-ROM with musical notes and a music player, illustrating the sound recording process.

Lfd A/C Smart Diagnostics A/P Diagnostics Panel 1/2 Molecular Devices Nutrition & Nutrition Cool 30.0" Light Type 28.3" Fast Speed Low Pulse Discharge 4095.9 °C Temperature Scale 3 cm Normal Normal Angle of Auto ON

57 min Guide Please use the Air Condition Air Condition is a low level of minutes on your own computer. It is a low level of the air condition. You can use the air condition to access. Cancel

! UWAGA

Diagram of a car air conditioner unit with an inset close-up showing the internal structure (no text or symbols)

Simple line drawing of a rectangular device with two upward arrows indicating top and bottom components (no text or symbols)

Line drawing of a car air conditioner unit with two upward arrows indicating airflow or heat flow (no text or symbols)

Line drawing of a cylindrical object with a textured top surface (no text or symbols)

Technical line drawing of a mechanical component with an inset magnified view (no text or symbols)

Line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Line drawing of a rectangular air conditioner unit with two circular vent slots (no text or symbols)

Technical line drawing of a front-mounted air conditioner unit with side profile (no text or symbols)

UWAGA

Technical diagram of a remote control casing with labeled parts 1, 2, and 3

Technical line drawing of a remote control device with internal components and a directional arrow (no text or symbols)

Line drawing of a laboratory brush holder with a wooden handle and two small components (no text or labels)

Line drawing of a wall-mounted air conditioner with a remote control unit and a circular dial indicator (no text or symbols)

! MEGJEGYZÉS

18°C AM12:00

30°C AM 12:00

Water droplet = AM 12:00

! MEGJEGYZÉS

18°C AM 12:00

AI 22°C AM12:00

18°C AM12:00

18°C AM12:00

[kijelző]

18°C AM12:00

MEGJEGYZÉS

Technical illustration of a wall-mounted air conditioner unit with a magnified inset showing internal components (no text or symbols)

57 min Phone: From the Direct Experience Subscription on the Internet of minutes words called out of the minutes world that will and if the minutes will complete. Owner:

Illustration of a music instrument emitting notes from a fan (no text or symbols)

Diagram of a car air conditioner unit with a magnified inset showing the side view (no text or symbols)

Simple line drawing of a rectangular container with two upward arrows indicating flow or movement (no text or symbols)

Technical line drawing of a car air duct or duct with two upward arrows indicating flow direction (no text or symbols present)

Line drawing of a cylindrical object with a flat top and side grooves (no text or symbols)

Line drawing of a wall-mounted air conditioner unit with a magnified inset showing internal structure (no text or symbols)

Technical line drawing of a car air conditioner unit with internal components and a magnified inset showing internal structure (no text or symbols)

Simple line drawing of a rectangular air conditioner unit with two fans (no text or symbols)

Technical line drawing of a rectangular air conditioner unit with side brackets (no text or symbols)

! MEGJEGYZÉS
