Please read this installation manual completely before installing the product.

Installation work must be performed in accordance with the national wiring standards by authorized personnel only.

Please retain this installation manual for future reference after reading it thoroughly.

Simple Wired Remote Controller

PREMTC00U

MFL62862020

Rev.02_042919

www.lg.com

Copyright © 2018 - 2019 LG Electronics Inc. All Rights Reserved.

2 TIPS FOR SAVING ENERGY

IMPORTANT SAFETY INSTRUCTIONS

3

TIPS FOR SAVING ENERGY IMPORTANT SAFETY INSTRUCTIONS

Here are some tips that will help you minimize power consumption when you use the air conditioner. You can use your air conditioner more efficiently by referring to the instructions below:

• Do not cool excessively indoors. This may be harmful for your health and may consume more electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
  • Speed up the fan to cool or warm indoor air quickly.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air conditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block the air flow or weaken the cooling / dehumidifying functions.

For your records

Staple your receipt to this page in case you need it to prove the date of purchase or for warranty purposes. Write the model number and the serial number here.

Model number :

Serial number

You can find them on a label on the side of each unit.

Dealer's name

Date of purchase :

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.

Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product

WARNING

This symbol indicates potentially hazardous situation which, if not avoided could result in death or serious injury.

CAUTION

This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING

Installation

• For electrical work, contact the dealer, seller, a qualified electrician, or an authorized service Center.
• Do not disassemble or repair the product. There is risk of fire, electric shock, explosion, equipment malfunction, or injury.
• Request to the service center or installation specialty store when reinstalling the installed product.
• There is risk of fire, electric shock, explosion, equipment malfunction, or injury.
• Do not disassemble, fix, and modify products randomly.
• There is risk of fire, electric shock, explosion, equipment malfunction, or injury.
• The product shall be installed according to the national standards and local code.
• Apply totally enclosed noncombustible conduct in case of local building code requiring plenum.
• Use appropriate unit mounting procedures.
• Avoid direct sunlight.
• Avoid moist areas.

In-Use

• Do not place flammable objects close to the product.
• There is risk of fire, electric shock, explosion, equipment malfunction or injury.
  • Do not allow product to get wet.
• There is risk of fire, electric shock, explosion, equipment malfunction or injury.
• Avoid dropping the product.
• There is risk of fire, electric shock, explosion, equipment malfunction or injury.
• If product gets wet, contact your dealer or authorized service center
• There is risk of fire, electric shock, explosion, equipment malfunction, or injury. If the instructions are not followed, it may cause death or severe injury of the user.
• Do not use sharp or pointed objects on product
• There is risk of fire, electric shock, explosion, equipment malfunction or injury.

4 IMPORTANT SAFETY INSTRUCTIONS

- Do not touch or pull the lead wire with wet hands. - There is risk of product breakdown or electric shock.

CAUTION

In-use

• Do not clean using powerful detergents like solvent but use soft cloths
• There is risk of fire, electric shock, explosion, equipment malfunction or deformation.
• Do not press the screen using powerful pressure.
• There is risk of product break-down or malfunction

TABLE OF CONTENTS

5

TABLE OF CONTENTS

2 TIPS FOR SAVING ENERGY

3 IMPORTANT SAFETY INSTRUCTIONS

6 DESCRIPTION

9 OPERATION INSTRUCTIONS - Standard Operation

9 Cooling
91 eating
10 Fan speed
10 Power cooling
11 Dehumidification
11 Fan
11 Auto operation (Dual sat points)
11 Cooling operation state
12 Heating operation state
12 Auto operation (Single set point)

13 OPERATION INSTRUCTIONS - Sub Function

13 Setback
13 Override
15 Dead band (Dual set points)
15 Change temperature setting(Single set point)
16 Vane angle control
16 Child lock
16 WLAN module access point mode
17 Heater
17 Made lock button

18 INSTALLATION INSTRUCTIONS

18 Installation
19 Remote controller installation

20 INSTALLER SETTING

20 How to enter installer setting mode

6 DESCRIPTION

DESCRIPTION

Simple wired remote controller

A 88 88 88 RETBACK - OVERTURE TEMP SET TIME SET UNOCCUPIED FAN SPEED TEMP SETBACK CPLE MODE OUTRUNS

	Temperature control button
	Fan speed button
	DryOff button
	Operation mode select button

Accessories

Remote controller fixing screws (2EA)

OWNER'S & INSTALLATION MANUAL

DESCRIPTION

7

Icon description

A LOW AUTO H MED LO SLO ROOM TEMP SET COOL 88.00 88.00 88.00 Vane min SETBACK OVERRIDE TEMP.SET TIME SET UNOCCUPIED

Function Icon Description
Operation mode		Auto mode- Product automatically switches between cooling and heating modes.
		Cooling mode- Product is running cooling mode.
		Dehumidification mode- Product is running dehumidifying mode.
		Heating mode- Product is running heating mode.
		Fan only operating mode- Product is running only the fan for ventilation.
Sub function		Auxiliary heat controlProduct operates Auxiliary Heat Control in heating mode.

8 DESCRIPTION

Function Icon Description
Temperature		Current temperature- Display current room temperature.
		Cooling set point temperature- Temperature set point for cooling operation.
		Heating set point temperature- Temperature set point for heating operation.
Fan speed		Displays current fan speedPOW : Fan speed - PowerAUTO : Fan speed - AutoHI : Fan speed - HighMED : Fan speed - MediumLO : Fan speed - LowSLO : Fan speed - Weak
Controller mode	SETBACK	Set back operation mode- Controller operates set back operation.
	OVERRIDE	Override mode- Occupied/Unoccupied state change.
Product state monitoring		Command received from central controller or outdoor unit.
		Slave indoor unit on a heat pump system prevents changing to a mode not compatible with the current outdoor unit mode.
		Outdoor unit running.
		Indoor unit pre-heating operation running.
		Defrost operation running.
Function setting	TIME SET	Override timer setting step.
	TEMP.SET	Satback cooling / heating temperature setting step.
	SET	It is displayed when is setting.

OPERATION INSTRUCTIONS - Standard Operation

9

OPERATION INSTRUCTIONS - Standard Operation

Press button several times until the desired mode is selected.

Whenever pressing the button, the selected operation mode is changed as Auto -> cooling > Dehumidification > Heating > Fan -> Auto...

Cooling

Heating

1 Adjust the desired temperature by pressing 🔊 buttons.

NOTE

- Setting temperature range is as below.

- Cooling: 64°F - 86°F(18°C - 30°C)

60°F \~ 86°F(16°C \~ 30°C)

(For some models)

- Heating : 60°F - 86°F(16°C - 30°C)

÷If connecting to indoor unit with

dual set point function.

Cooling: 50 - 89 °F (10 - 37.5 °C)

Heating: 40 \~ 90 °F (4 \~ 32 °C)

- Heating mode is not available for cooling exclusive models.

Cooling mode

Set temperature is lower than room temperature.

Heating mode

Set temperature is higher than room temperature.

10 OPERATION INSTRUCTIONS - Standard Operation

Fan speed

You can simply adjust desired fan speed.

1 Press button to charge fan speed

≠Some fan speed may not operate depending on the product.

- Auto fan speed - It is displayed as an animation effect like below.

Power cooling

1 Press button until 'Po' is displayed.

NOTE

- Power cooling quickly lowers the indoor temperature.

- Desired temperature: 64°F(18°C)

- Fan speed: Power fan speed

- Fan direction: Current fan direction

- If fan speed or desired temperature is changed, the power cooling is cleared, and it operates in the cooling operation mode.

- This function may not be supported, depending on the models.

OPERATION INSTRUCTIONS - Standard Operation

71

Dehumidification

Fan

1 Press button repeatedly to adjust the fan speed.

Auto operation (Dual set points)

This function automatically manages room temperature based on two types of set temperature/cooling and heating and provides a comfortable environment.

1 Press button to select auto mode(Dual set points control).
2 Press buttons and then cooling and heating temperature will blink.
3 You can control the blinking temperature by pressing bottoms.
If you want to control each temperature, press 📄 bottom when temperature icons blank.

Cooling operation state

12 OPERATION INSTRUCTIONS - Standard Operation

Heating operation state

For the case of cooling only model, you can adjust the temperature from hot to cold, from '-2' to "2" based on "0".

2 : When cold 1 : When cool 0 : When appropriate -1 : When warm -2 : When hot ROOM TEMPLE COOL 70 °F A1 OCCUPIED

NOTE

- When remote controller has a connection with indoor unit that does not support 'dual setpoint', thermal operation function of indoor unit is replaced with ON/OFF control from the wired remote, when the user sets target temperatures in the below ranges.

- cooling target temp. range :

87\~99+ (30.5\~37.5°C)

heating target temp. range :

40-59°F (4-15.5°C).

Auto operation (Single set point)

This function automatically manages room temperature based on set temperature and provides a comfortable environment.

1 Press button to select auto mode.
2 Press 📄 buttons and then temperature will blink.

3 You can control the blinking temperature by pressing buttons.

OPERATION INSTRUCTIONS - Sub Function

13

OPERATION INSTRUCTIONS - Sub Function

Setback

The setback operation returns to the sat temperature until the setback operation is canceled.

Override

The override operation temporarily returns to the set temperature until the override operation is canceled.

1 Press button for 3 seconds, you can operate/cancel setback.

-You cannot change the setting in setback operation, except to cancel the mode. - 'HL' lock is displayed on the window.

1 Press button for 3 seconds, you can operate/cancel override.

You cannot change the setting in override operation, except to set sub function and cancel the mode.

- 'HL' lock is displayed on the window. - It is only applied for 'UNOCCUPIED'.

14 OPERATION INSTRUCTIONS - Sub Function

Press the button for 3 seconds. You can enter to sub function setting mode and press the button repeatedly to change the sub function mode in the following order.

Some functions may not operate depending on the product.

Dead band setting – When it connects with an dual set point control product. Change temperature – When it connects with single set point control product.

Setting the setback temperature

1 Press button for 3 seconds.
2 Press button to move the setback mode.
3 Press button to select cool/heat temperature.
4 Press button to change the temperature.
5 Press button to set temperature.
6 Press button for 3 seconds.

Setting the override time

1 Press button for 3 seconds
2 Press button to move the override
mode
3 Press button to select override time.
4 Press button to set override time.
5 Press button for 3 seconds
*You can set in units of 30 minutes.

OPERATION INSTRUCTIONS - Sub Function

Dead band (Dual set points)

This function sets the minimum difference between heating and cooling set points.

This function is used in connection with the dual set points control product.

1 Press button for 3 seconds.
2 Press button to move the dead band mode.
3 Press button to change the dead band temperature. (0 - 10°F/0 - 5°C)

4 Press ⏻ button to set temperature.

5 Press button for 3 seconds.

Change temperature setting (Single set point)

Change temperature is the function to setup air-cooling and heating drive automatically changeable according to the temperature at single set point auto operation mode.
This function is used in connection with the single set point control product.

1 Press button for 3 seconds.
2 Press button to move the change temperature setting mode.
3 Press button to change the temperature. (2 - 14°F/1 - 7°C)

4 Press button to set temperature.

5 Press button for 3 seconds.

Example of using change temperature

Condition

1) Mode: Auto mode
2) Temperature: 72°F(22°C)
3) Change Temperature: 6°F(3°C)
*In case of the above conditions, it operates as in the graph.

①: Cooling operation start ②: Heating operation start

This function may not work in some products.

16 OPERATION INSTRUCTIONS - Sub Function

This function is to adjust airflow angle.

1 Press button for 3 seconds.
2 Press button to move the vara ang
control mode.
3 Press button to select indoor unit vane. (1,2,3,4,All)
4 Press button to change the vane angle (P1 - P6)
5 Press button to set vane angle.
6 Press 📄 button for 3 seconds.

Child lockVane angle control

It is the function to prevent children or others from careless using.

1 Press ▲ button and ▼bottom for 3 seconds, you can operate child lock.

2 As for the releasing method, press △ button and □ bottom for 3 seconds.

At the time of initial setting of the 'Child Lock', the 'CL' will be indicated approx. 3 seconds at the temperature display section before resuming to the previous mode.

After the setting of the 'CL', if another button is setup, the button can not be recognized as the 'CL' is indicated at the temperature display section for approx. 3 seconds.

WLAN module access point mode

It is the function to operate WLAN (Wireless LAN) module connected to the product in access point mode.

OPERATION INSTRUCTIONS - Sub Function

17

1 Press button for 3 seconds.

2 Press button to move the WLAN module access point mode.

3 While WLAN module is operating in access point mode, the form of AP' blinks on the screen of wired remote controller.

4 Press button for 3 seconds.

This function is only available for select models that support the WLAN Module. Refer to the installation manual of indoor unit whether available or not.

Heater

It is the function to reinforce the heating capability by turning on the electric heater during the heating operation.

1 Press button for 3 seconds.
2 Press button to move the heater mode.
3 Press button to select heater mode 'on/off'
4 Press button for 3 seconds.
*This function may not work in some products.

Mode lock button

This function prevents changes to mode setting.

1. Press ▼ button and ≡ button simultaneously for 3 seconds to use mode lock.

※If you press the button while mode lock is in use, the following screen appears.

As for the releasing method, press button and bottom for 3 seconds.

[NO TEXT]

18 INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS

Installation

1 Please fasten the back plate securely to the wall using the provided screws. Please ensure to not band the back plate as this could cause issues with installation.

2 There are three different wiring configurations. ①Through the surface of the wall ②Upper section of Remote Controller ③Right section of Remote Controller

3 Please secure remote controller upper part into the backplate attached to the surface of the wall, as pictured below, and then, connect with backplate by pressing lower part. Please make sure to leave no gaps on the top, bottom, left or right sides between the remote controller and backplate. Before assembly with the backplate, arrange the Cable not to interfere with circuit parts. Remove remote controller by inserting a screwdriver into the lower separating holes and twisting to release the controller from backplate. There are two separating holes. Please individually separate one at a time. Please be careful not to damage the inside components when separating.

Wall Side Wall Side

4 Please refer to the following directions when connecting the indoor unit and the wired remote controller together.

INSTALLATION INSTRUCTIONS

3

CAUTION

When installing the wired remote controller do not bury it in the wall. (It can cause damage in the temperature sensor.) Do not exceed 164ft(50m) for cable length. (It can cause communication error.) Specification of LG supplied extension cable : AWG 24, 3 conductor or above. (Model : PZCWRC1)

Remote controller installation

Since the room temperature sensor is in the remote controller, the remote controller box should be installed in a place away from direct sunlight, high humidity and direct supply of cold air to maintain proper space temperature. Install the remote controller about 5ft/1.5mt above the floor in an area with good air circulation at an average temperature. Do not install the remote controller where it can be affected by:

Drafts, or dead spots behind doors and in corners

Hot or cold air from ducts.

Radiant heat from sun or appliances.

- Concealed pipes and chimneys

- Uncontrolled areas such as an outside wall behind the remote controller.

This remote controller is equipped with LCD display. For proper display of the remote controller LCD's, the remote controller should be installed properly as shown in Fig.1. (The standard height is 4\~5 ft (1.2\~1.5 m) from floor level.)

Direct Sun ray contact area yes 5meters (1.5meters) no no Fig. 1

When installing more than 2 units of air conditioner to one Thermostat, please connect as pictured to the right. - Set one indoor unit to master and the remaining to slave.

GND Signal wire 12V GND Signal wire

When controlling multiple indoor units with one Thermostat, you must change the master/slave setting from the indoor unit.

- Once DIP S/W is set, recycle power. When recycling power, please remain in OFF position for at least 1 minute for new settings to take effect.

- For ceiling type cassette and duct product group, change the switch setting of the indoor PCB.

3 switch OFF: Master (Factory default setting)

3 switch ON: Slave

- For wall-mount type and stand type product, charge the master/slave setting with the wireless.

Thermostat. (Refer to wireless Thermostat manual for additional information) When controlling the group, some advanced functions (excluding basic operation setting, fan level Low, med, high, Thermostat lock setting and time setting) may be limited.

20 INSTALLER SETTING

INSTALLER SETTING

How to enter installer setting mode

01 01 TEMP PAN SPEED RETROCK OPEN MODE ON/OFFER

1 Press △ button and ▶ button simultaneously for 3 seconds to enter the installer setting mode. 2 When you enter the setting mode initially, function code is displayed on the LCD screen.

3 Press button to select function code.

4 Press button to change value.

5 Press button to set value.

1. Press △ button and □ button simultaneously for 3 seconds to exit installer setting mode.

CAUTION

Installer setting mode is to set the detail function of the remote controller. If the installer setting mode is not set correctly, it can cause problems to the product, user injury or property damage. This must be set by an certificated installer, and any installation or change that is carried out by a non-certificated person should be responsible for the results. In this case, free service cannot be provided.

INSTALLER SETTING

27

11 General air-conditioner product

Code No.	Function Name	Value Description
1	Test run mode	00 : Normal operation IDefault)01 : Initiate cooling test mode02 : Initiate heating test mode	Initiate IDU test mode.
2	Access setting	02 : XX central control address number(00~FF)	Assign a unique hexadecimal addresswhen used with central controller
3	E.S.P. function	[Select fan speed]01 : Slow02 : Low03 : Middle04 : High Functioncode Fanser ESP value05 : PowerF.S.P value : 000~255	Please refer to engineering manual for specific product data."000" is the number display for factory settings.If code3 value(s) are changed from default setting (I000) then codes, code6 & code32 values will not be used.Only selected products have five speeds.
4	Temperature sensor setting	01 : Use wired remote controller sensor(Default)02 : Use indoor unit return sensor03 : Z1 = sensor- Cooling: higher sensor value is usedHeating: lower sensor value is used	Select the thermistor value that will be used in control room temp.
5	Ceiling height	[Ceiling height]01 : Low02 : Standard (Default)03 : High04 : Very high	Simplified air volume setting for cassette and console product.Select the value that corresponds to the ceiling height the product is installed at.
6	Static pressure	Zone state - E.S.P standard value01 : Variable - High02 : Fixed-High03 : Variable Low04 : Fixed-Low	Simplified air volume setting for ducted product.Select the value that corresponds to the type of duct system attached to the product.
8	Overlide master/save setting	00 : Slave unit (Default)01 : Master unit	This function is available for use with MV I.F system.One IDU is selected as a master and will communicate it's more to the other slave IDUs.The slave IDUs will prohibit/gray out opposite mode selection.
9	Dry contact mode setting	00(Default):- Input closed = Enable remote- Input soon= Stop IDU and disable remote01:- Input closed= Start. IDU and enable remote- Input open= Stop IDU and disable remote	This function is available for use with simple dry contact.

22 INSTALLER SETTING

Code No.	Function Name	Value Description
12	Celsius / Fahrenheit switching	00 : Celitus01 : Fahrenheit (Default)	Celitus or Fahrenheit.
15	Heating thermal on/off setting	0 : Default. Each indoor unit has different value with product type:1 : +8 °F/+12 °F (+4 °C/+6 °C)2 : +4 °F/+8 °F (+2 °C/+4 °C)3 : 2 °F/+2 °F (-1 °C/-1 °C)4 : -1 °F/+1 °F (-0.5 °C / +0.5 °C)*Option 4 is available under Fahrenheit unit use condition of code12.	It can adjust the heating thermal on/off temperature according to the field environment in preparation for over heating of heating chem.
17	Celsius temperature unit	00 : Celitus 1°C control (Default)01 : Celitus 0.5°C control	Temperature resolution
18	Emergency heater setting	[Value 1]00 : Disable emergency heater(Default)01 : Enable emergency heater[Value 2]0 : Disable emergency heater in low ambient temperature1-15 : Enable emergency heater at low ambient temperature01 : -10F, 02 : -6F, 03 : 0F, 04 : 6F,05 : 10F06 : 15F, 07 : 20F, 08 : 25F, 09 : 30F,10 : 35F11 : 40F, 12 : 40F, 13 : 50F, 14 : 60F,15 : 60F[Value 3]0 : Fan off1 : Fan on (Fan is off when heater is off)	Setting value 1 enables auxiliary heater to be used when ODU has an error code.Setting value 2 enables ODU to be coked out based on selected outside temperature and enables auxiliary heater to be used.Setting value 3 determines fan operation during thermal or with auxiliary heater.
19	Function setting in group control	00 : Disable extended functions(Default)01 : Enable extended functions	Standard function : On/Off, Mode, Air flow (Low/Mid/High), Set point, Schedule Extended function: Air angle control (all).Swir, Air u/down, Air right/Left, Energy saving cooling, Fan Auto
20	Pasma purification	00 : Disable01 : Enable (Default)	It is a function to set whether Plasma purification is enable or not.
21	Auxiliary host control	00 : Manual host control disabled01 : Manual host control enabled [Default]	This setting allows user to enable/disable the auxiliary host in sub function menu.
25	External auxiliary heat kit	00 : Not installed01 : Installed (Default)	This function must be enabled to use external auxiliary heat kit.

INSTALLER SETTING

23

Code No.	Function Name	Value Description
26	Check indoor unit address number	XX/assigned address Display CDU assigned IDU address.
27	Cooling thermal on/off setting	0 : default, +1 °F/1 °F(+0.5 °C/0.5 °C)1 : +12 °F/+8 °F (+8 °C/+4 °C)2 : +8 °F/+4 °F (+4 °C/+2 °C)3 : +2 °F/-2 °F (+1 °C/-1 °C)	It can adjust the cooling thermal or / off temperature according to the field environment in preparation for over cooling or cooling calm.*This function available from Gen 4 indoor unit series.
29	Setting for refrigerant leak detector	00 : Not installed (Default)01 : Installao	Enable this function after installing external refrigerant leakage detection device.
30 SW version Display		remote SW version Remote SW version
31	Setting temperature range	00 : 60~80°F/(6~30°C) (Default)01 : 40~89°F/(4~37.5°C)	If the extended temperature range is set refer to the following.Cooling 67~89°F (30.5~37.5°C) ->88°F(30°C)- Heating 40~69°F (+4~15.6°C) ->60°F(16°C).- It set on dual set points, it is changed to the current operation modelcooling or heating of the indoor unit.
32	Static pressure step	00 : Use static pressure (code 06) set value (Default)01~11 Static pressure step (code 32) set value	If codes3 values() are changed from their octalut settings (000) then codes32 values will not be used.Extended simplified air volume setting for octed product.
33 G	Guard timer	00 : 0 minute01 : 15 minutes (Default)02 : 30 minutes03 : 45 minutes04 : 60 minutes	Minimum time that must elapse before system can change to opposite mode (example, change from heat to cool model)
34	Set point range lock	00 : Disable (Default)01 : Enable	Limits the heating and cooling setpoint range that the user can selectFor more detail information see the following instruction.
35	Cooling thermal off fan operation	00 : Fan low (Default)01 : Fan off02 : Previous fan setting	Set the fan speed operation during cooling thermal off
36	Primary heater control	00 : HP first stage heat (Default)01 : HP last stage heat	Instalior to select host pump to operate as first or last stage of heat with use of external heat kit.

24 INSTALLER SETTING

Code No.	Function Name	Value Description
37	Hold enable/Disable	00 : Hold disable (Default)01 : Hold enable	Provent or allow user to select hold function.
38	Air conditioner fan operation interlocked with ventilation	00 : Fan low(Default)01 : Fan off	It cassette has a ventilation kit installed then it is desirable to limit air from flowing through the air filter in a direction opposite of design flow.
39	IDU auto start setting	00 : Enable auto restart (Default)01 : Disable auto restart	Installer to select if IDU should be on or off after power is restored to IDU.
40	Occupancy duration time setting	00 : 0 minute (Default)01 : 10 minutes02 : 30 minutes03 : 60 minutes	Time that IDU is on after transition to occupied mode.
41	Simple dry contact setting (CN_CC connection)	00 : Simple dry contact auto identification (Default)01 : Disable the function.02 : Enable simple dry contact function03 : Enable simple dry contact function with CN_EXT port.	This function is used when simple dry contact unit is additionally installed in the indoor unit or the installed simple dry contact unit is removed.
46	Setting the fan continuous	00 : Not used01 : Used	It is the function to set the continuous operation of the indoor fan，并在 if the room air temperature reaches the set point through the indoor unit operation it is the ability to keep set fan speed longer than does not setting.
47	Outdoor unit function setting master/slave	00 : Outdoor unit function slave01 : Outdoor unit function master	This function make connected indoor unit as a master indoor unit that can set functions related to outdoor unit operation. Outdoor unit accepts for only one indoor unit that can set functions related to outdoor unit operation.
48	Function of indoor unit silent mode	00 : Not used01 : Silent mode low02 : Silent mode high	It is the function to reduce the refrigerant noise occurred at the initial stage of the operation of the indoor unit at the heating mode.
49	Setting the outdoor unit defrost mode	00 : Not used01 : Forced remove piled snow mode02 : Fast defrost mode03 : Forced remove piled snow and fast defrost mode	It is the function to select the defrost or snow remove function of the outdoor unit.
51	Setting temperature-based fan speed 'auto'	00 : Not used01 : Use temperature-based fan speed 'auto'	Temperature based fan speed 'auto' function is the function to change the fan speed according to the differences between the room temperature and the set point.

INSTALLER SETTING

25

Code No.	Function Name	Value Description
52	CN_EXT	00: Use installer code No. 41 setting value (simple dry contact setting value)01: Simple operation on/off02: Simple dry contact (it takes H/L when operation is 0^st )03: Indoor unit single emergency stop04: Occupied / unoccupied05: Indoor unit all emergency stop ≤ it can be set only when there is indoor unit emergency stop function.06: Window contact ≤ it can be set only when there is window contact function.07: Window contact lock ≤ it can be set only when there is window contact lock function.		It is the function to set a purpose of digital input port(CN_EXT) of indoor unit PCB.
56	Outdoor unit cycle priority		< Stop >00: Not use [Not use, Standby]01: Standby None02: Cool [Cool] 0~3 Stop	It is the function to clear the limit and set the operation mode when it is cleared, to be able to select the operation mode opposite to the operation mode of the outdoor unit currently in operation while the connected product is in slave mode.
57	Outdoor temperature for heating stages		<Setting range>01: Use/Not use [Use/No use]02: I1 None03: ΔT [T1 setting range]-10~60°F(+23~15°C)[ΔT setting range]0~70°F(0~35°C)	It is a function that sets outdoor temperature values for two stage heating. It user set outdoor temperature T1 and ΔT, indoor unit will select heating stage between indoor unit operation and heater operation.
61	Room temperature compensation	Compensation temperature setting range:-10°F ~ 10°F(-5°C ~ 5°C)		This function adjusts the room temperature displayed on the product to match the actual room temperature.
61	Air volume control	00: Default01: =10%02: -10%		This function is available to change target air volume.
67	Fan setting during thermal off (Occupancy / Operation mode)		<Select mode>00: Cooling / Occupied01: Cooling / Unoccupied02: Heating / Occupied03: Heating / Unoccupied	00: Not Used01: Fan Low02: Previous fan Setting03: Fan offSet the fan speed operation during thermal off condition according to occupancy and operation mode.This setting has the highest priority to all related fan setting.

*Some contents may not be displayed depending on the product function.

26 INSTALLER SETTING

Test run mode (Code 1)

After installing the product, you must run a Test run mode.

For details related to this operation, refer to the product manual.

00 : Normal operation (Default)

01: Initiate cooling test mode

02 : Initiate heating test mode

During the test run, pressing the below button will exit the test run.

- On/Off, temp, fan speed, oper mode button.

Address setting (Code 2)

Sets the central control address of the indoor unit during the central controller connection.

XX: central control address number (00\~FF)

E.S.P. function (Code 3)

Sets the wind amount value corresponding to each wind amount for easy installation.

[Select fan speed] E.S.P value : 000-255

01: Slow
02 : Low
03 + Middle
04: High
05: Power

*Press button to select fan speed or

E.S.P value.

NOTE

• Please be careful when adjusting ESP values.
• It does not work to setup ESP value for slow/power step for some products
• ESP value range is dependent on product.

Temperature sensor setting (Code 4)

Determines if you will use the indoor unit mounted sensor or the remote controller sensor.

Temperature sensor selection Function
01	Thermostat Operate	according to	thermostat temperature sensor
02	Indoor unit Operate	according to	indoor unit temperature sensor
03	2TH	Cooling	Operate according to higher temperature by comparing indoor unit's and thermostat's temperature. iThere are products that operate at a lower temperature.1
		Heating	Operate according to lower temperature by comparing indoor unit's and thermostat's temperature.

The function of 2TH has different operation characteristics according to the product.

Ceiling height (Code 5)

Controls the fan speed stage according to the ceiling height in the ceiling type product.

Ceiling height level Description
01 Low Decrease the indoor airflow rate 1 step from standard level
02 Standard Set the indoor airflow rate as standard level
03 High Increase indoor airflow rate 1 step from standard level
04	Very High	Increase indoor airflow rate 2 steps from standard level

• Ceiling height setting is only available for some products.
  Ceiling height of 'Very high' function may not exist depending on the indoor unit.
  Refer to the product manual for more details.

• INSTALLER SETTING

Static pressure (Code 6)

Static pressure setting can be set only in the duct products. (It cannot be set in other products.)

Pressure selection		Function
		Zone state ESP standard value
01 V-H	Variable High
02 F-H	Fixed High
03 V-L	Variable Low
04 F-L	Fixed Low

Override master/slave setting (Code 8)

The operation master / slave selection function is to avoid other mode operations, and it is the function to prevent the selection of opposite mode of the indoor unit master by the indoor units set as slaves.

M/S Desorption
01 Master Using group control, this master sets the mode of slave IDU's.
02	Slave	For the indoor unit set as slave, it can only select the some operation mode of the master indoor unit cycle.Exl Master is in cooling cycle, slave can select cooling, dehumidification, auto, and wind only.Master is in heating cycle, slave can select auto, heating, and wind only.

NOTE

- Override M/S setting function is only available in some products.

INSTALLER SETTING

29

Dry contact mode setting (Code 9)

Dry contact function is the function that can be used only when the dry contact devices is separately purchased and installed.

NOTE

- For dry contact mode related detail functions, refer to the individual dry contact manual.

• What is dry contact?
- It means the contact point signal input when the hotel card key, human body detection
sensor, etc. are interfacing with the air conditioner.
- Added system functionality by using external inputs (dry contacts and wet contacts)

Heating thermal on/off setting (Code 15)

You can adjust the heating on / off temperature according to the field environment in preparation for over heating or heating claim.

Value	Thermal on	Thermal off
0 Default(Different from each product)
1	8^ F( 4^ C)	12^ F( 6^ C)
2	4^ F( 2^ C)	8^ F( 4^ C)
3	- 2^ F( 1^ C)	2^ F( 1^ C)
4	- 1^ F( 0.5^ C) 1^ F( 0.5^ C)

Emergency heater setting (Code 18)

This function is only available on some products.

This function will set the emergency heater setting

Emergency heater is used to heat the space in emergency cases such as heat pump error.

Emergency heat is in place of and does not supplement heat pump.

*Emergency heater setting function sets following conditions:

1) Emergency heater operation while in error or outdoor unit operating in the cooling cycle.
2) Emergency heater operation in low outdoor ambient temperature.

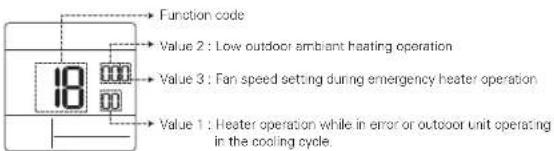

31 Fan speed setting during emergency heater operation

Function code Value 2 : Low outdoor ambient heating operation Value 3 : Fan speed setting during emergency heater operation Value 1 : Heater operation while in error or outdoor unit operating in the cooling cycle.

中Press

button to value 1, value 2 or value 3.

30 INSTALLER SETTING

Value 1

18:00 : Disable emergency heater (Default) 18:01 : Enable emergency heater

When it connect general function indoor unit

Value 2	Enable temperature		Disable temperature
	Fenzenel (°F)	Celsius (°C)	Fenzenel (°F)	Celsius (°C)
0 Not used(Default)
1.0°F	-18°C 5°F	-15°C
2.5°F	-15°C 10°F	-12°C
3.10°F	-12°C 15°F	-9°C

When it cannot extend function indoor unit

Value 2	Enable temperature		Disable temperature
	Fahrenheit (°F)	Celsius (°C)	Fahrenheit (°F)	Celsius (°C)
0 Not used(Default)
1 -10°F -23°C	5°F -20°C
2 -5°F -21°C	0°F -17°C
3 0°F -18°C	5°F -14°C
4 5°F -15°C	10°F -11°C
5 10°F -12°C	15°F -8°C
6 15°F -9°C	20°F -5°C
7 20°F -7°C	25°F -2°C
8 25°F -4°C	30°F 1°C
9 30°F -1°C	35°F 4°C
10 35°F 2°C	40°F 7°C
11 40°F 4°C	45°F 10°C
12 45°F 7°C	50°F 13°C
13 50°F 10°C	55°F 16°C
14 55°F 13°C	60°F 19°C
15 60°F 16°C	65°F 22°C

Value 3

0: Fan off

1: Fan on (Fan is off when heater is off)

CAUTION

This function setting must be carried out by a certified technician.

Check indoor unit address number (Code 26)

It is the function to verify the indoor unit address designated by the outdoor unit.

Cooling thermal on/off setting (Code 27)

It can adjust the cooling thermal on / off temperature according to the field environment in preparation for over cooling or cooling claim.

Value Thermal on Thermal off
0.1°F(0.5°C)-1°F(-0.5°C)
1.12°F(6°C)	8°F(4°C)
2	8°F(4°C)	4°F(2°C)
3	2°F(1°C)	-2°F(-1°C)

Setting temperature range (Code 31)

This function is used to select the temperature range options.

Value 00 (Default)

- Cooling : 64-88°F(18-30°C)

- Heating : 60-86°F(16-30°C)

Value 01

- Cooling : 64-89°F(18-37.5°C)

- Heating : 40\~80°F(4\~30°C)

INSTALLER SETTING

31

NOTE

- In case of the setting expanded temperature range (set), please note that the setting of the wired remote controller can be altered under below circumstances.

- In case of cooling at 87\~99°F(30.5\~37.5°C), it is changed to cooling at 86°F(30°C).

- In case of heating at 40\~59°F(4\~15.5°C), it is changed to heating at 60°F(16°C).

- If set on dual set points, it is changed to the current operation mode(cooling or heating) of the indoor unit.

static pressure step Code 32)

This is the function that static pressure of the product is divided in 11 stops for setting.

00: Use static pressure(code 06) set value 01\~11: Use static pressure step (code 32) set value

*Refer to the product manual for information on each step value.

This function is applied to only duct type. Setting this in other cases will cause malfunction.

Set point range lock (Code 34)

It is the function that can limit the range of the desired temperature that can be set in the wired remote controller.

When the temperature range is locked, the desired temperature can be set only in the range of the set value. But, the desired temperature value by central control unit or additional accessories reflects the desired temperature received beyond the range.

Operation mode Set point upper limit Set point lower limit Lock enable / disable Function code

-Press button to select each function like below

Indoor unit control method	Code 31	Cooling Heating
Single set point	00	64~86 °F(18~30 °C)	60~96 °F(16~30 °C)
	01	64~99 °F(18~37.5 °C)	40~96 °F(4~30 °C)
Dual set points	-	50~99 °F(10~37.5 °C)	40~90 °F(4~32 °C)

32 INSTALLER SETTING

CN\_EXT (Code 52)

It is the function to set a purpose of digital input portICN_EXTI of indoor unit PCB.

Value	Description
00	Use installer code No. 41 setting value (simple dry contact setting value)
01	Simple operation on/off
02	Simple dry contact(It takes HL when operation is off.)
03	Indoor unit single emergency stop
04	Occupied / unoccupied
05	Indoor unit all emergency stop※It can be set only when there is indoor unit emergency stop function.
06	Window contact※It can be set only when there is window contact function.
07	Window contact lock※It can be set only when there is window contact lock function.

Value 100: Not use

- According to the outdoor unit operation mode, operation mode selection is limited.

The following operation modes can be

selected according to the outdoor unit cycle.

- Cooling cycle: auto, fan, cool,

dehumidification

Heating cycle: auto, fan, heat

Value 1.01: Standby

- In case of the operation mode opposite to the outdoor unit operation mode, it maintains the current operation mode. At this time, it maintains thermal off + fan off state.

Value 1 02 : Cool

- Outdoor unit operation has priority in cooling operation. It is the function to enable the heating operation by heater in the product in heating operation.

For heater interface operation, set 'emergency

heater setting and 'auxiliary heater'

- Emergency heater setting – installer code 18

- Auxiliary heater - Installer code 25

* Press button to select value 1 or value 2.

Outdoor unit cycle priority (Code 56)

It is the function to clear the limit and set the operation mode when it is cleared, to be able to select the operation mode opposite to the operation mode of the outdoor unit currently in operation while the connected product is in Slave mode.

When you set installer code 08:00 (operation slave), according to the operation status of the outdoor unit, cooling/hoating mode selection is restricted.

Value 2	Waiting time for cooling thermal off
0 45 minutes (default)
1 30 minutes
2 60 minutes
3 90 minutes
4 120 minutes
5 Not use

INSTALLER SETTING

33

Outdoor temperature for heating stages (Code 57)

It is a function that sets outdoor temperature values for two stages heating. If user sets outdoor temperature T1 and T , indoor unit will select heating stage between indoor unit operation and heater operation. When the emergency heater setting is set (installer code 18), emergency heater control operation is performed with priority

- Press button to select value 1 or value 2

Value 1 Select mode
1 Use/Not use setting
2 T1 value setting
3	T value setting

Value 1:01

Setting value Description
0 Not use
1 Use

Value 1:02

Temperature unit T1 setting range

Celsius -23-16°C

Fahreneit -10-60°F

1.9^ or higher

[-10°F or lower]

Value 1:03

Temperature unit	T setting range
Celsius 0--35°C
Fahrenheit 0--70°F

Operation according to T1, T setting and outdoor temperature.

①(T1 + ΔT < Outdoor temperature) : only heat pump used

②(T1 < Outdoor temperature < T1 + T1) both heater and heat pump used

③(Outdoor temperature < T1): only heater used

Fan setting during thermal off (Occupancy / Operation mode) (Code 67)

Set the fan speed operation during thermal off condition according to occupancy and operation mode.

	Function code
67	Value 2: Setting value
	Value 1: Select mode

00: Cooling / Occupied	00 : Not used
01: Cooling / Unoccupied	01 : Fan low
02: Hearing / Occupied	02 : Previous fan setting
03: Hearing / Unoccupied	03 : Fan off

LG

Life's Good

MANUEL D'INSTALLATION ET D'UTILISATION

CLIMATISEUR

Zone morte (Point de consigne double)

A NOW AUTO H MED LO SLO ROOM TEMP SET COOL 88.0°C F 88.0 88.0 F 88.0 HEAT VOC TIME SETBACK OVERRIDE TEMP, SET TIME SET UNOCCUPIED
