SMV6ZB801E - Dishwasher BOSCH - Free user manual and instructions

Product type	Built-in dishwasher
Brand	Bosch
Model	SMV6ZB801E
Height	86.5 cm (adjustable)
Width	59.8 cm
Depth	55 cm
Weight	Approximately 45 kg
Electrical supply	220-240 V, 50-60 Hz, 10 A
Power	2100 W
Water consumption	9-10 L per cycle
Noise level	44 dB(A) re 1 pW
Capacity	14 place settings
Programs	Eco, Intensive, Normal, Quick, Prewash
Special features	EmotionLight lighting, TimeLight, Gap Illumination, Vario drawer, adjustable spray arms
Filtration system	Coarse filter, microfilter, automatic filtration system
Safety	AquaStop, child safety (lock), grounding
Interior material	Stainless steel
Maintenance	Filters, spray arms, pump cover, door seal
Spare parts	Available via Bosch after-sales service (ref. guide tablette 00614935, cup rack 00618565, etc.)
Warranty	2 years (parts and labor)
Downloadable manual	Yes, PDF format on notice-facile.com

Frequently Asked Questions - SMV6ZB801E BOSCH

How to install the SMV6ZB801E dishwasher?

Installation requires disconnecting the appliance from the mains and water supply. Ensure the appliance is freely accessible. For the worktop, remove the rear screws and push the locking levers upwards. Mount the worktop by inserting it into the rails until it clicks. For the electrical connection, push the power cable into the socket until it clicks.

How to select a washing program?

Use the control panel to select the desired program among the options: Eco, Intensive, Normal, Quick or Prewash. Press the corresponding button to start. The TimeLight indicates the remaining time.

Why does the dishwasher not start?

First check that the appliance is powered on and that the door is properly closed. Make sure the child lock is not activated (child safety). If the problem persists, unplug the appliance for 60 seconds then plug it back in.

How to clean the filters?

Remove the lower basket. Turn the coarse filter counterclockwise and lift the filter system. Lower the microfilter to extract it. Rinse the filters with clean water. Reassemble in reverse order, aligning the arrows.

How to replace the spray arms?

For the upper arm, unscrew and pull downwards. For the lower arm, lower it to remove it. Insert the new lower arm until it clicks into place. For the upper arm, screw it firmly.

How to descale the appliance?

Use a specific descaling product for dishwashers. Pour it into the detergent compartment. Run an Eco or Intensive program empty. Repeat if necessary depending on water hardness.

What does the regenerating salt indicator mean?

The indicator means the salt level is low. Open the cap of the salt reservoir (under the lower basket) and pour special dishwasher salt until the indicator goes off.

How to adjust the water hardness?

Water hardness is adjusted via the control panel. Consult the manual for precise steps. Generally, press a combination of buttons to enter setting mode and select the level corresponding to your water.

How to mount the cup rack and the table guide?

First mount the table guide tilted on the front of the upper basket. Then attach the cup rack by centering it. Open the clip of the rack for cups. For large glasses, use the retaining clip.

Where to find the complete user manual?

The complete manual is freely available in PDF format on notice-facile.com. You can download it or view it online. It includes 989 pages detailing installation, use, and repair.

USER MANUAL SMV6ZB801E BOSCH

4.15 Replacing the main contact board 27

4.15.1 Removing the main contact board 27 4.15.2 Installing the main contact board 27

4.16 Replacing the overflow pipe 28

4.16.1 Removing the overflow channel 28 4.16.2 Installing the overflow pipe 29

4.17 Replacing the inner door 31

4.17.1 Removing the inner door 31 4.17.2 Installing the inner door 31

4.18 Replacing the door hinge 32

4.18.1 Removing the door hinge 32 4.18.2 Installing the door hinge 32

4.19 Replacing the door seal (bottom) 34

4.19.1 Removing the door seal 34 4.19.2 Installing the door seal 35

4.20 Replacing the door seal (top) 36

4.20.1 Removing the door seal 36 4.20.2 Installing the door seal... 36

Repair instructions - Washing machine

4.21 Replacing the EmotionLight 37

4.21.1 Removing the EmotionLight 37 4.21.2 Installing the EmotionLight 37

4.22 Replacing the TimeLight 40

4.22.1 Removing the TimeLight 40 4.22.2 Installing the TimeLight 40

4.23 Replacing the Gap illumination (lighting of the product) 41

4.23.1 Removing the Gap illumination 41 4.23.2 Installing the Gap illumination 42

ABOUT THIS DOCUMENT

1.1 Important information

1.1.1 Purpose

This document is intended to assist the user in repairing the device themselves, in accordance with the regulations for eco-design and repair (as of 03.2021).

The information provided here defines the spare parts, including consumables and risks.

If you have any questions, please contact our customer service. We are not responsible for damage if the repair instructions have not been followed correctly.

1.2 Explanation of symbols

1.2.1 Danger levels

Warnings are indicated by symbols and explanatory text. The signal word indicates the severity of the danger.

Ниво на п dedурждени 3начени
ОПАСHОCT	Еспаразы新股у на п dedурждени.TО сбоб Shedени по Смьт ини сернони наразяваим.
ПРEDУПЕЖДЕНЕ	Еспаразы新股у на п dedурждени.TOTСбоб Shedени по Смьт ини сернони наразяваим.
ВИМATEЛНО	Еспаразы新股у на п dedурждени.TOTСбob Shedени по Смьт ини наразяваим.
ВИМАМЕЛ	Еспаразы新股у на п dedурждени.TOTСбob Shedени по Смьт ини смьз. БЕСТВЕНI.YE.TN.

Table 1: Danger levels

1.2.2 Danger symbols

The symbols and safety signs used to provide information about the type of danger.

The following safety symbols are used in this document:

Симboл за опасост за чужения	ОвноPre dedуриdentелно сбоб Shedи Опасост от[elektrovesко наразожения
	Пuck ot[eckлосnia]
	Опасost от[nорязвania]

About this document

Симbol 3a onachoct 3начени	Опachoct ot пемарази Опachoct ot горец поьрхости
	Опachoct ot симно магнисто плел Опachoct ot неюни рашу лычени

Table 2: Safety symbols

1.2.3 Structure of the warnings

The warnings in this document have a standardized structure.

DANGER

Immediate danger!

Directly hazardous situation/danger

Measures to prevent the danger.

The following example shows a warning that warns of electric shock, which can cause death or injury. The warning symbol for danger is used.

DANGER

Risk of electric shock from live parts!

Electric shock can be fatal

Disconnect the equipment from the power supply before performing any maintenance.

1.2.4 General safety instructions

IMPORTANT SAFETY INSTRUCTIONS:

Оьш симвов Зачени
I	Иденихицаре на спесиален сьвет (TEKCT w/ллграфика)
I	Иденихицаре на постс сьвет (само TEKCT)
I	Иденихицаре на врьзka Кьм Вideо урок
I	Иденихицаре на необхочимite И-стру金融市场
I	Иденихицаре на необхочимite поедырпелейн усповия
I	Иденихицаре на усLOBVE (ako ..., Тогава ... )
I	Иденихицаре на peЗуntat
[Стар]	Иденихицаре на Клиочни SFYTOH
[00123456]	Иденихицаре на Каталожен Homep
[Статус]	Иденихицаре на по��аизяп.TeKCT/ празорец (на диспега на урда)

Table 3: Safety symbols

Safety

2.1 General safety instructions

2.1.1 For all household appliances

Risk of electric shock! Touching live parts can cause electric shock.

• Before maintenance, disconnecting electrical components may lead to electric shock.
• Disconnect the appliance from the power supply for at least 60 seconds before starting work. Before maintenance, safety must be checked according to VDE 0701 or in accordance with the specific regulations of the country.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of injury during maintenance, repair, or adjustment of moving components.

Wear protective goggles. Secure moving components so they cannot start. Do not allow contact of body parts with moving components.

Risk to safety/function of the device! - Use only original spare parts. Risk of damage to electrostatic sensitive components (ESD) when touching modules, including circuit boards and connectors.

Tools and auxiliary means

посочане Робносту Избражения
Оверты Торх T20 С овор [00340764]	100 MM, за виHTове с преда- зен удиФТ
Оверты Торх T15	Дылжина 80 MM
Плеска OTberрта Врьх 10 MM x 1,6 MM x 200 MM
Кleineц с Истовд- ни челков [00340871]	Дылжина: 200 MM, пави

4.1 Repair of the working float

Removal:

Remove the float from the holder. The float is freely accessible.

4.1.1 Dismantling the working float

1. Unscrew the two screws (1) (optional). 2. Press the two catches and lift the working float upwards (2).

1. Move the working float forward. (3). 4. Pull the working float back (4). 5. Remove the working float.

4.1.2 Mounting the working float

1. Insert the working float into the water with the help of the locking pin (1).

1. Press the working float forward (2).
2. Press the working float down until you see the two catches engage (3). 4. Tighten the two screws (4) (optional).

Repair

4.2 Mounting the coupling system

Removal:

The appropriate coupling has been removed from the device.

4.2.1 Mounting the blade for the 86-cm model

Special tools:

Guide blade [00614935] Blade lock [00618565]

1. Place the blade diagonally in the front part of the housing. 2. Center and press the blade onto the shaft.

4.2.2 Mounting the blade lock

Special tools:

Guide blade [00614935] Blade lock [00618565]

When you have a blade, the lock can be removed. Under the influence of the blade, the lock is pressed onto the shaft. For low and high blades, we recommend leaving the lock on. If the rear housing has an additional plastic insert, the first step is to remove it.

1. Remove the plastic insert.

2. Press the lock onto the shaft.

3. Remove the lock.

Repair

1. Place the item for me.

4.2.3 Mounting the generator block

Special tools:

4.10.2 Mounting the door leaf

1. Place the door leaf on the base (1).

Fig. 2: Hinge installation

2. Press the door leaf onto the hinge (2). 3. Secure the door leaf with the screws (3).

Repair

4.11 Replacing the hinge

Warning:

The hinges must not be lubricated. The hinges must not be in contact with the water supply pipe.

4.11.1 Removing the hinge

Simply remove the screws, as shown in the figure.

1. Open the door. 2. Remove the hinge.

3.

Close the door, holding the hinge side.

Remove the hinge.

4.11.2 Adjusting the outer door

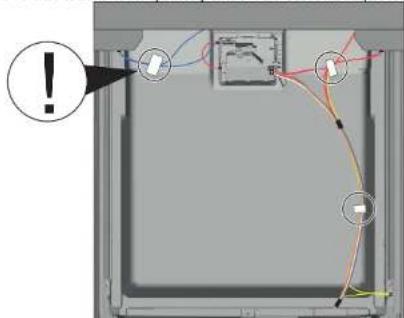

Cables that are incorrectly routed or not secured!

Damage to the door

Route the cables and secure them with cable ties.

Repair

Checking:

The insulation jacket is correctly positioned and protected from the outer side of the outer door. The cables are routed inside the outer door.

1. Close the outer door without jerking it.
2. Press the outer door upward against the control panel (1).

1. Press the outer door against the inner door and secure it (2).

4.

Secure the door by tightening the hinge side.

Open the door and secure it with the screws (metal 4 x 11 mm screws).

5. Secure the filter with the screws (metal 4 x 11 mm screws).

Repair

4.12 Replacing the control panel

If the operating mode is defective, the control panel must be replaced.

Removal:

Disconnect the device from the power supply. Disconnect the device from the water supply. The front door is closed. The front door is closed (optional integral/integral).

4.12.1 Removing the control panel

1. Disconnect the electrical connections from the control panel. Remove the sensor for the detergent (1, 2).

2. Disconnect the grounding cable (3) (optional). 3. Open the door of the device. 4. Secure the control panel, after pre-drilling its holes (drill them).

5. Remove the six screws.

6. Remove the control panel.

4.12.2 Installing the control panel

Use screws 4 x 16 mm.

Install in reverse order.

Repair

The parts are identified and can be replaced.

Inspection:

The device is excluded from maintenance. The device is excluded from the power supply network. The front door is closed. The front door is closed (manually integrated/integrated).

4.14.1 Removing the bottom panel

1

Incorrect removal. If the bottom panel is loosened, the sharp edges, the two brackets may open. If only one bracket is damaged, the side can be replaced, as the brackets are identical. Proceed to place the new panel under the device, opposite the removed one, to avoid damaging the bottom panel with the hooks.

2. Insert the screwdrivers (1) with the help of the screwdriver, pressing down.

1. Bottom panel.

4. Remove the bracket (1).

4.14.2 Mounting the bottom panel

1. Place the hooks.
2. Attach the bottom panel to the device (1) and press it down, until you hear, the click of the lock (2).

Repair

4.15 Removing the main contact cover

Removal:

The device is disconnected from the power supply. The device is disconnected from the water supply. The furniture panel (one-piece) is removed. The upper door is removed. The upper door is removed (optional integrated/integrated). The lower panel is removed (one-piece).→26

4.15.1 Removing the main contact plug

1. Remove the screw (1).

2. Loosen the clamping screws (2).

1. Carefully pull the main contact plug forward (1).

4.

Depending on the model, all screws are secured to the base.

Release the cable from the cable holder and pull it back (one)2).

4.15.2 Installing the main contact plug

Installing the main contact plug in reverse order.

Repair

4.16 Replacing the circuit breaker

The circuit breaker is located in the lower front part of the device.

N3nckBaHe:

The device is excluded from the water supply. The device is excluded from the supply pipe. The drain hose is connected (on site). The outlet valve is connected. The drain hose is connected (on site). →26 The power cable is connected. →27

4.16.1 Connecting the drain hose

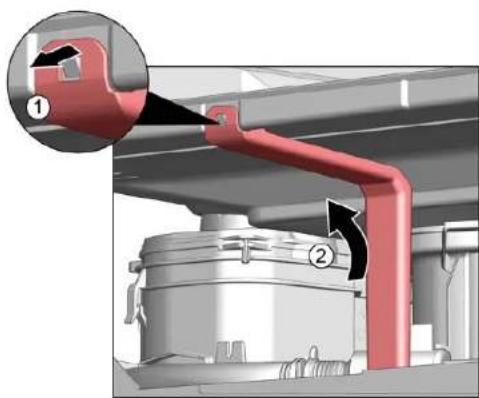

Residual water

When draining the appliance, residual water may leak out. Direct the water into a suitable container or drain.

1. Release the locking mechanism (1, 2).

1. Release the retaining clips

Repair

3.1. Insert the screwdriver into the slots (1). 2. Carefully release the metal bracket (2).

1. Raise the drain hose.

4.16.2 Installing the drain hose

Water damage may occur if the drain hose is installed incorrectly!

Insert the drain hose into the water outlet and secure it to the base.

4.20.2 Installing the door seal

Before installation, the door seal must be adjusted to the correct height. It is 1750 mm for devices with a height of 81 cm and 1850 mm for devices with a height of 86 cm.

1. Remove the protective caps from the hinges. 2. Follow the correct installation position of the hinge profile.

1. The hinge current must be low for the hinge plate.

4

The hinge must not be deformed when installed. The hinge is removed smoothly from the door and is placed in the highest position of the container.

Place the hinge parallel to the door leaf under the door. The hinge must be in the highest possible position of the container.

Correctly placed hinge on the door:

Repair

4.21 Removal of EmotionLight

EmotionLight is located in the upper part of the tank for the reserve supply.

Removal:

The device is disconnected from the power supply. The device is disconnected from the power grid. The devices are freely accessible. The working area is clean (dry). The floor area is clean (dry).

4.21.1 Removal of EmotionLight

1. Remove the fixing hooks from the back (1).

1. Press the lever upwards (2).
2. Pull the plug out of the connector (depending on the device version).

4. Connect the electrical connection to the mounting module.

1. Connect the EmotionLight module.

4.21.2 Mounting the EmotionLight

1. Place the bracket on the frame of the flushing reservoir (1).

Repair

2. Engage the hook of the fixator (2).

3

CAUTION!

Incorrect installation!

Route the cable in the area of the hinge of the door.

Route the cable in the hinge area of the door (between the hinge and the door frame), so that it cannot be damaged by moving parts.

Route the cable on the tension side.

Repair

Fig. 3: Cable routing

4. Connect the power supply.

4.23 CMHa Ha Gap illumination (based on the product)

Checking:

Remove the device from the packaging. Remove the device from the charging amplifier. The front door is open. The filter is not installed.

4.23.1 Installing the Gap illumination

1.1. Remove the fixator (1).

2. Disconnect the electrical connection from the operating module (2).

2.1. Remove the fixator cover (1).

2. Install the optical module (2).

Repair

3.1. Remove the fixator cover (1).

1. Lift the board to the cover and the frame of the operating module (2).

4.23.2 Mounting the Gap illumination

1. Place the board on the frame of the operating module.

2. Tighten and check the operation.

1. Install the optical module and tighten, check the operation.

4. Connect the cable to the operating module.

4.23 Replacing the Gap illumination

Requirement:

4.22.1 Removing the timeLight 163 4.22.2 Installing the timeLight 163

4.23 Replacing the Gap illumination 164

4.23.1 Removing the Gap illumination 164 4.23.2 Installing the Gap illumination 165

4.22 Replacing the timeLight

4.22.1 Removing the timeLight

4.22.2 Installing the timeLight

4.23 Replacing the Gap illumination

Presetting:

4.23.2 Installing the Gap illumination

1. Insert the circuit board holder into the frame of the operating module.

1. Fasten it with a "click" sound.

2.1 General Safety instructions 212 2.1.1 All domestic appliances 212

Tools and aids. 213

Repair 214

4.1 Replacing worktop 214

4.1.1 Removing worktop 214 4.1.2 Installing worktop 214

4.2 Installing basket system 215

4.2.1 Installing a tab slide for the 86 cm model 215 4.2.2 Installing cup support clip 215 4.2.3 Installing steamer insert 216

4.3 Replacing varioDrawer 217

4.3.1 Removing varioDrawer 217 4.3.2 Installing varioDrawer 218

4.4 Replacing spray arms 219

4.4.1 Removing spray arm 219 4.4.2 Installing spray arm 219

4.5 Replacing filters 220

4.5.1 Removing filter 220 4.5.2 Installing filters 220

4.6 Installing baking sheet spray head 221

4.7 Replacing power cord 222

4.7.1 Unplugging power cord 222 4.7.2 Plugging in power cord 222

4.8 Replacing detergent cover 223

4.8.1 Removing detergent cover 223 4.8.2 Inserting spring 223 4.8.3 Installing detergent cover 223

4.9 Replacing wastewater pump cover 224

4.9.1 Removing wastewater pump cover 224 4.9.2 Installing wastewater pump cover 224

4.10 Replacing side panel 225

4.10.1 Removing side panel 225 4.10.2 Installing side panel 226

4.11 Replacing outer door 227

4.12 Replacing control panel 229

4.12.1 Removing control panel 229 4.12.2 Installing control panel 229

4.19 Replacing (lower) door seal 240

4.19.1 Removing the door seal 240 4.19.2 Installing the door seal 241

4.20 Replacing (upper) door seal 242

4.20.1 Removing door seal 242 4.20.2 Installing door seal.. 242

Repair hints - Dishwasher

4.21 Replacing EmotionLight 243

4.21.1 Removing EmotionLight 243 4.21.2 Installing EmotionLight 243

4.22 Replacing TimeLight 246

4.22.1 Removing TimeLight 246 4.22.2 Installing TimeLight 246

4.23 Replacing Gap illumination 247

4.23.1 Removing Gap illumination 247 4.23.2 Installing Gap illumination 248

Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumers to repair appliances by themselves according to the applicable eco-design regulation (as of 03/2021).

They contain information on how to exchange defined spare parts, including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Table 1: Danger levels

Warning level Meaning
Danger	Non-observation of the warning message will result in death or serious injuries.
Warning	Non-observation of the warning message could result in death or serious injuries.
Caution	Non-observation of the warning message could result in minor injuries.
Notice	Non-observation of the warning message could result in damage to property.

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.

The following hazard symbols are used in this document:

Hazard symbol Meaning
!	General warning message
	Danger from electrical voltage
	Risk of explosion
	Danger of cuts
	Danger of crushing

Concerning this document

Hazard symbol Meaning
	Danger from hot surfaces
	Danger from strong magnetic field
	Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Danger

Type and source of danger!

Possible consequences of ignoring the danger / warning.

Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Danger

Risk of electric shock due to live parts!

Death by electrocution

• Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
1	Identification of a special tip (text and/or graphic)
i	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Table 3: General symbols

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window (in the appliance's display)

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

Errors by repairs involving electrical components can lead to electrical shock! - Disconnect the appliance from the mains for at least 60 seconds before starting work. After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

Wear protective shoes. - Secure heavy components from falling down. - Do not stick body parts into moving components.

Risk to the appliance's safety / function! Only use original spare parts. Risk of damage to electrostatically sensitive components (ESDs)! - Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Insulated Screw- driver Torx T15 with bore hole [15000626]	Blade length 125 mm, for screws with safety pin
Slotted screwdriver	Blade 10 mm x 1.6 mm x 200 mm
Needle nose pliers [00340871]	Length: 200 mm, straight

4.1 Replacing worktop

Prerequisite:

The appliance is disconnected from the power supply. The appliance is freely accessible.

4.1.1 Removing worktop

1. Remove the two screws at the back (1) (optional).
2. Press both catch levers under the worktop upwards (2).

1. Lift the worktop slightly at the front (3).
2. Push worktop away towards the rear (4).
3. Remove worktop.

4.1.2 Installing worktop

1. Lock the rear of the worktop into the guides using the retaining collars (1).

1. Push worktop forwards (2).
2. Press the front of the worktop downwards until both catch levers click audibly into place (3).
3. Screw in the two screws again (4) (optional).

Repair

4.2 Installing basket system

Prerequisite:

The relevant basket has been removed from the appliance.

4.2.1 Installing a tab slide for the 86 cm model

Required tools:

Tabguide [00614935] Cup support clip [00618565]

1. Insert the tab slide diagonally at the front of the basket.
2. Centre and click the tab chute into place.

4.2.2 Installing cup support clip

Required tools:

Tabguide [00614935] Cup support clip [00618565]

When washing cups, the cup support clip can be folded up. The additional angle reduces the collection of water on the bottom of cups. In the case of tall glasses we recommended leaving the cup support clip folded down. If upper baskets have an optional plastic insert, they must first be removed.

1. Remove the plastic insert.

1. Click the cup support clip into place.

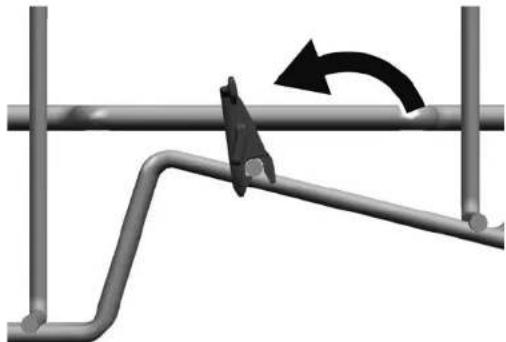

1. Fold up the clip.

Repair

1. Position the items to be washed.

4.2.3 Installing steamer insert

Required tools:

Tab guide [00614935] Cup support clip [00618565]

• Wedge the steamer insert with the end pieces under the basket system.

Repair

4.3 Replacing varioDrawer

4.3.1 Removing varioDrawer

1. Bend the handle flaps inwards.

1. Remove the handle upwards.
2. Press plastic side inserts outwards and press them upwards out of the frame.

Repair

1. Carefully bend the guide tabs outwards.

1. Pull the folding spines out of the tabs.
2. Press metal frame at the front out of the holders.

1. Push metal frame back out of the guide.

4.3.2 Installing varioDrawer

Install in reverse order.

Repair

4.4 Replacing spray arms

4.4.1 Removing spray arm

1. Unscrew the upper spray arm (1) and pull down to remove (2).

1. Pull down the lower spray arm to remove.

4.4.2 Installing spray arm

1. Insert the lower spray arm. The spray arm clicks into position.
2. Insert the upper spray arm and screw it firmly in place.

Repair

4.5 Replacing filters

4.5.1 Removing filter

1. Turn the coarse filter anticlockwise (1) and remove the filter system (2).

Check that no foreign objects fall into the sump.

1. Pull down the micro filter to remove.

4.5.2 Installing filters

1. Re-assemble the filter system. Make sure that the locking catches on the coarse filter click into position.
2. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

Repair

4.6 Installing baking sheet spray head

1. Remove top basket.
2. Insert the baking sheet spray head in the holder (1) and turn to the right (2).

The baking sheet spray head clicks into position.

Repair

4.7 Replacing power cord

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The appliance is freely accessible.

4.7.1 Unplugging power cord

• Move the plug of the power cord carefully up and down and pull it out of the mains socket.

4.7.2 Plugging in power cord

Notice

Overheating of main connection!

Risk of fire

Firmly insert the power cord until it clicks.

• Insert the plug of the power cord into the mains socket until the plug clicks audibly into place.

Repair

4.8 Replacing detergent cover

A small screwdriver can be used as a levering tool.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The door has been opened. The detergent cover has been opened.

4.8.1 Removing the detergent cover

1. Slide the detergent cover in 5 mm.
2. Lever the detergent cover on the lower side out of the guide rails and take the detergent cover on the upper side out of the guide rails.
3. Remove the spring.

4.8.2 Inserting the spring

1. Insert the long end of the spring into the mounting hole of the dispenser device (1).

1. Insert the short end of the spring into the mounting hole of the detergent cover (2).
2. Press the cover into the dispenser device (3).

4.8.3 Installing the detergent cover

1. Insert the detergent cover 5 mm before the completely open position into the guide rails on one side. Applying gentle force, press the opposite side into the guide rails.
2. Check the function of the detergent cover.

Repair

4.9 Replacing the wastewater pump cover

Prerequisite:

Basket has been removed. Filters have been removed. See page 220.

4.9.1 Removing wastewater pump cover

1. Scoop out any water.

Use a sponge if necessary.

1. Pry off the pump cover using a spoon and grip it by the crosspiece.

1. Lift the pump cover inwards at an angle and remove.

4.9.2 Installing wastewater pump cover

Insert the pump cover (1) and press down (2).

The pump cover clicks into position.

Repair

4.10 Replacing side panel

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Free-standing appliances: Worktop has been removed. See page 214.

4.10.1 Removing side panel

1. Remove screws from the side panel (1).

Fig. 1: Fully integrated

1. Tilt the side panel slightly outwards at the top (2).
2. Lower the side panel and pull it out of the base trough (3).

Repair

4.10.2 Installing side panel

1. Insert the side panel into the base trough (1).

Fig. 2: Fully integrated

1. Press the side panel onto the appliance (2).
2. Secure the side panel with screws (3).

Repair

4.11 Replacing outer door

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply.

Just remove the screws which are described in the following steps.

1. Open door.

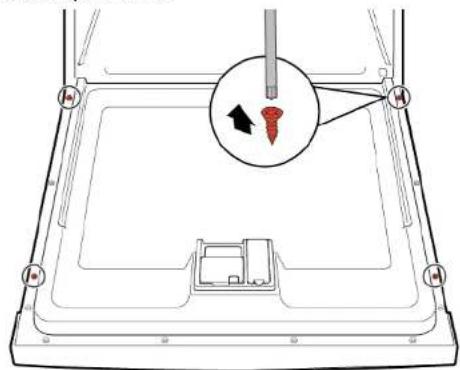

2. Remove four screws.

3

Secure the door by holding it on one side.

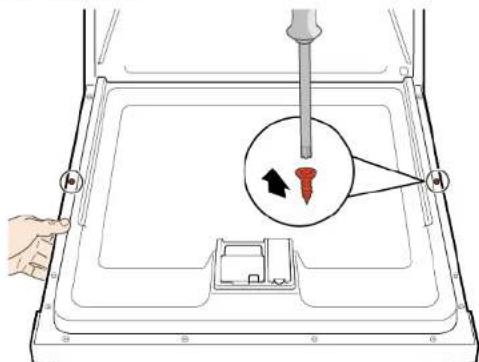

Remove two screws.

Insulating fleece has been correctly positioned and fixed on the inside of the outer door. Hinges are inserted into the outer door.

1. Close the inner door without snapping it shut.
2. Push the outer door upwards underneath the control panel (1).

1. Press the outer door against the inner door and hold (2).

4.

Secure the door by holding it on one side.

Open the door and secure it with two screws (4 x 11 mm metal screws).

1. Secure the outer door with four screws (4 x 11 mm metal screws).

Repair

4.12 Replacing control panel

If an operating module is defective, the entire control panel must be replaced.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Outer door has been removed (fully integrated/integrated).

4.12.1 Removing control panel

1. Disconnect electrical connections from the control panel and the low rinse-aid sensor (1, 2).

1. Disconnect the earth cable (3) (optional).
2. Open the appliance door.
3. Secure the control panel to prevent it from falling down (hold on to it).
4. Remove six screws.

1. Remove the control panel.

4.12.2 Installing control panel

Use screws 4 × 16 mm.

Install in reverse order.

Repair

1. Remove cord guide cover out.

2.1. Open door slightly (1).

1. Fix in the groove of the base trough (2).
2. Slowly close the door (3).

The cord system attaches itself automatically to the door hinge.

Repair

3.1. Slightly close the door (4).

1. Move the groove to the back and release the door hinge (5).
2. Open the door (6).

1. Repeat the process again on other side of appliance.

Repair

4.14 Replacing toe panel

The feet are identical and can be swapped over.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The outer door has been removed. The outer door has been removed (fully integrated/integrated).

4.14.1 Removing the toe panel

1.

Incorrect removal. If the toe panel is loosened at the side and removed, the two brackets may break away. If only one bracket is damaged, the side can be changed as the brackets are identical. It is advisable to place something under the appliance at the front on the side to relieve the load on the toe panel with the feet.

1. Reach into the guides (1) with a screwdriver and release the catch by pushing downwards.

1. Lift the panel off.
2. Remove the feet forwards (1).

4.14.2 Installing the toe panel

1. Insert the feet.
2. Attach the toe panel at the top (1) and press it down until it audibly clicks into place (2).

Repair

4.15 Replacing base socket plate

The base socket plate is located in the lower area at the front.

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply. The furniture panel (optional) has been removed. The outer door has been removed. The outer door has been removed (fully integrated/integrated). The toe panel has been removed (optional). See page 232.

4.15.1 Removing base socket plate

1. Remove two screws (1).

1. Disengage catch elements (2).
2. Tilt the base socket plate carefully forwards (1).

4.

Depending on the model series, the plug to the EmotionLight is still secured to the base.

Unlock the plug on the catch tappet and pull to the rear (optional) (2).

4.15.2 Installing base socket plate

Install the base socket plate in reverse order.

Repair

4.16 Replacing overflow conduit

The overflow conduit is located in the front lower area of the appliance.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Furniture panel has been removed (optional). Outer door has been removed. Toe panel has been removed (optional). → Page 232 Base socket plate has been removed. → Page 233

4.16.1 Removing overflow channel

Residual water

• When the drainage hose is removed, residual water may run out. Catch water or remove from the base pan with suction syringe.

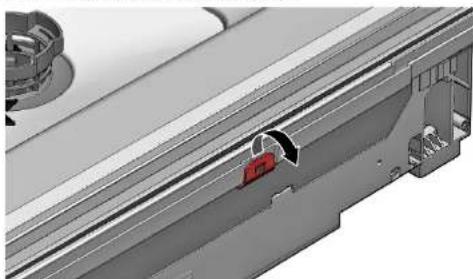

• Lever out of the catch mechanism at the top (1, 2).

1. Release catch element at top.

3.1. Insert screwdriver below metal brake (1).

1. Gently release metal clip (2).

Repair

1. Lift overflow conduit off.

4.16.2 Installing overflow conduit

Water damage due to incorrect installation of the overflow conduit! Correctly insert the overflow conduit at the bottom into the guide of the base trough. Click the overflow conduit correctly into place at the top.

1. Place overflow conduit (1).
2. Move overflow conduit into seal (2).
3. Press overflow conduit in guide of seal (3).
4. Insert overflow conduit concisely (4).
5. Clip in overflow conduit (5).

Repair

1. Check installation left and right. 3. Check firm seat.

1. Clip in metal clip on left and right side.

Repair

4.17 Replacing inner door

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply.

4.17.1 Removing the inner door

1. Remove screws (1).
2. Remove the inner door upwards (2).

4.17.2 Installing the inner door

1. Fold the door seal to the front.
2. Move the inner door behind the door seal.
3. Close the inner door.
4. Fold the door seal upwards. The side parts show up.
5. Move the door hinge upwards.
6. Secure the door hinge with screws.
7. Place the inner door on the door hinge.
8. Secure inner door with screws.

Repair

4.18 Replacing door hinge

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Side panel has been removed. (See page 225) Outer door has been removed. Inner door has been removed. Control panel has been removed. (See page 229) Door springs have been fixed. (See page 230) Toe panel has been removed. (See page 232) Base socket plate has been removed. (See page 233) Overflow channel has been removed. (See page 234)

1. Release catch hook with a screwdriver (1).
2. Pull door hinge forwards (2).

1. Release ground connection on door hinge.

1. Place hinge on appliance (1).
2. Move hinge downwards (2) until it is latched to the appliance.

2.

A missing ground connection can lead to mains potential on door.

Establish ground connection.

Repair

4.19 Replacing (lower) door seal

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door has been removed. Base socket plate has been removed. -> Page 233 Toe panel has been removed (optional). -> Page 232 Door springs have been removed. Control panel has been removed. Cable harness holder on bottom right has been removed.

4.19.1 Removing the door seal

1. Remove the two retaining clips on the lower door seal (1, 2).

1. Detach the overflow channel.

1. Lift the overflow gutter off.

Repair

1. Remove the lower door seal from the inner door.

4.19.2 Installing the door seal

1. Fit the sealing caps on the left and right to the sealing rail with the door seal.

1. Insert the door seal with the sealing flap in the inner door.
2. Secure the door seal with two retaining clips.

Repair

4.20 Replacing (upper) door seal

Prerequisite:

The appliance is disconnected from the power supply. The appliance is disconnected from the water supply.

4.20.1 Removing door seal

• Remove the door seal from the inner frame.

4.20.2 Installing door seal

The door seal must be cut to the correct length before installation. This is 1750 mm for appliances of 81 cm in height and 1850 mm for appliances of 86 cm in height.

1. Prepare the appropriate door seal.
2. Ensure the correct installation position of the sealing profile.

1. The white dot must be level with the sealing bed strip.

4

The sealing must not be wavy or stretched at corners. The seal is cut off diagonally at the ends and tapers away into the bottom of the container at the front.

Position the end of the seal straight to the front underneath the inner door. The seal should lie against the side of the container as far as possible.

Correctly installed door seal:

Repair

4.21 Replacing EmotionLight

The EmotionLight is situated in the upper front exterior area of the rinsing tank.

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Appliance is freely accessible. Worktop has been removed (optional). The right-hand side panel has been removed (optional). See page 225.

4.21.1 Removing EmotionLight

1. Detach catch hook at the rear (1).

1. Remove the holder upwards (2).
2. Pull plug out of connector (bottom right at front of appliance).
3. Remove electrical connection from the power module.

1. Remove EmotionLight from the appliance.

4.21.2 Installing EmotionLight

1. Insert the holder into the rinsing tank frame (1).

Repair

1. Engage the catch hook (2).

3.

Install the cable on the right lower side.

Repair

Fig. 3: Flat cable

1. Insert the plug.

Repair

4.22 Replacing TimeLight

Replace the TimeLight only as a complete part.

The TimeLight module is fixed to the rear of the base socket plate.

Prerequisite:

The appliance is disconnected from power supply. The appliance is disconnected from water supply. Toe panel has been removed. (See page 232) Base socket plate has been removed and turned. (See page 233)

4.22.1 Removing TimeLight

1. Bend the catch elements (1) slightly outwards.

1. Pull the TimeLight module upwards out of the guide (2).

4.22.2 Installing TimeLight

1. Bend the catch elements (1) back again.

1. Push the TimeLight module into the guide (2).
2. Connect the electrical connection.

Repair

4.23 Replacing Gap illumination

Prerequisite:

Appliance is disconnected from power supply. Appliance is disconnected from water supply. Outer door is disassembled. Operation panel has been removed.

4.23.1 Removing Gap illumination

1. Detach catch (1).
2. Remove electrical connection from the operation module (2).

1. Detach catch hook at rear (1).
2. Remove light fibre (2).

Repair

3.1. Detach catch hook (1).

1. Lift up PCB with holder and remove it from operation module frame (2).

4.23.2 Installing Gap illumination

1. Insert PCB holder to operation module frame.

1. Tighten it with a "click" sound.

1. Install light fibre and tighten it with a "click" sound.

1. Connect wire to operation module.

Safety 253

2.1 General safety instructions 253 2.1.1 All household appliances 253

Table 1: Safety devices

1.2.2 Safety symbols

1.1 Important information 333

3. Key to the appliance.

1. TOnToeTeHToTe Ta AvtiKeIeVv ia TAnoIpo

4.2.3 ToTOnTeTOn eVToU atOpayepa EIOKα Bonentika μεσα:

∑upóevnθηkn taμπλετac [00614935] KAIITOTnpiEIGPANZAVW[00618565] - 2pynwote To EvTeo atmuayepa e Ta akpa kTuTo ooutnka KaalaiiWv.

EMIOKEUN

4.3 Replacing the VarioDrawer

1. Remove the "EmotionLight" and the accessory.

4.2.1.2 Installing "EmotionLight"

1. Install the bracket on the rinse tank frame (1).

Repair

2. Secure it with the locking clip (2).

3

DÉMESIOI

Improper use!

Possible damage to the cable in the door hinge area.

Connect the cable in the door hinge area (between the hinge plate and the wash tub) so that moving parts do not damage it.

Connect the cable to the left lower side.

Repair

Fig. 3: Flat cable

1. Insert the plug

2021-03-22_9001630792 Copyright BSH Hausgerate GmbH Page 616 of 989

Repair

4.22 Replacing the "TimeLight"

4.23.2 Installing Gap illumination

4.17.1 Removing the inner door 731 4.17.2 Installing the inner door 731

4.18 Replacing the door hinge 732

4.18.1 Removing the door hinge 732 4.18.2 Installing the door hinge 732

4.19 Replacing the door seal (lower) 734

DANGER

Risk of electric shock due to live parts!

4.17.1 Removing the inner door

4.17.2 Installing the inner door

4.23.1 Removing the Gap Illumination

1. Release the catch (1).
2. Disconnect the electrical connection of the operating module (2).

2.1. Release the catch hook (1). 2. Remove the optical fiber (2).

Repair

3.1. Release the locking hook (1).

4.23 Replacing Gap illumination 823

4.23.1 Removing Gap illumination 823 4.23.2 Installing Gap illumination 824

About this document

4.23 Replacing Gap illumination

Requirement:

4.23 Replacing Gap illumination

Prerequisite:

The device is disconnected from the power supply. The device is disconnected from the water supply. The outer door has been removed. The control panel has been removed.

4.23.1 Removing Gap illumination

1. Release the latch (1).
2. Disconnect the electrical connection from the control module (2).

2.1. Release the locking hook at the rear (1).

1. Remove the louse fiber (2).

Repair

3.1. Loosen the hook (1).

4.23.2 Mount Gap illumination

1. Insert the circuit board into the frame of the operating module.

Special auxiliary equipment:

Tab Guide [00614935] Snap-in part [00618565]
