Product type	Air cleaning system for HP Designjet 8000s/9000s/10000s printers
Brand	HP
Model	Designjet HD Pro Scanner (air cleaning system)
Dimensions (L x H x D)	365 x 797 x 496 mm (8000s model) / 365 x 797 x 801 mm (9000s/10000s model)
Net weight	60 kg (8000s) / 95 kg (9000s/10000s)
Power supply	100-127 V or 220-240 V, 50/60 Hz, power 1.1-1.6 kW
Rated current	6.0 A (8000s 110V) / 3.5 A (8000s 230V) / 12 A (9000s 110V) / 7.0 A (9000s 230V)
Fuse	20 A (110V) / 16 A (230V)
Max suction pressure	900 - 8000 Pa
Sound level	56 dB(A) (8000s) / 63 dB(A) (9000s/10000s)
Air flow	50 - 180 m³/h (8000s) / 50 - 360 m³/h (9000s/10000s)
Filtration type	Pre-filter class F5 + activated carbon filter
Filter capacity	1 filter (8000s) or 2 filters (9000s/10000s), unit weight 16 kg
Filter service life	700-800 service hours
Spare filter reference	HP Q6679A
Housing material	Coated steel sheet
Environmental conditions	Temperature: +5°C to +35°C, max. humidity 70%
Protection rating	IP 20
Main functions	Filtration of volatile organic compounds (VOCs) emitted by the printer; touch control with display; fan speed adjustment; filter saturation indication
Routine maintenance	Weekly cleaning of surfaces with a damp cloth; filter replacement every 800 hours
Safety	Use only with compatible HP printers; do not use in an unaired room; disconnect before maintenance; wear gloves when handling used filters
Warranty	1 year for the unit; 700 hours or 9 months for the filters (whichever comes first)
Box contents	Complete system with filters, hose set (4 m or 2 m), power cable, 4 adjustable support feet, fork wrench

Frequently Asked Questions - Designjet HD Pro Scanner HP

What type of filtration does the HP Designjet air cleaning system use?

The system uses a class F5 pre-filter followed by an activated carbon filter to capture volatile organic compounds (VOCs) emitted by the printer.

How often should the filters be replaced?

The filters should be replaced every 700 to 800 service hours. The green light flashes after 700 hours, and the red light turns on at 800 hours.

Can I use non-HP filters on this system?

It is strongly recommended to use only genuine HP filters (ref. Q6679A) to ensure effective filtration and avoid any health risk. Use of other brand filters may result in insufficient filtration.

How to reset the saturation counter after filter change?

After changing the filters, turn on the unit, press the ENTER key to access the code menu, then enter the code provided with the new filter using the + and - keys. Confirm with ENTER. The counter resets to 0%.

What to do if the red light is permanently on?

The red light indicates that the filters are saturated (100%). It is time to replace them immediately to maintain good air quality.

Can I use this system in a room without ventilation?

No. The system is not designed to replace adequate ventilation. It must be used in a properly ventilated work area, otherwise residual gases may accumulate.

How to clean the exterior of the air cleaning system?

Use a clean, damp cloth with a mild water-based detergent. Do not use harsh solvents. Avoid liquids entering the interior.

What is the weight of the filter and how to handle it?

Each filter weighs approximately 16 kg. Wear protective gloves (latex, nitrile, or polyethylene) when handling used filters to avoid contact with chemicals.

Is the system compatible with my HP Designjet 8000s printer?

Yes. The 8000s model uses one filter. For 9000s/10000s models, two filters are required. Check compatibility in the manual.

What to do in case of no suction?

Check that the suction hoses are properly connected to the printer and the system, that they are not damaged, and that the filters are not saturated. If the problem persists, contact HP after-sales service.

USER MANUAL Designjet HD Pro Scanner HP

HP Designjet 9000s/10000s Air Purifier System HP Designjet 8000s Air Purifier System

User's Guide

I Introduction

This User's Guide is an essential help for the successful and safe operation of the HP Designjet 9000s/10000s Air Purifier System and HP Designjet 8000s Air Purifier System - referred to in this document as APS.

The operating instructions contain important information for operating the APS safely, properly and economically. Following these instructions can help to avoid dangerous situations, repair costs and reduce downtimes and improve the reliability and extend the useful life of the APS.

The operating instructions must at all times be kept available near the APS. The information contained in this document is subject to change without notice. Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material. No part of this document may be photocopied or translated to another language without the prior written consent of Hewlett-Packard Company.

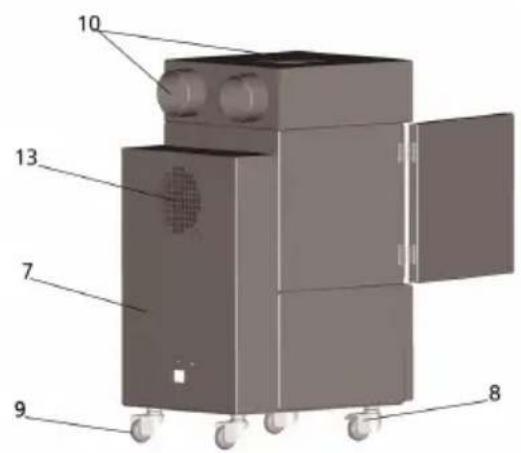

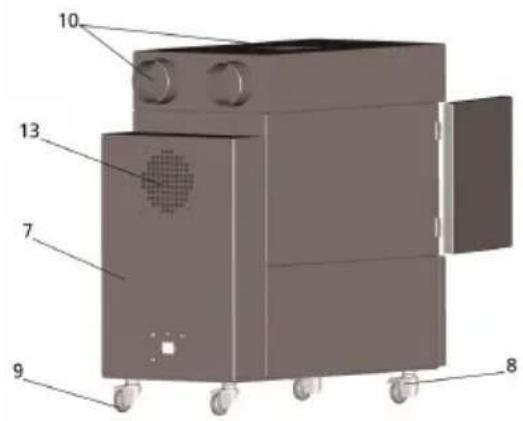

II Product description

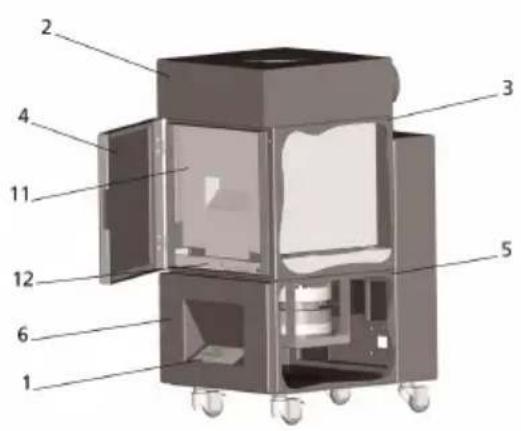

HP Designjet 8000s Air Purifier System

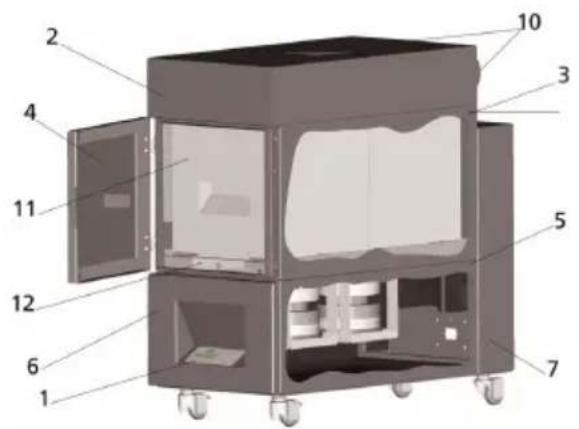

HP Designjet 9000s/10000s Air Purifier System

1	Transparent display, membrane keyboard	2	Casing cover
3 Filter casing 4 Service flap on the filter housing
5	Fan housing	6	Fan & electronics cover
7	Sound absorption module	8	Castor with brake
9	Castor 10 Intake stub
11	HP Designjet APS 8000s / 9000s/10000s Filter	12	Filter lifting mechanism
13	Exhaust grid

III Safety

III 1 General information

The APS is built in accordance with state of the art technology and adherence to safety rules. Nevertheless, during use there may be dangers to the user or a third parties if it is not used for the purpose for which it was intended, and not properly maintained.

III 2 Use as intended

The APS may only be operated with the HP printers for which it is designed.

The work area where the HP Designjet 8000s or 9000s/10000s printer is used must be adequately ventilated. The APS is not a substitute for ventilation of the work area.

The APS is not intended to be used as a substitute for adequate ventilation of the work area. The APS removes volatile organic compounds (VOCs) released inside the printer during operation, but prints that are drying and being stored also release VOCs. The APS only reduces the release of volatile organic compounds in the work area from the printer and is not intended under any circumstances to be used in a closed room without ventilation.

Any use other than direct connection to an HP Designjet 8000s and 9000s/10000s printer is not considered to be proper use of the APS.

This also applies to unauthorized modifications to the APS. In particular, in the case of replacement filter elements purchased from third parties, there is no guarantee that performance will meet HP specifications.

Proper use includes compliance with the information:

- on safety, - on operation, and - on maintenance,

as described in this user's guide.

III 3 Information on signs and symbols

The following designations or symbols for safety information and particularly important details are used in these operating instructions:

Warning!

Failure to follow the guidelines marked with this symbol could result in serious personal injury or death.

Caution!

Failure to follow the guidelines marked with this symbol could result in minor personal injury or damage to the product.

Note

Additional information for safe, proper, and efficient handling of the APS.

• Work and/or operating steps are marked with the large reference point. The steps are to be executed in the order from top to bottom!
• Lists are marked with the dash.

All information should be complied with, for the proper use of the APS. Please be sure all operators of the APS are completely familiar with information in this manual.

Information and symbols directly attached to the APS, such as warning signs, warning stickers, component part markings, etc., must be observed.

The information and symbols directly attached to the APS may not be removed and must be kept in a completely readable condition.

III 44 Warnings

• Do not immerse the APS in water or other liquids.
• Do not use the APS in areas with very high concentration of dust.
• Do not use the APS outdoors.
• Use only the proper power cables supplied by HP with the APS.
• Use the power supply voltage specified on the nameplate. Doing otherwise may cause fire or electric shock.
• Do not connect multiple loads to one power outlet. Doing so may cause fire or electric shock.
• Do not disassemble or remodel the APS. Do not repair the APS by yourself. Doing so may cause fire, electric shock, or other accidents.
• Do not remove the screwed covers, because they contain high-voltage. Careless removal might result in electric shock or burn.

See the label on the fan & electronics cover (Number 6 in APS description). - Do not disconnect or connect the power cable with wet hands. Doing so may lead to electric shock. - Turn the APS OFF and unplug the power cable from the power outlet if there is smoke or an unusual smell coming from the APS. - Do not install or operate the APS within 8 meters (25 feet) of open flames, sparks, or other sources of ignition. - Always use genuine HP replacement Filter Elements. These have been designed for reliable filtration and qualified to work with your Designjet 8000s or 9000s/10000s printer. Using non-HP Filter Elements may result in ineffective filtration of volatile organic compounds and pose health and safety hazards. - Be sure all operators are trained in the use of emergency equipment such as eye wash stations and fire extinguishers and know where they are located. - Used filters capture an organic solvent (ethylene glycol monobutyl ether acetate, CAS No. 112-07-2) and other chemicals from ink vapors. When disposing used filter cartridges it is your responsibility to observe all local, state, and federal regulations related to the handling, use, storage, and disposal of organic solvents. - Do not disassemble the filter elements. - If any liquid is present on used filter elements, avoid contact with skin, eyes, and clothing. Handle the used filters while wearing latex or Nitrile® gloves. Immediately wash skin that has come in contact with liquids with soapy water. Remove any clothing soaked with liquids from contact with skin. If liquid comes in contact with eyes, use an approved eye wash station and consult a doctor if necessary. If an approved eye wash station is not available, flush eyes with cold water and contact a doctor if necessary. - The liquid captured by the filters is combustible. Do not use or store used filters within 8 meters (25 feet) of open flames, sparks, or other sources of ignition. - Do not smoke within 8 meters (25 feet) of the APS. - Keep used filter cartridges out of the reach of children. - Do not obstruct air inlets and outlet.

III 5 Warnings for maintenance

The APS must be switched off for maintenance, and be secured against being switched on again unexpectedly, by:

• the APS must be switched off at the ON/OFF switch and then
• the power plug must be removed from the wall power socket.

Do not put your hand in the cover grid of the fan during fitting, assembly or service work.

• After switching off/shutdown of the APS wait until the fan stops.

To avoid electric shocks do not open any electrical parts and casing and covers.

It is recommended to use protective gloves (disposable gloves made of polyethylene, latex or Nitrile®) before carrying out the filters replacement and/or the suction hoses.

Replace filter elements at the stated intervals. Always tightly rescrew screw connections loosened.

Do not use any aggressive agents or cleaning agents which contain solvents. Use lint-free cleaning cloths.

Only use mild water-based cleaning agents. Do not use any organic solvents, as there is a risk of fire and explosion!

Ensure safe and environmentally-friendly disposal of materials and supplies.

III 6 Protective equipment

The APS is equipped with safety interlocks to protect the user and is constructed and produced in accordance with state-of-the-art technology to meet operational safety regulations. In order to ensure safe and environmentally-responsible operation, the following safety features have been installed:

• The fan is secured by a protective plate or grid, which may only be removed using tools.
• All elements of the control systems will move into a safe status for operators, APS and the environment in the case of power cut or reported disturbances. An unexpected restart is not possible after this.
• All electrical parts carry the CE mark for low voltage and/or EMV.
• A potential compensation (diameter > 1.5 mm²) of all conducting components is installed to ground the APS.
• The APS is designed according to protective type IP 20.

Index

I Introduction 4

II Product description 5

III Safety 6

III 1 General information 6 III 2 Use as intended 6 III 3 Information on signs and symbols 6 III 4 Warnings 7 III 5 Warnings for maintenance 8 III 6 Protective equipment 8

1 Installation & Function Description 10

1.1 Transport on wooden pallet 10 1.2 Unpacking and installation 11 1.3 Box content 11 1.4 Connection of the printer 12 1.5 Power on the APS 12 1.6 Function description 12

2 Operation 13

2.1 Operating conditions 13 2.2 Operation 13 2.3 Test operation 14

3 Maintenance 15

3.1 General information 15 3.2 Routine maintenance work 15 3.3 Replacement of filters 15

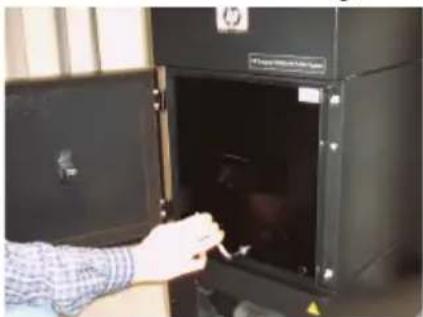

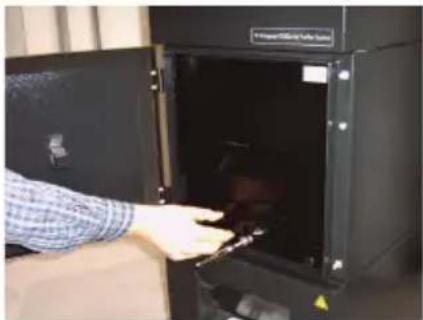

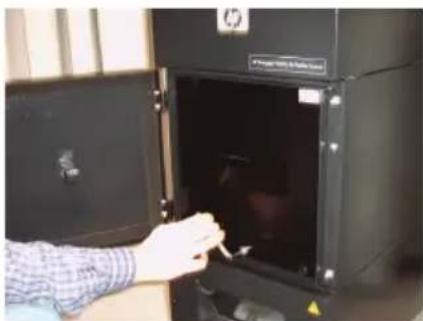

3.3.1 Removal of the old filter(s) 16 3.3.2 Insert the new filter(s) 17

3.4 Enter the code of the new replacement filter 18

3.4.1 HP Designjet 8000s Air Purifier System 18 3.4.2 HP Designjet 9000s/10000s Air Purifier System 19

4 Disposal 20

5 Troubleshooting 21

6 Legal information 22

7 Regulatory notices 25

7.1 Regulatory model number 25 7.2 Regulatory statements 25

8 Declaration of conformity 27

9 Technical data 28

1 Installation & Function Description

1.1 Warnings for maintenance

The APS is delivered upright on a wooden pallet according to the IPPC standard. The following industrial trucks are permitted for transporting the wooden pallets:

• Fork lift trucks and fork stacker lift trucks.

Do not drop the APS during handling.

Secure the wooden pallets with the upright APS during transport to prevent the APS from falling over.

Observe the applicable accident prevention and labour safety regulations.

You must observe the information on the packaging.

The APS or the wooden pallet with the APS is to be secured on the transport vehicle against slipping and falling over.

Warning!

If the wooden pallets are not secured properly the APS may fall down and cause serious injury or death.

Only use suitable hoisting equipment and securing means!

The driver must be authorized to steer the industrial truck.

Drive between the spans of the wooden pallet using the fork lift truck.

Observe the following information for transporting the APS:

• The fork lift truck must be permitted for the total weight of the wooden pallets with upright APS. Weight of the complete HP Designjet 8000s APS, net: approx. 60 kg
• Weight of the wooden pallet + 8000s APS + packaging: approx. 76 kg. Weight of the complete HP Designjet 9000s/10000s APS, net: approx. 95 kg. Weight of the wooden pallet + 9000s/10000s APS + packaging: approx. 113 kg
• The length of the forks must be at least: 1,000 mm
• The transport crates must be tightly fixed to the industrial truck in order to avoid them falling over.

It is to be prevented that the APS and the hoisting platform of the industrial truck come into contact:

• For this purpose wedge a distance wood or cardboard between the packaging of the APS and the platform.
• Avoid hard knocks when setting down the APS.
• All persons must leave the working area of the industrial truck before lifting the APS.

1.2 Unpacking and installation

Note: When the APS is installed, allow adequate space for exhaust hoses from the printer. Locate these hoses and the APS so that they do not pose a trip hazard or interfere with the operation of the printer such as loading and unloading media, replacing Ink Cartridges, inspecting and replacing the Waste Ink Bottle.

Note: Allow adequate space around the APS to remove and replace the filter elements.

Note: Do not install the APS in an area where it receives direct airflow from air conditioners, heaters, or ventilators.

Note: Proceed as follows when unpacking and installing the APS:

• Do not lift the APS off the wooden pallet or remove from the transport packaging until you reach the place of installation. Carefully remove the packaging.
• Check the completeness of the delivery based on the packing list. Also check the complete delivery for external damages, such as may have occurred in transit.
• Move the APS on its casters until you reach the place of installation.
• Install the APS on a level, firm surface.
• Secure the APS against unintended rolling by pressing the brakes on the casters.
• The APS must be placed in such a way that the exhaust grid can lead the filtered air back into the working room.

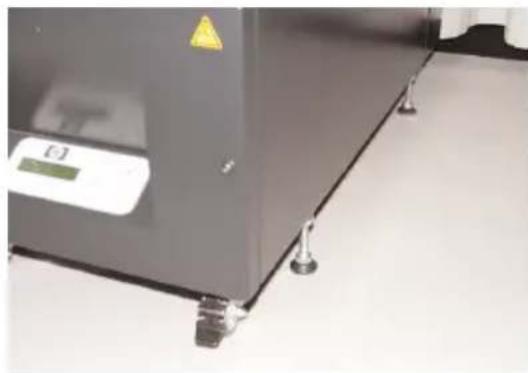

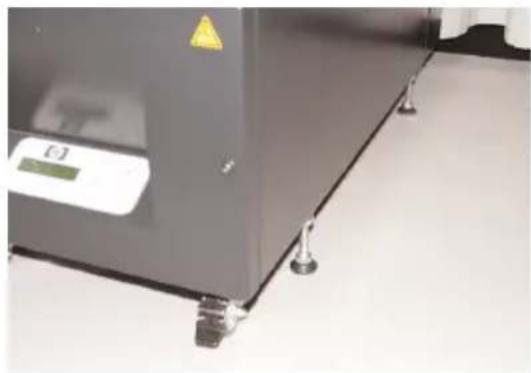

• Secure the APS with the adjustment feet to prevent it from unintentional tilting to the side (according to EN 60950-1 stability test). In the bottom of the APS housing, 4 nuts are fastened for placing the adjustment feet. To be able

to screw the adjustment feet into the 4 nuts, it is necessary to remove the 4 existing screws M10.

The positioning of the adjustment feet has to be according to the underground in such a way that the APS is placed on an even and firm underground and the existing wheels are not relieved.

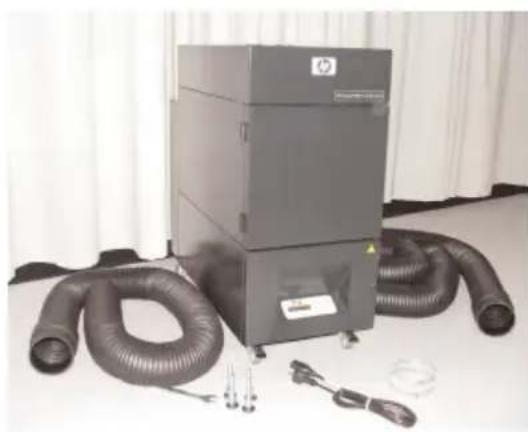

1.3 Box content

When you receive the APS, please check the box content in detail. The regular scope of delivery includes:

• APS, complete (with built-in filter elements);
• Hose set I (4 m hose, 2 m hose; respectively incl. connection stubs and clamping hoses)

Power cord: You can receive more than one, please choose the proper one for your need.

- 4 adjustment feet M10, length: 85 mm - 1 open-end wrench

1.4 Connection of the printer

The APS is installed to the printer connecting two hoses as follows:

Take the hoses and plug the end stubs on the intake ports of the APS.

Note:

The two hoses are fitted with a stub at one end.

• The other end of the hose is pushed through the exhaust attachment flange of the printer and mounted with a clamping hose.

Note:

The printer has on the left and right side respectively two exhaust attachment flanges.

1.5 Power on the APS

Connect the APS as follows:

• Insert the plug of the power cable into the socket.

Ensure that the supply voltage matches that posted on the unit.

• Finally check again all connections for accuracy and tight fit.

The APS may be put into operation after all hose pipes have been connected and the connection checked.

1.6 Function description

Suction hoses are connected directly between exhaust ports on the HP Designjet 8000s or 9000s/10000s printers and the APS.

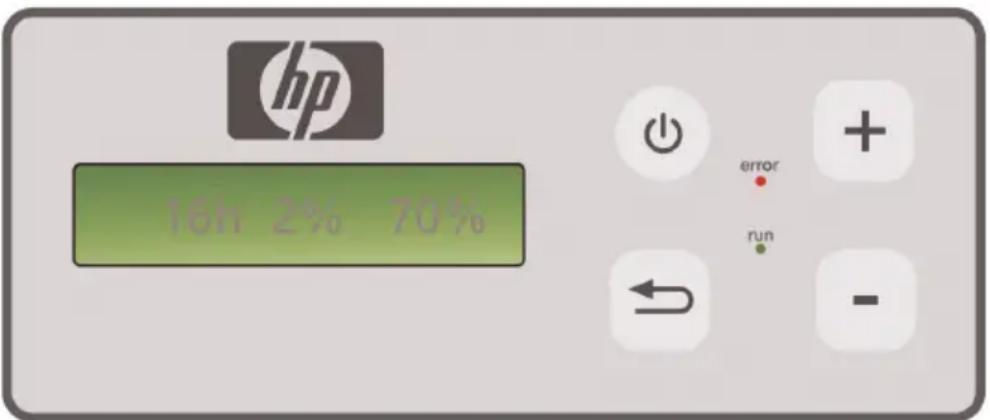

The APS is switched on at its membrane keyboard.

Air containing volatile organic compounds from HP low-solvent inks released inside the HP Designjet 8000s or 9000s/10000s printers is removed through the hoses and brought into the filter casing and filter elements.

The filter element consists of the following filter levels:

• Pre-filter mat and activated carbon filter.

Purified air with volatile organic compounds trapped in the filter elements is drawn out by the fan below the filter element and then passes through the exhaust grid in the sound absorption module attached at the rear.

2 Operation

2.1 Operating conditions

The APS must be operated in a vibration-free, dry and as far as possible dust-free location.

The APS must be operated in a work area receiving adequate ventilation.

Under no circumstance operate the APS in a closed room without ventilation.

The air temperature must be in a temperature range between +5°C and +35°C.

The relative humidity in the air may not exceed 70%. Condensation from humidity on the surfaces of the APS must be avoided.

2.2 Operation

The APS is controlled via its membrane control panel with transparent display (Fig. 1). All the functions of the APS will be controlled from this panel.

Figure 1: membrane control panel with transparent display

The basic setting will be displayed in the transparent display when the machine is switched on:

• On the left, the total hours of operation on the installed filter element.
• In the middle, the actual filter saturation given as a percentage of full capacity.
• On the right: fan speed as a percentage of the maximum. The minimum value is set to 20%.

You will find the following control elements on the membrane control panel of the APS:

ON/OFF button

The ON/OFF button is used for switching the APS on and off. When switched on, you can hear the fan start and the air will be extracted from the printer.

If you change the values (e.g., fan speed), these settings will be saved when the unit is switched off. When it is switched on again, the APS will continue to operate with these settings.

ENTER button

This button is only to be used by your service technician for control work and adjustments to the electronic control of the APS (e.g., after replacement of the filter elements).

If nothing is entered or changed for several seconds, the display automatically returns to the basic setting.

Button "A"

This button is used for increasing the fan speed in % steps. You can notice the increase in the number of revolutions by the increase in the level of noise. The changed value will be taken over directly.

Button "--"

This button is used for reducing fan speed in % steps. You can notice the reduction in speed by the reduction in the level of noise. The changed value will be taken over directly.

LED "Error" (red)

If the red LED lights up, the filter element is saturated and must be replaced.

LED "Run" (green)

Shows that the APS is switched on. If the LED Run blinks green, it means the filter element must be replaced within 100 additional operating hours.

2.3 Test operation

Note

Carry out the test operation if you have just purchased the APS and would like to become familiar with the functions.

Carry out the test of the APS as follows:

• First check all connections on the APS to ensure they are correct and fitted tightly.
• Switch the APS on via the membrane keyboard using the button ON/OFF.
• Increase the fan speed by touching the button "+" and keeping it pressed down. You can notice the increase in the fan speed by the increase in the level of noise. At the same time, the right percentage appears in the transparent display.
• Reduce the fan speed by touching the button "−" and keeping it pressed down. You can notice the reduction in speed by the reduction in the level of noise. In addition to this, the right percentage appears in the transparent display (Minimum 20%).
• Switch the APS off via the membrane keyboard using the button ON/OFF. If the APS operates correctly, then the APS is ready for normal operation.

3 Maintenance

3.1 General information

Warning!

Used filters capture an organic solvent (ethylene glycol monobutyl ether acetate, CAS No. 112-07-2) and other chemicals from ink vapors. When disposing used filter cartridges it is your responsibility to observe all local, state, and federal regulations related to the handling, use, storage, and disposal of organic solvents.

Warning!

You must remove the power supply cable on the APS during cleaning and service work.

Note:

Please also follow the safety instructions in section III Safety.

3.2 Routine maintenance work

You must inspect the accessible areas of the APS daily for damage and assess the APS for proper operation

Caution!

• Labels and control elements or warning signs may become illegible through unavoidable dirt deposits. This can lead to faulty operation, which may cause a safety hazard.
• It is recommended to clean control elements, displays and warning stickers once a week removing accumulated dust and other dirt by wiping with a clean, damp cloth. Avoid using an excessively wet cloth that may release liquids into the APS.
• Avoid the use of solvent cleaners, which may attack elements of the keypad, display, gaskets, or paint. Only water-based cleaners or soapy water are recommended.
• Do not allow liquids to spill into or penetrate into the APS.

3.3 Replacement of filters

The filter elements must be replaced after an interval period of 800 operating hours. The display of the filter contamination in the transparent display shows in this case 100% and the red LED (Error) will light permanently. All activated carbon filters will become full at different speeds depending on type of use, and they should be replaced between 700 and 800 operating hours, and no later than 800 hours under any circumstance. For ordering new filters:

Designation	Product Number
HP Designjet 8000s / 9000s/10000s APS Filter (HP Designjet 8000s Air Purifier system, 1x filter element required) (HP Designjet 9000s/10000s Air Purifier system, 2x filter elements required)	Q6679 A

Note

The green LED blinks after an interval period of 700 operating hours as an indication to order new filters, and also this means the filter elements must be replaced within 100 additional operating hours.

Caution!

When removing or inserting the filter elements it is recommended to use protective gloves (disposable gloves made of polyethylene, latex or Nitrile®) before carrying out the filters replacement and/or the suction hoses.

With the system "HP Designjet 8000s Air Purifier System" one filter element is used in the filter unit. With the system "HP Designjet 9000s/10000s Air Purifier System" two filter elements are placed behind each other in the filter unit. With the filter system "HP Designjet 9000s/10000s Air Purification System" always replace both filter elements at the same time.

You should proceed as follows when replacing the filter:

3.3.1 Removal of the old filter(s)

• Switch off the APS at the membrane keyboard using the button.
• Secure the APS against being switched on again unexpectedly, by removing the power cable from the wall power socket.

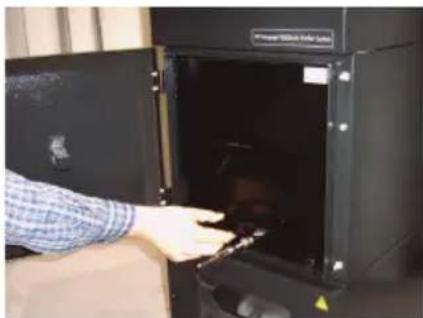

• Grasp the rear right of the service flap (Fig.1) with one hand and open this to the left. Note: You must overcome the resistance of the latch!

Figure 1

• Remove the offset screwing key from the intake.
• Slacken the sealing lifting mechanism by turning the adjusting screw (Fig. 2) using the offset screwing key. Turn the adjusting screw until the filter element is at the bottom and can be shifted freely.

Figure 2

• Release the filter locking (Fig. 3)

Figure 3

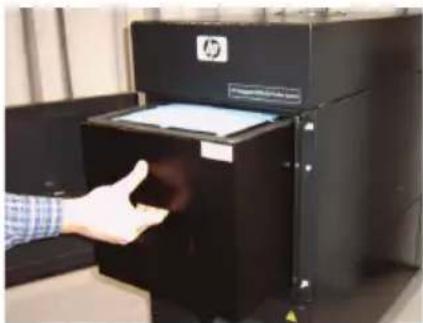

• Grasp the handle of the filter element and pull the filter element out of the filter housing (Fig. 4) while it stands securely in the filter housing. You can securely grasp under filter element with both hands and then place it down carefully.

Note: Each filter element weights approx. 16kg

Figure 4

Immediately dispose of the used filter element. Used filters capture an organic solvent (ethylene glycol monobutyl ether acetate, CAS No. 112-07-2) and other chemicals from ink vapors. When disposing used filter cartridges it is your responsibility to observe all local, state, and federal regulations related to the handling, use, storage, and disposal of organic solvents.

3.3.2 Insert the new filter(s)

Please, proceed as follows:

• Remove the new filter element(s) from the packaging.
• Store the enclosed flyer with the code in a safe place. You will need this later to reset the service interval.
• Push the filter element(s) (Fig. 5) into the filter housing up to the stop. The surrounding gasket on the filter element must be at the top, and the handle of the filter element must point towards the service opening.
• Put the filter locking. (Fig.6)

Figure 5 Figure 6

• Tighten the sealing lifting mechanism (Fig. 7) by turning the adjusting screw until it is completely tight.
• Insert the screwing key into the intake again.
• Close the service door until the latch engages.

Figure 7

Note:

Always pay attention that the surrounding gasket on the filter element(s) and on the pre-filter tray at the top is pushed into the stop, and the adjusting screw is completely tight. Otherwise, this can lead to leakages and the extracted gases and dust will not be filtered properly.

3.4 Enter the code of the new replacement filter

In order to reset the service interval one code must be entered with the HP Designjet 8000s Air Purifier System. Two codes are necessary with the HP Designjet 9000s/10000s Air Purifier System. The code input for the 8000s and 9000s/10000s is explained in the following chapters.

3.4.1 HP Designjet 8000s Air Purifier System

After replacing the filter element the service interval must be reset using the code. The following steps must be carried out in the following order:

Switch the APS on at the membrane keyboard using the button ON/OFF. When it switches on you will hear the fan and it will begin to extract the gases.

If "service filter" is shown in the display you must press the button "+" or "-" to suppress this fault report.

By pressing the button ENTER the programme name is displayed.

By pressing the button ENTER again " code 1: 00000 " is displayed.

Now you can enter the code using these buttons. The code is on the flyer which is enclosed with the new filter element.

By pressing the button ENTER the actual code is saved.

If this code has been entered correctly the value for the filter contamination (middle indication in the display) is reset to "0%" and the blinking green (run) and red (error) LEDs will be reset.

Note

The code is on the flyer that is enclosed with the new filter element.

3.4.2 HP Designjet 9000s/10000s Air Purifier System

After replacing the filter element the service interval must be reset using the code. The following steps must be carried out in the following order:

Switch the APS on at the membrane keyboard using the button ON/OFF. When it switches on you will hear the fan and it will begin to extract the gases.

If "service filter" is shown in the display you must press the button "+" or "-" to suppress this fault report.

By pressing the button ENTER the programme name is displayed.

By pressing the button ENTER again " code 1: 00000 " is displayed.

Now you can enter the code using these buttons. The code is on the flyer which is enclosed with the new filter element.

By pressing the ENTER the actual code is saved and "code 2: 00000" is displayed.

Now you can enter the code using these buttons. The code is on the flyer which is enclosed with the new filter element.

By pressing the ENTER the actual code is saved.

If this code has been entered correctly, the value for the filter contamination (middle indication in the display) is reset to "0%" and the LEDs which may be lit or blinking extinguish.

Note

• With the HP Designjet 9000s/10000s Air Purifier System, a "code 2: 00000" the code from the second filter element also must be entered.
• If the code 2 was not entered correctly, then also the code 1 must be entered again.

4 Disposal

It is the APS owner's responsibility to ensure that waste is disposed of in accordance with all local, state and federal regulations.

There are registered waste management companies that have been authorized by local authorities to manage waste collection and disposal and that will manage waste management and disposal on your behalf.

We recommend that you contact your local authorities for a list of authorized companies, or you can search for the nearest authorized waste disposal company on the World Wide Web.

Make sure that any waste disposal company you engage for this task is able to provide you with the necessary documentation proving their authority to manage and dispose of waste legally.

You will be legally responsible for failing to dispose of waste according to local, state and federal legislation.

When you have established an authorized waste management company, they will need to know the type of chemical that requires disposal and you will need to determine the type of agreement that best meets your requirements.

They will need to know the common name or chemical CAS number of the main solvent found in the printing supplies. Used filters capture an organic solvent (ethylene glycol monobutyl ether acetate, CAS No. 112-07-2) and other chemicals from ink vapors that can be obtained on the Material Safety Data Sheets (MSDS) available for all supplies at:

http://www.hp.com/hpinfo/globalcitizenship/environment/productdata/index.html

The APS captures organic solvents, and after removal and disposal of the filter elements, some solvents may remain in the unit and hoses connected to the printer. If the APS is to be permanently removed from operation, it is your responsibility to observe all local, state, and federal regulations related to the disposal of the components and materials of the APS.

5 Troubleshooting

Fault Cause Correction
No suction output(fumes/gases are not being extracted).	Suction hose not connected to the APS.	Connect suction hose to the APS.
	Suction hose not connected to the machine	Connect suction hose to the printer.
	Damage to the suction hose.	Replace suction hose.
	Suction hose is connected to the wrong machine.	Connect suction hose to the correct machine.
	Suction hose is connected to the wrong point of entry (opening) of the machine.	Connect suction hose to the right point of entry (opening) of the machine.
	Suction channel blocked. Check suction channel, if necessary correct error found.	Check suction channel, if necessary correct error found.
	Clean gas channel blocked.	Check clean gas channel, if necessary correct error found.
Suction output too low(fumes/gases are hardly being extracted).	Filter elements full. Replace filter properly!	Filler package, dispose of old fil-ter properly!
	Damage to the suction hose.	Replace suction hose.
	Suction hose not correctly connected to the APS.	Check fitting of the suction hose to the APS, if applicable reinsert into suction opening.
	Suction hose not correctly connected to the machine.	Check fitting of the suction hose to the machine if necessary reconnect.
	Air outlet blocked. Check air outlet status,and clean blocke holes.	outlet status,and clean blocke holes.
	Suction hose is connected to the wrong point of entry (opening) on the machine.	Connect suction hose to the right point of entry (opening) on the machine.
	Fault on the APS. Contact your HP Service representative.	HP Service representative.
APS is not running.	Plug connection power supply not or wrongly plugged in.	Check/correctly plug in plug connection power supply.
	No power on the socket. Check power supply, if necessary correct error.	Check power supply, if necessary correct error.
	Fault on the APS. Contact your HP Service representative.	HP Service representative.

6 Legal information

HP product Limited Warranty	Period
HP Designjet 8000s/9000s/10000s Air Purifier System	1 year from the date of hardware's purchase by the customer
HP Designjet 8000s / 9000s/10000s APS Filter	700 hours of operation or 9 months from the date of the filter's purchase by the customer. Whatever comes first.

A. Extent of HP Limited Warranty

1. This Hewlett-Packard (HP) Limited Warranty gives you, the end-customer, express limited warranty rights from HP. In addition, you may also have other legal rights under the applicable local law or special written agreement with HP.
2. HP warrants to you that the HP products specified above will be free from defects in materials and workmanship during the Limited Warranty Period specified above. The Limited Warranty Period starts on the date of purchase. Your dated sales or delivery receipt, showing the date of purchase of the product, is your proof of purchase date. You may be required to provide proof of purchase as a condition of receiving warranty service. You are entitled to warranty service according to the terms and conditions of this document if a repair or replacement of your HP Products is required within the Limited Warranty Period.
3. For software products, HP's Limited Warranty applies only to a failure to execute programming instructions. HP does not warrant that the operation of any product will be uninterrupted or error free.
4. HP's limited warranty covers only those defects which arise as a result of use of the HP products as defined in the user's guide, and does not apply to any:

a. Improper, inadequate or lack of filter maintenance following the instructions defined in the User's Guide in Chapter III Safety and 3 Maintenance. b. Interfacing or parts not provided or supported by HP; or

c. Operation outside the product's specifications.

Routine printer maintenance operations in the HP Designjet 9000s/10000s / 8000s Air Purifier System, such as cleaning and preventive maintenance services (including parts contained in any preventive maintenance kit and HP service engineer visits), are not covered by HP's Limited Warranty.

1. For the HP Designjet 9000s/10000s / 8000s Air Purifier System, the use of non-original HP consumables (filter) do not affect either the HP's Limited Warranty to you or any HP support contract with you. However, if printer failure or damage is attributable to the use of a non-original HP consumable, HP will charge its standard time and materials charges to service the printer for the particular failure or damage.
2. Your exclusive remedies for defective HP products are the following:

a. During the Limited Warranty Period, HP will replace any defective consumable product which is covered by this Limited Warranty, and deliver another product to you to replace the defective one. b. During the Limited Warranty Period, HP, at its sole discretion, shall either repair on site or replace any defective hardware product or component part. If HP elects to replace any component part, HP will provide to you (i) a replacement part, in return of the defective one, and (ii) remote part installation assistance, if needed. c. In the unlikely event that HP is unable to repair or replace, as applicable, a defective product which is covered by this Limited Warranty, HP shall, within a reasonable time after being notified of the defect, refund the purchase price for the product. 7. HP shall have no obligation to replace or refund until you return the defective consumable, hardware product or component part to HP. All components, parts, consumables or hardware products, removed under this Limited Warranty become the property of HP. Notwithstanding the above mentioned, HP may waive the requirement for you to return the defective part. 8. Unless otherwise stated, and to the extent permitted by local law, HP products may be manufactured using new materials or new and used materials equivalent to new in performance and reliability. HP may repair or replace products (i) with equivalent products to the products being repaired or replaced but which may have been subject to prior use; or (ii) with equivalent product to an original product that has been discontinued. 9. THIS LIMITED WARRANTY IS APPLICABLE IN ALL COUNTRIES AND MAY BE ENFORCED IN ANY COUNTRY WHERE HP OR ITS AUTHORIZED SERVICE PROVIDERS OFFER WARRANTY SERVICE AND HP HAS MARKETED THIS PRODUCT, SUBJECT TO THE TERMS AND CONDITIONS SET FORTH IN THIS LIMITED WARRANTY. HOWEVER, WARRANTY SERVICE AVAILABILITY AND RESPONSE TIME MAY VARY FROM COUNTRY TO COUNTRY. HP WILL NOT ALTER FORM, FIT OR FUNCTION OF THE PRODUCT TO MAKE IT OPERATE IN A COUNTRY FOR WHICH IT WAS NEVER INTENDED TO FUNCTION FOR LEGAL OR REGULATORY REASONS. 10. Contracts for additional services may be available for any authorized HP service facility where the listed HP product is distributed by HP or an authorized importer. 11. TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY NEITHER HP NOR ITS THIRD PARTY SUPPLIERS MAKE ANY OTHER WARRANTY OR CONDITION OF ANY KIND, WHETHER EXPRESS OR IMPLIED, WITH RESPECT TO THE HP PRODUCTS, AND SPECIFICALLY DISCLAIM THE IMPLIED WARRANTY OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY QUALITY, AND FITNESS FOR A PARTICULAR PURPOSE.

B. Limitations of liability

1. TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS LIMITED WARRANTY, IN NO EVENT SHALL HP OR ITS THIRD PARTY SUPPLIERS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING ANY LOST OF PROFITS OR SAVINGS), WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY AND WHETHER ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

C. Local law

1. This Limited Warranty gives you specific legal rights. The customer may also have other rights which vary from state to state in the United States, from province to province in Canada, and from country to country elsewhere in the world. You are advised to consult applicable state, province or country laws for full determination of your rights.
2. To the extent that this Warranty Statement is inconsistent with local law, this Warranty Statement shall be deemed modified to be consistent with such local law. THE WARRANTY TERMS CONTAINED IN THIS LIMITED WARRANTY, EXCEPT TO THE EXTENT LAWFULLY PERMITTED, DO NOT EXCLUDE, RESTRICT OR MODIFY AND ARE IN ADDITION TO THE MANDATORY STATUTORY RIGHTS APPLICABLE TO THE SALE OF THIS PRODUCT TO YOU.

7 Regulatory notices

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997 / EN 55022:1998 + A1:2000 + A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly.

1) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports; this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany. USA Contact: Hewlett-Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical data

Product designations:	HP Designjet 8000s Air Purifier System (110 volts)	HP Designjet 8000s Air Purifier System (230 volts)	HP Designjet 9000s/10000s Air Purifier System (110 volts)	HP Designjet 9000s/10000s Air Purifier System (230 volts)
Casing:
Width:	365 mm
Height:	797 mm
Depth:	496 mm 801 mm
Casing material:	steel, coated
Atmosphere:	+5 °C bis +35 °C
Atmospheric temperature:
Relative humidity:	max. 70 %
Type-specific data:
Air output:	50 - 180 m³/h 50 - 360 m³/h
Connect load:	1,1 kW 1,1 kW 1,6 kW 1,6 kW
Power connection:	100 - 127 V 220 - 240 V 100 - 127 V 220 - 240 V
	50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Rated current:	6,0 A 3,5 A	12 A	7,0 A
Max. line protective fuse:	20 A	16 A	20 A	16 A
Max. underpressure:	900 - 8.000 Pa
Total weight:	60 kg		95 kg
Sound pressure level:	56 dB(A)		63 dB(A)
Filter material:
Pre-filter mat:	Filter class F 5		Filter class F 5
Activated carbon cassette:	16 kg		2 x 16 kg

7.1 Regulatory model number 51 7.2 Regulatory statements 51

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

Korean EMI statement

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997 / EN 55022:1998 + A1:2000 + A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

November 25th, 2005 Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical Data

7.1 Regulatory model number 77 7.2 Regulatory statements 77

8 Declaration of conformity 79

9 Technical Data 80

2.1 Operating conditions

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for the Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997 / EN55022:1998 + A1:2000 + A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly.

1) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports; this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany. USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

7.1 Regulatory model number 103 7.2 Regulatory statements 103

8 Declaration of conformity 105

9 Social characteristics 106

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC:CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly.

1) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports; this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany. USA Contact: Hewlett-Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Characteristics

The APS is equipped with safety interlocks to protect the user and is constructed and produced in accordance with state-of-the-art technology to meet operational safety regulations. In order to ensure safe and environmentally-responsible operation, the following safety features have been installed:

7.1 Regulatory model number 129 7.2 Regulatory statements 129

8 Declaration of conformity 131

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for the Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

SAJAN:A

i 1

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

i n v e n t

DECLARATION OF CONFORMITY

according to ISO/IEC Guide 22 and EN 45014

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany. USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

7.1 Regulatory model number 155 7.2 Regulatory statements 155

8 Declaration of conformity 157

9 Technical data 158

If the red LED lights up, the filter element is saturated and must be replaced.

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for the Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 cfr15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC:CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical Data

HP Designjet 9000s/10000s Air Cleaning System HP Designjet 8000s Air Cleaning System

User's Guide

1 Introduction

7.1 Regulatory model number 181 7.2 Regulatory statements 181

8 Declaration of conformity 183

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 cfr15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that my cause undesired operation 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test re-ports, this number should not be confused with the marketing name or the product numbers.

November 25th, 2005 Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany. USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical specifications

Ürün adı: HP Designjet8000sHavatemizlemesystemi(110 V)	HP Designjet8000sHavatemizlemesystemi(230 V)	HP Designjet9000s/10000sHavatemizlemesystemi(110 V)	HP Designjet9000s/10000sHavatemizlemesystemi(230 V)
Gövde:Genişlik:Yükseklik:Derinlik:Gövde malzemesi:Ortamkışulları:Sıçakkı:Havadaki nem:madele özgüveriler:Hava nakilGPCu:BagliantiGPCu:Nominal voltaj:Nominal akım:Sigorta:Maks. vakum:Toplam ağırkı:Gürültü seviyesi:Filtre malzemesi:Ön:filtremalzemesi:Aktif karbonkartuş:	365 mm797 mm496 mm 801 mmÇelik sac, kaplamalirmak's. 70%+5 °C ila +35 °C arasi	|	|	|
	50 - 180 m³/h 50 - 360 m³/h6 kW 1,6 kW- 240 V 100 - 127V 220 - 240VHz 50/60 Hz 50/60Hz 50/60Hz 50/60Hz	|	|	|
	100 - 127 V 220- 240 V 100 - 127V 220 - 240VHz 50/60 Hz 50/60Hz	|	|	|
	50/60 Hz 50/60Hz	|	|	|
	6,0 A 3,5 A 12A7,0A	|	|	|
	20 A16 A	20 A	16 A
	900 - 8.000 Pa
	60 kg	95 kg
	56 dB(A) 63 dB(A)
	Filtre malzemisi:Ön:filtremalzemisi:Aktif karbonkartuş:	Filtre sinificant F 5 F 5	Filtre sinificant F 5 F 5
		16 kg	2 x 16 kg

7.1 Regulatory model number 207 7.2 Regulatory statements 207

8 Declaration of conformity 209

Note: Each filter element weighs approximately 16 kg.

Fig. 4

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 cfr15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC:CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

November 25th, 2005 Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical specifications

7.1 Regulatory model number 233 7.2 Regulatory statements 233

8 Declaration of conformity 235

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for the Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

SAJAN:A

i 1

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997 / EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

November 25th, 2005 Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical specifications

7.1 Regulatory model number 259 7.2 Regulatory statements 259

8 Declaration of conformity 261

9 Technical data 262

The APS uses the control software that is installed.

Air that contains organic compounds from the media for low-pollution areas is drawn in by the HP and released into the interior of the HP Designjet 8000s or 9000s/10000s, is filtered through the filters and introduced into the printer's environment and the printer's components.

The printer's media consists of the following media:

3.2 Maintenance tasks

You should inspect the areas where there is access to the APS daily for damage and perform an assessment of the APS for proper operation.

Cleaning

• The filters and control components or the pre-printing signals may become unreadable due to unavoidable soiling. This is intended to indicate a malfunction, which may cause a risk to safety.
• It is recommended to clean the control components, the sensors and the pre-printing contacts once a week or when the accumulated dust and other particles are visible in a clean, dry cloth. Avoid using a cloth that may leave fibers on the APS.
• Avoid using cleaning agents or solvents, which may damage the components of the control system, the sensors, the printheads or the ink. Only use a dry, lint-free cloth or a slightly damp cloth.
• Do not allow liquids to spill or leak into the APS.

3.3 Replacing the filters

The filters of the device must be replaced after a period of 800 hours of operation. In this case, the filter replacement indicator light will flash 100% and the red ERROR (Σφλμ) light will turn on permanently. Each filter operates at a speed proportional to the usage time and must be replaced after 700 or 800 hours of operation, but in some cases more than 800 hours. For ordering new filters:

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 cfr15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9

7.1 Regulatory model number 285 7.2 Regulatory statements 285

8 Declaration of conformity 287

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 cfr15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

SAJAN:A

i 1

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

i n v e n t

DECLARATION OF CONFORMITY

according to ISO/IEC Guide 22 and EN 45014

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997 / EN 55022:1998 + A1:2000 + A2:2003 Class A

EN 55024:1998 + A1:2001 + A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995 + A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly.

1) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports; this number should not be confused with the marketing name or the product numbers.

November 25th, 2005 Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany. USA Contact: Hewlett-Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical Specifications

7 Regulatory notices 311

7.1 Regulatory model number 311 7.2 Regulatory statements 311

8 Declaration of conformity 313

9 Technical data 314

1 Installation description and functions

1.1 Transport on wooden pallets

The unit is supplied in a vertical position on a wooden pallet in accordance with the IPPC standard. The following transport means are permitted for transporting wooden pallets:

- Forklift truck and - Telescopic handler.

Do not drop the unit during transport and handling.

Prevent it from tipping over during transport of the wooden pallet with the unit securely installed.

Pay attention to the applicable rules for accident prevention and labor protection.

Pay attention to the markings on the packaging!

The unit and the wooden pallet with the unit must be secured on the transport vehicle against sliding and tipping.

Warning!

If the wooden pallets are not secured properly, the unit may tip over and cause the most serious injuries or even death.

Only use suitable lifting and transport equipment and lifting gear.

The vehicle driver must have a permit to operate forklifts and transport devices.

Insert the fork tines of the forklift into the corresponding openings of the wooden pallet.

Observe the following instructions for transporting the air cleaning system:

-The load capacity of the forklift must be sufficient for the total weight of the wooden pallet together with the vertically mounted COB on it. -Weight of the HP Designjet 8000s COB: approx. 60 kg -Weight of the wooden pallet + 8000s COB + packaging: approx. 76 kg -Weight of the HP Designjet 9000s/10000s COB: approx. 95 kg -Weight of the wooden pallet 9000s/10000s LRS + packaging: approx. 113 kg -Required width for the fork tines of the forklift/truck: 1,000 mm The transport box must be securely fastened on the floor of the transport truck so that it cannot tip over.

Direct contact between the COB and the loading platform of the floor transport truck must be avoided.

-For this, place a wooden board or cardboard between the COB packaging and the platform. -When installing the COB, avoid hard impacts. -During transport, the floor transport truck must not be tilted.

1.2 Unpacking and Installation

Note: When installing the COB, leave enough space for the exhaust air outlet of the printer. The COB and the printer must be positioned so that they do not collide and do not interfere with the printer, fast-consuming materials, replacement of serial cartridges, and checking and replacing the ink cartridge for the printhead.

Note: Provide enough space around the COB for disassembly and replacement of the filter elements.

Note: Do not install the COB in areas with direct air currents from air conditioners, heaters, and fans.

Note: Proceed as follows when unpacking and installing the air cleaning system:

Do not remove the COB from the transport pallet and do not remove the packaging until you have reached the installation location of the device. When removing the packaging, proceed as described below. -Check the completeness of the delivery using the packing list. Then check all parts of the delivery for the absence of external damage that may have occurred during transport. -Move the COB on its swivel casters to the final installation location. -Install the COB on a level, load-bearing surface. -Lock the COB against accidental movement by setting the brakes on the swivel casters. -The air cleaning system must be installed so that the air from the exhaust grille can escape freely and not return to the work area. -Protect the air cleaning system with suitable support devices against accidental tipping to the side (stability check).

The device must be installed in accordance with EN 60950-1. On the underside there are two recesses into which the support feet are inserted. The additional support feet must be adjusted accordingly so that the device stands vertically and securely, without being overloaded when the castors are turned.

1.3 Unpacking the device

When you receive the device, check the contents of the transport box. As a rule, the delivery includes:

• The device in a protective bag with built-in filter elements); -Set of hoses (hose with a diameter of 4 m and hose with a diameter of 2 m); -Connection fittings and clamping hose
• Power cable for connection to the mains. Several different power cables may be included in the shipment. Please select the appropriate one. -4 adjustable support feet, M8, length 85 mm -1 hose clamp

1.4 Connecting the printer

The device is connected to the printer using two hoses, as described below:

• Insert the connection fittings of the hoses into the inlet openings of the device

Note:

The hoses are equipped with connection fittings only on one end.

The other end of the hose is inserted into the printer's exhaust port and secured with a hose clamp.

Note:

The printer has two exhaust ports on the right and left side (one on each side, i.e., two ports for air outlet).

1.5 Connecting the device to the mains voltage

The device is connected to the mains as follows:

• Bcma6bme buky ceme6020 ka6eJra 6 po3emky.

Vbeumecb 6 mom, ymo ykaaahnoe ha fupmeHHou ma6nueke HanpoxceHue coomsemcmvemHanpaXceHuO 3Eekmuuecko cemu.

• Ipoobepbme nocie omzoe ue pa3 6ce coedunienu.

COB moecem bimb bbedea 8Kcniyamauuo, euu BCE uuaheu nodcoedunebu npoepehblce coeduenue.

1.6 OIIncaHne npHHnna DeIcTBnA

Bcabsiaouue uianu obpaayiom nenocpedcmbennoe coedunene COB k nampyokam omxodnueo 603dyxa npumpepo HP Designjet 8000s uu 9000s/10000s.

COB 6KIOUaemca c nomouubio nIeHouHou KIAuamypb.

Bo3dyx c 6bideenblmu lemyu mu opzunueckmu coedunenmu u3 uepui, codepaux manopacmbopumble beueecma, bhympu npunmepo8 HP Designjet 8000s uu 9000s/10000s bcacb6aemcyepe3 uianu u nododumc6kopnyc fuibmpa u fuibmpvouux nelemnoe.

ΦuIbmpyioue 3IeMeHmbl uMeiom ciedyiooue fubmpyioue cekuui:

• Ipeoabapumelbnhu pfubmp u akmu6hbu yeo1bhu dfuibmp.

B mo 6pem, kak omdeienhble om 603dyxa lemyue opaeuueckue coedunehn 3adepcuaomca 6 φ uibmpyouux 3iemeHmax, ouuueHHb 603dyx omcacbaemcpaonolooceHHbM nod φ uibmpyuumu 3iemeHmuu m enmuamopm u nonadaem uepe 6bidyuyo peuemky na zadneu cmopone 6 ycmanoeHHbu mam uymozyuume.

2 Θкплyaтuaия

2.1 YcIOBna 3KcIIyatauHH

COB doJIcua 3KcnIyamupo8amb6 cbo60nom om bu6pauu, cyxom u nackoJbKO 6O3MOHcno CBO60nom om nbUU nomeuuehu.

COBdoJcHya cmaabaambc e docmamoHObehmu npyem opaOeu 3one.

The unit must be operated in a closed, non-ventilated room.

The ambient temperature should be in the range from +5 °C to +35 °C.

Relative air humidity should not exceed 70%. Condensation of air on the surfaces of the unit must be prevented.

2.2 Operation

The air purification system is controlled using a control panel with membrane keys and a liquid crystal display (Fig. 1). All functions of the air purification system are controlled using these keys.

Fig. 1: Control panel with membrane keys and display

When the system is turned on, the display shows the settings of the unit:

- On the left side of the display, the number of operating hours of the built-in filter is shown.

In the center, the filter saturation is shown as a percentage of the residual capacity at the given moment. On the right side, the number of fan revolutions is shown as a percentage of the maximum number of revolutions. The minimum number of revolutions is set at 20%.

On the front panel of the unit, the following control elements are located:

ON/OFF key

Using the ON/OFF key, the unit is turned on and off. When turned on, the fan starts and begins to draw air from the room.

When the set values are changed (for example, the number of fan revolutions), these values are remembered when the device is turned off. When the unit is turned on again, it operates with these values.

ENTER key

This key is used only by service technicians to adjust the settings of the electronic control of the unit (for example, after replacing filter elements).

The unit is manufactured under the factory setting and does not require any adjustment. The indicator is automatically set to the base setting.

Key "+"

Using this key, the number of fan revolutions can be increased in 5% steps. Increasing the number of revolutions is accompanied by an increase in fan noise. The changed value is immediately saved.

Key "-"

Using this key, the number of fan revolutions can be decreased in 5% steps. Decreasing the number of revolutions is accompanied by a decrease in fan noise. The changed value immediately becomes effective.

Indicator "Error" (red)

The glow of this red indicator indicates that the filter elements are saturated and must be replaced.

Indicator "Operation" (green)

The glow of this green indicator indicates that the unit is switched on. The blinking of this indicator signals that within the next 100 hours of operation the filter elements must be replaced.

2.3 Test mode of operation

Note

In order to familiarize yourself with the operating principle of this system after purchasing the unit, it is recommended to perform a test run.

Perform the test run as described below:

• First check that all connections of the air purification system are made correctly and are sealed.
• Switch on the unit by pressing the ON/OFF key on the control panel.
• Press the "+" key to increase the number of revolutions. Pay attention to how the noise level of the fan changes and, thus, the number of revolutions. Simultaneously, the display shows the achieved number of revolutions as a percentage.
• Decrease the number of revolutions by pressing the "-" key on the keyboard. Pay attention to how the noise level of the fan changes and decreases accordingly. Simultaneously, the display shows the achieved number of revolutions as a percentage. (Minimum number of revolutions of the fan is 20%)
• Turn on the COV by pressing the ON/OFF key on the front keyboard. If all COV functions are performed correctly, the air purification system is ready for operation.

3 Technical maintenance

3.1 General instructions

Warning!

The filters used contain organic solvents (ethylene glycol monobutyl ether acetate, CAS No 112-07-2) and other chemical substances from the neutralizer vapors. When disposing of used filters, it is necessary to follow all rules and regulations for handling, use, storage, and disposal of organic solvents.

Warning!

When performing all work on cleaning and maintenance of the COV, it is necessary to pull the network cable out of the socket.

Note:

Please pay attention to the safety instructions in Section III Safety.

Turn off the COV device using the key

on the front keyboard.

• Ensure protection of the COV device against accidental activation by pulling

the network cable out of the socket.

Grasp the filter with one hand by the handle (Fig. 1) and open it without force.

Note: You must overcome the resistance of the door lock!

Fig. 1

• Remove the handle from its storage location.

Loosen the adjusting screw and the locking mechanism by loosening the adjusting screw with the handle (Fig. 2). Turn the screw until the filter element is in the lowest position and can move freely.

Fig. 2

• Release the filter lock (Fig. 3).

Fig. 3

Grasp the filter element handle and pull the filter element out of the filter housing (Fig. 4) until it is still securely in the filter housing, but the handles can be grasped from below and lowered carefully.

Note: The filter element weighs about 16 kg.

Fig. 4

The used filter element must be disposed of immediately. The filter contains organic solvents (Dthylglykol Monobutylestherazeta, CAS Nr. 112-07-2) and other chemicals from the paint mist. When disposing of used filters, all rules and regulations for handling, using, storing, and disposing of organic solvents must be observed.

3.3.2 Installation of the new filter(s)

Perform the following steps:

Remove the new filter element from the packaging. - Place the supplied spare part with the code in a safe place, as you will need it later for the service interval. Insert the filter element (Fig. 5) into the filter housing until it stops. The adjusting screw on the filter element must be at the top, and the handle of the filter element should point to the service opening. - Secure the filter lock (Fig. 6).

3.3.3 Removing the filter element (Fig. 7) by turning it counterclockwise until it stops. - Put the dirty filter back in its place in the housing. Close the housing until the latch engages.

Fig. 7

Note:

Always pay attention that the filter element with the rubber seal on top is pushed in until it stops and the adjusting screw is completely closed. Otherwise, leaks may form and harmful gases and dust will not be filtered properly.

3.4 Entering the code for the replacement filter element

To reset the service interval, you must enter a code in the air cleaning system for the HP Designjet 8000s printer. In the air cleaning system of the HP Designjet 9000s/10000s printers, however, you must enter two codes. The code entry for the air cleaning systems of the 8000s and 9000s/10000s is described in the following sections.

3.4.1 Air cleaning system for the HP Designjet 8000s printer

After replacing the filter elements, you must reset the service interval using a code. To do this, you must perform the actions described below in the specified order:

Turn on the device using the keyboard or the ON/OFF button. After switching on, you will hear the fans starting to extract gases.

If the display shows the message "service filter", then before entering any other message about a malfunction, you must press the "+" or "-" key.

After pressing the "ENTER" key, the program version is displayed.

After pressing the "ENTER" key again, the message "Ko1:00000" is displayed.

Now you can enter the code using the keys. The code is located on the attached label on the filter.

After pressing the ENTER key once more, the current code is written to memory.

If the code is entered correctly, the saturation value of the filter (average indication on the display) is reset to "0%" and the flashing green LED (operation) as well as the red LED (fault) return to their normal state.

Note

The code is located on the complex sheet attached to each filter.

3.4.2 Air cleaning system for HP Designjet 9000s/10000s printers

After replacing the filter elements, it is necessary to reset the service interval using the code. To do this, perform the actions described below in the specified order:

Turn on the device using the keypad by pressing the ON/OFF key. After switching on, you will hear the sound of the fans and the system begins to exhaust gases.

If the message "service filter" appears on the display, then to suppress this fault message, the "+" key or the "-" key must be pressed.

After pressing the "ENTER" key, the program name is indicated.

After pressing the "ENTER" key again, the message "Ko1:00000" is displayed.

Now you can enter the code using these keys. The code is located on the sheet attached to the wall filter.

After pressing the ENTER key once more, the current code is written to memory and the message "Koi 2:00000" is displayed.

Now you can enter the code using these keys. The code is located on the sheet attached to the replacement filter.

After pressing the ENTER key once more, the current code is written to memory.

If the code is entered correctly, the saturation value of the filter (average indication on the display) is reset to "0%" and the flashing green LED (operation) as well as the red LED (fault) return to their normal state.

Ykaanue:

- To enter the service menu of the air filter, for example HP Designjet 9000s/10000s, it is necessary, when the indicator "KoI 2: 00000" is displayed, to enter the code of the second filter element. - If the second code is entered incorrectly, it is necessary to re-enter both code 1 and code 2.

4 YtNJn3aun

The manufacturer of the air filter system is responsible for the disposal of filter elements in compliance with all applicable laws and regulations.

For this purpose, contact a registered waste disposal company that has received permission from local authorities to collect and dispose of this type of waste.

You can find a list of licensed waste disposal companies in the competent authorities or on the internet.

Since you are legally responsible for the proper disposal of the filter, you must, when handing over the filter to a waste disposal company, ensure that you are provided with proof of permission for the disposal of this type of waste.

Inform the waste disposal company about the type of chemical substances that need to be disposed of, and then decide which type of contract best suits your needs.

The waste disposal company must have a valid name and CAS number for the solvent used in the printer's cleaning cartridges. The filters used contain organic solvents (Thylglykol Monobutylestherazeta, CAS No 112-07-2) and other chemical substances from the printer's ink vapors, which are listed in the material safety data sheets, which can be obtained for all materials at: http://www.hp.com/hpinfo/globalcitizenship/environment/productdata/index.html

The air filter system captures all organic substances. After decontamination and disposal of the filter elements, solvent residues may remain in the device and in the lines connected to the printer. Therefore, when finally decommissioning the device, the user is responsible for the proper disposal of all components and materials of the device in compliance with all rules and regulations.

5 Troubleshooting

7 Regulatory notices

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 cfr15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997 / EN 55022:1998 + A1:2000 + A2:2003 Class A

EN 55024:1998 + A1:2001 + A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995 + A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number should not be confused with the marketing name or the product numbers.

November 25th, 2005 Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical data

Овоз国家战略 u3deлг.	HP Designjet 8000s Сусмema очимки б03dvya (110 B)	HP Designjet 8000s Сусмema очимки б03dvya (230 B)	HP Designjet 9000s/10000s Сусмema очимки б03dvya (110 B)	HP Designjet 9000s/10000s Сусмema очимки б03dvya (230 B)
Корун: Пишиа: Выcombe: Глобиа: Мамерал: Коруна: Темпарура: okрочаюеi: среды: Темпарура: Влжшость: б03dvya: Сnéцфческу: данные мuna: Расхов: Помpeбяема: Моцhiocь: Номинайhoe: нанряжениe: Часма: Номинайы: мok: П overdхpanumел: Мамс. bakум: Овsiш: Уразов: Мамерал: фчlbmpa: Мамерал: барш: фчlbmpa: Кassма: р-ваим: 16 к2 2 x 16 к2	365 MM 797 MM 496 MM 801 MM Л�смовая смаль c постец om + 5 °C do + 35 °C неборee 70% 50 - 180 M³/4 50 - 360 M³/4 1,1 kBm 1,1 kBm 1,6 kBm 1,6 kBm 100 - 127 B 220 - 240 B 100 - 127 B 220 - 240 B 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 6,0 A 3,5 A 12 A 7 0 A 20 A 16 A 20 A 16 A 900 - 8.000 Пa 60 к2 95 к2 56 ΦБ(A) 63 ΦБ(A) Кл ass: Фш: pa F 5 16 к2 2 x 16 к2	HP Designjet 9000s/10000s Сусмema очимки б03dvya (110 B)	HP Designjet 9000s/10000s Сусмema очимки б03dvya (230 B)

HP Designjet 9000s/10000s

1	류명 标注明显， [2] 基本功能
3	[4] [5] [6] [7] [8] [9]	[10] [11] [12]	[13] [14]
5	[15] [16] [17] [18] [19]	[20]	[21]
7	[22] [23] [24] [25]	[26]	[27]
9	[28] [29]	[30]	[31]
11	HP Designjet APS 8000s / 9000s/10000s 出厂	[32]	[33]
13	[34] [35] [36]	[37]	[38]

HP Designjet 8000s 9000s/10000s Frinert is hichi hci, sohhah. APS is jt j t h i h t a n d.

7 Regulatory notices 337

7.1 Regulatory model number 337 7.2 Regulatory statements 337

8 Declaration of conformity 339

9 Technical data 340

1.3 Meaning of the notes

HiHJ 8000s 9000s/10000s APSTi

HiHJ 8000s 9000s/10000s APSTi

APS皆，贝布拉在可上成用

FfTJ 8000s 12000s 9000s/10000s 9000s/10000s 9000s/10000s 9000s/10000s 9000s/10000s 9000s/10000s 9000s/10000s 9000s/10000s 900

7 Regulatory notices

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

IEC 60335-1:2001 + A1:2004 / EN 60335-1:2002 + A11:2004 +

A1:2004

EMC: CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly.

1) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports; this number should not be confused with the marketing name or the product numbers.

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany

USA Contact:

Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact:

Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical data

Product designations:	HP Designjet 8000s Air Purifier System (110 volts)	HP Designjet 8000s Air Purifier System (230 volts)	HP Designjet 9000s/10000s Air Purifier System (110 volts)	HP Designjet 9000s/10000s Air Purifier System (230 volts)
Casing:
Width:	365 mm
Height:	797 mm
Depth:	496 mm 801 mm
Casing material:	steel, coated
Atmosphere:	+5 °C bis +35 °C
Atmospheric temperature:
Relative humidity:	max. 70 %
Type-specific data:
Air output:	50 - 180 m³/h 50 - 360 m³/h
Connect load:	1,1 kW 1,1 kW 1,6 kW 1,6 kW
Power connection:	100 - 127 V 220 - 240 V 100 - 127 V 220 - 240 V
	50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz
Rated current:	6,0 A 3,5 A	12 A	7,0 A
Max. line protective fuse:	20 A	16 A	20 A	16 A
Max. underpressure:	900 - 8.000 Pa
Total weight:	60 kg		95 kg
Sound pressure level:	56 dB(A)		63 dB(A)
Filter material:
Pre-filter mat:	Filter class F 5		Filter class F 5
Activated carbon cassette:	16 kg		2 x 16 kg

7 Regulatory notices

7.1 Regulatory model number 7.2 Regulatory statements

8 Declaration of conformity

9 Technical information

1 Equipment installation and function description

1.1 Using a wooden pallet to transport the product

HP Designjet 8000s or 9000s/10000s

HP Designjet 8000s or 9000s/10000s

A. Extent of HP Limited Warranty

7 Regulatory notices

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 cfr15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997/EN55022:1998+A1:2000+A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly

1) This Device complies with Part 15 of the FCC Rules. Operation is subject to the following two Conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports; this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany USA Contact: Hewlett Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

9 Technical Information

HP Designjet 9000s/10000s Air Filter Unit

HP Designjet 8000s Air Purifier System

User's Guide

Preface

Change

7.1 Regulatory model number 389 7.2 Regulatory statements 389

8 Declaration of conformity 391 9 Technical specifications 392

7 Regulatory notices

7.1 Regulatory model number

For regulatory identification purposes, HP has assigned a Regulatory Model Number (RMN). The Regulatory Model Number for Air Purifier System is as follows:

RMN Product Family
BCLAA-0505-R1 HP Air purifier System (100-127 V)
BCLAA-0505-R2 HP Air purifier System (220-240 V)

This regulatory number should not be confused with the marketing name (Air Purifier System) or product numbers.

7.2 Regulatory statements

Electromagnetic Compatibility (EMC)

EUROPE

Warning! This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures.

USA

Electro-Magnetic Compatibility (EMC)

FCC statements (U.S.A.)

The U.S. Federal Communications Commission (in 47 CFR 15.105) has specified that the following notices be brought to the attention of users of this product.

Shielded cables

Use of shielded data cables is required to comply with the Class A limits of Part 15 of the FCC Rules.

Caution: Pursuant to Part 15.21 of the FCC Rules, any changes or modifications to this equipment not expressly approved by the Hewlett-Packard Company may cause harmful interference and void the FCC authorization to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at their own expense.

KOREA

Korean EMI statement

CANADA

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

GERMANY

Sound

8 Declaration of conformity

Supplier's Name: Hewlett-Packard Company

Supplier's Address: Avda. Graells, 501

declares, that the product

Regulatory Model: 2)

BCLAA-0505-R1

BCLAA-0505-R2

Product Family: HP Air Purifier System

Product Options: All

conforms to the following Product Specifications:

Safety: IEC 60950-1:2001 / EN 60950-1:2001

EMC: CISPR 22:1997/EN55022:1998 + A1:2000 + A2:2003 Class A

EN 55024:1998 +A1:2001 +A2:2003

EN 61000-3-2:2000

EN 61000-3-3:1995+A1:2001

FCC Title 47 CFR, Part 15 Class A)

Additional Information:

The product herewith complies with the requirements of the Low Voltage Directive 73/23/EEC and the EMC Directive 89/336/EEC, and carries the CE-marking accordingly.

1) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The Regulatory Model Number is the main product identifier in the regulatory documentation and test reports; this number should not be confused with the marketing name or the product numbers.

Sant Cugat del Valles (Barcelona), November 25th, 2005

Josep-Maria Pujol

Hardware Quality Manager

Local contact for regulatory topics only:

European Contact: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany. USA Contact: Hewlett-Packard Co., Corporate Product Regulations Manager, 3000 Hanover Street, Palo Alto, CA 94304, U.S.A.

Australia Contact: Hewlett-Packard Australia Ltd, Product Regulations Manager, 31-41 Joseph Street, Blackburn, Victoria, 3130, Australia

產品規格: HP Des	gnjet8000s空氣過濾装置(110V 電壓)	HP Designjet8000s空氣過濾装置(230V 電壓)	HP Designjet9000s/10000s空氣過濾装置(230V 電壓)	HP Designjet9000s/10000s空氣過濾装置(230V 電壓)
產品盒子:寬: 365 mm高: 797 mm長:盒子材質:周围環境:周围溫度:周围濕度:形式:空氣流量:負荷容量:使用電源:定格電流:护 保險絲最大):保真空壓力最大): 900 - 8.000 Pa重量:噪音標準:過濾器材質:1次過濾器墊:活性炭 BOX:	496 mm金屬,鍍金+5°C bis + 35°Cmax. 70%50 - 180 m³/h1,1 kW100 - 127 V50/60 Hz6,0 A20 A60 kg56 dB(A)	801 mm11 kW-240 V50/60 Hz3,5 A16 A	100 - 127 V50/60 Hz12 A20 A	1,6 kW220 - 240 V50/60 Hz7,0 A16 A95 kg63 dB(A)
