USER MANUAL TAV 300 A3 TRONIC

DOCUMENT SHREDDER Operating instructions and safety instructions

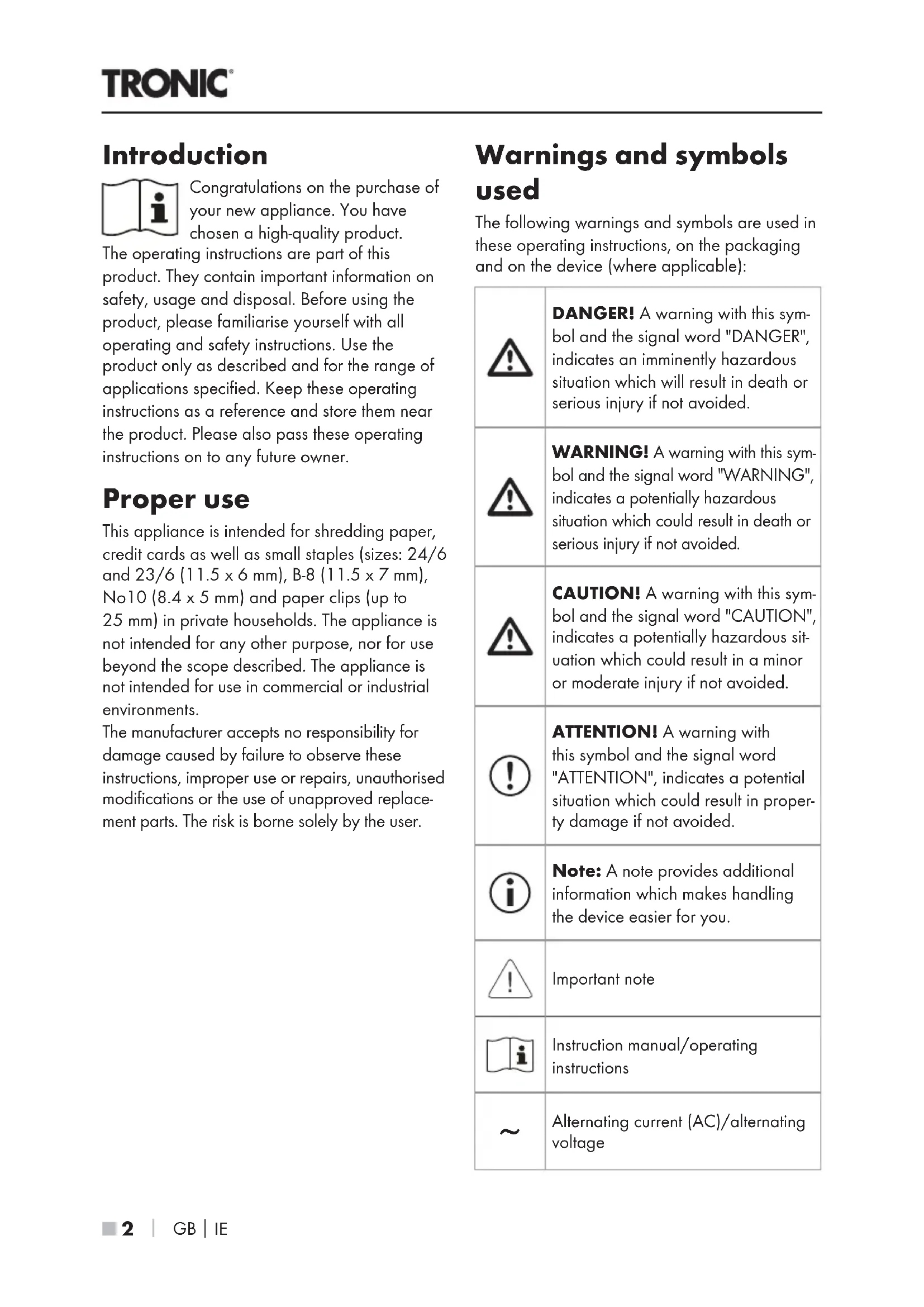

Introduction Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Keep these operating instructions as a reference and store them near the product. Please also pass these operating instructions on to any future owner. Proper use This appliance is intended for shredding paper, credit cards as well as small staples (sizes: 24/6 and 23/6 (11.5 x 6 mm), B-8 (11.5 x 7 mm), No10 (8.4 x 5 mm) and paper clips (up to 25mm) in private households. The appliance is not intended for any other purpose, nor for use beyond the scope described. The appliance is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replace- ment parts. The risk is borne solely by the user. Warnings and symbols used The following warnings and symbols are used in these operating instructions, on the packaging and on the device (where applicable): DANGER! A warning with this sym- bol and the signal word "DANGER", indicates an imminently hazardous situation which will result in death or serious injury if not avoided. WARNING! A warning with this sym- bol and the signal word "WARNING", indicates a potentially hazardous situation which could result in death or serious injury if not avoided

CAUTION! A warning with this sym- bol and the signal word "CAUTION", indicates a potentially hazardous sit- uation which could result in a minor or moderate injury if not avoided. ATTENTION! A warning with this symbol and the signal word "ATTENTION", indicates a potential situation which could result in proper- ty damage if not avoided. Note: A note provides additional information which makes handling the device easier for you. Important note Instruction manual/operating instructions

 3 ■ Safety information The following safety instructions must always be followed when using electrical appliances: DANGER! RISK OF ELECTRIC SHOCK! ■ Do not use the appliance if the power plug or the power cable is damaged. To prevent accidents, have defective plugs and/or pow- er cables replaced immediately by an authorised specialist techni- cian or our Customer Service department. ■ Appliances which do not work properly or have been damaged must be checked immediately and repaired by Customer Service. ■ Do not expose the appliance to rain, and never use it in a humid or wet environment. ■ Take steps to ensure the power cable never becomes wet or moist during use. Never touch the plug or the appliance with wet hands. ■ Do not kink or crush the power cable or place heavy objects on it. Route the power cable so that it does not come into contact with hot surfaces. ■ Do not place the appliance in the direct vicinity of any sources of heat or water. There is a risk of fire or of receiving an electrical shock! WARNING! RISK OF INJURY! ■ Keep loose clothing, long hair, jewellery, etc. at asafe distance from the cutter opening. ■ Never insert your fingers into the cutter opening. ■ Keep children away from the appliance. They could hurt themselves. ■ Only one person should operate the shredder at a time. IB_484157_2501_TAV300A3_LB8.indb 3 14.05.2025 13:09:23■ 4 

■ Never leave the appliance unattended during operation. ■ Do not use the appliance in dusty or explosive environments (ig- nitable gases, vapours or vapours from organic solvents). Risk of explosion! ■ Keep pets away from the appliance. They could hurt themselves. ■ This tool is not intended for use by persons (including children) with limited physical, physiological or intellectual abilities or lack of experience and/or knowledge, unless they are supervised by a person who is responsible for their safety, or receive instructions from this person on how to use the appliance. ■ The packaging material can be a source of danger for children. Dispose of the material immediately after unpacking or keep it in a safe place not accessible to children. ■ Route the power cable in such a way that no one can tread on it or trip over it. ■ Regularly clean the appliance to remove paper dust. Paper dust can be highly flammable, and sufficiently high concentrations in the air can lead to deflagration. There is a risk of injury! Moving parts ► This appliance is not suitable for use by children. ► Keep your hands, clothes and hair away from the insertion opening. ► Disconnect the mains power plug if you do not intend to use the device for an extended period of time. Sharp edges ► Avoid touching the sharp edges of the appliance. IB_484157_2501_TAV300A3_LB8.indb 4 14.05.2025 13:09:23GB

 5 ■ CAUTION! PROPERTY DAMAGE! ■ Do not use the appliance outdoors. The appliance could be irreparably damaged! ■ Do not overload the appliance. The paper shredder is designed for brief operating periods. ■ Never use the paper shredder for purposes for which it is not designed or intended.

■ Always position the appliance close to a power socket. Do not use an extension cable. Ensure that the appliance and the power socket are easily and quickly accessible in the event of an emergency. ■ In case of danger, pull the plug out of the power socket immediately. ■ Remain alert at all times! Always pay attention to what you are doing and always use common sense. Do not use the appliance if you are distracted or feeling unwell. IB_484157_2501_TAV300A3_LB8.indb 5 14.05.2025 13:09:23■ 6 

Package contents and transport inspection DANGER! ► Do not allow children to play with packaging materials. There is a risk of suffocation. ♦ Remove all parts of the appliance and the operating instructions from the carton. ♦ Remove all packaging materials from the appliance. Check the contents of the package. The follow- ing components are included in delivery: ▯ Cutter attachment ▯ Waste collector ▯ 1 lubricating sheet (for maintenance of the cutting head) ▯ Operating instructions Note ► Check the package for completeness and signs of visible damage. ► If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service). Appliance description (See fold-out page for illustrations) 1 Power cable with mains plug 2 REV/OFF/AUTO/FWD switch 3 Power lamp 4 Overheat lamp 5 Cutter attachment 6 Safety switch (built-in) 7 Integrated carrying recesses (left and right) 8 Cutter opening 9 Viewing window 0 Waste collector q Lubricating sheet Technical data Power supply 220–240 V ∼, 50 Hz Nominal current 1.5 A Rated power 300 W No-load power consumption/Standby ≤ 0.5 W Protection class II / (double insulation) Collector capacity for paper 21 litres Cutting process for paper Cross-cut, 5 x 18 mm particles Safety level P-4 Working width of cutter opening 222 mm Paper cutting capacity 10 sheets (80 g/m

 7 ■ Assembly WARNING! ► Do not connect the appliance to a power socket during assembly. ► The cutting blades in the cutter attachment

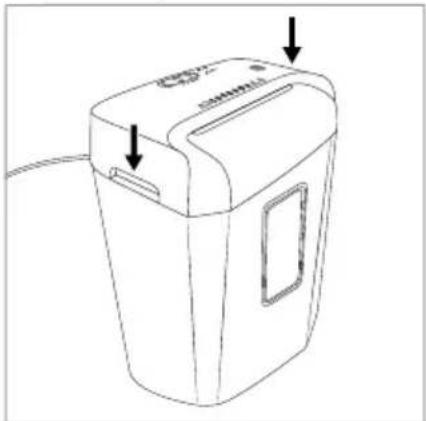

of the appliance are very sharp. Take extreme care when assembling the appliance. ♦ Hold the cutter attachment 5 by the two integrated carrying recesses 7 and position it over the large waste collector 0 so that the power cable 1 points backwards and the viewing window 9 in the large waste collector 0 points forwards (see fig. 1). Fig. 1 Note ► The cutter attachment 5 must sit upright and firmly on the waste collector0. Otherwise, the appliance will not start! ► The appliance cannot be used until the cutting attachment 5 is correctly seated on the waste collector0 and the safety switch 6 deac- tivated. First use Note ► Make sure the REV/OFF/AUTO/FWD switch 2 is in the OFF position before plug- ging the appliance into the power socket. ► Every shredder is tested for functionality after manufacture. It is possible that you may find paper residue in the cutting blades. ♦ Insert the plug 1 into a mains power socket. Operation Switching the appliance on Note ► Ensure that the cutter attachment 5 is sitting correctly on the waste collector0. ♦ Move the REV/OFF/AUTO/FWD switch 2 to the AUTO position for shredding. The power lamp 3 lights up permanently blue and the appliance is now ready for use. IB_484157_2501_TAV300A3_LB8.indb 7 14.05.2025 13:09:27■ 8 

Never feed paper into the cutter opening 8 if it still has paper clips or staples larger than 25 mm attached! These could damage the cutting blades. Note max. x 80g/m2

You can shred up to 10 sheets (80 g/m

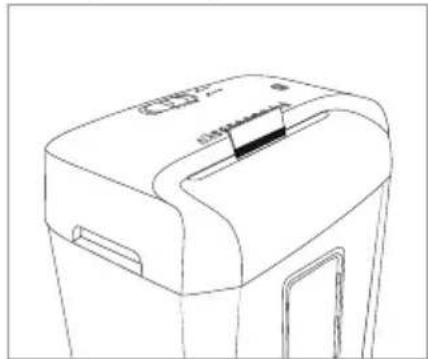

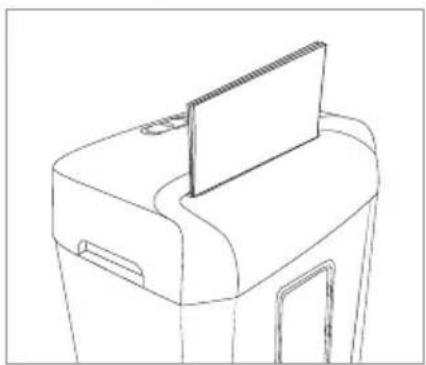

paper) at the same time. ♦ Insert paper into the middle of the cutter opening 8 from above and in portrait format (see fig. 2). The appliance starts auto- matically and switches itself off automatically if no further paper is inserted. Fig. 2 Note ► Regularly remove any residue left in the cutting blades with a suitable object (e.g. brush or tweezers). Ensure that the appliance is unplugged before doing this. Inserting credit cards ♦ Insert the credit card from above into the middle of the cutter opening 8 (see fig. 3) and move the REV/OFF/AUTO/FWD switch 2 to the FWD (“forward”) position. You can only shred one credit card at a time. Always insert the card into the cutter open- ing 8 with the wide side first. Otherwise, the magnetic strip will not be destroyed. Fig. 3 Note ► Always insert the credit card into the middle of the cutter opening

shredding process will not start. ► Note that the residue will then fall into the waste collector

0. If necessary, empty this

beforehand in order to keep paper and plastic waste separate. Turning the appliance off Note ► We recommend that you switch off the appliance and let it cool down for about 30 minutes after 3 minutes of operation to prevent overheating. ♦ Switch the appliance off by moving the REV/

 9 ■ Overheating protection This appliance is fitted with overheating protec- tion. If the motor overheats due to overloading, the appliance switches itself off automatically. The overheat lamp 4 lights up permanently red until the motor has cooled down sufficiently. If this occurs, do the following: WARNING! ► Pull the power plug 1 out of the power socket to prevent unintended starting of the appliance. ♦ Switch the appliance off by moving the REV/OFF/AUTO/FWD switch 2 to the middle OFF position. ♦ Empty the waste collector

♦ Allow the appliance to cool down for about 30 minutes. ♦ Replace the plug 1 in the mains power socket. ♦ Switch the appliance on by moving the

switch 2 to the AUTO position. The overheat lamp 4 no longer lights up once the appliance has cooled down sufficiently. Emptying the waste collector WARNING! ► Remove the power plug 1 from the power socket to prevent the appliance from acci- dentally switching on. Note ► Empty the waste collector 0 regularly to prevent the shredded material from being drawn into the cutting blades from below. ► Dispose of the waste material in an environ- mentally-responsible manner. ♦ Hold the cutter attachment 5 by the two integrated carrying recesses 7 on the left and right and pull it off the waste collector0. ♦ Empty the waste collector

♦ Hold the cutter attachment 5 by the two in- tegrated carrying recesses 7 and position it over the waste collector 0 so that the power cable 1 points backwards and the viewing window 9 in the waste collector 0 points forwards (see fig. 2). Lubricating the cutting head If you are no longer satisfied with the performance of the shredder (e.g. if paper jams occur frequent- ly), use the supplied lubricating sheet q, which is specially designed for lubricating shredders. The lubricating sheet q lubricates the cutting head and frees paper debris from the blades, thus maintaining the performance of the shredder. Follow the instructions below: ♦ Empty the waste collector

♦ Move the REV/OFF/AUTO/FWD switch 2 to the AUTO position. ♦ Insert the lubricating sheet q into the cutter opening 8 in the direction of the arrow. Wait until the lubricating sheet q has run completely through the cutting head. ♦ Move the REV/OFF/AUTO/FWD switch 2 to the REV position and let the shredder run backwards for 10 seconds. ♦ After 10 seconds, move the REV/OFF/ AUTO/FWD switch 2 to the OFF position to switch the appliance off. ♦ The cutting head is now lubricated, and the shredder is ready for use again. Note ► Empty the waste collector 0 before using it again, and dispose of the waste material in an environmentally responsible manner. IB_484157_2501_TAV300A3_LB8.indb 9 14.05.2025 13:09:27■ 10 

Cleaning DANGER! ► Always pull out the plug 1 before cleaning the appliance. There is a risk of electric shock! WARNING! ► The appliance becomes hot during use. Al- low the appliance to cool down completely before cleaning it. ► Do not touch the cutting blades of the appliance with your fingers. The cutting blades are very sharp! ATTENTION!

Do not spray any oil or other lubricants into the cutter opening 8. These can irreparably damage the appliance. ► To avoid irreparable damage to the appli- ance, ensure that no moisture gets into it during cleaning. ► Do not use caustic, abrasive or solvent- based cleaning materials. These can damage the surfaces of the appliance. ♦ Remove any residue left in the cutter open- ing 8 or cutting blades with a suitable ob- ject (e.g. brush or tweezers). Ensure that the appliance is unplugged before doing this. ♦ Clean the surfaces of the appliance with a soft, dry cloth. ♦ Use a lightly moistened cloth and a mild detergent to remove stubborn dirt residues from the appliance surface. Storage when not in use ♦ If you decide not to use the appliance for a long period, disconnect it from the mains power supply and store it in a clean, dry place away from direct sunlight. Troubleshooting If there is a jam in the appliance This means that you may have attempted to feed too much paper into the appliance (max. 10 sheets 80 g/m

paper). ♦ Move the REV/OFF/AUTO/FWD switch 2 to the REV position if the paper causes a blockage. The appliance now goes into reverse and the material is ejected. ♦ Alternatively, move the REV/OFF/AUTO/ FWD switch 2 to the FWD position if the paper causes a blockage. The appliance is now in forwards operation and the material that is being shredded is pulled in again. ♦ Pull the paper out of the appliance and then move the REV/OFF/AUTO/FWD switch 2 to AUTO. The appliance is now ready for use again. If the appliance suddenly stops working This means that the appliance has overheated and the automatic safety cut-out has activated itself. The overheat lamp 4 lights up perma- nently red. ♦ Move the REV/OFF/AUTO/FWD switch 2 to the OFF position. ♦ Remove the plug 1 from the mains power socket. ♦ Allow the appliance to cool down for about 30 minutes. ♦ Replace the plug 1 in the mains power socket. ♦ Switch the appliance on by moving the REV/

switch 2 to the AUTO position. The power lamp 3 lights up permanently blue. The overheat lamp 4 remains off when the appliance has cooled down sufficiently. IB_484157_2501_TAV300A3_LB8.indb 10 14.05.2025 13:09:27GB

 11 ■ If the appliance cannot be switched on ♦ Make sure the cutter attachment 5 is seat- ed correctly on the waste collector

♦ Try a different socket. ♦ The appliance is possibly defective. Have the appliance checked by a qualified technician. ♦ The appliance has overheated and triggered the automatic safety cut-out. Proceed as described in the section above If the appli- ance suddenly stops working. Disposal Applies only to France: The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately. Disposal of the appliance The adjacent symbol of a crossed- out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dis- pose of this appliance properly. If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. Disposal of the packaging The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites. Applies only to Spain: The packaging contains paper and/ or cardboard components. The packaging contains plastic and/ or metal components. IB_484157_2501_TAV300A3_LB8.indb 11 14.05.2025 13:09:30■ 12 

Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of pur- chase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written de- scription of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any dam- age and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. Scope of the warranty This appliance has been manufactured in accord- ance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or produc- tion faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating in- structions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifica- tions / repairs which have not been carried out by one of our authorised Service centres. IB_484157_2501_TAV300A3_LB8.indb 12 14.05.2025 13:09:30GB

 13 ■ Warranty claim procedure To ensure quick processing of your case, please observe the following instructions: ■ Please have the till receipt and the item num- ber (IAN)484157_2501 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. ■ You can return a defective product to us free of charge to the service address that will be pro- vided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN)484157_2501. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1800 101010 E-Mail: kompernass@lidl.ie IAN 484157_2501 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
