| Product type | Portable hifi system with CD/MP3 player, cassette, FM radio, USB |
| Brand | Roadstar |
| Model | RCR4635UMP |
| Power supply | AC 100-240 V ~ 50/60 Hz ; DC 9 V (6 UM2 batteries) |
| Power consumption | Approximately 15 W (estimated) |
| Dimensions (approx.) | 300 x 200 x 150 mm |
| Weight (approx.) | 2.5 kg |
| FM radio | 87.5 - 108 MHz ; 30 presets (automatic and manual) |
| Speakers | 2 x 1.8 W RMS |
| CD/MP3 player | Audio CD and MP3 ; repeat, random, track programming functions |
| Cassette player | Play, pause, stop, fast forward/rewind |
| USB port | USB 2.0, compatible up to 32 GB (MP3 playback) |
| AUX input | 3.5 mm jack socket |
| Headphone output | 3.5 mm jack socket |
| Automatic standby | After 10 minutes without audio signal (CD/USB/cassette mode) |
| Safety | Do not open the casing; keep away from water and heat |
| Maintenance | Clean with a soft dry cloth; do not use solvents |
| Repairability | No user-serviceable parts; contact a qualified technician |
| Included accessories | AC power cord, user manual |
Frequently Asked Questions - RCR4635UMP ROADSTAR
User questions about RCR4635UMP ROADSTAR
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hi-fi system in PDF format for free! Find your manual RCR4635UMP - ROADSTAR and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RCR4635UMP by ROADSTAR.
USER MANUAL RCR4635UMP ROADSTAR

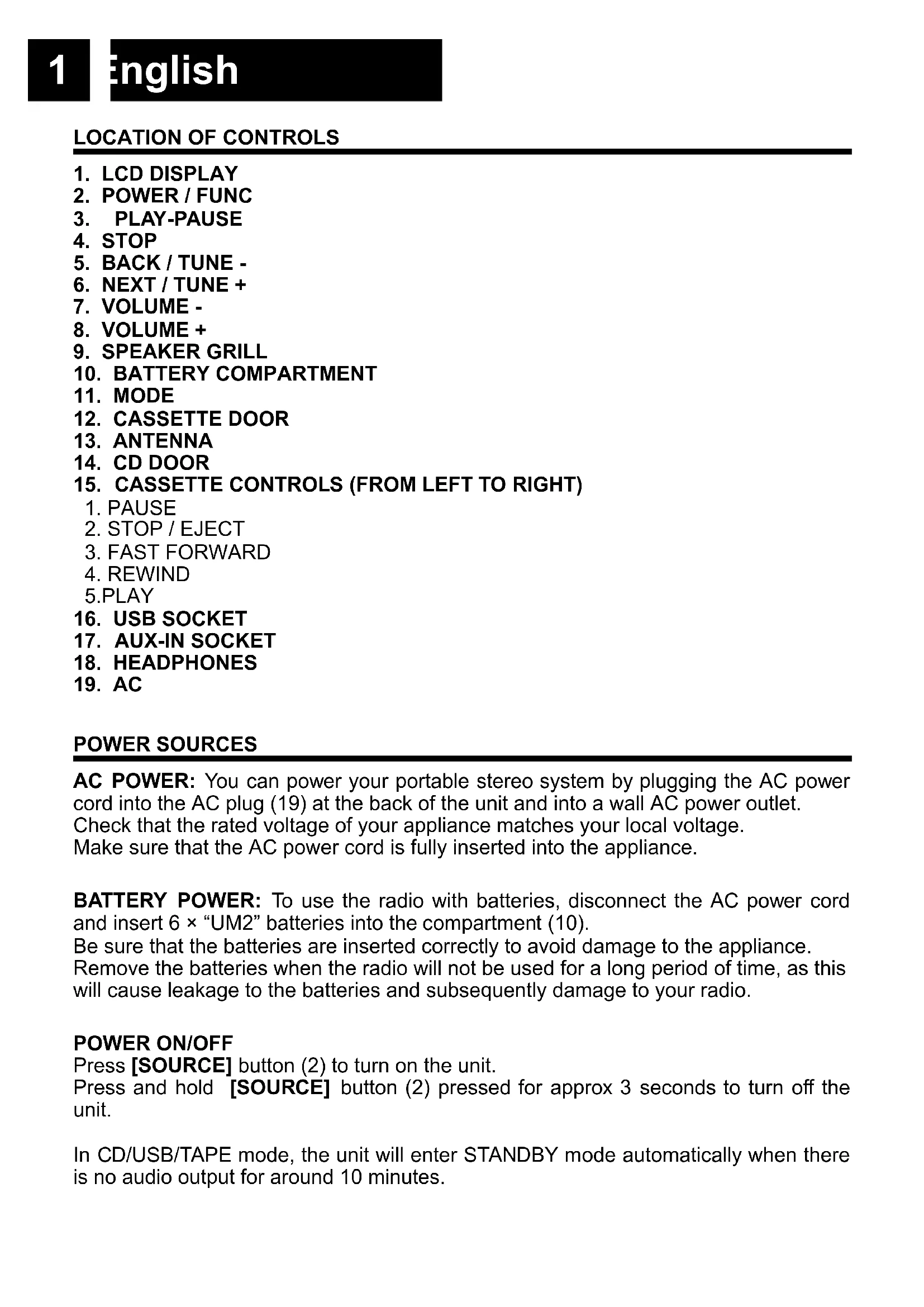

AC POWER: You can power your portable stereo system by plugging the AC power cord into the AC plug (19) at the back of the unit and into a wall AC power outlet.
Check that the rated voltage of your appliance matches your local voltage.
Make sure that the AC power cord is fully inserted into the appliance.
BATTERY POWER: To use the radio with batteries, disconnect the AC power cord and insert 6 × "UM2" batteries into the compartment (10).
Be sure that the batteries are inserted correctly to avoid damage to the appliance.
Remove the batteries when the radio will not be used for a long period of time, as this will cause leakage to the batteries and subsequently damage to your radio.
POWER ON/OFF
Press [SOURCE] button (2) to turn on the unit.
Press and hold [SOURCE] button (2) pressed for approx 3 seconds to turn off the unit.
In CD/USB/TAPE mode, the unit will enter STANDBY mode automatically when there is no audio output for around 10 minutes.
PRECAUTION
INSTRUCTIONS - All the safety and operating instructions should be read before the radio is operated. The manual should be retained for future reference.
HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to.
WATER AND MOISTURE - The appliance should not be used near liquids or in rooms with a high level of humidity.
VENTILATION - The appliance should be situated so that its location or position does not interfere with its proper ventilation.
HEAT - The appliance should be situated away from heat sources such as radiators, stoves or other appliances that produce heat.
POWER SOURCE - The radio should be connected to power supply only of the type described in the operating instructions or as marked on the appliance.
POWER CORD PROTECTION - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon/against them.
OBJECT AND LIQUID ENTRY - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
DAMAGE REQUIRING SERVICE
The appliance should be serviced by qualified service personnel when:
The power supply cord or plug has been damaged;
Objects have fallen into or liquids has been spilled into the radio;
The appliance has been exposed to rain;
The appliance has been dropped or the enclosure damaged;
The appliance does not appear to operate normally.
SERVICING - The user should not attempt to service the appliance beyond that describe in the user operating instructions. All the servicing should be referred to qualified service personnel
Note: If the display does not function properly or no reaction to operation of any control may due to the electrostatic discharge. Switch off and disconnect the AC cord and remove all the batteries, then turn the power back on after a few seconds.
RADIO
Select the RADIO mode with the [SOURCE] (2) button, until FM frequency is shown in the display.
Adjust radio frequency to your desired station as follows:
MANUAL SCAN: Use the [SKIP / TUN -/+] (5/6) buttons to fine tune your desired station or press and hold the [SKIP / TUN -/+] (5/6) buttons to scan the next/previous available station.
Preset station:
Automatic Preset:
Press and hold the [PLAY/PAUSE] (11) button on unit for about 2-3 seconds to start the automatic preset process.
Display will show the memory sequence number and radio stations will be automatically preset into the sequence number (Note: Each sequence number means 1 preset station while during automatic preset process.)
Once all the stations were automatic preset, press the [PLAY/PAUSE] (4) button, each time the key is pressed, it switches to the next PRESET (01,02,03 etc.)
Manual Preset:
Use the above "Manual scan for radio stations" method to choose your desired radio stations.
Press and hold [MODE] (11) button. "P01" (Storage space) and the notification "PROG" will appear in the display.
Use the [SKIP+ / TUN+] or [SKIP- / TUN-] (5-6) buttons to select the memory slot (P01 - P30) and then press the [MODE] (11) button to confirm.
The desired radio stations will be saved at your requested memory slot.
Press the [PLAY/PAUSE] (4) button, each time the key is pressed, it switches to the next PRESET (01,02,03 etc.)
TAPE OPERATION
Select "TAPE" mode by pressing the [SOURCE] (2) button;
Press [STOP/EJECT] (15.2) button to open the cassette door (12) and insert your tape;
Close the cassette door (12);
Press [PLAY] (15.5) button to start playing tape.
Press [PAUSE] (15.1) button when you want to stop playing tape operation temporarily, press again to resume tape operation.
Press [STOP/EJECT] (15.2) button when finished, press again to open the cassette door.
Press [F.FWD] (15.3) button or [RWD] (15.4) button to start rapid tape winding forward / reverse direction.
CD-MP3 OPERATION
Select the CD mode with the [SOURCE] (2) button, until "Cd" is shown in the display. Insert an audio CD with the printed side facing upwards and then close the lid of the CD compartment.
In order to remove a CD, please press the [STOP] (4) button, open the CD compartment and lift the CD out carefully.
REPEAT/RANDOM:
Press [MODE] (11) button 1 time to REPEAT track
Press [MODE] (11) button 2 times to REPEAT ALBUM
Press [MODE] (11) button 3 times to REPEAT ALL
Press [MODE] (11) button 4 times to RANDOM tracks
Press [MODE] (11) button 5 times to delete function
TRACK PROGRAM:
Stop CD playing. Press [MODE] (11) button, "P01" & Progr will be flash on LCD.
Press and hold [MODE] (11) button. "P01" (Storage space) and the notification "PROG" will appear in the display.
Use the [SKIP+ / TUN+] or [SKIP- / TUN-] (5-6) buttons to select the memory slot (P01 - P30) and then press the [MODE] (11) button to confirm.
Press the [PLAY/PAUSE] (4) button, program tracks will be played.
USB OPERATION
Select "USB" mode by pressing the [FUNCTION] (2) button; Plug an USB device into the [USB SOCKET] (16); Playback will start automatically from the first track.
CD operation are same as USB operation.
Note: Some mp3 player may not be able to play via the usb socket. this is not a maulfunction of the system.
Note: To avoid damage to USB memory, remove it only when the radio is turned off.
AUX IN OPERATION
Select "AUX" mode by pressing the [FUNCTION] (2) button;
Use one male to male 3.5mm jack cable (not included) to connect any external audio device to the AUX-IN socket (17).
Note: Music control (play, pause, etc) must be done from your external device.
TECNCAL SPECIFICATIONS
Power Supply:
AC 100-240V ~ 50/60 Hz.
Radio Frequency Coverage
DC 9V = (6 x "UM2" Batteries).
FM:
87.5 - 108 MHz.
Speaker
Output Power: 2 × 1.8 Wrms.
General
Aux-In:
Headphone 3.5mm jack plug.
USB 3.0 64 Gb max.
3.5mm jack plug.
Specifications and design are subject to possible modifications without notice due to improvement.
WARNING
The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.
The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.
To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.
This unit operates on 230V 50Hz . If the unit is not used for a long period of time, remove the plug from the AC mains.
Ensure all connections are properly made before operating the unit.
This unit must not be exposed to moisture or rain.
This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.
Do not expose this unit to direct sunlight or heat radiating sources.
CORRECT DISPOSAL OF THIS PRODUCT (Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
ORT DER BEDIENELEMENTE
- LCD-ANZEIGE
- POWER / FUNC
- PLAY-PAUSE
- STOP
- BACK / FREQUENZ -
- NEXT/FREQUENZ+:
- LAUTSTARKE -
- LAUTSTARKE +
- LAUTSPRECHERGRILL
- BATTERIEFACH
- MODE
- KASSETTENFACH
- ANTENNE
- CD-TÜR
-
KASSETTEN-KONTROLLEN (VON LINKS NACH RECHTS)
-
PAUSE
- STOP / EJECT
- FAST FORWARD
- REWIND
-
PLAY
-
USB-BUCHSE
- AUX-IN-BUCHSE
- KOPFHÖRER
- NETZSTECKER
STROMQUELLEN
Hereby, Roadstar Management SA declares that the radio equipment type RCR-4635UMP is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://roadstar.com/images/ce/RCR-4635UMP.pdf or by scanning the following QR Code.
Roadstar Warranty Terms and Conditions
Roadstar- by means of its sales organisation, representative or distributor- guarantees its products against manufacturing defects in material and/or workmanship throughout the period of warranty. Should the product fail to work or shows manufacturing defect within warranty period, Roadstar- by means of its sales organisation, representative or distributor will take the necessary actions to restore the perfect functioning of the product. To rep to replace is at discretion of Roadstar or it's representative or distributor. The warranty period is in accordance with directive 99/44/CE of the European Union. For all non EU
members, please refer to the local law of each country. This warranty does not cover normal wear and tear of the product and/or its parts, any damage, failure, or loss caused by accident, misuse, and any other failure not directly related to a defect of the product. This warranty does not void consumer's rights in accordance with EU Directive99/44/CE. For further information please visit the website www.roadstar.com, or write to aftersa-les@roadstar.com.
DEUTSCH
Allgemeine "Roadstar" Garantiebedingungen
Roadstar Management SA, via Passegiata 7 CH 6883 Novazzano (Switzerland)
