USER MANUAL TCVC 3055 S EINHELL

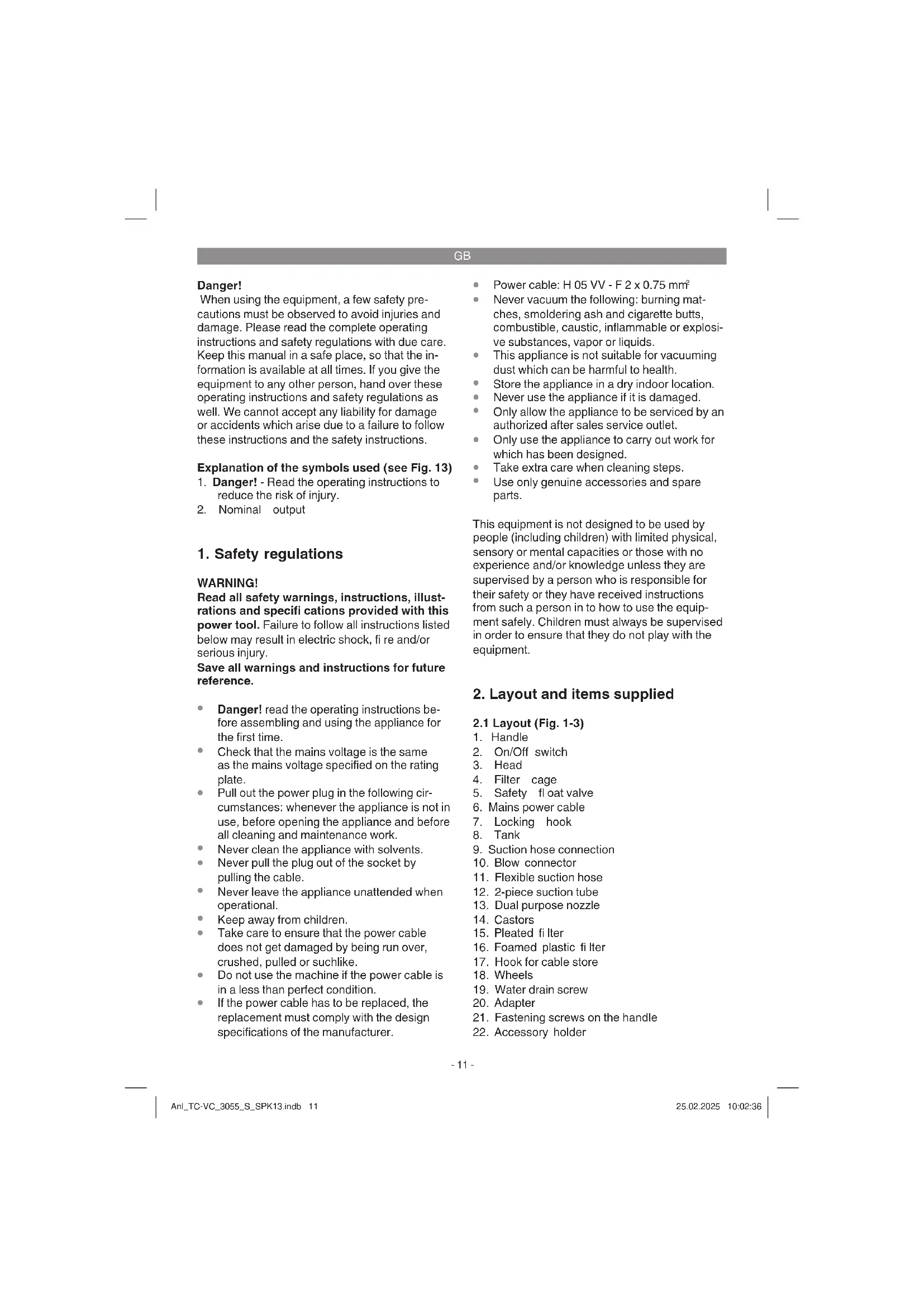

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Explanation of the symbols used (see Fig. 13)

1. Danger! - Read the operating instructions to

reduce the risk of injury.

1. Safety regulations

WARNING! Read all safety warnings, instructions, illust- rations and specifi cations provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fi re and/or serious injury. Save all warnings and instructions for future reference.

Danger! read the operating instructions be- fore assembling and using the appliance for the first time.

Check that the mains voltage is the same as the mains voltage specified on the rating plate.

Pull out the power plug in the following cir- cumstances: whenever the appliance is not in use, before opening the appliance and before all cleaning and maintenance work.

Never clean the appliance with solvents.

Never pull the plug out of the socket by pulling the cable.

Never leave the appliance unattended when operational.

Keep away from children.

Take care to ensure that the power cable does not get damaged by being run over, crushed, pulled or suchlike.

Do not use the machine if the power cable is in a less than perfect condition.

If the power cable has to be replaced, the replacement must comply with the design specifications of the manufacturer.

Never vacuum the following: burning mat- ches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosi- ve substances, vapor or liquids.

This appliance is not suitable for vacuuming dust which can be harmful to health.

Store the appliance in a dry indoor location.

Never use the appliance if it is damaged.

Only allow the appliance to be serviced by an authorized after sales service outlet.

Only use the appliance to carry out work for which has been designed.

Take extra care when cleaning steps.

Use only genuine accessories and spare parts. This equipment is not designed to be used by people (including children) with limited physical, sensory or mental capacities or those with no experience and/or knowledge unless they are supervised by a person who is responsible for their safety or they have received instructions from such a person in to how to use the equip- ment safely. Children must always be supervised in order to ensure that they do not play with the equipment.

2. Layout and items supplied

9. Suction hose connection

12. 2-piece suction tube

16. Foamed plastic fi lter

19. Water drain screw

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

2-piece suction tube

Pleated filter with cover

Foamed plastic filter

Fastening screw for handle (2x)

Original operating instructions The equipment comes with a chain ( z) on the tank bottom. The chain helps to prevent static charging during use.

The wet and dry vacuum cleaner is designed for wet and dry vacuuming using the appropri- ate fi lter. The equipment is not suitable for the vacuuming of combustible, explosive or harmful substances. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Before starting the equipment

Warning! Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data. The equipment may be connected only to a shock-proof socket-outlet.

5.1 Assembling the equipment

Fitting the equipment head (Fig. 6) The equipment head (3) is fastened to the tank (8) by the locking hooks (7). To remove the equip- ment head (3), open both of the locking hooks (7) and take off the equipment head (3). When fi tting the equipment head (3), make sure that both of the locking hooks (7) lock into place correctly. Fitting the castors (Fig. 5) Fit the castors (14) as shown in Fig. 5. Anl_TC-VC_3055_S_SPK13.indb 12Anl_TC-VC_3055_S_SPK13.indb 12 25.02.2025 10:02:3725.02.2025 10:02:37GB

Fitting the handle (Fig. 4) Use a screwdriver to fi t the handle (1) using both screws (21).

5.2 Fitting the fi lters

Notice! Never use the wet and dry vacuum cleaner wit- hout a fi lter. Always ensure that the fi lters are securely seated. Fitting the foam fi lter (Fig. 7) For wet vacuuming, slip the supplied foam fi lter (16) over the fi lter basket (Fig. 2/4). The pleated fi lter (15) already fi tted upon delivery is not suita- ble for wet vacuuming. Fitting the pleated fi lter (Fig. 8) For dry-vacuuming, slip the pleated fi lter (Fig. 15) over the fi lter basket (Fig. 2/4). The pleated fi lter (15) is suitable for dry-vacuuming only. Fitting the dirt bag (Fig. 8a) For vacuuming fi ne, dry dirt it is recommended that you also fi t the dirt bag. This will ensure that the pleated fi lter (15) does not clog up so quickly and help maintain the vacuuming power. It also makes it easier to dispose of the dust. Slip the dirt bag over the vacuuming hole. The dirt bag is suitable for dry-vacuuming only.

5.3 Fitting the suction hose (Fig. 9-12)

Connect the suction hose (11) to the correspon- ding connector on the wet and dry vacuum clea- ner, depending on the application required. Vacuuming Connect the suction hose (11) to the suction hose connector (9). Blowing Connect the suction hose (11) to the blow con- nector (10). To extend the suction hose (11) you can attach one or more of the elements which make up the 2-part suction tube (12) to the suction hose (11).

Combination nozzle (13) The dual-purpose nozzle (13) is for vacuuming solids and liquids over medium to large areas. Crevice nozzle (Fig. 11) The crevice nozzle (23) is designed for vacu- uming solids and liquids in corners, edges and other areas that are diffi cult to access.

For dry-vacuuming, use the pleated fi lter (15). In addition, you can also fi t the dirt bag. (See point 5.2) Always ensure that the fi lters are securely seated.

For wet-vacuuming, use the foam fi lter (16) (see point 5.2). Check that the fi lter is securely seated at all times. Water drain screw (Fig. 1) To make the tank (8) easier to empty after wet va- cuuming, it is fi tted with a water drain screw (19). Open the water drain screw (19) by turning it anti- clockwise and drain the liquid. When wet vacuuming, the fl oating safety switch (5) closes when the maximum tank level is reached. At the same time, the suction noise of the equipment will change and become louder. You must then switch off the equipment and em- pty the tank. Danger! The wet and dry vacuum cleaner is not suitable for the vacuuming of combustible liquids. For wet vacuuming, use only the supplied foam fi lter.

Connect the suction hose (11) to the blow con- nector (10) on the wet and dry vacuum cleaner.

7. Replacing the power cable

Danger! If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger. Anl_TC-VC_3055_S_SPK13.indb 13Anl_TC-VC_3055_S_SPK13.indb 13 25.02.2025 10:02:3725.02.2025 10:02:37GB

8. Cleaning, maintenance and

ordering of spare parts Danger! Always pull out the mains power plug before star- ting any cleaning work.

Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.

We recommend that you clean the equipment immediately after you use it.

8.2 Cleaning the equipment head (3)

Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plas- tic parts in the equipment.

8.3 Cleaning the tank (8)

The tank can be cleaned with a damp cloth and some soft soap or under running water, depen- ding on the amount of dirt.

8.4 Cleaning the fi lters

Cleaning the pleated fi lter (15) Clean the pleated fi lter (15) regularly by carefully patting it and cleaning it with a fi ne brush or hand brush. Cleaning the foam fi lter (16) Clean the foam fi lter (16) with a little soft soap un- der running water and allow it to air-dry.

At regular intervals and before each use, check that the fi lters in the wet and dry vacuum cleaner are securely fi tted.

8.6 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.Einhell-Service.com

9. Disposal and recycling

The equipment is supplied in packaging to pre- vent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Never place defective equipment in your household refuse. The equipment should be taken to a suitable collection center for proper disposal. If you do not know the whereabouts of such a collection point, you should ask in your local council offi ces.

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage tempe- rature is between 5 and 30 °C. Store the electric tool in its original packaging. Anl_TC-VC_3055_S_SPK13.indb 14Anl_TC-VC_3055_S_SPK13.indb 14 25.02.2025 10:02:3725.02.2025 10:02:37GB

Disposal Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental- friendly recycling. Do not dispose of power tools and batteries/rechargeable batteries into household waste! Only for EU countries: According to the Directive 2012/19/EU on waste electrical and electronic equipment and its transpo- sition into national law, power tools that are no longer usable, and, according to the Directive 2006/66/ EC, defective or drained batteries must be collected separately and disposed of in an environmentally correct manner. If disposed incorrectly, waste electrical and electronic equipment may have harmful eff ects on the envi- ronment and human health, due to the potential presence of hazardous substances. Only for United Kingdom: According to The Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) and the Waste Batteries and Accumulators Regulations 2009 (SI 2009/890) (as amended), products that are no longer usable must be collected separately and disposed of in an environmentally friendly manner. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers ac- companying products is permitted only with the express consent of the Einhell Germany AG. Subject to technical changes. Anl_TC-VC_3055_S_SPK13.indb 15Anl_TC-VC_3055_S_SPK13.indb 15 25.02.2025 10:02:3825.02.2025 10:02:38GB

Service information We have competent service partners in all countries named on the guarantee certifi cate whose contact details can also be found on the guarantee certifi cate. These partners will help you with all service re- quests such as repairs, spare and wearing part orders or the purchase of consumables. Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Category Example Wear parts* Combination nozzle, crevice nozzle, upholstery nozzle, electric tool adapter, etc. Consumables* Pleated fi lter, foam fi lter, dirt bag, additional fi lter, etc. Missing parts

• Not necessarily included in the scope of delivery! In the eff ect of defects or faults, please register the problem on the internet at www.Einhell-Service.com. Please ensure that you provide a precise description of the problem and answer the following questions in all cases:

Did the equipment work at all or was it defective from the beginning?

Did you notice anything (symptom or defect) prior to the failure?
