USER MANUAL Sensian 3 BNT050 BRAUN

Non-contact thermometer1 Kaz Europe Sàrl A Helen of Troy Company Q-Center, Chaux 4 CH-1030 Bussigny - Switzerland © 2025, All rights reserved. www.BraunHealthcare.com/uk_en/ Certain trademarks used under license from The Procter & Gamble Company or its aliates. Sensian™ is a trademark of Helen of Troy Limited. Patents: https://www.BraunHealthcare.com/us_en/patents P/N: A006921R3 13NOV24Made and printed in China BNT050WE

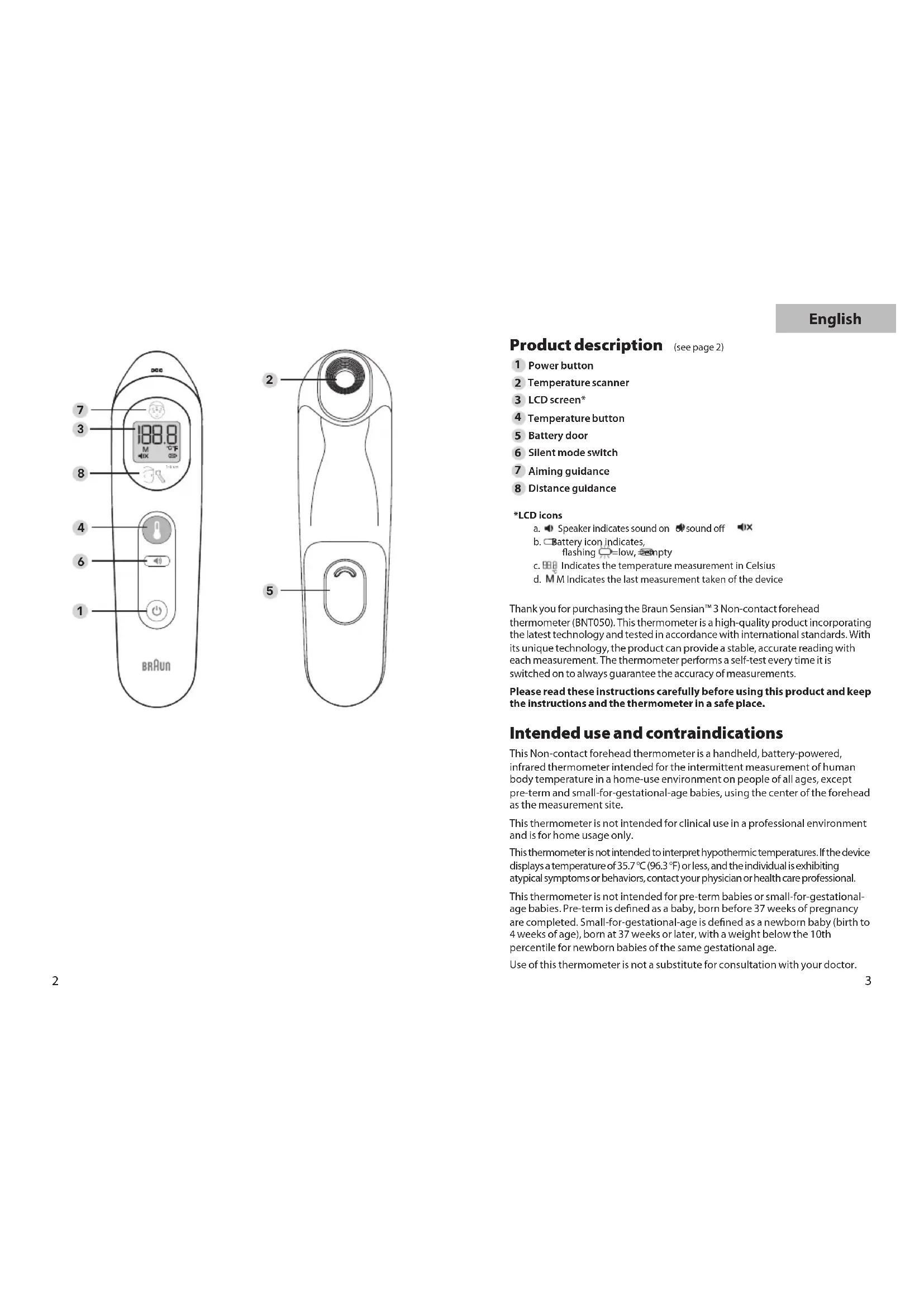

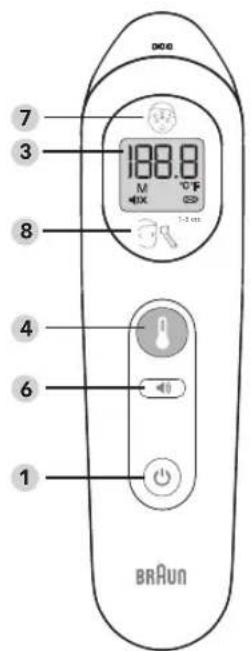

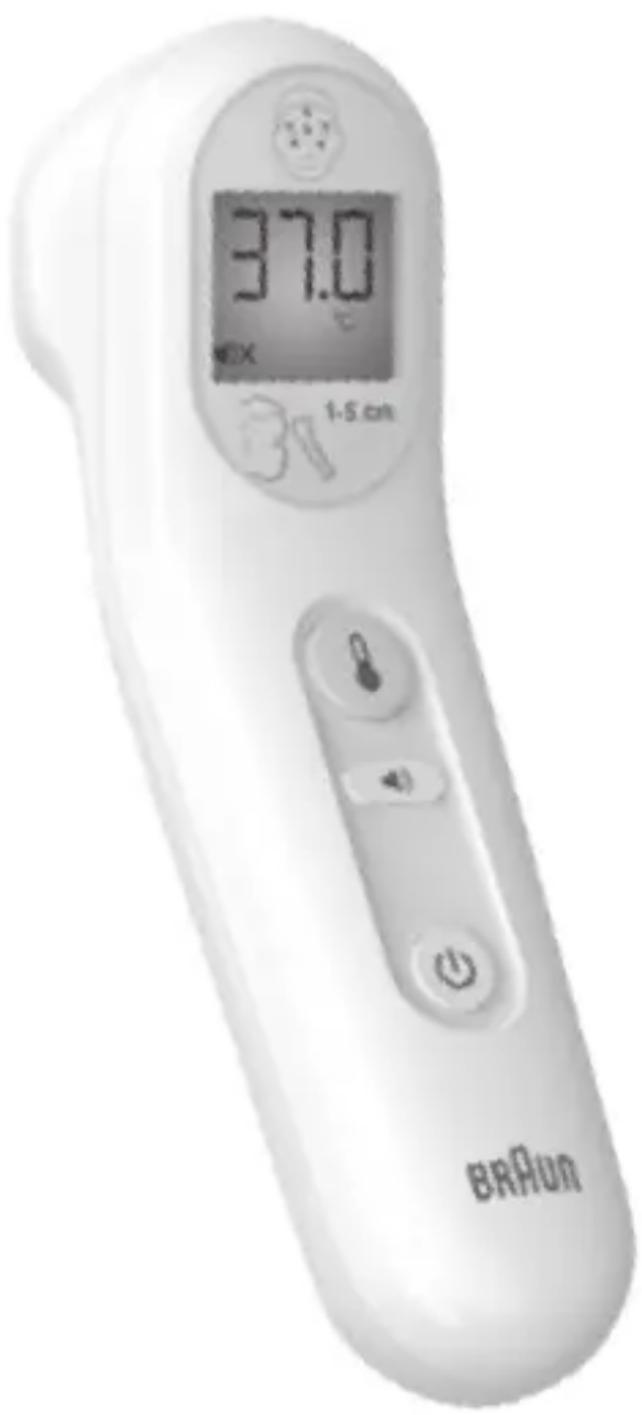

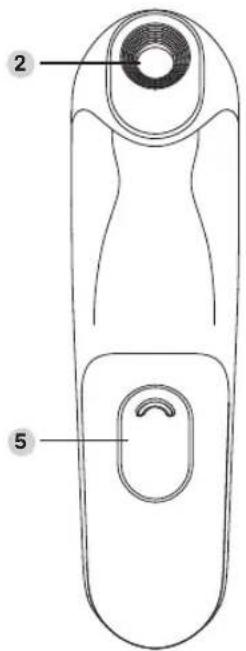

Distance guidance *LCD icons Speaker indicates sound on or sound o b. Battery icon indicates, ashing = low, = empty Indicates the temperature measurement in Celsius M Indicates the last measurement taken of the device Thank you for purchasing the Braun Sensian™ 3 Non-contact forehead thermometer (BNT050). This thermometer is a high-quality product incorporating the latest technology and tested in accordance with international standards. With its unique technology, the product can provide a stable, accurate reading with each measurement. The thermometer performs a self-test every time it is switched on to always guarantee the accuracy of measurements. Please read these instructions carefully before using this product and keep the instructions and the thermometer in a safe place. Intended use and contraindications This Non-contact forehead thermometer is a handheld, battery-powered, infrared thermometer intended for the intermittent measurement of human body temperature in a home-use environment on people of all ages, except pre-term and small-for-gestational-age babies, using the center of the forehead as the measurement site. This thermometer is not intended for clinical use in a professional environment and is for home usage only. This thermometer is not intended to interpret hypothermic temperatures. If the device displays a temperature of 35.7 °C (96.3 °F) or less, and the individual is exhibiting atypical symptoms or behaviors, contact your physician or health care professional. This thermometer is not intended for pre-term babies or small-for-gestational- age babies. Pre-term is dened as a baby, born before 37 weeks of pregnancy are completed. Small-for-gestational-age is dened as a newborn baby (birth to 4 weeks of age), born at 37 weeks or later, with a weight below the 10th percentile for newborn babies of the same gestational age. Use of this thermometer is not a substitute for consultation with your doctor.

English4 5 Please consult your physician if you see symptoms such as unexplained irritability, vomiting, diarrhea, dehydration, changes in appetite or activity, seizure, muscle pain, shivering, sti neck, pain when urinating, etc., even in the absence of fever. Even in the absence of fever, those who exhibit a normal temperature may still need to receive medical attention. Individuals who are on antibiotics, analgesics, or antipyretics should not be assessed solely on temperature readings to determine the severity of their illness. DO NOT modify this equipment without the authorization of the manufacturer. How does Braun Sensian™ 3 work? The Braun Sensian™ 3 Non-contact forehead thermometer measures infrared energy radiated from the skin at the center of the forehead just above the eyebrows. This captured energy is collected through the lens and converted to an oral equivalent value. The Braun Sensian™ 3 thermometer has been clinically tested and proven to be safe and accurate when used in accordance with its operating instruction manual. Temperature taking hints It is important to know each individual’s normal temperature when they are well. This is the only way to accurately diagnose a fever. Take multiple readings when healthy to determine normal temperature. A child’s normal temperature can be as high as 37.7 °C (99.9 °F) or as low as

36.1 °C (97.0 °F). Be sure to note this unit reads up to 0.6 °C (1.0 °F) lower than a

rectal digital measurement because it provides an oral equivalent reading. NOTE: The thermometer and Individual being measured should be in the same ambient temperature for at least 30 minutes to avoid impacts to measurement accuracy. ALWAYS hold the thermometer and the forehead steady when taking a reading. DO NOT move the thermometer until you hear the nal beep (unless in silent mode). Nursing mothers should not take a temperature measurement on themselves or have their temperature measured by another individual while or immediately after nursing a baby, as nursing can aect body temperature. Individuals should not drink, eat, or be physically active before/while taking the measurement. Remove hats and wait 10 minutes before taking a measurement. Before taking a measurement, remove dirt or hair from the forehead area. Wait 10 minutes after cleaning the forehead before taking a measurement. ALWAYS take the temperature exactly as directed. Temperature results may vary if positioned in the wrong location. In the following situations it is recommended that three temperature measurements from the same location be taken, and the highest measurement of the three be used as the reading: Warnings and precautions Keep out of reach of children under 12 years. NEVER use the thermometer for purposes other than those for which it has been intended. Please follow the general safety precautions when using on children. NEVER immerse the thermometer into water or other liquids (not waterproof). For cleaning and disinfecting please follow the instructions in the “Care and cleaning” section. DO NOT store this thermometer in temperature extremes below -25 ºC/–13 °F or over 55 ºC/131 °F or in excessive humidity (above 95% non-condensing relative humidity). If thermometer is stored in a location that is cooler or warmer than where it will be used, allow it to acclimate to the room temperature for 30 minutes before taking a measurement. An individual must be inside and in the same room as the thermometer for 30 minutes before taking a measurement. If the individual is inside but in a room that is more than a few degrees warmer or cooler than the room the thermometer is in, it will impact the accuracy of the reading. DO NOT use the thermometer if there are signs of damage on the scanner or on the thermometer itself. If damaged, DO NOT attempt to repair the product. NEVER insert a sharp object into the scanner area or any other open surface on the thermometer. This thermometer consists of high-quality precision parts. DO NOT drop the instrument. Protect it from severe impact and shock. DO NOT use the device if it is damaged/degraded/loosened in any way. The eects of degraded sensors and electrodes, or loosened electrodes, that can degrade performance or cause other problems. Temperature elevation may signal a serious illness, especially in neonates and infants, or in adults who are old, frail, or have a weakened immune system. Please seek professional advice immediately when a temperature elevation occurs on persons that are:

• Neonates and infants under 3 months (consult your doctor immediately if the temperature exceeds 37.4 ºC (99.4 ºF)

• Individuals over 60 years of age (Fever may be blunted or absent in older individuals)

• Individuals having diabetes mellitus or a weakened immune system (e.g., HIV positive, cancer chemotherapy, chronic immunosuppressant treatment, splenectomy)

• Individuals who are bedridden (e.g., nursing home patient, stroke, chronic illness, paraplegia, quadriplegia, surgical recovery)

• A transplant patient (e.g., liver, heart, lung, kidney) DO NOT allow children to take their temperatures unattended. English6 7 beforehand to improve the reading accuracy. It is important to hold the thermometer and the forehead steady during measurement. Movement will impact the temperature reading.

Press the temperature button to take a measurement. Device will take a reading and you will hear a beep when reading is complete.

Read the temperature measurement.

Press the power button to turn o or the device will shut o automatically within 20 seconds of no use. The word ‘OFF’ will appear on the screen when it begins to shut down. How to change temperature between °C and °F

1. While the device is o, press and hold

the speaker button for 4 seconds. The display will switch between °C and °F.

2. Select which scale you want by pressing the speaker

button again . The display will stop toggling between ºF and ºC and will remain on the scale you selected.

3. After 3 seconds, the device will automatically turn o.

4. The selected scale will be displayed upon start-up of

• Newborn infants in the rst 100 days since birth.

• Children under three years of age with a compromised immune system and for whom the presence or absence of fever is critical.

• When the user is learning how to use the thermometer for the rst time. (Until he/she has familiarized himself/herself with the instrument and obtains consistent readings.) General precautions:

• Prior to measuring, remove any dirt or sweat from the forehead with a dry cloth.

• Avoid any cooling or warming cloths on the forehead for at least 30 minutes prior to measurement.

• Remove blankets and pillows away from the head and face prior measurement.

• DO NOT take temperature measurements over scar tissue, open sores, or abrasions.

• ALWAYS store the thermometer in a dry, clean environment. DO NOT store in areas with sharp objects that could scratch the sensor. Dirt, debris, and scratches will impact the accuracy of temperature readings. How to use your Braun Sensian™ 3 thermometer NOTE: The thermometer and individual should be in the same ambient temperature for at least 30 minutes.

Press and release the power button once. Backlight will come on, the start-up sequence begins, and a beep will be heard. If a previous temperature has been taken the screen will show the last temperature measured before moving to the ready screen.

When the device is ready three dashed lines will show on the screen.

Position thermometer 1- 5cm (0.4-2”) away from the center of the forehead, just between the eyebrows. If the eyebrow area is covered with hair, sweat or dirt, please clean the area 5cm Max English8 9 Changing the sound mode To activate the silent mode, press the ‘sound mode’ button . The speaker icon will change to a muted speaker icon on the screen, indicating the thermometer is in silent mode. To turn o silent mode, press the ‘sound mode‘ button. The muted speaker icon will change to the regular speaker icon. Calibration The thermometer is initially calibrated at the time of manufacture. If this thermometer is used according to the use instructions, periodic re-adjustment is not required. If at any time you question the accuracy, please contact Consumer Relations. Errors and troubleshooting Error message Situation Solution

When the battery is running low, the display ashes the low battery warning symbol; however, the device can still work until the battery life has 0% left.Replace batteries. If the steady battery icon is the only symbol shown on the display, the device cannot work. The battery should be replaced immediately.Replace batteries. This message displays when the measured temperature is lower than 34.0 °C (93.2 °F) or higher than 43.0 °C (109.4 °F) in or when the room temperature is outside the operating range of 15 °C- 40 °C or 59 °F- 104 °F.Re-measure the temperature, carefully following the instructions in “How to use” section. Blank display. Thermometer does not have power.Please check if the batteries have been loaded correctly. Also check polarity (<+> and <–>) of batteries.Contact customer service if thermometer still does not function. System Error - self-check display ashes continuously and will not be followed by the ready beep and the ready symbol.If error persists.If error still persists.Wait 1 minute until the thermometer turns o automatically, then turn on again....reset the thermometer by removing the batteries and putting them back in....please contact customer service. Care and cleaning Use an alcohol swab or cotton swab moistened with alcohol (70% isopropyl) to clean the thermometer casing and the measuring probe. Ensure that no liquid enters the interior of the thermometer. NEVER use abrasive cleaning agents, thinners or benzene for cleaning and NEVER immerse the instrument in water or other cleaning liquids. Wait 10 minutes after cleaning before taking a temperature measurement.NEVER insert a sharp object into the scanner area or any other open surface on the thermometer. Replacing the batteries The Braun Sensian™ 3 thermometer comes with 2 AAA batteries. Replace with 2 new AAA batteries when the ashing battery symbol appears on the LCD screen. To change the batteries, slide open the battery cover and remove batteries. Replace the batteries being sure to align properly as indicated inside the battery compartment. Remove the batteries from the product if not used for extended periods of time in order to avoid damage to the thermometer resulting from a leaking battery.Only discard empty batteries. They should not be disposed of in the household waste, but at appropriate collection sites or at your retailer. English10 11 Product specication Type: Non-contact forehead (BNT050) Measuring range: 34.0 °C – 43.0 °C (93.2 °F – 109.4 °F) Measuring location: Forehead Resolution: 0.1 °C (0.1 °F) Laboratory accuracy: ±0.2 °C for the range 35.0 °C – 42.0 °C (±0.4 °F for 95.0 °F – 107.6 °F) ±0.3 °C (±0.5 °F) for the range outside

35.0 °C – 42.0 °C (95.0 °F – 107.6 °F)

Clinical accuracy: Clinical performance and protocols are available upon request This thermometer displays a calculated oral equivalent estimate Display: Liquid Crystal Display, 4 digits plus special icons Acoustic: Audio: 1 beep for 0.4 second duration Operating temperature: 15 °C – 40 °C (59.0 °F – 104 °F) Storage/transport temperature: -25 °C – 55 °C (-13 °F – 131 °F ) Humidity: 15–95% non-condensing Pressure: 700-1060 hPA (0.7-1.06 atm) Automatic Switch-o: Within approx. 20 seconds Weight: 93.2g (w/ batteries) and 71.5 (w/o batteries) Size: 55mm x 38mm x 149mm Long term storage ranges Battery: (2) AAA Batteries - at least 500 measurements Service life: 5 years. Reference Body Site: Oral equivalent The measured temperature is converted to an oral equivalent value. This medical device carries the CE mark and is manufactured in conformity with RoHS Directive 2011/65/EU and other applicable directive and/or regulations as specied in the EU Declaration of Conformity. Full responsibility for the conformance of the product to the standard is assumed by KAZ Europe Sàrl, Switzerland. ASTM laboratory accuracy requirements in the display range of 37 to 39 °C (98 to 102 °F) for IR thermometers is +/- 0.2 °C (+/- 0.4 °F), whereas for mercury- inglass and electronic thermometers, the requirement per ASTM Standards E667-86 and E1112-86 is +/- 0.1 °C (+/- 0.2 °F). Inquiry In Europe, any serious incident (e.g. death, life-threatening injury, surgical intervention, ...) that has occured in relation to this thermometer should be reported to Kaz Europe (see Helen of Troy Consumer Service Numbers) and to the competent authority of your member state. REF, LOT and Serial numbers of your product must be provided as they are essential to record and follow up your inquiry or claim. The LOT and Serial numbers are located in the battery compartment. The production date is given by the LOT number and can be deciphered as explained below: The rst 3 numeric digits in the LOT number represent the day of the year of manufacture. The next 2 numeric digits represent the last two numbers of the calendar year of manufacture and the letter(s) at the end designates the production site. (E.g.: LOT No.: 12313tav this product was made on the day 123, year 2013 at production site “tav”.) 2 Year Limited guarantee Please read all instructions before attempting to use this device. Please retain the receipt as proof of and date of purchase. The receipt must be presented when making any claim within the relevant guarantee period. Any claim under the guarantee will not be valid without a proof of purchase. Your device is guaranteed for Two Years (2 Years) from date of purchase. This guarantee covers defects in materials or workmanship that occur under normal use; defective devices meeting these criteria will be replaced free of charge. The guarantee DOES NOT cover defects or damage resulting from abuse or failure to follow the user instructions. The guarantee becomes void if the device is opened, tampered with, or used with non-Braun branded parts or accessories, or if repairs are undertaken by unauthorised persons. Accessories and consumables are excluded from any warranty. For support requests, please visit www.hot-europe.com/support or nd service contact information at the end of this owner’s manual. This Guarantee is applicable to Europe, Russia, Middle East and Africa only. UK Only: This does not aect your consumer statutory rights. English12 13 +40°C+15°C Refer to instruction manual (blue symbol)Equipment with type BF applied partsConsult electronic instructions for useOperating temperature Storage temperature Operating and storage humidityBatch code Serial number Catalogue number Medical deviceManufacturer Date of manufacture Authorized representative in the European CommunityUnique device identier Internally Powered Equipment Continuous Operation IP22: Protected against solid foreign objects greater than 12.5 mm in diameter and dripping water when tilted at 15°. MEDICAL ELECTRICAL EQUIPMENT needs special precautions regarding EMC. For detailed description of EMC requirements please contact Consumer Relations. Portable and mobile RF communications equipment can aect MEDICAL ELECTRICAL EQUIPMENT. Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at your local retailer or at appropriate collection points provided in your country. Deutsch Produktbeschreibung (siehe Seite 2)
