USER MANUAL RB3K330SAFC HISENSE

Illustration of a two-tier refrigerator with no visible text or symbols

Line drawing of a refrigerator with directional arrows indicating motion (no text or symbols)

Hand-drawn diagram of a refrigerator with a prohibition symbol and a downward arrow, indicating no change or caution.

HINWEIS

HINWEIS

QR code image containing encoded data, no visible human-readable text

HINWEIS

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

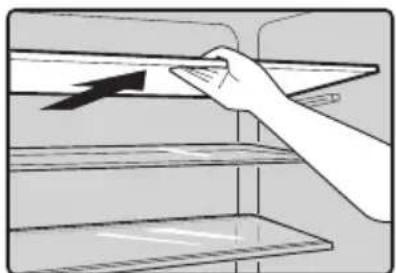

Illustration of a hand placing an object on a shelf with a black arrow indicating direction (no text or symbols)

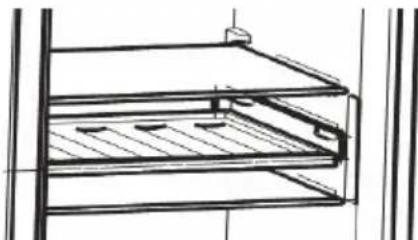

Flexibles Weinregal

Technical line drawing of a multi-level shelving unit with no visible text or symbols

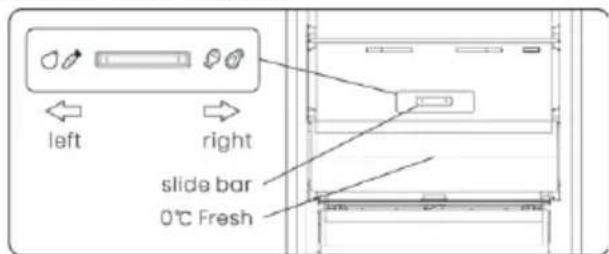

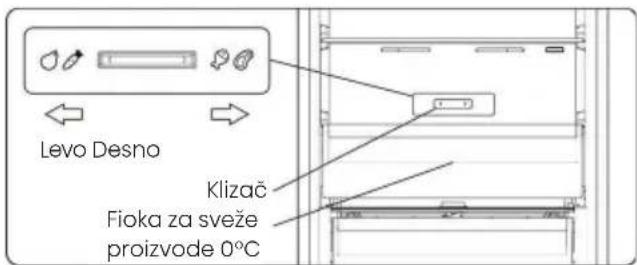

0°C-Frischhaltefach

High Humidity Low Humidity

Diagram showing a furniture piece being removed from a cabinet, with no visible text or symbols

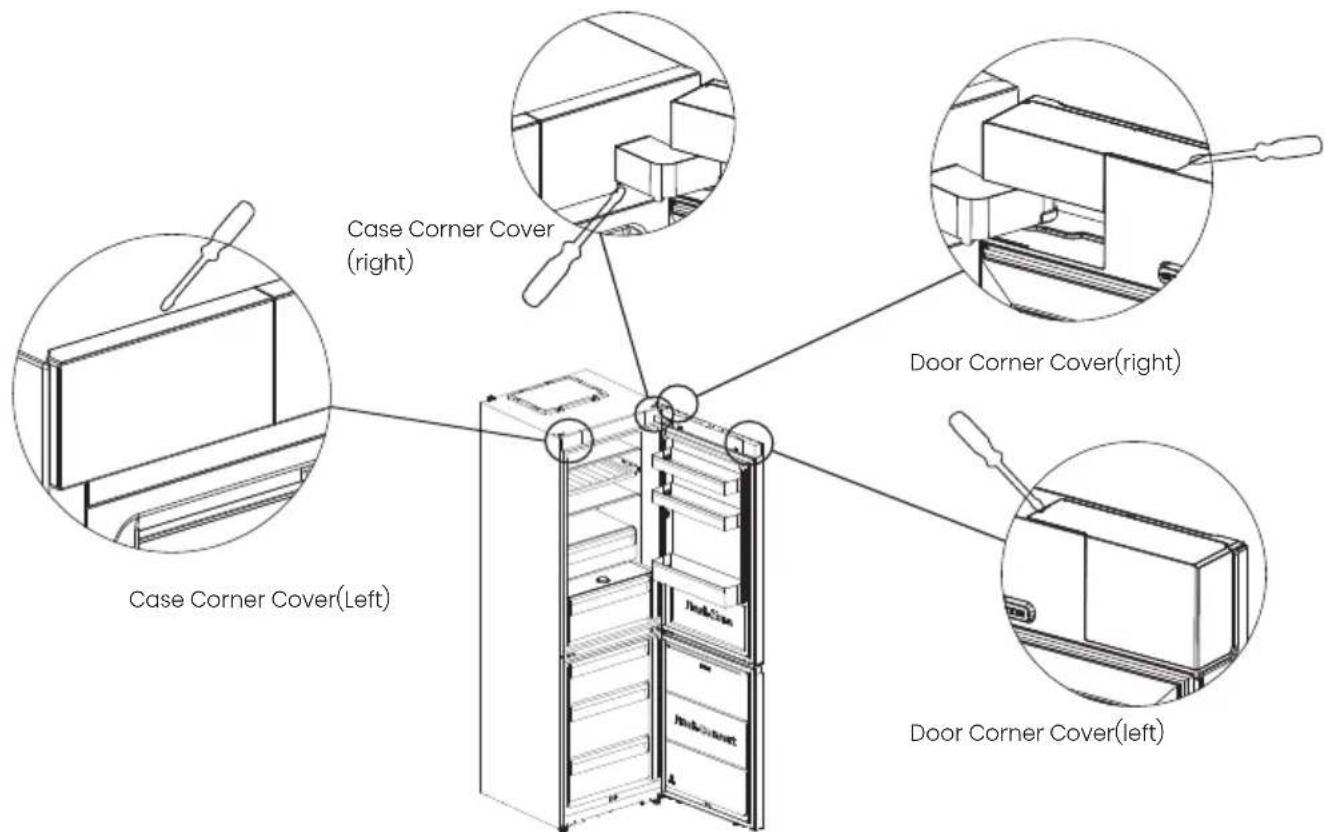

Case Corner Cover (right) Door Corner Cover(right) Case Corner Cover(Left) Door Corner Cover(left)

Technical line drawing of a refrigerator interior with two views of the front panel (no text or symbols present)


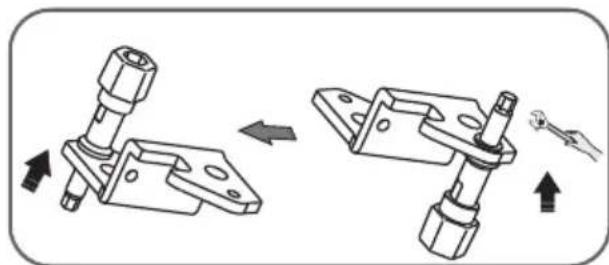

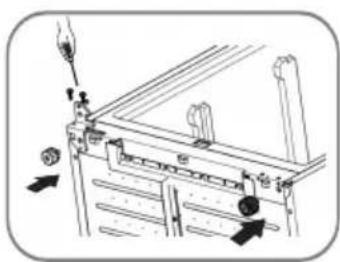

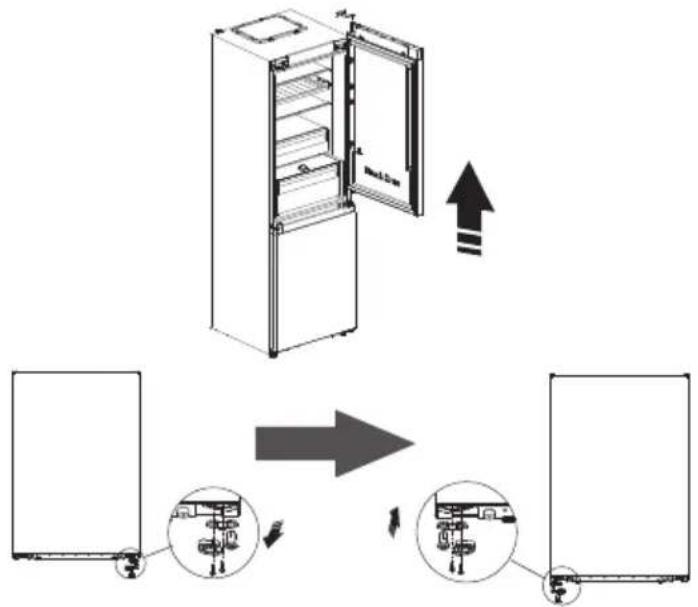

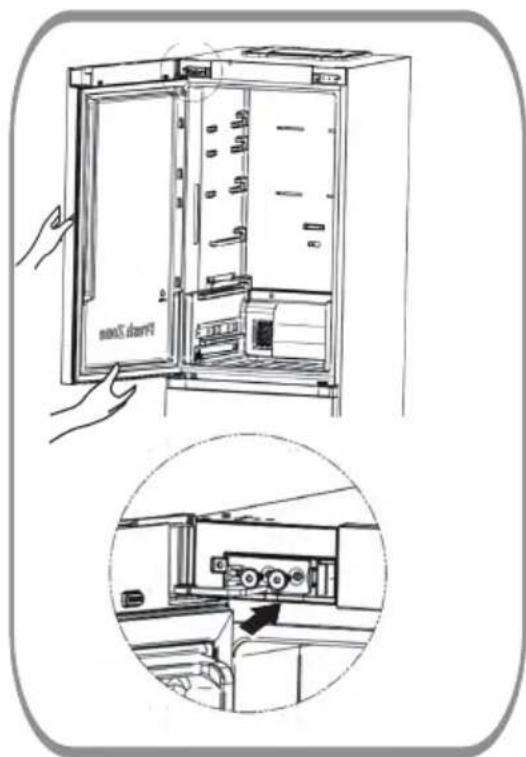

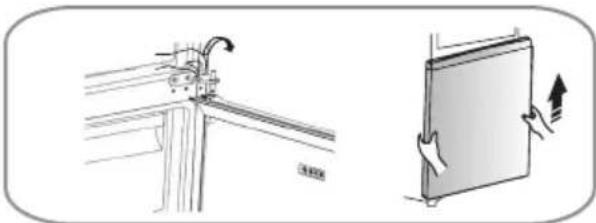

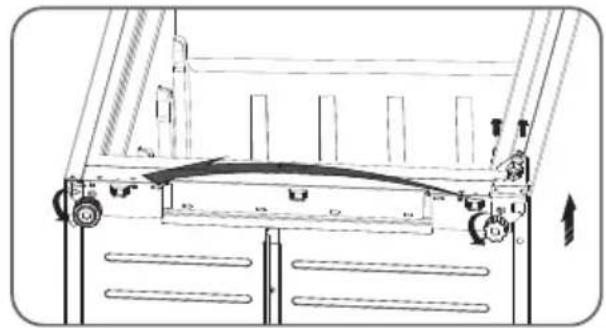

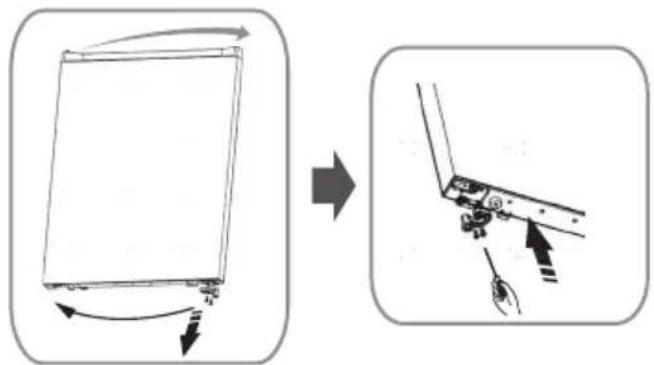

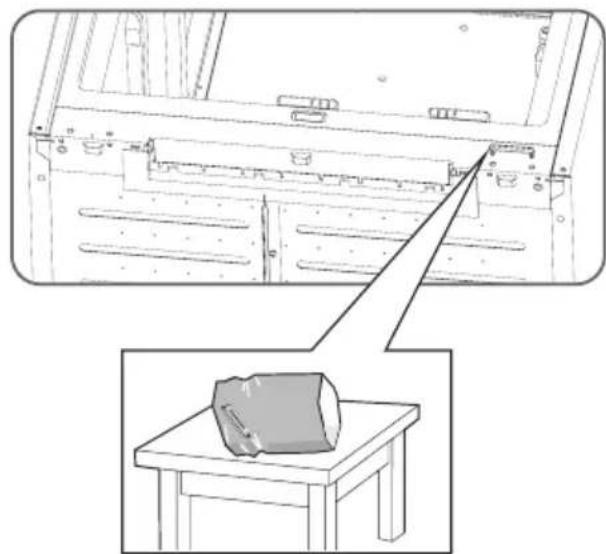

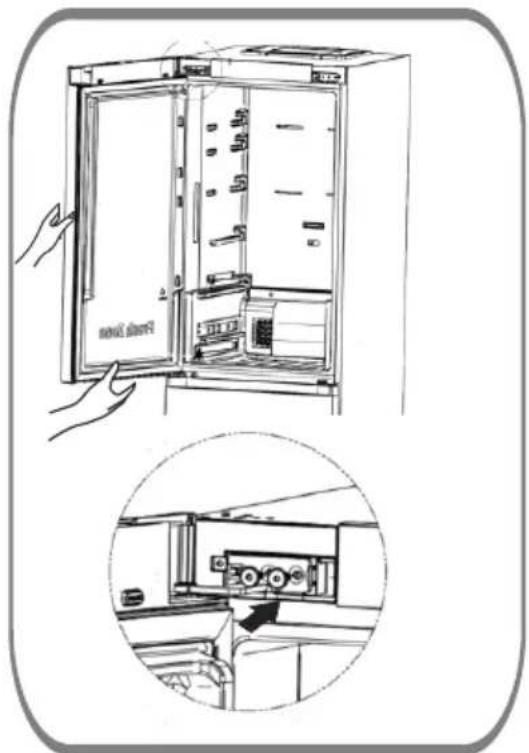

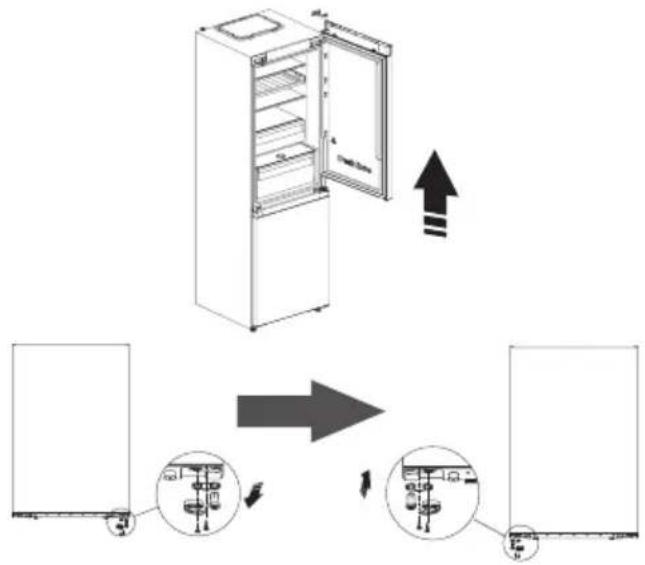

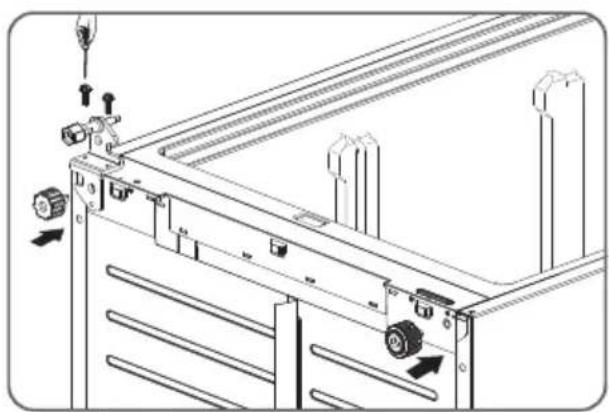

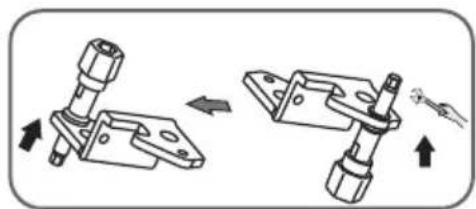

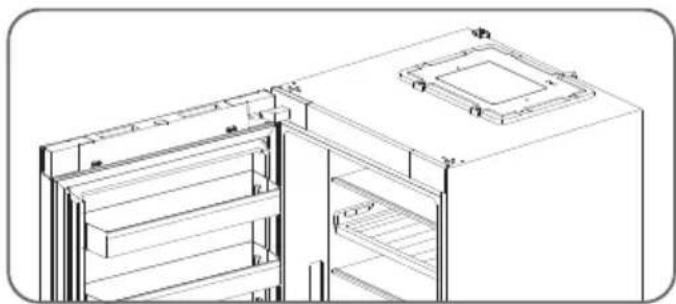

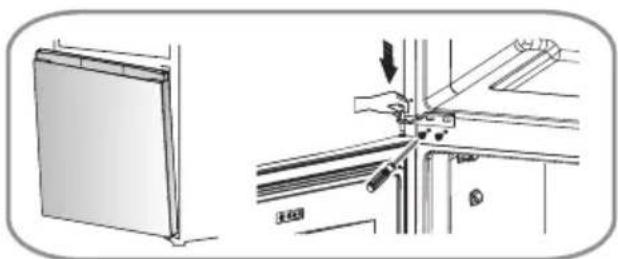

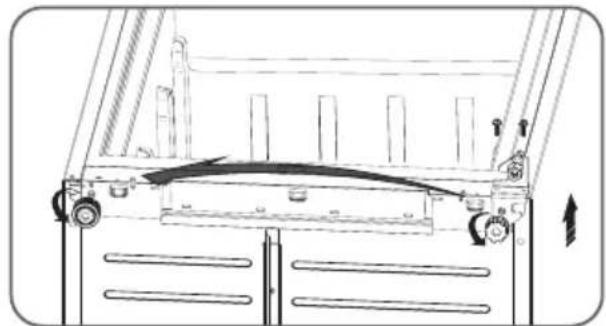

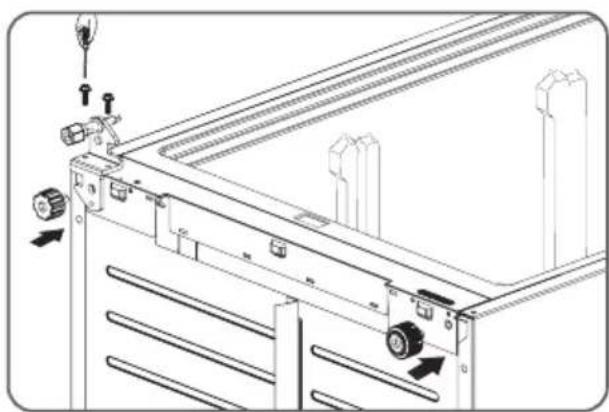

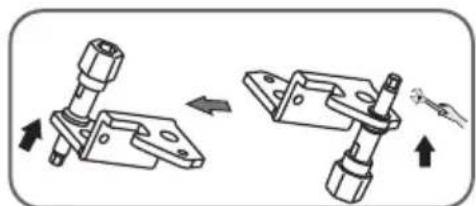

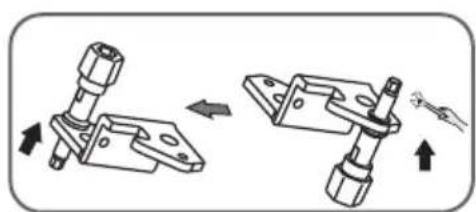

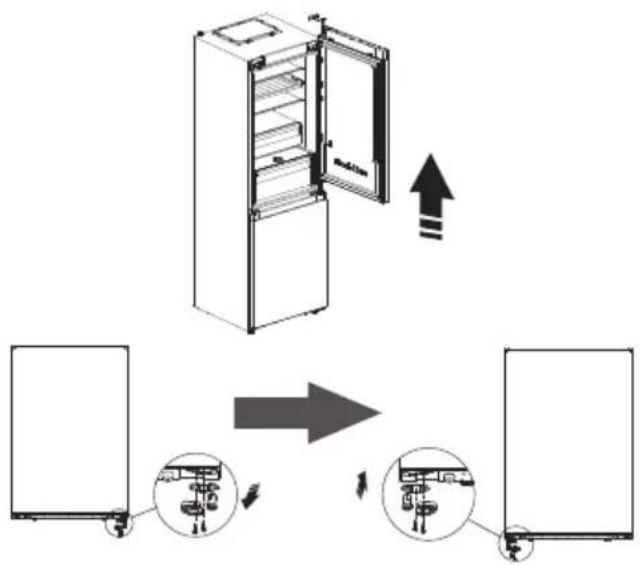

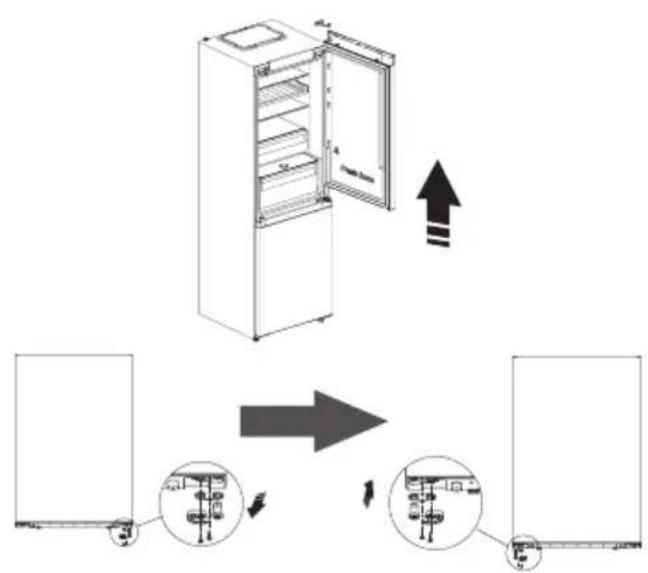

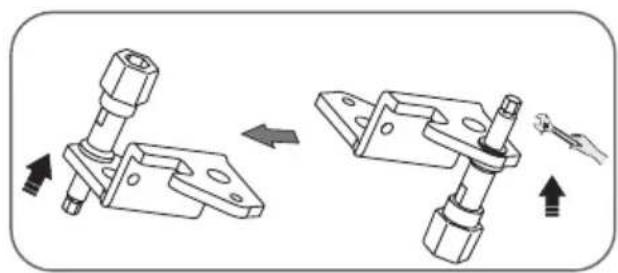

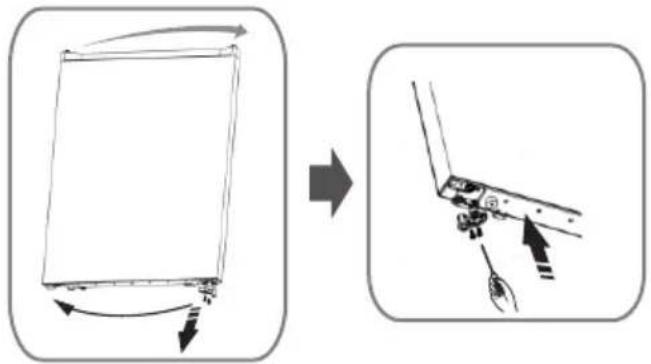

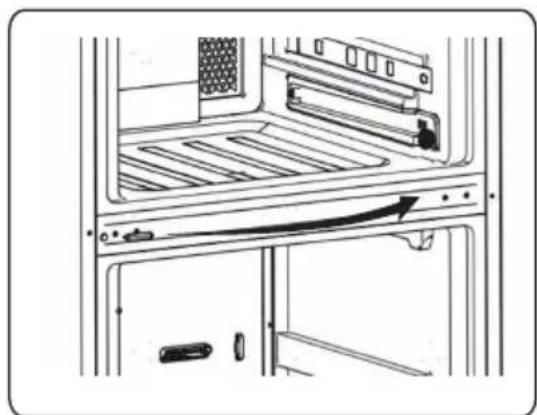

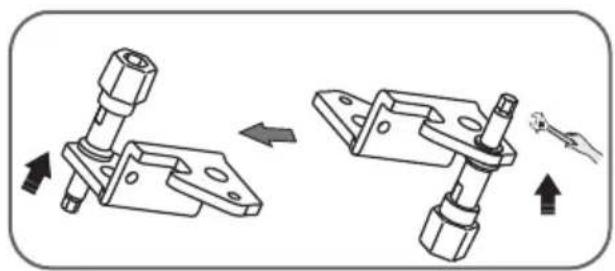

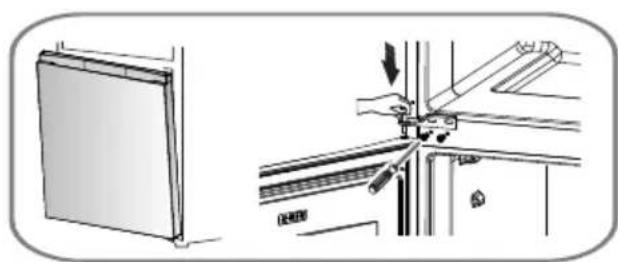

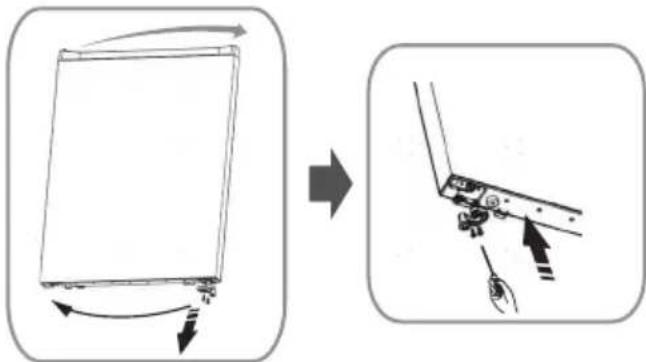

Tür umsetzen

Technical illustration showing a mechanical assembly with a close-up of a document being held by hands (no text or symbols present)

Diagram showing a folding panel being adjusted to a bracket, with arrows indicating rotation and adjustment (no text or symbols)

Diagram of a computer rack with ventilation slots and door, showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and a curved component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket mechanism (no text or symbols)

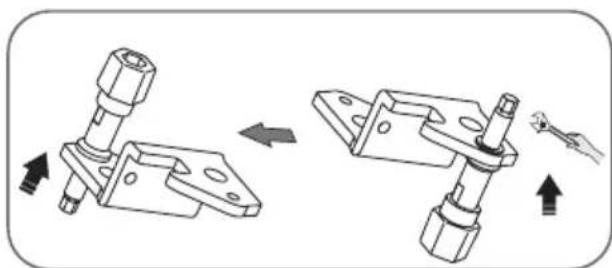

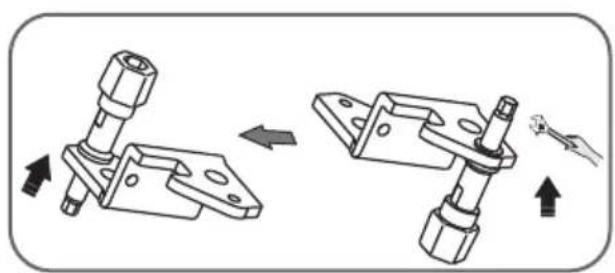

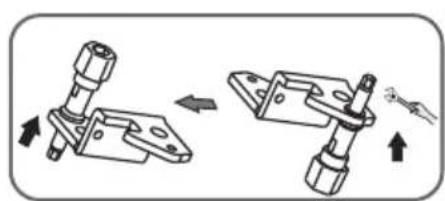

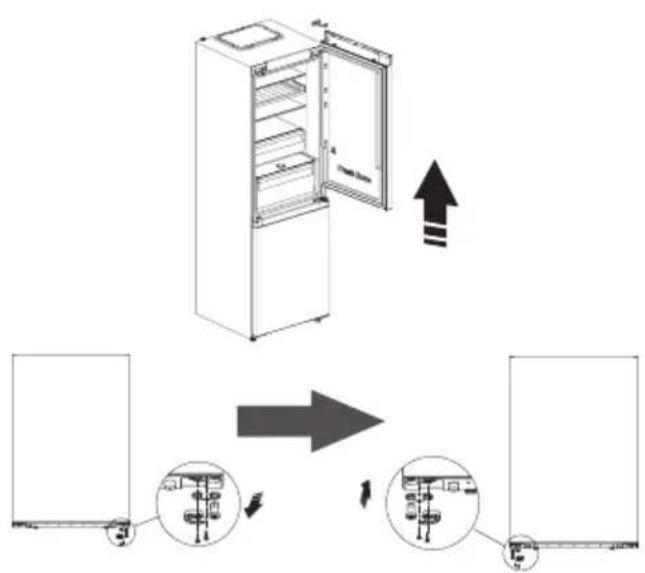

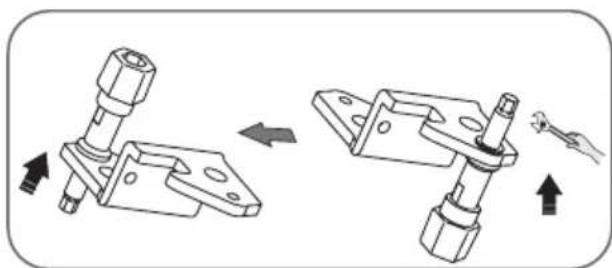

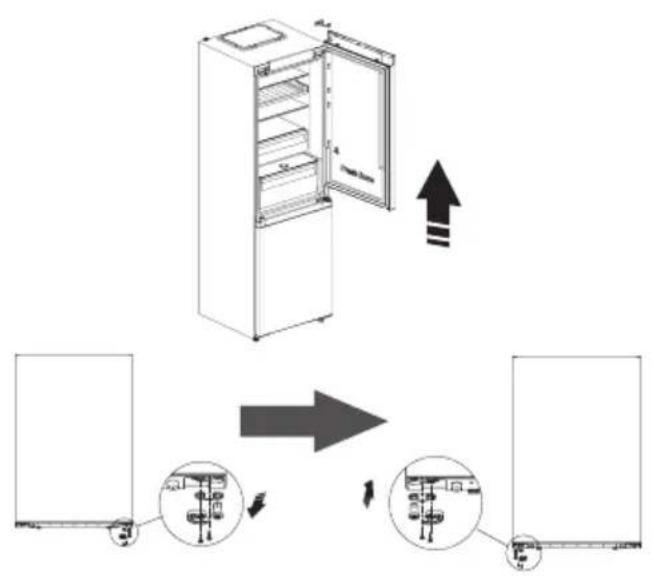

Tür umsetzen

Technical line drawing of a mechanical assembly with rollers and adjustment knobs (no text or symbols)

Technical illustration showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram of a refrigerator interior showing open door and close-up view of internal compartments (no text or symbols)

Technical line drawing of a mechanical or architectural assembly with layered components and mounting brackets (no text or symbols)

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Warnung

Illustration of a double refrigerator with two doors, no text or symbols visible

Line drawing of a refrigerator with two hanging legs and directional arrows indicating airflow or movement (no text or symbols)

Hand-drawn diagram of a refrigerator with a prohibition symbol and a zigzag arrow below it

NOTA

NOTA

QR code image containing encoded data, no visible human-readable text

NOTA

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a plastic bag onto a shelf (no text or symbols)

Anaquel para vinos flexible

Technical line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Caja fresca 0°C

High Humidity Low Humidity

High Humidity Low Humidity

Diagram showing a furniture piece being placed into a cabinet, with an arrow indicating the process (no text or symbols present)

Case Corner Cover (right) Case Corner Cover(Left) Door Corner Cover(right) Door Corner Cover(left)

Technical diagram of a refrigerator interior with two views of the front panel showing internal components (no text or labels)

Technical illustration showing a mechanical assembly with a bracket and a document being inserted (no text or symbols present)

Diagram illustrating a folding or reassembly process of a rectangular object, showing rotation and step-by-step assembly.

Diagram of a computer rack with ventilation slots and door, showing internal structure without any text or symbols

Technical line drawing of a mechanical assembly with rollers and a curved component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two mechanical components with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram showing a refrigerator interior with open door and close-up view of internal equipment (no text or symbols)

Technical line drawing of a multi-level industrial or storage unit with internal shelves and a central mounting bracket (no text or symbols)

Limpieza y cuidado

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Advertencia

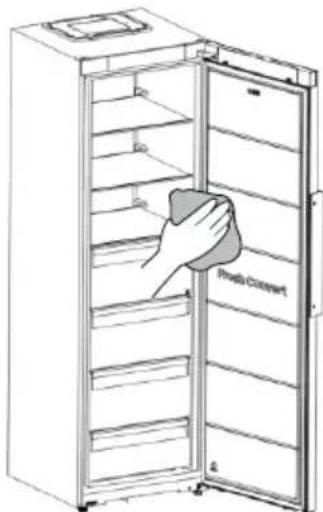

Line drawing of a refrigerator with doors open and a hand cleaning the interior (no text or symbols)

Limpieza y cuidado

Before operating this unit, please read this manual thoroughly, and retain for future reference

EN

English

Contents

Thank you for choosing Hisense. We are sure you will find your new refrigerator a pleasure to use. However, before you use the appliance, we recommend that you carefully read the instructions, which provide details about installing and using the product. Please keep this manual for future reference.

Safety and warning information 01

Installing your new appliance....13

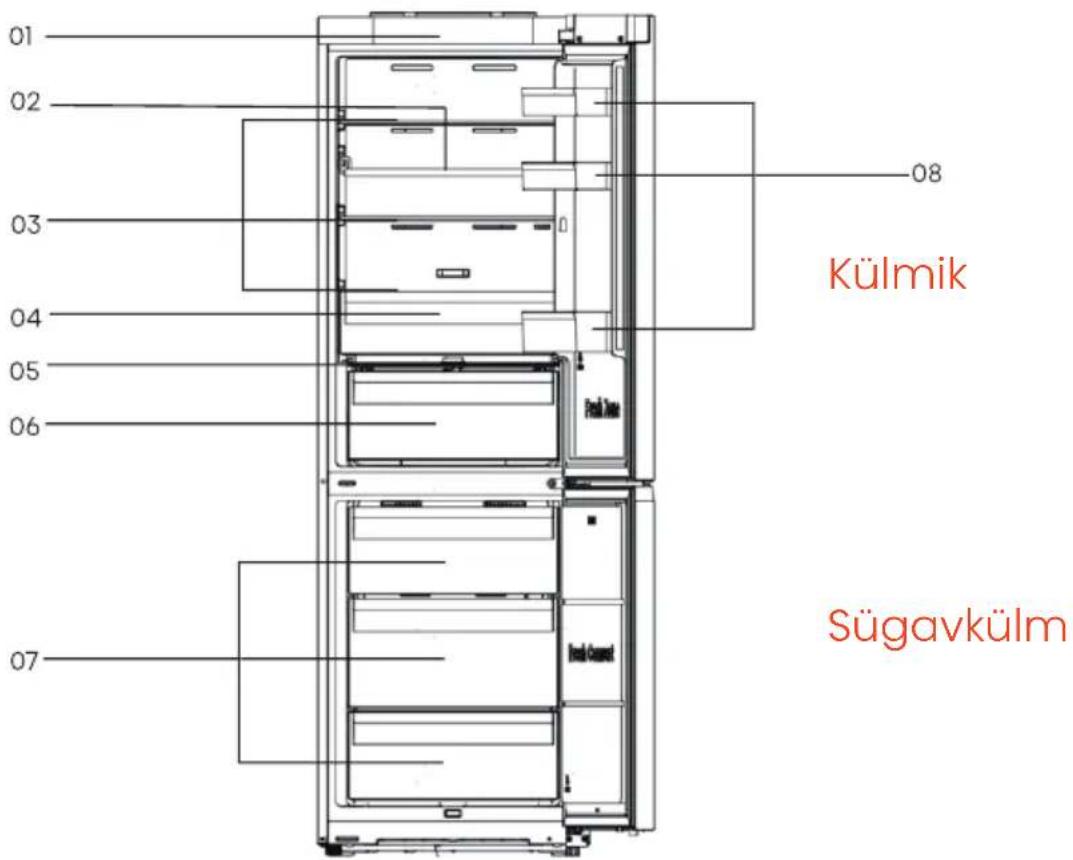

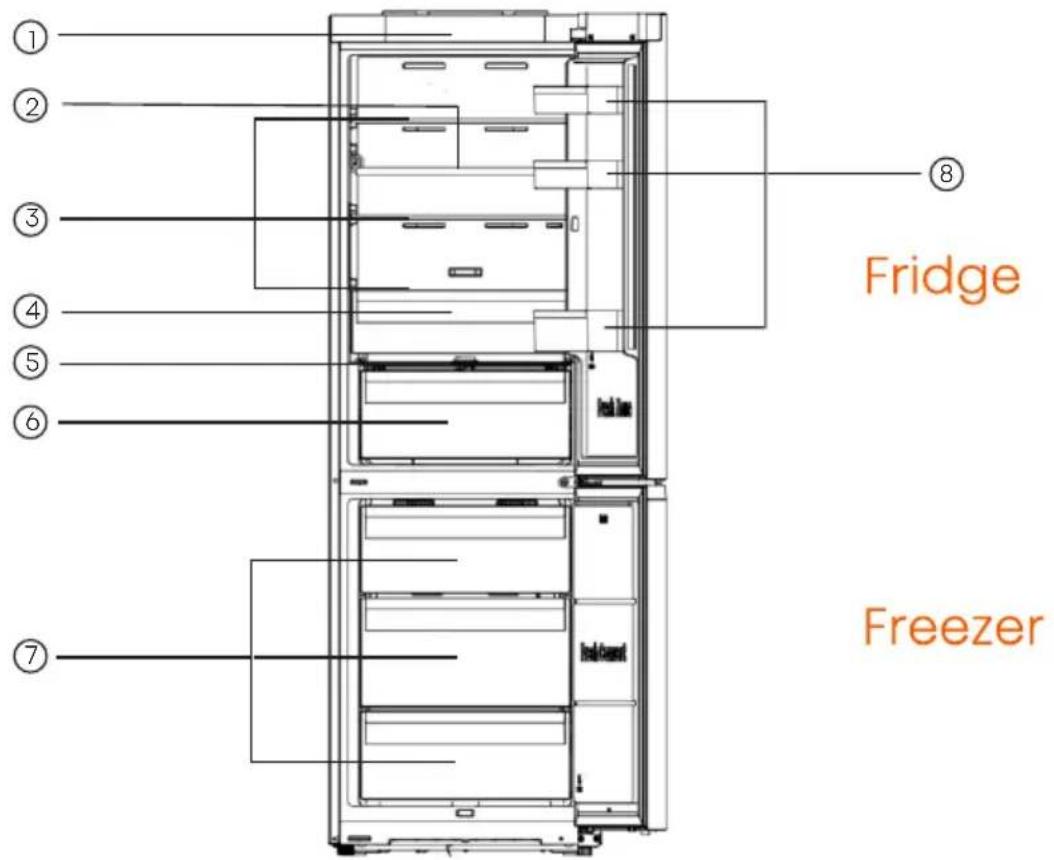

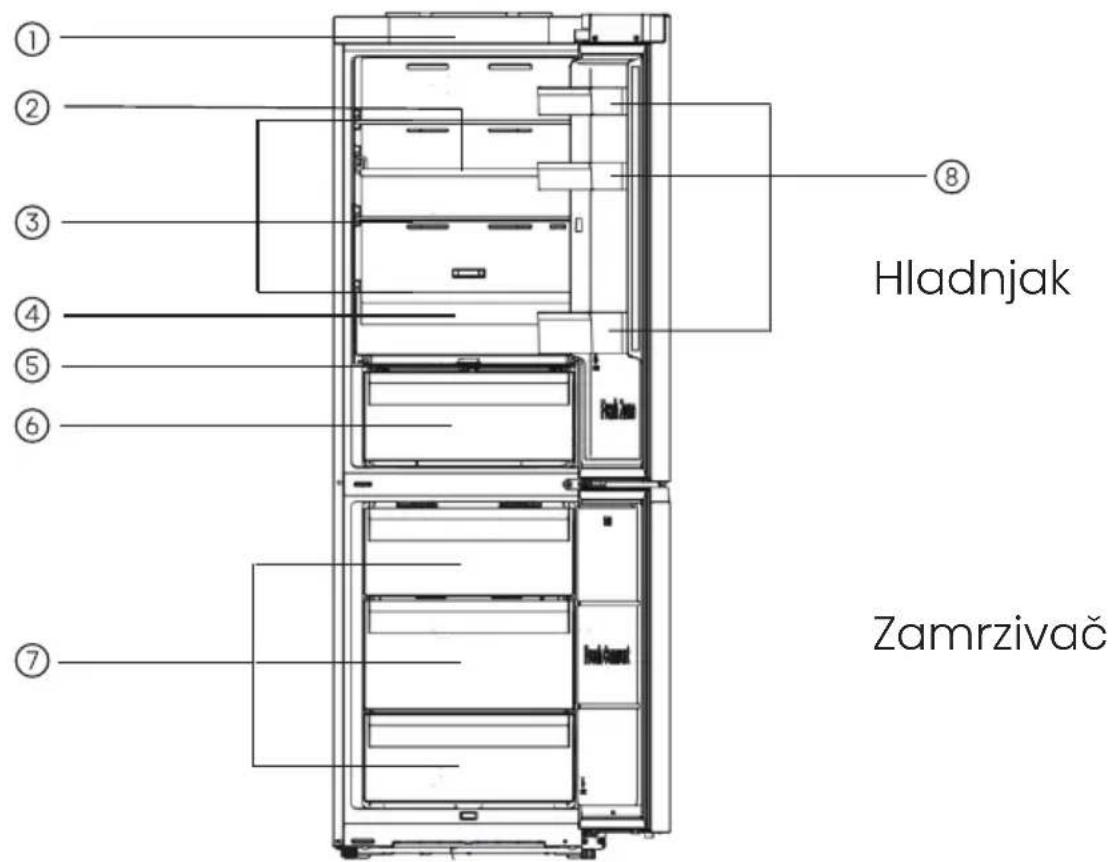

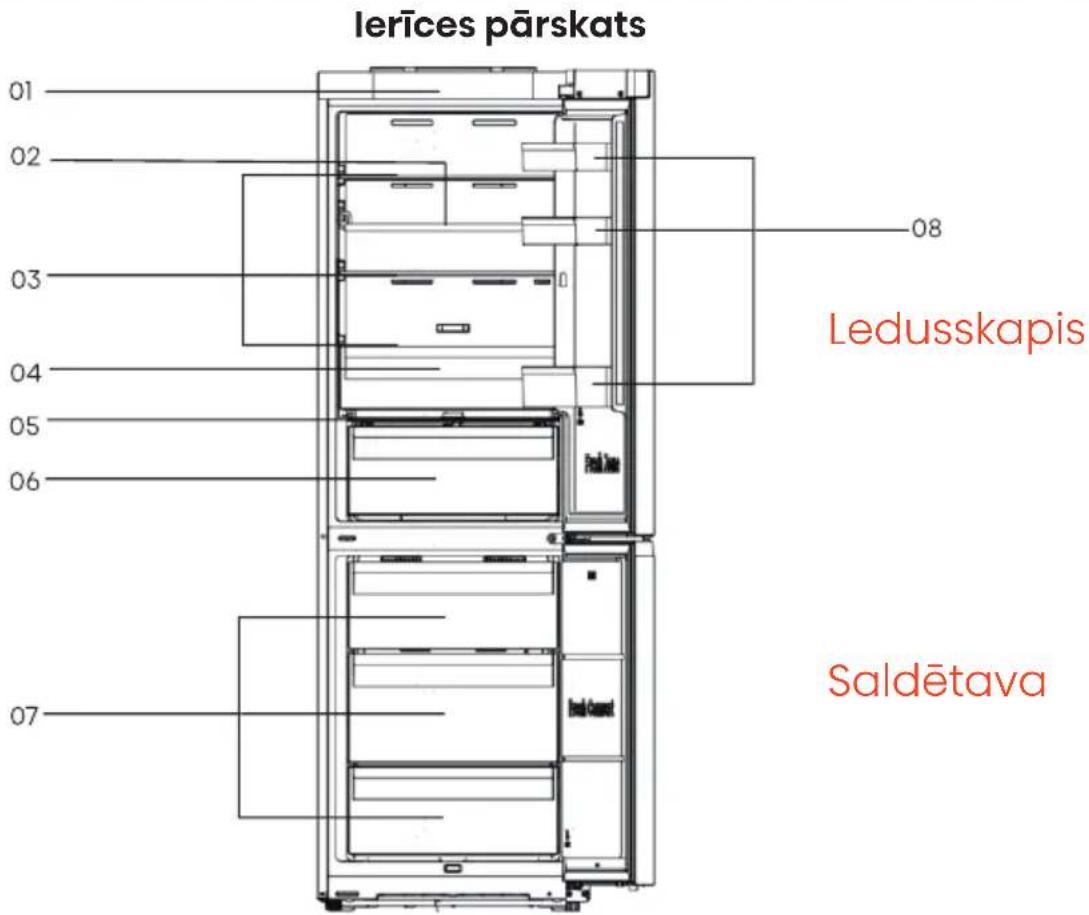

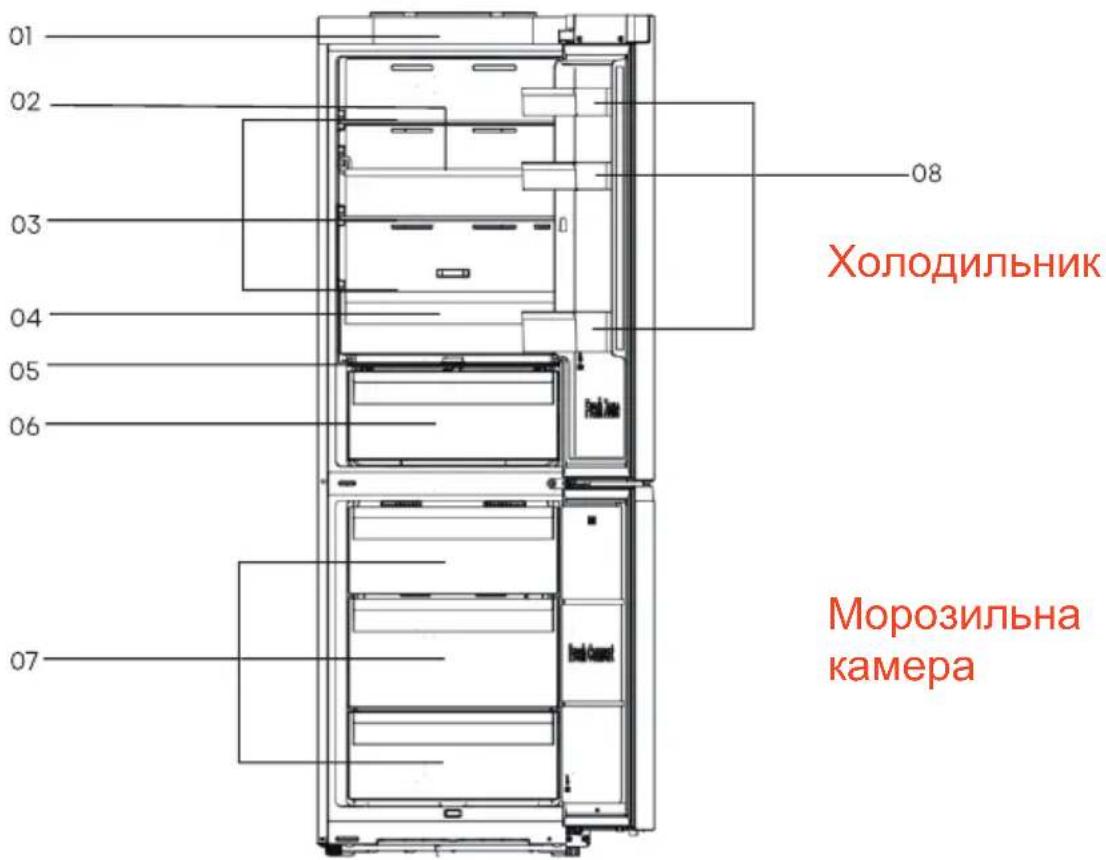

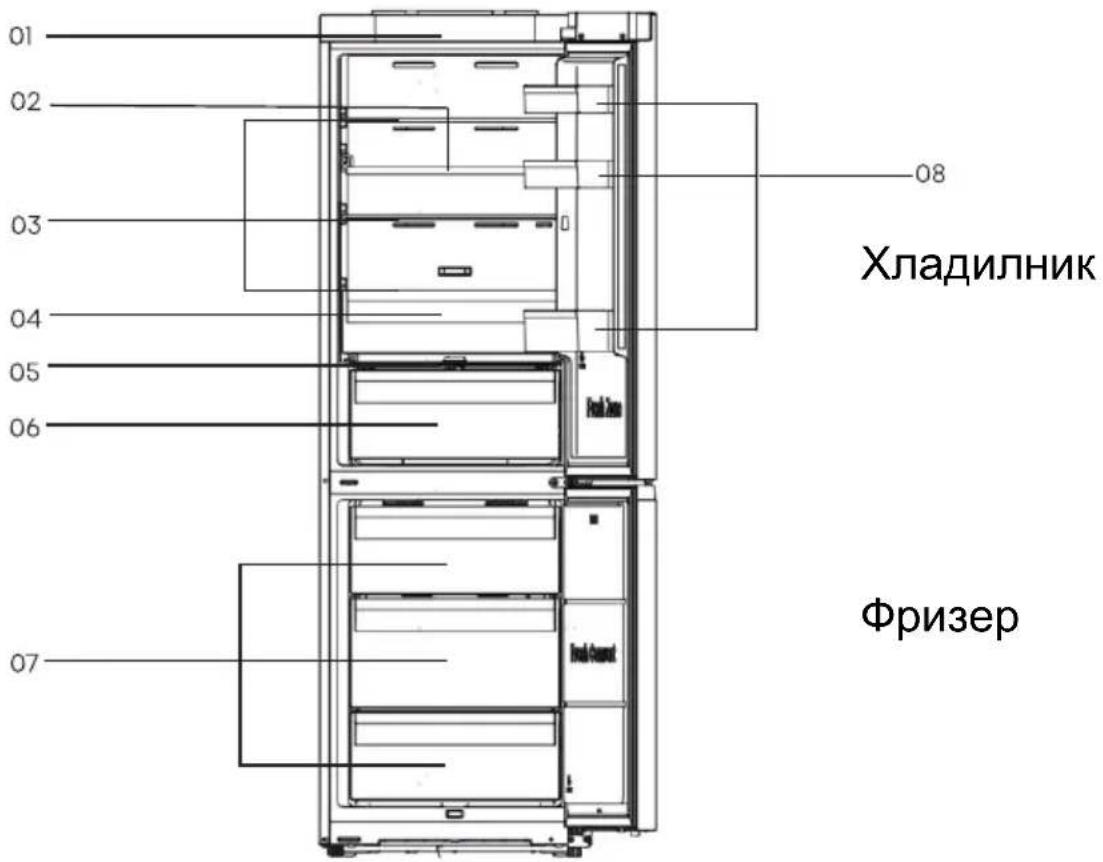

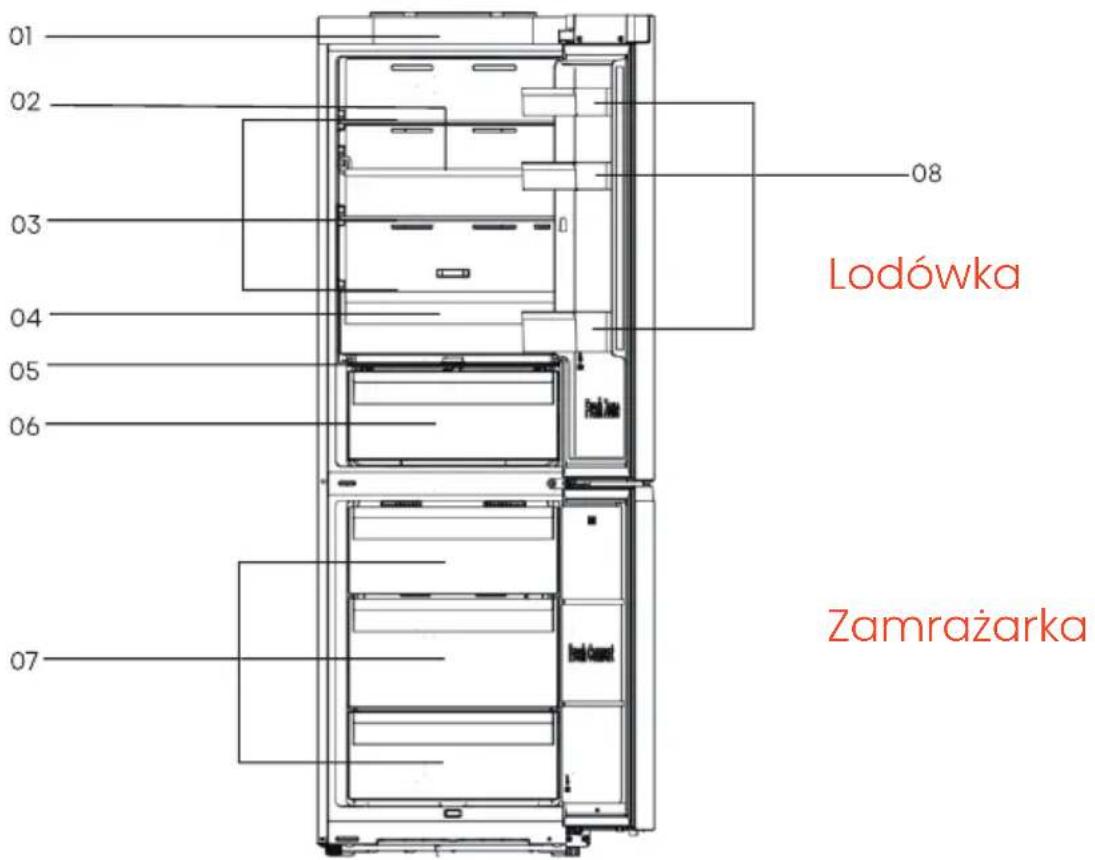

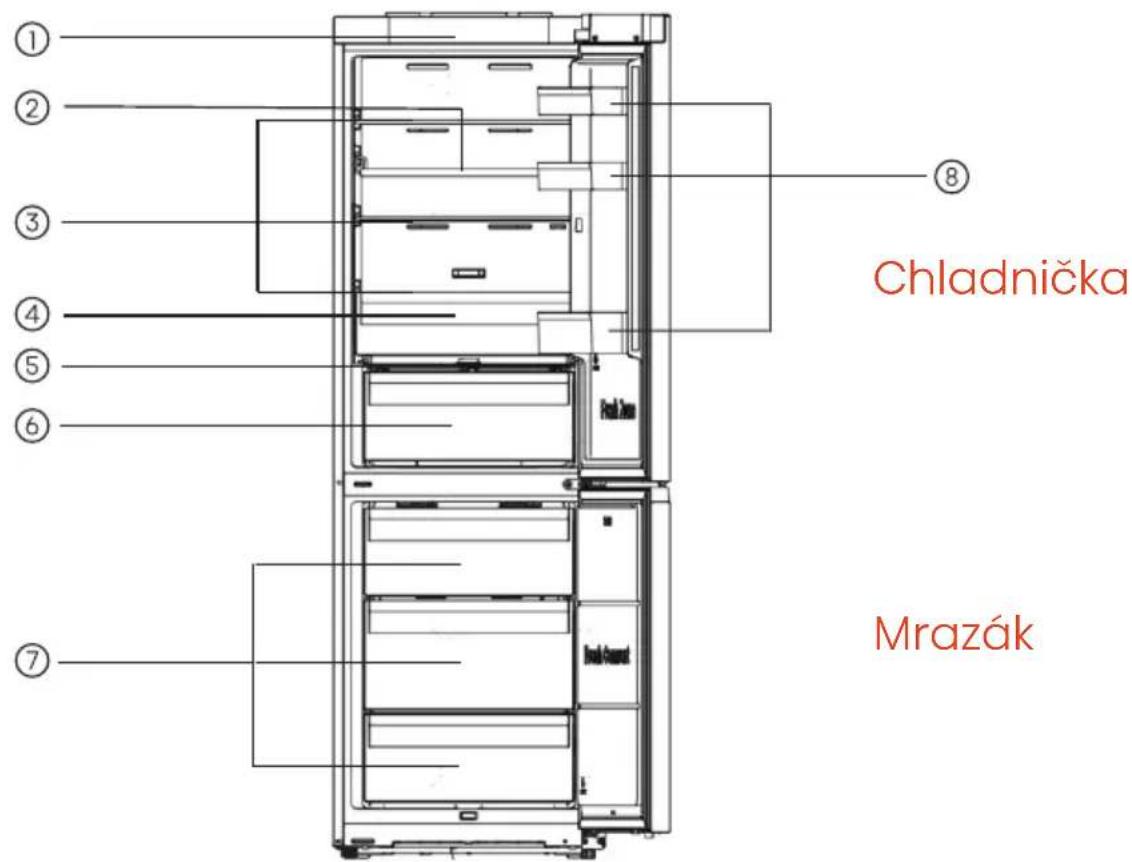

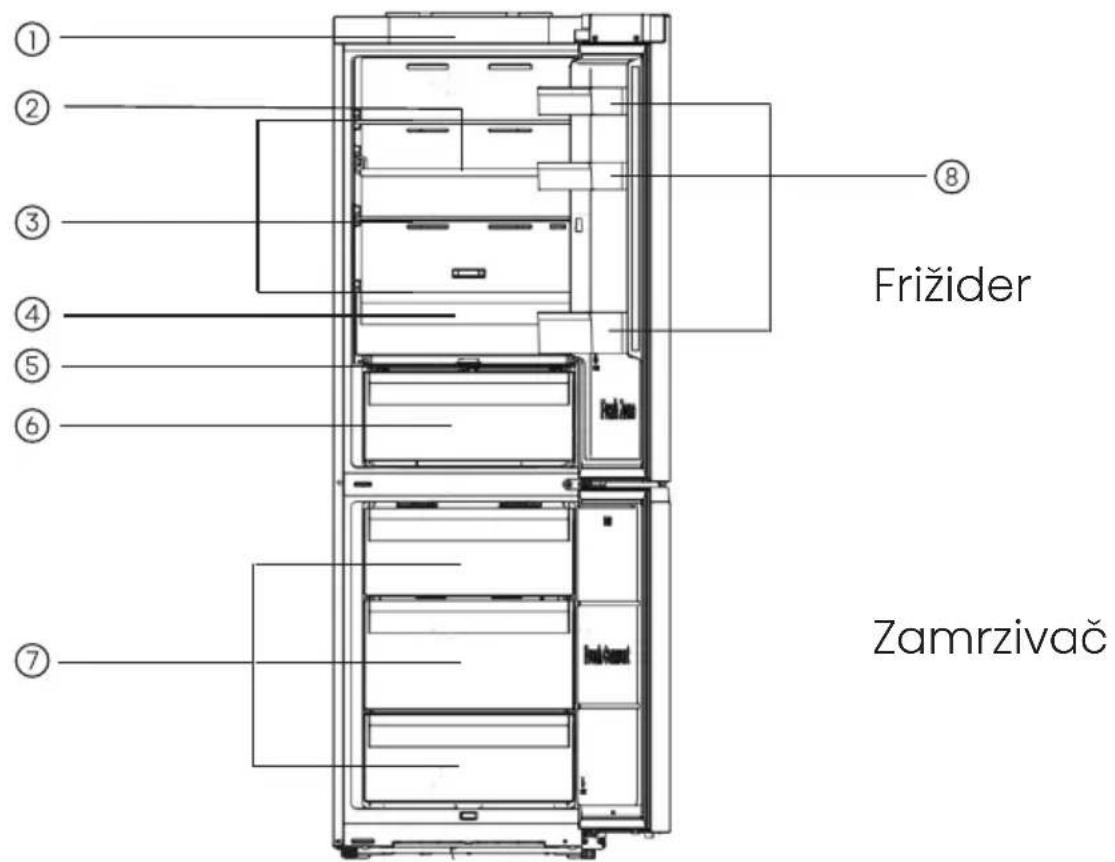

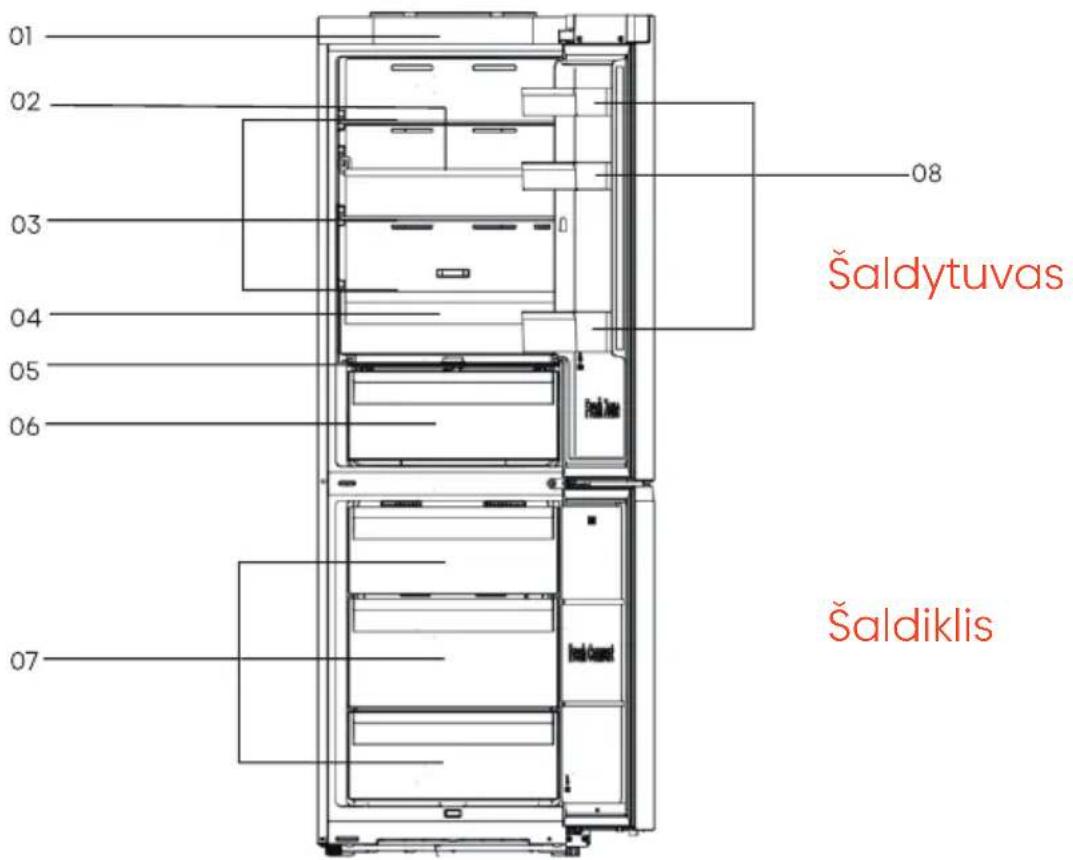

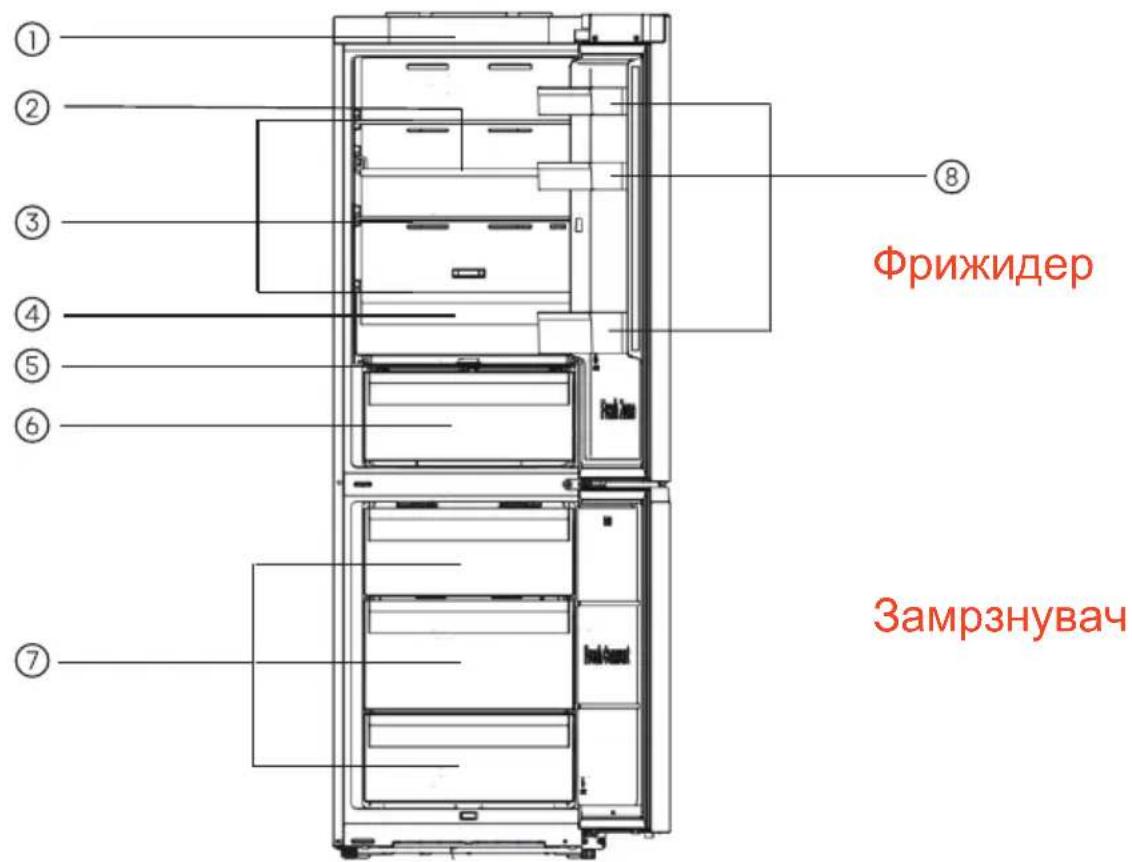

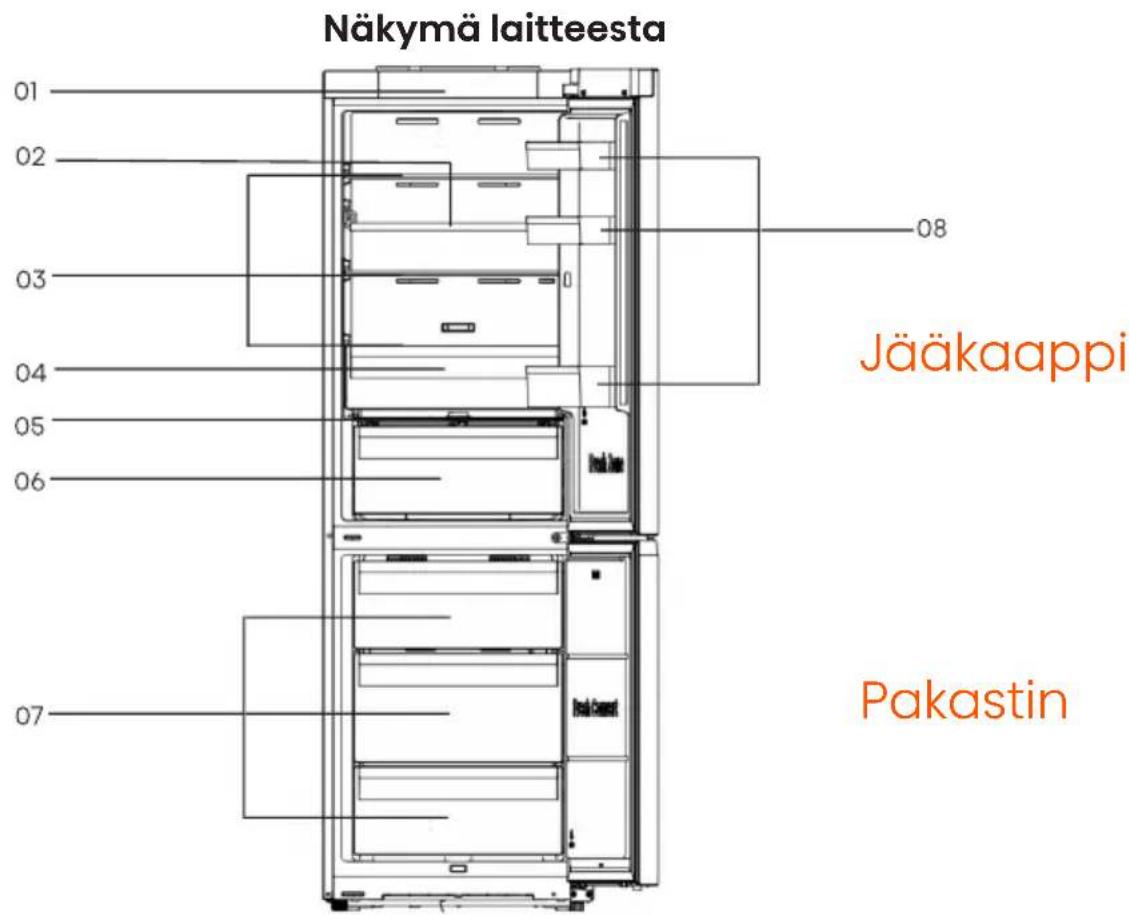

Description of the appliance....16

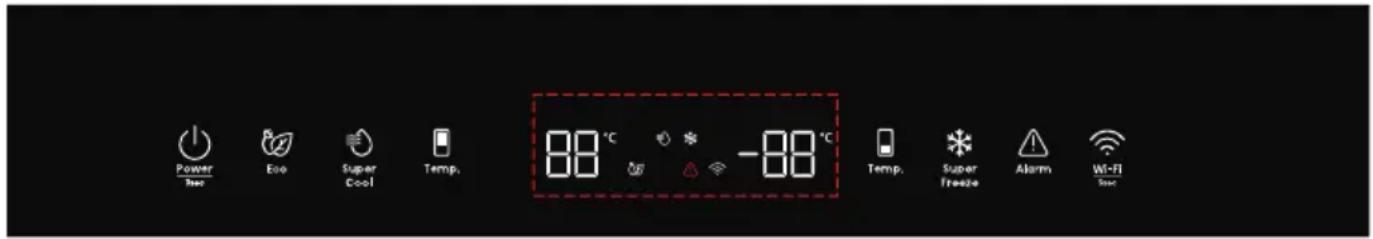

Display controls.... 17

Using your appliance.... 22

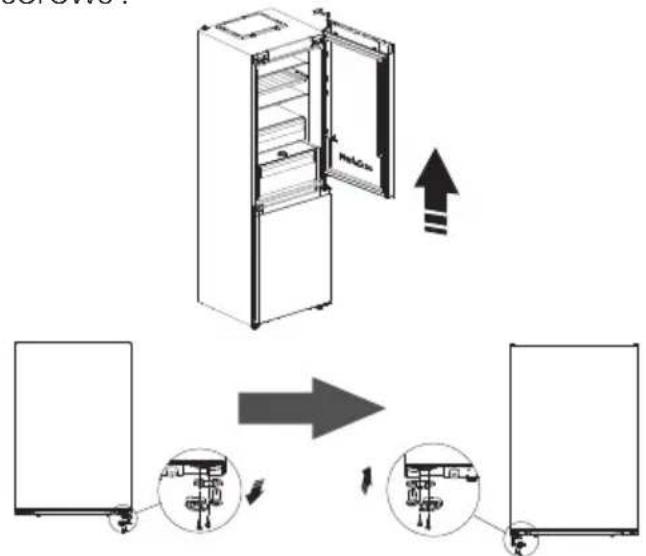

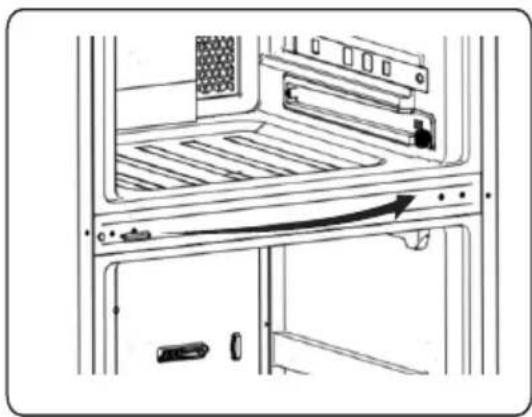

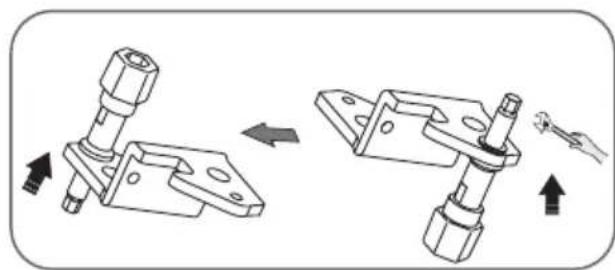

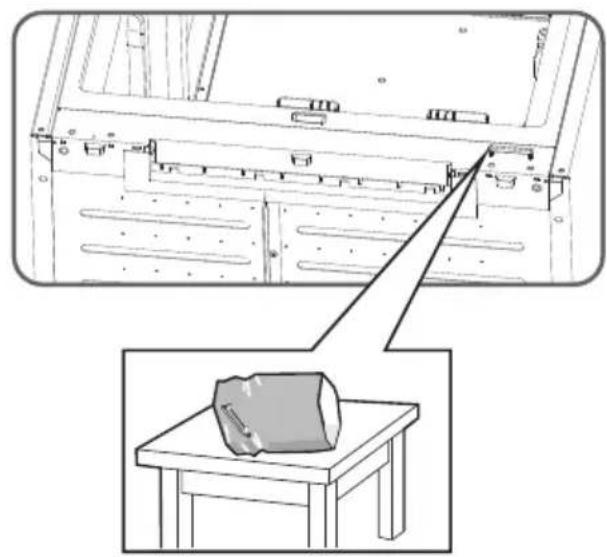

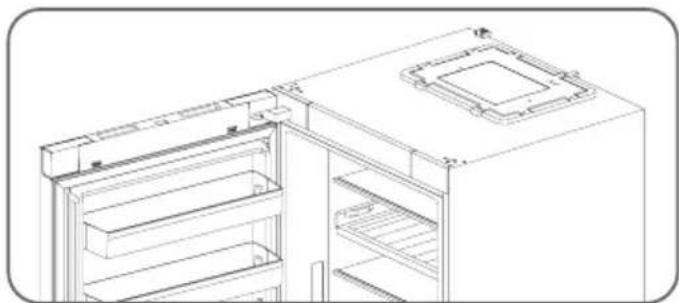

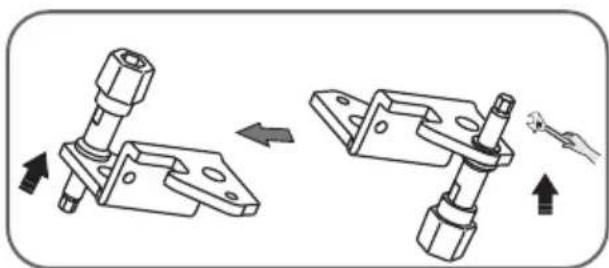

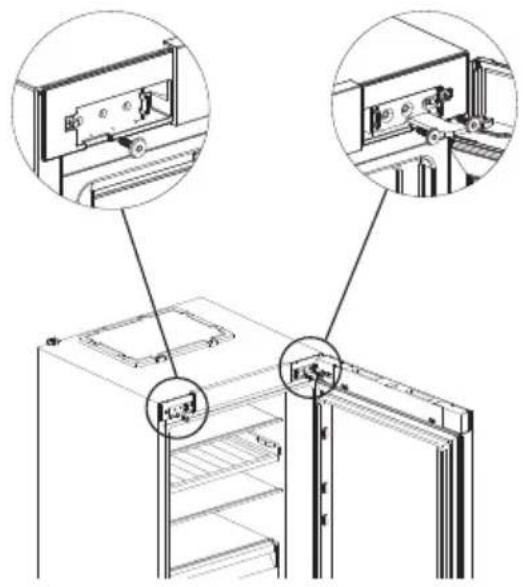

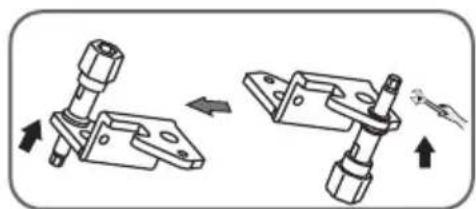

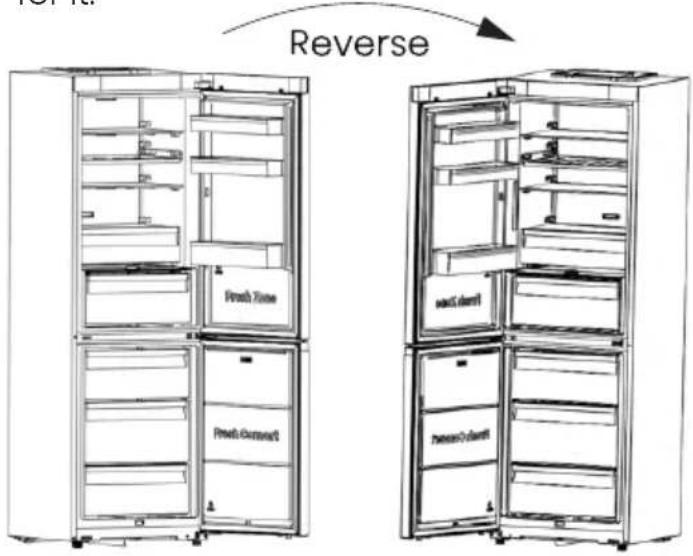

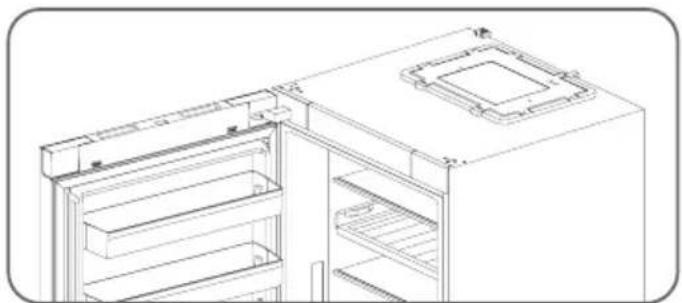

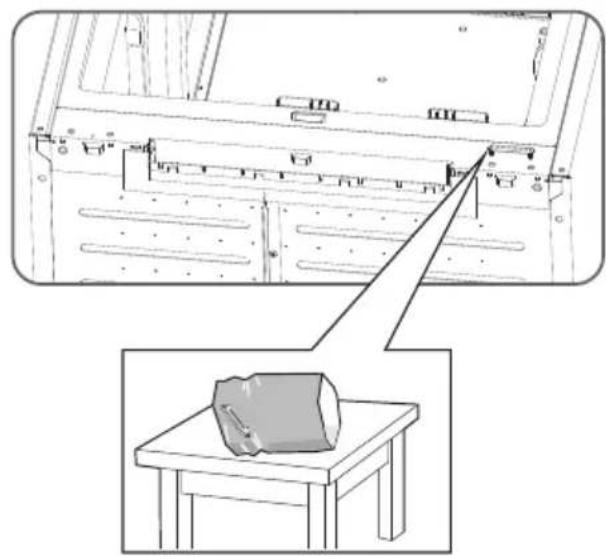

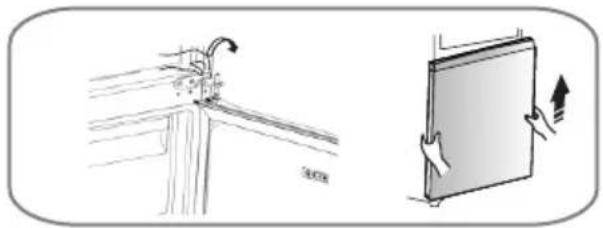

Reverse the door 24

Cleaning and care.... 28

Helpful hints and tips.... 30

Troubleshooting.... 32

Disposal of the appliance....35

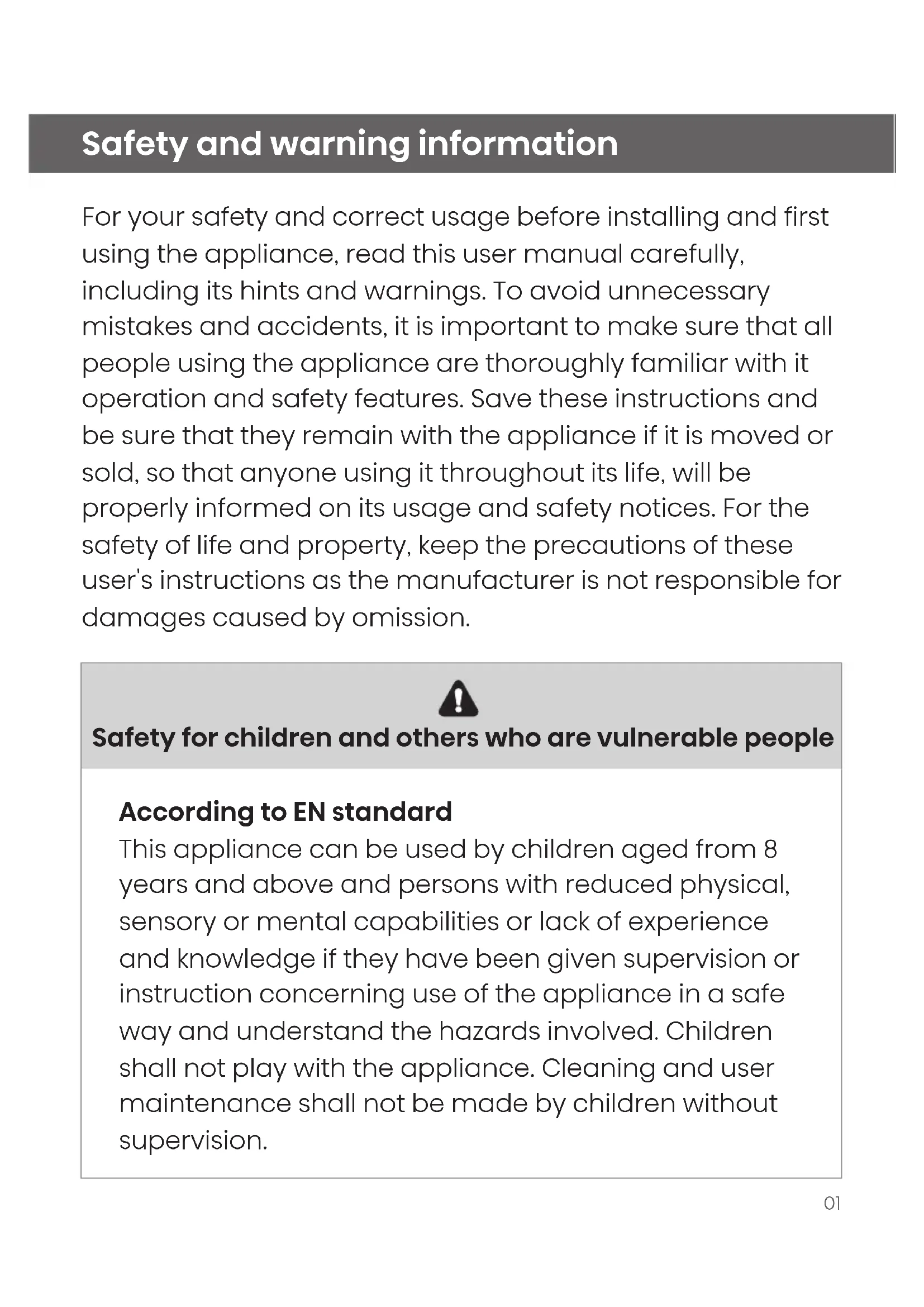

Safety and warning information

For your safety and correct usage before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with it operation and safety features. Save these instructions and be sure that they remain with the appliance if it is moved or sold, so that anyone using it throughout its life, will be properly informed on its usage and safety notices. For the safety of life and property, keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Safety for children and others who are vulnerable people

According to EN standard

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Safety for children and others who are vulnerable people

According to IEC standard

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Keep all packaging away from children as there is risk of suffocation.

If you are discarding the appliance, pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent children playing from suffering an electric shock or from closing themselves inside it.

If this appliance, featuring a magnetic door seals, is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make the spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

Safety and warning information

General safety

- WARNING

This appliance is intended to be used in household and similar applications such as 1.staff kitchen areas in shops, offices and other working environments; 2.farm houses and by clients in hotels, motels and other residential type environments;

1. bed and breakfast type environments;
2. catering and similar non-retail applications.

- WARNING

Fill with potable water only.

- WARNING

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- WARNING

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Safety and warning information

General safety

- WARNING

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING

Do not damage the refrigerant circuit.

- WARNING

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- WARNING

The refrigerant and insulation blowing gas are flammable. When disposing of the appliance, do so only at an authorized waste disposal centre. Do not expose to flame.

- WARNING

When positioning the appliance, ensure the supply cord is not trapped or damaged.

Safety and warning information

General safety

- WARNING

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Replacing the illuminating lamps

- WARNING

The illuminating lamps must not be replaced by the user! If the illuminating lamps is damaged, contact the customer helpline for assistance. This warning is only for refrigerators that contain illuminating lamps.

Refrigerant

The refrigerant isobutene (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged. The refrigerant (R600a) is flammable.

Safety and warning information

Refrigerant

- WARNING

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

WARNING

Risk of fire / flammable materials

If the refrigerant circuit should be damaged:

1. Avoid opening flames and sources of ignition.
2. Thoroughly ventilate the room in which the appliance is situated.

It is dangerous to alter the specifications or modify this product in any way.

Any damage to the cord may cause a short circuit, fire, and/or electric shock.

Safety and warning information

Electrical safety

1. The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged. A crushed or damaged power plug may overheat and cause a fire.
3. Make sure that you can access the main plug of the appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
6. You must not operate the appliance without the interior lighting lamp cover.
7. The fridge is only applied with power supply of single phase alternating current of 220\~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A. C. Automatic voltage regulator of more than 350W to the fridge. The fridge must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Safety and warning information

Daily use

• Do not store flammable gas or liquids in the appliance, There is a risk of an explosion.
• Do not operate any electrical appliances in the appliance (e.g. electric ice cream makers, mixers etc.).
• When unplugging always pull the plug from the mains socket, do not pull on the cable.
• Do not place hot items near the plastic components of this appliance.
• This refrigerating appliance is not intended to be used as a built-in appliance.
• Do not place food products directly against the air outlet on the rear wall.
• Store pre-packed frozen food in accordance with the frozen food manufacture's instructions.
• The appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions for storage.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

Safety and warning information

• Frozen food can cause frost burns if consumed straight from the freezer compartment.
• Do not place the appliance in direct sunlight.
• Keep burning candles, lamps and other items with naked flames away from the appliance so that do not set the appliance on fire.
• The appliance is intended for keeping food stuff and/or beverages in normal household as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it.
• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
• Never use the base, drawers, doors etc. to stand on or as supports.

Safety and warning information

• Frozen food must not be refrozen once it has been thawed out.
• Do not consume ice popsicles or ice cubes straight from the freezer as this can cause freezer burn to the mouth and lips.
• To avoid items falling and causing injury or damage to the appliance, do not overload the door racks or put too much food in the crisper drawers.
• In order to sense the temperature near the appliance and make the appliance run better, add temperature sensor outside the box of appliance.
• The WiFi module is installed in the control box at the top of appliance. In order to avoid interference and cause weak signal, it is recommended to cancel large-area metal products or water-containing drinks around the top of the box.
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Safety and warning information

Caution! Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects, steam cleaner, ethereal oils, organic solvents or abrasive cleansers. Do not use sharp objects to remove frost from the appliance.
• Use a plastic scraper.

Installation Important

• For electrical connection carefully, follow the instructions given in this manual. Unpack the appliance and check if there are damages on it.
• Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In this case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation, follow the instructions relevant to installation.
• Wherever possible the back of the product should not be too close to a wall to avoid touching or catching warm parts (compressor, condenser) to prevent the risk of fire, follow the instructions relevant to installation.
• The appliance must not be locate close to radiators or cookers.

Safety and warning information

• Make sure that the mains plug is accessible after the installation of the appliance.
• Transmitting frequency band(s) and max allowed transmitting power in the operating frequency band(s): 2400-2483.5MHz, less than or equal to 20dbm.
• This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by qualified electrician or competent person.

• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

• If the appliance is Frost Free.

• If the appliance contains freezer compartment.

Note

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. (This clause applies only to the EU region.)

Installing your new appliance

Before using the appliance for the first time, you should be aware of the following tips.

Ventilation of appliance

In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. For this reason, sufficient clear space should be available around the refrigerator.

Suggest:

It is advisable for there to be 50-70mm of space from the back to the wall, at least 100 mm from its top, at least 100mm from its side to the wall and a clear space upfront to allow the freezer door to open 105°

In the non-built-in status

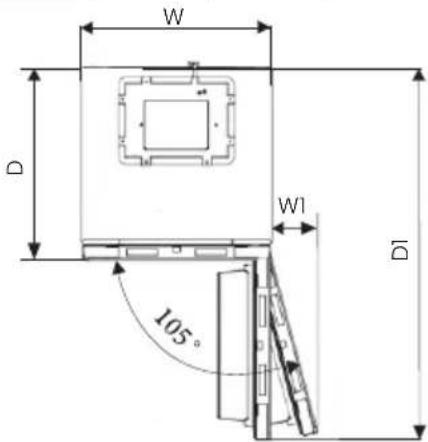

Relevant information (mm)

W	W1	D	D1
595	142.5	600	1156

W D W1 D 105°

Reserve a gap of more than 5mm on the top side

Illustration of a two-tier refrigerator with front and back panels (no text or symbols)

Product size(mm) : 595*600*1856 The appliance can also be placed next to or between furniture elements or against a wall. In such a case, the appliance will operate flawlessly, but noise and electricity consumption may increase.

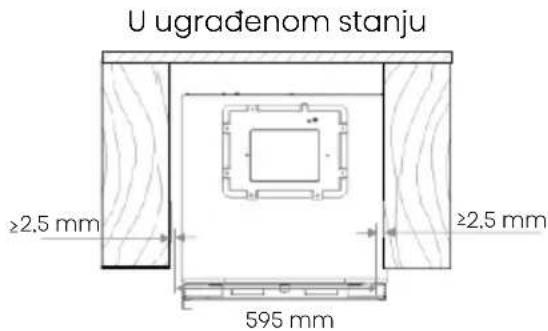

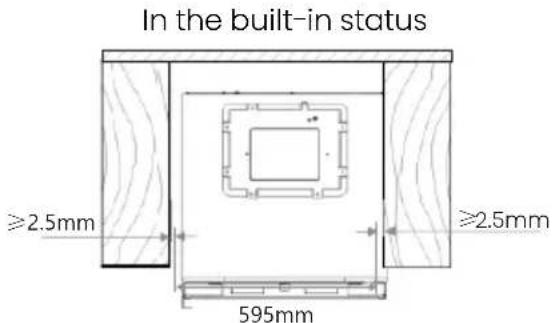

In the built-in status ≥2.5mm ≥2.5mm 595mm

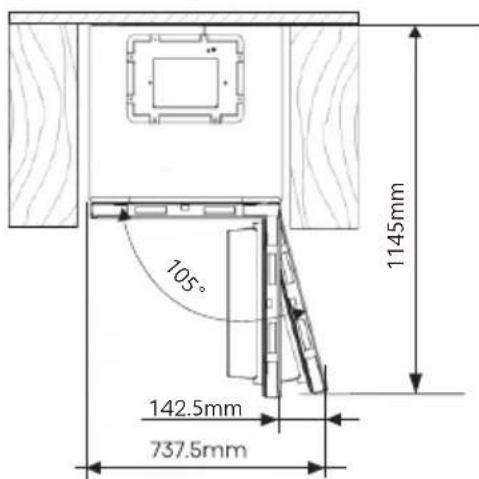

Door closing status for refrigerator in the built-in status

105° 142.5mm 737.5mm 1145mm

The total space required for the refrigerator to fully open the door in the built-in status.

Installing your new appliance

Note

This appliance performs well in the climate class from SN to ST. It may not work properly if being left at a temperature above or below the indicated range for a long period.

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

Stand your appliance in a dry place to avoid high moisture damage. Keep the appliance out of direct sunlight, rain or frost. Stand the appliance away from heat sources such as stoves, fires or heaters.

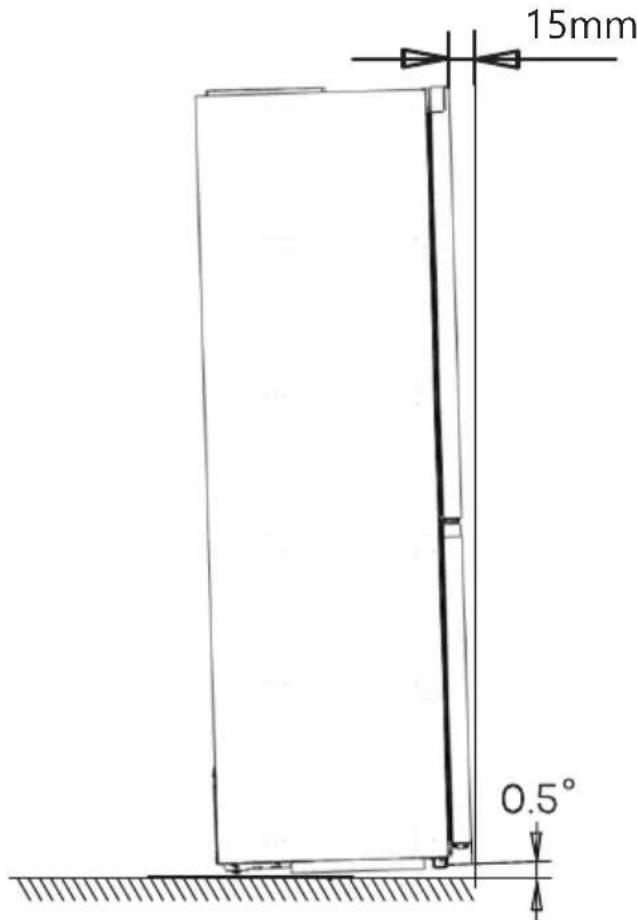

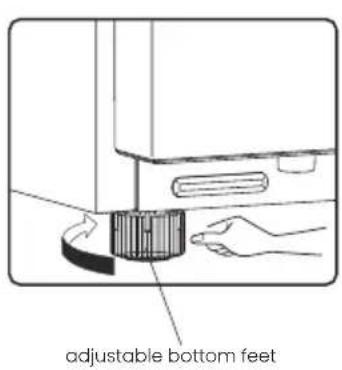

Leveling of appliance

- For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted. Please use a suitable spanner.

- To allow the doors to self-close, tilt back the top backwards at about 15mm or 0.5° by turning the adjustable feet.

- Whenever you want to move the appliance, remember to turn the feet back up, so that the appliance can roll freely. Reinstall the appliance when relocating.

15mm 0.5°

Installing your new appliance

adjustable bottom feet

adjustable bottom feet

Warning

• For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator.
• The rollers, which are not castors, should be only used for forward or backward movement. Moving the refrigerator sideways may damage your floor and the rollers.

Line drawing of a refrigerator with directional arrows indicating motion (no text or symbols)

Hand-drawn sketch of a rectangular box with a prohibition symbol and a zigzag arrow below it

Description of the appliance

View of the appliance

① ② ③ ④ ⑤ ⑥ ⑦ Fridge Freezer ⑧

① Electronic control
② Flexible wine rack
③ Storage shelves
④ 0°C Fresh Box
⑤ Vegetable drawer cover
⑥ Vegetable drawer
⑦ Freezer drawers
⑧ Door rack

Note

Due to constant development of our products, your refrigerator may be slightly different from this instruction manual, but its functions and usage remain the same.

To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above.

Display controls

All functions and controls of the unit are accessible from a control panel conveniently located on the roof of the cabinet. A display circuit board allows easy configuration of features and settings in a simple and intuitive manner.

Display Controls

Use your appliance according to the following control regulations, your appliance has the corresponding functions and models as the display panels showed in the pictures below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working. If no button have been pressed and the doors are closed, the backlighting will turn off after one minute.

Power Sec Eco Super Cool Temp. 88 °C -88 °C Temp. Super Freeze Alarm Wi-Fi Sec

Electronic Control(located at the top of appliance)

1. Power

Power 3sec

If you want to stop using it, you can turn the appliance off by pressing "Power" button for 3 seconds.

Press and hold "Power" button for 3 seconds to turn the standby function on or off.

When the standby function is on, the display panel will show “--”.

Important!

Do not store any food in the fridge during this time. If you will not use the refrigerator for a long time, please pull the plug.

Note

When the standby function is on, the refrigerator stops cooling and the light is off.

2. Eco

Eco

Press the "Eco" button to turn on the energy saving function, the "icon will be illuminated.

When the Eco function is on, the temperature of fridge is automatically switched to 6^ C and the temperature of freezer is automatically switched to -17^ C.

When Eco function is on, you can switch it by pressing the "Temp" or "Eco" button and the refrigerator temperature setting will revert back to the previous setting.

3. Super Cool

Super Cool

The Super Cool feature helps to keep food stored in the refrigerator at the setting temperature during periods of high usage, large grocery

Display controls

loads, or temporarily warm room temperatures. The Super Cool feature lowers the temperature in the fridge compartment.

1. Press the "Super Cool" button to activate this function. The " ” icon will be illuminated the fridge temperature indicator will display 2°C.
2. Super cool will automatically turn off after 6 hours.
3. When super cool function is on, you can turn it off by pressing the "Super Cool" button or left "Temp" button. To manually turn off the Super Cool function, the fridge temperature setting will revert back to the previous setting.

4. Fridge Compartment Temperature

Press the left "Temp" button repeatedly to cycle through the available temperature settings from 8°C to 2°C.

Note

Each press of the button decreases the setting by one degree.

5. Freezer Compartment Temperature

Press the right "Temp" button repeatedly to cycle through the available temperature settings from -14°C to -24°C.

Note

Each press of the button decreases the setting by one degree.

Setting Compartment Temperatures

When you set a temperature, you are setting an average temperature for the entire compartment. The actual compartment temperatures may vary from the temperatures displayed depending on the amount and placement of stored food, and the surrounding room temperature.

Setting Compartment Temperatures

Fridge Compartment: 4°C Freezer Compartment: -18°C

6. Super Freeze

Super Freeze will quickly lower the temperature within the freezer so food will freeze faster than usual.

This feature also helps to keep vitamins and nutrition of fresh food fresh for longer period.

1. Press the "super Freeze" button to activate this function. The "💡" icon will be illuminated and the temperature for the freezer is set to -28^ .

2. Super freezer will automatically turn off after 52 hours.

3. When Super Freeze function is on, you can turn it off by pressing the "Super Freeze" button or pressing the right "Temp" button.

To manually turn off the Super freezer function, the freezer temperature setting will revert back to the previous setting.

Display controls

Note

When you select the Super Freeze function, ensure there are no bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may explode.

7. Alarm

Alarm

High temperature alarm

If the temperature inside the appliance is too high, an alarm will sound to alert you and the “⚠️” icon will illuminated.

In non-standby function, the temperature inside the box is detected after 24 hours of powering on. If the temperature remains too high for 4 hours, the high temperature alarm will be triggered.

Switching off the alarm

If you want to switch off the acoustic alarm, briefly press the "Alarm" button.

The “⚠️” icon will remain illuminated until the actual temperature in the appliance drops below the alarm level.

When the appliance reaches an adequate temperature, then the “ 🔒” icon will extinguished, high temperature alarm cleared. If you have not cancelled the high temperature alarm, the “ 🔒” icon will remain illuminated, and the buzzer will sound three times per minute. After more than 10 minutes, the alarm will stop.

8. Door Open Alarm

If a door is open for longer than 1 minutes, an alarm will sound to alert you. The alarm will sound 5 times every minute in the first and second minutes. Starting from the third minute, the alarm will sound once per second. If the alarm beeps for a long time, the buzzer will stop after 10 minutes of opening the door. Press any button to cancel the dooralarm, which makes the buzzer sound stop. Also the door alarm can be stopped by closing the door. When the door has been closed, open the door again will restart the timer of door open alarm.

9. Demo mode

Demo mode is for store display, and it prevents the refrigerator from generating cool air. In this of Cooling off Mode, the refrigerator may seem like it is working but it will not make cool air. To switch on demo mode, press and hold "Power" And "Wi-Fi" buttons at same time for three seconds and the buzzer beeps 3 times. the display panel will show "OF" the Demo mode has been ☒ turned on.

If there is no button operation for 10 seconds, it will keep display "OF", otherwise it will display the set temperature.

To switch off demo mode, press and hold "Power" And "Wi-Fi" buttons at same time for three seconds and the buzzer beeps 3 times.

Display controls

10.Wi-Fi

Connecting your refrigerator to Wi-Fi

ConnectLife app

ConnectLife is a smart home app that allows you to communicate with your smart appliances using a smartphone or tablet.

Installation

1. Open the Apple App Store (IOS) or Google Play Store (Android) on your smartphone.

2. Search for the "ConnectLife" app You will see an app with the following icon:

1. Download and install the ConnectLife app provided by ConnectLife, LLC.

Alternatively, you can scan the following QR code with your smart phone or tablet to find the ConnectLife app:

QR code image containing encoded data, no visible human-readable text

Note

• The distance between your appliance and the Wi-Fi router can impact the performance. If they are too far apart pairing your appliance might fail or take longer.
• The appliance supports 2.4 GHz Wi-Fi networks only. The Wi-Fi network SSID must be visible.
• The surrounding wireless environment (other connected devices) can affect the performance of your network.
• Your appliance Wi-Fi connection may experience interruptions due to external factors such as your home network environment or Internet service provider.

APP Version

Current Android&IOS Version: V2.3.0 The version of the App is constantly being changed and upgraded, please refer to the version that is actually downloaded from the App Store, AppGallery or Google Play store.

Display controls

Connecting your refrigerator

After installing the ConnectLife app, sign in or create an account and follow these steps:

1. Ensure the appliance is powered on and the display panel is active. You'll know it's ready when the panel lights up.

4° -18° Temp. Super Freesz Alarm Wi-Fi

1. Press and hold the Wi-Fi button for 3 seconds until you hear a beep and see the "■" light flashing after it constantly on for a few seconds.

4 °C -18 °C Temp. Super Freeze Alarm Wi-Fi 3 sec

1. Ensure Bluetooth is enabled on your phone and open the ConnectLife app. Look for the pop-up indicating that a new appliance has been found. Tap the button on the pop-up and follow the instructions to proceed.

2. If a pop-up doesn't appear, tap the button called "Add appliance" or "+" in the app.

3. Locate "Refrigerator" in the device list and select it.

4. Follow the instructions in the app connect your refrigerator. Once the setup is complete, your refrigerator will appear on your home screen.

Note

• The appliance will remain in pairing mode for a maximum of 5 minutes.

- The factory reset your network settings, press and hold the Wi-Fi button for 6 seconds. You will hear two beeps once the appliance is reset.

• After resetting, the appliance will automatically go into pairing mode.

- A solid Wi-Fi light indicates the appliance is successfully connected to the home network.

Using your appliance

Your appliance has the accessories as the "Description of the appliance" showed in general, with this part instruction you can have the right way to use them. We recommend that you read them carefully before using the appliance.

Door rack

It is suitable for the storage of eggs, canned liquid, bottled drinks and packed food, etc. Do not place too many heavy things in the racks.
The door racks can be placed at different heights according to your requirements. Please take food out of the shelf before lifting vertically to reposition.

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

All the door racks are completely removable for cleaning.

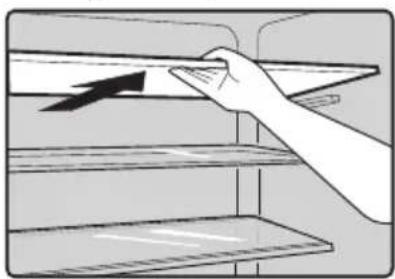

Storage shelves

The storage shelves can be taken out to be cleaned.

Illustration of a hand placing a triangular object on a shelf with an arrow indicating direction (no text or symbols)

Flexible wine rack

It is for storing bottled wine or drinks, and it can be taken out to clean.

Note: Do not place the bottled wine or drinks directly in front of the air outlet on the wind channel, which may cause it to freeze.

Technical line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

0°C Fresh Box

In this drawer you can get a lower temperature to store fish, meat and other erodible food temporarily. You can move the slide bar to set the temperature of this drawer. When the slide bar is moved to the far left, the drawer will be the same temperature as the other part of the fresh compartment, and when the slide bar is moved to the far right, the drawer will be about 1\~4 lower than the other part of °C the fresh compartment. There are some commendations in the below table which you can consult.

Fridge temp. set	Slide bar	Food	Storage period
2°C	Leftmost	Fruits	< 2 weeks
2°C	Rightmost	Fish & meat	< 3 days
5°C	Leftmost	Vegetables	< 5 days
5°C	Rightmost	Fish & meat	< 3 days
8°C	Leftmost	Vegetables	< 5 days
8°C	Rightmost	Fruits	< 2 weeks

Note: Due to the environment temperature and setting temperature both influence the temperature of 0^ box (drawer), the actual temperature may change in acertain range. The temperature of this drawer may lower than zero, so it is normal that liquid in this drawer was frozen.

left right slide bar 0°C Fresh

Using your appliance

Vegetable drawer

The vegetable drawer is suitable for storage of vegetables and fruit, etc.

Crisper and Humidity control

Before you use it, you need to tear off its protective tape, as shown in the position below.

High Humidity Low Humidity

You can rotate the knob on the crisper cover to keep different humidity in the crisper. Push the knob to the left, you will keep a higher humidity which can storage vegetable and fruit long and fresh, to the right will be lower humidity. It is for controlling the temperature of the crisper and avoiding the vegetable losing moisture.

Freezer drawer

It is used to store food which need to be frozen, including meat, fish and ice cream, etc.

Diagram showing a door opening process with a device inside, before and after (no text or symbols)

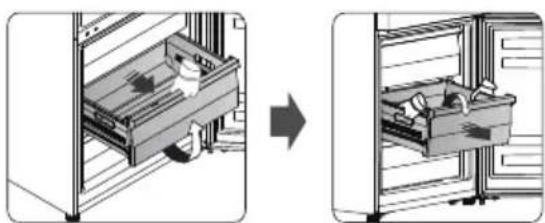

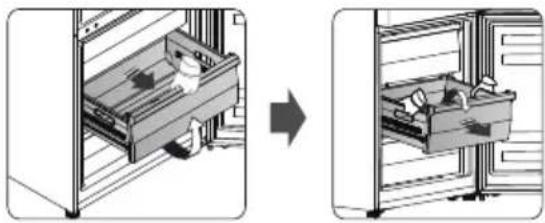

To remove the freezer drawer, tilt up the front of the drawer and pull forward, then tilt the drawer downwards, and remove it forward with both hands.

Reverse the door

The side in which the door opens can be changed from the right side (as supplied) to the left side, if the installation site allows for it.

Reverse Front Zone Front Connection Front Connection Front Connection

WARNING

When reversing the door, the appliance must not be connected to the mains. Ensure that the plug is removed from the mains socket.

The tools you will need(Not provided):

Not provided
8mm socket driver	Thin-blade screwdriver
Cross-shaped screwdriver	Adjustable Wrench
Putty knife

The parts you will need(provided):

Provided
Case Corner Cover(left)		Case Corner Cover(right)
1		1
Door Corner Cover(right)		Door Corner Cover(left)
1		1
left upper hinge part		4mm Allen Wrench
1		1

Note

You should rest the appliance on soft foam packaging or similar materil to avoid damage. If required you may lay the refrigerator on its back in order to gain access to the base.

1. Stand the refrigerator upright, open the door, use a thin-blade screwdriver to pry off the Door Corner cover(right), the Door Corner cover(left), the Case cover(right) and the Case cover(left), and then put the corner covers in the accessory bag for backup.

NOTE: you should need to pad the pry area with cloth towel to avoid scratching the top of the refrigerator.

Reverse the door

Case Corner Cover (right) Case Corner Cover(Left) Door Corner Cover(right) Door Corner Cover(left)

1. Using the 4mm Allen Wrench to remove the two screws on the right side that hold the right upper hinge part in place and the screw on the left side. (Please support the door when you doing it.)

Technical diagram of a refrigerator with two views of the front panel showing internal components (no text or symbols present)

1. Remove the door and place it on a smooth surface with its panel upwards. Loose 2 self-tapping screws, detach the stopper, the door backstop and the shaft sleeve, then install the stopper, the door backstop and the shaft sleeve to the left side with 2 self-tapping screws.

Reverse the door

1. Loose screws used to fix the middle hinge and remove middle hinge part. Then remove the lower door.

Technical illustration showing a mechanical assembly and a door mechanism with directional arrows (no text or symbols)

1. Place the lower door on a smooth surface with its panel upward. Loose 2 self-tapping screws, detach the stopper, the door backstop and the shaft sleeve, then install the stopper, the door backstop and the shaft sleeve to the left side with 2 self-tapping screws.

Diagram showing a device being adjusted to a cable or cable assembly, with arrows indicating motion (no text or symbols present)

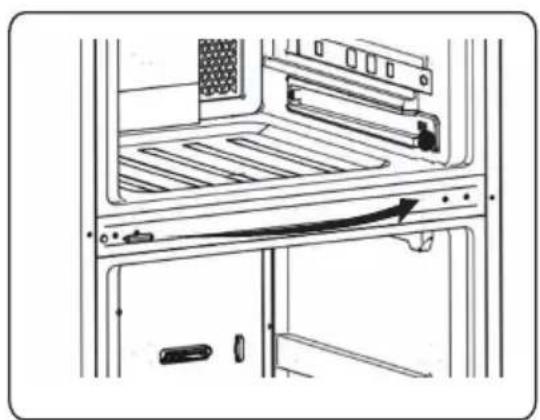

1. Change screw hole covers on middle cover plate from left to right (as shown in figure below).

Diagram of a computer rack with ventilation slots and door, showing internal components without any text or symbols

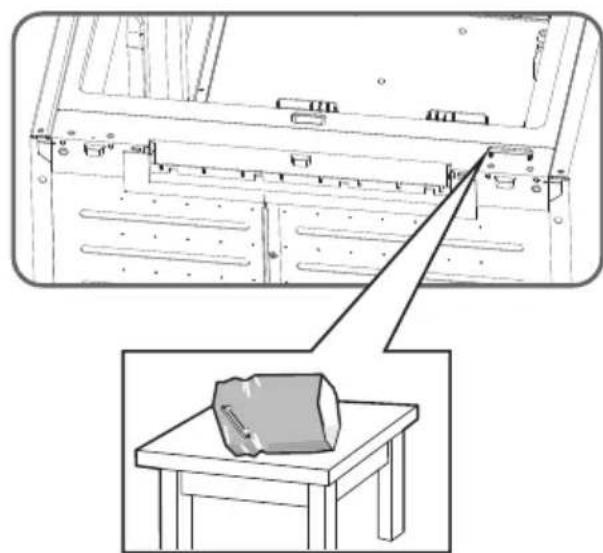

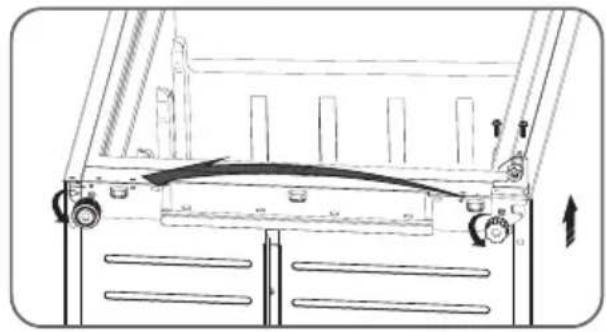

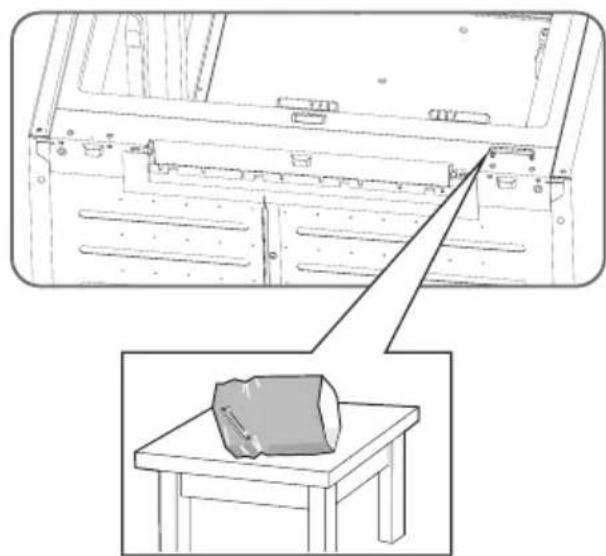

1. Lay the refrigerator on soft foam packaging or similar material. Remove the adjustable bottom feet parts, then remove the lower hinge part by unscrewing the screws.

install the screw hole cover (Provided in the accessory bag) to right hole of lower cover plate.

Finally unscrew the bottom hinge axis and remove it to the hole which is other side and screw it.

Technical line drawing of a mechanical assembly with rollers and a curved component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket with arrows indicating direction (no text or symbols)

Reverse the door

1. Replace the lower hinge part to the left side and fixing it with the special flange screws. Replace the adjustable bottom feet part to another side and fixing it.

Technical line drawing of a mechanical assembly with adjustment knobs and mounting brackets (no text or symbols)

1. Move the lower door and adjust position to align lower hole site and lower hinge axis. Turn the middle hinge by 180°, adjust the middle hinge to the appropriate position and then install it.

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

1. Transfer the upper door to appropriate position. Align the lower hole of the upper door with the upper hinge shaft of the middle hinge, then align the upper hole of the upper door with the hinge shaft of the left upper hinge. Finally adjust the left upper hinge to the appropriate position and then install it with 2 screws.

Line drawing of an open refrigerator with a hand opening the door, shown in two views: top is open showing internal compartments, bottom is close-up of the interior (no text or symbols)

1. Reinstall the door corner cover(right), the door corner cover(left), the case corner cover(right) and the case corner cover(left) which are taken from the accessory bag.

Technical line drawing of a multi-level building structure with stairs and a central square (no text or symbols)

Cleaning and care

- For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly (at least every two months).

Warning

- The appliance must not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

Exterior cleaning

To maintain good appearance of your appliance, you should clean it regularly.

• Wipe the digital panel and display panel with a clean, soft cloth.
• Spray water onto the cleaning cloth instead of spraying directly on the surface of the appliance. This helps ensure an even distribution of moisture to the surface.
• Clean the doors, handles and cabinet surfaces with a mild detergent and then wiped dry with a soft cloth.

Simple line drawing of a rectangular cabinet with a hand holding a triangular object on the side (no text or symbols)

Warning

• Do not use sharp objects as they are likely to scratch the surface.
• Do not use Thinner, Car detergent Clorox, ethereal oil, abrasive cleansers or organic solvent such as Benzene for cleaning. They may damage the surface of the appliance and may cause fire.

Interior cleaning

• You should clean the appliance interior regularly. It will be easier to can remove the drawers and shelves for a more thorough clean.
• Wipe the inside of the freezer with a weak solution of bicarbonate of soda, and then rinse with warm cloth. Wipe completely dry before replacing the shelves and baskets.
• Thoroughly dry all surfaces and removable parts before putting them back into place.

Private Comfort

Cleaning and care

• Although this appliance automatically defrosts, a layer of frost may occur on the freezer compartment's interior walls if the freezer door is opened frequently or kept open too long.

• If the frost is too thick, choose a time when the freezer is nearly empty and proceed as follow:

• Remove existing food and accessories baskets, unplug the appliance from the mains power and leave the doors open.

Ventilate the room thoroughly to accelerate the process.

1. When defrosting is completed, clean your freezer as described above.

Warning

• Do not use sharp objects to remove frost from the freezer compartment.
• Only after the interior is completely dry should the appliance be swit ched back on and plugged back into the mains socket.

Defrosting

Freezer compartment

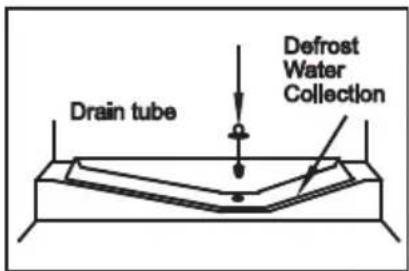

Drain tube Defrost Water Collection

This compartment defrosts automatically

Door seals cleaning

• Take care to keep door seals clean. Sticky food and drinks can cause seals to stick to the cabinet and tear when you open the door. Wash the seals with a mild detergent and warm water. Rinse and dry them thoroughly after cleaning.
- This product contains a light source of energy efficiency class G on the top of the refrigerating chamber.

Warning

The LED light must not be replaced by the user! If damaged, contact the customer heipline for assistance.

Helpful hints and tips

Energy saving tips

We recommend that you follow the tips to save energy.

• Try to avoid keeping the door open for long periods in order to conserve energy.
• Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.)
• Don't set the temperature colder than necessary.
• Don't store warm food or evaporating liquid in the appliance.
• Place the appliance in a well ventilated, humidity free room. Please refer to the installing your new appliance chapter.
• The description of appliance diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration.

Hints for fresh food refrigeration

• Do not place hot food directly into the refrigerator or freezer, the internal temperature will increase resulting in the compressor having to work harder and will consume more energy.
• Do cover or wrap the food, particularly if it has a strong flavor.
• Place food properly so that air can circulate freely around it.

Hints for refrigeration

• Meat (all Types) Wrap in polythene food: wrap and place on the glass shelf above the vegetable drawer. Always follow food storage times and use by dates suggested by manufacturers.
• Cooked food, cold dishes, etc: They should be covered and may be placed on any shelf.
• Fruit and vegetables: They should be stored in the special drawer provided.
• Butter and cheese: Should be wrapped in airtight foil or plastic film wrap.
• Milk bottles: Should have a lid and be stored in the door racks.

Hints for freezing

• When first starting-up or after a period out of use, let the appliance run at least 2 hours on the higher settings before putting food in the compartment.
• Prepare food in small portions to enable it to be rapidly and completely frozen and make it possible to subsequently thaw only the quantity required.
• Wrap up the food in aluminum foil or polyethylene food wraps which are airtight.
• Do not allow fresh, unfrozen food to touch the food which is already frozen to avoid patrial defrosting.

Helpful hints and tips

- It is recommended to label and date each frozen package in order to keep track of the storage time.

Hints for fresh food refrigeration

• Ensure that frozen food has been stored correctly by the food retailer.
• Once defrosted, food will deteriorate rapidly and should not be re-frozen.
• Do not exceed the storage period indicated by the food manufacturer.

Switching off your appliance

• If the appliance needs to be switched off for an extended period, the following steps should be taken to prevent mould on the appliance.
• Remove all food.
• Remove the power plug from the mains socket.
• Clean and dry the interior thoroughly.
• Ensure that all the doors are wedged open slightly to allow air to circulate.

Troubleshooting

If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service, please see below. You can carry out some easy checks according to this section before calling for service.

Warning

Don't try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.

Problem	Possible cause & Solution
Appliance is not working correctly	Check whether the power cord is plugged into the power outlet properly.
	Check the fuse or circuit of your power supply, replace if necessary.

Troubleshooting

Problem	Possible cause & Solution
Appliance is not working correctly	The ambient temperature is too low. Try setting the chamber temperature to a colder level to solve this problem.
	It is normal that the refrigerator is not operating during the automatic defrost cycle, or for a short time after the appliance is switched on to protect the compressor.
Odours from the compartments	The interior may need to be cleaned.
	Some food, containers or wrapping cause odours.
Noise from the appliance	The sounds below are quite normal:Compressor running noises.Air movement noise from the small fan motor in the freezer compartment or other compartments.Gurgling sound similar to water boiling. Popping noise during automatic defrosting.Clicking noise before the compressor starts.
	Other unusual noises are due to the reasons below and may need you to check and take action:The cabinet is not level.The back of appliance touches the wall.Bottles or containers knocking against each other.
The motor runs continuously	It is normal to frequently hear the sound of the motor, it will need to run more when in following circumstances:Temperature setting is set colder than necessary.Large quantity of warm food has recently been stored within the appliance.The temperature outside the appliance is too high.Doors are kept open too long or too often.After your installing the appliance or it has been switched off for a long time.

Troubleshooting

Problem	Possible cause & Solution
A layer of frost occurs in the compartment	Check that the air outlets are not blocked by food and ensure food is placed within the appliance to allow sufficient ventilation.• Ensure the door can be fully closed. To remove the frost, please refer to the cleaning and care chapter.
Temperature inside is too warm	You may have left the doors open too long or too frequently;• Or the doors are kept open by some obstacle;• Or the appliance is located with insufficient clearance at the sides, back and top.
Temperature inside is too cold	Increase the temperature by following the “Display controls” chapter.
Doors can’t be closed easily	Check whether the top of the refrigerator is tilted back by 10-15mm to allow the doors to self close, or if something inside is preventing the doors from closing.
Water drips on the floor	The water pan (located at the rear bottom of the cabinet) may not be properly leveled, or the draining spout underneath the top of the compressor depot may not be properly positioned to direct water into this pan, or the water spout is blocked, or the water is not fully inserted into the connector.• You may need to pull the refrigerator away from the wall to check the pan and spout and connector.• Check if the refrigerator is power-off for a long time, this may cause the ice in the bucket to melt into water, and flow to the floor.
The light is not working	• the LED light may be damaged. Refer to replace LED lights in cleaning and care chapter.• the control system has disabled the lights due to the door being kept open too long, close and reopen the door to reactivate the lights.

Troubleshooting

Problem	Possible cause & Solution
Ice is not dispensing	Did you wait for 10 hours after installation of the water supply line before making ice? if it is not sufficiently cool, it may take longer to make ice, such as when first installed.Is the water line connected and the water valve open?Did you manually stop the ice making function? Make sure you have set the Cubed or Crushed mode on.Is there any ice blocked within the ice maker bucket or ice chute?Is the freezer temperature too warm? Try setting the freezer temperature lower.
Water dispenser is not functioning	Is the water storage box installed accurately? Make surethere is enough water in the water storage box.Is water line broke or bent? Make sure the water line is unblocked and clear of any obstruction.Is the water storage box frozen for the refrigerator temperature is too low? Try selecting a warmer setting on the display panel.Is the water pump working?
You can hear water bubbling in the refrigerator	This is normal. The bubbling comes from the refrigerant coolant liquid circulating through the refrigerator.
Unable to connect appliance to WiFi network	The password for home Wi-Fi network was entered incorrectly. Make sure the password is correct and connect again.The home Wi-Fi router frequency is not 2.4GHz.The appliance only supports 2.4GHz radio frequency. Set up a dedicated 2.4GHz Wi-Fi SSID and connect the appliance to it.The router and appliance kept far apart causing the poor network. Consider either moving the router closer to the appliance or purchasing Wi-Fi range extender and installing it.

Disposal of the appliance

It is prohibited to dispose of this appliance as household waste.

Packaging materials

Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it.

Before disposal of the appliance

1. Pull out the mains plug from the mains socket.
2. Cut off the power cord and discard with the mains plug

Warning

Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal.

Correct Disposal of this product

This marking indicates that this product should no be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Disposal of the appliance

To avoid contamination of food, please respect the flwing instructions

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainag esystems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

Order	Togapstragets type	temp.[°C]	Appropriate food
1	Fridge	+2~+8	Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods which are not suitable for freezing.
2	(***)*-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months ,the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3	***-Freezer	≤-18	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition),are not suitable for frozen fresh food.
4 Wine	+5~+20		Red wine, white wine, sparkling wine etc.

Disposal of the appliance

Order	Target storage type	temp.[°C]	Appropriate foodCompartme
5	**-Freezer	≤-12	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 2 months, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
6	*-Freezer	≤-6	Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 1 month, the longer the storage time, the worse the taste and nutrition), are not suitable for frozen fresh food.
70-star -6~0			Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably not later than 3 days). Partially packed/wrapped up encapsulated processed foods (non-freezable foods).
8	chill	-2~+3	Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc.(7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0°C for 15 days, it is not recommended to store above 0°C).
9	Fresh Food	0~+4	Fresh pork, beef, fish, chicken, cooked food, etc. (Recommended to eat within the same day, preferably no more than 3 days).

Disposal of the appliance

Note

please store different foods according to the compartments or target storage temperature of your purchased products.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Water dispenser cleaning (special for water dispenser products):

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

Warning

Food needs to be packed in bags before putting into the refrigerator, and liquids need to be packed in bottles or capped containers to avoid the problem that the product design structure is not easy to clean.

Hisense

life reimagined

Hisense

life reimagined

MANUEL D'UTILISATION DE L'UTILISATEUR

Illustration of a two-tier refrigerator with no visible text or symbols

Line drawing of a refrigerator with directional arrows indicating motion (no text or symbols)

Hand-drawn diagram of a rectangular box with a prohibition symbol and a zigzag arrow below it, likely indicating a caution or hazard.

REMARQUE

REMARQUE

QR code image containing encoded data, no visible human-readable text

REMARQUE

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a document on a shelf with an arrow indicating direction (no text or symbols present)

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Bac fraîcheur 0 °C

High Humidity Low Humidity

Diagram showing a device being processed from a left-side box to an interior drawer (no text or symbols present)

Inverser Fresh Zium Fresh Cigarette and Cigarette Fresh Cigarette and Cigarette

AVERTISSEMENT

Case Corner Cover (right) Case Corner Cover(Left) Door Corner Cover(right) Door Corner Cover(left)

Technical diagram of a refrigerator with two views of the front panel showing internal components (no text or symbols present)

Technical illustration showing a mechanical assembly with a bracket and a document being inserted (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled components and directional arrows indicating motion.

Diagram of a computer rack with ventilation slots and door, showing internal components and a directional arrow (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and a curved component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a workbench (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket mechanism (no text or symbols)

Inversez la porte

Technical line drawing of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram showing a refrigerator interior with open door and close-up view of internal equipment (no text or symbols)

Technical line drawing of a multi-level refrigerator or oven unit with no visible text or symbols

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Avertissement

Line drawing of a refrigerator with doors open and a hand cleaning the interior (no text or symbols)

Warning symbol with exclamation mark and thermometer icon above a black rectangle

OK

Illustration of a two-tier refrigerator with no visible text or symbols

Illustration of two refrigerators with directional arrows indicating movement, one with a prohibition symbol (no text or labels)

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Frigo Freezer

NOTA

NOTA

QR code image containing encoded data, no visible human-readable text

NOTA

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a rectangular object on a shelf, with no visible text or symbols

Portabottiglie flessibile

Technical line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Cassetto 0°C Fresh

High Humidity Low Humidity

Diagram showing a door opening process with a hand inserting a tray into the interior (no text or symbols present)

Parti necessarie (fornite):

Case Corner Cover (right) Case Corner Cover(Left) Door Corner Cover(right) Door Corner Cover(left)

Technical diagram of a refrigerator with two views of the front panel showing internal components (no text or symbols present)

Technical illustration showing a mechanical assembly with a bracket and a hand holding a closed book (no text or symbols present)

Diagram illustrating a device's rotation and disassembly process, showing the left panel with rotation arrows and the right panel with tool insertion.

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with rollers and a curved component (no text or symbols)

Technical diagram of a mechanical assembly with an inset showing a cylindrical component placed on a workbench (no text or symbols present)

Mechanical assembly diagram showing two mechanical components with directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram showing a refrigerator interior with open door and close-up view of internal components (no text or symbols)

Technical line drawing of a multi-level storage or rack system with no visible text or symbols

Pulizia e cura

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Avvertenza

Illustration of a refrigerator with open doors and a hand cleaning the interior (no text or symbols)

Pulizia e cura

Illustration of a two-tier refrigerator with no visible text or symbols

Productgrootte (mm): 595*600*1856

Illustration of two refrigerators with directional arrows indicating movement, one with a prohibition symbol (no text or labels)

OPMERKING

OPMERKING

Koelkastcompartiment: 4°C

Diepvriescompartiment: -18°C

6. Super Vriezen

QR code image containing encoded data, no visible human-readable text

OPMERKING

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing an arrow on a shelf with shelves (no text or symbols)

Flexibel wijnrek

Technical line drawing of a multi-level shelving unit with no visible text or symbols

0°C Vershoudcompartiment

High Humidity Low Humidity

Diagram showing a furniture piece being placed inside a storage cabinet, before and after transformation (no text or symbols)

Case Corner Cover (right) Case Corner Cover(Left) Door Corner Cover(right) Door Corner Cover(left)

Technical diagram of a refrigerator with two views of the front panel showing internal components (no text or symbols present)

Technical illustration showing a mechanical bracket and a document with an upward arrow (no text or symbols)

Diagram illustrating a folding or reassembly process of a rectangular object, showing left and right views with arrows indicating movement.

Diagram of a computer rack with ventilation slots and door, showing internal structure without any text or symbols

Technical line drawing of a mechanical device with rollers and a curved component (no text or symbols)

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a workbench (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket assembly (no text or symbols present)

Technical line drawing of a mechanical assembly with gears and adjustment knobs (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Technical diagram showing a refrigerator with open door and internal compartments, plus a close-up of the interior panel with labeled components.

Technical line drawing of a multi-level storage or rack system with no visible text or symbols

Line drawing of a refrigerator with a handle and lid, no text or symbols present

Waarschuwing

Line drawing of a refrigerator with a hand cleaning the door, showing no text or symbols

Illustration of a two-tier refrigerator with no visible text or symbols

Line drawing of a refrigerator with directional arrows indicating motion (no text or symbols)

Hand-drawn diagram of a refrigerator with a prohibition symbol and a zigzag arrow below it

NOTA

NOTA

QR code image containing encoded data, no visible human-readable text

NOTA

Illustration of two hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Technical line drawing of a multi-level shelving unit with no visible text or symbols

Caixa de frescos a 0°C

High Humidity Low Humidity

Gaveta do congelador

Diagram showing a door opening process with a device inside, before and after (no text or symbols)

Case Corner Cover (right) Door Corner Cover(right) Case Corner Cover(Left) Door Corner Cover(left)

Technical diagram of a refrigerator with two views of the front panel showing internal components (no text or symbols present)

Inverter a porta

Technical illustration showing a mechanical assembly with a bracket and a hand holding a closed book (no text or symbols present)

Diagram illustrating a device's rotation and disassembly process, showing the left panel with rotation arrows and the right panel with a tool inserted.

Diagram of a computer rack with ventilation slots and door, showing internal components without any text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two mechanical components with directional arrows indicating movement (no text or symbols)

Inverter a porta

Technical line drawing of a mechanical assembly with rollers and guide rails (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram of a refrigerator interior showing open door and close-up view of internal compartments (no text or symbols)

Technical line drawing of a multi-level storage or rack system with no visible text or symbols

Limpeza e cuidado

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Aviso

Line drawing of an open refrigerator with a hand cleaning the door (no text or symbols)

Limpeza e cuidado

Illustration of a two-tier refrigerator with no visible text or symbols

Diagram showing two refrigerators with directional arrows indicating movement, one with a prohibition sign and the other with a wavy arrow (no text or symbols on main objects)

Opis urządzenia

Przegląd urządzenia

UWAGA

UWAGA

QR code image containing encoded data, no visible human-readable text

UWAGA

Illustration of two hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Line drawing of a three-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

High Humidity Low Humidity

Szuflada zamrażarki

Diagram showing a door opening process with a device inside, before and after (no text or symbols)

Proces odwrotny French Zide French Ostenet French Ostenet French Ostenet

OSTRZEŻENIE

Technical line drawing of a refrigerator interior with two views of the front panel (no text or symbols present)

Technical illustration showing a mechanical assembly with a bracket and a document being held by hands (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating motion.

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and a close-up of a device on a table.

Mechanical assembly diagram showing two connected components with arrows indicating direction (no text or symbols)

Przenoszenie drzwi

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Technical illustration of an open refrigerator with internal compartments and a close-up view showing internal components (no text or symbols)

Technical line drawing of a cabinet or enclosure with doors, doors, and internal components (no text or symbols)

Line drawing of a refrigerator with a handle and lid, no text or symbols present

Ostrzeżenie

Illustration of a refrigerator with open doors and a hand cleaning the interior (no text or symbols)

Illustration of a two-tier refrigerator with no visible text or symbols

Toote suurus (mm): 595*600*1856

Illustration of two refrigerators with directional arrows indicating movement, one with a prohibition symbol (no text or labels)

Seadme kirjeldus

Seadme ülevaade

01 02 03 04 05 06 07 08 Külmik Sügavkülm

MÄRKUS

MÄRKUS

QR code image containing encoded data, no visible human-readable text

MÄRKUS

Illustration of two hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Paindlik veiniriiul

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

0°C värske karp

High Humidity Low Humidity

Diagram showing a device being processed from a left-side box to an open drawer (no text or symbols present)

Ümbertöstmine French Plate French Plate French Plate

HOIATUS

Technical line drawing of a refrigerator with two views of the front panel showing internal components (no text or symbols)

Technical illustration showing a mechanical assembly with a bracket and a document being held by hands (no text or symbols present)

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and a close-up of a device on a table.

Mechanical assembly diagram showing two connected components with directional arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Technical illustration of a refrigerator interior showing open door and internal compartments, with close-up view of internal components (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal components and mounting holes (no text or symbols)

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Hoiatus

Diagram of a refrigerator with doors open, showing the interior shelf and door handle (no text or symbols)

Illustration of a two-tier refrigerator with no visible text or symbols

Produkto dydis (mm): 595*600*1856

Diagram showing two refrigerators with directional arrows indicating movement, one with a prohibition sign and the other with a wavy arrow (no text or symbols on main objects)

Prietaiso aprašymas

Prietaiso apžvalga

01 02 03 04 05 06 07 08 Šaldytuvas Šaldiklis

PASTABA

PASTABA

QR code image containing encoded data, no visible human-readable text

PASTABA

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

Diagram showing a device being processed from a left-side view and then assembled into a closed door (no text or symbols present)

Apsukti French Plate French Plate French Plate

JSPÈJIMAS

Technical line drawing of a refrigerator interior with two views of the front panel (no text or symbols present)

Technical illustration showing a mechanical assembly with a bracket and a document being held by hands (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating motion.

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical diagram showing a mechanical assembly with a close-up of a device on a table (no text or symbols present)

Mechanical assembly diagram showing two connected components with arrows indicating motion (no text or symbols)

Duru apsukimas

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Technical illustration of a refrigerator interior showing open door and internal compartments, with close-up view of internal components (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting brackets (no text or symbols)

Line drawing of a refrigerator with a hand cleaning the front panel (no text or symbols)

Ispėjimas

Illustration of a refrigerator with open doors and a hand cleaning the interior (no text or symbols)

Illustration of a two-tier refrigerator with no visible text or symbols

Produkta izmērs (mm): 595*600*1856

Diagram showing two refrigerators with directional arrows indicating movement, one with a prohibition symbol (no text or labels)

Ierīces apraksts

IEVÉROJIET

IEVÉROJIET

QR code image containing encoded data, no visible human-readable text

IEVÉROJIET

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Line drawing of a two-tiered storage cabinet or rack unit (no text or symbols)

0°C svaigo produktu kaste

High Humidity Low Humidity

Diagram showing a device being processed from a left-side view to an interior view, with no visible text or symbols.

Technical line drawing of a refrigerator interior with two views of the door (no text or symbols present)

Durvju puses maina

Illustration showing a mechanical assembly with a bracket and a document being held, no text or symbols present.

Diagram illustrating a device's rotation and disassembly process, showing step-by-step assembly with arrows indicating movement.

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical diagram showing a mechanical assembly with a close-up of a table and a separate view of a device (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket (no text or symbols)

Durvju puses maina

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram of a refrigerator interior showing open door and internal compartments, with close-up view of internal components (no text or symbols)

Technical line drawing of a cabinet or enclosure with doors, doors, and internal components (no text or symbols)

Tīrīšana un kopšana

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Brīdinājums

Illustration of a refrigerator with open doors and a hand cleaning the interior (no text or symbols)

Tīrīšana un kopšana

W D W1 D 105°

Illustration of a two-tier refrigerator with no visible text or symbols

Illustration of a refrigerator with two hanging legs and directional arrows indicating airflow or movement (no text or symbols)

Diagram showing a box with a prohibition symbol and a zigzag arrow below, indicating a caution or hazard.

Опис приладу

Огляд приладу

ПРИМІТКИ

ПРИМІТКИ

QR code image containing encoded data, no visible human-readable text

ПРИМІТКИ

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a shelf item into a storage tray (no text or symbols)

Technical line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

Морозильна камера

Diagram showing a 3D box being opened into a refrigerator, with an arrow indicating the process (no text or symbols present)

Technical line drawing of a refrigerator interior with two views of the front panel (no text or symbols present)

Technical illustration showing a structural connection and a door mechanism with directional arrows (no text or symbols)

Diagram illustrating a mechanical assembly process with labeled steps and directional arrows indicating motion.

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical diagram showing mechanical assembly and close-up of a table with a box, no visible text or symbols

Mechanical assembly diagram showing two sequential steps of a mechanical clamp or bracket (no text or symbols)

Technical diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols present)

Technical diagram showing a door panel and a mechanical assembly with a tool, no visible text or symbols

Diagram of a refrigerator interior showing open door and internal compartments, with close-up view of internal components (no text or symbols)

Technical line drawing of a cabinet or enclosure with internal components and mounting holes (no text or symbols)

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Попередження

Illustration of a refrigerator with an open door and a cloth partially removed, showing no text or symbols.

Illustration of a two-tier refrigerator with no visible text or symbols

Diagram showing two refrigerator models with directional arrows indicating movement, one marked with a prohibition sign.

BEMÆRK

Hvert tryk på knappen reducerer indstillingen med én grad.

5. Temperatur i fryseren

BEMÆRK

Hvert tryk på knappen reducerer indstillingen med én grad.

QR code image containing encoded data, no visible human-readable text

BEMÆRK

Illustration of hands holding a cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Fleksibel vinreol

Line drawing of a three-tiered storage cabinet or rack unit (no text or symbols)

0°C frisk øeske

High Humidity Low Humidity

Diagram showing a furniture piece being removed from a door, with no visible text or symbols

Technical line drawing of a mechanical assembly with two circular insets showing close-ups of components (no text or symbols)

Technical illustration showing a mechanical assembly and a door mechanism with directional arrows (no text or symbols)

Diagram of a computer rack with ventilation slots and door, showing internal components without any text or symbols

Technical diagram showing mechanical assembly and close-up of a table with a stone object, no visible text or symbols

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket mechanism (no text or symbols)

Vend døren

Technical line drawing of a mechanical assembly with arrows indicating motion (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Technical line drawing of an open refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

Line drawing of a cabinet or enclosure with doors, doors, and internal components (no text or symbols)

Rengøring og pleje

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Advarsel

Line drawing of an open refrigerator with a hand cleaning the interior (no text or symbols)

Rengøring og pleje

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

WARNING Brandrisk/brandfarliga material

Om kylmediekretsen skadas:

Illustration of a two-tier refrigerator with no visible text or symbols

Produktmått (mm): 595*600*1856

Line drawing of a refrigerator with two hanging blades and directional arrows indicating airflow or movement (no text or symbols)

Hand-drawn diagram of a refrigerator with a prohibition symbol and a downward arrow, indicating no change or caution.

OBSERVERA

OBSERVERA

QR code image containing encoded data, no visible human-readable text

OBSERVERA

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a white object on a shelf with an arrow symbol (no text or labels)

Flexibel vinhållare

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

0°C färskläda

High Humidity Low Humidity

Diagram showing a furniture piece moving from a cabinet to an open refrigerator (no text or symbols present)

Technical illustration showing a mechanical assembly and a door panel with directional arrows (no text or symbols)

Diagram of a computer rack with ventilation slots and door, showing internal structure without any text or symbols

Technical diagram showing mechanical assembly and close-up of a table with a cylindrical object (no text or symbols)

Mechanical assembly diagram showing two sequential steps of a mechanical clamp or bracket (no text or symbols)

Technical line drawing of a mechanical assembly with arrows indicating motion (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of an open refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

Line drawing of a cabinet or enclosure with doors, doors, and internal components (no text or symbols)

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Varning

Line drawing of an open refrigerator with a hand cleaning the interior (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a two-tier refrigerator with no visible text or symbols

≥2,5mm ≥2,5mm 595mm

Simple line drawing of a vertical rectangular frame with two horizontal segments and corner markers (no text or symbols)

justerbare bunnsko

Advarsel

Line drawing of a refrigerator with two hanging legs and directional arrows indicating airflow or movement (no text or symbols)

Hand-drawn diagram of a refrigerator with a prohibition symbol and a downward arrow, indicating no fire or water.

MERK

MERK

QR code image containing encoded data, no visible human-readable text

MERK

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a plastic bag onto a shelf with an arrow indicating motion (no text or symbols)

Fleksibel vinstativ

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

0°C-sone skuff

High Humidity Low Humidity

High Humidity Low Humidity

Fryseskuff

Diagram showing a door opening process with an arrow indicating transformation (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled components and zoomed-in views of a device.

Technical illustration showing a mechanical assembly with a bracket and a document holder, both without any text or symbols.

Diagram of a computer tower interior showing ventilation slots and doorways (no text or labels)

Technical diagram showing mechanical assembly and close-up of a table with a stone object (no text or symbols)

Mechanical assembly diagram showing two sequential steps of a mechanical clamp or bracket (no text or symbols)

Reverserende dør

1. Flytt det nedre hengselet til venstre side og fest den med de spesielle flensskruene. Flytt den regulerbare foten til den andre siden og fest den.

Technical line drawing of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of an open refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

Line drawing of a cabinet or enclosure with doors, doors, and internal components (no text or symbols)

Rengjøring og stell

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Advarsel

Line drawing of a refrigerator with an open door and a cloth partially inserted, showing no text or symbols.

Rengjøring og stell

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a two-tier refrigerator with no visible text or symbols

Diagram showing refrigerator exterior and interior with a no-smoking sign, illustrating refrigeration or cooling conditions.

Laitteen kuvaus

HUOMAUTUS

HUOMAUTUS

QR code image containing encoded data, no visible human-readable text

HUOMAUTUS

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a plastic bag onto a shelf (no text or symbols)

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

0°C tuorelaatikko

High Humidity Low Humidity

Diagram showing a door opening process with a cabinet and drawer, before and after assembly (no text or symbols)

Käänteinen French Zone French Current French Current

VAROITUS

Technical diagram showing two views of a mechanical device with labeled components and directional arrows indicating assembly or positioning.

Technical illustration showing a mechanical assembly and a door panel with directional arrows (no text or symbols)

Diagram of a computer rack with ventilation slots and door, showing internal components and a directional arrow (no text or symbols)

Technical diagram showing a mechanical assembly with a close-up view of a workbench and a separate view of a stone block (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket (no text or symbols)

Oven kääntäminen

Technical line drawing of a mechanical assembly with arrows indicating motion (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Technical line drawing of an open refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

Line drawing of a cabinet or enclosure with doors, doors, and internal components (no text or symbols)

Puhdistus ja hoito

Line drawing of a refrigerator with a handle and lid (no text or symbols)

Varoitus

Line drawing of an open refrigerator with a hand cleaning the interior (no text or symbols)

Puhdistus ja hoito

Illustration of a two-tier refrigerator with no visible text or symbols

Line drawing of a refrigerator with directional arrows indicating motion (no text or symbols)

Diagram showing a box with a prohibition symbol and a downward arrow, indicating a decrease or reduction in the absence of the prohibition.

Описание на уреда

Преглед на уреда

01 02 03 04 05 06 07 08 Хладилник Фризер

Забележка

Забележка

QR code image containing encoded data, no visible human-readable text

Забележка

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion (no text or symbols)

Illustration of a hand placing a paper or document on a shelf with an arrow indicating direction (no text or symbols present)

Line drawing of a two-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

Чекмедже на фризера

Diagram showing a 3D box being opened into a refrigerator, with an arrow indicating the process (no text or symbols present)

Обърнете French Zone French Corenet French Corenet

ПРЕДУПРЕЖДЕНИЕ

Technical line drawing of a refrigerator with two views of the door (no text or symbols present)

Обръщане на вратата

Technical illustration showing a mechanical assembly with a bracket and a hand holding a document (no text or symbols present)

Diagram illustrating a device's rotation and adjustment mechanism, showing the left panel with rotation arrows and the right panel with a hand adjusting a component.

Diagram of a computer rack with ventilation slots and door, showing internal components without any text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a workbench (no text or symbols)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket assembly (no text or symbols)

Обръщане на вратата

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a door panel and a mechanical assembly with a lever mechanism (no text or symbols)

Line drawing of an open refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

Technical line drawing of a refrigerator internal structure (no text or symbols)

Почистване и грижи

Simple line drawing of a refrigerator with a hand holding the lid (no text or symbols)

Предупреждение

Fresh Correct

Почистване и грижи

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Правилно изхвърляне

Illustration of a two-tier refrigerator with no visible text or symbols

Termék mérete (mm): 595*600*1856

Line drawing of a refrigerator with two hanging legs and directional arrows indicating motion (no text or symbols)

Hand-drawn diagram of a refrigerator with a prohibition symbol and a downward arrow, indicating no fire resistance.

A készülék leírása

Megjegyzés

Megjegyzés

QR code image containing encoded data, no visible human-readable text

Megjegyzés

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing an arrow on a shelf with shelves (no text or symbols)

Flexibilis bortartó

Line drawing of a three-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

Fagyasztófiók

Diagram showing a door latch mechanism before and after assembly, with no visible text or symbols

Technical diagram showing assembly of a refrigerator with labeled components and close-ups of internal components

Ajtóátfordítás

Illustration showing a hand holding a book and a bracket, with no visible text or symbols

Diagram showing a device being adjusted to form a separate bracket, with arrows indicating motion direction (no text or symbols present)

Diagram of a computer rack with ventilation slots and door, showing internal components without any text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an inset image showing a paper object placed on a table (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket assembly (no text or symbols present)

Ajtóátfordítás

Technical line drawing of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of an open refrigerator with a hand opening the door, shown in two views: top shows internal compartments, bottom shows close-up of the interior (no text or symbols)

Technical line drawing of a refrigerator internal structure (no text or symbols)

Line drawing of a refrigerator with a hand holding a cloth (no text or symbols)

Figyelem

Ponds Connect

Illustration of a two-tier refrigerator with no visible text or symbols

Dimenzije proizvoda (mm): 595*600*1856 Uređaj se može postaviti uz zid, između komada namještaja ili uz druge uređaje. U tom slučaju uređaj će raditi ispravno, ali buka i potrošnja električne energije mogu se povećati.

U ugradenom stanju ≥2.5 mm ≥2.5 mm 595 mm

Line drawing of a refrigerator with directional arrows indicating motion (no text or symbols)

Hand-drawn diagram of a rectangular box with a prohibition symbol and a zigzag arrow below it, likely indicating a caution or rejection concept.

Opis uredaj

Pregled uređaja

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Hladnjak Zamrzivač

① Elektronički upravljač

② Prilagodljiva polica za vino

③ Police za odlaganje

Napomena

Svakim pritiskom smanjujete vrijednost postavke temperature za 1°C.

Napomena

Svakim pritiskom smanjujete vrijednost postavke temperature za 1°C.

Postavljanje vrijednosti temperature u odjeljku

QR code image containing encoded data, no visible human-readable text

Napomena

- Na jačinu signala bežične mreže Wi-Fi može utjecati udaljenost između uređaja i usmjerivača bežične mreže Wi-Fi. Ako je udaljenost prevelika, uparivanje možda neće uspjeti ili će trajati duže.

Illustration of two hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Sve police na vratima moguće je skinuti radi jednostavnog čišćenja.

Police za odlaganje

Police za odlaganje moguće je izvaditi radi jednostavnog čišćenja.

Illustration of a hand placing an arrow on a shelf with shelves (no text or symbols)

Prilagodljiva polica za vino

Line drawing of a three-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

Možete okretati gumb na poklopcu ladice za voće i povrće kako biste zadržali različitu vlažnost u njoj. Ako okrenete gumb ulijevo, vlažnost je viša te povrće i voće dulje zadržava svježinu. Ako okrenete udesno, vlažnost će biti niža. Služi za kontrolu temperature ladice za voće i povrće i sprečavanje gubitka vlage iz pohranjenih namirnica.

Ladica zamrzivača

Koristi se za čuvanje hrane koju je potrebno zamrznuti, uključujući meso, ribu, sladoled itd.

Diagram showing a door opening process with a cabinet and drawer, before and after (no text or symbols)

Da biste uklonili ladicu zamrzivača, odignite prednji dio ladice i povucite prema naprijed. Zatim nagnite ladicu prema dolje i obema rukama je izvadite.

Obratan smjer French Zone French Occasert French Occasert French Occasert

UPOZORENJE

Pobrinite se da je hladnjak iskopčan prije početka tog postupka da biste izbjegli opasnosti koje uzrokuje električna struja.

Potrebni alati (nisu isporučeni):

Technical diagram showing assembly of a refrigerator with labeled components and close-ups of internal components

Technical illustration showing a mechanical assembly with a close-up of a component being held by a hand, alongside a separate view of a rectangular panel with an upward arrow (no text or symbols)

1. Postavite donja vrata na glatku površinu tako da je ploča vrata okrenuta prema gore. Odvijte dva vijka, odvojite graničnik, graničnik vrata, čahuru osovine i ponovo ih postavite na lijevu stranu služeći se istim vijcima.

Diagram illustrating a device's rotation and assembly process, showing left-hand rule and right-hand rule with arrows indicating motion.

1. Pomaknite poklopce otvora za vijak na srednjoj pokrovnoj ploči slijeva nadesno (kao što je prikazano na slici u nastavku).

Diagram of a computer rack with ventilation slots and door handle, showing internal components without any text or symbols

1. Položite hladnjak na mekanu ambalažu od pjene ili sličan materijal. Skinite prilagodljive donje nožice, a zatim odvijte i skinite donju šarku. Postavite poklopac otvora za vijak (isporučen u vrećici s dodatnom opremom) na desni otvor donje pokrovne ploče. Naposlijetku, odvijte osovinu donje šarke i postavite je u otvor na suprotnoj strani.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an inset image showing a cylindrical component placed on a workbench (no text or symbols)

Mechanical assembly diagram showing two parts with arrows indicating direction of movement (no text or symbols)

Technical line drawing of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of a refrigerator interior showing open door and internal compartments, with close-up view of internal components (no text or symbols)

1. Ponovo postavite poklopac za kut vrata (desni), poklopac za kut vrata (lijevi), poklopac za kut kućišta (desni) i poklopac za kut kućišta (lijevi) koje ste uzeli iz vrećice s dodatnom opremom.

Technical line drawing of a refrigerator internal structure (no text or symbols)

Line drawing of a refrigerator with a hand holding a small object (no text or symbols)

Upozorenje

Pouch Current

Illustration of a two-tier refrigerator with no visible text or symbols

Line drawing of a refrigerator with two hanging blades and directional arrows indicating airflow or movement (no text or symbols)

Hand-drawn diagram of a rectangular box with a prohibition symbol and a zigzag arrow below it, likely indicating a caution or rejection concept.

Opis aparata

Pregled aparata

① ② ③ ④ ⑤ ⑥ ⑦ Frižider Zamrzivač

① Elektronska kontrola

② Fleksibilna polica za vino

Napomena

Svakim pritiskom podešavanje temperature se smanjuje za 1°C.

Napomena

Svakim pritiskom podešavanje temperature se smanjuje za 1°C.

Podešavanje temperatura u odeljcima

Podešavanje temperature konfiguriše prosek za ceo odeljak, sa aktuelnim temperaturama koje variraju na osnovu količine hrane, položaja i ambijentalne temperature prostorije.

QR code image containing encoded data, no visible human-readable text

Napomena

• Na snagu Wi-Fi signala može da utiče razdaljina između aparata i Wi-Fi rutera. Ako su predaleko jedan od drugog, uparivanje možda neće biti uspešno ili će trajati duže.
• Aparat podržava samo Wi-Fi mrežu na 2,4 GHz. SSID Wi-Fi mreže mora biti vidljiv.
• Na performanse vaše mreže može da utiče bežično okruženje, uključujući druge povezane uređaje.
• Spoljašnji faktori, kao što su vaše okruženje kućne mreže ili pružalac internet usluge, mogu da dovedu do prekida u Wi-Fi vezi vašeg aparata.

Verzija aplikacije

Aktuelna verzija sistema Android i iOS: V2.3.0 Verzija aplikacije se neprekidno menja i nadograđuje; pogledajte verziju koja se preuzima iz radnji App Store, AppGallery ili Google Play.

Kontrole na ekranu

Povezivanje frižidera

Illustration of two hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Sve police na vratima se mogu odvojiti radi jednostavnog čišćenja.

Illustration of a hand placing an arrow on a shelf with shelves (no text or symbols)

Fleksibilna polica za vino

Osmišljena za skladištenje flaša, može se uklanjati radi čišćenja.

Line drawing of a three-tiered storage cabinet or rack unit (no text or symbols)

Fioka za sveže proizvode 0°C

Ova fioka pruža nižu temperaturu za skladištenje kratkotrajnih prehrambenih proizvoda, kao što su riba i meso. Možete da podesite temperaturu pomoću klizača: pomeranjem nalevo temperatura u fioci se poklapa sa temperaturom ostatka frižidera, dok pomeranjem nadesno fioka postaje za 4°C hladnija. Pogledajte tabelu u nastavku za preporuke za skladištenje.

Podešena temperatura frižidera	Klizač Hrana	Period čuvanja
2°C Do kraja nalevo Voće < 2 nedelje
2°C	Do kraja nadesno	Riba i meso < 3	dana
5°C Do kraja nalevo Povrće < 5 dana
5°C	Do kraja nadesno	Riba i meso < 3	dana
8°C Do kraja nalevo Povrće < 5 dana
8°C	Do kraja nadesno	Voće < 2 nedelje

Napomena: I ambijentalna temperatura i podešena temperatura utiču na temperaturu fioke na 0°C, što može da varira u određenom opsegu. Normalno je da se tečnost zamrzne ako temperatura u fioci padne ispod nule.

Levo Desno Klizač Fioka za sveže proizvode 0°C

Upotreba uredaja

Fioka za povrće

High Humidity Low Humidity

Okretajem dugmeta na poklopcu kutije za održavanje svežine možete da podešavate različitu vlažnost u kutiji. Pomerite dugme na levo kako biste održali veću vlažnost, što omogućava duže i sveže čuvanje povrća i voća, dok pomeranje desno smanjuje vlažnost. Ovo služi za kontrolu temperature u fioci za sveže i sprečava gubitak vlage iz povrća.

Fioke zamrzivača

Koristi se za skladištenje namirnica koje je potrebno zamrznuti, uključujući meso, ribu, sladoled itd.

Diagram showing a refrigerator interior with a person inside, before and after the change (no text or symbols present)

Da biste izvukli fioku za zamrzavanje, podignite prednji deo fioke na gore i povucite je napred, zatim nagnite fioku nadole i izvucite je napred obema rukama.

Okrenite vrata

Obrtanje Fresh Zone Fresh Current and Current Fresh Current

UPOZORENJE

Uverite se da je frižider iskopčan iz napajanja pre nego što započnete ovaj proces da biste izbegli opasnost od strujnog udara.

Alat koji će vam biti potreban (nije priložen):

Nije priloženo
Gedora od 8 mm Ravni odvijač
Krstasti odvijač Podesivi ključ
Špahtla

Delovi koji će vam biti potrebni (priloženo):

Priloženo
Poklopac za ugao kućišta (levo)	Poklopac za ugao kućišta (desno)
1	1
Poklopac za ugao vrata (desno)	Poklopac za ugao vrata (levo)
1	1
deo gornje leve šarke Imbus ključ 4 mm
1	1

Napomena

Postavite frižider na meku penu ili sličan materijal da biste sprečili oštećenje. Može biti potrebno da postavite frižider na zadnju stranu da biste pristupili bazi.

1. Postavite frižider uspravno, otvorite vrata, ravnim odvijačem odvojite poklopac ugla vrata (desno), poklopac ugla vrata (levo), poklopac kućišta (desno) i poklopac kućišta (levo) i stavite poklopce uglova u kesu za rezervu.

Technical line drawing of a refrigerator interior with two circular insets showing internal components (no text or symbols)

Okrenite vrata

1. Olabavite zavrtnje na srednjoj šarki da biste je uklonili. Zatim uklonite donja vrata.

Technical illustration showing a mechanical assembly with a bracket and a separate view of a rectangular panel being held by a hand (no text or symbols present)

1. Postavite donja vrata na ravnu površinu tako da panel bude okrenut nagore. Olabavite 2 zavrtnja, odvojite graničnik, zadnji graničnik vrata i rukavac osovine, zatim ih ponovo postavite na levu stranu korišćenjem istih zavrtanja.

Diagram illustrating the process of a device's rotation and mounting mechanism, showing before-and-after states with directional arrows.

1. Zamenite poklopce otvora zavrtnja na srednjoj ploči poklopca sa leve na desnoj strani (kao što je prikazano na slici u nastavku).

Diagram of a computer rack with ventilation slots and door, showing internal components without any text or symbols

1. Položite frižider na meki stiropor ili slični materijal. Uklonite donje podesive nožice, zatim odvijte i uklonite donju šarku. Postavite poklopac na otvoru za zavrtanj (priložen je u kesi sa priborom) da desnom otvoru donje ploče poklopca. Na kraju, odvijte šarku donje osovine i premestite je u otvor na suprotnoj strani.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two parts being moved, one with a bolt and arrow indicating direction (no text or symbols)

Okrenite vrata

1. Ponovo postavite donju šarku na levoj strani i pričvrstite je posebnim zavrtnjima sa prirubnicom. Ponovo postavite donje podesive nožice na drugoj strani i takođe ih pričvrstite.

Technical line drawing of a mechanical device with labeled components and directional arrows (no text or symbols)

1. Podesite položaj donjih vrata da biste poravnali donji otvor sa osovinom donje šarke. Rotirajte srednju šarku za 180°, podesite njen položaj i postavite je.

Technical line drawing showing a door panel and a mechanical assembly with a lever (no text or symbols)

1. Postavite gornja vrata na pravilan način. Poravnajte donji otvor gornjih vrata sa gornjom osovinom srednje šarke i gornji otvor sa osovinom leve gornje šarke. Podesite levu gornju osovinu na odgovarajućem položaju i pričvrstite je korišćenjem 2 zavrtnja.

Line drawing of an open refrigerator with hand pointing to the door, and a close-up of its internal components (no text or symbols)

1. Ponovo postavite poklopac za ugao vrata (desno), poklopac za ugao vrata (levo), poklopac za ugao kućišta (desno) i poklopac za ugao kućišta (levo) koje ste izvadili iz kese sa priborom.

Technical line drawing of a refrigerator internal structure (no text or symbols)

Line drawing of a refrigerator with a hand holding the lid (no text or symbols)

Upozorenje

Punch Correct

W D W1 D 105°

Illustration of a two-tier refrigerator with no visible text or symbols

Line drawing of a refrigerator with two hanging legs and directional arrows indicating airflow or movement (no text or symbols)

Hand-drawn diagram of a rectangular box with a prohibition symbol and a zigzag arrow below it, likely indicating a restriction or hazard.

Popis prístroje

Přehled přístroje

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Chladnička Mrazák

Poznámka

Poznámka

QR code image containing encoded data, no visible human-readable text

Poznámka

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

Diagram showing a door opening process with a hand inserting a tray, before and after (no text or symbols)

Technical diagram showing assembly of a refrigerator with labeled components and close-ups of internal components

Obrácení dveří

Technical illustration showing a mechanical assembly with a bracket and a door, alongside a hand holding an upward arrow (no text or symbols present)

Diagram showing a device being adjusted to form a separate bracket, with arrows indicating motion (no text or symbols present)

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two parts with arrows indicating movement, no text or symbols present

Obrácení dveří

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Diagram showing a refrigerator interior with open doors and internal compartments, plus a close-up of the front panel (no text or symbols present)

Technical line drawing of a multi-level refrigerator or oven unit with internal shelves and top opening (no text or symbols)

Čištění a péče

Line drawing of a refrigerator with a hand holding a cloth (no text or symbols)

Varování

Panda Colorant

Čištění a péče

W D W1 D 105°

Illustration of a double refrigerator with two doors, no text or symbols visible

Velkost produktu (mm): 595*600*1856

Line drawing of a refrigerator with two hanging blades and directional arrows indicating airflow or movement (no text or symbols)

Hand-drawn diagram of a rectangular box with a prohibition symbol and a zigzag arrow below it, likely indicating a caution or restriction.

Opis spotrebiča

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Chladnička Mraznička

Poznámka

Poznámka

QR code image containing encoded data, no visible human-readable text

Poznámka

Illustration of hands holding a transparent cylindrical object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Line drawing of a three-tiered storage cabinet or rack unit (no text or symbols)

High Humidity Low Humidity

High Humidity Low Humidity

Zásuvka mrazničky

Diagram showing a furniture piece being placed on a cabinet, before and after transformation (no text or symbols)

Na vybratie zásuvky mrazničky nadvihnite jej prednú časť a vytiahnite ju dopredu, potom zásuvku nakloňte nadol a oboma rukami ju vytiahnite smerom dopredu.

Zmena smeru otvárania dverí

Technical diagram showing assembly of a refrigerator with labeled components and close-ups of internal components

Zmena smeru otvárania dverí

Technical illustration showing a mechanical assembly with a close-up of a document being held by hands (no text or symbols present)

1. Spodné dvere položte na hladký povrch panelom smerom nahor. Uvol'nite 2 skrutky, odmontujte zarážku, doraz dverí a puzdro hriadel'a a potom ich pomocou rovnakých skrutiek opät namontujte na l'avú stranu.

Diagram showing a device being adjusted to form a bracket, with arrows indicating motion (no text or symbols present)

Diagram of a computer rack with ventilation slots and door, showing internal structure without any text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket assembly with arrows indicating direction (no text or symbols present)

Zmena smeru otvárania dverí

Technical line drawing of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Technical illustration showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of an open refrigerator with internal compartments and a close-up view of the interior (no text or symbols)

Technical line drawing of a refrigerator internal structure (no text or symbols)

Čistenie a údržba

Simple line drawing of a refrigerator with a handle and lid (no text or symbols)

Upozornenie

- Nepoužívajte ostré predmety, aby ste nepoškriabali povrch.

Fresh Cigarette

Čistenie a údržba

Illustration of a double refrigerator with two doors, no text or symbols visible

Madhësia e produktit (mm): 595*600*1856

Line drawing of a refrigerator with two hanging wooden legs and arrows indicating airflow or movement (no text or symbols)

Hand-drawn diagram of a refrigerator with a prohibition symbol and a downward arrow below it

Shënim

Shënim

QR code image containing encoded data, no visible human-readable text

Shënim

Illustration of two hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Line drawing of a multi-tiered storage cabinet or rack unit (no text or symbols)

Kutia e freskët 0°C

High Humidity Low Humidity

Diagram showing a device being processed from a left-side view, with no visible text or symbols.

Kthimi Fresh Zone Fresh Current and Window Fresh Current and Window

PARALAJMËRIM

Technical line drawing of a refrigerator interior with two circular insets showing internal components (no text or symbols)

Kthimi i derës

Technical illustration showing a mechanical assembly with a bracket and a document being held by an arrow (no text or symbols present)

Diagram illustrating the process of a device's rotation and mounting mechanism, showing before-and-after states with directional arrows.

Diagram of a computer rack with ventilation slots and door, showing internal components without any text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a table (no text or symbols present)

Mechanical assembly diagram showing two connected components with arrows indicating direction (no text or symbols)

Kthimi i derës

Technical line drawing of a mechanical assembly with labeled components and directional arrows (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of a refrigerator interior showing open door and close-up view of internal components (no text or symbols)

Technical line drawing of a refrigerator internal structure (no text or symbols)

Simple line drawing of a refrigerator with a handle and lid (no text or symbols)

Paralajmërim

W D W1 D 105°

Illustration of a two-tier refrigerator with no visible text or symbols

Line drawing of a refrigerator with two hanging wooden sticks and directional arrows indicating motion (no text or symbols)

Hand-drawn diagram of a rectangular box with a prohibition symbol and a zigzag arrow below it, indicating a caution or restriction.

Опис на апаратот

Преглед на апарат

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Фрижидер Замрзнувач

① Електронска контрола

Белешка

Белешка

QR code image containing encoded data, no visible human-readable text

Белешка

Illustration of hands holding a rectangular object with upward arrows indicating motion or force (no text or symbols)

Illustration of a hand placing a tray with an arrow on the shelf (no text or symbols)

Line drawing of a two-tiered storage cabinet or rack unit (no text or symbols)

0°C кутија за свежо

High Humidity Low Humidity

Diagram showing a door opening process with a cabinet and drawer, before and after (no text or symbols)

Diagram of a refrigerator interior showing front and side views of the cabinet (no text or symbols present)

Technical illustration showing a mechanical assembly with a bracket and a document holder, both without any text or symbols.

Diagram illustrating the process of a device's rotation and mounting mechanism, showing before-and-after states with directional arrows.

Diagram of a computer rack with ventilation slots and a directional arrow indicating movement (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with an inset image showing a cylindrical component placed on a workbench (no text or symbols)

Mechanical assembly diagram showing two stages of a mechanical clamp or bracket assembly with directional arrows indicating movement (no text or symbols present)

Technical line drawing of a mechanical assembly with rollers and adjustment knobs (no text or symbols)

Technical diagram showing a door panel and a mechanical assembly with arrows indicating motion (no text or symbols)

Line drawing of an open refrigerator with hand pointing to the door, and a close-up of the interior showing internal components (no text or symbols)

Technical line drawing of a refrigerator internal structure (no text or symbols)

Чистење и одржување

Simple line drawing of a refrigerator with a handle and lid (no text or symbols)

Предупредување
