USER MANUAL DeckLink Quad HDMI 4K Blackmagic Design

Woman sitting in a modern office with large windows and a flat-screen TV on the wall (no visible text or symbols)

Languages

To go directly to your preferred language, simply click on the hyperlinks listed in the contents below.

English 3

日本語 80

Français 158

Deutsch 236

Español 315

中文 393

한국어 471

Русский 549

Italiano 627

Português 705

Türkçe 783

Circular portrait photo of a smiling man with gray hair and blue eyes, wearing a black collared shirt (no text or symbols visible)

Welcome

We hope you share our dream for the television industry to become a truly creative industry by allowing anyone to have access to the highest quality video.

Previously, high end television and post production required investment in millions of dollars of hardware, however with Blackmagic Design video hardware, even Ultra HD 60p is now easily affordable. We hope you get years of use from your new UltraStudio, DeckLink or Intensity and have fun working with some of the world's hottest television and design software!

This instruction manual should contain all the information you'll need on installing your Blackmagic Design video hardware. If you're installing a PCI Express card, it's always a good idea to ask a technical assistant for help if you have not installed hardware cards into computers before. As Blackmagic Design video hardware uses uncompressed video and the data rates are quite high, you'll need fast disk storage and a high end computer.

We think it should take you approximately 10 minutes to complete installation. Before you install Blackmagic Design video hardware, please check our website at www.blackmagicdesign.com and click the support page to download the latest updates to this manual and Desktop Video driver software. Lastly, please register your Blackmagic Design video hardware when downloading software updates. We would love to keep you updated on new software updates and new features. Perhaps you can even send us your latest show reel of work completed on your Blackmagic Design video hardware and any suggestions for improvements to the software. We are constantly working on new features and improvements, so we would love to hear from you!

Grant Petty

Grant Petty

CEO Blackmagic Design

Contents

Getting Started 5

Introduction to Desktop Video 5

System Requirements 5

Connecting Power 5

Connecting Video Hardware 6

Installing the Desktop Video Software 10

Capturing and Playing Back Video 15

Blackmagic Desktop Video Setup 16

Introducing Blackmagic Desktop

Video Setup 16

Video Settings 17

Connector Mapping for DeckLink

Quad 2 22

Audio Settings 23

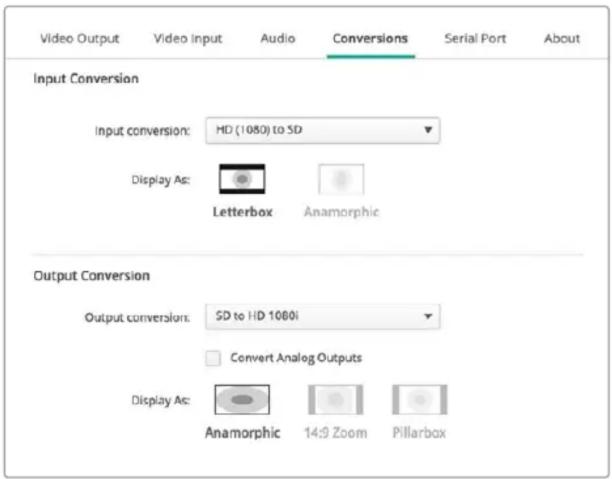

Conversions Settings 25

Setup 27

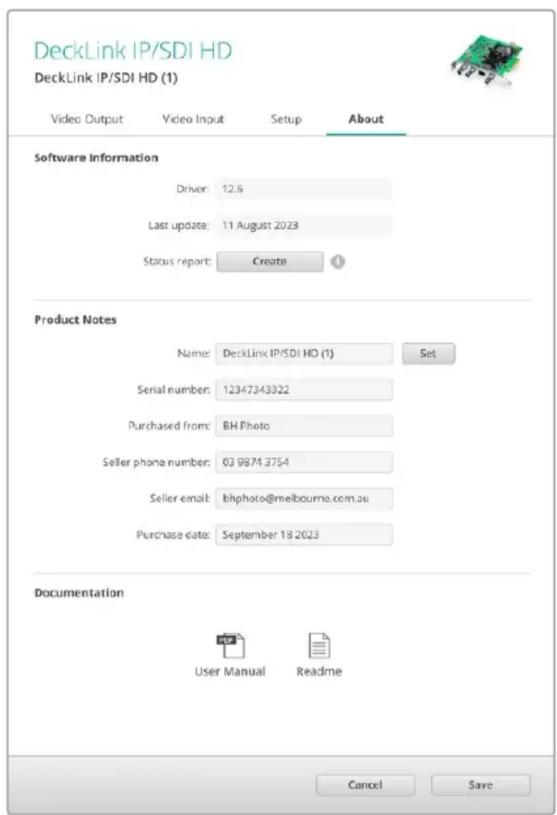

About 28

Teranex Mini Smart Panel 29

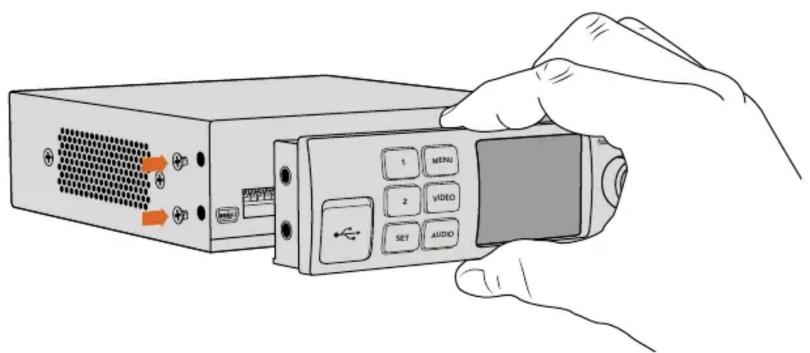

Attaching a Teranex Mini Smart Panel 29

Smart Panel Features 30

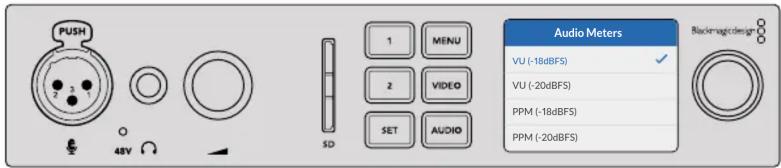

Using UltraStudio 4K Mini's

Front Control Panel 31

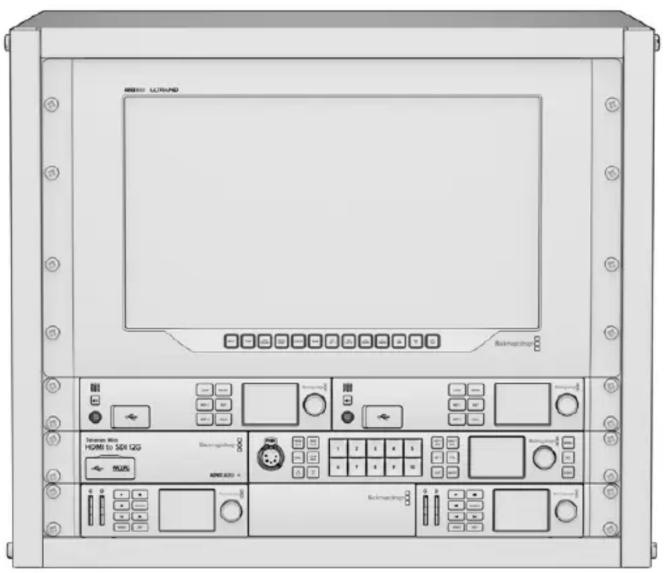

Blackmagic Universal Rack Shelf 32

Contents 32

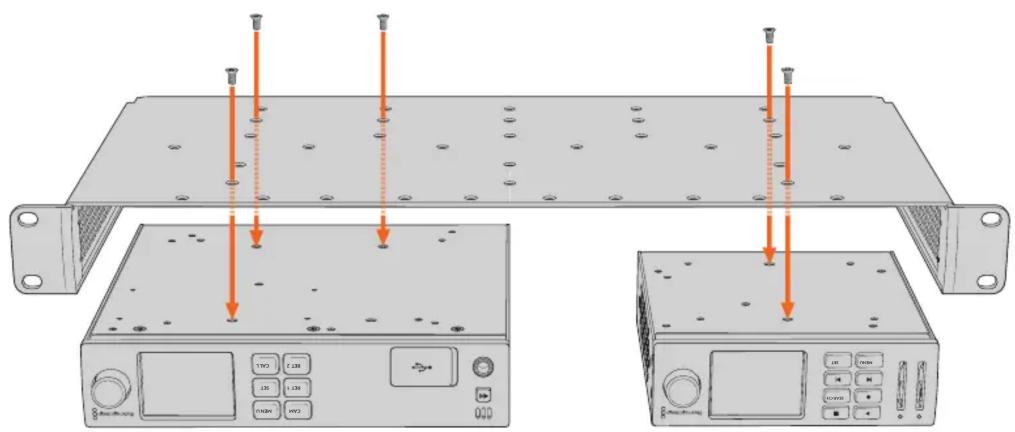

Mounting a Unit to the Rack Shelf 33

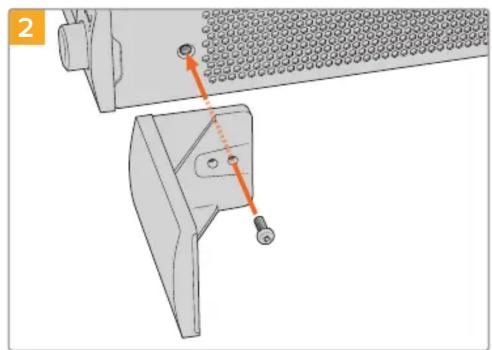

Attaching the 1/6 Blanking Panel 33

Attaching the Side 1/3 Width

Blanking Panel 33

DaVinci Resolve 34

Live Grading with DaVinci Resolve 34

Editing with DaVinci Resolve 35

Using your Favorite 3rd Party Software 36

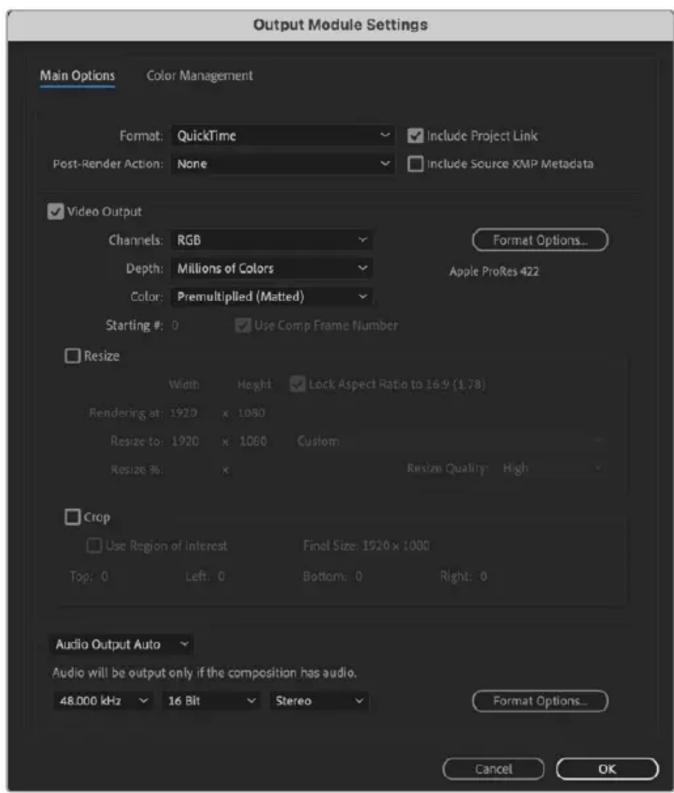

Adobe After Effects CC 36

Adobe Photoshop CC 38

Adobe Premiere Pro CC 39

Adobe Character Animator CC 45

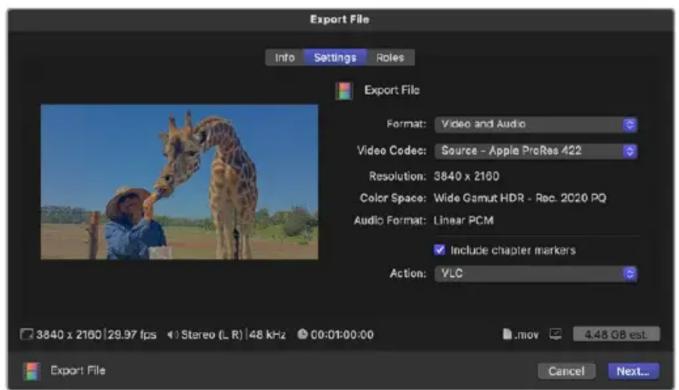

Final Cut Pro 46

Avid Media Composer 49

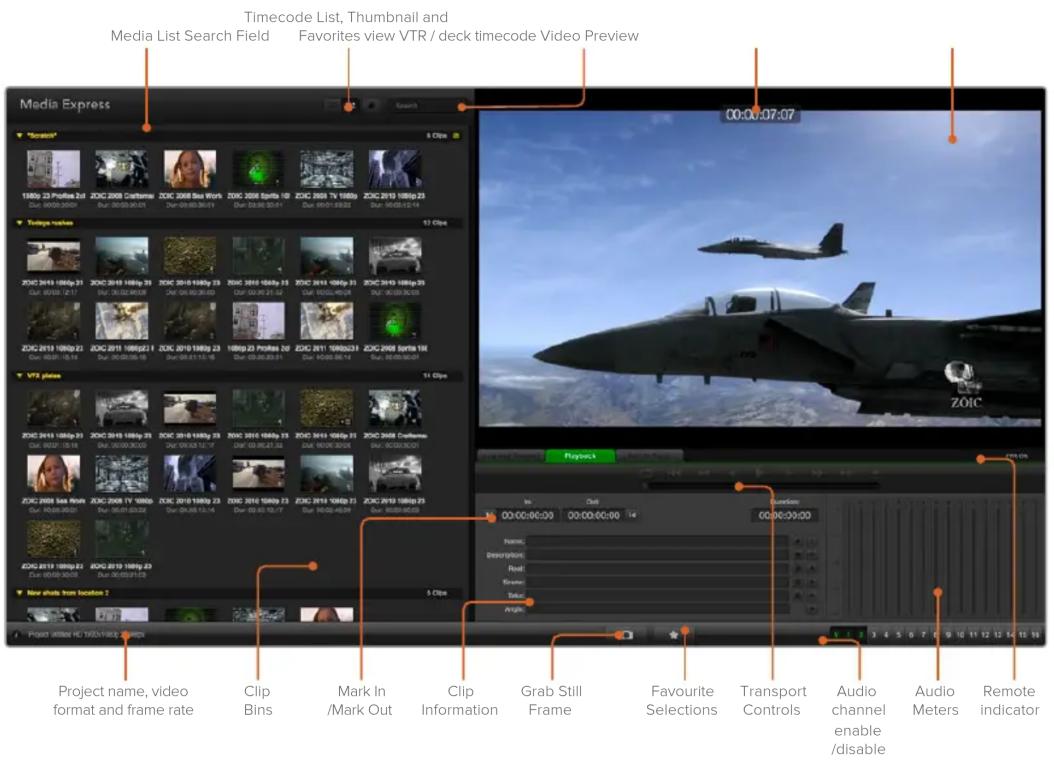

Blackmagic Media Express 56

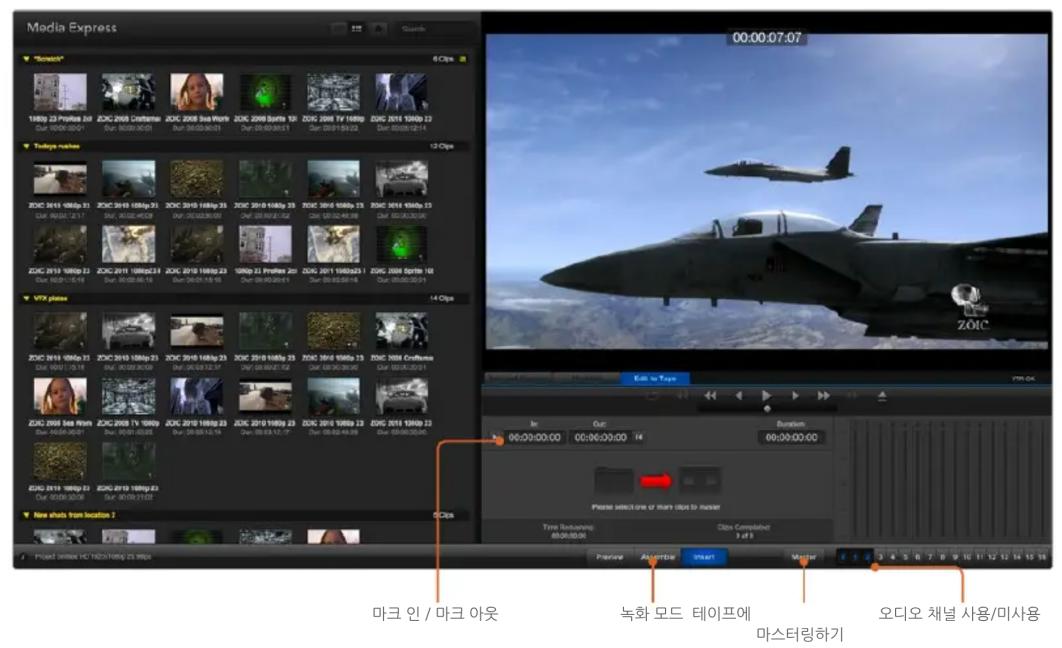

What is Blackmagic Media Express? 56

Capturing Video and Audio Files 56

Playing back Video and Audio Files 61

Browsing Media 63

Editing Video and Audio Files to Tape 66

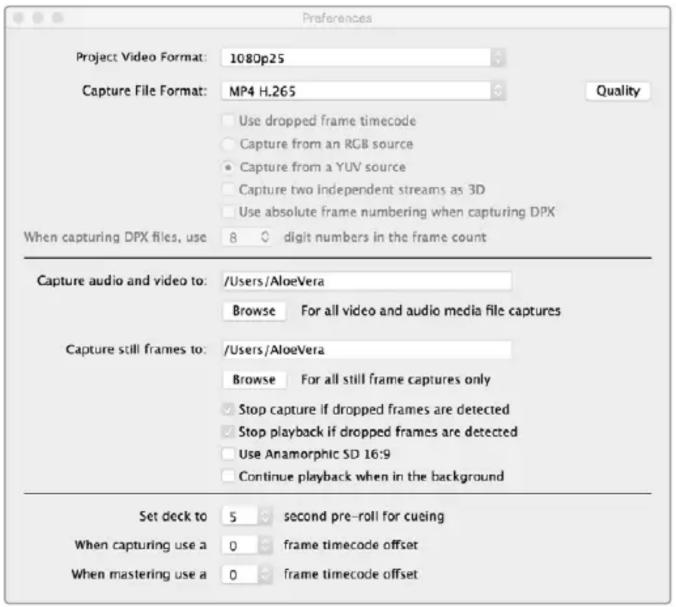

Capturing H.265 Video 67

H.265 Hardware Encoder 68

Capturing H.265 Video with

UltraStudio 4K Extreme 68

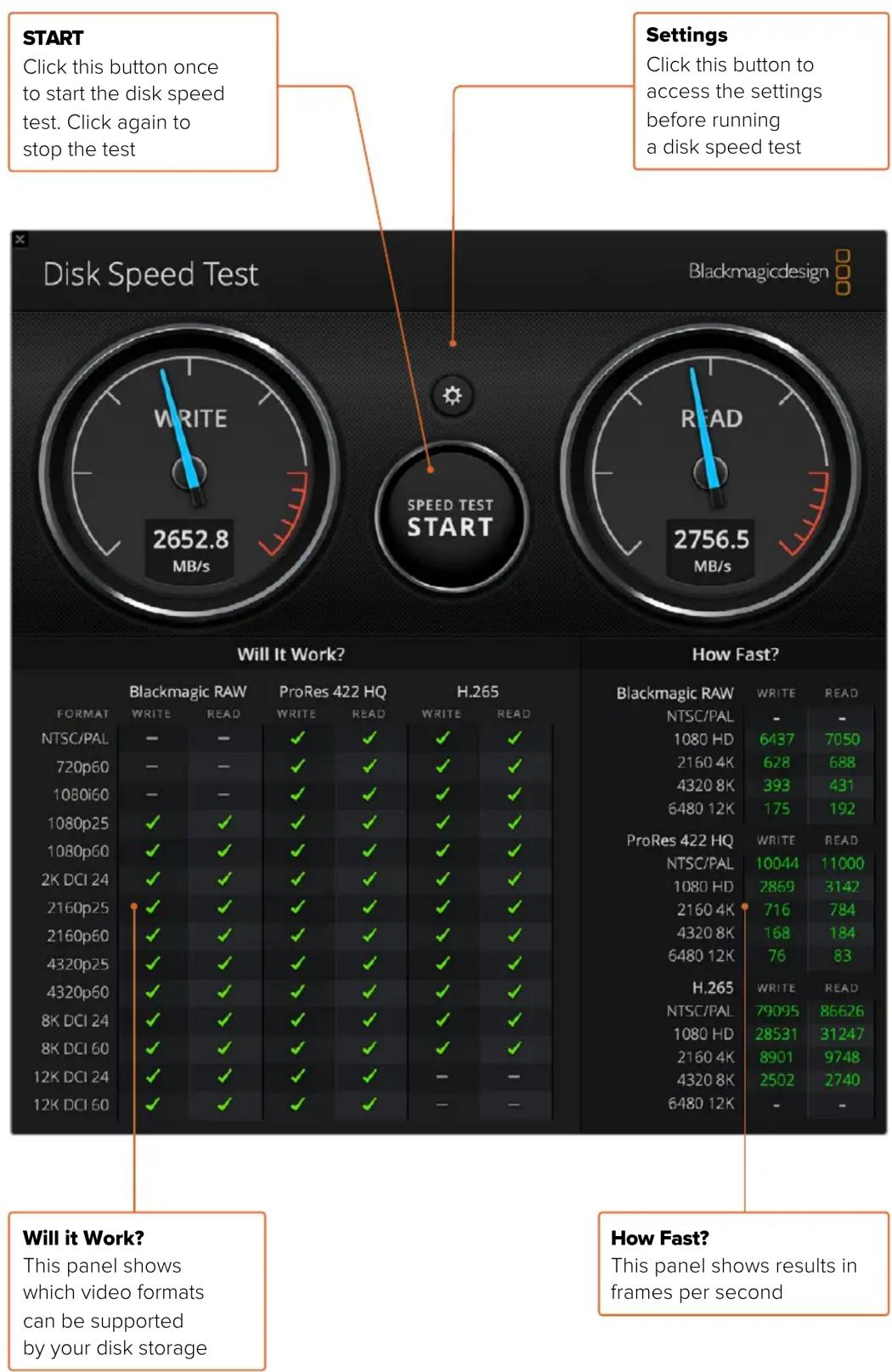

Blackmagic Disk Speed Test 69

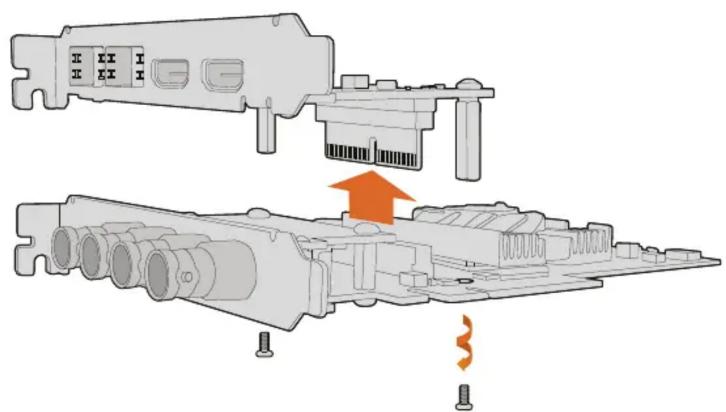

Removing the Mezzanine Card

from DeckLink 4K Extreme 12G 72

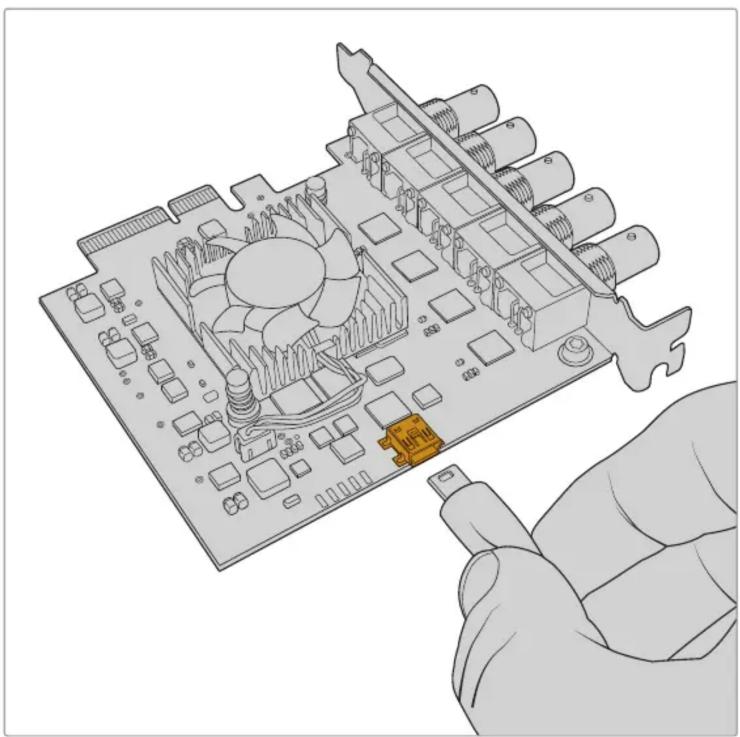

Recovering a DeckLink Card

from an Interrupted Update 73

Help 75

Developer Information 76

Regulatory Notices 77

Safety Information 78

Warranty 79

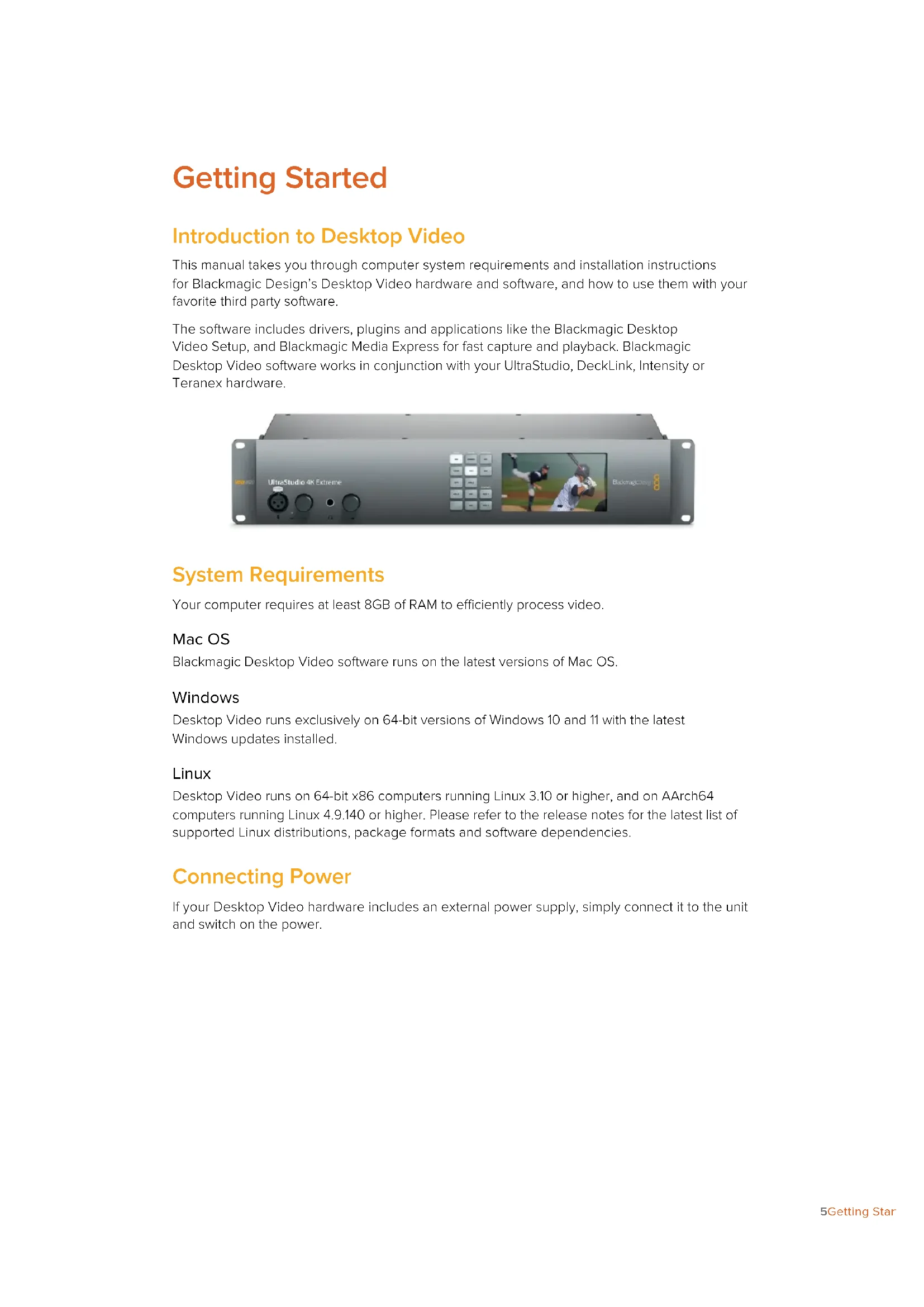

Getting Started

Introduction to Desktop Video

This manual takes you through computer system requirements and installation instructions for Blackmagic Design's Desktop Video hardware and software, and how to use them with your favorite third party software.

The software includes drivers, plugins and applications like the Blackmagic Desktop Video Setup, and Blackmagic Media Express for fast capture and playback. Blackmagic Desktop Video software works in conjunction with your UltraStudio, DeckLink, Intensity or Teranex hardware.

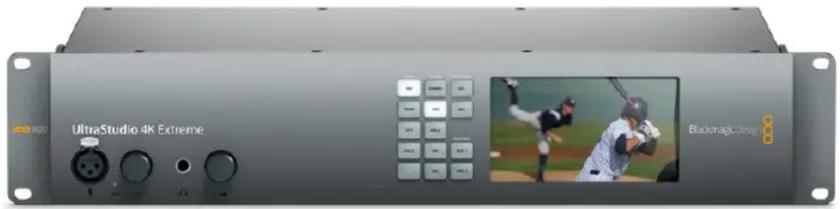

UltraStudio 4K Extreme BlackmagicChips

System Requirements

Your computer requires at least 8GB of RAM to efficiently process video.

Mac OS

Blackmagic Desktop Video software runs on the latest versions of Mac OS.

Windows

Desktop Video runs exclusively on 64-bit versions of Windows 10 and 11 with the latest Windows updates installed.

Linux

Desktop Video runs on 64-bit x86 computers running Linux 3.10 or higher, and on AArch64 computers running Linux 4.9.140 or higher. Please refer to the release notes for the latest list of supported Linux distributions, package formats and software dependencies.

Connecting Power

If your Desktop Video hardware includes an external power supply, simply connect it to the unit and switch on the power.

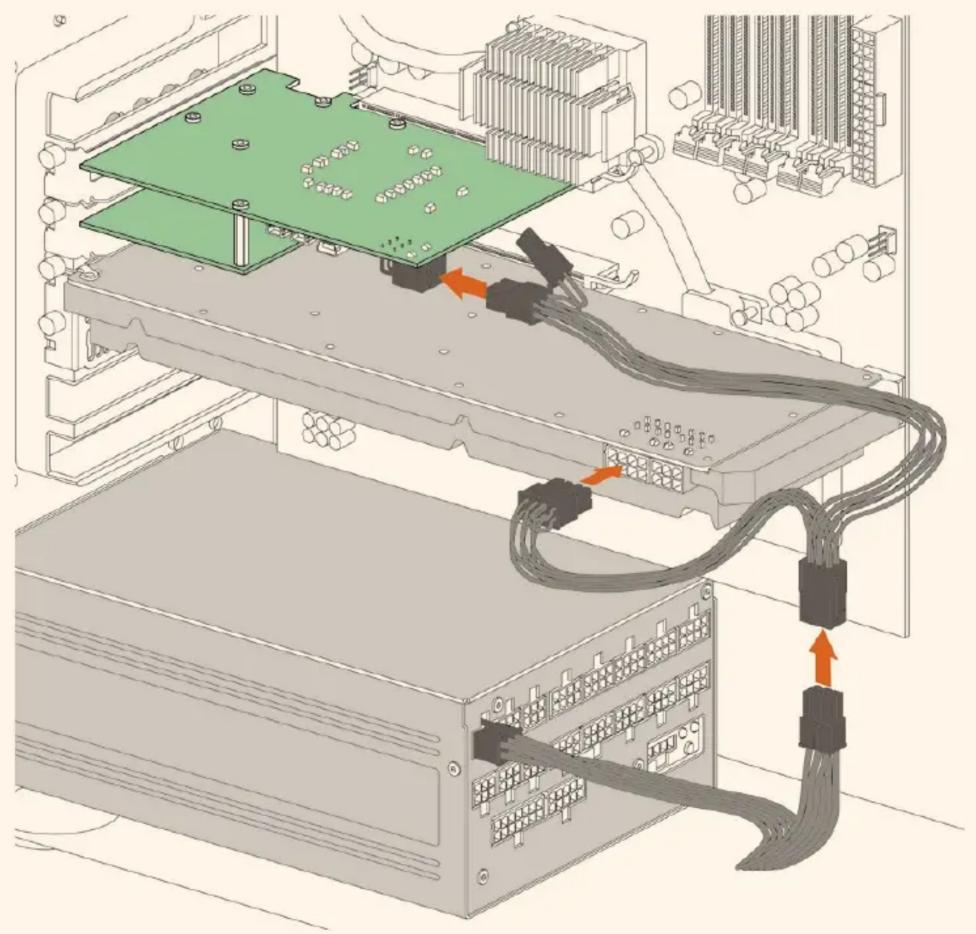

TIP DeckLink 4K Extreme 12G can also be connected to additional power using the power adapter cable included with the card. DeckLink 4K Extreme 12G is very powerful and we are always looking for ways to provide additional features, such as mezzanine cards for expanded connectivity. For this purpose, we have included a power adapter cable so you can plug in additional power if future hardware expansion on your DeckLink card draws more power than your computer's PCIe slot can provide.

Diagram of a server rack with connected hardware and cable, showing internal components like CPU socket and network ports (no text or labels)

If you need to supply external power to your DeckLink 4K Extreme 12G you can easily use the supplied power adapter cable. Simply disconnect the power from your graphics card and plug it into the adapter cable. The plug will only connect to one end so there's no way to connect it incorrectly.

Connecting Video Hardware

There are three types of connectors your Blackmagic Desktop Video hardware may use to connect to your computer depending on your model. These connection types include Thunderbolt, USB 3.0, or PCIe.

Connecting via Thunderbolt

Blackmagic UltraStudio 4K and UltraStudio 4K Extreme feature two Thunderbolt™ 2 ports so if your computer only has a single Thunderbolt port, you can use the additional port to attach a RAID or other device.

Blackmagic UltraStudio 4K Extreme 3 has two Thunderbolt™ 3 ports and UltraStudio HD Mini has one Thunderbolt 3 port, for up to 40Gb/s data speeds. When connecting via Thunderbolt 3, connect your Blackmagic Desktop Video hardware directly to the Thunderbolt 3 port on your

computer using a Thunderbolt 3 cable. Connecting to a Thunderbolt 2 port on your computer via a Thunderbolt 3 to Thunderbolt 2 adapter is not supported on bus-powered products like UltraStudio HD Mini.

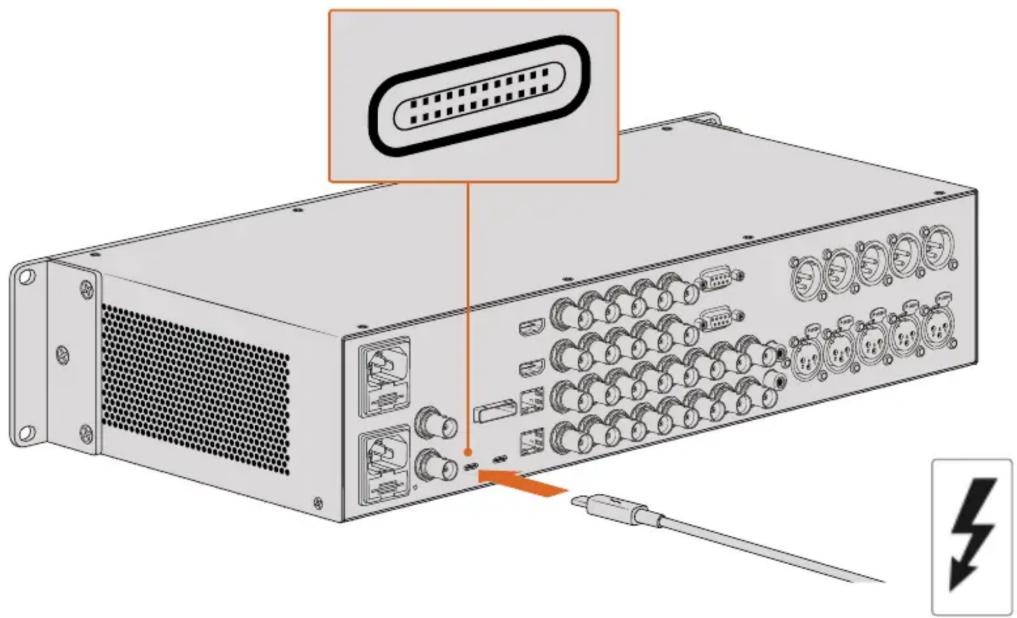

Diagram of a server rack with labeled ports and an orange arrow pointing to a connector, accompanied by a lightning bolt symbol.

Make sure your computer is Thunderbolt 3 compatible by looking for the Thunderbolt icon near its USB-C connector, as shown on the right.

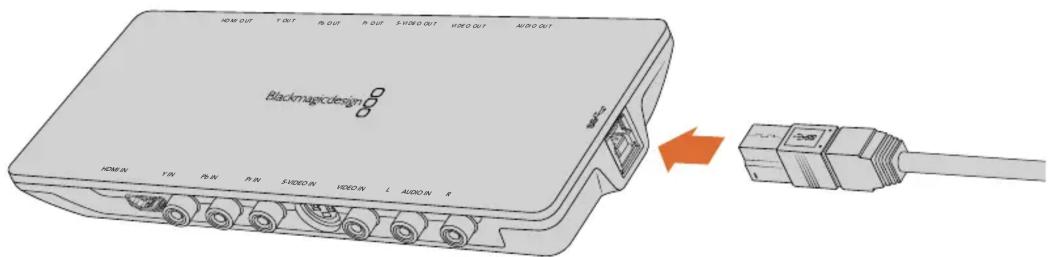

Connecting via USB 3.0

Connect a SuperSpeed USB 3.0 cable into the USB 3.0 port on the unit. Plug the other end of the cable into your computer's USB 3.0 port.

HDMI OUT T OUT Ps OUT Ps OUT 3 HVideo OUT WBO OUT AUDIO OUT Blackmagic design HDMI IN T IN Ps IN Ps IN 3 HVideo IN HVideo IN L AUDIO IN R

Connecting a SuperSpeed USB 3.0 cable to Intensity Shuttle

Connecting via PCIe

Blackmagic Design PCIe cards plug into a PCIe slot in your computer. Check the information printed on your card's box to determine the number of PCIe lanes your card requires. For example, depending on your PCIe card, it will require a x1, x4 or x8 PCIe slot.

It's worth noting that you can insert PCIe cards into higher capacity slots than they require. For example, a x4 lane PCIe card can be inserted into a x16 lane PCIe slot, though not the other way around.

If you can't find the information you need on the box, you can find the number of lanes your card requires, plus other helpful information about your card, in the tech specs at www.blackmagicdesign.com/products

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

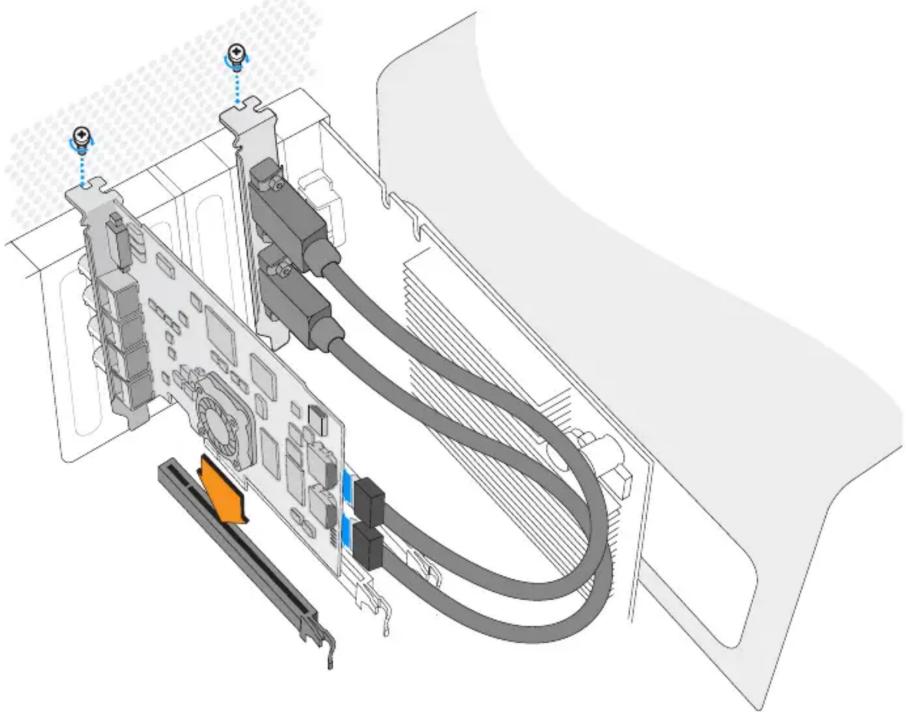

Install a Blackmagic Design PCIe card in a spare PCIe slot. If your card includes an HDMI bracket, it can be installed in any spare PCIe mount and connects to the rear of the card with the supplied HDMI cables.

Please be careful when installing your DeckLink PCIe card to avoid damaging delicate components on the card.

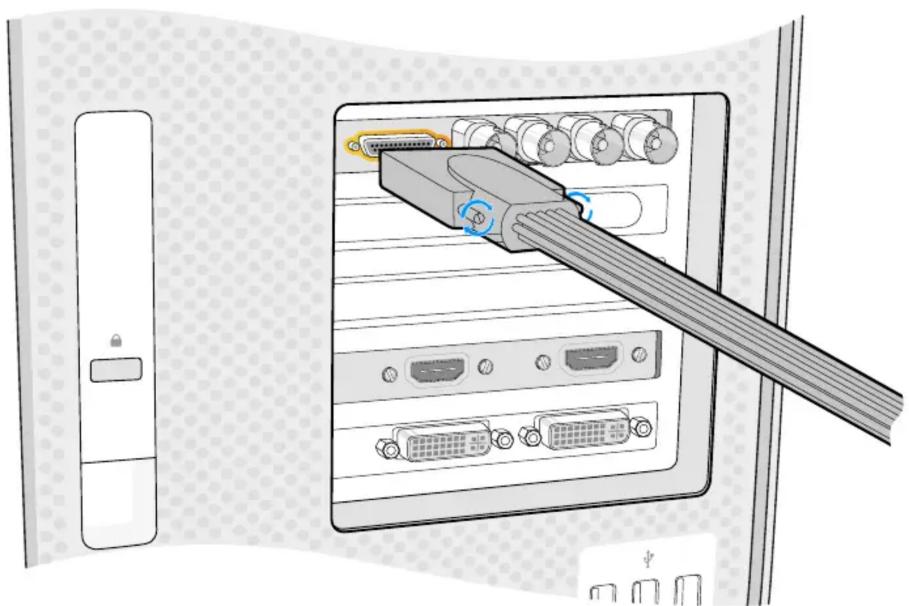

Illustration of a computer interface showing a cable inserted into an RJ4 port with multiple connected ports (no text or symbols visible)

If your card includes a breakout cable, simply plug it into your card's breakout cable connector.

Connecting UltraStudio 4K Extreme via PCIe

UltraStudio 4K Extreme and UltraStudio 4K Extreme 3 can also connect to your computer via PCIe using a PCIe adapter card and cable. Both UltraStudio 4K Extreme and UltraStudio 4K Extreme 3 need to be connected to a PCIe Gen 2 slot in your computer. The Blackmagic PCIe Cable Kit contains a PCIe cable and the PCIe adapter card and is available from your nearest Blackmagic Design reseller.

For the original UltraStudio 4K Extreme, you can use either the Blackmagic PCIe Cable Kit, or purchase a standard PCIe adapter card from your nearest computer store.

Illustration of a server rack with multiple ports and connectors, no text or symbols present

UltraStudio 4K Extreme features a PCIe port for connection to an external PCIe adapter card that is installed in your computer

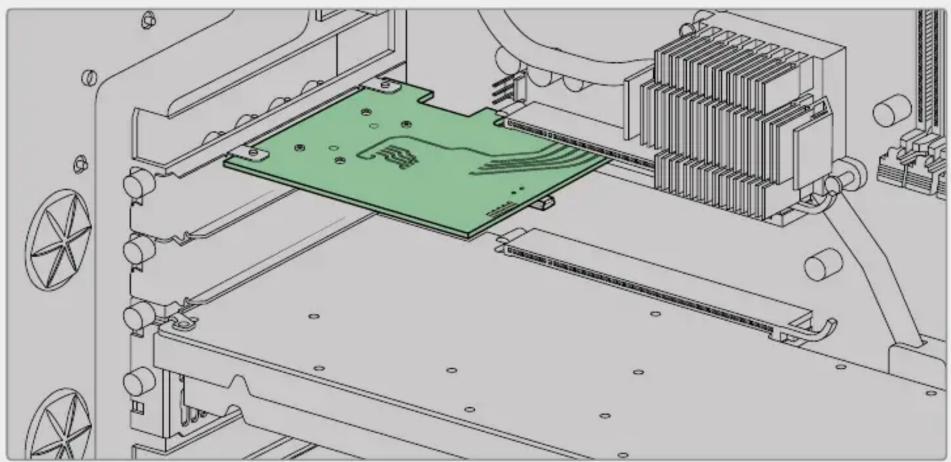

Technical line drawing of a mechanical assembly with a green PCB and cooling unit (no text or symbols)

The PCIe adapter card is inserted into a PCIe Gen 2 slot inside your computer

Front view of a server rack with multiple drive bays and a cable inserted (no visible text or labels)

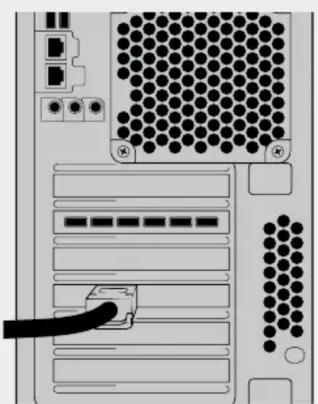

Connect the other end of the PCIe cable to the PCIe port located at the back of your computer

Installing the Desktop Video Software

Applications, Plugins and Drivers

The Blackmagic Design Desktop Video software includes all the drivers, plugins and applications needed to use your Desktop Video hardware. Below is a list that shows all the software items that are installed on your computer.

Mac OS Windows Linux
Blackmagic Desktop Video drivers	Blackmagic Desktop Video drivers	Blackmagic Desktop Video drivers
Blackmagic Desktop Video Setup Blackmagic Desktop Video Setup Blackmagic Desktop Video Setup
Blackmagic Design LiveKey Blackmagic Design LiveKey –
Blackmagic Media Express Blackmagic Media Express Blackmagic Media Express
Blackmagic Disk Speed Test Blackmagic Disk Speed Test –
Adobe Premiere Pro CC, After Effects CC, Photoshop CC presets and plug-ins	Adobe Premiere Pro CC, After Effects CC, Photoshop CC presets and plug-ins	–
Final Cut Pro plug-ins – –
Avid Media Composer plug-in Avid Media Composer plug-in –

NOTE For Linux, Blackmagic Media Express is only supported on x86-64 systems.

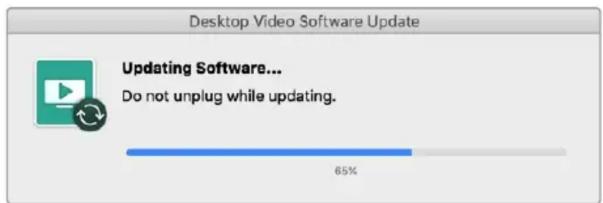

Automatic Updates

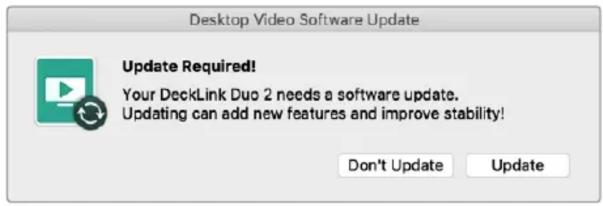

After installing the Desktop Video software and once your computer restarts, it will check the internal software on your Desktop Video hardware. If it doesn't match the version installed on your computer, the software will prompt you to update. Click ‘ok’ to start the update and restart your computer to complete the process.

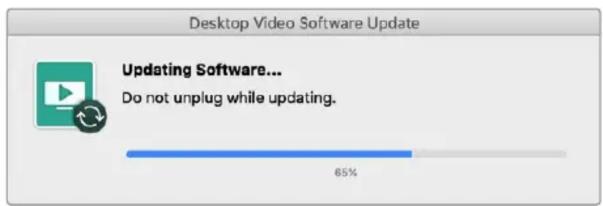

NOTE If your DeckLink card is not working after an interrupted update, refer to the section near the end of this manual called ‘recovering a DeckLink card from an interrupted update’.

The remainder of the Getting Started section will show you the Desktop Video software installation process for Mac OS, Windows and Linux.

Mac OS Installation

Make sure you have administrator privileges before installing any software.

1 Download the newest Desktop Video driver installer from www.blackmagicdesign.com/support
2 Launch the Desktop Video installer.
3 Click the ‘continue’, ‘agree’ and ‘install’ buttons to install the software. If you are installing Desktop Video for the first time, installation has a few extra steps that are described below.
4 Restart your computer to enable the new software drivers.

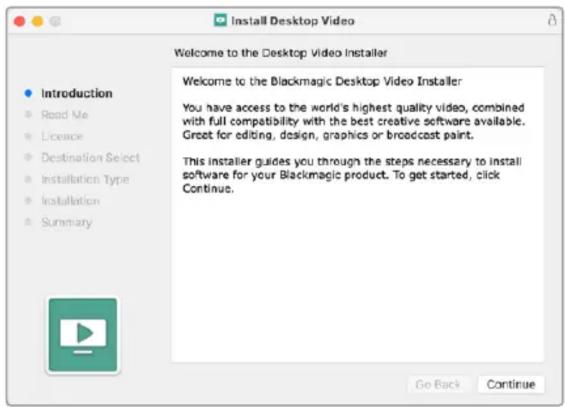

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Greet for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

Desktop Video Installer for Mac

Installing on Mac OS for the First Time

When installing Desktop Video on a Mac for the first time, you will need to enable your Mac to use your Desktop Video equipment during the installation process.

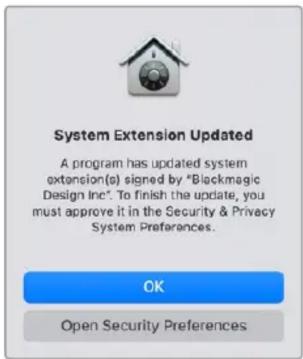

1 When instructed, click on ‘open security preferences’ or open ‘system preferences’ and click on ‘security and privacy’.

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

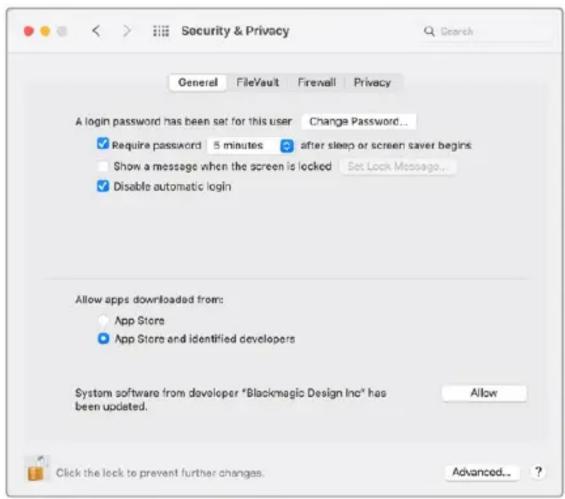

2 In the ‘security and privacy’ preferences, click ‘allow’ to enable the Desktop Video software on your computer.

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

Click ‘allow’ in the security and privacy preferences to enable the Desktop Video software on your computer

3 When instructed to restart, click 'not now'.

A restart is required before new system extensions can be used. Restart Not Now

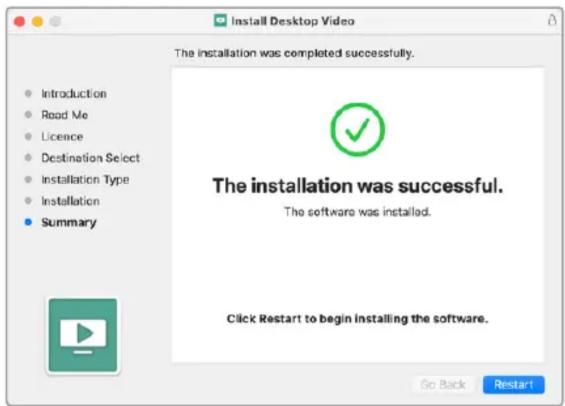

4 Back in Desktop Video Installer, complete the software installation by clicking 'restart'.

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Resetting System Security Policy on an M1 Mac

From Desktop Video 12.2 or later, it is no longer necessary to have ‘reduced security’ enabled as your Mac’s system security policy. If you had ‘reduced security’ set when installing previous versions of Desktop Video, it is now advisable to reset your M1 Mac’s security policy to ‘full security’.

To do this, follow these steps:

1 Start the computer by pressing and holding the power button until you see ‘loading startup options’ displayed.

2 Click 'security policy'.
3 Select 'full security'.
4 Click OK.
5 A notification will appear informing you that your computer is applying the security policy. When the notification disappears, you can restart your computer normally.

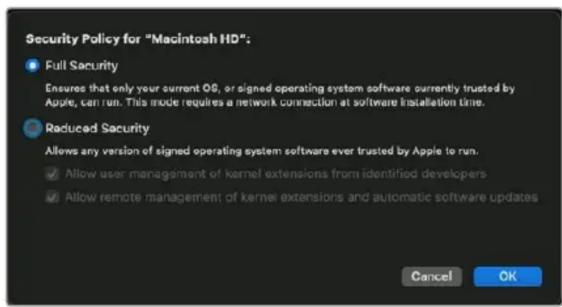

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Windows Installation

1 Ensure you have the very latest driver. Visit www.blackmagicdesign.com/support
2 Open the "Desktop Video" folder and launch the "Desktop Video" installer.
3 The drivers will now be installed on your system. An alert will appear: "Do you want to allow the following program to install software on this computer?" Click 'yes' to continue.
4 You will see a dialog bubble saying “found new hardware” and the hardware wizard will appear. Select “install automatically” and the system will find the required Desktop Video drivers.
5 After all drivers have been installed, a dialog bubble will appear saying “your new hardware is ready for use.” Restart your computer to enable the new software drivers.

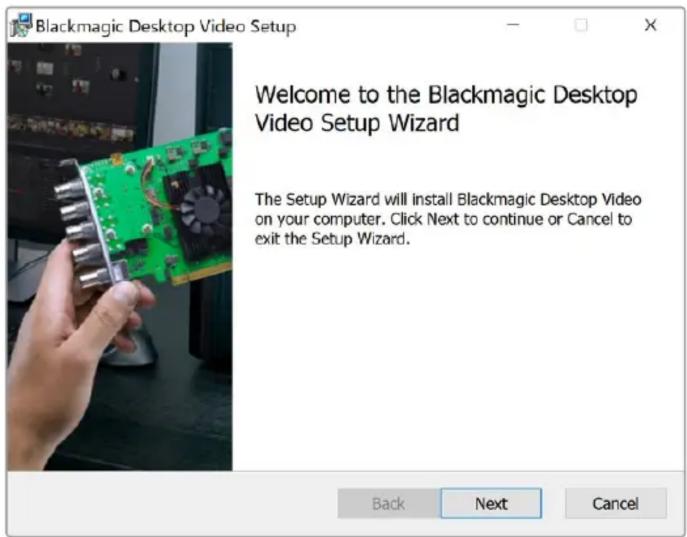

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

Desktop Video Installer for Windows

Linux Installation

1 Download the latest Desktop Video software for Linux from www.blackmagicdesign.com/support
2 Open the Desktop Video folder and navigate to the packages required for your distribution and architecture. Note that 'amd64' refers to Intel and AMD 64 bit processors. There are three sets of packages provided:

• The desktopvideo package provides the core drivers and API libraries.
• The desktopvideo-gui package provides the Desktop Video Setup software.
  – The mediaexpress package provides a simple capture and playback utility. This is supported on x86-64 systems only.

3 Double click the packages you wish to install and follow the onscreen instructions. If you see any messages about missing dependencies, ensure they are installed first and then rerun the Desktop Video installer.
4 When the installer has finished it is recommended that you restart your computer to complete the installation process.

If you cannot find a native Desktop Video package for your Linux distribution, or if you prefer to install from a command line, refer to the ReadMe file for detailed installation instructions.

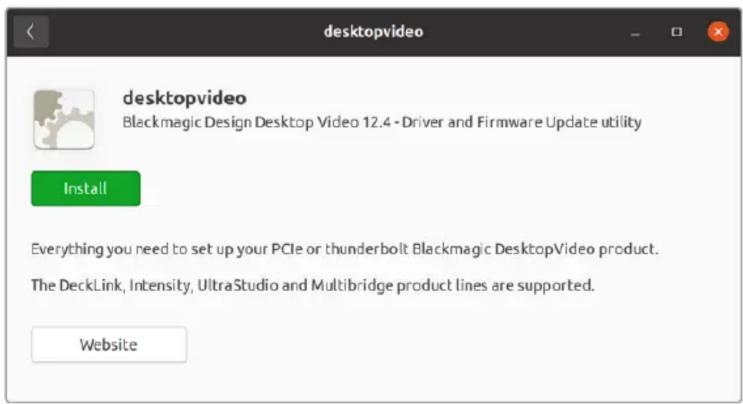

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

Desktop Video software ready to be installed from the Ubuntu Software Center.

Updates

If you have not installed the setup software, you can check the internal software is up to date using the BlackmagicFirmwareUpdater command line tool:

# BlackmagicFirmwareUpdater status

A message similar to the following will appear:

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/iol [DeckLink 4K Extreme 12G] 0x0A PLEASE_UPDATE

In this case you could update the internal software with the following command:

# BlackmagicFirmwareUpdater update 1

See the 'man' page for a more detailed description of the command's usage. e.g., for more info on the internal software updater command, type "man BlackmagicFirmwareUpdater".

That's all there is to getting started! Now that you have installed your Blackmagic Desktop Video hardware and software, you can start capturing and playing back video.

Capturing and Playing Back Video

Once the Desktop Video hardware and software is installed, you can start capturing and playing back clips straight away. First, plug your video source into the input on your Desktop Video hardware, then connect a monitor to the output.

A quick way to begin capture and playback is to record a clip in Blackmagic Media Express, which was installed on your computer when you installed the Desktop Video software.

Setting Up

1 Connect a monitor or TV to the video output of your Blackmagic Design hardware.
2 Connect a video source to the input of your Blackmagic Design hardware.

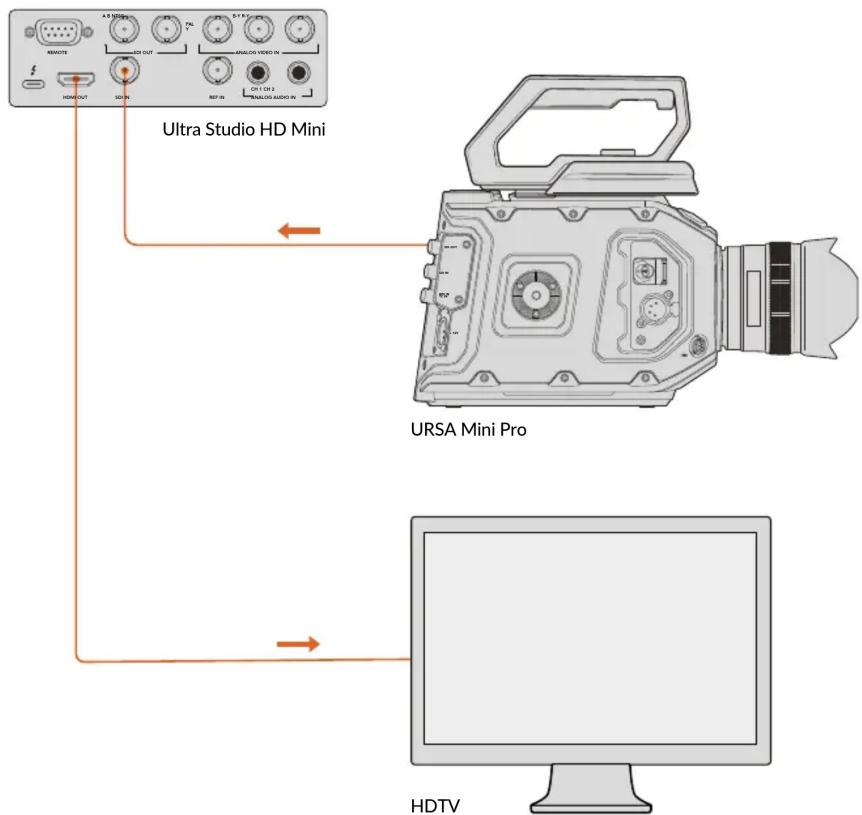

Ultra Studio HD Mini URSA Mini Pro HDTV

Connect a video monitor and source to your Blackmagic Design video hardware.

Testing Video Capture

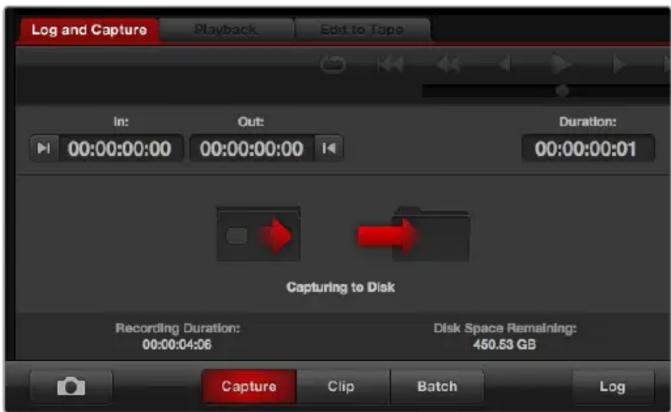

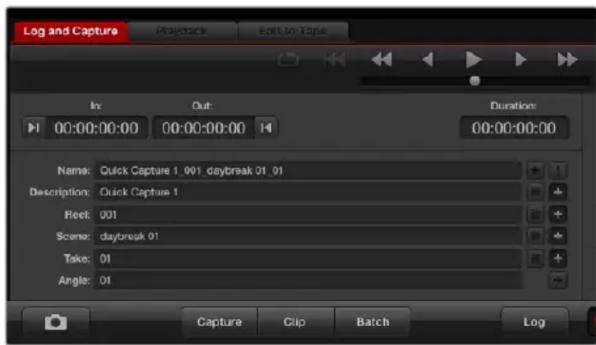

1 Launch Blackmagic Media Express. Click on the 'log and capture' tab. Your input video format is automatically detected and Media Express sets the project video format to match. Your video source will appear in the Media Express preview pane.
2 Click ‘capture’ at the bottom of the ‘log and capture’ window to perform the capture test. Click ‘capture’ again to finish the test. The captured clip is added to the media list on the left side of Media Express.

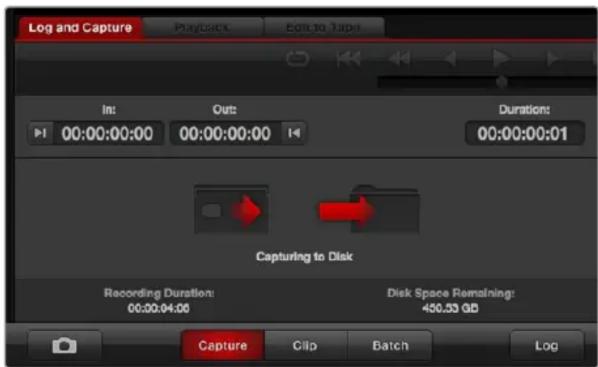

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

Click the ‘capture’ button to commence recording.

Testing Video Playback

1 Click on the ' playback' tab.
2 Double click the test clip. The video and any present audio will be sent to the monitor connected to your hardware's output.

Blackmagic Desktop Video Setup

Introducing Blackmagic Desktop Video Setup

Blackmagic Desktop Video Setup provides a central location for configuring hardware settings, plus a real time status display showing the video connected to your hardware's inputs and outputs.

To launch Blackmagic Desktop Video Setup:

– On Mac OS, click Blackmagic Desktop Video in ‘system preferences’ or you can launch the utility from your ‘applications’ folder.
- On Windows 10 and 11, click the 'start' button>all programs>Blackmagic Design> Desktop Video and click the Desktop Video Setup application. The Desktop Video setup software also launches from the Windows 10 and 11 'control panel'.
- On Linux, go to ‘applications’ and then ‘sound and video’ and double click the Blackmagic Desktop Video Setup application.

When you first open Blackmagic Desktop Video Setup, the home page displays your connected hardware and provides an overview of all video activity on your hardware's input and output connections. If you are sending a video signal to your input, it will be automatically detected and the format will be displayed under the Video Input icon.

If you have multiple Blackmagic capture and playback devices connected, you can cycle through them by clicking the arrow buttons on the sides of the home page. To configure settings, simply click on the hardware image, or the settings icon located below the hardware name. The Desktop Video Setup utility only displays the settings that are relevant to your selected hardware, so you don't have to scroll through pages of menus to find the settings you want.

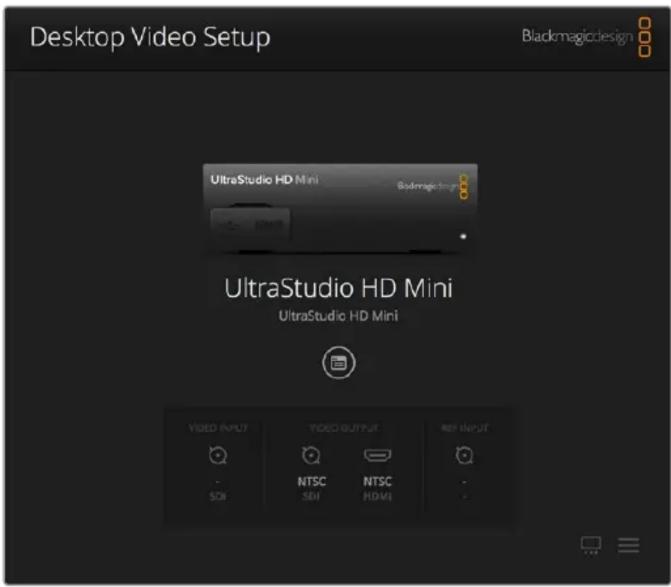

Desktop Video Setup Blackmagicdesign UltraStudio HD Mini Badmagicdesign UltraStudio HD Mini UltraStudio HD Mini VIDEO INPUT VIDEO OUTPUT REF INPUT NTSC NTSC SDI SDI HDMI

Blackmagic Desktop Video Setup home page

The following pages of this manual will show you how to adjust settings using Blackmagic Desktop Video Setup.

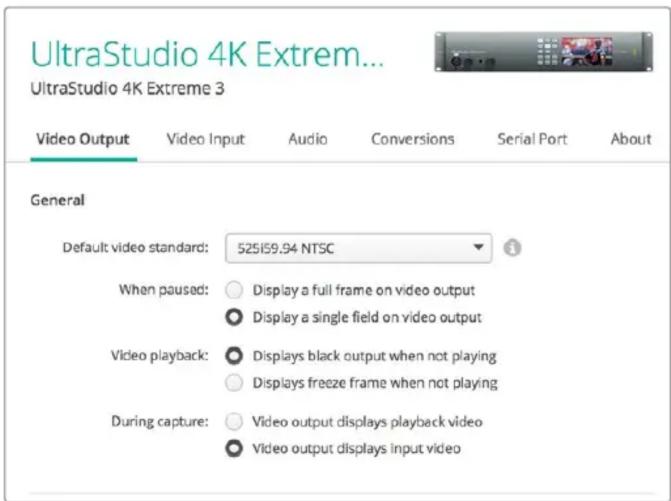

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ○ Display a single field on video output Video playback: ○ Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Blackmagic Desktop Video Setup lets you adjust video and audio input and output settings, apply up or down conversions during capture and playback, and provides information about the driver.

Video Settings

Video Input

Click on a connector icon to set the 'video input' connection for your Blackmagic Design hardware. Only the connectors that are built into your hardware will be shown. When a valid video signal is detected, the input and video format will be displayed on the Blackmagic Desktop Video Setup home page.

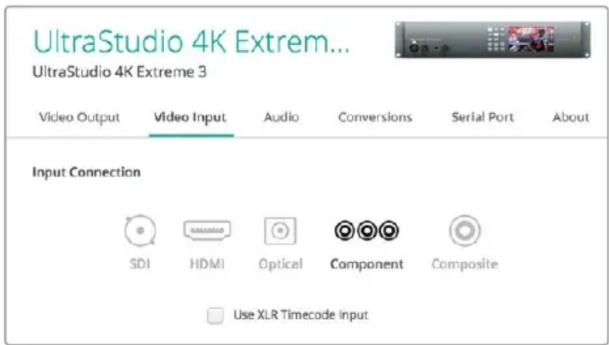

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About Input Connection SDI HDMI Optical Component Composite Use XLR Timecode Input

Click on an icon to set your video input connection.

Use XLR Timecode

Select this setting to read timecode from the XLR input instead of the SDI stream.

Use XLR Timecode Input

Enable the checkbox to capture timecode from the dedicated XLR input

Analog Video Input Levels

Drag the ‘video’ and ‘chroma’ sliders to adjust the analog video input levels for component or composite video. Dragging the video slider affects the luma gain and the chroma sliders decrease or increase the color saturation. When using component video, you can adjust the Cb and Cr values independently. Click the ‘link’ icon to connect them if you want to adjust them simultaneously.

Select the video standard and adjust other settings for your video output.

General

- Default Video Standard

To use broadcast monitoring with Final Cut Pro, set the output format to match your Final Cut Pro project.

- When Paused

Click to select whether to display a full frame or a single field on the output when paused.

Video Playback

Click to select whether to display a freeze frame or black output when not playing.

During Capture

Click to select whether the video output displays the playback video or input video during capture. If you select the ‘video output displays playback video’ option, then your selection in the ‘video playback’ section will dictate what is displayed on your output. If you select the ‘video output displays input video’ option, then the input video will be displayed on your outputs.

During Playback

Some Desktop Video products are capable of converting Rec. 601 and Rec. 709 video outputs to Rec. 2020 for TVs and video monitors that may require it. If your Desktop Video hardware supports this feature, select ‘convert to Rec. 2020’ in the setup utility. If your video is already using the Rec. 2020 color space, or is displaying correctly, you can leave this setting set to ‘keep default color gamut’.

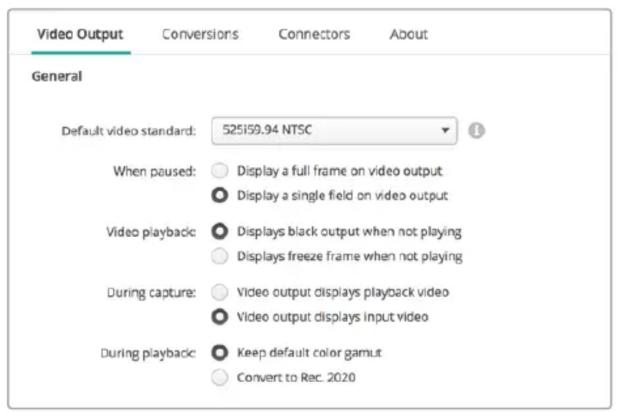

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

Select what to display on the output when paused, during video playback and during capture

SDI Output

- Color Space

Click to select the color space to convert to. Options are 4:4:4 RGB video or Y, Cb, Cr 4:2:2.

3G-SDI Formats

Click to select whether to output 3Gb/s SDI signals as SMPTE Level A direct mapping or to have 3Gb/s signals sent with Level B mapping.

1080p HD and 2K

Click to select whether 1080p HD and 2K are output as 1080p progressive video, or as progressive segmented frame video.

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

Use the SDI Settings to control the output of your SDI video.

SDI Configuration

Select between single link, dual link and quad link for 3G, 6G or 12G-SDI output. Some professional color grading monitors and projectors only accept high bandwidth signals like 2160p60 or DCI 4K 4:4:4 via quad link. UltraStudio 4K Extreme can output quad link 3G-SDI and you can also get a Quad SDI add on card for DeckLink 4K Extreme 12G.

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Choose whether to output via single link, dual link or quad link for 3G, 6G and 12G-SDI video signals

8K Formats

8K video is played back via quad link SDI and you can choose your desired quad link output format.

The two options available are:

Square Division Quad Split – The 8K image is distributed as four quadrant 4K images in a 2 x 2 multi view configuration. Each 4K quadrant image is supplied via SDI using a quad link connection and reconstructed at the destination to form a complete 8K image. This is also the selection to use if you want to send each output to a separate display to create a video wall of Ultra HD monitors.

Sample interleave – Alternate pixels from a single 8K image are distributed as four separate 4K images via quad link SDI, then combined at the destination to form one complete 8K image. Therefore, an added benefit of this format is the option to use any of the four outputs as a down converted 4K image.

4K and 8K formats:

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

When using desktop video equipment for 8K playback, set your desired quad link 8K output format

Set Analog Video Output

If your Blackmagic Design hardware has shared analog video connectors, you can choose whether to output your video via ‘component’, ‘composite’ or ‘s-video’ by selecting between the ‘analog video output’ options.

HDMI 3D Output

This setting determines the 3D format for your HDMI monitoring.

- Top and Bottom

Arranges both left and right eye images vertically with 50% compression.

Frame Packing

Combines left and right eye images into a single frame without compression.

- Side by Side

Arranges both left and the right eye images horizontally with 50% compression.

- Left Eye

Only the left eye image is displayed.

Line by Line

The left and right eye images are carried on alternate video lines without compression.

Right Eye

Only the right eye image is displayed.

HDMI Output 3D output: Frame Packing

Set your HDMI 3D Output format.

Analog Video Output Levels

Drag the ‘video’ and ‘chroma’ sliders to adjust the analog video output levels for component or composite video. Dragging the video slider affects the luma gain and the chroma sliders decrease or increase the color saturation. When using component video, you can adjust the Cb and Cr values independently. Click the ‘link’ icon to connect them if you want to adjust them simultaneously.

Adjust the video slider to set composite analog video output levels, and the Cb and Cr sliders for controlling color balance when using component video.

- Use Betacam Levels

Blackmagic Design products use SMPTE component analog levels to maintain compatibility with most modern video equipment. Enable the checkbox if working with Sony Betacam SP decks.

NTSC IRE

Select the 7.5 IRE setup for the NTSC composite video used in the USA and other countries. Select the 0 IRE setup if you're working in Japan or countries that don't use the 7.5 IRE setup. PAL and high definition formats do not use this setting.

Use Betacami Levels NTSC IRE: 0.0 (Japan) 1 7.5 (USA)

Enable the ‘use Betacam levels’ checkbox when working with Sony Betacam SP decks. Select the relevant NTSC IRE level when using an NTSC composite video format.

Reference Input

The reference adjustment lets you adjust the timing of the video outputs of your hardware relative to the video reference input. This is commonly used in large broadcast facilities where the video output needs to be accurately timed. The reference adjustment is in samples so you can get an extremely accurate timing adjustment down to the sample level.

A common example of how this setting would be used is where all the hardware in your facility has a stable common reference connected and then all the devices would have the timing set so the video outputs all match perfectly. This would then make it possible to switch between devices on a downstream router or production switcher and would eliminate any glitching when switching is performed.

Reference Input Offset 0 Pixels

If locking to a reference, adjust this setting to time the video output relative to the reference input.

Connector Mapping for DeckLink Quad 2

If you have a DeckLink Quad 2 installed in your computer, you can input or output SDI signals over 8 independent DIN 1.0/2.3 connectors. This gives you the ability to capture or play back 8 separate video streams, similar to having 8 capture and playback devices in a single product. This is why your DeckLink Quad 2 appears in Desktop Video Setup as 8 individual DeckLink Quad devices which makes it easier to configure your inputs and outputs. You can even name each device so you can keep track of which DeckLink Quad device is being used for a specific video signal.

SDI connectors can be mapped to each device using the 'connector mapping' settings in the Desktop Video Setup utility, but it's important to know that specific connectors are dedicated to specific devices. For example, SDI 1 is dedicated to DeckLink Quad (1), and SDI 2 is dedicated to DeckLink Quad (1) and DeckLink Quad (5).

Connector Mapping Connector: SDI 1 & SDI 2

If you have a DeckLink Quad 2 installed, the ‘connector mapping’ setting lets you assign SDI connectors to each DeckLink Quad device.

You can see which SDI connectors are dedicated to each DeckLink Quad device by looking at the table below, where you can also check the mapping options for them.

Mapping Options

DeckLink Quad Devices Dedicated SDI Connectors

DeckLink Quad (1) SDI 1 and 2 or SDI 1

DeckLink Quad (2) SDI 3 and 4 or SDI 3

DeckLink Quad (3) SDI 5 and 6 or SDI 5

DeckLink Quad (4) SDI 7 and 8 or SDI 7

DeckLink Quad (5) SDI 2 or none

DeckLink Quad (6) SDI 4 or none

DeckLink Quad (7) SDI 6 or none

DeckLink Quad (8) SDI 8 or none

It's worth mentioning that when configuring an SDI connector for a specific device, it will also affect the device sharing that connector. For example, if DeckLink Quad (1) is set to use SDI 1 and 2, DeckLink Quad 5 will automatically be set to ‘none’ because its shared SDI connector is being used. Alternatively, if you select SDI 2 on DeckLink Quad (5), DeckLink Quad (1) will automatically be set to SDI 1. For this reason, it's important to note which SDI inputs or outputs are being used by each device to avoid accidentally interrupting the input or output of another device.

TIP If you have an original DeckLink Quad installed in your facility and are using a custom designed SDK application, you can be confident that installing DeckLink Quad 2 will work in your system without having to make any changes to your application. Additional mapping features in your DeckLink Quad 2 will allow you to build on your existing system to provide even more input and output configurations if you need them.

Audio Settings

Audio Input

Click on a connector icon to set your ‘audio input’ connection for your Blackmagic Design hardware. You can select from the following inputs:

- Embedded

Includes audio channels as part of video signals. SDI and HDMI are capable of carrying embedded audio.

- AES/EBU

Is a digital audio signal that can carry 2 audio channels over a single connector.

- XLR

Is a three pin audio connector that is predominantly used by professional analog audio equipment.

- RCA or HIFI

Is a connector used to connect unbalanced analog audio to and from consumer audio equipment, such as HiFi systems, DVD players and televisions.

- Microphone

Phantom power supplies power through microphone cables and is a convenient power source for condenser microphones.

Enable the ‘use +48V phantom power’ option if your microphone requires phantom power. If you’re unsure whether your mic needs phantom power or not, it’s best to leave this box unchecked as there is a risk of causing damage to microphones that are self powered. An LED on the front of UltraStudio 4K Extreme will illuminate when phantom power is active. Be sure to wait at least 10 seconds for phantom power to discharge after disconnecting before plugging in a self powered microphone. Older ribbon type microphones and dynamic microphones are not suitable for phantom power usage.

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

Click on a connector icon to set your ‘audio input’ connection.

Microphone Input Level: 1 dB Use +48V Phantom Power

Drag the ‘input level’ slider to control your microphone input level.

HDMI Audio Output

This setting lets you remap the 5.1 audio channels in your project to match the configuration used by your HDMI monitoring equipment. For example, some home theatre AV receivers require your surround sound audio to be mapped to specific channels. If you are working on a project that uses a different surround sound channel ordering, such as SMPTE ordering, you can enable the 'Use 5.1 surround channel ordering' checkbox to ensure compatibility with your HDMI AV receiver.

HDMI Audio Output Use 5.1 surround channel ordering

Enable ‘use 5.1 surround channel ordering’ to ensure compatibility with other HDMI monitoring equipment

AES/EBU

Drag the sliders to adjust the 'ref' level, or gain, for the AES/EBU audio inputs and outputs. Press the reset icon to reset the gain to 0 dB.

AES/EBU Output Level: 0.00 dB

Drag the ‘output level’ slider to control your AES/EBU digital output level.

Analog Audio Input Levels

Channel 1/Channel 2

These settings adjust the gain for the analog audio inputs when capturing. Click the 'link' icon to adjust them simultaneously.

Use HiFi Audio Levels

Professional XLR connectors are standard on UltraStudio and DeckLink models. If you want to connect consumer audio equipment to the XLR connectors, make sure you enable the ‘use HiFi audio levels’ checkbox as the audio levels between professional and consumer equipment differ. You’ll also need to use an RCA to XLR adapter.

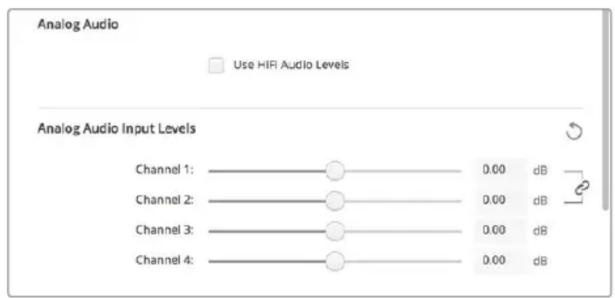

Analog Audio Use HIFI Audio Levels Analog Audio Input Levels Channel 1: 0.00 dB Channel 2: 0.00 dB Channel 3: 0.00 dB Channel 4: 0.00 dB

Adjust the input channel sliders to control your analog audio input levels. Enable the 'use HiFi audio levels' checkbox if connecting consumer audio equipment.

Analog Audio Output Levels

Channel 1/Channel 2

These settings adjust the strength of the audio signal, or gain, for the analog audio outputs while playing back video. Click the 'link' icon to adjust them simultaneously.

Reset Icon

When adjusting sliders, you may want to cancel your change. The reset icon is the circular arrow located at the right of each settings' title bar. Press the reset icon in each setting to restore the gain sliders to 0 dB.

Conversions Settings

Input Conversion

This setting enables real time up and down conversion during capture. Select your desired conversion from the ‘input conversion’ dropdown menu.

Input conversion results in up to a 2 frame delay, so you'll need to adjust your editing software's timecode offset to ensure frame accuracy.

Display As

Select how you would like your converted video presented. Depending on your input video's original aspect ratio, options may include letterbox, anamorphic, center cut, pillarbox, 16:9 zoom or 14:9 zoom.

Output Conversion

This setting enables real time up and down conversion during playback. Select your desired conversion from the dropdown menu.

Output conversion results in up to a 2 frame delay, so you'll need to adjust your editing software's timecode offset to ensure frame accuracy.

Convert Analog Outputs

Enable this checkbox to also perform your conversion on the analog video outputs.

Display As

Select how you'd like your converted video presented. Depending on your video's original aspect ratio, options may include letterbox, anamorphic, center cut, pillarbox, 16:9 zoom or 14:9 zoom.

Video Output Video Input Audio Conversions Serial Port About Input Conversion Input conversion: HD (1080) to SD Display As: Letterbox Anamorphic Output Conversion Output conversion: SD to HD 1080i Convert Analog Outputs Display As: Anamorphic 14:9 Zoom Pillarbox

To set your up or down conversion settings, select your input or output conversion from the respective dropdown menu, and click on the desired aspect ratio selection. Remember to click 'save' to apply your settings.

The following table outlines the different aspect ratio selections available during conversions.

Down Conversion	Source Image	Converted Image
Letterbox			Scales the entire 16:9 HD image into a 4:3 SD frame leaving black bars on the top and bottom.
Anamorphic			Horizontally squeezes the 16:9 HD image into a 4:3 SD frame.
Center Cut			This setting cuts a 4:3 SD frame from the 16:9 HD image. This aspect ratio setting discards a portion from each side of the 16:9 image.
Pillarbox			Displays a 4:3 SD image inside an 16:9 HD frame. Black bars feature on the sides.
16:9 Zoom			Scales the 4:3 SD image to fill the 16:9 HD frame.
14:9 Zoom			A compromise between Pillarbox and 16:9 Zoom. Minimal black bars with slight crop top and bottom.

Setup

Use the setup tab to configure network settings for DeckLink IP capture and playback cards such as DeckLink IP HD, DeckLink IP HD Optical and DeckLink IP/SDI HD.

Network Settings

DeckLink IP cards can connect to the network using a static IP address or by using DHCP.

DHCP will automatically set an IP address and connect to the network without the need to change any settings. The dynamic host configuration protocol, or DHCP, is a service on network servers and routers that automatically finds your DeckLink IP card and assigns an IP address. DHCP makes it easy to connect equipment via Ethernet and make sure that IP addresses do not conflict with each other. Most computers and network switches support DHCP.

Select static IP if you want to set the IP address yourself. Simply set the protocol setting to ‘static IP’ and change the IP settings manually. A static IP address is one that won’t change even if your

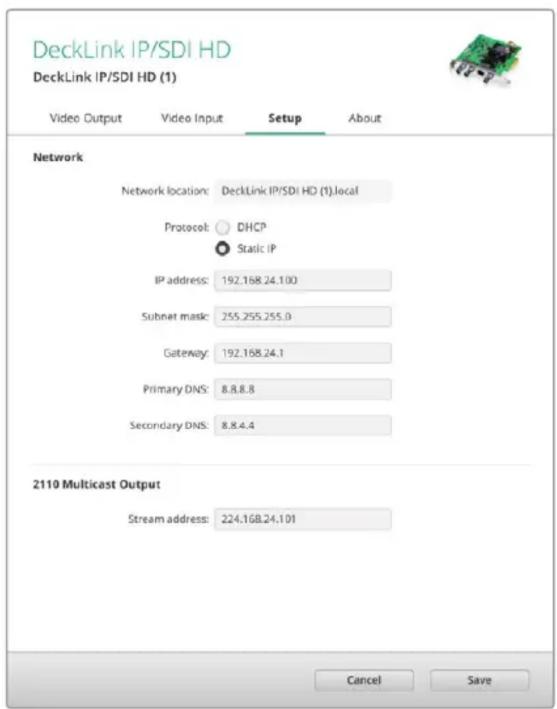

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.1GB.24.101 Cancel Save

computer is rebooted. Using a static IP address might be necessary if you are connecting to a corporate network.

If you have a network administrator, it's possible your network might have custom IP addresses for all the equipment connected to it. It's best to check with your network administrator if they are managing your computers and network in your company.

Connecting to a Network

When plugging into your network, make sure you connect via a Cat 6 network cable or optical fiber depending on which DeckLink IP model you are using. The 'ST2110' specification relies on multicast data to efficiently distribute video, audio and ancillary data.

We strongly recommend the use of a dedicated PTP grand master clock device in a network configured to support the IGMP version 3 multicast data protocol.

2110 Multicast Output

This setting is similar to an IP address and lets other DeckLink IP cards and SMPTE 2110 IP equipment identify the stream on your network. Each stream from your DeckLink card requires its own multicast output address and you can assign one for each by selecting them from the setup utility home screen.

It is important the address is unique and not shared by other 2110 IP equipment on your network. Consult your IT administrator for guidance on which address to use if you are unsure.

The numbers in each field should be set within the following limits:

224.0.0.0 to 239.255.255.255.

For example, 224.24.29.73

About

Driver

The ‘about’ page in Blackmagic Desktop Video Setup provides information about your hardware’s current driver and the last time your hardware was updated.

TIP You can generate a status report by clicking on the status report 'create' button, which lets you save a file containing technical information such as the video format detected on your input and output reference, color space, color sampling and bit depth, driver information, operating system and machine information. This report can be useful if you ever need to contact our technical support team. The file is also very small so can be easily emailed.

Product Notes

Changing the name of your Blackmagic Design equipment lets you identify each unit in the Desktop Video Setup software and keep track of where and how it's being used. This is useful if you have the same hardware in various locations on a network, plus it can be handy to name the different units for their purposes, e.g., Edit Suite 2, Color Suite 1, etc.

When you enter a name for your hardware in the label field, it is saved to the Blackmagic Desktop Video Setup home page and displayed beneath the hardware image.

You can also enter important information that you may want to refer to later, such as the hardware serial number, where and when your hardware was purchased, as well as the seller's contact details.

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.6 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

The 'about' tab provides valuable information such as the driver version, user manual and release notes, plus lets you enter notes specific to your hardware.

Teranex Mini Smart Panel

Attaching a Teranex Mini Smart Panel

Blackmagic UltraStudio HD Mini is a small capture and playback solution that shares a similar form factor to other Blackmagic equipment like Teranex Mini converters and recording decks such as HyperDeck Studio Mini. These products are designed to be portable and modular so you can take them with you on location or mount them on your desk. You can also attach them to the Blackmagic Universal Rack Shelf. Refer to the ‘Blackmagic Universal Rack Shelf’ section for more information.

Attaching an optional Teranex Mini Smart Panel to your UltraStudio HD Mini allows you to preview video and audio directly from the front of the unit during playback and capture.

The built in LCD on the Teranex Mini Smart Panel displays the input image as well as audio meters, which allow you to preview your audio levels.

The Panels are hot swappable so you don't even need to turn off your Blackmagic UltraStudio HD Mini when installing it.

1 Remove the two M3 screws on each side of your Blackmagic UltraStudio HD Mini's basic front panel using a Pozidriv 2 screwdriver and gently pull the panel away from the front of your the unit.
2 On the inside of the basic panel, you'll notice a small clear plastic tube attached to the bottom corner. This tube directs light from the LED inside the unit to illuminate the status indicator on the basic panel. This tube should stay attached to the basic front panel.

TIP If reattaching the basic front panel, make sure the light tube is aligned with the slot in the front of the unit.

3 Align the connector on the rear of the Teranex Mini Smart Panel with the corresponding connector on the face of your UltraStudio HD Mini and gently push the Smart Panel towards the unit until the connectors are firmly seated. The Teranex Mini Smart Panel should make a firm connection and fit neatly inside the face of your UltraStudio HD Mini.
4 Re-insert the M3 screws from the original panel.

Illustration of a hand holding a remote control device with labeled buttons including MENU, VIDEO, SET, and AUDIO.

When installing the Teranex Mini Smart Panel to your Blackmagic UltraStudio HD Mini, holding the panel with your fingers and thumb aligned with the panel's rear connector will help guide it into place

If your UltraStudio HD Mini is installed in a Blackmagic Universal Rack Shelf, you will need to remove the unit from the rack shelf to access the front panel screws.

See the ‘Blackmagic Universal Rack Shelf’ section for more information.

The original basic panel is very strong, so if you need to mount your Blackmagic UltraStudio HD Mini in the back of a rack system or in areas where there are lots of cables or activity, you can always reinstall the original basic panel.

Smart Panel Features

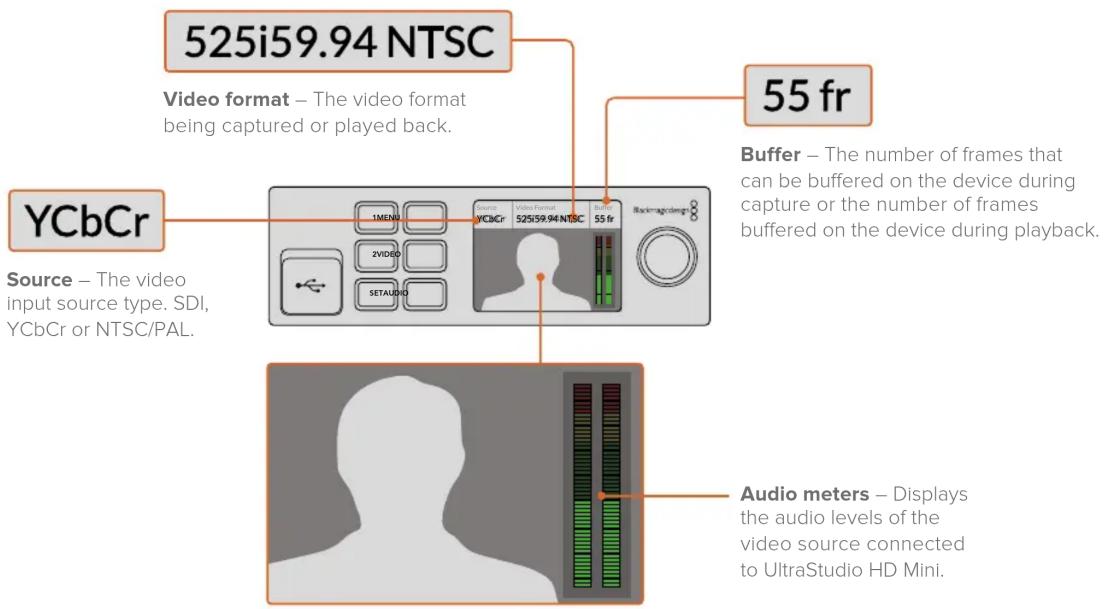

LCD Display

The home screen is the first feature you'll see on your Teranex Mini Smart Panel's LCD display. The home screen shows you important information, including:

525i59.94 NTSC Video format – The video format being captured or played back. 55 fr YCbCr 1MEN 2VIDEO SETAUDIO Source – The video input source type. SDI, YCbCr or NTSC/PAL. Video Format 525i59.94 NTSC 55 fr Backage/second Buffer – The number of frames that can be buffered on the device during capture or the number of frames buffered on the device during playback. Audio meters – Displays the audio levels of the video source connected to UltraStudio HD Mini.

Video monitor – Displays the input video source that is connected to UltraStudio HD Mini.

Using UltraStudio 4K Mini's Front Control Panel

On UltraStudio 4K Mini, most of the settings that can be changed in the Desktop Video Setup utility are also available via the LCD menu on the front panel. To navigate through the settings, press the 'menu' button to open the menu, then scroll through the options using the settings knob. To enter submenus and confirm a setting, press the 'set' button.

To exit the menu, keep pressing the ‘menu’ button to step back through the menus and return to the home screen.

TIP You can also navigate directly to the video or audio settings by pressing the 'video' or 'audio' buttons. This lets you go directly to the relevant settings without scrolling through the settings list, which can save time.

PUSH 1 MENU 2 VIDEO SET AUDIO Audio Meters VU (-18dBFS) VU (-20dBFS) PPM (-18dBFS) PPM (-20dBFS) Backmagic design

Use the LCD menu on UltraStudio 4K Mini's front panel to change settings

Audio Settings

UltraStudio 4K Mini also has additional audio settings in the LCD menu. These settings let you change the type of audio meters displayed on the LCD during capture and playback. The two audio meter types are VU and PPM.

vU

The VU meter, or 'volume units' meter, averages out short peaks and troughs in your audio signal. If you are using VU metering, adjust the output levels of your source so that the meter peaks at the 0db indicator on the audio meter. This maximizes the signal to noise ratio and ensures your audio is at the highest quality. If your audio peaks beyond the 0dB indicator there is a high risk of sound distortion. If you are using the analog audio inputs of the UltraStudio 4K Mini, the input levels can be adjusted in the LCD menu or setup utility.

PPM

PPM meters, or ‘peak programme meters’, display a ‘peak hold’ feature that momentarily holds the signal peaks with a slow fall back so you can easily see the audio level at which your audio is peaking.

Both VU and PPM meters can be set to use reference levels of -18dB or -20dB so you can monitor your audio to suit different international broadcasting standards.

SD Card Slot

UltraStudio 4K Mini's front panel also features an SD card slot that reads and writes files when the unit is connected to a Mac or Windows computer. This slot can be used just like a typical SD card reader or writer and is detected by your computer as another drive. This means you can quickly import clips from your camera's SD card or set Media Express to capture a clip to portable media.

Blackmagic Universal Rack Shelf

Blackmagic Universal Rack Shelf is a 1RU shelf that lets you install a broad range of Blackmagic Design equipment into a broadcast rack or road case. The modular design means you can build portable and practical equipment setups using products that share a single rack unit form factor.

The illustration below shows 3 Universal Rack Shelves installed in a small rack with a combination of compatible units mounted. The bottom shelf includes a 1/3 rack width blanking panel to fill unused space between units.

MSSU ULTRAND Submaging Tension Rate HOME to SET U2G Submaging MSSU Submaging

Contents

The Universal Rack Shelf Kit contains the following items.

Technical illustration of a metal frame with mounting flanges (no text or symbols)

1 x Blackmagic Universal Rack Shelf

A single rack unit, full width shelf for installing Blackmagic Design equipment.

Backmagicdesign Blackmagicdesign

Blanking Panels

1 x 1/6 rack width and 2 x 1/3 rack width blanking panels to cover unused shelf space.

Screws

12 x M3 5mm

countersunk mounting screws.

2 x M3 9mm flat screws

for 1/6 blanking panels.

Mounting a Unit to the Rack Shelf

1 If rubber feet are attached, remove the feet from the base of the unit using a plastic edged scraping tool.
2 With both the rack shelf and the unit upside down, line up the rack shelf's pre drilled holes with the threaded mounting holes on the base of the Blackmagic Design unit. There are two central mounting points on 1/3 width units and up to three mounting points on larger, 1/2 rack width units.

Technical diagram showing two server rack-mounted devices with labeled ports and mounting holes, annotated with red arrows indicating assembly or status.

3 Using the supplied M3 5mm countersunk screws, fasten the unit to the rack shelf.
4 Once fastened, turn the rack shelf right side up and install into the rack via the built in rack ears.

The supplied blanking panels can be used to cover unused shelf space.

Attaching the 1/6 Blanking Panel

The small 1/6 blanking panel can be used to fill unused shelf space when mounting 1/2 and 1/3 rack width units. The panel can be attached to the sides of either unit. To improve airflow it's a good idea to mount the panel between units.

Diagram of a computer mouse with a hexagonal mesh grille and a light bulb, showing no text or symbols.

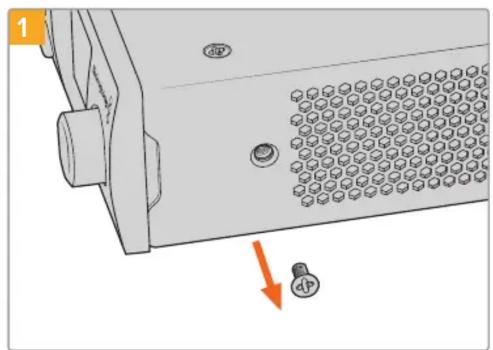

Remove the 5mm M3 screw near the front of the unit

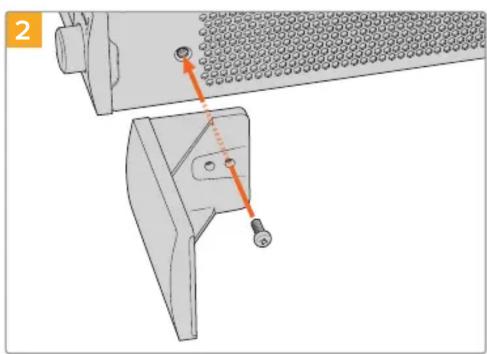

Mechanical assembly diagram showing a bracket with pins and a dotted line indicating a connection point (no text or symbols present)

Line up the blanking panel and attach using the supplied M3 9mm nylon screw

Attaching the Side 1/3 Width Blanking Panel

The large 1/3 width blanking panels can be attached directly to either side of the rack shelf when mounting single units. To install a blanking panel, align the screw holes and anchor point at the base of the panel with the shelf and secure in place using two of the supplied M3 5mm countersunk screws.

DaVinci Resolve

Live Grading with DaVinci Resolve

Desktop Video allows simultaneous capture and playback on Blackmagic Design 4K and 8K hardware. This is great for users who want to use the live grading feature within DaVinci Resolve, as it means you don't require two separate devices for input and output.

DaVinci Resolve STUDIO 18.5 LOADING PROJECT SETTINGS © 2023 BLACKMAGIC DESIGN/TYPE LED AL RIGHTS RESERVED BLACKMAGIC DESIGN / DRAMIC DESIGN / POWER WINDOWS / REMBERTGAGE / POWER CREAM / THE TRAFEMARKS / BLACKMAGIC DESIGN / NOTES/DESIGNED BY: 527041, SEATWA ABSTRACT / APROVAL / DRAMICE / BREAD / ACCESSORIES (PRODUCTS) DAVINCI RESOLVE SPEED EDITOR

When using live grading on set, simply connect the output of the camera to the input of your Blackmagic Design hardware. Then connect the hardware's output to an on set monitor for grading evaluation and viewing.

Setting Up

1 Launch DaVinci Resolve. From the preferences menu, select the ‘video and audio I/O’ tab and select your hardware from the ‘for Resolve Live use’ option. Save your preferences and restart DaVinci Resolve to apply your changes.
2 Start a project and open the ‘project settings’ window. From the ‘master settings’ tab set the timeline resolution and frame rate to match your camera.

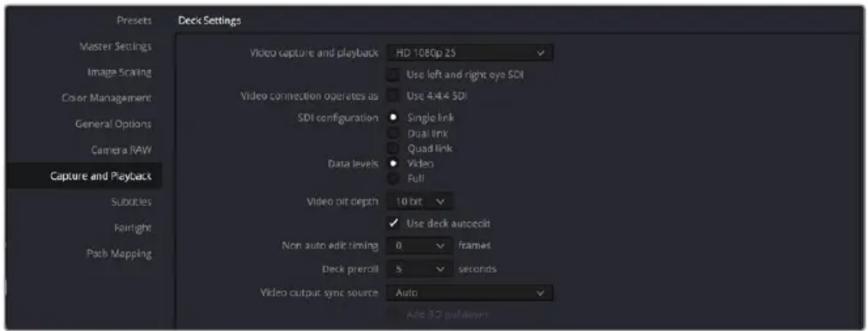

3 Go to the ‘capture and playback’ tab and select your desired format from the ‘video capture and playback’ menu.

Presets Master Settings Image Scaling Cover Management General Options Camera RAW Capture and Playback Substles Rearlight Path Mapping Deck Settings Video capture and playback HD 108Gp 25 Use left and right eye SDI Video connection operates up Use 4.4.4 SDI SDI configuration Single link Dual link Quad link Data levels Video Full Video bit depth 10 bit Use deck autocit Non auto edit timing 0 frames Deck prerail 5 seconds Video output sync source Auto Add 3.2 pushdowns

Select your format from the ‘video capture and playback’ menu.

4 Go to the ‘edit’ page and select file>new timeline.
5 From the ‘color’ page, click on the ‘color’ menu and select Resolve live > on. You should now see live video within the viewer and a bright red ‘Resolve Live’ button will appear above the video.

Using Resolve Live

1 In Resolve Live mode, the ‘freeze’ button (snowflake icon) freezes the current incoming video frame, so you can grade it without being distracted by motion occurring during the shoot.
2 Once you're happy with a grade, clicking the 'snapshot' button (camera icon) saves a snapshot of the current still in the viewer, the incoming timecode value, and your grade into the timeline. Snapshots are simply one frame clips. Once you've taken your snapshot, press the snowflake icon again to resume playing until you find the next shot you want to grade.

TIP Please refer to the DaVinci Resolve manual for more information on Resolve Live.

Editing with DaVinci Resolve

Blackmagic DaVinci Resolve features an editor friendly interface with all the tools to edit and finish projects. Whether you use the mouse to drag and drop clips, or your keyboard for precision editing, DaVinci Resolve features all of the functionality professional editors require.

Setting Up

1 Launch DaVinci Resolve. From the ‘preferences’ menu, select the ‘video and audio I/O’ tab and select your Blackmagic Design hardware from the ‘for capture and playback use’ option. Save your preferences and restart DaVinci Resolve to apply your changes.
2 Load a project, open ‘project settings’ from the file menu and under ‘master settings’, set your ‘timeline resolution’, ‘timeline frame rate’ and ‘playback frame rate’.
3 Under the ‘video monitoring’ section, set your ‘video format’. Blackmagic Desktop Video Setup will automatically change to the video format you choose for output to your Blackmagic Design video hardware.
4 Click the 'save' button to save the changes and close the project settings window.

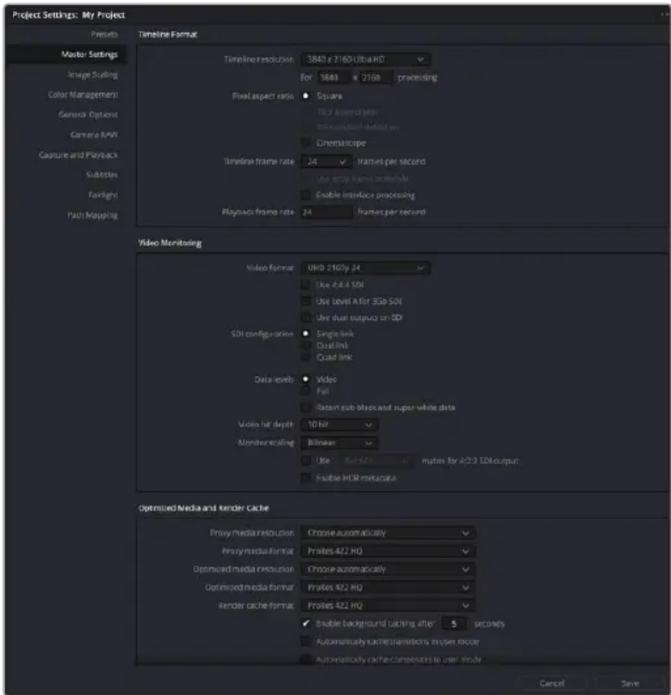

Project Settings: My Project Presets Timeline Format Master Settings Image Setting Color Management General Options Camera RAW Capture and Playback Substituto Fastlight Path Mapping Timeline reduction 3843 x 2160 Ultra HD For: 1884 x 2159 procuring Fivel aspect ratio Square 15.2 ascorporate Intra-structured default on Chenoscotope Timeline frame rate 24 frames per second Use zoom for name attributes Enable interface processing Playback frame rate 24 frames per second Video Monitoring Video format GHz 2160y 24 Use Auto 500s Use level Afor 350x 501 Use dual output on SDI SBI configuration: English link Dual link Quad link Data levels Video Fail Return sub-blocked super-white data Video hit depth 10 bit Monterewalking Linear Use Bus Alt matrix for ACD SDI output. Enable HDR metadata Optimized Media and Render Cache Proxy media resolution Choose automatically Proxy media format Prates 422 HQ Optimized media resolution Choose automatically Optimized media format Prates 422 HQ Render cache format Prates 422 HQ ✓ Preview background locking after 5 seconds Automatically matching transitions in user mode Automatically cache-compressed to user mode Cancel Save

Use the ‘project settings’ window to set your timeline format and video monitoring options.

Editing

1 Use the media storage browser on the ‘media’ page to load your clips into the media pool.
2 On the ‘edit’ page, select file>new timeline, name your timeline and click the ‘create’ button.
3 Now you can drag a clip from the media pool to the source viewer on the left hand side.
4 You can set the in and out points in source clips by using the I and O keys and dragging the playhead in the bar below the viewer window.
5 To edit the clip into the timeline, simply drag and drop the clip from the source viewer into the timeline.

TIP Refer to the Blackmagic DaVinci Resolve manual for more detailed information on how to edit with DaVinci Resolve.

Using your Favorite 3rd Party Software

Adobe After Effects CC

Ae Adobe After Effects © 1992-2022 Adobe, All rights reserved. Artwork by Never Sit Still. For more details and legal notices, go to the About After Effects screens. Initiating MediaCare Adobe Creative Cloud

After Effects CC

How to Preview Video

To display your composition in real time through your Blackmagic Design hardware, go to preferences > video preview. ‘Enable Mercury Transmit’ must be ticked in order to use your Blackmagic Design hardware with After Effects CC. Under ‘video device’, select Blackmagic Playback. You can now use a broadcast monitor to view your After Effects compositions in the correct video colorspace.

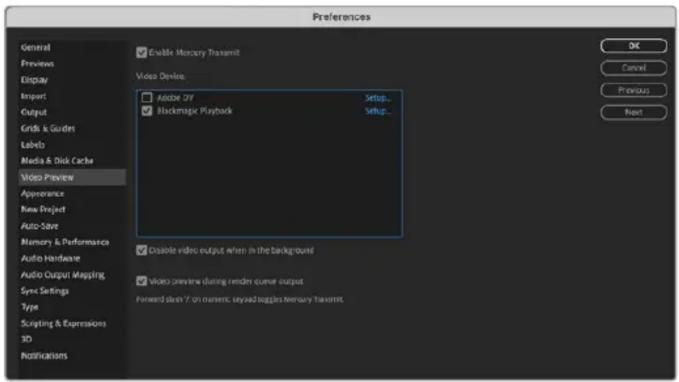

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Auto-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Memory Transmit Video Device: Adobe 3YF Blackmagic Playback Setup... Setup... Disable video output when in the background Video preview during render current output Forward slash 7 on numeric overlays toggles Memory Transport OK Cancel Previous Next

'Video Preview' preferences

If you work with unsupported or non standard frame sizes, these can also be correctly outputted by your Blackmagic Design hardware. Go to preferences > video preview and click the 'setup' button next to 'Blackmagic playback'. The 'Blackmagic device selection' window will appear. You can scale your image up or down to the next closest video standard supported by your hardware. For example, if you are using UltraStudio 4K and your After Effects composition is set to a resolution of 2048 x 1152, scaling down will output DCI 2K, scaling up will output Ultra HD.

Rendering

When you have completed your composition, you can render a DPX image sequence or any of the following codecs:

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1060 Custom Resize 96: x Resize Quality High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

'Output Module Settings' rendering options

QuickTime codecs on Mac OS

• Blackmagic RGB 10 bit (uncompressed)
• Apple Uncompressed YUV 10 bit 4:2:2
• Apple Uncompressed YUV 8 bit 4:2:2
• Apple Photo - JPEG (compressed)
• Apple DV - NTSC (compressed)
• Apple DV - PAL (compressed)

Other codecs including ProRes and DVCPRO HD will be available if you have Final Cut Pro installed.

AVI codecs on Windows

• Blackmagic 10 bit 4:4:4 (uncompressed)
• Blackmagic 10 bit 4:2:2 (uncompressed)
• Blackmagic HD 8 bit 4:2:2 (uncompressed)
• Blackmagic SD 8 bit 4:2:2 (uncompressed)
• Blackmagic 8 bit MJPEG (compressed)

Other codecs including DVCPRO HD and DVCPRO50 will be available if you have Premiere Pro CC installed.

QuickTime codecs on Windows

• Blackmagic RGB 10 bit (uncompressed)
• Blackmagic 10 bit (uncompressed)
• Blackmagic 8 bit (uncompressed)
• Apple Photo-JPEG (compressed)
• Apple DV - NTSC (compressed)
• Apple DV - PAL (compressed)

Adobe Photoshop CC

Adobe Photoshop

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham

For mere details and legal notices, go to the

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owysng, Alan Erleken, Sarah Kong, Jerry Harris, Mike Shau, Thomas Ruark, Yukie Takahashi, David Dobish, John Peterson, Adam Jerugim, Yuky Kapita, Foster Bresetol, Meredith Payne Scotmert, Tal Luxon, Yinhod Bakorishnon, Marla Yap, Pam Clark, Kyoko Rode, Steve Ovilhamet, David Heckol, Eric Flech, Judy Lee, Kevin Hepps, Barklin Aygun, Kiran Kumar Rathvlavith, Aanchal Jain, Stanley Thomas, Rajnesh Chavi, Caynn Megan LA, Carlens Gonzalez, Anrundt Mahindru, Tana Agansul

Adobe Creative Cloud

Colorful artistic portrait of a smiling figure in ornate blue and purple attire with a full moon background (no text or symbols)

Photoshop CC

How to Import and Export Video Frames

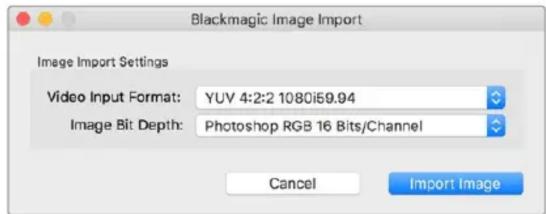

Import an image into Photoshop CC

1 Select file > import > Blackmagic image import.
2 Select the ‘video input format’ and the ‘image bit depth’ and then click ‘import image’.

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Image Capture

Export an image from Photoshop CC

1 Select file > export > Blackmagic image export.
2 Select ‘video output format’ and then click ‘export image’.

Blackmagic Image Export Image Export Settings Video Output Format: YUV+K 4:2:2 1080i59.94 Cancel Export Image

Image Export

Once you have set the ‘import’ or ‘export’ options, subsequent imports and exports will not display the settings window. However, you can still change your settings, by holding the Option [Mac] or Ctrl [Win] key, when selecting import or export.

Adobe Premiere Pro CC

Pr Adobe Premiere Pro © 1991-2022 Adobe. All rights reserved. Artwork by Elise Swipes, For more details and legal notices, go to the About Premiere Pro screen. Initiating Applications... Adobe Creative Cloud

Premiere Pro CC

Setting Up a Blackmagic Design Project

1 Open Premiere Pro and click on ‘new project’. Type in a name for the project and select a storage location for it.
2 If your graphics card is supported by Premiere Pro CC's Mercury Playback Engine, the renderer option will be available and you should switch it to Mercury Playback Engine GPU acceleration.
3 In the ‘capture format’ drop down menu, select ‘Blackmagic capture’. Click the ‘settings’ [mac] or ‘properties’ [windows] button to set the video and audio capture settings. Select the video standard and video format. Click ‘ok’ to return to the ‘new project’ window.
4 Click on the ‘scratch disks’ tab to set the locations for your captured video, captured audio, video and audio previews. Click ‘ok’ and your new project will open.
5 Now check your default system audio is not set to Blackmagic Desktop Video.

On Mac OS, open ‘system preferences’, click on the ‘sound’ option and in the output tab, make sure your Blackmagic device is not selected. In the input tab, select your microphone input, making sure your Blackmagic product is not selected.

On Windows, go to the task bar and right click on the audio 'speaker' icon to open the sound settings. Click on the ' playback' tab and set your PC to use the on board sound hardware or a sound output device other than your Blackmagic Design hardware. Click on the 'recording' tab and set the computer to use a recording device other than your Blackmagic Design hardware.

6 Back in Adobe Premiere Pro, click on the ‘preferences’ menu and select ‘audio hardware’. Set your ‘default output’ to ‘built-in output’ using the dropdown menu. Under ‘output mapping’, map output for ‘Adobe desktop audio’.

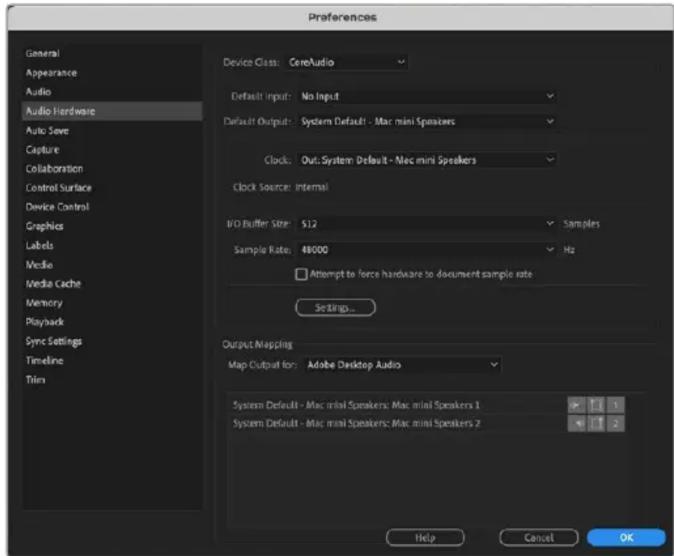

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Thin Device Class: CoreAudio Default Input: No Input Default Output: System Default - Mac mini Speakers Clock: Out: System Default - Mac mini Speakers Clock Source: Internal I/O Buffer Size: $12 Samples Sample Rate: 48000 Hz Attempt to force hardware to document sample rate Settings... Output Mapping Map Output for: Adobe Desktop Audio System Default - Mac mini Speakers: Mac mini Speakers 1 System Default - Mac mini Speakers: Mac mini Speakers 2 Help Cancel OK

When setting up Adobe Premiere Pro's audio hardware preferences, make sure the default audio output and output mapping settings are set to 'built-in output'.

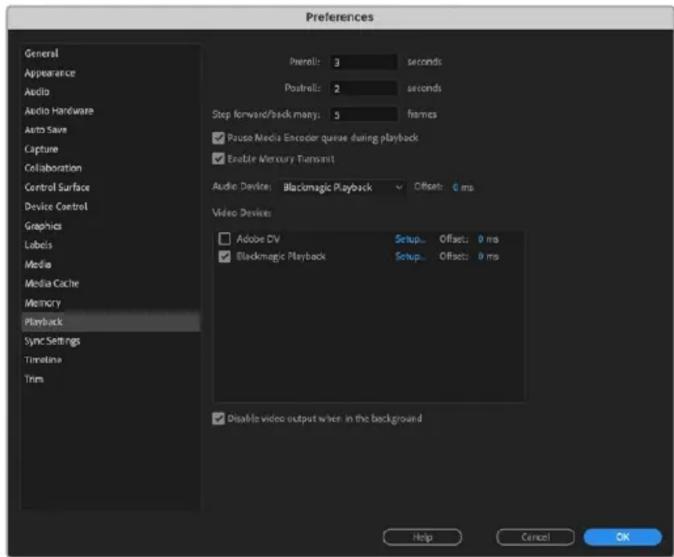

7 In the ‘ playback’ menu under preferences, select ‘ Blackmagic playback’ from the ‘audio device’ dropdown menu and check the ‘ Blackmagic playback’ box under ‘ video device’. Press ‘ok’.

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Pre-tell: 3 seconds Post-tell: 2 seconds Stop forward/back marry: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blackmagic Playback Offset: 0 ms Video Devices Adobe DV Setup Offset: 0 ms Blackmagic Playback Setup Offset: 0 ms Disable video output when in the background Help Cancel OK

Set Adobe Premiere Pro's ‘ playback’ audio device to ‘ Blackmagic Playback’ and be sure to check the ‘ Blackmagic Playback’ checkbox in the ‘ video device’ settings.

8 To create a new sequence, click file > new > sequence. Select the desired preset, give the sequence a name and then click 'ok'.

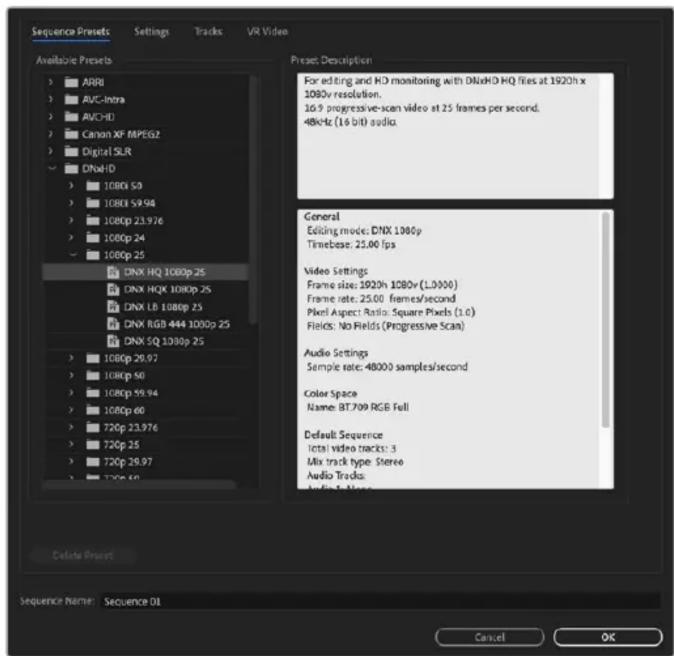

Sequence Preset Settings Tracks VR Video Available Presets ARRI AUC-Inra AVCHD Canon XF MPEG2 Digital SLR DNxHD 1080p 50 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQX 1080p 25 DNX LB 1080p 25 DNX RGB 444 1000p 25 DNX SQ 1080p 25 1080p 26.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 26.97 720p 50 Preset Description For editing and HD monitoring with DNxHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L3000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT-709 RGB Full Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks: Audio & Mask Delete Preset Sequence Name: Sequence D1 Cancel OK

Create a new sequence

Device Control

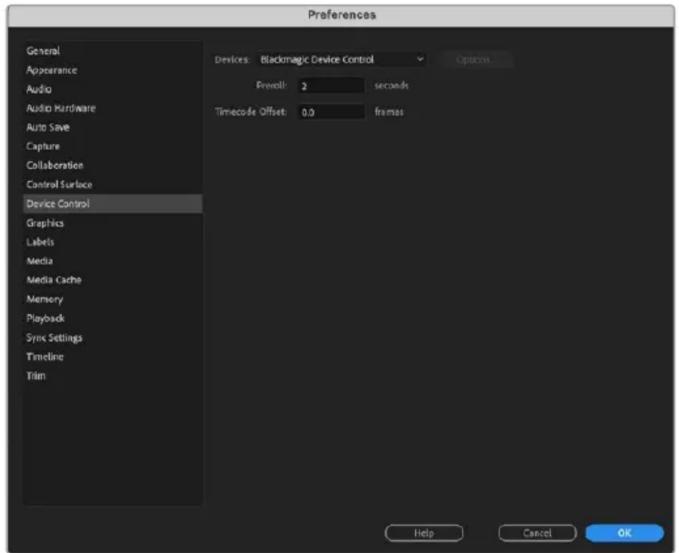

Many Blackmagic Design capture and playback models feature RS-422 device control for controlling decks. Click preferences > device control, and check that Blackmagic device control has been selected from the ‘devices’ menu. Click ‘ok’.

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Options Prevoll: 2 seconds Timecode Offset: 0.3 frames Help Cancel OK

Playback

If you work with unsupported or non-standard frame sizes, these can also be correctly outputted from your Blackmagic Design hardware. Go to preferences > playback, and click the 'setup' button next to 'Blackmagic playback'. The 'Blackmagic device selection' window will appear. You can scale your image up or down to the next closest video standard supported by your hardware. For example, if you are using UltraStudio 4K and your Premiere sequence is set to a resolution of 3996 x 2160, scaling down will output Ultra HD, scaling up will output DCI 4K.

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Select an option to output unsupported frame sizes.

If your Desktop Video device supports HDR, you can also set the color gamut and transfer function for HDR projects. These include HLG and PQ for Rec 2020. The HDR mastering display setting should be set to the maximum nits your monitor or television is capable of displaying.

Capture

To capture choose:

File > capture [F5]

Enter your desired tape and clip name.

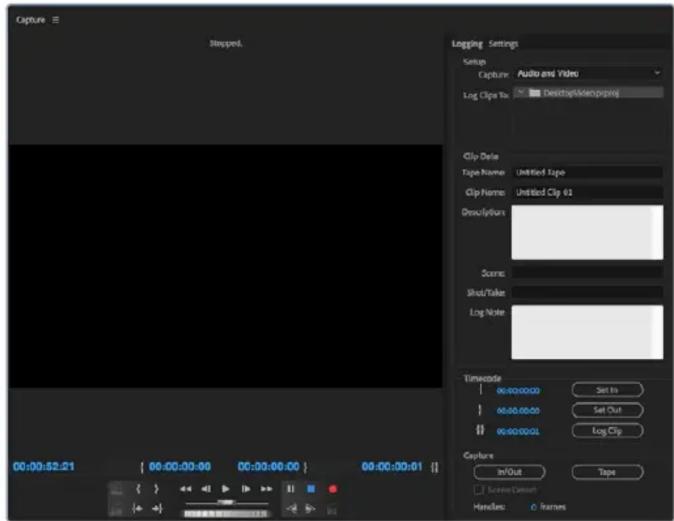

Capture Stapped. Logging Settings Setup Capture: Audio and Video Log Clips To: DescriptMaidenScript Clip Delete Tape Name: Untitled Tape Clip Name: Untitled Clip 61 Description: Scene: Shot/Take Log Note: Timecode 00:00:00:00 Set In 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Tape Scene Default Handles: C frames 00:00:52:21 00:00:00:00 00:00:00:00 00:00:00:01

Set your capture and device control settings in the capture window

To immediately capture, or to capture from a non-controllable device, click the red record button [G].

If you wish to log the clip using RS-422 deck control, enter the desired in and out points using the 'set in' and 'set out' buttons, or by manually typing the timecode and clicking 'log clip'.

Enter a clip name and press ‘ok’. The empty clip will now appear in the ‘project’ window. Repeat this until you have logged all of the clips you wish to batch capture.

Then choose: File > batch capture [F6]. To set handles on the clips, enable the option to capture with handles and type the number of additional frames you require at the start and end of each clip and click 'ok'. You will now be prompted to enter your tape. Click 'ok' and your clips will now be captured.

Export to Tape

If you want to edit your timeline to an external deck, you can do so using Premiere Pro's ‘edit to tape’ feature. Choose between two export types: insert and assemble. Insert editing requires unbroken timecode for the duration of the project which is to be laid to tape, and is also a great solution when you want to replace a shot on an existing tape. In assemble mode, the tape needs only to be “blacked” until a point just beyond the starting timecode of the sequence.

As assemble editing erases the tape ahead of the record heads, it should not be used where other projects already exist on the tape after the out point of your edit.

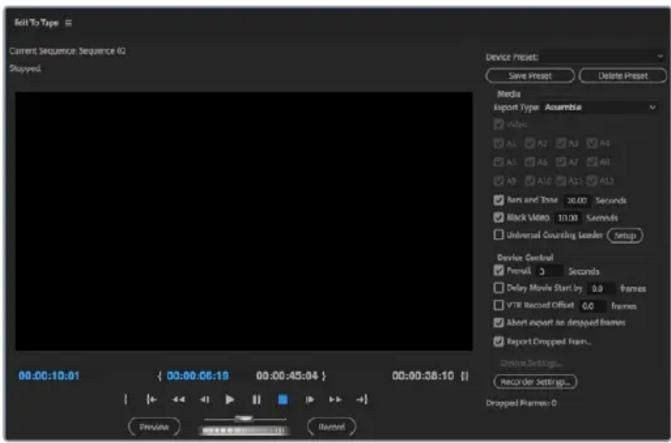

Edit To Type Current Sequence: Sequence 02 Stopped. Device Preset: Save Preset Delete Preset Media Export Type Assemble Video A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Bam and Tone 20.00 Seconds Black Video 17.00 Seconds Universal Crossing Leader Setup Device Control Prevall Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Droped From... Device Settings: Recorder Settings... Dropped Planes: 0 00:00:10:01 { 00:00:06:19 00:00:45:04 } 00:00:38:10

Use the ‘edit to tape’ feature to export your edit to an external deck

TIP When exporting to tape using the assemble mode, it's always good to add at least 30 seconds of black to the end of your sequence. This assists with tape post roll functions and prevents unwanted media appearing directly after your footage.

To export to tape via RS-422 deck control:

1 Make sure the Adobe Premiere Pro preferences are configured correctly as described in 'setting up a Blackmagic Design project' earlier in this section.
2 Open Premiere Pro's 'edit to tape' window by clicking File > export > tape (serial device). Click on 'recorder settings', select Blackmagic capture from the dropdown menu and click 'settings'. Choose your video standard and format along with audio settings. Click 'ok'. If the capture format does not match the output format, it can cause confusion for the deck during preroll and audio might not be exported.
3 Now choose your ‘export type’ by selecting ‘assemble’ or ‘insert’ from the dropdown menu, enter the desired in point timecode and click ‘record’.

When editing to tape, the software waits at the first frame of your project for the deck to drop into record at the predetermined timecode. Should you find that either the first frame of your program is repeated or lost during the edit to tape procedure, you will need to adjust the ' playback > video device > offset' setting to bring the deck and computer in sync. You should only need to do this once with any combination of deck and computer and the correct setting will be retained.

Adobe Character Animator CC

Some Desktop Video capture and playback devices let you connect graphics generated by Adobe Character Animator CC to other video equipment such as a confidence monitor. For example, you may want to use the performance of a virtual character in a video edit and monitor the performance in realtime.

This section shows you how to set the output options in Adobe Character Animator CC.

Adobe Character Animator

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI..

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

1 In Adobe Character Animator, select Character > Preferences > Live Output.
2 Ensure ‘enable Mercury transmit and syphon’ is checked.
3 Ensure ‘Blackmagic playback’ is checked.
4 Select ‘setup’ next to ‘Blackmagic playback’.
5 In the ‘output mode’ drop down menu, choose a mode from the following options.

Playback

Outputs a signal directly from Adobe Character Animator CC without any keying.

Internal Keying

This option allows you to superimpose your animated character over another video source using your Desktop Video device's internal keyer. For example, the background could be a video of a location relevant to a news story and the character could be superimposed over the top providing a live interview. Another option would be to have the character superimposed over the broadcast feed and sit in the bottom corner like a logo or watermark, providing reactions to the content that is being broadcast.

Fill/Key

If you want to perform the keying using an external switcher, for example an ATEM switcher, you can set the output mode to fill/key. The fill signal is the animated character and the key signal is the grayscale mask that tells a keyer to make the space around the character transparent. This allows the keyer to superimpose the character over a background.

Final Cut Pro

You can use the A/V output option in Final Cut Pro to output your video through Blackmagic Design video hardware. If you are using a Desktop Video device that supports HDR, you can also view and edit HDR video with a wide color gamut on a compatible television or monitor.

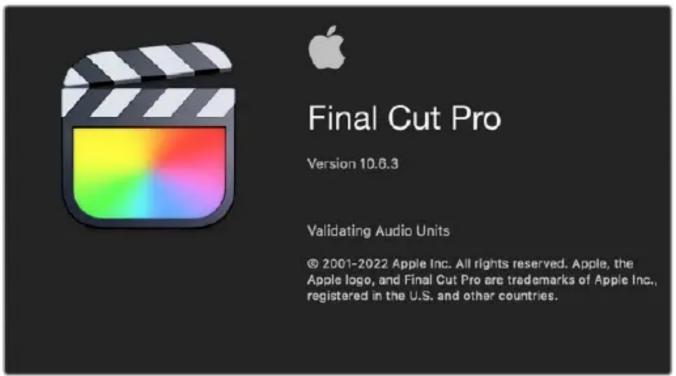

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Setting Up Final Cut Pro

1 Ensure you are running Final Cut Pro X 10.0.4 or later with the latest version of Mac OS.
2 Open Blackmagic Desktop Video Setup. Click on the 'video standard' drop down menu and then set the same format that you will use in your Final Cut Pro project. For example, 2160p29.97. The format should be the same as the video format of your clips. The video standard setting also determines the monitoring video output mode.

Final Cut Pro X Video standard: 2160p29.97 Pixel format: 10-bit YUV 4:2:2 Color gamut: Rec. 2020 PQ

Set the ‘output format’ to match your Final Cut Pro project format.

3 Click on the 'pixel format' drop down menu and set it to match a format your TV or external monitor will accept. For example, if you are working with a wide HDR color gamut, choose '10-bit YUV 4:2:2' or '10-bit RGB 4:4:4' based on your monitor's compatibility requirements.
4 Click on the ‘color gamut’ drop down menu and set this to match the color gamut your project is using. If you are working with a standard or high definition project with a standard dynamic range, choose ‘Rec. 601/Rec. 709’. If you are using a Desktop Video device that supports HDR and you are editing a 4K or high dynamic range project, select ‘Rec. 2020’. For projects that are both 4K and high dynamic range, choose either ‘Rec. 2020 HLG’ or ‘Rec. 2020 PQ’. This should also be a format your TV or monitor is capable of displaying.

Now that you have set your output display settings using Desktop Video Setup, you can create a new project in Final Cut Pro.

To create a new project:

1 Launch Final Cut Pro. In the library properties, you will notice the default untitled standard project name. Click on its corresponding 'modify' icon. Create a new library by going to the file menu, then selecting new and library.

TIP If after creating a new library, the library properties on the right side of the screen are hidden, enable them by clicking the clapper board icon in the top left corner. This opens the libraries sidebar.

2 Select the new library in the libraries sidebar and click its corresponding ‘modify’ icon.

An options window will appear asking you to set the color space for your project. Select ‘standard’ for an SD or HD project using a standard color gamut. If you are intending to create a wide color gamut HDR movie, select ‘wide gamut HDR’.

3 Click ‘change’ to confirm your setting.
4 Create a new project by right clicking the library name in the libraries sidebar and selecting, 'new project'. Type a name and choose an event to place your project in. If you haven't already created one, you can choose the default event, which is named as the current date.

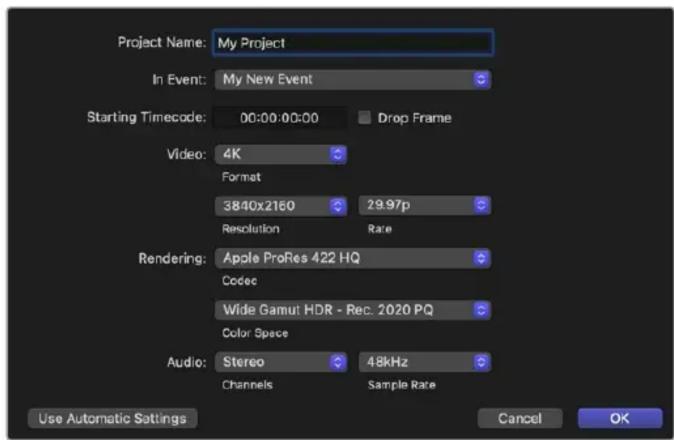

5 Click ‘use custom settings’. Set the ‘video format’, ‘resolution’ and ‘rate’ to match the video standard and frame rate you set in Blackmagic Desktop Video Setup.

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamu: HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

6 Set ‘rendering’ to your preferred Apple ProRes codec or ‘uncompressed 10-bit 4:2:2’ for an uncompressed workflow.
7 If your project is standard HD, you don't have to change the color space as Final Cut Pro selects the standard HD Rec. 709 color space for you. If you are working on an HDR project with a wide color gamut, select the color space and either PQ or HLG according to what your TV or monitor is able to display.
8 Set the audio channels to stereo, or you can choose 'surround' for 6 audio channels. Set the audio sample rate to the television rate of 48kHz.
9 Click OK to complete the creation of your new project.

If you have an external HDMI or SDI monitor connected, you will need to ensure your new project displays correctly.

To set the output display settings in Final Cut Pro:

1 Go to the Final Cut Pro menu, choose ‘preferences’ and then click the ‘ playback’ tab. Ensure the ‘A/V Output’ setting has ‘Blackmagic’ selected and the video standard matches your project. Close the preferences.
2 In the menu bar, select 'window' and click on 'A/V Output' to enable the video output via your Blackmagic Design video hardware.

To configure the audio output on Mac OS:

1 Open the Mac OS ‘system preferences’ and click on the ‘sound’ icon.
2 Click on the ‘output’ tab and select ‘Blackmagic Audio’ for the sound output.

TIP You can also monitor audio via your Desktop Video hardware.

Playback

1 Import some clips in to your new project.
2 You can now use the Final Cut Pro timeline on your computer monitor and view the video preview on the monitor or TV connected to the output of your Blackmagic Design video hardware.

Capturing Video and Audio

You can use Blackmagic Media Express to capture video and audio with your Blackmagic Design video hardware. Once you have captured the clips, you can import them into Final Cut Pro for editing.

When capturing clips with Media Express, make sure you choose one of the video formats that is also supported by Final Cut Pro. For example, Apple ProRes 4444 XQ, ProRes 4444, ProRes 422 HQ, ProRes 422, ProRes 422 LT or uncompressed 10-bit 4:2:2.

Editing to Tape

Once you have completed a project in Final Cut Pro, you can render the project to a movie file and then use Blackmagic Media Express to master the movie to tape with your Blackmagic Design video hardware.

1 Select your clips from the timeline in Final Cut Pro.
2 Go to file>share>export file and the 'export file' window opens.
3 Click ‘settings’ and select your desired video codec from the dropdown menu.

Export File Info Settings Roles Export File Format: Video and Audio Video Code: Source - Apple ProRes 422 Resolution: 3840 x 2160 Color Space: Wide Gamut HDR - Rec. 2020 PQ Audio Format: Linear PCM Include chapter markers Action: YLC 3840 x 2160 | 29.97 fps Stereo (L R) | 48 kHz 00:01:00:00 .mov 4.48 GB est Export File Cancel Next...

4 Click ‘next...’ and select a location for your movie and then click ‘save’.
5 Open Media Express and import the clip that was exported from Final Cut Pro.
6 Refer to the Blackmagic Media Express section of this manual for ‘Editing video and audio files to tape’.

Avid Media Composer

Avid Media Composer captures and plays back up to 4K video and audio with Blackmagic Design video hardware and also supports RS-422 deck control. Blackmagic plugins for Media Composer are automatically installed if Media Composer is installed before the Desktop Video software.

MEDIA COMPOSER® Media Composer: 2022-4.0 (C)2022 Avid Technology, Inc. Altrights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

Setting Up

1 Launch Media Composer and the ‘select project’ dialog box will appear.
2 Click on the 'New Project' tab.
3 Choose your preferred ‘user profile’ if you have previously created one.
4 Select a private, shared or external project location for your project.
5 Type a project name and set the project options including format, color space and stereoscopic options. Click ‘create’. The color space and stereoscopic settings can be changed later in the ‘format’ tab of the project.

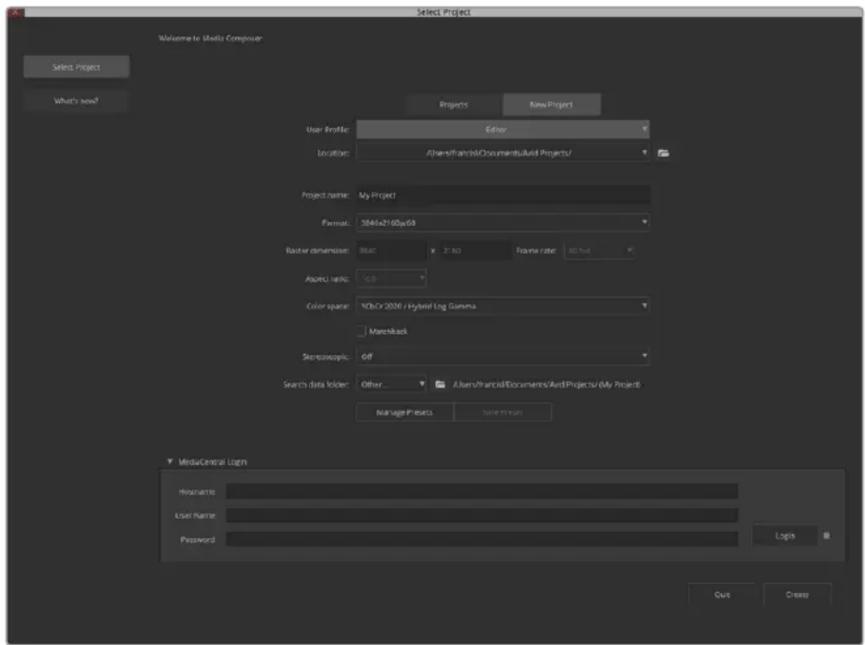

Select Project Welcome to Media Component Select Project What's now? Projects New Project User Profile: Editor Location: Users/Canvas/Documents/Avoid Projects/ Project name: My Project Format: 3846x2160px63 Raster dimension: 0.000 Frame rate: 100 fps Alias rank: 56.9 Color space: YCbCr 2020 / Hybrid Log Gamma Mascelback Stereoscopic: Off Search Data folder: Other... Users/Canvas/Documents/AvoidProjects/My Project Manage Project Save Print MediaCentral Login Programs User Name: Password Logs Quit Create

Type a project name and set the project options.

6 The Media Composer interface will appear along with the project window for your new project. You have completed setting up your project.

Playback

As a quick test to make sure everything is connected correctly, go to the ‘help menu’, click ‘read me’ and select the Media Composer Editing Guide. Follow the ‘Importing Color Bars and Other Test Patterns’ section. Double click the imported file to play it. You should now see the image on both your computer monitor and your Blackmagic Design hardware output.

If you can't see any video on your Blackmagic Design hardware output, check the connections again and ensure you have the correct output settings configured within Blackmagic Desktop Video Setup by choosing tools > hardware setup from within Media Composer. Make sure the hardware icon above the timeline is enabled.

NOTE If you are using an external Blackmagic video device such as Blackmagic UltraStudio 4K, make sure it is powered and connected prior to starting Media Composer.

Capture from Non-Controllable devices

Many video sources including all kinds of modern cameras and disk recorders, as well as old cameras and VHS tape players, do not have any device control.

To capture video without deck control:

1 Choose file > input > tape capture to open the 'capture tool'.
2 Click the ‘toggle source’ button so that the button’s icon of a deck shows the satellite button, an earth icon with plus symbol. This symbol indicates that deck control has been disabled.

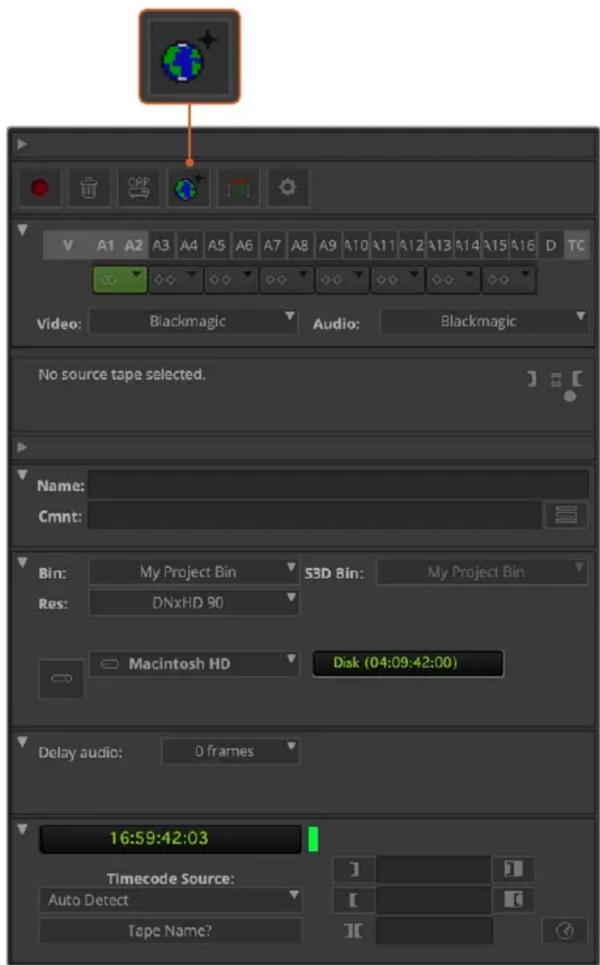

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Set up the ‘capture tool’ to capture video without deck control by clicking the ‘toggle source’ button.

3 Select the video and audio source tracks you wish to capture. These are labeled 'V' and 'A1', 'A2', etc. Using the dropdown menus below, select Blackmagic for both video and audio.
4 Use the 'bin' menu to select a target bin from the list of open bins.
5 From the resolution menu labeled 'res', choose which codec you wish to use for your captured clips. In this example, select DNxHD175x for 10-bit HD video.
6 Select the disk storage for your captured video and audio. Use the 'single/dual drive mode' button to choose if video and audio will be stored together on a single drive or on separate drives. Select the drives for your captured media from the 'target drives' menu.
7 Click the ‘tape name?’ button at the bottom of the window to open the ‘select tape’ dialog box. Add a tape name, or select from the list if you’ve used the tape before.
8 Ensure your video and audio source is ready or playing and then click the 'capture' button. The capture button will flash red while recording. Click the capture button again to end the capture.

Capture from Controllable Devices with UltraStudio, DeckLink and Teranex

If you have a deck that connects via RS-422, you will need to configure the deck settings before performing a capture with deck control.

1 Connect an RS-422 serial cable from your Blackmagic Design video hardware to your deck. Set the deck to ‘remote’. If you’re using an external Blackmagic Video device, make sure it is connected and powered prior to starting Media Composer.
2 From your project window, click file>settings>site>deck configuration.
3 In the ‘deck configuration’ dialog box, click ‘add channel’ and then set the channel type to ‘direct’ and the port to ‘RS-422 deck control’. Click ‘ok’ and choose ‘no’ when asked, ‘do you want to autoconfigure the channel now?’
4 Click ‘add deck’ and then select your brand and model of deck from the device menus and also set the desired preroll. Click ‘ok’ and then ‘apply’.
5 Under the settings tab, click user>deck preferences.
6 If you plan to make assemble edits to tape, enable the option to 'allow assemble edit and crash record for digital cut'. If this option is left unchecked, you will only be able to perform insert edits. Click 'ok'.

TIP If Media Composer fails with the error, ‘failed to find coincidence point on tape’, you can check the ‘relax coincidence point detection’ option in deck preferences to continue.

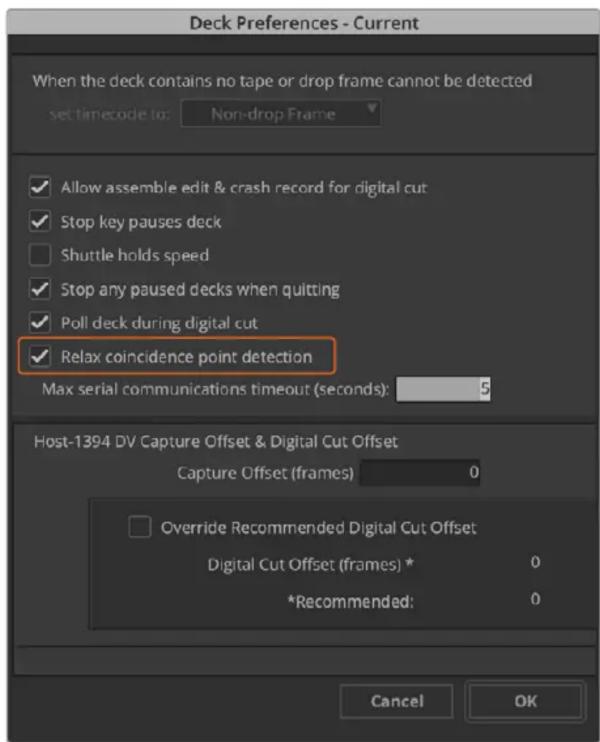

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

In the ‘deck preferences’, enable the option to ‘relax coincidence point detection’.

To capture with deck control on the fly:

1 Choose file > input > tape capture to open the 'capture tool'. If a connected deck is recognized and contains a tape or disk, you will be prompted to enter a tape name, or you can choose it from the list.
2 The ‘toggle source’ button should show the icon of a deck. If the satellite icon is present, click the button to enable deck control and make the deck icon appear.
3 The ‘capture/log mode’ button should show the ‘cap’ icon. If this button displays a ‘log’ icon, click the button to switch to capture mode and the cap icon should appear.
4 If ‘no deck’ is displayed in the timecode window, or a deck name appears in italics underneath, click the dropdown menu and select ‘check decks’. When deck control is re-established, the deck name will appear without italics. Now try the standard J, K, L shortcut keys to control the deck.
5 Select Blackmagic for the video and audio input. Select your video and audio source tracks, target bin, res, target drive and tape name the same way as in ‘capture from non-controllable devices’.
6 Use the deck controller window in the ‘capture tool’ to cue the tape and start playing.
7 Click the ‘capture’ button. The capture button will flash red while recording. Click the capture button again to end the capture.

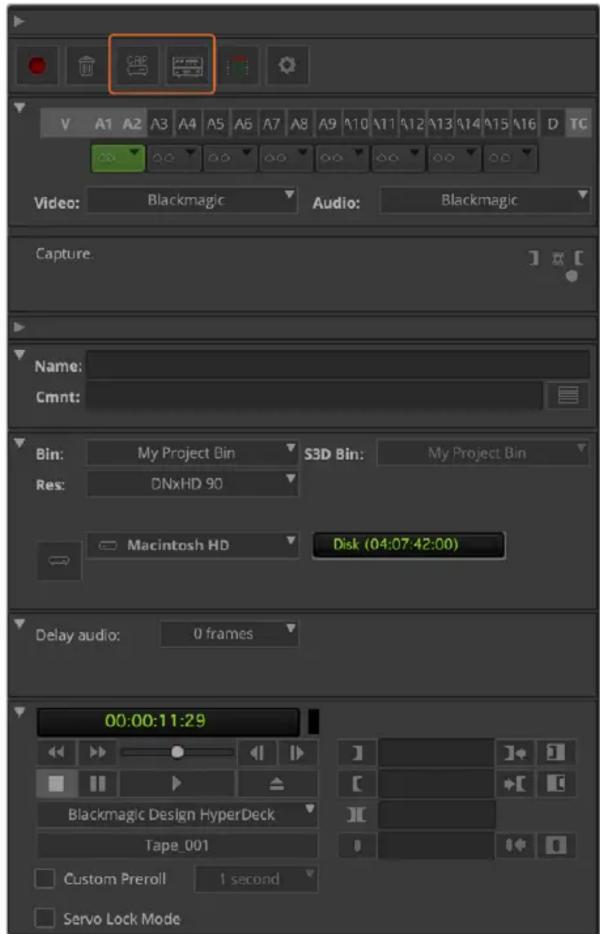

Video: Blackmagic Audio: Blackmagic Capture. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Set the 'cap' and 'toggle source' buttons to use deck control.
Use the ‘deck controller window’ to cue the tape and start playing.

Batch Capture with UltraStudio and DeckLink

To log clips for batch capture:

1 Choose file > input > tape capture to open the 'capture tool'.
2 If the deck is in satellite mode, click the toggle source button to change it to deck mode. Click on the 'capture/log mode' button so it displays the 'log' pencil icon.
3 Configure video and audio input, video and audio source tracks, target bin, res, target drive and tape name the same way as in ‘capture from non-controllable devices’.
4 Use the 'deck controller window', or use the standard j, k, l shortcut keys, to shuttle backwards, pause and shuttle forwards on the deck and locate the video you want to capture.
5 Click the ‘mark in/out’ button, to the left of the log button. The icon will alternate between in and out so you only have to click the one button to mark all your in and out points and log your clip. This can be more convenient that using the separate ‘mark in’ and ‘mark out’ buttons in the deck controller window. Alternatively use the ‘i’ and ‘o’ keys on the keyboard to mark in and out points, and the keyboard shortcut ‘F4’ to log the clip.

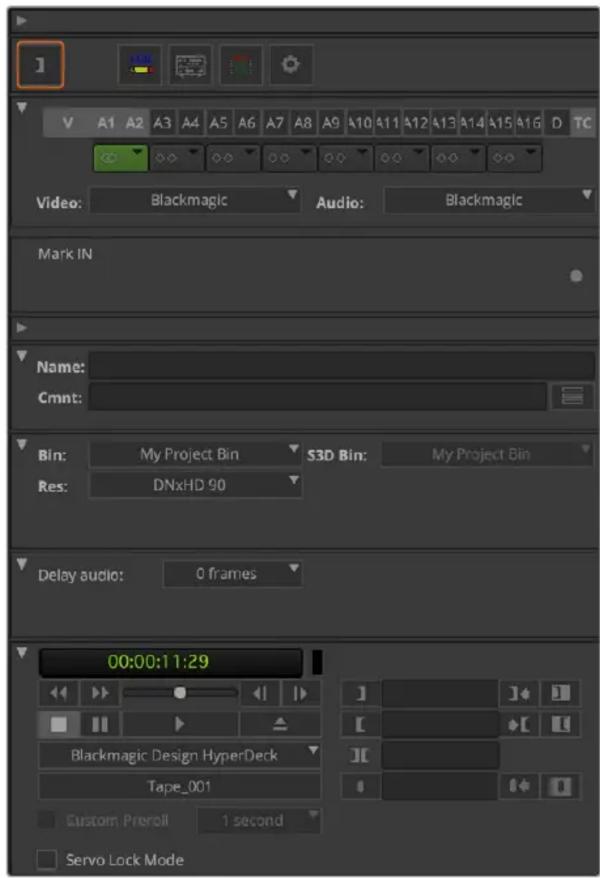

Video: Blackmagic Audio: Blackmagic Mark IN Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preview 1 second Servo Lock Mode

Click on the ‘mark in/out’ button or use the ‘i’ and ‘o’ keys on the keyboard to mark in and out points.

6 When you have finished logging your clips, close the capture tool, open the logging bin and select the clips you want to capture.
7 From the 'clip' menu, choose batch capture, select the desired options in the resulting dialog box and click 'ok'.

Recording to Tape with UltraStudio and DeckLink

Once you have captured your clips, dragged them in to the timeline, edited them and applied and rendered any effects, you will want to record the completed project to tape.

1 Double click your sequence, to open it into the timeline window.
2 Choose file > output > digital cut to open the 'digital cut tool'.
3 Set 'output mode' to real time and bit depth to 10-bit. Check 'entire sequence' to record your whole sequence, and check the 'remote' deck control option.
4 Choose ‘insert edit’ or ‘assemble edit’ for precise edits onto a timecode striped tape. Alternatively choose ‘crash record’ for a simple way to record. If ‘insert edit’ is the only option, go to the settings tab in your project, double click on ‘deck preferences’ and enable ‘allow assemble edit & crash record for digital cut’.
5 If a deck name appears in italics or ‘no deck’ is displayed, click the menu and select ‘check decks’ until the deck is listed without italics and deck control is re-established.
6 Press the ‘play digital cut’ button (red triangle icon) to record your sequence to tape.

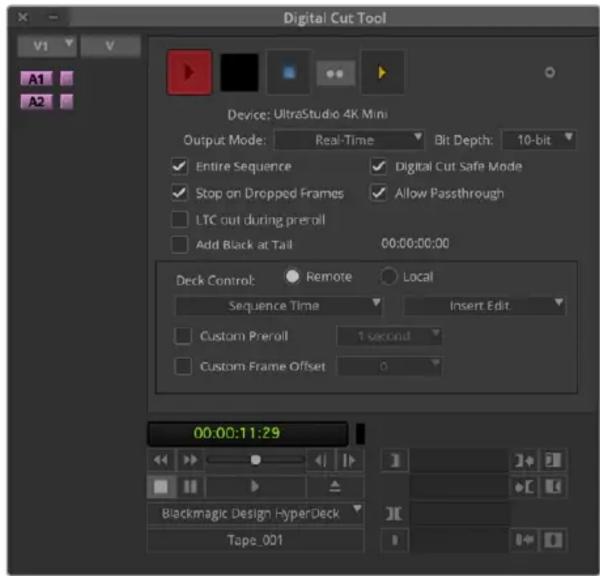

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit ✓ Entire Sequence ✓ Digital Cut Safe Mode ✓ Stop on Dropped Frames ✓ Allow Passthrough ☐ LTC out during preroll ☐ Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit ☐ Custom Preroll 1 second ☐ Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

The ‘digital cut tool’ is used for recording to tape.

Blackmagic Media Express

Close-up of a classic film reel with six black and silver blades, no text or symbols visible.

What is Blackmagic Media Express?

Blackmagic Media Express software is included with every UltraStudio, DeckLink and Intensity as well as every ATEM Switcher, Blackmagic Camera, H.264 Pro Recorder, Teranex Processor and Universal Videohub. Media Express is a great tool when you don't need the complexity of NLE software but simply want to capture, play back and output clips to tape.

Capturing Video and Audio Files

Setting Up a Project

Media Express automatically detects your input video format and sets the ‘project video format’ to match. If you want to set the project video format manually:

1 Go to Media Express>preferences on Mac, or edit>preferences on Windows or Linux.

Select your ‘project video format’ from the dropdown menu at the top of the preferences window. You can choose from a range of compressed and uncompressed capture formats, or even a DPX image sequence from the ‘capture file format’ drop down menu. Video will be captured in the chosen format and saved as a QuickTime movie. You can also choose to capture an RGB source using a YUV codec or vice versa.

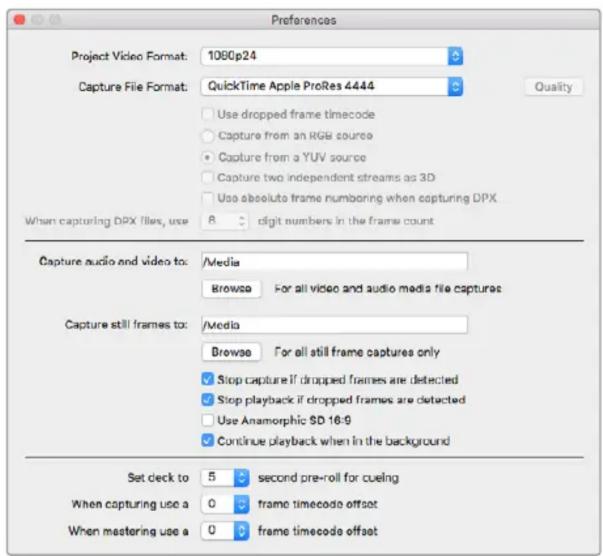

Preferences Project Video Format: 1080p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8-digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Use the preferences window to set project video format, capture file format, storage location and other settings.

2 Set the storage location for your captured video and audio. Click the 'browse' button to point the software to a folder on your computer.
3 Choose whether to stop capture or playback if dropped frames are detected.

Standard definition projects use the 4:3 aspect ratio unless you enable the ‘use anamorphic SD 16:9’ checkbox.

Applications will normally stop playing video if you send them to the background. Tick the checkbox ‘continue playback when in the background’ if you want Media Express to keep playing video even if you open another application.

The final options relate to tape decks with RS-422 deck control and include pre-roll and timecode offsets.

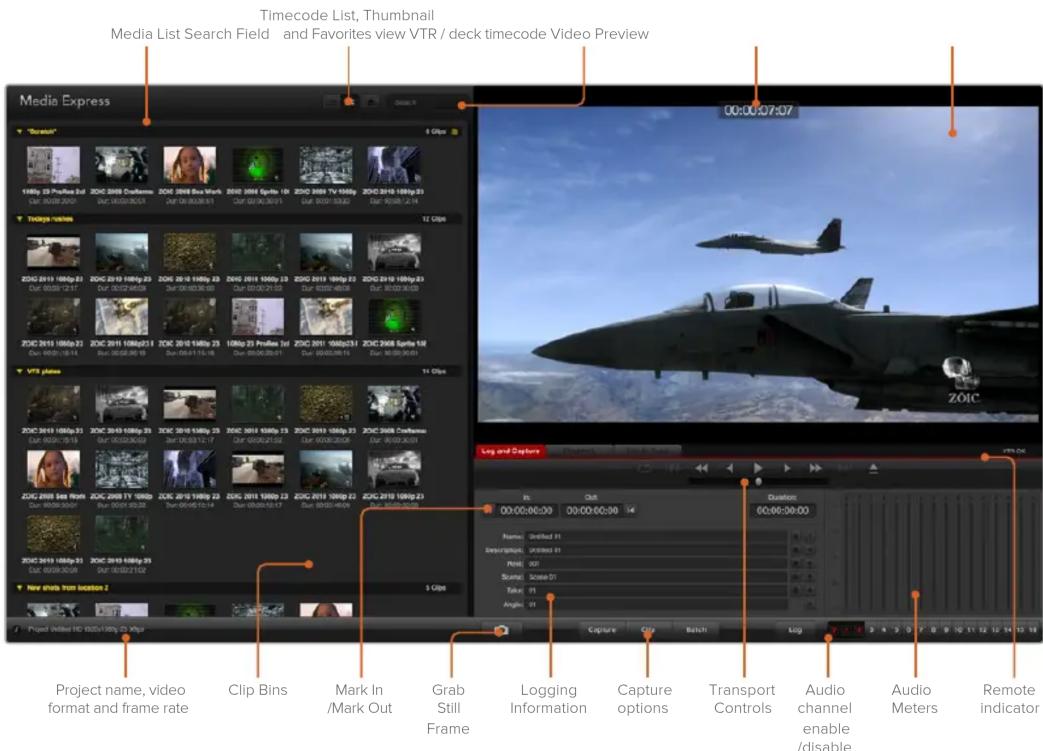

Timecode List, Thumbnail Media List Search Field and Favorites view VTR / deck timecode Video Preview Media Express "Search" 100p 23 Profile Out ZOC 2008 Guidance Dur: 00:00:2001 ZOC 2008 Sea Work Dur: 00:00:30/1 ZOC 2008 Spits 10 Dur: 00:00:30/1 ZOC 2008 TV 100p Dur: 00:00:30/1 ZOC 2010 100p 23 Dur: 90:00:2.14 Triceps records 12 Clips ZOC 2011 100p 23 ZOC 2011 100p 23 ZOC 2011 100p 23 ZOC 2011 100p 23 ZOC 2011 100p 23 ZOC 2011 100p 23 ZOC 2011 100p 23 ZOC 2011 10kpc Dur: 00:00:21/1 ZOC 2011 10kpc Dur: 68:58:48/8 ZOC 2011 10kpc Dur: 68:58:48/8 ZOC 2011 10kpc Dur: 68:58:48/8 ZOC 2011 10kpc Dur: 68:58:48/8 ZOC 2011 10kpc Dur: 66:58:48/8 ZOC 2011 10kpc Dur: 66:58:48/8 ZOC 2011 10kpc Dur: 66:58:48/8 ZOC 2011 10kpc Dur: 66:58:48/8 ZOC 2011 1kpc Dur: 66:58:48/8 ZOC 2011 1kpc Dur: 66:58:48/8 ZOC 2011 1kpc Dur: 66:58:48/8 ZOC 2011 1kpc Dur: 66:58:48/8 ZOC 2KPC Dur: 66:58:48/8 ZOC 2KPC Dur: 66:58:48/8 ZOC 2KPC Dur: 66:58:48/8 ZOC 2KPC Dur: 66:58:48/8 ZOC 2KPC Dur: 66:58:48/8 YTS plates 14 Clips ZOC 2013 10kpc Dur: 66:58:48/8 ZOC 2013 10kpc Dur: 66:58:48/8 ZOC 2013 10kpc Dur: 66:58:48/8 ZOC 2013 10kpc Dur: 66:58:48/8 ZOC 2013 10kpc Dur: 67:59:39/9 ZOC 2013 10kpc Dur: 67:59:39/9 ZOC 2013 10kpc Dur: 67:59:39/9 ZOC 2KPC See From ZOC 2KPC TV Dur: 66:59:39/9 ZOC 2KPC See From ZOC 2KPC TV Dur: 66:59:39/9 ZOC 2KPC See From ZOC 2KPC TV Dur: 66:59:39/9 ZOC 2KPC See From ZOC 2KPC TV Dur: 66:59:39/9 New video from location 2 Project name, video format and frame rate Clip Bins Mark In /Mark Out Grab Still Frame Logging Information Capture options Transport Controls Audio channel enable/disable Audio Meters Remote indicator

Capture

To capture video, all you need to do is connect a video source, wait for Blackmagic Media Express to detect your input and press the ‘capture’ button.

Log and Capture Playback Edit to tape Inv Out Duration 00:00:00:00 00:00:00:00 Name: Quick Capture 1_001_daybreak 01_01 Description: Quick Capture 1 Peet: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Enter a description for your video.

1 Start by connecting your video source to an input of your Blackmagic Design hardware. Launch Desktop Video Setup and check that the ‘input connection’ is the same as your video source, e.g., SDI, HDMI, Component, etc.
2 Open Media Express and click the red ‘log and capture’ tab.
3 Your source video will appear in the preview pane. Enter a description into the 'description' field.
4 Click the '+' button next to the description to add it to the automatic 'name' field. Click the '+' button next to any of the other fields that you wish to add to the name field.

• To increment the value in each of these fields, click the corresponding clapper board icon. Alternatively, type directly into any field to customize its name and number.
• The text in the automatic name field will be applied to the clip(s) about to be captured.

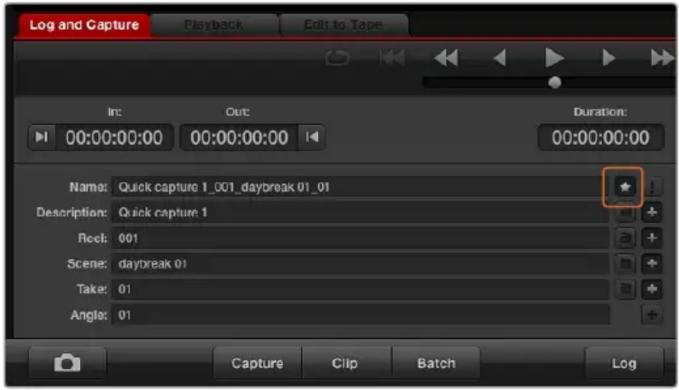

• To log the clip as a favorite, click the star icon next to the name field.
• For a clip name confirmation prompt to appear before every capture, click the ‘!’ icon next to the name field.

5 Set the desired number of audio channels to be captured.

V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Set the desired number of audio channels to be captured.

6 Click the ‘capture’ button to start recording. To stop the capture and keep the clip, click the ‘capture’ button again or press esc. The captured clips are added to the media list on the left side of Media Express.

Log and Capture PlayCaps Edit to Maps In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:00 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

Click the ‘capture’ button to begin capturing.

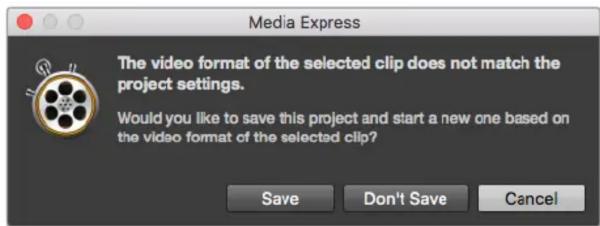

If the video input format changes from the project video format, Media Express will automatically detect it and will prompt you to save the current project and create a new one.

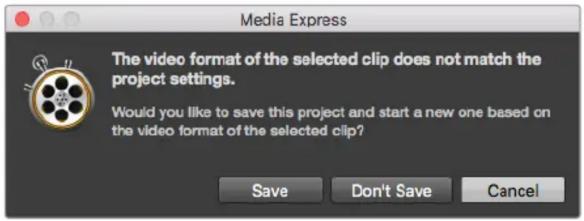

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Blackmagic Media Express will automatically detect if you change your ATEM switcher's program output format and will give you the option to save and start a new project.

Logging clips

Ensure an RS-422 serial cable is connected between your Blackmagic Design video hardware and the deck.

Ensure the deck's remote/local switch is set to remote. Use the standard j, k, l shortcut keys to shuttle backwards, pause and shuttle forwards.

• Click the 'mark in' button to mark the in point, or use the shortcut key i.
• Click the ‘mark out’ button to mark the out point, or use the shortcut key o.
• Click the 'log clip' button to log the clip, or use the shortcut key p. The entry should now appear in the media list with a red X in its icon to indicate the media is offline.

Batch Capture

After logging a clip, you can click the 'clip' button to capture a single clip.

To capture multiple clips, continue logging the clips for batch capture.

Select the logged clips in the media list and do one of the following:

• Click the 'batch' button.
• Right click on the selection and select batch capture.
• Go to the ‘file’ menu and choose batch capture.

Media Express will capture the clip from the in to out timecode.

DPX Capture

If you want to capture a DPX image sequence rather than a movie file, open the Media Express preferences and set the ‘capture file format’ to DPX 10-Bit RGB.

• Create a DPX project by setting the capture file format to DPX.
• Capture.

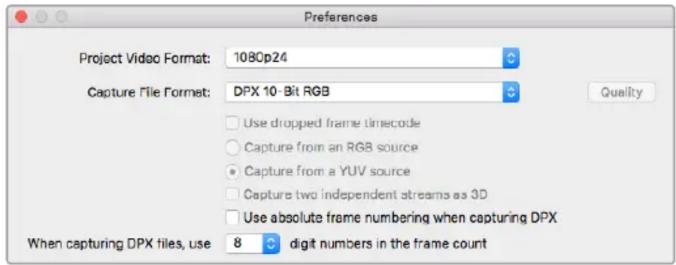

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

DPX capture preferences.

When the capture has been completed, a single thumbnail will appear in the media list representing the entire frame sequence. The sequence of DPX frames will be stored in its own folder in your disk storage. Audio will be stored in a .wav file in the same folder.

By default, DPX captures are assumed to be from YUV sources. If you are capturing from an RGB source, select ‘capture from an RGB source’.

If you want the DPX frame numbers to be based on the timecode of the captured video, rather than just starting from zero, enable the option to ‘use absolute frame numbering when capturing DPX’.

If you aren't performing long DPX captures, you may wish to reduce the number of zeroes in the frame numbers by changing the option, ‘when capturing DPX files, use (2-8) digit numbers in the frame count’.

3D Capture

When Media Express is used with a Blackmagic Design video hardware model that supports dual stream 3D, you can create left and right eye 3D video clips by capturing 2 streams of HD-SDI video simultaneously.

• Create a 3D project which matches the frame rate of your dual stream 3D video source.
• If capturing from an SDI source, make sure you have 2 discrete HD-SDI video inputs to the Blackmagic video hardware.
• Capture.

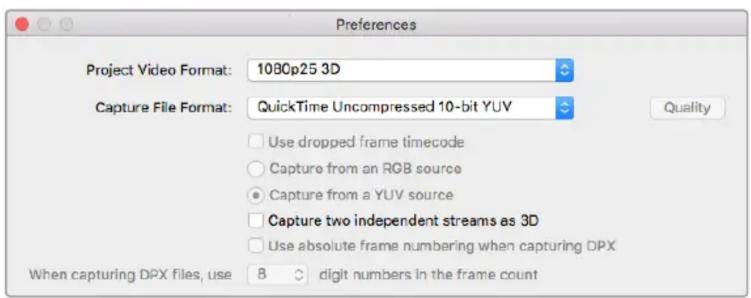

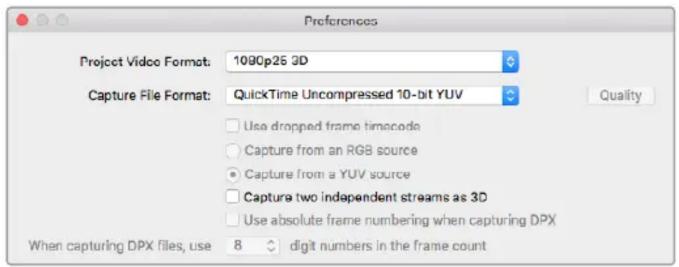

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Select a project video format with "3D" in its name to capture dual stream stereoscopic 3D video clips.

When capturing and logging dual stream 3D in Media Express, the clip name will be applied to the left eye video. The right eye video will be appended with ‘_right’ text. For example, if you name the stereo clip “Clip 1”, the left eye clip will be called “Clip 1.mov” and the right eye clip will be called “Clip 1_right.mov”.

The Media List presents an eye catching indication that the captured clip is a 3D clip:

• In thumbnail view, the left and right eye clips are connected by a 3D indicator and presented as a single, large icon.
• In timecode list view, the left and right eye clips are listed on two lines and linked together by a 3D indicator.

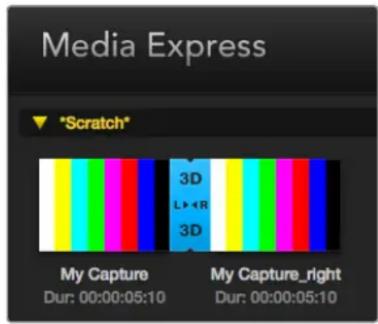

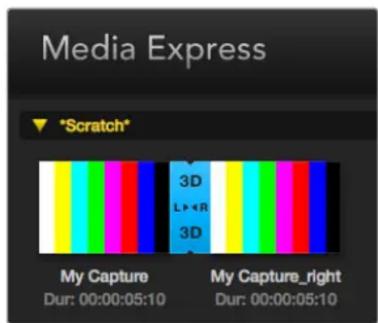

Media Express *Scratch* My Capture Dur: 00:00:05:10 My Capture_right Dur: 00:00:05:10

In Thumbnail view, the left and right eye clips are connected by a 3D indicator and presented as a single, large icon.

Timecode List, Thumbnail and Media List Search Field Favorites view VTR / deck timecode Video Preview Media Express "Scrado" 1380p 23 Profiles 2d ZOC 2005 Craftman ZOC 2006 Sea Work ZOC 2006 Surfle 1D ZOC 2005 TV 1000p ZOC 2010 1000p 23 Dur: 00:00:30:01 Dur: 00:00:30:01 Dur: 00:00:30:01 Dur: 00:01:30:01 Dur: 00:01:30:02 Dur: 00:08:12:14 Trading matches ZOC 2019 100p-23 ZOC 2019 100p-23 ZOC 2019 100p-23 ZOC 2019 100p-23 ZOC 2019 100p-23 ZOC 2019 100p-23 ZOC 2019 100p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2020 18:18 ZOC 2020.26:16 ZOC 2021.12:16 ZOC 2021.18:18 ZOC 2021.23:16 ZOC 2021.27:16 VTS phase ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 108p-23 ZOC 2019 106p-23 ZOC 2019 106p-23 ZOC 2019 106p-23 ZOC 2019 106p-23 ZOC 2019 106p-23 ZOC 2019 106p-23 ZOC 2019 Project name, video format and frame rate Clip Bins Mark In /Mark Out Clip Information Grab Still Frame Favourite Selections Transport Controls Audio channel enable/disable Audio Meters Remote indicator Name: Description: Real: Video: Angle

Playing back Video and Audio Files

Playing back single and multiple clips

To play back a single clip, double click the clip in the media list. Alternatively, select the clip in the media list and press the space bar on your keyboard or the play button in the transport controls.

Playback End to Top

You can use the transport controls to play, stop, jump to the next or previous clip and loop playback.

To play back multiple clips, select the clips in the media list and then press the space bar on your keyboard or the play button in the transport controls.

Your video will play back in the video preview pane of Media Express and on all the video outputs of your Blackmagic Design video hardware. During playback, the audio channels being monitored can be switched on or off via the track enable/disable buttons.

Importing clips

You can play back your video and audio files after importing media into Media Express in any of the following ways:

• Double click an empty area of the media list, browse to your file's location and click 'open'.
• Right click an empty area of the media list and select ‘import clip’ from the contextual menu.

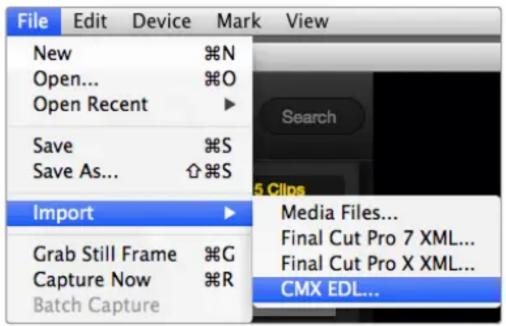

• Go to the ‘file’ menu, select ‘import’ and then ‘media files’.

Select the video and audio clip(s) you wish to import and press ‘open’. The clips will appear in the ‘scratch’ area of the media list. If you have created your own bins in the media list, you can drag the clips into the desired bin.

To import directly to a bin, right click within the desired bin and select 'import clip' from the contextual menu.

If the files being imported do not match the frame rate and size of existing clips in the media list, you will be prompted to create a new project and to save the current project.

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

If the imported clips do not match the existing clips, you will be prompted to create a new project.

TIP Media Express also supports the import of multichannel audio only files recorded at 48kHz in the uncompressed WAVE and AIFF formats.

Another way to import media is to use an XML file exported from an NLE such as Final Cut Pro 7 or Final Cut Pro. Go to the 'file' menu, select 'import' and then either Final Cut Pro 7 XML or Final Cut Pro XML. Open the desired XML and all the bins and media from the Final Cut Pro project will appear in the media list.

Media Express also supports the import of CMX EDL files to batch capture clips using EDL files from other video software. Go to the 'file' menu, select 'import' and then CMX EDL. Select the EDL and open it.

File Edit Device Mark View New %N Open... %O Open Recent ▶ Save %S Save As... ↑%S Import ▶ Grab Still Frame %G Capture Now %R Batch Capture Search 5 Clips Media Files... Final Cut Pro 7 XML... Final Cut Pro X XML... CMX EDL...

You can import media directly, or import with an XML or EDL.

The logging information will appear in the media list. Select the logged clips and perform a batch capture to import the clips from your deck.

Browsing Media

Thumbnail view

Thumbnails are the most intuitive way to display your clips. Hover your mouse over the clip's thumbnail and then click on the popup info icon at the bottom right of the thumbnail. Click the info bubble to hide it.

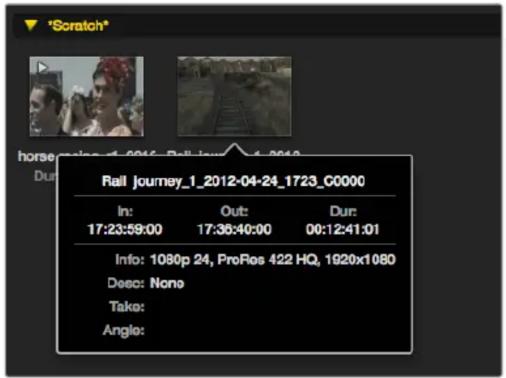

Scratch* horser Dur Rail Journey_1_2012-04-24_1723_C0000 In: 17:23:59:00 Out: 17:36:40:00 Dur: 00:12:41:01 Info: 1080p 24, ProRes 422 HQ, 1920x1080 Desc: None Take: Angle:

Click a thumbnail's popup info icon to view the info bubble.

List view

You can view your clips in ‘timecode list’ view by clicking on the ‘timecode list’ button at the top right of the media list. Use the horizontal scroll bar to view all the columns of information for your clips.

Media Express Search

In the media list, choose to view your clips in 'timecode list' view or 'thumbnail' view. Click the 'favorites' button to show only your favorite clips. Type in the search field to find your favorite clips.

Creating and using bins

To create a bin, right click an empty spot in the media list and select ‘create bin’. Name the new bin.

You can move clips around by dragging the clip icons to the desired bin. If you want a clip to appear in more than one bin, import the same clip again by right clicking on the bin and choosing 'import clip'.

By default, logged clips appear in the ‘scratch’. If you want to log clips and have them appear in a new bin, right click the new bin and choose ‘select as log bin’.

Creating and using favorites

In the ‘log and capture’ tab, click the ‘star’ icon next to the name field if you want to tag a clip as a favorite.

In the ‘ playback’ tab, clicking the star icon will make the clip a favorite if it is selected in the media list. Click the star icon again to deselect it as a favorite.

Clips marked as favorites will show a yellow star in their icon in ‘timecode list’ view and ‘thumbnail’ view.

Once you have marked clips as favorites, click on the 'show only favorites' button at the top of the media list. The star icon will turn yellow. All clips will be hidden except for those marked as favorites.

Log and Capture Playback Edit to Tape Inc Out Duration: 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Recl: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

In the ‘log and capture’ tab, click the ‘star’ icon next to the name field if you want to log the clip as a favorite.

Linking an audio clip to a video clip

To link an audio clip to a video clip in the media list:

• Select a video clip which contains no audio channels.
• Right click on the video clip and select 'link audio file' from the contextual menu.
• Browse to the audio file you want to link to and click ‘open’. The video and audio will link in the media list view.

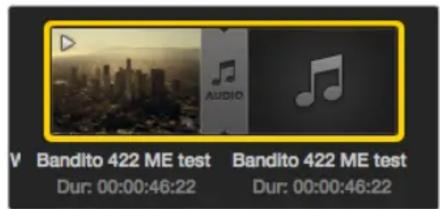

V Bandito 422 ME test Dur: 00:00:46:22 Bandito 422 ME test Dur: 00:00:46:22

The media list presents a highly visible indication that the video and audio clips are linked.

You can now play back the combined clip or master it to tape.

Deleting clips and bins

To delete clips, select the unwanted clips and press the backspace button on your keyboard.

This will only delete the clips from the media list and they will safely remain on your disk storage.

To delete bins, right click within a bin and choose ‘delete bin’. This action will delete the bin and any clips it contained. This will only delete the clips from the media list and they will safely remain on your disk storage.

Creating a 3D clip

To add a stereoscopic 3D clip to the media list:

• Select a 3D project video format that is the same frame rate as your 3D media.
• Import the ‘left eye’ file into the media list.
• Right click on the left eye file and select “set right eye clip” from the contextual menu. If the right eye clip was previously captured by Media Express, the right eye video will be appended with ‘_right’ text.

Preferences Project Video Format: 1090p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Select a 3D project video format.

The media list presents a highly visible indication that the imported clip is a 3D clip. The left and right eye clips are displayed side by side in the ‘video preview’ window, indicating a 3D video project.

Media Express *Scratch* My Capture Dur: 00:00:05:10 My Capture_right Dur: 00:00:05:10

The media list presents a highly visible indication that the imported clip is a 3D clip.

If you find the left and right eyes of a 3D stereo clip have been loaded the wrong way around:

• Right click the 3D clip in the media list.
• Select ‘swap eyes’ from the contextual menu.

Searching the Media List

Clips can easily be found in a project by typing the name of your clips in the search field at the top of the media list. When used in conjunction with the favorites feature, the search will be confined to your favorite clips so you will see a shorter list of found clips.

Type in the search field to find clips.

Media Express "Screen" 1980s 23 Portable 2d ZOC 2008 Channeler ZOC 2008 Sea Work ZOC 2008 Spirits 1B ZOC 2008 TV 1980s ZOC 2010 1980s 23 Dut: 00:00:00:00 Dut: 00:00:00:01 Dut: 00:00:00:01 Dut: 00:00:00:01 Dut: 00:00:00:02 Dut: 00:00:00:02 Dut: 00:00:00:02 Dut: 00:00:00:02 Dut: 00:00:00:02 Dut: 00:00:00:02 Dut: 00:00:00:02 Dut: 12 Clips Talaya ranges ZOC 2014 1986p 23 ZOC 2015 1986p 23 ZOC 2016 1986p 23 ZOC 2017 1986p 23 ZOC 2018 1986p 23 ZOC 2019 1986p 23 ZOC 2020 Sprint 1B Dut: 00:00:25:17 Dut: 00:00:25:17 Dut: 00:00:25:17 Dut: 00:00:25:17 Dut: 00:00:25:17 Dut: 00:00:25:17 VRS phase ZOC 2019 1986p 23 ZOC 2019 1986p 23 ZOC 2019 1986p 23 ZOC 2019 1986p 23 ZOC 2019 Sprint 1B Dut: 00:35:17 Dut: 00:35:17 Dut: 00:35:17 Dut: 00:35:17 Dut: 00:35:17 Dut: 54 Clips ZOC 2019 1986p 23 ZOC 2019 1986p 23 ZOC 2019 1986p 23 ZOC 2019 Sprint 1B Dut: 00:35:17 Dut: 00:35:17 Dut: 00:35:17 DUT: ZOC 2019 Sea Work ZOC 2019 TV 1986p 23 ZOC 2019 TV 1986p 23 ZOC 2019 TV 1986p 23 ZOC 2019 Sprint 1B Dut: 00:35:17 Dut: 00:35:17 Dut: 00:35:17 Dut: ZOC 2019 TV 1986p E2 ZOC 2019 TV 1986p E2 ZOC 2019 TV 1986p E2 ZOC 2019 TV 1986p E2 ZOC Dut: 00:35:17 Dut: New charts from location ? Project Inlink HC TXX/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/NC Mark In/Mark Out Record Modes Master to Tape Audio channel enable/disable

Editing Video and Audio Files to Tape

While we usually talk about mastering or editing to “tape”, it doesn’t matter if your deck uses tapes or disks. To master your clips:

• Select the clips you want to send to tape.
• Click the blue 'edit to tape' tab.
• Set the in point and type of edit.
• Master to tape.

Selecting clips to master

From the media list, select the clips you wish to master to tape. You can even insert multichannel audio only clips to replace the master audio track on a master tape. If you only want to send your favorite clips to tape, click the favorite (star) icon at the top of the media list to show your favorites and hide all other clips. Then select the favorite clips you wish to send to tape.

Search

Click the favorite (star) icon at the top of the media list to show only your favorites.

Insert and Assemble to tape

Click the ‘edit to tape’ tab. Enter the in point of the tape by entering timecode into the ‘in’ point field, or by cueing the tape to the desired in point via the transport control and then clicking the ‘mark in’ button.

If no ‘out’ point is entered, Media Express will set the duration of the edit to the total length of the clips in the media list. If an out point is defined, Media Express will stop recording once the ‘out’ point timecode is reached, even if some clips have not been output.

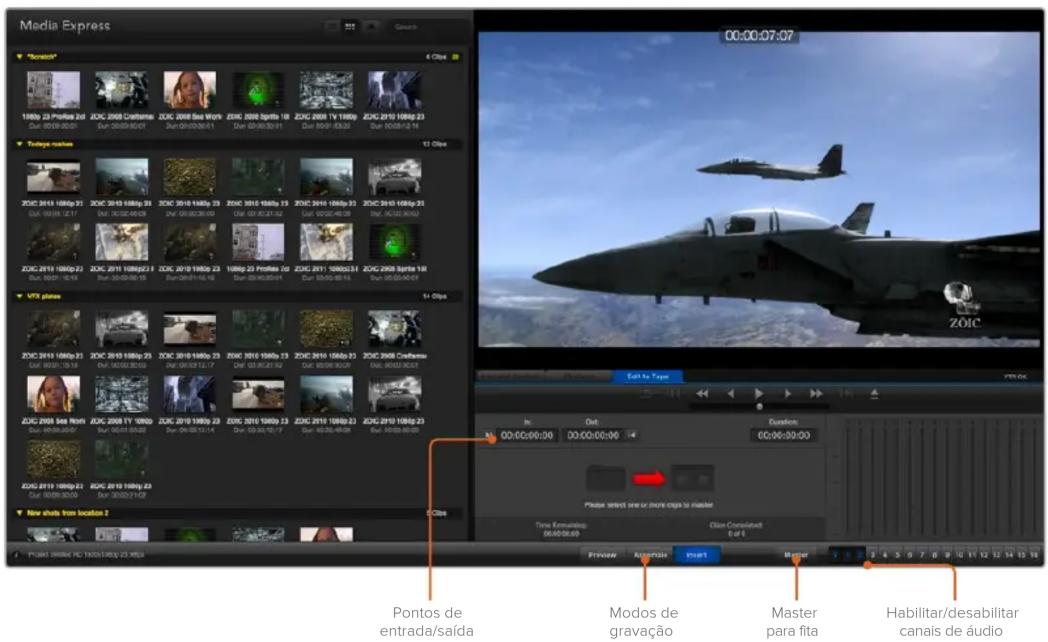

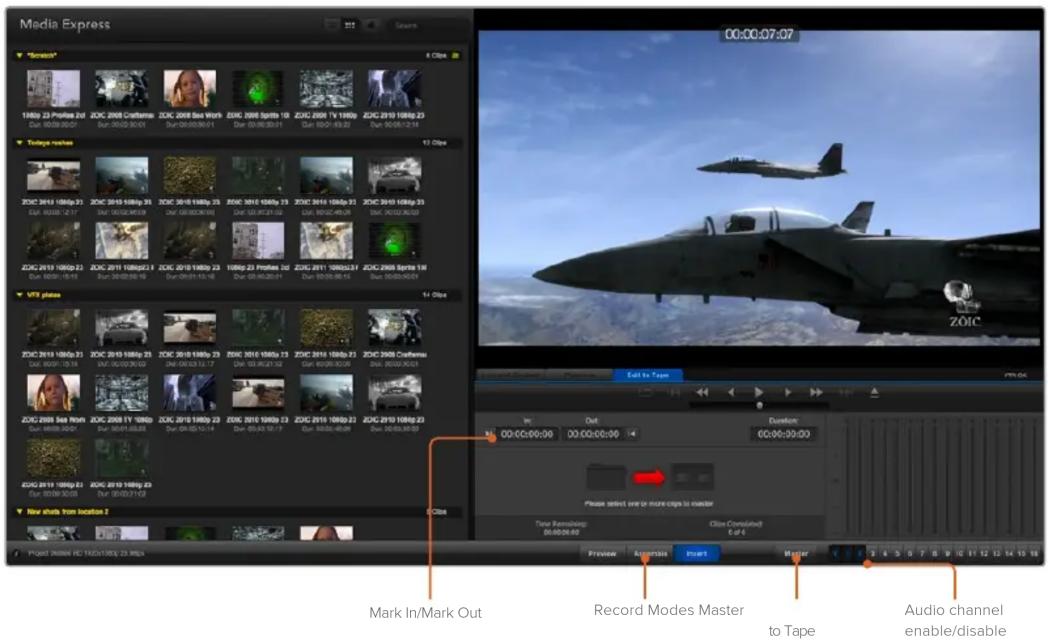

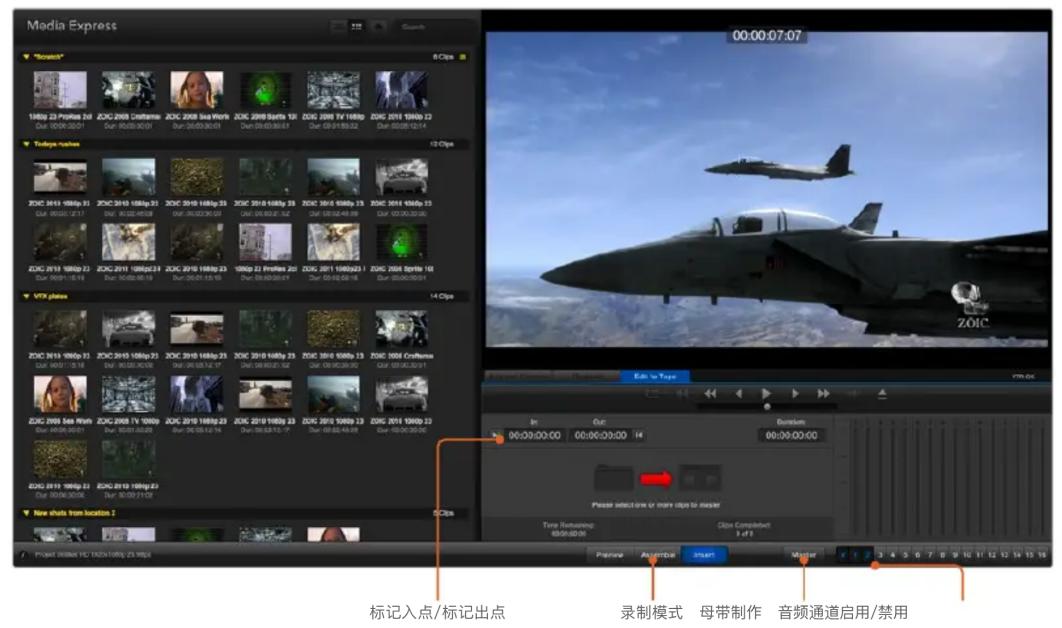

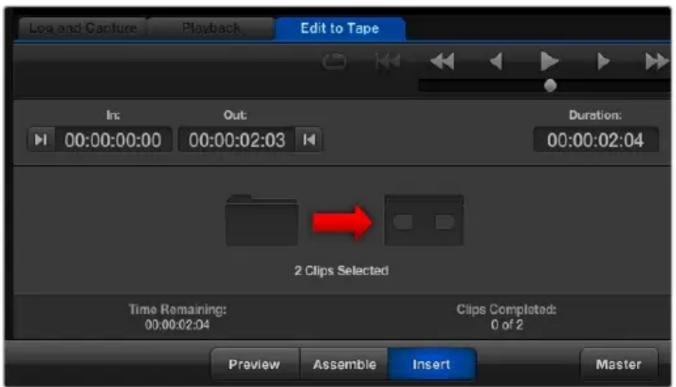

Log and Capture Playback Edit to Tape Ins: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Two clips have been selected for output to tape.

Choose to master to tape using ‘assemble’ or ‘insert’ edit. Then press the ‘master’ button.

Preview mode mimics the edit process but does not record to tape. This mode lets you check the edit point. Preview edit operations should always be checked on monitors connected directly to the output of the deck. This lets you view the video already on tape in conjunction with the new video.

If ‘record inhibit’ is enabled either on the deck or on the tape, Media Express will report this when you click the ‘master’ button. Disable ‘record inhibit’ before trying again.

Select the video and audio channels you wish to output via the track enable/disable buttons. Deselect the video channel if you only want to output audio.

V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Set the desired number of audio channels to be mastered.

Click the favorite (star) icon at the top of the media list to show only your favorites.

Two clips have been selected for output to tape.

Set the desired number of audio channels to be mastered.

Capturing H.265 Video

To capture video using Blackmagic UltraStudio 4K Extreme's built in H.265 encoder:

1 Open Media Express ‘preferences’ and set the ‘capture file format’ to MP4 H.265.
2 Set the bitrate for your H.265 capture by clicking on the 'quality' button located next to the H.265 setting and dragging the 'encoding settings' slider left or right. Close the 'encoding settings' window to confirm your setting.

TIP For more information about H.265 capture and bitrate settings, refer to the next section in this manual, 'H.265 Hardware Encoder'.

H.265 Hardware Encoder

Capturing H.265 Video with UltraStudio 4K Extreme

Blackmagic UltraStudio 4K Extreme has a powerful built in H.265 hardware encoder that lets you capture the latest H.265 video in real time. This gives you the ability to capture video using encoding technology that maintains stunning video quality at the lowest possible bitrate.

Preferences Project Video Format: 108Dp25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

To capture H.265 video using Blackmagic UltraStudio 4K Extreme, set the capture file format in Media Express preferences to MP4 H.265.

To capture video using the built in H.265 encoder:

1 Launch the Blackmagic Media Express software. Open Media Express ‘preferences’ and set the ‘capture file format’ to MP4 H.265.
2 Set the bitrate for your H.265 capture by clicking on the ‘quality’ button located next to the H.265 setting and dragging the ‘encoding settings’ slider left or right. Close the ‘encoding settings’ window to confirm your setting. Your Blackmagic UltraStudio 4K Extreme is now ready to encode H.265 video using Blackmagic Media Express.
For information about how to capture and play back video using Media Express, refer to the ‘Blackmagic Media Express’ section of this manual.

Setting the Bitrate

The default bitrate is set to 15 Mb/s which is a good choice for high quality Ultra HD video that is streamed online, but you can set it anywhere between 3 to 50 Mb/s. For online streaming of HD video, a good choice is between 3 to 5 Mb/s.

Drag the ‘encoding settings’ slider to the left if you need to capture video with a smaller file size and a lower bitrate, or drag to the right if file sizes are not an issue and you want the best possible video quality. Setting the bitrate too low will result in compression artifacts in your picture, such as visible macro blocking, pixelation or banding. However, the H.265 hardware encoder is very efficient and keeps artifacts to a minimum, so you can set the bitrate lower than you normally would for H.264 video and still retain great video quality.

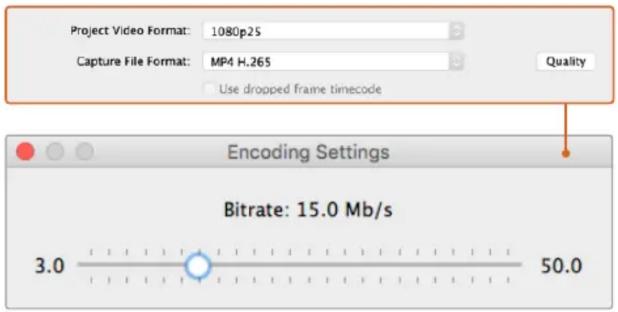

Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Set the bitrate for H.265 capture by clicking on the ‘quality’ button and dragging the ‘encoding settings’ slider left or right.

When encoding H.265 video, or any type of video encoding for online streaming, it's often helpful to consider a few things, such as the bandwidth of your intended delivery system, the amount of movement and contrast between frames in your video, and the frame rate of your video. For example, if there is a large number of people streaming your video, you may need to lower the bitrate in your encoding so audience members with slower internet connections can watch without download interruptions. Higher bitrates are better for video content with lots of contrast and movement between frames, such as bright to dark, or high energy sporting events and graphics. Video with high frame rates also require higher bitrates compared to video at lower frame rates.

Choosing a bitrate for your encoding can often be an experimental process to achieve the best video quality in the smallest file size, so it's worth testing a variety of bitrate settings for the best results.

Blackmagic Disk Speed Test

Blackmagic Disk Speed Test measures the read and write performance of storage media in video frame sizes. Disk Speed Test is included with your Desktop Video software and can be downloaded free from the App Store for Mac OS.

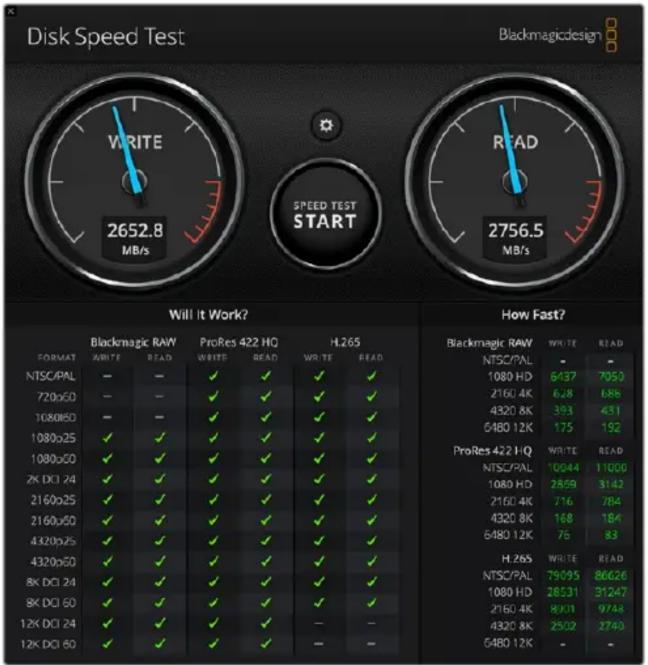

Disk Speed Test 2652.8 MB/s Write Speed Test START R'AD 2756.5 MB/s Will It Work? How Fast? Blackmagic RAW ProRes 422 HQ H.265 FORMAT WRITE READ Write READ Write READ NTSC/PAL - - ✓ ✓ ✓ ✓ ✓ 720x50 - - ✓ ✓ ✓ ✓ ✓ 1080x50 - - ✓ ✓ ✓ ✓ ✓ ✓ 1080x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 1080x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 12K DCI 24 ✓ ✓ ✓ ✓ ✓ - - - 12K DCI 50 ✓ ✓ ✓ ✓ ✓ - - How Fast? Blackmagic RAW WRITE READ NTSC/PAL - - 1080 HD 6437 7050 2160 4K 628 688 4320 8K 393 431 6480 12K 175 192 ProRes 422 HQ WRITE READ NTSC/PAL 10044 11000 1080 HD 2859 3142 2160 4K 716 784 4320 8K 168 184 6480 12K 76 83 H.265 WRITE READ NTSC/PAL 79095 86626 1080 HD 28531 31247 2160 4K 8901 9748 4320 8K 2502 2740 6480 12K - -

Access the Disk Speed Test settings by clicking on the ‘settings’ gear icon, located just above the ‘start’ button.

Select Target Drive...Save Screenshot... %S

Stress1 GB2 GB3 GB4 GB✓ 5 GB

Disk Speed Test HelpAbout Disk Speed Test

Quit

Open the Settings menu by clicking the gear icon.

Select Target Drive

Click ‘select target drive’ and ensure you have read and write permissions.

Save Screenshot

Click ‘save screenshot’ to save a screenshot of the results.

Stress

The stress level can be set between 1GB and 5GB. 5GB is the default setting and will provide the most accurate results.

Disk Speed Test Help

Click ‘Disk Speed Test help’ to launch the PDF manual for Blackmagic Disk Speed Test.

About Disk Speed Test

About Disk Speed Test displays which version of the Disk Speed Test software you are running.

SPEED TEST START

Start

Click the ‘start’ button to commence the test. Disk Speed Test will write and then read a temporary file to the selected target drive. Disk Speed Test will continue writing and reading until you stop the test by clicking the ‘start’ button again.

Will it Work?

The ‘will it work?’ panel shows common video formats and displays a check mark or cross to indicate if disk performance is adequate. Be sure to do several test cycles to reveal any video formats for which the disk performance might be marginal. If a video format exhibits a check mark switching between a cross, it indicates that the disk storage cannot reliably support the video format.

How Fast?

The ‘how fast?’ results panel shows the frame rates your drive can achieve and should be read in conjunction with the ‘will it work?’ panel. If the ‘will it work?’ panel shows a green check mark for 2K DCI 24 using H.265, but the ‘how fast?’ panel shows that a maximum of 24fps will be supported, the disk storage performance is too marginal to be reliable.

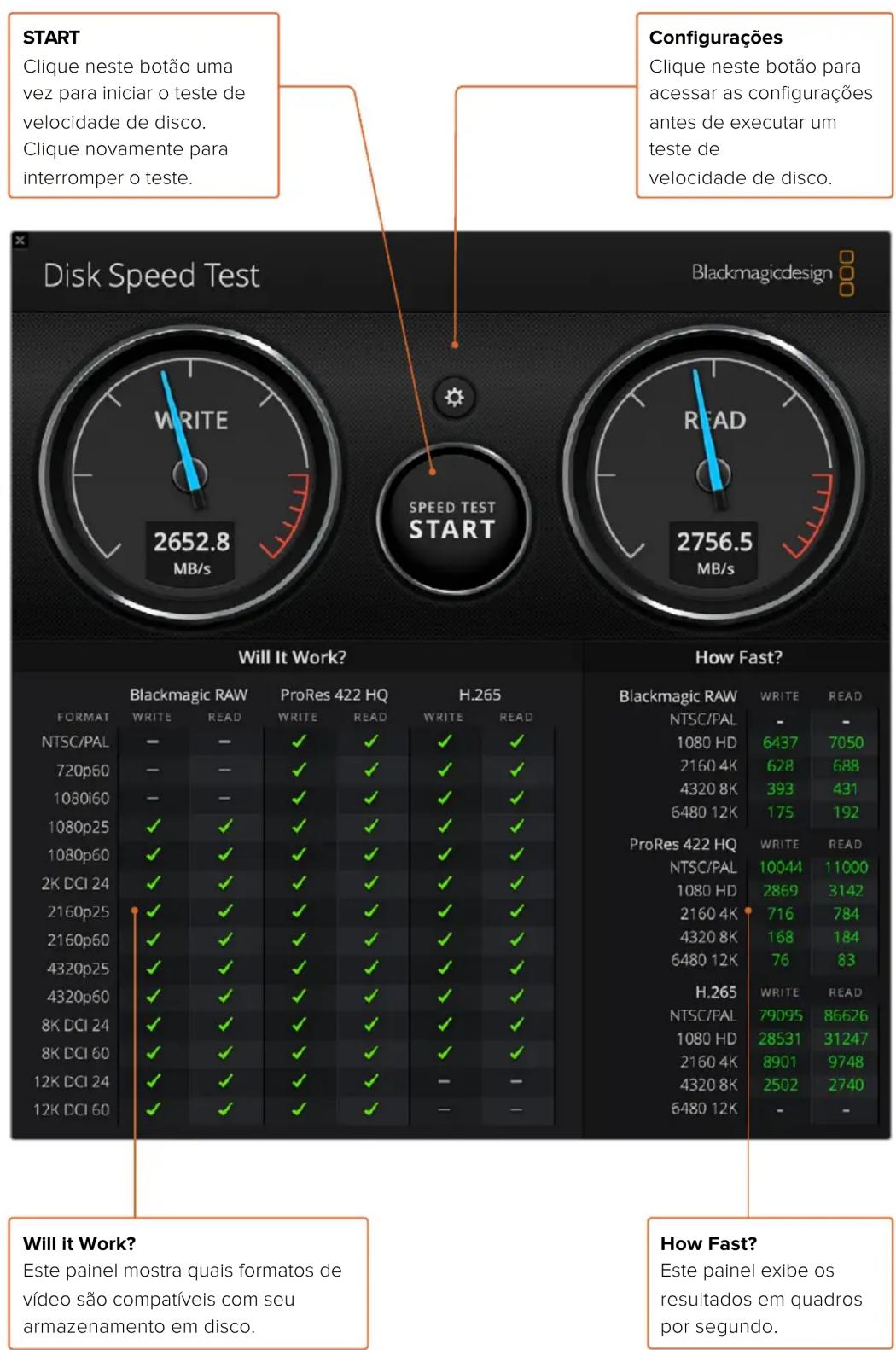

START Click this button once to start the disk speed test. Click again to stop the test Settings Click this button to access the settings before running a disk speed test Disk Speed Test 2652.8 MB/s Speed Test START 2756.5 MB/s Will It Work? How Fast? This panel shows which video formats can be supported by your disk storage Blackmagic RAW ProRes 422 HQ H.265 Blackmagic RAW Write READ NTSC/PAL - - ✓ ✓ ✓ ✓ NTSC/PAL - - ✓ ✓ ✓ 1080 HD 6437 7050 720p60 - - ✓ ✓ ✓ ✓ 2160 4K 628 688 1080i60 - - ✓ ✓ ✓ ✓ 4320 8K 393 431 1080p25 ✓ ✓ ✓ ✓ 6480 12K ✓ ✓ ✓ ✓ 1080p60 ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ 2160p25 ✓ ✓ ✓ ✓ ✓ 2160p60 ✓ ✓ ✓ ✓ ✓ 4320p25 ✓ ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓

Removing the Mezzanine Card from DeckLink 4K Extreme 12G

How to Remove the Mezzanine Card

If you don't have enough room on your motherboard to fit a dual slot PCIe card, you can easily remove DeckLink 4K Extreme 12G's mezzanine card.

To remove the mezzanine card:

1 Ensure that you are statically discharged. Place the DeckLink card on its side on a flat, clean surface, with the gold PCIe contacts facing up.
2 On the underside of the DeckLink card, locate the two screws for the mezzanine card's stand off supports. They are the two screws furthest away from the BNC connectors. Gently remove the screws using a Phillips head screwdriver.
3 Hold the base DeckLink card by its edges and gently lift the mezzanine card until its bridge connector is released from the slot.
4 Ensure the bridge connector is firmly seated in the mezzanine card in case you'd like to reattach it.
5 Keep the two screws fastened to their stand off supports, place the mezzanine card in an anti static bag and store in a secure place.

You can now install your DeckLink 4K Extreme 12G card into your computer using one PCIe slot.

To reattach the mezzanine card:

1 Align the two mezzanine card stand off supports with the screw holes on each side of the base DeckLink card and gently secure the mezzanine card to the bridge connector slot. Ensure the mezzanine card is properly seated in the bridge connector slot.
2 Fasten the stand off supports to the base DeckLink card by tightening their screws using a Phillips head screwdriver. Be careful not to over tighten the screws.

If you need assistance or have any questions please visit the Blackmagic Design support center at www.blackmagicdesign.com/support.

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

DeckLink 4K Extreme 12G's mezzanine card can easily be removed.

Recovering a DeckLink Card from an Interrupted Update

If you are updating a DeckLink card and the update process is interrupted, for example power is accidentally disconnected from your computer, this can leave your card in a disabled state. However, many DeckLink cards have a special USB port that will let you perform an update recovery.

If your DeckLink card supports USB recovery, the USB port will be located on the rear or side of the card. This USB port will let you plug into your computer and update the card directly.

To recover an interrupted update on a DeckLink card:

1 Shut down your computer and disconnect the power.
2 Gently remove your DeckLink card from your computer's PCIe slot and place it safely on a stable surface, such as a desk or workbench. We recommend placing the card on an anti-static bag and wearing an anti-static earthing wrist band to avoid the risk of damaging the card with a potential electric shock.
3 Plug a USB cable into the USB-C or mini B USB port on the rear or side of your DeckLink card

Illustration of a computer motherboard with CPU socket and heatsink, no text or symbols present

Remove the DeckLink card from your computer's PCIe slot and plug it into your computer using the USB-C or mini B USB port on the rear or side of the card

4 Plug the other end of the USB cable into your computer's USB port.

5 Power your computer and turn it on. After your computer's start up sequence an alert window will appear asking you to update the card.

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Click 'update'.

Desktop Video Software Update Updating Software... Do not unplug while updating.

A progress bar will indicate the update process and will let you know when the update is complete.

Once complete, disconnect the USB cable and reinstall the card into your computer's PCIe slot.

NOTE Don't forget to shut down your computer and disconnect power before accessing the PCIe slot.

With your card reinstalled you can now power your computer. The DeckLink card will be recognized by your computer and you can continue with your production.

Help

Getting Help

The quickest way to obtain help is to check the latest support material for your specific hardware at the Blackmagic Design online support pages.

Blackmagic Design Online Support Pages

The latest manual, software and support notes can be found at the Blackmagic Design support center at www.blackmagicdesign.com/support.

Contacting Blackmagic Design Support

If you can't find the help you need in our support material, please use the “send us an email” button on the support page to email a support request. Alternatively, click on the “find your local support team” button on the support page and call your nearest Blackmagic Design support office.

Checking the Version Currently Installed

To check which version of Blackmagic Desktop Video Setup software is installed on your computer, open Blackmagic Desktop Video Setup.

– On Mac OS, open ‘Blackmagic Desktop Video Setup’ within your ‘applications’ folder. The software version number appears by clicking on the ‘about Blackmagic Desktop Video Setup’ menu heading.
- On Windows 10 and 11, click the 'start' button and type 'Blackmagic' in the search box. Click the Blackmagic Desktop Video Setup application. The software version number appears by clicking on the 'about Blackmagic Desktop Video Setup' menu heading.
– On Linux, go to ‘applications’ and then ‘sound and video’ and double click the Blackmagic Desktop Video Setup application. The software version number appears by clicking on the ‘about Blackmagic Desktop Video Setup’ menu heading.

How to Get the Latest Updates

After checking the version of Blackmagic Desktop Video Setup installed on your computer, please visit the Blackmagic Design support center at www.blackmagicdesign.com/support to check for the latest updates. While it is advisable to run the latest updates, you should avoid updating software when in the middle of an important project.

To see when you last updated your driver, click on the ‘about’ tab in the Blackmagic Desktop Video Setup utility. You can also generate a driver status report by clicking on the status report ‘create’ button.

Developer Information

Developing Custom Software using Blackmagic Design Hardware

The DeckLink SDK is available for developers to control Blackmagic video hardware with their own custom software. The DeckLink SDK supports the UltraStudio, DeckLink and Intensity products.

Red toolbox with 'SDK' branding and a pencil, containing documents and a pen (no readable text or symbols beyond logos)

The DeckLink SDK provides both low level control of hardware and high level interfaces to allow developers to easily perform common tasks. The DeckLink SDK supports technologies including:

• DeckLink API
• Apple Core Media
• Microsoft DirectShow

Downloading the Free Blackmagic Design SDK

The DeckLink SDK can be downloaded at: www.blackmagicdesign.com/support

Joining the Blackmagic Design Software Developers Forum

If you're looking for answers, feedback or suggestions regarding technologies used by Blackmagic Design, such as codecs, core media, APIs, SDK and more, visit the Blackmagic Design Software Developers forum. The forum is a helpful place for you to engage with both Blackmagic Design support staff and other forum members who can answer developer specific questions and provide further information. The Software Developers forum can be found within the Blackmagic Design Forum at: forum.blackmagicdesign.com

Contacting Blackmagic Design Developer Assistance

If you wish to ask questions outside of the Blackmagic Design Software Developers forum, please contact us at: [e-mail]

Regulatory Notices

Disposal of Waste of Electrical and Electronic Equipment Within the European Union.

The symbol on the product indicates that this equipment must not be disposed of with other waste materials. In order to dispose of your waste equipment, it must be handed over to a designated collection point for recycling. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local city recycling office or the dealer from whom you purchased the product.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this product in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense.

Operation is subject to the following two conditions:

1 This device may not cause harmful interference.
2 This device must accept any interference received, including interference that may cause undesired operation.

MSIP-REM-BMD-201602006	R-R-BMD-201904001
R-R-BMD-20220712001	R-R-BMD-20230531001
R-R-BMD-20220712002	R-R-BMD-20230531002
MSIP-REM-BMD-201611001	R-R-BMD-20230531003
MSIP-REM-BMD-201611002	R-R-BMD-202005002
MSIP-REM-BMD-DLSDI4K	R-R-BMD-202005001
MSIP-REM-BMD-201607001	MSIP-REM-BMD-201707004
R-R-BMD-201906001	R-R-BMD-201901001
MSIP-REM-BMD-DLStudio4K	MSIP-REM-BMD-201611010
R-REM-BMD-201807001	MSIP-REM-BMD-201611009
MSIP-REM-BMD-201412020	MSIP-REM-BMD-201509013
MSIP-REM-BMD-201509003	MSIP-REM-BMD-201503025
MSIP-REM-BMD-201607002

ISED Canada Statement

This device complies with Canadian standards for Class A digital apparatus.

Any modifications or use of this product outside its intended use could void compliance to these standards.

Connection to HDMI interfaces must be made with high quality shielded HDMI cables.

This equipment has been tested for compliance with the intended use in a commercial environment. If the equipment is used in a domestic environment, it may cause radio interference.

Safety Information

For protection against electric shock, the equipment must be connected to a mains socket outlet with a protective earth connection. In case of doubt contact a qualified electrician.

To reduce the risk of electric shock, do not expose this equipment to dripping or splashing.

Product is suitable for use in tropical locations with an ambient temperature of up to 40 °C.

Ensure that adequate ventilation is provided around the product and that it is not restricted.

When rack mounting, ensure that the ventilation is not restricted by adjacent equipment.

No operator serviceable parts inside product. Refer servicing to your local Blackmagic Design service center.

Some products have the facility to connect small form-factor transceiver (SFP) optical fibre modules. Only use Laser class 1 optical SFP modules.

Recommended Blackmagic Design SFP modules:

- 3G-SDI: PL-4F20-311C

- 6G-SDI: PL-8F10-311C

- 12G-SDI: PL-TG10-311C

Use only at altitudes not more than 2000m above sea level.

State of California statement

This product can expose you to chemicals such as trace amounts of polybrominated biphenyls within plastic parts, which is known to the state of California to cause cancer and birth defects or other reproductive harm.

For more information go to www.P65Warnings.ca.gov.

Warning for Authorized Service Personnel

Disconnect power from both power inlets before servicing!

Caution - Double Pole/ Neutral Fusing

The power supply contained in this equipment has a fuse in both line and neutral conductors and is suitable for connection to the IT power distribution system in Norway.

Warranty

Limited Warranty

Blackmagic Design warrants that UltraStudio, DeckLink and Multibridge family products will be free from defects in materials and workmanship for a period of 36 months from the date of purchase excluding connectors, cables, cooling fans, fiber optic modules, fuses, keyboards and batteries which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. Blackmagic Design warrants that Intensity family products will be free from defects in materials and workmanship for a period of 12 months from the date of purchase. If a product proves to be defective during this warranty period, Blackmagic Design, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

In order to obtain service under this warranty, you the Customer, must notify Blackmagic Design of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible for packaging and shipping the defective product to a designated service center nominated by Blackmagic Design, with shipping charges pre paid. Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to us for any reason.

This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. Blackmagic Design shall not be obligated to furnish service under this warranty: a) to repair damage resulting from attempts by personnel other than Blackmagic Design representatives to install, repair or service the product,b) to repair damage resulting from improper use or connection to incompatible equipment, c) to repair any damage or malfunction caused by the use of non Blackmagic Design parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. THIS WARRANTY IS GIVEN BY BLACKMAGIC DESIGN IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED. BLACKMAGIC DESIGN AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. BLACKMAGIC DESIGN'S RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE WHOLE AND EXCLUSIVE REMEDY PROVIDED TO THE CUSTOMER FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER BLACKMAGIC DESIGN OR THE VENDOR HAS ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES. BLACKMAGIC DESIGN IS NOT LIABLE FOR ANY ILLEGAL USE OF EQUIPMENT BY CUSTOMER. BLACKMAGIC IS NOT LIABLE FOR ANY DAMAGES RESULTING FROM USE OF THIS PRODUCT. USER OPERATES THIS PRODUCT AT OWN RISK.

© Copyright 2023 Blackmagic Design. All rights reserved. 'Blackmagic Design', 'DeckLink', 'HDLink', 'Workgroup Videohub', 'Videohub', 'DeckLink', 'Intensity' and 'Leading the creative video revolution' are registered trademarks in the US and other countries. All other company and product names may be trade marks of their respective companies with which they are associated.

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation in the U.S. and/or other countries.

Desktop Video

Interior of a modern office with a woman observing a large screen at sunset, no visible text or symbols on the screen or surroundings.

Circular portrait photo of a smiling man in a black shirt against a gray textured background (no text or symbols)

ようこそ

Blackmagic Design CEO

グラント・ペティ

目次

はじめに 83

Diagram of a server rack with connected hardware and a green circuit board (no text or symbols visible)

Diagram of a server rack with labeled ports and an orange arrow pointing to a connector, accompanied by a lightning bolt symbol.

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer tower with an attached USB cable showing port connections (no text or symbols)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a computer motherboard with cooling unit and heatsink (no text or symbols)

Back view of a server rack with hexagonal grid and connected port (no visible text or labels)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continua

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Windowsにインストール

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 52Si59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 52559.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as 5MPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.168.24.101 Cancel Save

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.5 Last update: 11 August 2023 Status report: Create ? Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 63 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand inserting a device into a computer control panel (no text or symbols visible)

MSSU ULTR-ND Submaging Transmax MBS HOME to 50V I2G RMS Submaging MNS-ND Submaging

同梱物

Technical illustration of a metal beam with flanged ends and bolt holes (no text or symbols)

Blackmagic Universal Rack Shelf x1

Blackmagicdesign Blackmagicdesign

ブランクパネル

Diagram showing two server rack-mounted devices with labeled ports and mounting holes, annotated with orange arrows indicating assembly or status.

Close-up of a computer monitor with a hexagonal grid and a circular button, showing a pointing arrow (no text or symbols present)

Mechanical assembly diagram showing a bracket with bolts and a pin inserted, no text or symbols present

Presets Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substites Fairlight Patch Mapping Deck Settings Video capture and playback HD 1080p 25 Use left and right eye SDI Video connection operates as Use 4x4.4 SDI SDI configuration Single link Dual link Quad link Data levels Video Full Video bit depth 10 bit Use deck autocredit Non auto edit timing 0 frames Deck preroll 5 seconds Video output sync source Auto Add 3.2 pushdown

Project Settings: My Project Presets Timeline Format Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substrate Elight Path Mapping Timeline resolution: 5840 x 2160 Ultra HQ For: 3840 x 2160 processing Pixel aspect ratio: Square Inter-visual data Intermodulation of Inference Chronicscript Timeline frame rate: 24 frames per second Use double line interpolation Enable Interface processing Playback frame rate: 24 frames per second Video Monitoring Video Format: Unit 2160/24 Like Auto & SGN Use level A for 3ab SGN Use dual output on DP SDI configurations: Single link Dual link Quad link Data records: Video Fail Rotate sub-block and super-white data Visits bit depth: 10 bit Monitor scaling: Bilinear Like the CNT minutes for d2.0 GHz output Institute HDR metadata Optimized Media and Kernel Cache Proxy media resolution: Choose automatically Proxy media format: Prakes 422 HQ Optimized media resumption: Choose automatically Optimized media format: Prakes 422 HQ Render cache format: Prakes 422 HQ Enable background locking after seconds Automatically cache buckets in user mode Automatically cache composites in user mode Cancel Save

Ae Adobe After Effects © 1990-2012 Adobe, All rights reserved. Artwork by Never Set STILL. For more details and legal notice, go to the About After Effects screen Initiating MediaCare Adobe Creative Cloud

After Effects CC

ビデオの再生方法

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Audio-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Memory Transmit Video Device: Adobe 0Y Setup... Blackmagic Playback Setup... Discrete video output when in the background Video Preview during render curve output Forward slash Y on numeric keypad toggles texture transistor OK Cancel Previous Next

環境設定の「ビデオプレビュー」画面

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Custom Resize %: x Resize Quality High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output-only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham For more details and legal notices, go to the About Photoshop screen.

Reading preferences...

Russell Williams. Thomas Knoll, John Knoll, Mark Hamburg. Jackie Lincoln-Owanyang, Alan Erickson. Sarah Kong, Jerry Harris. Mike Shaw, Thomas Rauk, Yukic Tekahashi, David Dolzah, John Petersen, Adam Jeregrin, Yukic Kaykle, Foster Bressor, Meredith. Psyna Stoztnar, Talus Luxev, David Bakrishnan, Marla Yap, Pam Clark, Kyko Ieda, Steve Guilhamet, David Heckel, Eric Floch, Judy Lee, Kevin Kepps, Barkie Aygun, Kira Kumar Rativashat, Ashcalf Jan, Stanley Thomas, Rajneesh Chaili, Quynn Megan le. Carlene Gonzalez, Anrudit Vahindru, Tana Agarucal

Adobe Creative Cloud

Colorful artistic portrait of a person with flowing hair and floral decorations, set against a bright circular background (no text or symbols)

Photoshop CC

ビデオフレームの読み込み/書き出し

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

イメージキャプチャー

Pr Adobe Premiere Pro © 1991-2022 Adobe, All rights reserved. Artwork by Ellie Swopes. For more details and legal notices, go to the About Premiere Pro screen. Initializing Application... Adobe Creative Cloud

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Preroll: 3 seconds Postroll: 2 seconds Stop forward/back mode: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blackmagic Playback Offset: 0 ms Video Device: Adobe CV Setup Offset: 0 ms Blackmagic Playback Setup Offset: 0 ms Disable video output when in the background Help Cancel OK

Sequence Presets Settings Tracks VR Video Available Presets ARRI AVC-Intra AVCHD Canon XF MPESZ Digital SLR DNXHD 1080p 50 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQK 1080p 25 DNX LB 1080p 25 DNX RGB 444 1080p 25 DNX SQ 1080p 25 1080p 29.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 29.97 720p 50 Reset Description For editing and HO monitoring with DNXHD HQ files at 1920h x 1080v resolution. 16.9 progressive-ican video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings: Frame size: 1920h 1080v (L/3000) Frame rate: 25.00 frames/second Pixel Aspect: Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT709 RGB Fell Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks. Update to Next... Delete Preset Sequence Name: Sequence D1 Cancel OK

新規シーケンスを作成

デバイスコントロール

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Prevoll: 2 seconds Timecode Offset: 0.0 frames Options Help Cancel OK

再生

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rac. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopped Logging Settings Setup Capture: Audio and Video Log Clips No: Desktop\Video.fpring Clip Data Type Name: Untitled Tape Clip Name: Untitled Clip 01 Description: Scene: Show/Take: Log Note: Timecode 00:00:00:00 Set In 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture Ex/Draw Tape Show/Select Handle: 3 Names

Edit To Type Current Sequence: Sequence 02 Stopped Device Preset: Save Preset Delete Preset Media Export Type: Assemble Video A1 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Sears and Tone 20.00 Seconds Black Video 10.00 Seconds Universal Counting Leader Setup Device Control Pencil 3 Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Dropped Plan... Device Settings... Recorder Settings... Dropped Planes 0

© 1992-2021 Adobe All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI.

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer: 2023.4.0 (C)2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

セットアップ

Select Project Welcome to Media Composer Select Project What's new? Projects New Project User Profile: Editio Location: UsersTranscriptDocumentsAndProjects/ Project name: My Project Format: 3846x2160px68 Raster dimension: 8825 2.760 Frame rate: 100 Hz Assets links: 46% Color space: 9ChCr 2020 / Hybrid Log Gamma Matschack Stereoscopic: Off Search data folder: Other... UsersTranscriptDocumentsAndProjects (My Project) Manage Projects Save Project MediaCentral Login Histogram: User Name: Password: Logs Cut Create

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Video: Blackmagic Audio: Blackmagic Capture. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit Entire Sequence Digital Cut Safe Mode Stop on Dropped Frames Allow Passthrough LTC out during preroll Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit Custom Preroll 1 second Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a classic film reel with silver rim and black center blades (no text or symbols visible)

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture Playback Exit to Image In Out Duration 00:00:00:00 00:00:00:00 Name: Quick Capture 1.001 daybreak 01.01 Description: Quick Capture 1 Reel: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

ビデオに関する情報を入力

Log and Capture Playback Edit to Tape In Out Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 460.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

DPXキャプチャーの設定

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Quality Use dropped frame timecode Capture from en RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback Edit to: Tape

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Log and Capture Playback Edit to Tape Inc: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Rec1: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Preferences Project Video Format: 1090p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Media Express "Scratch" My Capture Dur: 00:00:05:10 3D L▶4R 3D My Capture_right Dur: 00:00:05:10

Log and Capture Plasback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p2S Capture File Format: MP4 H.26S Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Disk Speed Test 2652.8 MB/s WRITE SPEED TEST START R*AD 2756.5 MB/s Will It Work? How Fast? Blackmagic RAW PRORes 422 HQ H.265 FORMAT WRITE READ WRITE READ WRITE READ NTSC/PAL - - ✓ ✓ ✓ ✓ ✓ 720x50 - - ✓ ✓ ✓ ✓ ✓ 1080x50 - - ✓ ✓ ✓ ✓ ✓ 1080x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 1080x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 12K DCI 24 ✓ ✓ ✓ ✓ ✓ - - - 12K DCI 50 ✓ ✓ ✓ ✓ ✓ - - NTSC/PAL - - ✓ ✓ ✓ ✓ ✓ ✓ 1080 HD - - 6437 7050 2160 4K - - 628 685 4320 8K - - 393 431 6480 12K - - 175 192 ProRes 422 HQ - - ✓✓ ✓✓ ✓✓ NTSC/PAL - - 10044 11000 1080 HD - - 2859 3142 2160 4K - - 716 784 4320 8K - - 168 184 6480 12K - - 76 83 H.265 WRITE READ NTSC/PAL - - 79095 86626 1080 HD - - 28531 31247 2160 4K - - 8J01 9748 4320 8K - - 2502 2740 6480 12K - - -

Exploded view diagram of a mechanical assembly showing internal components and motion arrows (no text or labels)

Illustration of a computer motherboard with heatsink and cooling elements, no text or symbols present

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

「Update」をクリックします。

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with white 'SDK' logo and a pen, featuring a document labeled 'C++' (no additional text or symbols)

-3G-SDI:PL-4F20-311C

- 6G-SDI:PL-8F10-311C

- 12G-SDI: PL-TG10-311C

Interior of a modern office with a woman standing near a large display wall and computer monitors (no visible text or symbols)

Circular portrait photo of a smiling man with gray hair and blue eyes, wearing a black collared shirt (no text or symbols visible)

Bienvenue

Diagram of a computer setup showing CPU, motherboard, and cable connections (no text or labels)

Diagram of a server rack with labeled ports and connectors, showing an orange arrow pointing to a connector.

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer interface showing a cable inserted into an RJ4 port with multiple ports and connectors (no text or symbols visible)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Front view of a server rack with port headers and drive slots (no text or symbols visible)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep of screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard. Back Next Cancel

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 52Si59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ○ Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HiFi Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.6.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.168.24.101 Cancel Save

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.5 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand inserting a remote control into a computer drive, showing labeled buttons like MENU, VIDEO, SET, and AUDIO.

Technical illustration of a metal plate with mounting flanges (no text or symbols)

1 x Blackmagic Universal Rack Shelf

Backmagicdesign Blackmagicdesign

Diagram showing two server rack-mounted devices with labeled ports and mounting holes, annotated with red arrows indicating assembly or status.

Close-up of a mechanical component with a hexagonal groove and a small screw, showing no text or symbols.

Mechanical assembly diagram showing a bracket with mounting holes and a clamping mechanism (no text or symbols)

Presets Deck Settings Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Subrables Fairlight Patch Mapping Video capture and playback HD 108Up 25 Use left and right eye SDI Video connection operates as Use 4x4.6 SDI SDI configuration • Single Ink Dual Link Quad Link Data levels • Video Full Video bit depth 10 bit ✓ Use deck autocredit Non auto edit timing 0 frames Deck preroll 5 seconds Video output sync source Auto Add 32 pushdowns

Project Settings: My-Project Project Timeline Format Monitor settings Project Setting Censor Management General Options Camera MWM Capture and Playback Modules Target Push Mapping Timeline resolution J840 x 2165 Ultra HD Port: 340 x 2160 processing Panel export ratio Squares VPS conversion Unetharotype Timeline frame rate: 24 frames per second Image Intersect processing Ragwick frame rate: 24 frames per second Video Monitoring Video format: EWD x 96p.2k New and SDI New save it for Stdx MSD New draft/repulsion SD Video format: Single ink Quash line Quad line Data formats: Video Full Detail sub-stick and super-white data Video bit-depth: 10 bits Master scaling: 8bit/sat Size: 2.22 SDX output Audio-HDD media Optimized Media and Banner Cache Proxy browser resolution: Chaser automatically Proxy-media forest: BestBox 422 HQ OpenMedia-media installation: Uncliner automation only Optimized media forest: BestBox 423 HQ Breaker-unite format: BestBox 422 HQ Initiate back-ground carding after: 5 seconds Automatically electro transfer from mode Automotive carrier composition in user mode Cancel Save

Ae Adobe After Effects © 1993-2012 Adobe. All rights reserved... Artwork by Never Sit Still. For more details and legal notions, go to the Abstract After Effects screen. Initiating MediaCare Adobe Creative Cloud

After Effects CC

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Auto-Smart Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Mercury Transmit Adobe 3YF Blackmagic Playback Setup_ Setup_... Disable video output when in the background Video preview during render cursor output Forward slash 7 on numeric overlay toggles Memory Taburnt OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize top: 1920 x 1080 Custom Resize %: x Resize Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham For mere details and legal notices, go to the About Photoshop screen.

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owysng, Alan Erickson, Sarah Kong, Jerry Harris, Mike Shau, Thomas Zulk, Yuke Takahashi, David Dobish, John Peterson, Adam Jerajim, Yuke Kagića, Foster Brelerton, Meredith Payne Skotmst, Tal Lukos, Yihod Baakrishnan, Maria Yap, Pam Clark, Kyoko Ikode, Steve Guilhamet, David Heckol, Eric Floch, Judy Lee, Kevin Heppo, Baskie Aygun, Kiras Kumar Rathnavath, Aanchal Jain, Starky Thomas, Rajnaosh Chauli, Cayune Megan La. Callere Gonzalez, Anrudh Vahindru, Tana Aganas

Adobe Creative Cloud

Colorful artistic portrait of a person with flowing hair and flowing fabric, set against a bright moon background (no text or symbols)

Photoshop CC

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Acquisition d'image

Blackmagic Image Export Image Export Settings Video Output Format: YUV+K 4:2:2 10.80159.94 Cancel Export Image

Exporter une image

Pr Adobe Premiere Pro © 1991-2022 Adobe All rights reserved. Artwork by Blue Swopes. For more details and legal notices, go to the About Premiere Pro screen. Initiating Application... Adobe Creative Cloud

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Preroll: 3 seconds Postroll: 2 seconds Step forward/back marry: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blacimagic Playback Offset: 0 ms Video Device: Adobe DV Setup Offset: 0 ms Blackmagic Playback Setup Offset: 0 ms Disable videos output when in the background Help Cancel OK

Sequence Presets Settings Tracks VR Video Available Presets ARRI AVC-Intra AVCHD Canon XF MPEG2 Digital SLR DXN-D 1080p 50 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DXN HQ 1080p 25 DXN HQK 1080p 25 DXN LB 1080p 25 DXN RGB 444 1000p 25 DXN SQ 1080p 25 1080p 29.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 29.97 720p 50 Present Description: For editing and HD monitoring with DNxHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DXN 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (1.000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT709 RGB Fell Default Sequence: Initial video tracks: 3 Mix track type: Stereo Audio Tracks: Include Project Sequence Name: Sequence DI Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices Blackmagic Device Control Options Preview: 2 seconds Timecode Offset: 0.0 frames Help Cancel OK

Lecture

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopped Logging Settings Setup Capture: Audio and Video Log Clips To: Desktop/Video/Jing Clip Date Tape Name: Untitled Tape Clip Name: Untitled Clip 01 Description: Scene: Show/Write: Log name: Timecode 00:00:00:00 Set In 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Tape Same Before Handler: o Names

Edit To Tape Current Sequence Sequence 02 Stopped. Device Preset: Save Preset Delete Preset Media Export Type: Assemble □ Views □ A1 □ A2 □ A3 □ A4 □ A1 □ A2 □ A3 □ A4 □ A9 □ A10 □ A11 □ A12 □ Beyond time 2U02 Seconds □ Block Video 10:00 Seconds □ Universal Counting Leader Setup Device Control □ Preview 3 Seconds □ Delay Movie Start by 6.0 Seconds □ VTR Recorded Offset 6.0 format □ About export are dropped frames □ Report Droped From. Device setting... Recorder Settings... Dropped Frames: 0

© 1992-2022 Adobe All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI..

Adobe Creative Cloud

Illustration of a person balancing on a slope with abstract background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Configurer Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

Export File Info Settings Roles Export File Format: Video and Audio Video Code: Source - Apple ProRes 422 Resolution: 3840 x 2160 Color Space: Wide Gamut HDR - Rec. 2020 PQ Audio Format: Linear PCM Include chapter markers Action: YLC 3840 x 2160 | 29.97 fps Stereo (L R) | 48 kHz 00:01:00:00 .mov 4.48 GB est. Export File Cancel Next...

MEDIA COMPOSER® Media Composer 2022-4.0 ©2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

Configuration

Select Project Welcome to Media Composer Select Project What's now? Projects New Project User Profile Editor Location \Users\frames\Documents\Aid Projects/ Project name: My Project Format: 2044x21-60px53 Radial dimension: 8840 x 21.80 frames rate: 80 fps Assets type: 16.9 Color space: VChOr 2020 / Hybrid Log Gamma Manzelnback Stereoscopic: off Search data folder: Other Users\frames\Documents\Aid Projects\My Project Manage Project Some Print MediaCentral Login Rename: User Name: Password: Login Quit Cross

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Video: Blackmagic Audio: Blackmagic Capture. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Video: Blackmagic Audio: Blackmagic Mark IN Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit Entire Sequence Digital Cut Safe Mode Stop on Dropped Frames Allow Passthrough LTC out during preroll Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit Custom Preroll 1 second Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a classic film reel with six black and gold blades (no text or symbols visible)

Comprendre Blackmagic Media Express

Preferences Project Video Format: 1080p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timeframe Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only ✓ Stop capture if dropped frames are detected ✓ Step playback if dropped frames are detected Use Anamorphic SD 18-0 ✓ Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture Playback Edit to Tape In Out Duration: 00:00:00:00 00:00:00:00 Name: Quick Capture 1 001 daybreak 01 01 Description: Quick Capture 1 Reel: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Log and Capture Playback Edit to Tase In Out Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remainings: 460.63 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10 Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback Edit to Taps

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080μ25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Media Express

Log and Capture Playback Edit to Tape Ins: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 108Op25 Capture File Format: MP4 HL265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for curing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Technical illustration of a mechanical assembly showing internal components and a highlighted section (no text or symbols)

Illustration of a computer motherboard with CPU socket and heatsink, showing hands holding a tool (no text or symbols)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Cliquez sur Update.

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with white 'SDK' logo and a pen, featuring a document labeled 'C++' (no additional text or symbols)

forum.blackmagicdesign.com

Interior of a modern office with a woman standing near a large screen and chairs, no visible text or symbols.

Circular portrait photo of a smiling man with gray hair and blue eyes, wearing a black collared shirt (no text or symbols visible)

Willkommen

CEO, Blackmagic Design

Inhaltsverzeichnis

Erste Schritte 239

Schneiden in DaVinci Resolve 269

Diagram of a computer setup showing CPU socket, network interface, and cable connections (no text or labels)

Diagram of a server rack with labeled ports and connectors, showing a warning symbol for electrical hazard.

HDMI OUT Y OUT PB OUT PA OUT X VIDEO OUT W200OUT AUDIOOUT Blackmagic design HDMI IN Y IN PB IN PA IN X VIDEO IN VIDEO IN L AUDIO IN R

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer monitor with an inserted cable showing port connections (no text or symbols)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Front view of a server rack with hexagonal grid and network ports (no visible text or labels)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Get Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape in: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525i59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.6.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.1GB.24.101 Cancel Save

224.0.0.0 to 239.255.255.255.

z. B. 224.24.29.73

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.6 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand holding a remote control device with labeled buttons including MENU, VIDEO, SET, and AUDIO.

Technical illustration of a metal beam support structure with mounting flanges (no text or symbols)

1 Blackmagic Universal Rack Shelf

Backmagicdesign Blackmagicdesign

Blindplatten

Diagram showing two server rack-mounted devices with labeled ports and mounting hardware, annotated with orange arrows indicating assembly or status.

Close-up of a mechanical component with a grid pattern and a red arrow pointing to a small bolt labeled 'dP' (no text or symbols on the main subject)

Mechanical assembly diagram showing a bracket with mounting holes and a highlighted connection point (no text or symbols)

Presets Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Subskles Rainlight Path Mapping Deck Settings Video capture and playback HD 1083p 25 Use left and right eye SDI Video connection operates as Use 4x4x4 SDI SDI configuration Single link Dual link Guard link Data levels Video Full Video bit depth 10 bit Use deck audiodit Non auto edit timing 0 frames Decx preroll 5 seconds Video output sync source Auto Add 3.2 outdots

Schneiden in DaVinci Resolve

Project Settings: My Project Presets Timeline Format Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substitles Flag lights Path Mapping Timeline resolution 3840 x 2160 Ultra HD For 8863 x 2160 processing Pixel aspect ratio Square 1Gb audio/matrix ACP audio/matrix definition Cinemascope Timeline frame rate 24 frames per second Use ultra frames normalized Enable internal processing Playback frame rate 24 frames per second Video Monitoring Video format UHD 2100p 24 Use 4.4.4 SCI Use Level A for 3Gb SDI Use dual output on SDI SDI configuration Single link Dual link Quad link Data levels Video Full Retain sub-block and super-white data Video bit depth 10 bit Monitor scaling Linear Use Rec.601 matrix for 4.2.2 SDI output Enable HDR metadata Optimized Media and Render Cache Proxy media resolution Choose automatically Proxy media format ProRes 422-HQ Optimized media resolution Choose automatically Optimized media format ProRes 422-HQ Render cache format ProRes 422-HQ Enable background caching after 5 seconds Automatically cache transitions in user mode Automatically cache composites in user mode Cancel Save

Ae Adobe After Effects © 1993-2012 Adobe All rights reserved. Artwork by November 2011. For more details and legal notice, go to the About After Effects screen. Initiating MediaCore Adobe Creative Cloud

After Effects CC

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Auto-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Double Mercury Transport Video Devlop Adobe 3PF Setup... Blackmagic Playback Setup... Disable video output when in the background Video Preview during render course output Forward slide 7 on music: layout triggers memory transport OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Custom Resize %: x Resize Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

Output Module Settings

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham For more details and legal notices, go to the About Photoshop screens.

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owany, Alan Erickson, Sarah Kong, Jerry Harris, Mike Shaw, Thomas Ruak, Yukic Takahashi, David Dolzah, John Peterson, Adam Jeregim, Yuk Kayla, Fowler Brivision, Meredith Psyna Stotzmir, Tal Lukas, Vinad Badarishnan, Morla Yap, Pam Clark, Kyiko Reda, Steve Guilhamat, David Hackel, Eric Floch, Judy Lee, Kevin Kepps, Barkle Agmus, Kiran Kumar Raftvakh, Aanchal Jain, Starry Thomas, Raynebash Chaili, Claynn Megris La. Callena Gonzalez, Anrund Mahindru, Tanu Agnwal

Adobe Creative Cloud

Colorful artistic portrait of a person in elaborate blue and purple feathered costume with a full moon background (no text or symbols)

Photoshop CC

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Bilderfassung

Pr Adobe Premiere Pro © 1991-2022 Adobe, All rights reserved. Artwork by Blue Sweepers. For more details and legal notices, go to the Adobe Premiere Pro screen. Initializing Application... Adobe Creative Cloud

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Preroll: 3 seconds Postroll: 2 seconds Step forward/back many: 5 frames Pause Media Encoder queue during playback Enable Memory Transmit Audio Device: Blackmagic Playback Offsets 0 ms Video Device: Adobe CV Setup Offset: 0 ms Blackmagic Playback Setup Offset: 0 ms Disable video output when in the background Help Cancel OK

Sequence Presets Settings Tracks VR Video Available Presets ARRI AUC-Intra AVCHD Canon XF MPEG2 Digital SLR DNxHD 1080p 53 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQX 1080p 25 DNX LB 1080p 25 DNX RGB 444 1080p 25 DNX SQ 1080p 25 1080p 26.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 29.97 720p 50 Preset Description: For editing and HD monitoring with DNxHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L.D900) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT709 RGB Fell Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks: Audio Type: None Delete Preset Sequence Name: Sequence 01 Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices Blackmagic Device Control Options Prevall 2 seconds Timecode Offset 0.0 frames Help Cancel OK

Wiedergabe

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopped. Logging Settings Setup Capture Audio and Video Log Clip 10 DesktopVideo.fprp Clip Data Tape Name: Limited Tape Clip Name: Limited Clip 01 Description: Scene: Show/Select: Log Note: Timecode 00:00:00:00 Set In 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Type Source Devices Handles: Rumus

Edit to tape Current Sequence Sequence ID Stopped. Device Project: Save Power Delete Power Media Report Type: Assemble □ Views □ A2 □ A3 □ A4 □ A5 □ A6 □ A7 □ A8 □ A9 □ A10 □ A11 □ A12 □ Start and Stop 20.00 Seconds □ Back Video 10.00 Seconds □ Universal Counting Leader Setup Device Control □ Print 3 Seconds □ Delay Movie Start by 0.0 frames □ VTR Round Offset 0.0 frames □ About export or dropped frames □ Report Drapped Frames... Video Settings: Recorder Settings... Drapered Frames: 0

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI..

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer 2022.4.0 (C)2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

Einrichtung

Select Project Welcome to Media Composer Select Project What's new? Projects New Project User Profile Editor Location: /Users/Trancid/DocumentsAndProjects/ Project name: My Project Format: 384b*2160p63 Raster dimension: BLAC 21.60 Name rate: 100 fps Aspect1 skills: yes Color space: YCbCr 2026 / Hybrid Log Gamma Mascnback Stenooscopic: Off Search data folder: Other... /Users/Trancid/DocumentsAndProjects/My Project Manage Presses Save Print MediaCentral Login Hostname: User Name: Password: Logs Quit Create

Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: D frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic Mark IN. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit ✓ Entire Sequence ✓ Digital Cut Safe Mode ✓ Stop on Dropped Frames ✓ Allow Passthrough ☐ LTC out during preroll ☐ Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit ☐ Custom Preroll 1 second ☐ Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a classic film reel with silver rim and black perforated center (no text or symbols visible)

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Timecode-Liste, Miniatur- und Media List Suchfeld Favoritenansicht MAZ/Deck-Timecode Videovorschau Media Express "Search" 100p 23 Profile 2d ZOC 2009 Composite Our 00:00:35.0 Our 00:00:36.0 Our 00:00:36.0 Our 00:00:36.0 Our 00:00:36.0 Our 00:00:36.0 Our 00:00:36.0 Our 00:00:36.0 Our 00:00:36.0 Our 00:18:14 Our 00:18:14 Our 00:18:14 Our 00:18:14 Our 00:18:14 Our 00:18:14 Our 00:18:14 Our 00:18:14 Our 00:18:14 Our 00:18:14 (1) Our 00:18:14 (2) Our 00:18:14 (3) Our 00:18:14 (4) Our 00:18:14 (5) Our 00:18:14 (6) Our 00:18:14 (7) Our 00:18:14 (8) Our 00:18:14 (9) Our 00:18:14 (10) Our 00:18:14 (11) Our 00:18:14 (12) Our 00:18:14 (13) Our 00:18:14 (14) Our 00:18:14 (15) Our 00:18:14 (16) Our 00:18:14 (17) Our 00:18:14 (18) Our 00:18:14 (19) Our 00:18:14 (20) Our 00:18:14 (21) Our 00:18:14 (22) Our 00:18:14 (23) Our 00:18:14 (24) Our 00:18:14 (25) Our 00:18:14 (26) Our 00:18:14 (27) Our 00:18:14 (28) Our 00:18:14 (29) Our 00:18:14 (30) Our 00:18:14 (31) Our 00:18:14 (32) Our 00:18:14 (33) Our 00:18:14 (34) Our 00:18:14 (35) Our 00:18:14 (36) Our 00:18:14 (37) Our 00:18:14 (38) Our 00:18:14 (39) Our 00:18:14 (40) Our 00:18:14 (41) Our 00:18:14 (42) Our 00:18:14 (43) Our 00:18:14 (44) Our 00:18:14 (45) Our 00:18:14 (46) Our 00:18:14 (47) Our 00:18:14 (48) Our 00:18:14 (49) Our 00:18:14 (50) Our 00:18:14 (51) Our 00:18:14 (52) Our 00:18:14 (53) Our 00:18:14 (54) Our 00:18:14 (55) Our 00:18:14 (56) Our 00:18:14 (57) Our 00:18:14 (58) Our 00:18:14 (59) Our 00:18:14 (60) Our 00:18:14 (61) Our 00:18:14 (62) Our 00:18:14 (63) Our 00:18:14 (64) Our 00:18:14 (65) Our 00:18:14 (66) Our 00:18:14 (67) Our 00:18:14 (68) Our 00:18:14 (69) Our 00:18:14 (70) Our 00:18:14 (71) Our 00:18:14 (72) Our 00:18:14 (73) Our 00:18:14 (74) Our 00:18:14 (75) Our 00:18:14 (76) Our 00:18:14 (77) Our 00:18:14 (78) Our 00:18:14 (79) Our 00:18:14 (80) our log and capture in out out Duration out out Log Capture Batch Audio Kanal aktivieren/deaktivieren Project ID/IEC HD ISO/AIRIS/IEC/IEC Projektname, Video- format und Framerate Clip-Bins In-Punkt /Out-Punkt Speichern Standbild Frame Indizierungsdaten Aufzeichnung optionen Transport- Bedienelemente Audio Meter Remote- Indicator

Aufzeichnung

Log and Capture Playback Edit to Taps In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 480.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback End to Top

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Log and Capture Playback Edit to Tape Inc Out Duration: 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Recb: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Preferences Project Video Format: 1090p26 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 108Op25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cusing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p2S Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Disk Speed Test 2652.8 MR/5 SPEED TEST START 2756.5 MR/5 Will It Work? How Fast? Blackmagic RAW WRITE READ Write READ WRITE READ NTSC/PAL - - - ✓ ✓ ✓ ✓ ✓ 720p60 - - ✓ ✓ ✓ ✓ ✓ 1080p60 - - ✓ ✓ ✓ ✓ ✓ 1080p25 ✓ ✓ ✓ ✓ ✓ ✓ 1080p60 ✓ ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ 2180p25 ✓ ✓ ✓ ✓ ✓ ✓ 2180p60 ✓ ✓ ✓ ✓ ✓ ✓ 4320p25 ✓ ✓ ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 60 ✓ ✓ ✓ ✓ ✓ ✓ 12K DCI 24 ✓ ✓ ✓ ✓ - - - 12K DCI 60 ✓ ✓ ✓ ✓ - - - Blackmagiodesign WRITE READ H 265 ProRes 422 HQ Write Read Write Read Write Read NTSC/PAL - - - 1049 HD 6437 7090 2160 4K 628 638 4320 8K 393 431 6480 12K 175 192 ProRes 422 HQ Write Read NTSC/PAL 10044 11000 1080 HD 2869 3142 2160 4K 716 784 4320 8K 168 184 6480 12K 76 83 H 265 WRTEE READ NTSC/PAL 75095 86626 1080 HD 28531 57247 2160 4K 8901 9748 4320 8K 2302 2740 6480 12K - -

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

Illustration of a computer motherboard with CPU socket and heat sink, showing internal components and a hand holding a tool (no text or symbols)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with white 'SDK' logo and a pen, featuring a document labeled 'C++' (no additional text or symbols)

California Proposition 65

Interior of a modern office with a woman standing near a large screen and chairs, under a corrugated ceiling (no visible text or symbols)

Circular portrait photo of a smiling man with short hair, wearing a dark collared shirt (no text or symbols visible)

Bienvenido

After Effects CC 349

Adobe Photoshop CC 351

Premiere Pro CC 352

Character Animator 358

Final Cut Pro 359

Media Composer 362

Blackmagic Media Express 369

Diagram of an electronic device showing a green circuit board connected to a server rack with black connectors and orange arrows indicating cable routing (no text or symbols present)

Diagram of an electronic device rear panel with labeled ports and a warning symbol indicating battery hazard.

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer interface showing a cable inserted into a server rack with multiple connected ports (no text or symbols visible)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Back view of a server rack with ports and a cable inserted (no visible text or labels)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

Instalador en macOS

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525/59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ○ Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as SMPTE Level D (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080Psf-segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Use Detacam Levels NTSC IRE: 0.0 (Japan) 7.5 (USA)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.6.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.1GB.24.101 Cancel Save

Conexión a redes

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.5 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 63 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand holding a remote control device with labeled buttons including MENU, VIDEO, SET, and AUDIO.

Technical line drawing of a metal beam with flanged ends and bolt holes (no text or symbols)

1 x Blackmagic Universal Rack Shelf

Backmagicdesign Blackmagicdesign

Placas ciegas

Diagram showing two server rack-mounted devices with labeled control buttons and orange arrows indicating mounting points.

Close-up of a mechanical component with a hexagonal groove and a small inset pin labeled '4P' (no text or symbols on the main subject)

Mechanical assembly diagram showing a bracket with mounting holes and a close-up view of the component (no text or symbols)

Presets Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Subskles Reflight Patch Mapping Deck Settings Video capture and playback HD 108Top Z5 Use left and right eye SOI Video connection operates as Use 4x4.4 SOI SDI configuration • Single link Dual link Quad link Data levels • Video Full Video bit depth 10 bit ✓ ✓ Use deck autoedit Non auto edit timing 0 frames Deck preroll 5 seconds Video output sync source Auto ✓ Add 32 slowdowns

Project Settings - By Project Project Timeframe Normal Wave Settings Image scaling Color Mode/Environment General Options Camera Mask Capture and Playback Switches Random Fach Mapping Timeline waveform: 560 x 2160.00 fps HD For: 1000 x 2160 Imaging Peak aspect ratio: Square Use Level A for 2064-350 Use Level A for 2064-350 Cranewaves Timeline frame rate: 25 Frames per window Replace: Interlare Scanning Playback frame rate: 25 frames per second Value Monitoring Value Breakout: LA-3D 310V 24 Use Level A for 2064-350 Use Level A for 2064-350 SDI Configuration: Single link Dual link Loadlink Case press: Auto Fail Reset sub-block and superoxide data scale: Alt depth: 17.8% Intervel swing: 88.0% Data: matrix size #2-2501 output Replace V498 windows Optimized Media and Sensor Caps Proxy profile resolution: Closest incrementally Proxy mode format: Profile-Alt HG Optimize motor application: Closest incrementally Closest incrementally: Profile-Alt HG Render pulse format: Profile-Alt HG ✓ Select background setting after 5 seconds Automatically cut-off function channels before Automatically cut-off using random data on each mode Cancel Save

Ae Adobe After Effects © 2012-2022 Adobe. All rights reserved. Artwork by November 31 Still. For more details and legal notices, go to the About After Effects screen Initiating MediaCore Adobe Creative Cloud

After Effects CC

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Audio-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Memory Transmit Video Device: Adobe 0Y Setup... Blackmagic Playback Setup... Console video output when in the background Video Preview during render curve output Forward slash Y on numeric keypad toggles tertiary transistor OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Cuslash Resize %: x Resize Quality: High Crop Class Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

© 1990-2022 Adobe. All rights reserved

Artwork by Natasha Cunningham For mere details and legal notices, go to the About Photoshop screen.

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owysing, Alan Erickson, Sarah Kong, Jerry Harris, Mike Shaox, Thomas Rzark, Yuke Takahashi, David Gobish, John Peterson, Adam Jerajim, Yuke Kagera, Foster Breerton, Meredith Payne Scototner, Tal Lukos, Yihod Baakrishnan, Maria Yap, Pam Clark, Kyoko Rode, Steve Guilhamet, David Heckel, Eric Floch, Judy Lee, Kevin Heppa, Barkle Aygun, Kiras Kumar Rathnavath, Aanshal Jain, Starky Thomas, Rajneesh Chauli, Coyne Megan La, Dallere Gonzalez, Anrudh Vahindhu, Tana Aganas

Adobe Creative Cloud

Colorful artistic portrait of a person with flowing hair and flowing fabric, set against a bright circular background (no text or symbols)

Photoshop CC

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Pr Adobe Premiere Pro © 1991-2022 Adobe, All rights reserved.. Artwork by Blue Supplies. For more detail's and legal Notices, go to the Aho at Premiere Pro screen. Initiating Application... Adobe Creative Cloud

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Preroll: 3 seconds Postroll: 2 seconds Step forward/back marry: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blackmagic Playback Offset: 0 ms Video Device: Adobe CV Setup. offset: 0 ms Blackmagic Playback Setup. Offset: 0 ms Disable video output wave in the background Help Cancel OK

Sequence Presets Settings Tracks VR Video Available Presets ARRI AUC-Inra AVCHD Canon XF MPEG2 Digital SLR DNXHD 1080p 53 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQK 1080p 25 DNX LB 1080p 25 DNX RGB 444 1080p 25 DNX SQ 1080p 25 1080p 29.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 29.97 720p 60 Prect Description For editing and HD monitoring with DNXHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings: Frame size: 1920h 1080v (L.D.000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT-709 RGB Fell Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks: Audio & Mask Delete Preset Sequence Name: Sequence 01 Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Prevoll: 2 seconds Timecode Offset: 0.0 frames Options Help Cancel OK

Reproducción

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopped. Logging Settings Setup Capture: Audio and Video Log Clips Rate: Desktop/Video/Logging Clip Data Tape Name: Untitled tape Clip Name: Untitled Clip 61 Description: Scene: Shed/Timer Log Note: Timecode 00:00:00:00 Set In 00:00:00:00 Set Out 00:00:00:00 Log Clip Capture In/Out Tape Scratch Default Handles: 0 frames

Edit To Type Current Sequence: Sequence 02 Stopped: Device Preset Save Preset Delete Preset Media Export Type: Assemble Video A1 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Sears and Tone 20.00 Seconds Black Video 10.00 Seconds Universal Counting Leader Setup Device Control Pencil 3 Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Dropped Plan... Device Settings... Recorder Settings... Dropped Planes 0

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI..

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Configuración

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer 2022-4.0 (C)2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Media Composer

Configuración

Select Project Welcome to Media Composer Selected Project What's new? Projects New Project User Profile Editor Location AfsenTrancoll/DocumentsAndProjects/ Project name: My Project Format: 384b2160p69 Raster dimension: 88AC 2160 Fram rate: 62 fps ASP.NET skills: 46.5 Color space: %ChOr 2006 / Hybrid Log Gamma Materialback Stereoscopic: diff Search Data folder: Other... Users/French/DocumentsAndProjects/My Project Manage Projects Save Printers MediaCentral Login Hostname User Name Password Login Out Create

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Marque la opción Relax coincidence point detection.

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blockmagic Audio: Blockmagic Mark IN Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit ✓ Entire Sequence ✓ Digital Cut Safe Mode ✓ Stop on Dropped Frames ✓ Allow Passsthrough □ LTC out during preroll □ Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit □ Custom Preroll 1 second □ Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a classic film reel with six black-and-white spines and metallic rim (no text or symbols visible)

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: Media Browse For all video and audio media file captures Capture still frames to: Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture Playback Edit for Time In Out Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:01:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p26 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 1080p25 Capture File Format: MP4 H.26S Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p25 Capture File Format: MP4 H.26S Use dropped frame timecode Quality Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Disk Speed Test Blackmagicdesign WRITE 2652.8 MB/s SPEED TEST START READ 2756.5 MB/s Will It Work? How Fast? Blackmagic RAW PRORes 422 HQ H.265 FORMAT WRITE READ WRITE READ WRITE READ NTSC/PAL - - - ✓ ✓ ✓ ✓ ✓ ✓ 720p60 - - ✓ ✓ ✓ ✓ ✓ ✓ 10B0i60 - - ✓ ✓ ✓ ✓ ✓ ✓ 10B0i25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 10B0p60 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160p25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160p60 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320p25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320p60 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ BK DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ BK DCI 60 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 12K DCI 24 ✓ ✓ ✓ ✓ ✓ - - - 12K DCI 60 ✓ ✓ ✓ ✓ - - Blackmagic RAW WRITE READ NTSC/PAL - - - 1080 HD 6437 7050 2160.4K 928 688 4320.8K 393 431 6480 12K 175 192 ProRes 422 HQ WRITE READ NTSC/PAL 19044 1100C 1080 HD 2869 3142 2160.4K 716 784 4320.8K 168 184 6480 12K 76 83 H.265 WRITE READ NTSC/PAL 79095 86626 1080 HD 28531 31247 2160.4K 8001 9748 4320.8K 2502 2740 6480 12K - -

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

Illustration of a computer motherboard with a hand holding a screwdriver (no text or symbols)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with 'SDK' branding and a pencil inside, containing documents and a plus sign (no readable text or symbols beyond branding)

- SDI 3G: PL-4F20-311C

- SDI 6G: PL-8F10-311C

- SDI 12G: PL-TG10-311C

Interior of a modern office with a woman standing near a large screen and chairs, under a corrugated ceiling (no visible text or symbols)

Circular portrait photo of a smiling man in a black shirt against a gray textured background (no text or symbols)

欢迎辞

Front view of a UltraStudio 4K Extreme audio workstation with playback screen and control buttons (no readable text or symbols on device body)

系统要求

Diagram of an internal network device showing CPU socket, circuit board, and Ethernet cable connections (no text or labels)

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific port (no text or symbols present)

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer monitor with an attached USB cable inserted into the case (no text or symbols visible)

Illustration of a rack-mounted server unit with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Back panel of a computer tower showing drive bays, ports, and an Ethernet cable (no text or labels visible)

Install Desktop Video Welcome to the Desktop Video Installer Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

Mac版Desktop Video Installer安装程序

初次在Mac OS系统上安装

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message.. ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

在M1 Mac上重置系统安全策略

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

在Windows系统下安装

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

Windows版Desktop Video Installer安装程序

在Linux系统下安装

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 52Si59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

- During Capture (采集期间)

- During Playback (输出期间)

Video Output Conversions Connectors About General Default video standard: 525i59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ○ Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

- Top and Bottom (上下)

以50%的比例压缩左右眼图像纵向显示。

Frame Packing (帧封装)

Use Betacam Levels NTSC IRE: 0.0 (Japan) 7.5 (USA)

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

☐ Use 5.1 surround channel ordering

启用“Use 5.1 Surround Channel Ordering”（使用5.1声道排序）

确保与HDM监看设备的兼容性。

AES/EBU

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.168.24.101 Cancel Save

连接到网络

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.6 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand holding a remote control device with labeled buttons including MENU, VIDEO, SET, and AUDIO.

LAT5143 Latency HSD HSDM to SET 120 RPGS RPGS Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSD Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HSO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO Latency HOCO

包含组件

Universal Rack Shelf Kit包含以下组件:

Technical illustration of a metal plate with two flanged ends and bolt holes (no text or symbols)

1 x Blackmagic Universal Rack Shelf

Backmagicdesign Backmagicdesign

空白挡板

Diagram showing two server rack-mounted devices with labeled ports and mounting hardware, annotated with orange arrows indicating assembly or status.

Close-up of a mechanical component with a hexagonal grille and a small light bulb, showing no text or symbols.

卸下靠近设备正面的5mm M3螺丝。

Mechanical assembly diagram showing a component with threaded fasteners and a clamp, no text or symbols present

Presets Deck Settings Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substites Retlight Path Mapping Video capture and playback HD-108Op 25 Use left and right eye SOI Video connection operates as Use 4:4:4 SOI SDI configuration Single link Dual link Quad link Data levels Video Full Video bit depth 10 bit Use deck autocredit Non auto edit timing 0 frames Deck prerail 5 seconds Video output sync source Auto Add 3.0 pullback

Project Settings: My Project Presets Timeline Format Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Subtable Eastlight Path Mapping Timeline resolution 3840 x 2160 Ultra HD For: 565 x 2160 processing Pixel aspect ratio Square 15.7 arc/scale Interquartile definition on Densitscope Timeline frame rate 24 frames per second Use zoom in video interface Enable Interface processing Playback frame rate 24 frames per second Video Monitoring Video format UHUB 2160y 24 Use Auto 400s Use label Afor 350x SOI Use dual output on SDI SOM configurations Single link Dual link Quad link Data levels Video Fail Return sub-block and super-white data Video bit depth 10 bits Monterewriting Bilinear Use Auto 400s models for A2.3 SD output Enable HDR metadata Optimized Media and Render Cache Proxy media resolution Choose automatically Proxy media format Prates 422 HQ Optimized media resolution Choose automatically Optimized media format Prates 422 HQ Render cache format Prates 422 HQ Enable background Locking after 5 seconds Automatically create/eliminations hidden mode Automatically cache-complexes to user mode Cancel Save

© 1992-2022 Adobe. All rights reserved.

Artwork by Never Sit Still. For more details and legal

notices, go to the About After Effects screen

Initializing MediaCore

Adobe Creative Cloud

Abstract geometric composition with overlapping shapes and a central floral motif (no text or symbols)

After Effects CC

如何预览视频

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cards Video Preview Appearance New Project Auto-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Memory Transmit Video Device. Adobe DIY Setup... Blackmagic Playback Setup... Disable video output when in the background Video preview during render current output Forward slash 7 on numeric overlays toggles Memory Transport OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at 1920 x 1080 Resize to: 1920 x 1000 Custom Resize %: x Resize Quality High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

© 1990-2022 Adobe All rights reserved.

Artwork by Natasha Cunningham

For more details and legal notices, go to the

About Photoshop screen

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owáng, Alan Erickens, Sarah Kong, Jerry Harris, Mike Shaw, Thomas Ruick, Yukie Takanashi, David Cobish, John Peterson. Adam Jerugim, Yukie Kapita, Foster Breterton, Meredith Payne Scotzner, Tal Lukos, Yinhod Baokrishnan, Marla Yap, Pam Clark, Kyoko Eode, Steve Osilhamet, David Hackel, Eric Floch, Judy Lee, Kevin Heppa, Barkin Aygun, Kiran Kumar Rathlavath, Aanchal Jain, Starry Thomas, Rajnaesh Chaul, Cuyen Megonla, Carlene Gonzalez, Anrudd Mahindru, Tana Agaruc

Adobe Creative Cloud

Colorful artistic portrait of a person with vibrant blue and purple floral elements, set against a bright circular background (no text or symbols)

Photoshop CC

如何导入和导出视频帧

将图像导入Photoshop CC

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

图像采集。

从Photoshop CC中导出图像

Pr Adobe Premiere Pro © 1991-2022 Adobe. All rights reserved. Artwork by Ellie Swopes. For more detail's and legal notices, go to the About Premiere Pro screen. Initiating Application... Adobe Creative Cloud

Premiere Pro CC

Sequence Presets Settings Tracks VR Video Available Presets ARRI AUC-Intra AVCHD Canon XF MPEGZ Digital SLR DNxHD 1080p 50 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQ 1080p 25 DNX LB 1080p 25 DNX RGB 444 1080p 25 DNX SQ 1080p 25 1080p 29.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 29.97 720p 50 Preset Description For editing and HD monitoring with DNxHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L.D.000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT-709 RGB Fell Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks: Audio & Mask Delete Presets Sequence Name: Sequence DI Cancel OK

创建一个新序列

设备控制

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Prevall: 2 seconds Timecode Offset: 0.0 frames Options Help Cancel OK

播放

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

选择一个选项来输出不支持的帧尺寸。

Capture Stopped. Logging Settings Setup Capture: Audio and Video Log Clips To: Desktop\Video\vproj Clip Delta Tape Name Untitled Tape Clip Name Untitled Clip 61 Description: Scene: Shot/Talker Log Name: Timecode 00:00:00:00 Set to 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Scope:\Timeline Handles: frames

Edit To Type Current Sequence: Sequence 02 Stopped Device Preset: Save Preset Delete Preset Media Export Type: Assemble Video A1 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Bens and Tone 20.00 Seconds Black Video 10.00 Seconds Universal Counting Leader Setup Device Control Pencil 3 Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Drugged Frame... Device Settings... Recorder Settings... Dropped Frames: 0

© 1992-2022 Adobe All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI...

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

设置Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer 2022.4.0 (C)2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

准备工作

Select Project Welcome to Media Composer Selected Project What's new? Projects New Project User Profile Editor Location: UsersTransalDocumentsAnd Projects/ Project name: My Project Format: 3846x2109x69 Raster dimension: 1000 x 2160 Frame rate: 60 fps Assets class: 16.9 Color space: "CbCr 200E / Hybrid Log Gamma" Matchback Streptoscopic: off Search data folder: Other... UsersTransalDocumentsAndProjects Only Project: Manage Project Save Project MediaCentral Login Hostname User Name Password Login Quit Create

键入项目名称并设置项目选项。

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Video: Blackmagic Audio: Blackmagic Capture. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Digital Cut Tool V1 A1 A2 Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit ✓ Entire Sequence ✓ Digital Cut Safe Mode ✓ Stop on Dropped Frames ✓ Allow Passthrough ☐ LTC out during preroll ☐ Add Block at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit ☐ Custom Preroll 1 second ☐ Custom Frame Offset 0 00:00:1 1:29 Blackmagic Design HyperDeck Tape_001

Close-up of a classic film reel with silver rim and black center blades (no text or symbols visible)

什么是Blackmagic Media Express?

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture Playbox Edit to Image In Out Duration: 00:00:00:00 00:00:00:00 Name: Quick Capture 1_001_daybreak 01_01 Description: Quick Capture 1 Fleet: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

输入视频描述。

Log and Capture Playback Edit to Japa In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 06:00:04:00 Disk Space Remaining: 450.33 GB Capture Clip Batch Log

点击“Capture”按钮开始采集。

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10 - Bit RGB Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

DPX采集偏好设置。

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback Edit to Tape

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Log and Capture Playback Edit to Tape Int: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Reel: 001 Scene: daybreak 01 Take: 01 Anglo: 01 Capture Clip Batch Log

Preferences Project Video Format: 1080p26 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

选择一个3D项目视频格式。

Media Express

在搜索栏中输入片段信息。

Media Express "Search" 10000 23 Profile 3d Dur: 00:00:00:07 ZOC 2008 Chatter Dur: 00:00:00:07 ZOC 2008 Star Wave Dur: 00:00:00:07 ZOC 2008 Safari 19 Dur: 00:01:00:07 ZOC 2008 TV 18/00p 23 Dur: 00:01:01:14 ZOC 2011 59/00p 23 Dur: 00:01:01:14 ZOC 2011 59/00p 23 ZOC 2011 59/01p 23 ZOC 2011 59/02p 23 ZOC 2011 59/03p 23 ZOC 2011 59/04p 23 ZOC 2011 59/05p 23 ZOC 2011 59/06p 23 ZOC 2011 59/07p 23 ZOC 2011 59/08p 23 ZOC 2011 59/09p 23 ZOC 2011 59/10p 23 ZOC 2011 59/11p 23 ZOC 2011 59/12p 23 ZOC 2011 59/13p 23 ZOC 2011 59/14p 23 ZOC 2011 59/15p 23 ZOC 2011 59/16p 23 ZOC 2011 59/17p 23 ZOC 2011 59/18p 23 ZOC 2011 59/19p 23 ZOC 2011 59/20p 23 ZOC 2011 59/21p 23 ZOC 2011 59/22p 23 ZOC 2011 59/23p 23 ZOC 2011 59/24p 23 ZOC 2011 59/25p 23 ZOC 2011 59/26p 23 ZOC 2011 59/27p 23 ZOC 2011 59/28p 23 ZOC 2011 59/29p 23 ZOC 2011 59/30p 23 ZOC 2011 59/31p 23 ZOC 2011 59/32p 23 ZOC 2011 59/33p 23 ZOC 2011 59/34p 23 ZOC 2011 59/35p 23 ZOC 2011 59/36p 23 ZOC 2011 59/37p 23 ZOC 2011 59/38p 23 ZOC 2011 59/39p 23 ZOC 2011 59/40p 23 ZOC 2011 59/41p 23 ZOC 2011 59/42p 23 ZOC 2011 59/43p 23 ZOC 2011 59/44p 23 ZOC 2011 59/45p 23 ZOC 2011 59/46p 23 ZOC 2011 59/47p 23 ZOC 2011 59/48p 23 ZOC 2011 59/49p 23 ZOC 2011 59/50p 23 ZOC 2011 59/51p 23 ZOC 2011 59/52p 23 ZOC 2011 59/53p 23 ZOC 2011 59/54p 23 ZOC 2011 59/55p 23 ZOC 2011 59/56p 23 ZOC 2011 59/57p 23 ZOC 2011 59/58p 23 ZOC 2011 59/59p 23 ZOC 2011 59/60p 23 ZOC 2011 59/61p 23 ZOC 2011 59/62p 23 ZOC 2011 59/63p 23 ZOC 2011 59/64p 23 ZOC 2011 59/65p 23 ZOC 2011 59/66p 23 ZOC 2011 59/67p ZOC. ZOIC

将视频和音频文件编辑到磁带

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

两个片段被选中输出到磁带。

Preferences Project Video Format: 108Op25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cusing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p2S Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Disk Speed Test 2652.8 MB/s Write Speed Test START READ 2756.5 MB/s Will It Work? How Fast? Blackmagic RAW PRORes 422 HQ H.265 Format WRITE READ WRITE READ WRITE READ NTSCPAL - - ✓ ✓ ✓ ✓ ✓ 720x50 - - ✓ ✓ ✓ ✓ ✓ 1080x50 - - ✓ ✓ ✓ ✓ ✓ ✓ 1080x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 1080x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 12K DCI 24 ✓ ✓ ✓ ✓ ✓ - - - 12K DCI 50 ✓ ✓ ✓ ✓ ✓ - - Blackmagic RAW WRITE READ NTSCPAL - - 1080 HD 6437 7050 2160 4K 628 688 4320 8K 393 431 6480 12K 175 192 ProRes 422 HQ WRITE READ NTSCPAL 10044 11000 1080 HD 2859 3142 2160 4K 716 784 4320 8K 168 184 6480 12K 76 83 H.265 WRITE READ NTSCPAL 79095 86626 1080 HD 28531 31247 2160 4K 8901 9748 4320 8K 2502 2740 6480 12K - -

Technical illustration of a mechanical assembly showing internal components and a highlighted section (no text or symbols)

Illustration of a computer motherboard with heat sinks and connectors, showing a hand holding a tool (no text or symbols present)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

点击“Update”（更新）。

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with 'SDK' branding and a pen, containing documents and a C++ symbol (no text or symbols on main objects)

42G-SDI: PL-TG10-311C

请在海拔高度2000米以下的地区使用。

加利福尼亚安全声明

Interior of a modern office with a woman standing near a large screen and chairs, under a corrugated ceiling (no visible text or symbols)

Circular portrait photo of a smiling man in a black shirt against a gray textured background (no text or symbols)

환영합니다.

Diagram of an internal network device showing CPU socket, motherboard, and cable connections (no text or labels)

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific port (no text or symbols present)

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer interface showing a cable inserted into a server rack with multiple ports and an attached USB port (no text or symbols visible)

Illustration of a server rack with multiple ports and connectors, showing no text or symbols.

Technical line drawing of a computer motherboard with cooling fans and heatsink (no text or symbols)

Back view of a server rack with network ports and a cable inserted (no visible text or labels)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Windows에 설치하기

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: S25159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ○ Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PaF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Use Betecam Levels NTSC IRE: 0.0 (Japan) 7.5 (USA)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.168.24.101 Cancel Save

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.6 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand holding a remote control device with labeled buttons including MENU, VIDEO, SET, and AUDIO.

Technical line drawing of a metal beam with flanged ends and bolt holes (no text or symbols)

1 x Blackmagic Universal Rack Shelf

Backmagicdesign Backmagicdesign

블랭킹 패널

Diagram showing two server rack-mounted devices with labeled ports and mounting hardware, annotated with orange arrows indicating assembly or status.

Mechanical component with hexagonal perforated base and circular ports, showing a downward arrow indicating a change (no text or symbols present)

Technical illustration of a mechanical component with a highlighted section showing a red arrow pointing to a textured surface (no text or symbols present)

Presets Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Substitutes Fairlight Patch Mapping Deck Settings Video capture and playback HD 1080p 25 Use left and right eye SDI Video connection operates as Use 4.4.4 SDI SDI configuration Single link Dual link Quad link Data levels Video Full Video bit depth 10 bit Use deck autocrit Non auto edit timing 0 frames Deck prerail 5 seconds Video output sync source Auto Add 3.2 pulldown

Project Settings: My Project Presets Timeline Format Timeline resolution: 3843 x 2160 Ultra HD For: 3843 x 2160 proceeding Pixel aspect ratio: Square DLS2 automation rate R Translational definition on Cinema/cape Timeline frame rate: 24 frames per second Use video format processing Enable interface processing Playback frame rate: 24 frames per second Video Monitoring Video Format: VHD 2 HDp.24 Like virtual SDI Use level A for 32p SDI Use visual output on SDI SDI configuration: Single link Dual link Quad link Data levels: Video Fail Return sub-block and super-white data Video bit depth: 10 bit Monitor scaling: BLinear List: New HQ matrix for x23 SDI output Enable HDR Metadata Optimized Media and Kernel Cache Proxy-media resolution: Choose automatically Proxy-media format: Prakes 422 HQ Optimized media resolution: Choose automatically Optimized media format: Prakes 422 HQ Render cache format: Prakes 422 HQ ✓ Passive background catching after 5 seconds Automatically cache mechanisms in user mode Automatically cache composites in user mode Cancel Save

Ae Adobe After Effects © 1992-2012 Adobe. All rights reserved. Artwork by Never Sit Still. For more details and legal notices, go to the About After Effects screen Initiating MediaCore Adobe Creative Cloud

After Effects CC

비디오 미리보기

Preferences Control Previous Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Auto-Save Memory & Performance Audio Hardware Audio Output Mapping Syn Settings Type Scripting & Expressions 3D Notifications Enable Memory Tabram Video Device Adobe DV Blackmagic Playbox Setup... Setup... Disable video output when is the background Video preview during render queue output Forward class 7 on native layout toggles Memory Tabram. OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Custom Resize %: x Resize Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

[Output Module Settings] 렌더링 옵션

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham For mere details and legal notices, go to the About Photoshop screen.

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owysreg, Alan Erickson, Sarah Kong, Jerry Harris, Mike Shaw, Thomas Ruark, Yuke Takahoshi, David Dobish, John Peterson, Adam Jerugim, Yuko Kagita, Foster Breverton, Meredith Payne Scotznet, Tal Lukon, Yihod Baokrishnan, Merla Yap, Pam Clark, Kyoko Ikode, Steve Guilhamet, David Hackel, Eric Flech, Judy Lee, Kevin Hepps, Barklin Aygun, Kiras Kumar Ratnavath, Aanchal Jain, Stanley Thomas, Rajnaosh Chaui, Caynn Megan La. Darlena Gonzalez, Anrund Mahindu, Tana Aganas

Adobe Creative Cloud

Colorful artistic portrait of a person in elaborate blue and purple attire with a full moon background (no text or symbols)

Photoshop CC

비디오 프레임 불러오기 및 보내기

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

이미지 캡처

© 1991-2022 Acobo. All rights reserved.

Artwork by Elise Swopes. For more details and legal notices, go to the About Premiere Pro screen.

Increasing Application

Adobe Creative Cloud

Group of people in pink dresses posing in front of a classical-style building with curved columns and blooming trees (no visible text or symbols)

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Preroll: 3 seconds Postroll: 2 seconds Step Forward/back many: 5 frames Pause Media Encoder queue during playback Enable Memory Transport Audio Device: Macromagic Playback Offset: 0 ms Video Device: Adobe DV Setup Offset 0 ms Blackmagic Playback Setup Offset 0 ms Disable video output when in the background Help Cancel OK

Sequence Presets Settings Tracks VR Video Available Presets ARRI AVC-Intra AVCH-UI Canon XF MPEG2 Digital SLR DNXHD 1080p 53 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQK 1080p 25 DNX LB 1080p 25 DNX RGB 444 1080p 25 DNX SQ 1080p 25 1080p 26.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 26.97 General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L0000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.6) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT709 RGB Full Default Sequence Initial video tracks: 3 Mix track type: Stereo Audio Tracks: Audio to Image Delete Preset Sequence Name: Sequence 01 Cancel OK

새로운 시퀀스를 생성하세요.

장치 제어

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Preview: 2 seconds Timecode Offset: 0.0 frames Options Help Cancel OK

재생

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopped. Logging Settings Setup Capture: Audio and Video Log Clips No: Desktop\Video\vpsing Clip Delta Tape Name Untitled Tape Clip Name Untitled Clip 61 Description: Scene: Shot/Take: Log Name: Timecode 00:00:00:00 Set In 00:00:00:00 Set Out 00:00:00:04 Log Clip Capture In/Out Type Spread Timer Handles: frames

Edit To Type Current Sequence: Sequence 02 Stopped: Device Preset: Save Preset Delete Preset Media Export Type: Assemble Video A1 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Sens and Tone 20.00 Seconds Black Video 13.00 Seconds Universal Counting Leader Setup > Device Control Pencil 3 Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Droped Frame... Device Settings... Recorder Settings... Dropped Frames: 0

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI.

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Final Cut Pro 설정하기

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer 2022-4.0 ©2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

설정하기

Select Project Welcome to Media Composer Select Project What's new? Projects New Project User Profile Editor Location: UsersTransalDocumentsAndProjects/ Project name: My Project Format: 3846x2160px63 Raster dimension: 88.60 27.60 Name rate: 90 Plus Aspect1 Lake: 16.5 Color space: 10Cr-2020 / Hybrid Log Gamma MassBack Stereoscopic: Off Search data folder: Other... UsersTransalDocumentsAndProjects/My Project Manage Projects Save Project MediaCentral Login Programs: User Name: Password: Logic Quit Create

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Deck Preferences에서 'Relax coincidence point detection' 옵션을 선택하세요.

Video: Blackmagic Audio: Blackmagic Capture. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DN×HD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Close-up of a classic film reel with six reels and metallic rim (no text or symbols visible)

Blackmagic Media Express란?

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8-digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture Playback Edit to tape In Out Duration 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick Capture 1_001_daybreak 01_01 Description: Quick Capture 1 Reel: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

비디오 정보를 입력하세요.

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 480.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX tiles, use 8 digit numbers in the frame count

DPX 캡처 환경 설정.

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback Edit to Topo

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Log and Capture Playback Edit to Tape Inc Out Duration: 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Rec: 001 Scene: daybreak 01 Take: 01 Anglo: 01 Capture Clip Batch Log

Preferences Project Video Format: 1090p26 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent ctroams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Media Express

검색 필드에 클립명을 입력합니다.

Media Express "Search" 100p 23 Profile 24 Our 00:00:00.00 ZOC 2008 Craftsmen Our 00:00:00.00 ZOC 2008 Sea World Our 00:00:00.00 ZOC 2008 Surfle 19 Our 00:00:00.01 ZOC 2008 TF 1989 ZOC 2016 1989-23 Our 00:00:00.14 12 Clips Todaya stars ZOC 2014 1989p 23 Our 00:00:15.17 ZOC 2014 1989p 23 Our 00:00:16.18 ZOC 2014 1989p 23 Our 00:00:16.19 ZOC 2014 1989p 23 Our 00:00:16.19 ZOC 2014 1989p 23 Our 00:00:16.19 VTVX pixels ZOC 2014 1989p 23 Our 00:00:16.19 ZOC 2014 1989p 23 Our 00:00:16.19 ZOC 2014 1989p 23 Our 00:00:16.19 ZOC 2014 1989p 23 Our 00:00:16.19 ZOC 2008 Surf World Our 00:00:26.19 ZOC 2014 TF 1989 Our 00:00:26.19 ZOC 2014 TF 1989 Our 00:00:26.19 ZOC 2014 TF 1989 Our 00:00:26.19 ZOC 2014 TF 1989 Our 00:00:26.19 New shots from location 2 Project: VRBEX RC HD3/VRB X 23.9bps Project: VRBEX RC HD3/VRB X 23.9bps 마크 인 / 마크 아웃 녹화 모드 테이프에 마스터링하기 오디오 채널 사용/미사용

Log and Capture Playback Edit to Tape Int Out Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p2S Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Technical illustration of a mechanical assembly showing internal components and a highlighted section (no text or symbols)

Illustration of a computer motherboard with a hand holding a screwdriver (no text or symbols present)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

'업데이트'를 클릭하세요.

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with 'SDK' and 'C++' text, containing a pen and paper (no readable document text or symbols beyond logos)

Interior of a modern office with a woman standing near a large wall-mounted TV and patterned ceiling (no visible text or symbols)

DeckLink

UltraStudio

Intensity

Circular portrait photo of a smiling man with short hair, wearing a dark collared shirt (no text or symbols visible)

Добро пожаловать!

Front view of a UltraStudio 4K Extreme audio workstation with playback photo and control buttons (no readable text or symbols on device body)

Diagram of an electronic device showing a green circuit board connected to a server rack with multiple Ethernet connectors and cable routing (no text or labels present)

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific port (no text or symbols present)

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer interface showing a cable inserted into an RJ4 port with multiple USB connectors (no text or symbols visible)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Front view of a server rack with an attached cable, showing ports and drive bays (no text or labels visible)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

Desktop Video Installer для Mac

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

Desktop Video Installer для Windows

Установка для Linux

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 52Si59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525i59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Use Betacom Levels NTSC IRE: 0.0 (Japan) 1 7.5 (USA)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.168.24.101 Cancel Save

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.6 Last update: 11 August 2023 Status report: Create ? Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand holding a remote control device with labeled buttons including MENU, VIDEO, SET, and AUDIO.

ULTRHD Control panel Tension Bits HOME TO SET 12G RMSL Control panel RMSL Control panel

Содержание

Комплект Universal Rack Shelf Kit

Technical illustration of a metal beam with flanged ends and bolt holes (no text or symbols)

1 x Blackmagic Universal Rack Shelf

Backmagicdesign Blackmagicdesign

Заглушки

Diagram showing two server rack-mounted devices with labeled control buttons and orange arrows indicating mounting points.

Close-up of a mechanical component with a hexagonal grid pattern and a small labeled screw (no text or symbols visible)

Mechanical assembly diagram showing a bracket with mounting holes and a close-up view of the component (no text or symbols)

Presets Deck Settings Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Subicles Reflight Patch Mapping Video capture and playback HD 708Up ZS Use left and right eye SDI Video connection operates as Use 4:4:4 SDI SDI configuration Single link Dual link Quad link Data levels Video Full Video bit depth 10 bit Use deck autoedit Non auto edit timing 0 frames Desk preroll 5 seconds Video output sync source Auto ase 3D pushdown

Project Settings - My Project Process Timeline Format Motion Settings Image Scaling Color Management General Object Camera MW Capture and Playback Switches Texture Playback Playback Timeline resolution: Max x 2160 Ultra HD For: WAV 2160 processing Real update rate: Square Dramming模式: Current/Continuous Core/Continuous Timeline Frame rate: 24 frames per second Hot video response: Enable Interface processing Playback Frame rate: 24 frames per second Video Monitoring Video format: L3HD 2160/XP 50 Use audio HD Use Level A for 2000 MP Use Dual-Output on 500 MP 3D configuration: Single link Audiobox Quad IWD Data levels: Value Kali Japan sub-block (and user white data) Video Integration: 12 bit Inventory scaling: Linear Load: 8.5x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 10x 1 Options Media and Media Cache Proxy media resolution: Choose automatically Proxymedia format: Proges A22HQ Optimization media resolution: Choose automatically Optimization media format: Proges A22HQ Render cache format: Proges A22HQ ✓ Enable background switching after seconds Automatically channel network in user mode Automatically cache components in user mode Cancel Reset

© 1992-2022 Adobe, All rights reserved.

Artwork by Never Sit Still. For more details and legal notices, go to the About After Effects screen

Initiating MediaCore

Adobe Creative Cloud

Abstract geometric composition with overlapping shapes and colors, no text or symbols present

After Effects CC

Просмотр видео

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Audio-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Memory Transmit Video Device: Adobe Fire Setup... Blackmagic Playback Setup... Console video output when in the background Video Preview during render curve output Forward slash Y" on numeric keypad toggles temporary transistor OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Custom Resize %: x Resize Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

Настройки Output Module Settings

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham

For mere details and legal notices, go to the

Reading preferences..

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Dwysing, Alan Eickstein, Sarah Kong, Jerry Harris, Mike Shaw, Thomas Ruick, Yukie Takahashi, David Dobish, John Peterson, Adam Jeregim, Yuke Kapita, Foster Breterton, Meredith Payne Stottmers, Tal Lukon, Yiwad Baskrishnan, Marla Yap, Pier Clark, Kyoko Eode, Steve Ovilhamet, David Heckel, Erio Flech, Judy Lee, Kevin Heppo, Barkin Aygun, Kirin Kumar Rathnavath, Aanchal Jain, Stanley Thomas, Rajnesh Chavil, Quynn Megan La. Carlene Gonzalez, Annadh Mahindru, Tana Aganual

Adobe Creative Cloud

Colorful artistic portrait of a smiling figure with flowing hair, surrounded by abstract floral and leaf-like patterns (no text or symbols)

Photoshop CC

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Импорт изображения

© 1991-2022 Adobe. All rights reserved.

Artwork by Else Swopes. For more details and legal notices, go to the About Premiere Pro screen.

Initializing Application...

Adobe Creative Cloud

Exterior view of a classical building with columns and people in pink attire, under a blooming purple sky (no signage or text visible)

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Perell: 3 seconds Postrel: 2 seconds Step forward/back many: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blackmagic Playback Offset: 0 ms Video Device Adobe DV Setup... Offset: 0 ms Blackmagic Playback Setup... Offset: 0 ms Disable video output wheel in the background Help Cancel OK

Sequence Preset Settings Tracks VR Video Available Presets ARRI AUC-Inra AVCHD Canon XF MPEG2 Digital SLR DNXHD 1080p 50 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQX 1080p 25 DNX LB 1080p 25 DNX RGB 444 1000p 25 DNX SQ 1080p 25 1080p 26.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 26.97 720p 50 Preset Description For editing and HD monitoring with DNXHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L3000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT709 RGB Full Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks: Audio & Mask Delete Preset Sequence Name: Sequence 01 Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Preroll: 2 seconds Timecode Offset: 0.0 frames Options Help Cancel OK

Воспроизведение

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopped. Logging Settings Setup Capture: Audio and Video Log Clips To: Display/Video/propy Clip Delta Type Name: Untitled Tape Clip Name: Untitled Clip 61 Description: Scene: Shot/Taker Log Name: Timecode 00:00:00:00 Set to 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Tape Scene/Transform Handles: 0 frames 00:00:02:21 { 00:00:00:00 00:00:00:00 } 00:00:00:01

Edit To Type Current Sequence: Sequence 02 Stopped: Device Preset Save Preset Delete Preset Media Export Type: Assemble Video A1 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Sears and Tone 20.00 Seconds Block Video 10.00 Seconds Universal Counting Leader Setup Device Control Pencil 3 Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Dropped Plan... Device Settings... Recorder Settings... Dropped Planes 0

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI..

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer: 2022-4.0 ©2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

Настройка

Select Project Welcome to Media Composer Select Project What's new? Projects New Project User Profile: Editor Location: Users\francol\Documents\And Projects\ Project name: My Project Format: 384b\v2100\r63 Raster dimension: 3840 2160 Rain rate: 45 fps Aspect1 style: 96% Color space: %ChCr 2020 / Hybrid Log Gamma Macintosh Stereoscopic: Off Search Data Identifier: Other... Users\francol\Documents\And Projects\My Project Manage Project Save Print MediaCentral Login Username: User Name: Password: Logs Quit Credits

Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Diak (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Video: Blackmagic Audio: Blackmagic Capture. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Video: Blackmagic Audio: Blackmagic Mark IN Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit Entire Sequence Digital Cut Safe Mode Stop on Dropped Frames Allow Passthrough LTC out during preroll Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit Custom Preroll 1 second Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a metallic film reel with six blades and central hub (no text or symbols visible)

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use: 8 digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to: 5 second pre-roll for cueing When capturing use a: 0 frame timecode offset When mastering use a: 0 frame timecode offset

Log and Capture Playback Edit in Tools In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remainings: 460.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferencos Project Video Format: 1080p24 Capture File Format: DPX 10-BIT RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback Edit to Topo

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel!

Preferences Project Video Format: 1090p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Media Express

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Technical illustration of a mechanical assembly showing internal components and a highlighted section (no text or symbols)

Illustration of a computer motherboard with CPU socket and connectors, showing a hand holding a tool (no text or symbols present)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with white logos and a pencil, containing documents and a pen (no readable text or symbols)

Woman sitting in a modern office with large windows and a flat-screen TV on the wall (no visible text or symbols)

Circular portrait photo of a smiling man in a dark shirt against a gray textured background (no text or symbols)

Gentile utente

Front view of a UltraStudio 4K Extreme audio workstation with playback screen and control buttons (no readable text or symbols on device body)

Diagram of an electronic device showing a green circuit board connected to a server rack with multiple Ethernet connectors and cable routing (no text or labels visible)

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific port (no text or symbols present)

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer monitor with an attached cable showing port connections (no text or symbols)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with a green circuit board and cooling unit (no text or symbols)

Back view of a server rack with multiple ports and a cable inserted (no visible text or labels)

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

Installer Desktop Video su Mac

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ○ Display a single field on video output Video playback: ○ Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays block output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ○ Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Use Betacam Levels NTSC IRE: 0.0 (Japan) 1 7.5 (USA)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

HDMI Audio Output Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

Channel 1, Channel 2

Channel 1, Channel 2

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.1GB.24.101 Cancel Save

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.6 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand inserting a remote control into a computer drive, showing labeled buttons like MENU, VIDEO, SET, and AUDIO.

MSSU ULTRAND Submacing Tension Rate HOME to SET 12G Submacing MSSU Submacing

Contenuto del kit

L'Universal Rack Rack Shelf Kit contiene:

Technical illustration of a metal beam with flanged ends and bolt holes (no text or symbols)

1 x Blackmagic Universal Rack Shelf

Backmagicdesign Backmagicdesign

Diagram showing two server rack-mounted devices with labeled ports and mounting holes, annotated with orange arrows indicating assembly or status.

Close-up of a mechanical component with a hexagonal grid pattern and a small light bulb, showing no text or symbols.

Mechanical assembly diagram showing a bracket with mounting holes and a highlighted connection point (no text or symbols)

Presets Deck Settings Master Settings Image Scaling Color Managements General Options Camera RAW Capture and Playback Subrables Fairlight Patch Mapping Video capture and playback HD 1080p ZS Use left and right eye SDI Video connection operates as Use 4x4 & SDI SDI configurations • Single link Dual link Quad link Data levels • Video Full Video bit depth 10 bit ✓ Use deck autoedit Non auto edit timing 0 frames Deck preroll 5 seconds Video output sync source Auto Add 3.2 keyboard

Project Settings: My Project Presets Timeline Format Master Settings Image Scaling Color Management General Options Camera RPM Capture and Playback Substitutes Foxlight Patch Mapping Timeline resolution 3843 x 2160 Ultra HD For 1843 x 2159 processing Fiscal aspect ratio • Square 15.2 audio/matrix Intra-band output by Cinertarscape Timeline frame rate 24 frames per second Load drop to audio/matrix Enable interface processing Playback frame rate 24 frames per second Video Monitoring Video format UH0: 1160p-24 Use x2x4 SOI Use level A for 3Gb SOI Use dual output on SD SBI configurations • Single link Dual link Quad link Data levels • Video Fail Return sub-associated super-white data Video bit depth 10 bit Montera scaling Billinear User Batch 4000000 bytes for x2x2 SMI output Enable HCI3 metadata Optimized Media and kernel cache Proxy-media resouzlon Choose automatically Proxy-media format Proties 422 HQ Optimized media resouzlon Choose automatically Optimized media format Proties 422 HQ kernel cache format Proties 422 HQ ✓ Initialize background caching after 5 seconds Automatically cache constraints in user mode Automatically cache components to user mode Cancel Save

Ae Adobe After Effects © 1992-2012 Adobe. All rights reserved. Artwork by Never Sit Still. For more details and legal nctions, go to the About After Effects screen Initiating MediaCare Adobe Creative Cloud

After Effects CC

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Auto-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Memory Transport Video Device: Adobe 3Y Stack太极 Playback Setup... Setup... Disable video output when in the background Video preview displaying render current output Forward slash 7 on numeric overlays toggles Memory Transport OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Custom Resize %: x Resize Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham For mere details and legal notices, go to the About Photoshop screen.

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Humburg, Jackie Lincoln-Owysing, Alan Erickson, Sarah Keng, Jerry Harris, Mike Shau, Thomas Ruick, Yuke Takahashi, David Dobish, John Peterson. Adam Jerugim, Yuke Kagita, Foster Bresson, Meredith Payne Skotszt, Tal Lukon, Yihod Baokrishnan, Maria Yap, Pam Clark, Kyoko Ikeo, Steve Guilhamet, David Heckel, Eric Flech, Judy Lee, Kevin Heppa, Barlie Aygun, Kiran Kumar Rehivash, Aanchal Jain, Starey Thomas, Rajnaosh Chaul; Cuiynn Megan La. Darlena Gonzalez, Anruhd Mahindu, Tana Aganas

Adobe Creative Cloud

Colorful artistic portrait of a smiling figure with blue feathered hair, surrounded by vibrant floral and abstract background elements (no text or symbols)

Photoshop CC

Importare ed esportare fotogrammi video

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

© 1991-2022 Adobe. All rights reserved.

Artwork by Else Swopes. For more details and legal notices, go to the About Premiere Pro screen.

Initializing Application...

Adobe Creative Cloud

Group of people in pink dresses posing in front of a classical-style building with columns and purple blossoms (no visible text or symbols)

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Slave Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Preroll: 3 seconds Postroll: 2 seconds Step forward/back many: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blackmagic Playback Offset: 0 ms Video Device: Adobe DV Setup Offset: 0 ms Blackmagic Playback Setup Offset: 0 ms Disable videos output when in the background Help Cancel OK

Sequence Presets Settings Tracks VR Video Available Presets ARRI AUC-Intra AVCHD Canon XF MPES2 Digital SLR DNxHD 1080p 53 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQK 1080p 25 DNX LB 1080p 25 DNX RGB 444 1080p 25 DNX SQ 1080p 25 1080p 26.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 29.97 720p 50 Preset Description For editing and HD monitoring with DNxHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (1.6 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L,000) Frame rate: 25.00 frames/second Pixel Aspect: Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT709 RGB Full Default Sequence Initial video tracks: 3 Mix track type: Stereo Audio Tracks. Delete Preset Sequence Name: Sequence DI Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Prevoll: 2 seconds Timecode Offset: 0.3 frames Options Help Cancel OK

Riproduzione

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Slapped. Logging Settings Setup Capture: Audio and Video Log Clips To: Desktop\Video\vpsing Clip Delete Type Name Untitled Tape Clip Name Untitled Clip 61 Description: Scene: Shot/Take Log Note: Timecode 00:00:00:00 Set to 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Scope Scene Options Handles: frames

Edit To Type Current Sequence: Sequence 02 Stopped. Device Preset: Save Preset Delete Preset Media Export Type Assemble Video A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Bam and Tone 20.00 Seconds Black Video 17.00 Seconds Universal Crossing Leader Setup Device Control Prevall Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Drugged From... Device Settings: Recorder Settings... Dropped Planes: 0 00:00:10:01 { 00:00:06:19 00:00:45:04 } 00:00:38:10

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI.

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Impostare Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

Acquisire file video e audio

MEDIA COMPOSER® Media Composer: 2022-4.0 (C)2022 Avid Technology, Inc. Altrights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

Configurazione

Select Project Welcome Media Composer Select Project What's new? Projects New Project User Profile: Editor Location: UsersTransid/DocumentsAvoid Projects/ Project name: My Project Format: .384b±1.60p±63 Raster dimension: 8x42 x 21x60 Name rate: 90 Bits Aspect1 ratio: 100% Color space: 1GbOr 2006 /Hybrid Log Gamma Mascelack Stereoscopics: off Search Data folder: Other... UsersTransid/DocumentsAvoidProjects/My Project Manage Project Save Import MediaCentral Login Hostname: User Name: Password: Logs Quit Create

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit Entire Sequence Digital Cut Safe Mode Stop on Dropped Frames Allow Passthrough LTC out during preroll Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit Custom Preroll 1 second Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a classic film reel with six black and silver blades, no text or symbols visible.

Acquisire file video e audio

Preferences Project Video Format: 1080p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8-digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 480.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Quality Use dropped frame timecodo Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback First to Topa

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Log and Capture Playback Edit to Tape Inc Out Duration: 00:00:00:00 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Recl: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Preferences Project Video Format: 1090p26 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent ctroams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Log and Capture Playback Edit to Tape Ins Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p2S Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Disk Speed Test Blackmagicdesign WRITE 2652.8 MB/s SPEED TEST START READ 2756.5 MB/s Will It Work? How Fast? Blackmagic RAW PRORes 422 HQ H.265 FORMAT WRITE READ WRITE READ WRITE READ NTSC/PAL - - - ✓ ✓ ✓ ✓ ✓ ✓ 720x50 - - ✓ ✓ ✓ ✓ ✓ ✓ 1080x50 - - ✓ ✓ ✓ ✓ ✓ ✓ 1080x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 1080x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x25 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320x50 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 60 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 12K DCI 24 ✓ ✓ ✓ ✓ ✓ - - - 12K DCI 60 ✓ ✓ ✓ ✓ ✓ - - Blackmagic RAW WRITE READ NTSC/PAL - - - 1080 HD 6437 7050 2160 4K 628 686 4320 8K 393 431 6480 12K 175 192 ProRes 422 HQ WRITE READ NTSC/PAL 10944 11000 1080 HD 2859 3142 2160 4K 716 784 4320 8K 168 184 6480 12K 76 83 H.265 WRITE READ NTSC/PAL 79095 86626 1080 HD 28531 31247 2160 4K 8901 9748 4320 8K 2502 2740 6480 12K - -

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

Illustration of a computer motherboard with CPU socket and heat sinks, showing a hand holding a tool (no text or symbols)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Clicca su Update.

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with 'SDK' logo and a pen, containing documents and a plus sign (no readable text or symbols beyond logos)

Woman sitting in a modern office with large windows and a flat-screen TV on the wall (no visible text or symbols)

DeckLink

UltraStudio

Intensity

Circular portrait photo of a smiling man with short hair, wearing a dark collared shirt (no text or symbols visible)

Prezado Cliente,

Diagram of an internal network device showing CPU socket, drive cables, and server racks (no text or labels)

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific port (no text or symbols present)

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer monitor with an attached cable showing port connections (no text or symbols)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical diagram of an electronic device showing a green circuit board and cooling unit (no text or symbols)

Back view of a server rack with multiple ports and a cable inserted (no visible text or labels)

macOS Windows Linux
Drivers Blackmagic Desktop Video Drivers Blackmagic Desktop Video Drivers Blackmagic Desktop Video
Blackmagic Desktop Video Setup Blackmagic Desktop Video Setup Blackmagic Desktop Video Setup
Blackmagic Design LiveKey Blackmagic Design LiveKey –
Blackmagic Media Express Blackmagic Media Express Blackmagic Media Express
Blackmagic Disk Speed Test Blackmagic Disk Speed Test –
Predefinições e Plug-ins AdobePremiere Pro CC, After Effects CC ePhotoshop CC	Predefinições e Plug-ins AdobePremiere Pro CC, After Effects CC ePhotoshop CC	–
Plug-ins Final Cut Pro – –
Plug-in Avid Media Composer Plug-in Avid Media Composer –

Install Desktop Video Welcome to the Desktop Video Installer Introduction Read Me Licence Destination Select Installation Type Installation Summary Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue. Go Back Continue

Instalador Desktop Video para Mac

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Messages... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software. Go Back Restart

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Blackmagic Desktop Video Setup Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

Instalador Desktop Video para Windows.

Instalação no Linux

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ○ Display a single field on video output Video playback: ○ Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ○ Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Use Betacam Levels NTSC IRE: 0.0 (Japan) 7.5 (USA)

Connector Mapping Connector: SDI 1 & SDI 2

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

AES/EBU Output Level 0.00 dB

Analog Audio Use HIF Audio Levels Analog Audio Input Levels Channel 1: 0.00 dB Channel 2: 0.00 dB Channel 3: 0.00 dB Channel 4: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.168.24.101 Cancel Save

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.5 Last update: 11 August 2023 Status report: Create ? Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand holding a remote control unit with labeled buttons (MENU, VIDEO, SET, AUDIO) and ports (no text or symbols on the device itself)

ULTRHD Control panel Tension Bits HOME TO SET 12G RMSL Control panel RMSL Control panel

Conteúdo

Technical illustration of a metal plate with mounting flanges (no text or symbols)

1 x Blackmagic Universal Rack Shelf

Backmagicdesign Backmagicdesign

Frentes falsas

1 x frente falsa com 1/6 de unidade de rack de largura e 2 x frentes falsas com 1/3 de unidade de rack de largura para cobrir lacunas na prateleira.

Parafusos

Diagram showing two server rack-mounted devices with labeled ports and mounting hardware, annotated with orange arrows indicating assembly or status.

Mechanical component with hexagonal perforated base and circular ports, showing a red arrow pointing to a small light bulb (no text or symbols present)

Mechanical assembly diagram showing a bracket with mounting holes and a textured surface (no text or symbols)

Presets Maser Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Subtilles Rearlight Path Mapping Deck Settings Video capture and playback HD 128Up 25 Use left and right eye SDI Video connection operates as List 424/4 SDI SDI configuration Single link Dual link Quad link Data levels Video Full Video bit depth 10 bit Use deck autoside Non auto edit timing 0 frames Deck preroll 5 seconds Video output sync source Auto And 203 pulldown

Project Settings: My Project Presets Timeline Format Master Settings Image Scaling Color Management General Options Camera RAW Capture and Playback Sudanbox Lightbox Path Mapping Timeline resolution 3843 x 2160 Ultra HD for 3843 x 2150 processing Pixel aspect rate Square Use audio/affa Disinforcing Modemery Cybermscript Timeline frame rate 24 frames per second Use video/linear intercolor Enable interface processing Playback frame rate 24 frames per second Video Monitoring Video Format: UWD 2160y 24 Use Web-4.10k Use level A for Web-SDI Use signal output on SDI SDI configuration: English link Dual link Quad link Data levels: Video Fail Return sub-block and super-white data Voice bit depth: 10 bit Mononewriting: Linear Like double mode for 4x2.0 SDI output Inula HDR Metacrola Optimized Media and Render Cache Proxy media resolution Choose automatically Proxy media format Prakes 422 HQ Optimized media resolution Choose automatically Optimized media format Prakes 422 HQ Render cache format Prakes 422 HQ Enable background Locking after 5 seconds Automatically cache trimmors user mode Automatically cache composites in user mode Cancel Save

Ae Adobe After Effects © 2012-2022 Adobe, All rights reserved. Artwork by Severi Sit Stall. For more details and legal actions, go to the About After Effects screen. Initiating MediaCore Adobe Creative Cloud

After Effects CC.

Como Pré-Visualizar Vídeo

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Audio-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Memory Transmit Video Device: Adobe 3F Setup... Blackmagic Playback Setup... Console video output when in the background Video Preview during render curve output Forward slash Y" on numeric keypad toggles temporary transistor OK Cancel Previous Next

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Custom Resize %: x Resize Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham For more details and legal notices, go to the About Photoshop screen

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owysng, Alan Erickson, Sarah Kong, Jerry Harris, Mike Shaw, Thomas Ruick, Yuke Takahashi, David Dobish, John Peterson, Adam Jerugim, Yuke Kapita, Foster Breterton, Meredith Payne Scotzner, Tal Luxon, Yihod Botorkrishnan, Marla Yap, Pam Clark, Kyoko Iode, Steve Ovilhamet, David Heckel, Erio Flech, Judy Lee, Kevin Heppo, Barkin Aygun, Kirin Kumar Patnavith, Aanchal Jain, Stanley Thomas, Rajneesh Chavil, Quyan Megan La, Carlena Gonzalez, Anrudd Mahindru, Tana Agarwal

Adobe Creative Cloud

Colorful artistic portrait of a person with flowing hair and floral decorations, set against a bright circular background (no text or symbols)

Photoshop CC.

Como Importar e Exportar Quadros de Vídeo

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Captação da imagem.

Pr Adobe Premiere Pro © 1991-2022 Adobe All rights reserved. Artwork by Blue Swopes. For more details and legal notices, go to the About Premiere Pro screen. Initializing Application... Adobe Creative Cloud

Premiere Pro CC.

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Preroll: 3 seconds Postroll: 2 seconds Stop forward/back marry: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blackmagic Playback Offset: 0 ms Video Device: Adobe DV Setup Offset: 0 ms Blackmagic Playback Setup Offset: 0 ms Disable video output when in the background Help Cancel OK

Sequence Preset Settings Tracks VR Video Available Presets ARRI AUC-Inra AUCHD Canon XF MPEG2 Digital SLR DNxHD 1080p 50 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQX 1080p 25 DNX LB 1080p 25 DNX RGB 444 1080p 25 DNX SQ 1080p 25 1080p 26.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 26.97 720p 50 Preset Description For editing and HD monitoring with DNxHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L3300) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT-709 RGB Full Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks: Audio & Mask Delete Preset Sequence Name: Sequence DL Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Options Preroll: 2 seconds Timecode Offset: 0.0 frames Help Cancel OK

Reprodução

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rac. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopper. Logging Settings Setup Capture: Audio and Video Log Clips To: Desktop/Video/propy Clip Delete Type Name: Untitled Tape Clip Name: Untitled Clip 61 Description: Scene: Shot/Taker Log Note: Timecode 00:00:00:00 Set to 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Scope Severa Convert Handles: 0 frames 00:00:52:21 { 00:00:00:00 00:00:00:00 } 00:00:00:01

Edit To Type Current Sequence: Sequence 02 Stopped: Device Preset Save Preset Delete Preset Media Export Type: Assemble Video A1 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Sears and Tone 20.00 Seconds Block Video 10.00 Seconds Universal Counting Leader Setup Device Control Pencil 3 Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Dropped Plan... Device Settings... Recorder Settings... Dropped Planes 0

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI..

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Configurando o Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer: 2022.4.0 (C)2022 Avid Technology, Inc. Rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer.

Configuração

Select Project Welcome to Media Composer Select Project What's new? Projects New Project User Profile: Editor Location: Users/financial/Documents/And Projects/ Project name: My Project Format: 3846x2160px68 Raster dimension: 8840 x 27.82 Frame rate: 100 fps Assets rank: 56 Color space: XChCr 2009 / Hybrid Log Gamma Manzalack Stereoscopic: Off Search data folder: Other... Users/financial/Documents/And Projects/My Project: Manage Project Save in Start MediaCentral Login Username: User Name: Password: Logs Out Create

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Digital Cut Tool Device: UltraStudio 4K Mini Output Mode: Real-Time Bit Depth: 10-bit Entire Sequence Digital Cut Safe Mode Stop on Dropped Frames Allow Passthrough LTC out during preroll Add Black at Tail 00:00:00:00 Deck Control: Remote Local Sequence Time Insert Edit Custom Preroll 1 second Custom Frame Offset 0 00:00:11:29 Blackmagic Design HyperDeck Tape_001

Close-up of a metallic film reel with six circular blades and a central hub (no text or symbols visible)

Preferences Project Video Format: 1080p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: Media Browse For all video and audio media file captures Capture still frames to: Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture Playback Edit to Copy In Out Durations 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Durations: 00:00:04:06 Disk Space Remainings: 460.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX tiles, use 8 digit numbers in the frame count

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback Edit to Topo

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Log and Capture Playback Edit to Tape Int: Out: Duration: 00:00:00:00 00:00:00:00 Name: Quick capture 1_001_daybreak 01_01 Description: Quick capture 1 Reel: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Preferences Project Video Format: 1090p26 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent ctreame as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Media Express

Digite no campo de busca para encontrar clipes.

Media Express "News" 180p 23 Profile Zd ZOC 2005 Cachamae ZOC 2008 Sea Work ZOC 2008 Spits 19 ZOC 2008 TV 180p ZOC 2010 180p 23 100p Tobaryo mouse ZOC 2014 180p 23 ZOC 2015 180p 23 ZOC 2016 180p 23 ZOC 2016 180p 23 ZOC 2016 180p 23 ZOC 2016 180p 23 ZOC 2016 180p 23 ZOC 2016 180p 23 ZOC 2016 181p 23 ZOC 2017 180p 23 ZOC 2017 180p 23 ZOC 2017 180p 23 VISA planes ZOC 2019 180p 23 ZOC 2019 180p 23 ZOC 2019 180p 23 ZOC 2019 180p 23 ZOC 2019 180p 23 ZOC 2019 180p 23 ZOC 2019 180p 23 ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOC BOSO ZOCBOS New charts from location ? Pontos de entrada/saída Modos de gravação Master para fita Habilitar/desabilitar canais de áudio

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:02:03 00:00:02:04 2 Clips Selected Time Remaining: 00:00:02:04 Clips Completed: 0 of 2 Preview Assemble Insert Master

Preferences Project Video Format: 108Op25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Users/AloeVera Browse For all video and audio media file captures Capture still frames to: /Users/AloeVera Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16:9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Project Video Format: 1080p25 Capture File Format: MP4 H.265 Quality Use dropped frame timecode Encoding Settings Bitrate: 15.0 Mb/s 3.0 50.0

Disk Speed Test 2652.8 MB/s WRITE Speed Test START READ 2756.5 MB/s Will It Work? How Fast? Blackmagic RAW PRORes 422 HQ H.265 INSTRICRAL NTSC/PAL - - - ✓ ✓ ✓ ✓ ✓ 720050 - - - ✓ ✓ ✓ ✓ ✓ 1080050 - - - ✓ ✓ ✓ ✓ ✓ ✓ 1080025 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 1080050 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160025 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 2160050 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320025 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 4320050 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 24 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 8K DCI 60 ✓ ✓ ✓ ✓ ✓ ✓ ✓ 12K DCI 24 ✓ ✓ ✓ ✓ ✓ - - - 12K DCI 60 ✓ ✓ ✓ ✓ ✓ - -

Technical illustration of a mechanical assembly with exploded view and internal components (no text or symbols)

Illustration of a computer motherboard with CPU socket and cooling fan, showing a hand holding a pen (no text or symbols)

Desktop Video Software Update Update Required! Your DeckLink Duo 2 needs a software update. Updating can add new features and improve stability! Don't Update Update

Clique em "Update".

Desktop Video Software Update Updating Software... Do not unplug while updating.

Red toolbox with white logos and a pencil, containing documents and a pen (no readable text or symbols)

Woman sitting in a modern office with large windows and a flat-screen TV on the wall (no visible text or symbols)

Circular portrait photo of a smiling man with gray hair and blue eyes, wearing a black collared shirt (no text or symbols visible)

Hoş Geldiniz

CEO Blackmagic Design

İçindekiler

Başlarken

DaVinci Resolve786Canlı

Derecelendirme 815

Diagram of an electronic device showing a green circuit board connected to a server rack with black connectors and orange arrows indicating cable routing (no text or symbols present)

Illustration of a server rack with multiple ports and connectors, showing an orange arrow pointing to a specific component (no text or symbols present)

Diagram of a computer motherboard showing CPU socket, RAM slots, and cable connections (no text or labels)

Illustration of a computer interface showing a cable inserted into an RJ4 port with multiple connected ports (no text or symbols visible)

Illustration of a server rack with multiple ports and connectors, no text or symbols present

Technical line drawing of a mechanical assembly with green circuit board and cooling unit (no text or symbols)

Back view of a server rack with network ports and an Ethernet cable (no text or symbols visible)

Install Desktop Video Welcome to the Desktop Video Installer Welcome to the Blackmagic Desktop Video Installer You have access to the world's highest quality video, combined with full compatibility with the best creative software available. Great for editing, design, graphics or broadcast paint. This installer guides you through the steps necessary to install software for your Blackmagic product. To get started, click Continue.

System Extension Updated A program has updated system extension(s) signed by "Blackmagic Design Inc". To finish the update, you must approve it in the Security & Privacy System Preferences. OK Open Security Preferences

Security & Privacy General FileVault Firewall Privacy A login password has been set for this user Change Password... ✓ Require password 5 minutes after sleep or screen saver begins Show a message when the screen is locked Set Lock Message... ✓ Disable automatic login Allow apps downloaded from: App Store App Store and identified developers System software from developer "Blackmagic Design Inc" has been updated. Allow Click the lock to prevent further changes. Advanced... ?

A restart is required before new system extensions can be used. Restart Not Now

Install Desktop Video The installation was completed successfully. Introduction Read Me Licence Destination Select Installation Type Installation Summary The installation was successful. The software was installed. Click Restart to begin installing the software.

Security Policy for "Macintosh HD": ● Full Security Ensures that only your current OS, or signed operating system software currently trusted by Apple, can run. This mode requires a network connection at software installation time. ● Reduced Security Allows any version of signed operating system software ever trusted by Apple to run. ✓ Allow user management of kernel extensions from identified developers ✓ Allow remote management of kernel extensions and automatic software updates Cancel OK

Windows Kurulumu

Welcome to the Blackmagic Desktop Video Setup Wizard The Setup Wizard will install Blackmagic Desktop Video on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

desktopvideo desktopvideo Blackmagic Design Desktop Video 12.4 - Driver and Firmware Update utility Install Everything you need to set up your PCIe or thunderbolt Blackmagic DesktopVideo product. The DeckLink, Intensity, UltraStudio and Multibridge product lines are supported. Website

0: /dev/blackmagic/io0 [DeckLink SDI 4K] 0x73 OK

1: /dev/blackmagic/io1 [DeckLink 4K Extreme 12G] 0x0A PLEASE _ UPDATE

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: 450.53 GB Capture Clip Batch Log

UltraStudio 4K Extrem... UltraStudio 4K Extreme 3 Video Output Video Input Audio Conversions Serial Port About General Default video standard: 525159.94 NTSC When paused: ○ Display a full frame on video output ○ Display a single field on video output Video playback: ○ Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video

Video Output Conversions Connectors About General Default video standard: 525i59.94 NTSC When paused: ○ Display a full frame on video output ● Display a single field on video output Video playback: ● Displays black output when not playing ○ Displays freeze frame when not playing During capture: ○ Video output displays playback video ● Video output displays input video During playback: ● Keep default color gamut ○ Convert to Rec. 2020

SDI Output Color space: ○ Video is converted to RGB 4:4:4 ○ Video is converted to Y, Cb, Cr 4:2:2 3G-SDI formats: ○ Are output as SMPTE Level A ● Are output as SMPTE Level B (Normal) 1080p HD and 2K: ○ Are output as 1080p progressive video ○ Are output as 1080PsF segmented video SDI connector: ○ Single Link ○ Dual Link

SDI connector: ○ Single Link ○ Dual Link ● Quad Link

Are output as Square Division Quad Split (SQ)

Are output as Sample Interleave (SI)

Use Betacam Levels NTSC IRE: 0.0 (Japan) 7.5 (USA)

Video Output Video Input Audio Conversions Serial Port About Audio Input Embedded AES/EBU XLR HIFI Microphone

Use 5.1 surround channel ordering

AES/EBU Output Level: 0.00 dB

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Network Network location: DeckLink IP/SDI HD (1).local Protocol: DHCP Static IP IP address: 192.168.24.100 Subnet mask: 255.255.255.0 Gateway: 192.168.24.1 Primary DNS: 8.8.8.8 Secondary DNS: 8.8.4.4 2110 Multicast Output Stream address: 224.168.24.101 Cancel Save

DeckLink IP/SDI HD DeckLink IP/SDI HD (1) Video Output Video Input Setup About Software Information Driver: 12.5 Last update: 11 August 2023 Status report: Create Product Notes Name: DeckLink IP/SDI HD (1) Set Serial number: 12347343322 Purchased from: BH Photo Seller phone number: 03 9874 3754 Seller email: [e-mail] Purchase date: September 18 2023 Documentation User Manual Readme Cancel Save

Illustration of a hand holding a remote control unit with labeled buttons (MENU, VIDEO, SET, AUDIO) and ports (no text or symbols on the device itself)

MSSU ULTRAND Raising/Control Tension Rate HOME to SET 12G RMSU Raising/Control MNSU Raising/Control

Ürün İçeriği

Technical illustration of a metal plate with mounting flanges and bolt holes (no text or symbols)

1 adet Blackmagic Universal Rack Shelf

Backmagicdesign Backmagicdesign

Diagram showing two server rack-mounted devices with orange arrows indicating mounting points and control buttons, likely illustrating a rack-mounted system or hardware setup.

Close-up of a mechanical component with a hexagonal grid pattern and a small light bulb, showing no text or symbols.

Technical illustration of a mechanical component with two views (top and side), showing alignment and assembly details without any text or symbols.

Presets Master Settings Image Scaling Cover Management General Options Camera RAW Capture and Playback Substites Fairlight Patch Mapping Deck Settings Video capture and playback HD 1080p 25 Use left and right eye SDI Video connection operates ab Use 4:4.4 SDI SDI configuration Single link Dual link Quad link Data levels Video Full Video bit depth 10 bit Use deck autocdit Non auto edit timing 0 frames Deck preroll 5 seconds Video output sync source Auto Add 3.2 outdowns

Project Settings: My Project Preset Timeline Format Master Settings Image Scaling Color Management Camera Options Camera RAW Capture and Playback Substites Fairlight Path Mapping Timeline resolution 3640 x 2150 Ultra HD For 3840 x 2150 processing Pixel aspect ratio Square 16.9 image/defining -65 image/defining Cinemandscape Timeline frame rate 24 frames per second Use shopp from window/stop Enable interface processing Playback-frame rate 24 frames per second Video Monitoring Video format: UHD 2160μ 24 Use 4/4.4 SDI Use Level A for 30μ SDI Use dual output on SDI SDI configuration Single link Dual link Quad link Data levels Video Full Reset sub-block and super-white data Video bit depth 10 bit Monitor timing Bilinear Use Pac301 matrix for 4/3.2SDI output Enable HDR metadata Optimized Media and Render Cache Proxy media resolution Choose automatically Proxy media format ProRes 422 HQ Optimized media resolution Choose automatically Optimized media format ProRes 422 HQ Render cache format ProRes 422 HQ Enable background caching after 5 seconds Automatically cache transition in user mode Automatically cache composition in user mode Cancel Save

Ae Adobe After Effects © 1992-2022 Adobe. All rights reserved. Artwork by Never Sit Still for more details and legal notices, go to the About After Effects screen Initiating MediaCore Adobe Creative Cloud

After Effects CC

Video Önizleme

Preferences General Previews Display Import Output Grids & Guides Labels Media & Disk Cache Video Preview Appearance New Project Auto-Save Memory & Performance Audio Hardware Audio Output Mapping Sync Settings Type Scripting & Expressions 3D Notifications Enable Mercury Transmit Video Device: Adobe 3Y Blackmujik Playback Setup_ Setup_... Disable vidro output when in the background Video preview during render cursor output Forward slash 7 on numeric overlay toggles Memory Taburnt OK Cancel Previous Next

'Video Preview' (Video Önizleme) tercihleri

Output Module Settings Main Options Color Management Format: QuickTime Include Project Link Post-Render Action: None Include Source XMP Metadata Video Output Channels: RGB Depth: Millions of Colors Color: Premultiplied (Matted) Starting #: 0 Use Comp Frame Number Resize Width Height Lock Aspect Ratio to 16.9 (1.78) Rendering at: 1920 x 1080 Resize to: 1920 x 1080 Custom Resize %: x Resize Quality: High Crop Use Region of Interest Final Size: 1920 x 1080 Top: 0 Left: 0 Bottom: 0 Right: 0 Audio Output Auto Audio will be output only if the composition has audio. 48.000 kHz 16 Bit Stereo Format Options... Cancel OK

© 1990-2022 Adobe. All rights reserved.

Artwork by Natasha Cunningham

For mere details and legal notices, go to the

Reading preferences...

Russell Williams, Thomas Knoll, John Knoll, Mark Hamburg, Jackie Lincoln-Owysng, Alan Erleken, Sarah Kong, Jerry Harris, Mike Shau, Thomas Ruark, Yukie Takahashi, David Dobish, John Peterson, Adam Jerugim, Yuky Kapita, Foster Bresetol, Meredith Payne Scotmert, Tal Luxon, Yinhod Bakorishnon, Marla Yap, Pam Clark, Kyoko Rode, Steve Ovilhamet, David Heckol, Eric Flech, Judy Lee, Kevin Hepps, Barklin Aygun, Kiran Kumar Rathvlavith, Aanchal Jain, Stanley Thomas, Rajnesh Chavi, Caynn Megan LA, Carlens Gonzalez, Anrundt Mahindru, Tana Agansul

Adobe Creative Cloud

Colorful artistic portrait of a person with flowing hair and vibrant blue and purple floral elements, set against a bright moon and blue sky (no text or symbols)

Photoshop CC

Blackmagic Image Import Image Import Settings Video Input Format: YUV 4:2:2 1080i59.94 Image Bit Depth: Photoshop RGB 16 Bits/Channel Cancel Import Image

Görüntü Yakalama

Pr Adobe Premiere Pro © 1991-2023 Adobe. All rights reserved. Artwork by Blue Swopes. For more details and legal notices, go to the About Premiere Pro science. Initiating Application... Adobe Creative Cloud

Premiere Pro CC

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Pre-tell: 3 seconds Post-tell: 2 seconds Step forward/back marry: 5 frames Pause Media Encoder queue during playback Enable Mercury Transmit Audio Device: Blackmagic Playback Offset: 0 ms Video Device: Adobe DV Setup Offset: 0 ms Blackmagic Playback Setup Offset: 0 ms Disable video output when in the background Help Cancel OK

Sequence Preset Settings Tracks VR Video Available Presets ARRI AUC-Inra AVCHD Canon XF MPEG2 Digital SLR DNxHD 1080p 50 1080p 59.94 1080p 23.976 1080p 24 1080p 25 DNX HQ 1080p 25 DNX HQX 1080p 25 DNX LB 1080p 25 DNX RGB 444 1000p 25 DNX SQ 1080p 25 1080p 26.97 1080p 50 1080p 59.94 1080p 60 720p 23.976 720p 25 720p 26.97 720p 50 Preset Description For editing and HD monitoring with DNxHD HQ files at 1920h x 1080v resolution. 16.9 progressive-scan video at 25 frames per second. 48kHz (16 bit) audio. General Editing mode: DNX 1080p Timebase: 25.00 fps Video Settings Frame size: 1920h 1080v (L3000) Frame rate: 25.00 frames/second Pixel Aspect Ratio: Square Pixels (1.0) Fields: No Fields (Progressive Scan) Audio Settings Sample rate: 48000 samples/second Color Space Name: BT-709 RGB Full Default Sequence Total video tracks: 3 Mix track type: Stereo Audio Tracks: Audio & Mask Delete Preset Sequence Name: Sequence D1 Cancel OK

Preferences General Appearance Audio Audio Hardware Auto Save Capture Collaboration Control Surface Device Control Graphics Labels Media Media Cache Memory Playback Sync Settings Timeline Trim Devices: Blackmagic Device Control Preroll: 2 seconds Timecode Offset: 0.0 frames Options Help Cancel OK

Playback (Oynatım)

Blackmagic Device Selection Device: UltraStudio 4K Mini Color Gamut: Rec. 2020 PQ HDR mastering is for 1000 nits Unsupported frame sizes: No Output Scale down Scale up Cancel OK

Capture Stopper. Logging Settings Setup Capture Audio and Video Log Clips To DesktopHiddenПрong Clip Delete Tape Name: Untitled Tape Clip Name: Untitled Clip 01 Descriptions: Scene: Shift/Take Log Note: Timecode 00:00:00:00 Set In 00:00:00:00 Set Out 00:00:00:01 Log Clip Capture In/Out Tape Grange Dashout Handles: 0 frames

Edit To Type Current Sequence: Sequence 02 Stopped. Device Preset: Save Preset Delete Preset Media Export Type Assemble Video A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 Rsm and Tone 20.00 Seconds Black Video 17.00 Seconds Universal Crossing Leader Setup Device Control Prevall Seconds Delay Movie Start by 0.0 frames VTR Record Offset 0.0 frames Abort export on dropped frames Report Drugged From... Device Settings: Recorded Settings... Dropped Frames: 0 00:00:10:01 { 00:00:06:19 00:00:45:04 } 00:00:38:10

© 1992-2022 Adobe. All rights reserved.

Artwork by Mark Rise. For more details and legal notices, go to the About Character Animator screen.

initializing MIDI..

Adobe Creative Cloud

Illustration of a person balancing on a tightrope against a cityscape background (no text or symbols)

Final Cut Pro Version 10.6.3 Validating Audio Units © 2001-2022 Apple Inc. All rights reserved. Apple, the Apple logo, and Final Cut Pro are trademarks of Apple Inc., registered in the U.S. and other countries.

Final Cut Pro

Project Name: My Project In Event: My New Event Starting Timecode: 00:00:00:00 Drop Frame Video: 4K Format 3840x2160 29.97p Resolution Rate Rendering: Apple ProRes 422 HQ Codec Wide Gamut HDR - Rec. 2020 PQ Color Space Audio: Stereo 48kHz Channels Sample Rate Use Automatic Settings Cancel OK

MEDIA COMPOSER® Media Composer 2022-4.0 (C)2022 Avid Technology, Inc. All rights reserved. Use of this software is subject to a related license agreement.

Avid Media Composer

Kurulum

Select Project Welcome to Media Composer Select Project What's now? Projects New Project User Profile Editor Location \Users\frames\Documents\And Projects/ Project name: My Project Format: 2640x21.60p6A Better dimension: 840 x 21.60 frames rate: 40 fps Aspect size: 0.5 Color space: WChCr 2026 / Hybrid Log Gamma Masterback Strescopic: Off Search data location: Other... Users\frames\Documents\And Projects\My Project Manage ProjectS Save Project1 MediaCentral Login Rename: User Name: Password: Login Quit Cross

V A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 D TC Video: Blackmagic Audio: Blackmagic No source tape selected. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:09:42:00) Delay audio: 0 frames 16:59:42:03 Timecode Source: Auto Detect Tape Name?

Deck Preferences - Current When the deck contains no tape or drop frame cannot be detected set timecode to: Non-drop Frame ✓ Allow assemble edit & crash record for digital cut ✓ Stop key pauses deck □ Shuttle holds speed ✓ Stop any paused decks when quitting ✓ Poll deck during digital cut ✓ Relax coincidence point detection Max serial communications timeout (seconds): 5 Host-1394 DV Capture Offset & Digital Cut Offset Capture Offset (frames) 0 □ Override Recommended Digital Cut Offset Digital Cut Offset (frames) * 0 *Recommended: 0 Cancel OK

Video: Blackmagic Audio: Blackmagic Capture. Name: Cmnt: Bin: My Project Bin S3D Bin: My Project Bin Res: DNxHD 90 Macintosh HD Disk (04:07:42:00) Delay audio: 0 frames 00:00:11:29 Blackmagic Design HyperDeck Tape_001 Custom Preroll 1 second Servo Lock Mode

Close-up of a classic film reel with six blades and metallic rim (no text or symbols visible)

Preferences Project Video Format: 1060p24 Capture File Format: QuickTime Apple ProRes 4444 Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count Capture audio and video to: /Media Browse For all video and audio media file captures Capture still frames to: /Media Browse For all still frame captures only Stop capture if dropped frames are detected Stop playback if dropped frames are detected Use Anamorphic SD 16-9 Continue playback when in the background Set deck to 5 second pre-roll for cueing When capturing use a 0 frame timecode offset When mastering use a 0 frame timecode offset

Log and Capture 00:00:00:00 00:00:00:00 Duration: 00:00:00:00 In Out Name: Quick Capture 1_001_daybreak 01_01 Description: Quick Capture 1 Reel: 001 Scene: daybreak 01 Take: 01 Angle: 01 Capture Clip Batch Log

Log and Capture Playback Edit to Tape In: Out: Duration: 00:00:00:00 00:00:00:00 00:00:00:01 Capturing to Disk Recording Duration: 00:00:04:06 Disk Space Remaining: <40.53 GB Capture Clip Batch Log

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1080p24 Capture File Format: DPX 10-Bit RGB Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Preferences Project Video Format: 1080p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count

Playback Edit to Topo

Media Express The video format of the selected clip does not match the project settings. Would you like to save this project and start a new one based on the video format of the selected clip? Save Don't Save Cancel

Preferences Project Video Format: 1090p25 3D Capture File Format: QuickTime Uncompressed 10-bit YUV Use dropped frame timecode Capture from an RGB source Capture from a YUV source Capture two independent streams as 3D Use absolute frame numbering when capturing DPX When capturing DPX files, use 8 digit numbers in the frame count
