USER MANUAL 67704 Lund

White kitchen blender with clear glass and handle, no visible text or symbols

CE

PL D RUS UA LT LV CZ SK H RO E F I NL GR

Labeled diagram of a blender with numbered parts including a blender, blender, and jar

Two views of a glass blender with water droplets inside, shown from front and side angles (no text or symbols visible)

Close-up of a white rectangular stool with a flat top, mounted on a metallic stand (no text or symbols visible)

Close-up of a transparent glass pipette containing a dark liquid, placed on a white surface (no text or symbols visible)

Close-up of a small electronic device with ventilation grilles and a power outlet, no visible text or symbols.

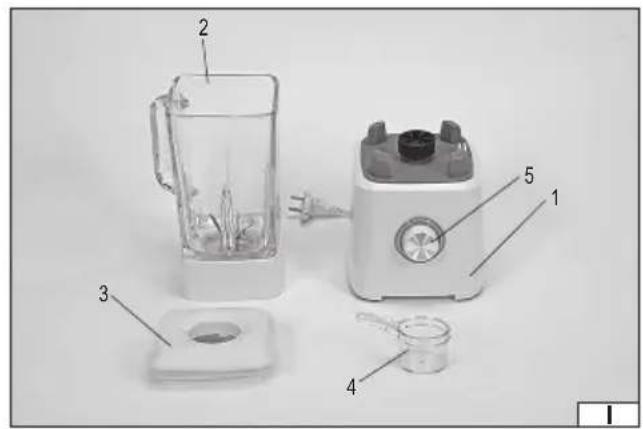

1. drive housing
2. cup
3. cup lid
4. lid plug
5. ON/OFF Switch

D

Read the operating instruction

Safe contact with food

Second class of insulation

Correct disposal of this product: This marking shown on the product and its literature indicates this kind of product mustn't be disposed with household wastes at the end of its working life in order to prevent possible harm to the environment or human health. Therefore the customers is invited to supply to the correct disposal, differentiating this product from other types of refusals and recycle it in responsible way, in order to re - use this components. The customer therefore is invited to contact the local supplier office for the relative information to the differentiated collection and the recycling of this type of product.

UMWELTSCHUTZ

The bar blender is designed to prepare food. Thanks to its high power and capacious cup it is possible to prepare meals easily and quickly by cutting and mixing food products. The cup with a sealed lid ensures a high level of cleanliness in the place of use. The correct, reliable, and safe operation of the device depends on its proper use, which entails:

Reading and keeping the entire manual before the first use of the product is necessary.

The supplier shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specified in this manual. Use of the product for purposes other than those for which it was intended shall cause the loss of the user's rights to the guarantee and under warranty.

ACCESSORIES

The product is delivered complete, but requires carrying out a number of preliminary actions described in further sections of the manual, before starting operation. The product comes with a cup and a lid with a plug.

SAFETY INSTRUCTIONS

Do not use the product in an explosive environment containing fl ammable liquids, gases, or vapours.

Before starting the product for the first time, make sure that the product, its accessories, and the power cord have not been damaged. If any damage is discovered, it is not allowed to start working with the product. Any damaged components, including the power cord, must be replaced at an authorized facility. It is not allowed to repair the product on your own.

The product is intended for indoor use only. Do not expose the product to any precipitation or moisture. If water and moisture enters the product, the risk of an electric shock is significantly increased. Do not immerse the product in water or any other liquid. Connect the product to the power network providing the voltages and frequencies indicated on the nameplate of the unit, exclusively. The plug of the power cord must match the power socket. Do not modify the plug. Do not use any power adapters to adapt the plug to the socket. An unmodified plug, which matches the socket, reduces the risk of an electric shock.

After each application, unplug the power cord from the power socket. Always disconnect the blender from the power supply, if it is left unattended, and before putting it away, disassembling, or cleaning.

Do not overload the power cord. Do not use the power cord to carry the product, connect, or disconnect the plug from the power socket. Avoid any contact between the power cord and heat sources, oil, sharp edges, and moving parts. Damage to the power cord increases the risk of an electric shock. If the power cord is damaged (e.g. it is cut, its insulation is melted), immediately unplug it from the wall socket, and return it to an authorised service facility. It is not allowed to use the product with a damaged power cord. It is not allowed to have the power cord repaired. It must be changed for a new one at an authorized service centre.

Disconnect the power cord from the power socket, before installing, removing, or adjusting any of the product accessories. Exercise special care, when handling sharp parts of the product. Do not touch blades in motion. The blades are very sharp and there is a risk of injury, even if the blades are not moving. Special care must be taken, when handling any accessories equipped with blades.

Make sure that the cup has been installed correctly before starting the product.

Do not overload the product. The temperature of the housing must not exceed 60 °C. Overloading the product will accelerate its wear and tear, lead to its damaging, and increase the risk of an electric shock.

The product must be kept under supervision at all times during operation.

The product may not be used for hard food processing, seeds, bones, shells, ligneous parts of plants.

The product is not to be used by children. Keep the product and its power cord out of the reach of children. It is important to ensure that children do not see the product as a toy.

Children should not be allowed to clean or maintain the product without the supervision of an adult.

This product cannot be used by people with impaired physical and/or mental abilities, and by people without any experience in or understanding of the operation of the product, unless they are supervised or instructed in the safe use of the product, so that they understand the relevant operating risks.

PRODUCT OPERATION

Preparing the appliance for operation

Caution! All actions described in this section must be carried out with the product unplugged. Make sure that the power cord has been unplugged from the socket.

The product must be unpacked and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful in further transporting and storing of the product.

Check the product for damage. In the event of any damage being found, do not use the product, before the damage has been

GB

remedied or the damaged components changed for new components, free of defects.

Clean the product, according to the instructions specified in the "Product Maintenance" section.

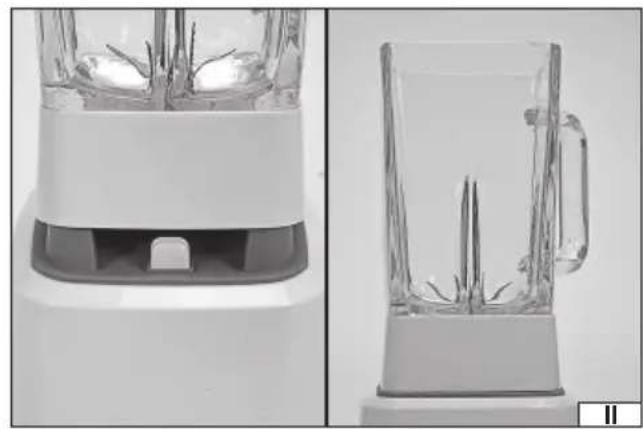

The drive base must be placed on a level, flat, hard and stable surface. All drive housing stands should be in contact with the ground. Mount the cup by placing it on the housing of the blender drive (II). All tabs on the top surface of the housing must hit the guides in the base of the cup. The cup must be positioned evenly on the cup housing. This is the only way to ensure that the drive of the blade mounted in the base of the cup is properly connected.

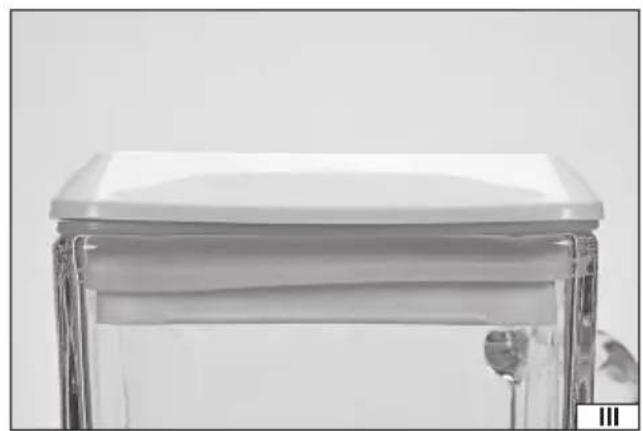

The cup is equipped with a lid with a seal, the cover should be mounted by pressing it into the opening of the cup (III). The use of the cup lid increases the safety of the product and also prevents food from spilling during preparation in the blender.

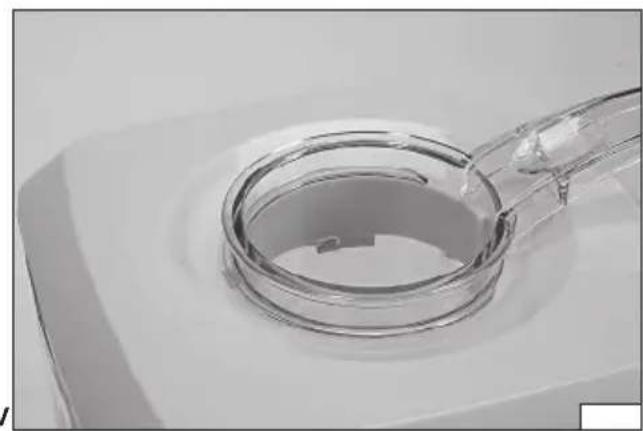

The lid is equipped with an additional plug, which allows you to add food products to the cup without removing the lid. The plug should be installed in the lid so that the tabs in the plug fi t into the notches in the lid opening (IV).

Using the product

It is recommended to fill the cup with food when it is removed from the drive housing. This will prevent possible contamination of the drive housing with food while the cup is being filled.

Do not fill the cup above the maximum capacity marker. Consider that the liquid level in the cup will rise during stirring.

After fi lling, the cup should be covered with the lid with the plug installed.

Place the cup on the drive housing.

Make sure that the product switch is in the off position - O, then plug the power cord into the socket.

Start the product by changing the position of the switch to: 1, 2 or P.

The switch positions marked as 1 and 2 start the blender and allow you to work at one of the two speeds: 1 – slower, 2 – faster. The P position allows the maximum operating speed to be activated as long as the switch knob is held in this position. When the knob is released, it will automatically return to the off position – O.

The operation is stopped after changing the position of the switch to the off position - O.

Before removing the cup, wait for the blades to stop completely, then unplug the power cord plug from the socket and remove the cup from the drive housing.

It is recommended to use a lower rotational speed at the beginning of the operation, and then, if required, increase it gradually during operation, until satisfactory results are obtained.

The product is designed to work continuously for no longer than 2 minutes. Next, wait for the product to cool down completely.

CAUTION! If the device begins to vibrate after switching it on, if it makes an unusual sound, or shows any other signs of malfunction, switch it off immediately, unplug it, and check for the cause of the malfunction.

Product maintenance

CAUTION! Before cleaning, switch the product off, unplug the power cord from the wall socket, wait for the unit to cool down, and then proceed with maintenance.

CAUTION! It is recommended to clean the inside of the cup immediately after operation. This will prevent food residues from drying up and make cleaning the product easier.

If the drive housing is contaminated with processed food during operation, stop your work, unplug the product by removing the plug from the socket, clean the product, and only then resume operation.

Use only mild kitchen cleaning agents to clean the product. It is not allowed to use abrasive cleaning agents, e.g. cleaning powder or milk, or agents containing corrosive substances. Do not use any solvents, petrol, or alcohol to clean the product.

Dilute the cleaning agent with water, according to the instructions supplied with the agent. Then, apply it on a soft cloth and clean the drive housing on the outside.

Remove any residues of the cleaning agent with a soft cloth slightly soaked in clean water. Then, dry all surfaces with a dry soft cloth.

CAUTION! The drive housing is not designed for water jet cleaning. Do not immerse the drive housing in water.

Before first use the inside of the cup only requires to be rinsed by filling it with water with a small amount of detergent, then empty and repeat the operation, this time fi lling the cup with clean water, until the remains of detergent are rinsed out.

The inside of the cup and the blades should be cleaned after each operation by filling it with water with a small amount of detergent. Then cover the lid with the plug installed and run the product for a short time.

Next, empty the cup and repeat the operation, this time using clean water. Repeat until you get rid of any residual detergent. Then pour the water out of the cup and allow it to dry.

The base of the cup must not come into contact with water or any other liquid.

The cup must be cleaned from the outside as in a manner specified for cleaning the drive housing.

The lid and the plug, after removing it from the cup, can be cleaned under a stream of running water, the pusher should be cleaned similarly.

No part of the product is suitable for cleaning in dishwashers or under high-pressure water jets.

All the components must be thoroughly dried, before reusing the product.

Avoid contact with the human body, when cleaning the blades. Wash with brushes or sponges.

After drying, the cup should be stored inverted. This will prevent impurities from entering the inside of the cup.

GB

Transport and storage

Before commencing storage or transport of the product, clean it thoroughly from food residues.

If stored, keep the product indoors, and make sure it is not exposed to dust, dirt, or moisture. It is recommended to store the product in its original packaging.

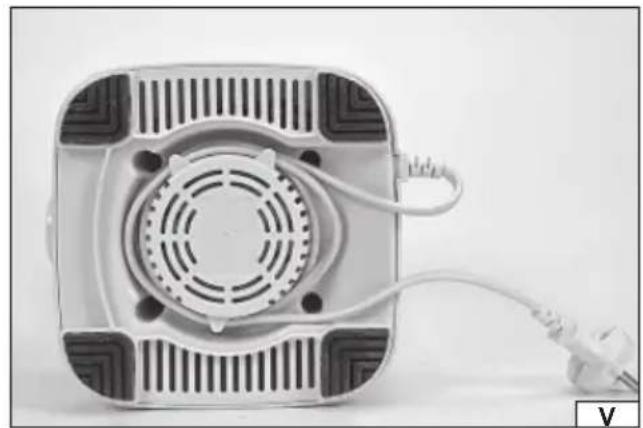

The product's power cord can be rolled up in the base socket (V). The cable must be completely unfolded before use.

TECHNICAL DATA

Parameter Units Value
Catalogue No. 67704
Rated voltage [V a.c.] 220-240
Rated frequency [Hz] 50 / 60
Rated power [W] 800
Protection class II
Weight [kg] 1.8
