USER MANUAL 67705 Lund
PL DE RU UA LT LV CZ SK HU RO ES FR IT NL GR
- cup
- cup lid
- lid plug
- ON/OFF Switch
DE
Read the operating instruction
Safe contact with food
Second class of insulation
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
The bar blender is designed to prepare food. Thanks to its high power and capacious cup it is possible to prepare meals easily and quickly by cutting and mixing food products. The cup with a sealed lid ensures a high level of cleanliness in the place of use. The correct, reliable, and safe operation of the device depends on its proper use, which entails:
Reading and keeping the entire manual before the first use of the product is necessary.
The supplier shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specified in this manual. Use of the product for purposes other than those for which it was intended shall cause the loss of the user's rights to the guarantee and under warranty.
ACCESSORIES
The product is delivered complete, but requires carrying out a number of preliminary actions described in further sections of the manual, before starting operation. The product comes with a cup and a lid with a plug.
SAFETY INSTRUCTIONS
Do not use the product in an explosive environment containing flammable liquids, gases, or vapours.
Before starting the product for the first time, make sure that the product, its accessories, and the power cord have not been damaged. If any damage is discovered, it is not allowed to start working with the product. Any damaged components, including the power cord, must be replaced at an authorized facility. It is not allowed to repair the product on your own.
The product is intended for indoor use only. Do not expose the product to any precipitation or moisture. If water and moisture enters the product, the risk of an electric shock is significantly increased. Do not immerse the product in water or any other liquid.
Connect the product to the power network providing the voltages and frequencies indicated on the nameplate of the unit, exclusively. The plug of the power cord must match the power socket. Do not modify the plug. Do not use any power adapters to adapt the plug to the socket. An unmodified plug, which matches the socket, reduces the risk of an electric shock. After each application, unplug the power cord from the power socket. Always disconnect the blender from the power supply, if it is left unattended, and before putting it away, disassembling, or cleaning.
Do not overload the power cord. Do not use the power cord to carry the product, connect, or disconnect the plug from the power socket. Avoid any contact between the power cord and heat sources, oil, sharp edges, and moving parts. Damage to the power cord increases the risk of an electric shock. If the power cord is damaged (e.g. it is cut, its insulation is melted), immediately unplug it from the wall socket, and return it to an authorised service facility. It is not allowed to use the product with a damaged power cord. It is not allowed to have the power cord repaired. It must be changed for a new one at an authorized service centre.
Disconnect the power cord from the power socket, before installing, removing, or adjusting any of the product accessories. Exercise special care, when handling sharp parts of the product. Do not touch blades in motion. The blades are very sharp and there is a risk of injury, even if the blades are not moving. Special care must be taken, when handling any accessories equipped with blades.
EN
Make sure that the cup has been installed correctly before starting the product.
Do not overload the product. The temperature of the housing must not exceed 60^ C. Overloading the product will accelerate its wear and tear, lead to its damaging, and increase the risk of an electric shock.
The product must be kept under supervision at all times during operation.
The product may not be used for hard food processing, seeds, bones, shells, ligneous parts of plants.
The product is not to be used by children. Keep the product and its power cord out of the reach of children. It is important to ensure that children do not see the product as a toy.
Children should not be allowed to clean or maintain the product without the supervision of an adult.
This product cannot be used by people with impaired physical and/or mental abilities, and by people without any experience in or understanding of the operation of the product, unless they are supervised or instructed in the safe use of the product, so that they understand the relevant operating risks.
PRODUCT OPERATION
Preparing the appliance for operation
Caution! The procedure described in this section must be carried out when the device is unplugged from power supply. Make sure that the power cord has been unplugged from the mains socket.
The product must be unpacked and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful for further transport and storage of the product.
Check the product for damage. If any damage is detected, do not use the product until the damage has been repaired or the damaged components replaced with new ones that are free of defects.
Clean the product according to the instructions specified in the "Product Maintenance" section.
The drive base must be placed on a level, flat, hard and stable surface. All drive housing stands should be in contact with the ground.

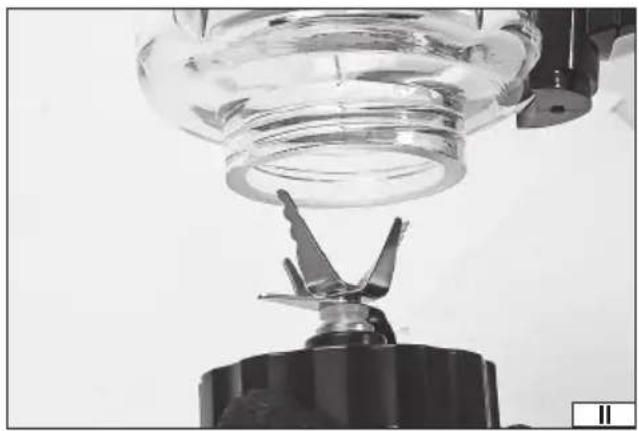

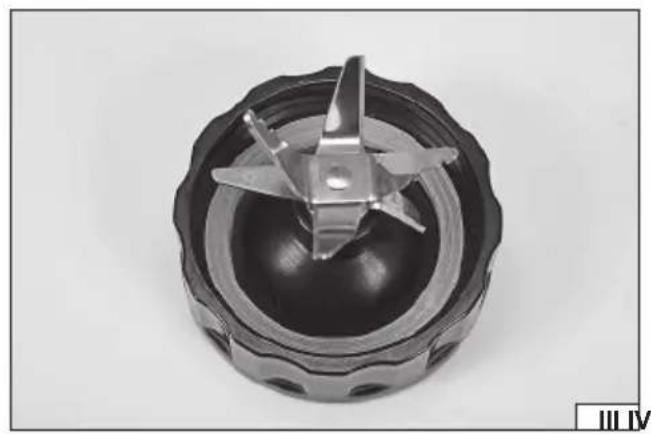

If the cup is not assembled with the blades, screw them to the base of the cup (II). Make sure that a gasket is fitted between the edge of the base of the cup and the blades (III). Without the gasket it will not be possible to ensure the tightness of the connection.
Check for leaks by pouring water into the cup. If they are detected, check the condition of the gasket to see if it is damaged or distorted. Replace damaged or distorted seals with new ones.
Warning! Special care must be taken when handling the blades. Avoid contact with sharp edges. Using protective gloves is recommended. The blades may cause injury if they come into contact with the skin.

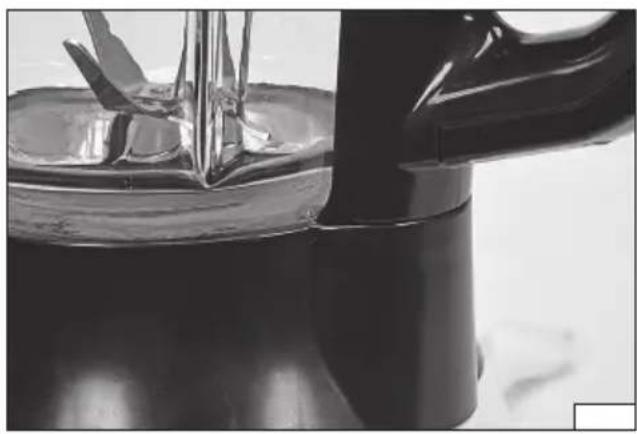

Mount the cup by placing it on the housing of the blender drive (IV).
The cup holder should hit the tab on the top wall of the drive housing.

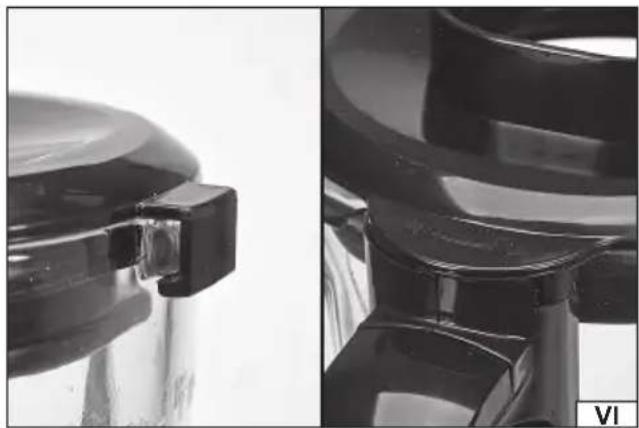

The cup is equipped with a lid. The lid shall be mounted by placing it on the cup and then turning it in the direction indicating the closed padlock symbol (V). The lid tab should be in line with the cup holder, and the hooks on the sides of the lid should slide over the cup tabs (VI).
The device is equipped with a safety feature which prevents the blender from starting if the cup and/or lid are mounted incorrectly.
The lid is equipped with an additional plug, which allows you to add food products to the cup without removing the lid. Mount the plug by pushing it into the lid opening.
Product operation
It is recommended to fill the cup with food when it is removed from the drive housing. This will prevent possible contamination of the drive housing with food while the cup is being filled.
The cup should not be filled above the maximum capacity marker - the highest scale graduation described. Consider that the liquid level in the cup will rise during stirring.
After filling, the cup should be covered with the lid with the plug installed.
Place the cup on the drive housing.
Make sure that the product switch is in the off position - O, then plug the power cord into the socket.
Start the product by changing the position of the switch to: 1 - 5 or P.
The switch positions marked as 1 to 5 start the blender and allow the device to operate at increasing speeds. The greater the number, the higher the speed. The P position allows the maximum operating speed to be activated as long as the switch knob is
EN
held in this position. When the knob is released, it will automatically return to the off position - O.
The operation is stopped after changing the position of the switch to the off position - O.
Before removing the cup, wait for the blades to stop completely, then unplug the power cord plug from the socket and remove the cup from the drive housing.
It is recommended to use a lower rotational speed at the beginning of the operation, and then, if required, increase it gradually during operation, until satisfactory results are obtained.
The product is designed to work continuously for no longer than 2 minutes. Next, wait for the product to cool down completely.
CAUTION! If the device begins to vibrate after switching it on, if it makes an unusual sound, or shows any other signs of malfunction, switch it off immediately, unplug it, and check for the cause of the malfunction.
Product maintenance
CAUTION! Before cleaning, switch the product off, unplug the power cord from the wall socket, wait for the unit to cool down, and then proceed with maintenance.
CAUTION! It is recommended to clean the inside of the cup immediately after operation. This will prevent food residues from drying up and make cleaning the product easier.
If the drive housing is contaminated with processed food during operation, stop your work, unplug the product by removing the plug from the socket, clean the product, and only then resume operation.
Use only mild kitchen cleaning agents to clean the product. It is not allowed to use abrasive cleaning agents, e.g. cleaning powder or milk, or agents containing corrosive substances. Do not use any solvents, petrol, or alcohol to clean the product.
Dilute the cleaning agent with water, according to the instructions supplied with the agent. Then, apply it on a soft cloth and clean the drive housing on the outside.
Remove any residues of the cleaning agent with a soft cloth slightly soaked in clean water. Then, dry all surfaces with a dry soft cloth.
CAUTION! The drive housing is not designed for water jet cleaning. Do not immerse the drive housing in water.
Before first use the inside of the cup only requires to be rinsed by filling it with water with a small amount of detergent, then empty and repeat the operation, this time filling the cup with clean water, until the remains of detergent are rinsed out.
The inside of the cup and the blades should be cleaned after each operation by filling it with water with a small amount of detergent. Then cover the lid with the plug installed and run the product for a short time.
Next, empty the cup and repeat the operation, this time using clean water. Repeat until you get rid of any residual detergent. Then pour the water out of the cup and allow it to dry.
The cup can also be cleaned in a dishwasher, but the blades must be removed before placing the cup in the dishwasher.
Avoid contact with the human body, when cleaning the blades. Wash with brushes or sponges.
The lid and the plug, after removing it from the cup, can be cleaned under a stream of running water.
All the components must be thoroughly dried, before reusing the product.
Transport and storage
Before commencing storage or transport of the product, clean it thoroughly from food residues.
If stored, keep the product indoors, and make sure it is not exposed to dust, dirt, or moisture. It is recommended to store the product in its original packaging.

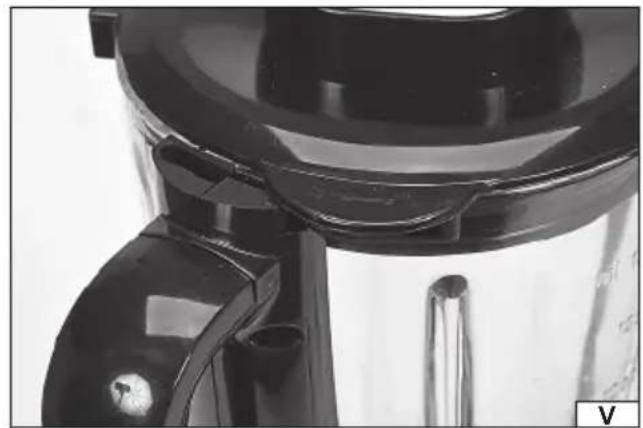

The product's power cord can be rolled up in the base socket (V). The cable must be completely unfolded before use.
TECHNICAL DATA
| Parameter Units Value | ||
| Catalogue No. 67705 | ||
| Rated voltage [V a.c.] 220-240 | ||
| Rated frequency [Hz] 50 - 60 | ||
| Rated power [W] 600 | ||
| Protection class II | ||
| Weight [kg] 1,4 |
