67702 - Blender Lund - Free user manual and instructions

Product type	Smoothie blender
Brand	Lund
Model	67702
Supply voltage	220-240 V ~ 50/60 Hz
Rated power	300 W
Insulation class	II
Weight	0.9 kg
Included accessories	Bowl, lid, 0.57 L bottle, 0.4 L bottle, cutting accessory
Bottle capacity 1	0.57 L
Bottle capacity 2	0.4 L
Number of speeds	2 + pulse (position P)
Bowl material	Transparent plastic
Blade material	Stainless steel
Intended use	Household only
Safety	Start lock if bowl not properly installed
Maintenance	Manual cleaning, do not immerse motor unit
Dishwasher safe	Not allowed
Spare parts available	Seals, blades, bowl, bottles, lids
Maximum continuous operation time	2 minutes
Control type	4-position rotary switch (0, 1, 2, P)

Frequently Asked Questions - 67702 Lund

How to use the different speeds?

The rotary switch offers positions 1 (slow speed), 2 (fast speed), and P (pulse for maximum speed). For pulse, hold position P down; release to stop.

Can I blend ice or frozen foods?

No, the blender is not designed to crush ice or frozen foods. Use it only for fresh or thawed ingredients.

How to safely clean the blender?

Unplug the appliance, wait for it to cool. Clean the motor unit with a damp cloth, accessories with warm water and mild detergent. Never immerse the motor unit and do not put anything in the dishwasher.

What to do if the blender does not start?

Check that the bowl or bottle is correctly installed on the drive unit: the tabs must click into place. If the problem persists, contact an authorized service center.

Can I put parts in the dishwasher?

No, no parts are dishwasher safe. Clean them by hand with soapy water and dry completely.

How to replace the seals?

Gently lift the worn seals with a plastic or blunt wooden tool. Replace them with new seals (available as spare parts). A defective seal can cause leaks.

What is the maximum continuous operation time?

Do not exceed 2 minutes of continuous operation. Let the appliance cool completely before using it again.

Can I blend hot foods?

No, the blender is not suitable for hot liquids. Wait for the food to cool to room temperature before blending.

How to avoid leaks?

Make sure the seal is properly in place and tighten the cutting base firmly. Do not exceed the MAX fill line.

Where to find spare parts?

Spare parts (seals, blades, bowl, bottles) are available from authorized Lund dealers or by contacting customer service. Use only original parts.

USER MANUAL 67702 Lund

Black and white photo of a modern blender with a black handle and control knob (no visible text or symbols)

CE

PL D RUS UA LT LV CZ SK H RO E F I NL GR

Close-up of a transparent plastic container with internal components and a dark base (no visible text or symbols)

Close-up of a transparent glass container with internal components, no visible text or symbols

Close-up of a car's rear wheel and side profile, showing metallic clips (no text or symbols visible)

Two views of a mechanical component with internal components, one showing a star-shaped feature and the other showing a handle (no text or symbols visible)

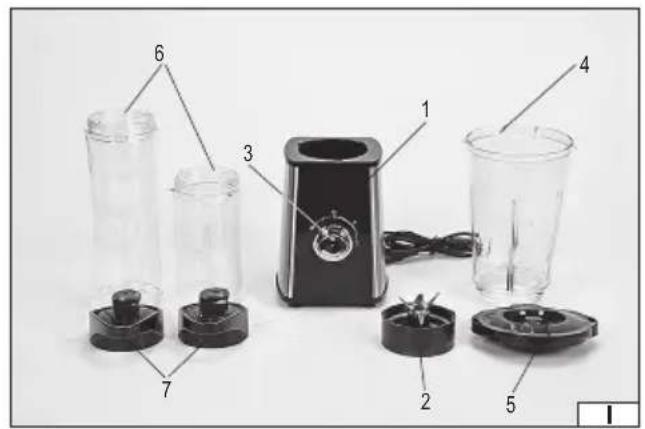

1. drive housing
2. cutting base
3. ON/OFF Switch
4. cup
5. cup lid
6. bottle
7. bottle lid

D

Read the operating instruction

Safe contact with food

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

The smoothie cup blender is designed to prepare food. Thanks to its high power and capacious cup it is possible to prepare meals easily and quickly by cutting and mixing food products. The cup can be replaced with a bottle which reduces the number of dishes to be washed after using the blender. The product is intended for domestic applications only, and not for any commercial use. The correct, reliable, and safe operation of the device depends on its proper use, so:

Reading and keeping the entire manual before the first use of the product is necessary.

The supplier shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specified in this manual. Use of the product for purposes other than those for which it was intended shall cause the loss of the user's rights to the guarantee and under warranty.

ACCESSORIES

The product is delivered complete, but requires carrying out a number of preliminary actions described in further sections of the manual, before starting operation. The following items come with the product: a cup, a cup lid, a 0.57 l bottle with a lid, a 0.4 l bottle with a lid and a cutting attachment.

SAFETY INSTRUCTIONS

Caution! Read all of the following instructions. Failure to do so may result in electric shock, fire, or personal injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the product in an explosive environment containing flammable liquids, gases, or vapours. Before starting the product for the first time, make sure that the product, its accessories, and the power cord have not been damaged. If any damage is discovered, it is not allowed to start working with the product. Any damaged components, including the power cord, must be replaced at an authorized facility. It is not allowed to repair the product on your own. The product is intended for indoor use only. Do not expose the product to any precipitation or moisture. If water and moisture enters the product, the risk of an electric shock is significantly increased. Do not immerse the product in water or any other liquid. Connect the product to the power network providing the voltages and frequencies indicated on the nameplate of the unit, exclusively. The plug of the power cord must match the power socket. Do not modify the plug. Do not use any power adapters to adapt the plug to the socket. An unmodified plug, which matches the socket, reduces the risk of an electric shock. After each application, unplug the power cord from the power socket. Always disconnect the blender from the power supply, if it is left unattended, and before putting it away, disassembling, or cleaning. Do not overload the power cord. Do not use the power cord to carry the product, connect, or disconnect the plug from the power socket. Avoid any contact between the power cord and heat sources, oil, sharp edges, and moving parts. Damage to the power cord increases the risk of an electric shock. If the power cord is damaged (e.g. it is cut, its insulation is melted), immediately unplug it from the wall socket, and return it to an authorised service facility. It is not allowed to use the product with a damaged power cord. It is not allowed to have the power cord repaired. It must be changed for a new one at an authorized service centre. Disconnect the power cord from the power socket, before installing, removing, or adjusting any of the product accessories. Exercise special care, when handling sharp parts of the product. Do not touch blades in motion. The blades are very sharp and there is a risk

GB

of injury, even if the blades are not moving. Special care must be taken when handling any accessories equipped with blades. Make sure that the selected accessory has been installed correctly, before starting the product. Do not overload the product. The temperature of the housing must not exceed 60^ C. Overloading the product will accelerate its wear and tear, lead to its damaging, and increase the risk of an electric shock. The product must be kept under supervision at all times during operation. The product may not be used for hard food processing, seeds, bones, shells, ligneous parts of plants. The product is not to be used by children. Keep the product and its power cord out of the reach of children. It is important to ensure that children do not see the product as a toy. Children should not be allowed to clean or maintain the product without the supervision of an adult. This product cannot be used by people with impaired physical and/or mental abilities, and by people without any experience in or understanding of the operation of the product, unless they are supervised or instructed in the safe use of the product, so that they understand the relevant operating risks.

PRODUCT OPERATION

Preparing the appliance for operation

Caution! All actions described in this section must be carried out with the product unplugged. Make sure that the power cord has been unplugged from the socket.

The product must be unpacked and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful in further transporting and storing of the product.

Check the product for damage. In the event of any damage being found, do not use the product, before the damage has been remedied or the damaged components changed for new components, free of defects.

Clean the product, according to the instructions specified in the "Product Maintenance" section.

The drive base must be placed on a level, flat, hard and stable surface. All drive housing stands should be in contact with the ground. If the base is equipped with suction cups, make sure that they are attached to the ground. The suction cups will adhere more easily to a smooth surface, if necessary you can slightly moisten the surface or the suction cups.

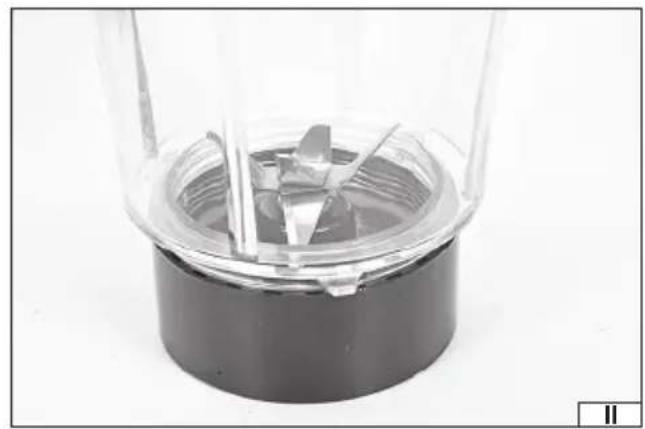

Screw the cutting base (II) to the selected accessory. Avoid contact with the blades.

Make sure that the connection is tight by turning the dishes so that the cutting base is at the bottom and then pour water into the cup. If leaks are observed, tighten the base or screw the base again.

The mounting socket in the drive housing has an opening which, in the event of an emergency loss of tightness, should partially drain a liquid leak under the housing. If a leak is discovered, discontinue use of the product until the cause is eliminated.

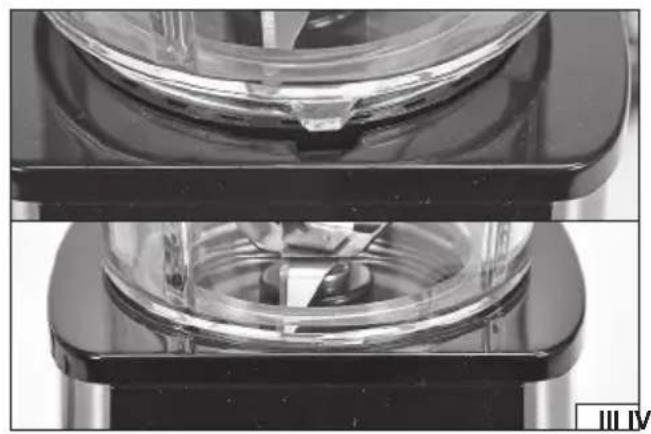

Mount the base and its accessory in the drive housing. The accessory has tabs which must be fit into the notches in the top wall of the drive housing (III). Next, turn the accessory clockwise.

Check that all tabs are hidden in the drive housing.

The product is equipped with an additional fuse which will prevent it from being switched on in the event of incorrect installation of the accessory in the drive housing.

The cup is equipped with a lid which allows you to add food products while the blender is in operation. The lid is installed by placing it on the edge of the cup and then turning it clockwise (IV). The tabs near the edge of the cup should fit into the handles of the lid.

The lid has a small opening in the recess, which can be used to add liquid food products without removing the lid.

Using the Product

It is recommended to fill the cup with food when it is removed from the drive housing. This will prevent possible contamination of the drive housing with food while the cup is being filled.

Do not fill any of the accessories above the maximum capacity marker (MAX). Consider that the food level will rise during stirring.

After fi lling, the cup should be covered with the lid.

Place the cup on the drive housing.

Make sure that the product switch is in the off position - O, then plug the power cord into the socket.

Start the product by changing the position of the switch to: 1, 2 or P.

The switch positions marked as 1 and 2 start the blender and allow you to work at one of the two speeds: 1 – slower, 2 – faster.

The P position allows the maximum operating speed to be activated as long as the switch knob is held in this position. When the knob is released, it will automatically return to the off position - O.

The operation is stopped after changing the position of the switch to the off position - O.

Before removing the accessory, wait for the blades to stop completely, then unplug the power cord plug from the socket and remove the accessory from the drive housing.

GB

It is recommended to use a lower rotational speed at the beginning of the operation, and then, if required, increase it gradually during operation, until satisfactory results are obtained.

It is recommended not to use the product for more than two minutes of continuous operation. Next, wait for the product to cool down completely.

Do not use the product for frozen food products, do not use for crushing ice.

CAUTION! If the device begins to vibrate after switching it on, if it makes an unusual sound, or shows any other signs of malfunction, switch it off immediately, unplug it, and check for the cause of the malfunction.

Product maintenance

CAUTION! Before cleaning, switch the product off, unplug the power cord from the wall socket, wait for the unit to cool down, and then proceed with maintenance.

CAUTION! It is recommended to clean the components of the product after operation. This will prevent food residues from drying up and make cleaning the product easier.

If the drive housing is contaminated with processed food during operation, stop your work, unplug the product by removing the plug from the socket, clean the product, and only then resume operation.

Use only mild kitchen cleaning agents to clean the product. It is not allowed to use abrasive cleaning agents, e.g. cleaning powder or milk, or agents containing corrosive substances. Do not use any solvents, petrol, or alcohol to clean the product.

Dilute the cleaning agent with water, according to the instructions supplied with the agent. Then, apply it on a soft cloth and clean the drive housing on the outside.

Remove any residues of the cleaning agent with a soft cloth slightly soaked in clean water. Then, dry all surfaces with a dry soft cloth.

CAUTION! The drive housing is not designed for water jet cleaning. Do not immerse the drive housing in water or other liquid.

Before first use, wash the inside of the accessories and the cutting attachment under a running lukewarm water with detergent, then rinse with clean water and dry with a cloth or allow to dry.

The cup must be cleaned from the outside as in a manner specified for cleaning the drive housing.

No part of the product is suitable for cleaning in dishwashers or under high-pressure water jets.

All the components must be thoroughly dried, before reusing the product.

Avoid contact with the human body, when cleaning the blades. Wash with brushes or sponges.

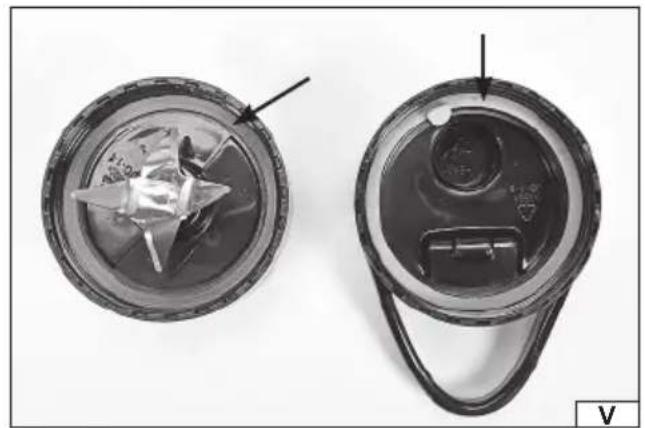

Bottle lids and the cutting base are equipped with seals (V). The seals must be removed for cleaning. The seals should be carefully lifted with a blunt plastic or wooden tool. Do not use metal or sharp tools to lift the seals to prevent damage to them. A defective seal will not ensure tightness and must be replaced with a new, damage-free one.

Transport and storage

Before commencing storage or transport of the product, clean it thoroughly from food residues.

If stored, keep the product indoors, and make sure it is not exposed to dust, dirt, or moisture. It is recommended to store the product in its original packaging.

TECHNICAL DATA

Parameter Units Value
Catalogue No. 67702
Rated voltage [V a.c.] 220-240
Rated frequency [Hz] 50 / 60
Rated power [W] 300
Protection class II
Weight [kg] 0.9
