USER MANUAL MFR11 MPM

We wish you satisfaction from using the product and invite you to check awide range of other

B C D E F G Electronic control panel LED with a display – touch switches with sound signalling Timer – time adjustment from 1 to 60 minutes with accuracy to 1 minute 8 programmes to select: fries, steak, shrimp, chicken legs, meats, cakes, fish, reheating Removable basket and tray, covered with non-stick coating Thermostat temperature adjustment from 80°C to 200°C with accuracy to 5°C Basket capacity 4,5 L3

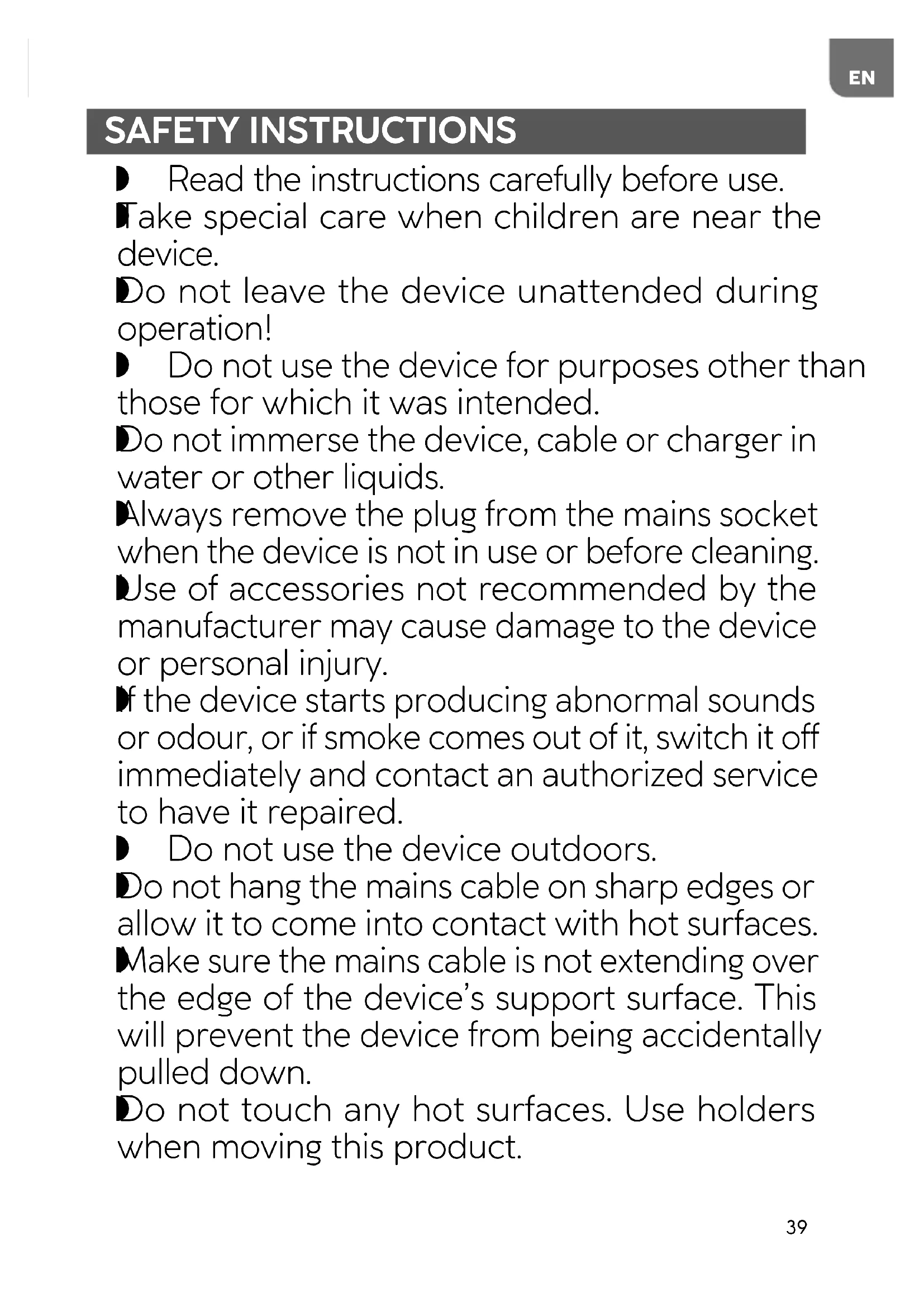

SAFETY INSTRUCTIONS Read the instructions carefully before use.

Take special care when children are near the device.

Do not leave the device unattended during operation! Do not use the device for purposes other than those for which it was intended.

Do not immerse the device, cable or charger in water or other liquids.

Always remove the plug from the mains socket when the device is not in use or before cleaning.

Use of accessories not recommended by the manufacturer may cause damage to the device or personal injury.

If the device starts producing abnormal sounds or odour, or if smoke comes out of it, switch it off immediately and contact an authorized service to have it repaired. Do not use the device outdoors.

Do not hang the mains cable on sharp edges or allow it to come into contact with hot surfaces.

Make sure the mains cable is not extending over the edge of the device’s support surface. This will prevent the device from being accidentally pulled down.

Store the device in cool, dark and dry place.

Avoid deformation of plastic parts, do not wash the device and accessories with hot water or in a washing machine. Do not put hands or any items inside the con

tainer during operation.

Before cleaning, disconnect the unit from the power supply first.

Clean the device, in particular parts being in direct contact with food, before first use, imme- diately after finishing work and if the device has not been used for a long time. The procedure is described in details in the “CLEANING AND MAINTENANCE” section.

Do not place the device near other electric cookers, burners, ovens, etc.

Always ensure that all parts of the device are correctly fitted before starting work.

Wait for the device to cool down completely after frying before attaching or removing its elements, as well as cleaning the device.

During hot air frying, hot steam escapes through the air vents.

Keep your hands and face away from the es- caping steam or air outlets. Pay attention to the steam and air when removing the bowl with the basket from the device.

Do not cover the air inlets and outlets when the device is operating.41

Do not place the device near flammable mate- rials such as curtains, tablecloths etc., because this may lead to a fire.

Food intended for frying should always be placed into the basket.

Do not fill the bowl with oil as this may cause a fire. Device is suitable for home use solely. To pre

vent deformation of the housing and lid, never use the device continuously for a long period of time.

Damaged plug or power cord must be replaced by the manufacturer, its service centre or an- other suitably qualified person in order to avoid any risk. The surface temperature may increase during use.

The device should be connected to a mains socket outlet with a grounding pin! Before switching the device on, make sure the mains parameters match the values on the device’s identification plate.

It is recommended to use protective gloves intended for handling this type of equipment. This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use42

of the equipment so that the hazards involved are understood. Cleaning and maintenance must not be performed by children, unless they are over 8 years old and supervised by an adult. Unsupervised children can not perform cleaning and maintenance of the product.

The device is not a toy and should not be used as such by children. The device has not been designed to operate with an external timer switch or a separate re

mote control system.

Keep the device and its cord out of reach of children under 8 years of age. Do not connect the plug to the power socket with wet hands.

Do not pull the plug out of the power socket by pulling the cord.

Use the device on a smooth and stable surface. Do not place the device directly against a wall or other devices. Leave at least 10 cm of free space at the back and upper parts of the device, as well as on its both sides. Do not place any objects on the device. For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

WARNING! Do not allow children to play with the film. Danger of suffocation!43

WARNING! Overheated fat may ignite. Be especially careful!

CAUTION! Hot surface! The symbol indicates that the surface of the device may reach very high temperatures dur- ing use. DEVICE DESCRIPTION ELEMENTS DESCRIPTION

Established connection with the network and launch of the device is signalled with a sound. A multifunctional device for oil-less frying, grilling, stewing and baking thanks to its unique design. Fitfryer can prepare dishes using hot air circulation, thanks to which the dishes are crispy on the outside and delicate on the inside. No need to add oil to most ingredients.

1. Unpack the device from the packaging. Remove any bags, shipping locks, fillers and labels.

2. Make sure the device has not been damaged during its transportation. In case of suspected

damage, do not start the device and consult the seller

3. Make sure the electrical mains parameters match the data on the device’s name plate.

4. Wash the device following the instructions in the “CLEANING AND MAINTENANCE” section

5. Place the device on a hard, dry, stable, flat and horizontal surface.

USE CAUTION! A small amount of smoke may come out of the device during the first use. This is normal. CAUTION! After finishing work, in order to remove hot fumes from the device, the fan will continue to work for approx. 20 seconds. CAUTION! The device is protected against improper use; the device will not turn on without a properly installed basket (2), the control panel (3) will remain completely blank.44

1. Connect the device to the grounded mains. The device will signal established connection with

the network using a single beep. Additionally, the entire control panel will light up briefly. After turning off, only the button will remain visible; the device will then go into sleep mode.

2. Pull out the bowl with the basket by pulling the handle (1).

3. Put products into the basket (2).

CAUTION! Do not fill the basket (2) above the “MAX”.

4. Slide the bowl with the basket back into the Fitfryer by holding the handle (1).

5. Wake up the device from sleep mode by pressing the button once

; this will light up the entire control panel and activate all functions.

6. Set time and temperature:

a. Manually (80-200C° / 1-60 min.); the temperature can be set by pressing the adjustment buttons and

located next to the icon. Set the time by pressing the adjustment buttons and

located next to the icon. The selected operating parameters will be visible on the display located in the central point of the control panel (3). b. Default Programs - The device supports seven default programs. Press the menu but- ton to select the default programme. The currently selected program will be signalled by one of the seven flashing icons located at the top of the control panel (3). Additionally, the device is equipped with a heating function; use the button marked with the symbol in order to select it.

7. Start the device - after selecting the time and temperature, press the

button. During operation, the display will alternately show the set temperature and the time remaining to turning off. CAUTION! The time and temperature adjustment buttons are active after starting the device; operating parameters of the device can still be changed. CAUTION! Pressing the button during operation for about 1 minute, suspends the program. To resume the program, press the button again. If the

button is not pressed again within 1 minute, the device will change operation into sleep mode.

8. Signalling operation on the control panel - until the program is confirmed, the

button flashes and goes into continuous illumination after the operation is started. In addition, the operation of the device is signalled by a flashing bar on the control panel (3) located under the icons with the selection of default programs.

9. Ending the operation - the device will turn off automatically when the set time comes to an

end. The end of operation will be signalled by the display of the word “OFF” on the display, ac- companied by a sound signal; then the device will go into sleep mode. The operation of the device can be ended at any time by pressing the button . After the operation is finished, the device should be disconnected from the power source.

CLEANING AND MAINTENANCE

1. Before cleaning, remove the plug from the power socket and wait until the device cools down

2. Pull out the bowl with the basket so that the device cools down faster. Allow the bowl to cool

before removing the basket. CAUTION! The basket and the inside of the device are coated with a non-stick coating. Do not clean them with metal kitchen utensils or abrasive cleaners as this may damage the coating.45

3. Wipe the housing of the device with a damp cloth. The housing should never neither be im-

mersed in water or any other liquid nor washed in the dishwasher.

4. Wash the bowl and basket with warm water and a mild detergent. Rinse and dry thoroughly.

Do not use wire cloths or abrasive cleaners to clean the case.

5. Clean the inside of the device with hot water and a delicate, non-abrasive sponge.

6. Clean the heating element with a cleaning brush to remove any dirt.

7. After cleaning and drying, the device should be folded and stored in a safe place.

If dirt is stuck to the basket or the bottom of the bowl, fill the bowl with hot water with a small amount of washing-up liquid. Leave it soaked for about 10 minutes. PROBLEM SOLVING The table below describes the most common problems that may be encountered when using the device. Problem Possible cause Solution The ingredients fry unevenly in the Fitfryer. Some ingredients should be shaken halfway through the preparation time. Ingredients placed on top of each other or across each other (e.g. French fries) should be shaken halfway through the preparation time. Fried snacks are not fragile when removed fromFitfryer. Snacks intended for preparation in a traditional deep fat frying device were used. Use snacks to be prepared inFitfryer orcover snacks with a thin layer of oil to ensure their tenderness. White smoke comes out of the device. Fatty ingredients are being prepared. Large amount of fat leaks into the bowl during frying fatty ingredients inFitfryer. This fat emits white smoke and the bowl may heat up more than usual. This neither affect the appliance nor the final cooking result. The bowl contains fat from previous cooking. Large amount of fat leaks into the bowl during frying fatty ingredients inFitfryer. This fat emits white smoke and the bowl may heat up more than usual. This neither affect the appliance nor the final cooking result. Fresh fries fry unevenly inFitfryer. The potato pieces were not properly soaked before frying. Soak them in a bowl for at least 30 minutes, take them out and dry them on a paper towel. Wrong type of potatoes used. Use fresh potatoes and check that they do not “fall apart” during frying. Fresh fries are not crispy after being prepared inFitfryer. The tenderness of the fries depends on the amount of oil and water in them. Dry the prepared potato pieces thoroughly before adding the oil. Prepare smaller pieces of potatoes to make them crispier.46

Add a little more olive oil to make the fries crispier. TECHNICAL DATA Model MFR-11 Power supply 220240V

50/60Hz Power 1400W Off and standby mode available available Power consumption in standby mode 0,38W Power consumption in off mode - Power consumption in network standby mode

It automatically goes into standby mode after 15min. Automatically goes into shutdown mode after - Network standby mode, if the device has a connection function with the application

Length of mains cable 0,85m CAUTION! MPM agd S.A. reserves the right to technical changes. Proper disposal of the product (waste electrical and electronic equipment) Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment andhealth of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofes- sional manner may cause arelease of substances that are hazardous to the environment and health. Used equipment should be handed-over to apoint for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of elec- tric waste collection or used equipment processing department.47
