Series 3 300BT - Razor BRAUN - Free user manual and instructions

Product type	Cordless electric shaver
Brand	Braun
Model	Series 3 300BT
Power supply	Integrated rechargeable battery, special cord with very low voltage safety supply
Charging time	Full charge: approx. 1 hour; first charge: 4 hours; quick charge: 5 minutes for one shave
Runtime	Up to 30 minutes of cordless shaving (depending on beard growth)
Shaving head	Foil and cutter (ref. 21B)
Included accessories	Beard trimmer head with 5 combs (depending on model), protective cap, travel case (depending on model)
Use	Dry or in the shower (type 5409 only); cordless shaving mandatory for use under water
Cleaning	Rinsable under running water (cordless); brush cleaning for certain parts
Maintenance	Oil the shaving head once a week if rinsing frequently; replace foil and cutter after about 18 months
Charging temperature	5 to 35 °C (recommended 15 to 35 °C)
Storage temperature	Do not expose to prolonged temperatures above 50 °C
Charge indicator	LED indicator: slow flashing (charging), fast flashing (low battery), solid (full charge/operating)
Safety	Do not use if cable or head is damaged; do not open the device (battery replaced only by authorized center); children aged 8 and above under supervision
Spare parts	Foil and cutter: 21B; styling accessory: BT32
Warranty	2 years (excluding normal wear, foil and cutter); extension possible according to local legislation
Dimensions (approx.)	Approx. 15 x 5 x 4 cm (without case)
Weight (approx.)	Approx. 200 g

Frequently Asked Questions - Series 3 300BT BRAUN

How long does it take to fully charge the shaver?

The first charge takes 4 hours. Subsequent charges take about 1 hour. A quick charge of 5 minutes is enough for one shave.

Can I use the shaver in the shower?

Yes, for the type 5409 only, the shaver can be used in the shower or bath, cordless only.

How do I clean the shaver?

You can rinse it under hot running water (shaver on, cordless) or clean certain parts with a soft brush. Do not clean the shaver cassette with a brush.

When should I replace the foil and cutter?

For optimal performance, replace the foil and cutter (ref. 21B) after about 18 months or if worn.

What should I do if the charge light flashes quickly?

A fast flashing indicates a low battery. Recharge the shaver.

Can I shave with the shaver plugged in?

For the type 5408 only, you can shave while the shaver is plugged in. For other models, use it cordless.

Is the shaver suitable for sensitive skin?

The shaver is designed for an effective and comfortable shave. Follow these tips: shave before washing your face, hold the shaver at 90° to the skin, and shave against the direction of growth.

How do I maintain the battery?

Fully discharge the battery about every 6 months, then recharge it to full capacity to maintain its lifespan.

What should I do if the shaver does not charge?

Check the ambient temperature (between 5 and 35 °C). If the problem persists, contact an Authorized Braun Service Center.

Can I replace the battery myself?

No, the battery is built-in. Replacement must be done only by an Authorized Braun Service Center.

USER MANUAL Series 3 300BT BRAUN

Type 5409, 5408

www.braun.com

3XX

Braun Infolines

German 6

English 11

French 15

Spanish 20

Portuguese 25

Italian 30

Dutch 35

Danish 40

Norwegian 44

Swedish 49

Finnish 53

Polish 58

Czech 64

Slovak 69

Hungarian 74

Croatian 80

Slovenian 86

Turkish 91

Romanian (RO/MD) 98

Greek 103

Bulgarian 108

Russian 113

Ukrainian 120

Braun GmbH

2 mm 3 mm 5 mm 7 mm 1 mm

German

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

This appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

Type 5409 only: This appliance is suitable for cleaning under running tap water and for use in a bathtub or shower. For safety reasons it can only be operated cordless. When using it in the shower, we recommend applying shaving foam or gel.

This appliance is provided with a special cord set, which has an integrated Safety Extra Low Voltage power supply. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock.

Only use the special cord set provided with your appliance.

If the appliance is marked -92, you can use it with any Braun power supply coded 492-XXXX.

Do not use with a damaged foil, trimmer or cord.

When the distance comb is removed, the cutting system should not be pressed into the skin. Risk of injury!

Do not open the appliance! The built-in rechargeable batteries can only be replaced by an authorized Braun Service center.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

the safe use of the appliance and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be made by children. For hygienic reasons, do not share this appliance with other persons.

Description

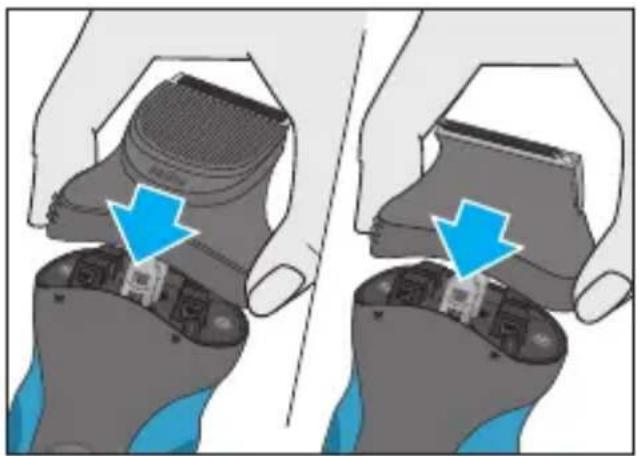

1 Foil & Cutter cassette 2 On/off button 3 Charge indicator 4 Shaver power socket 5 Special cord set (design may differ) 6 Beard trimmer head with 5 combs * (see pictures) 7 Protection cap * 8 Travel case *

* not with all models

For electric specifications, see printing on the special cord set.

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for shaving is 15 °C to 35 °C. Do not expose the shaver to temperatures higher than 50 °C for extended periods of time.

• Using the special cord set (5), connect the shaver to an electrical outlet with the motor switched off. When charging for the first time or when the shaver is not used for a few months, leave the shaver to charge continuously for 4 hours.
• Once the shaver is completely charged, discharge the shaver through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour.
• A full charge provides up to 30 minutes of cordless shaving time depending on your beard growth. However, the maximum battery capacity will only be reached after several charging/discharging cycles.
• 5-minute quick charge is sufficient for a shave.
• Type 5408 only: You can also shave by connecting the shaver to an electrical outlet via the special cord set.

Charge indicator (3)

The charge indicator shows the battery status.

• Charging: slow flashing
• Low battery: fast flashing
• Fully charged / during operation: continuously lighting up

Usage

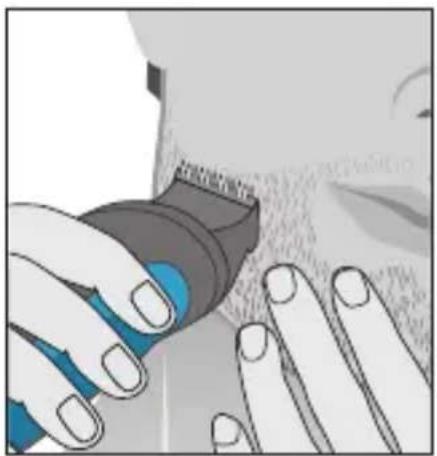

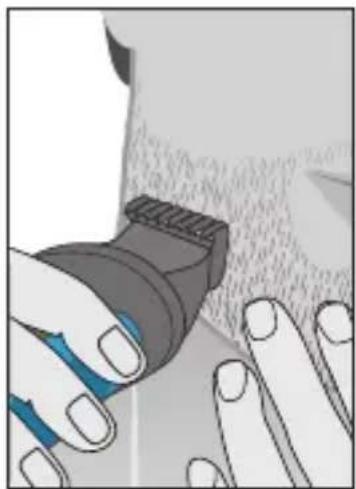

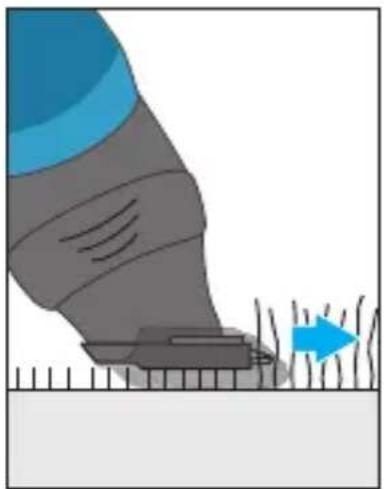

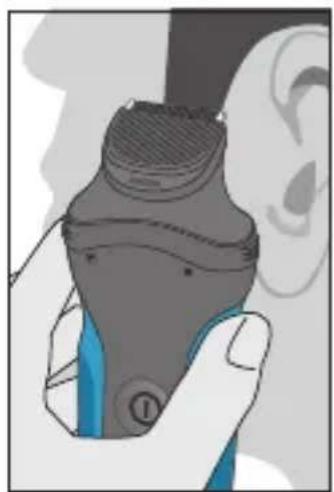

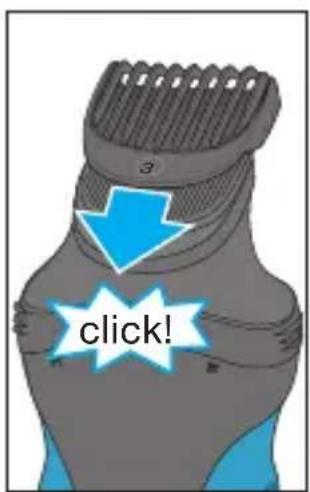

Press the on/off button (2) to operate the shaver. For further shaving and styling instructions, please refer to the pictures.

Tips for a perfect dry shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.
2. At all times, hold the shaver at right angles (90°) to your skin.
3. Stretch your skin and shave against the direction of your beard growth.

Cleaning

Regular cleaning ensures better shaving performance.

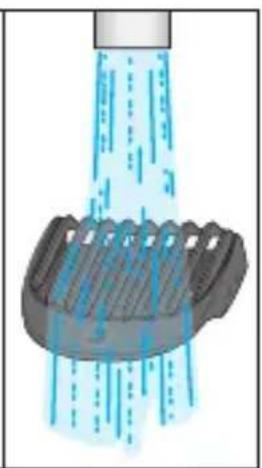

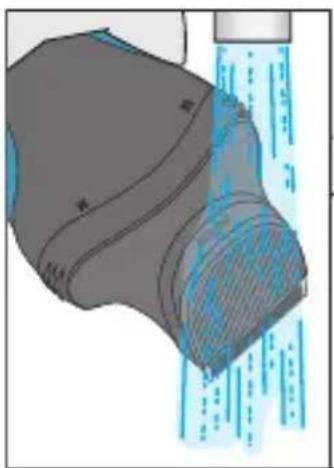

Cleaning under running water:

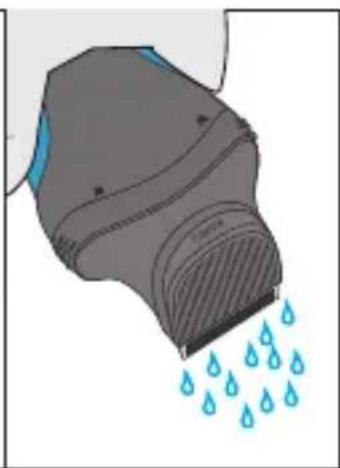

• Switch the shaver on (cordless) and rinse the shaver /trimmer head under hot running water until all residues have been removed. You may use liquid soap without abrasive substances. Rinse off all foam and let the shaver run for a few more seconds.

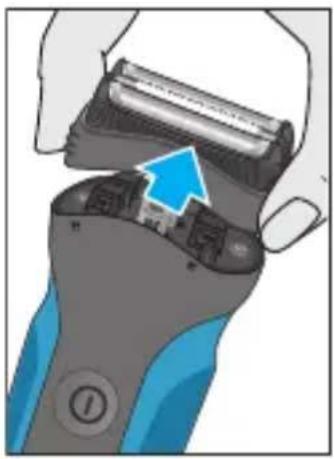

• Next, switch off the shaver, remove the Foil & Cutter cassette/trimmer head and let it dry.

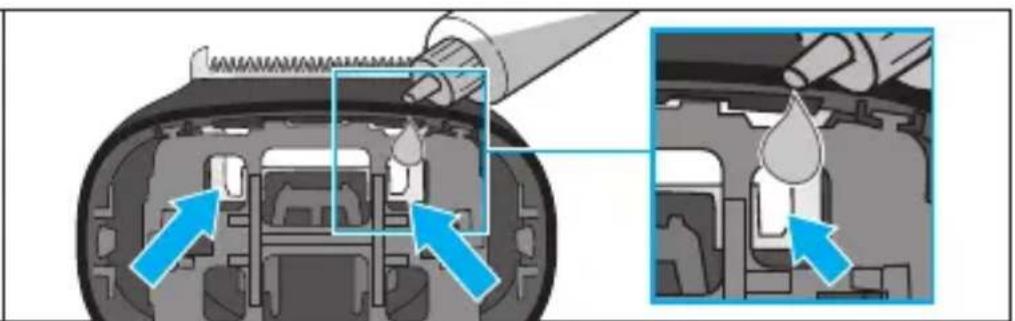

• If you regularly clean the shaver under water, then once a week apply a drop of light machine oil (not included) onto the Foil & Cutter cassette / trimmer head.

Cleaning with a brush:

• Switch off the shaver. Remove the Foil & Cutter cassette and tap it out on a flat surface.

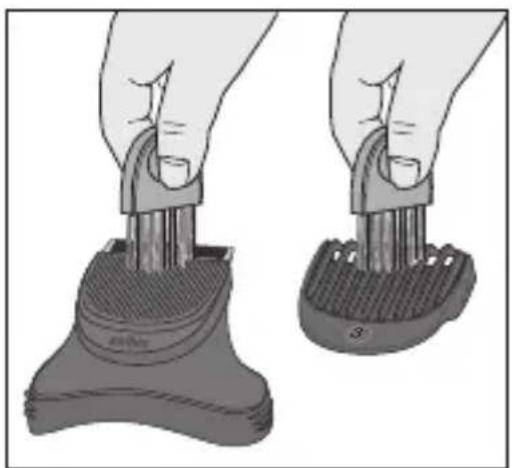

• Use a small brush with soft bristles (not included) and clean the trimmer, the combs and the inner area of the shaver / trimmer head. However, do not clean the Foil & Cutter cassette with a brush as this may damage it.

Keeping your shaver in top shape

Shaving parts

To maintain 100% shaving performance, replace the Foil & Cutter cassette (1) after about 18 months or when worn.

Foil & Cutter cassette: 21B

Beardstyling attachment: BT32

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the shaver has to be fully discharged by shaving every 6 months approximately. Then recharge the shaver to full capacity.

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

Guarantee

We grant a 2-year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion. Depending on availability replacement might result in a different color or an equivalent model.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear and tear (e.g. shaver foil or cutter block) as well as defects that have a negligible effect on the value or operation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

ELMIN, Đurđevac 48 350,

R. Boškovića 20, Tel. [phone], [e-mail]

BKS d.o.o., Slavonski Brod 35 000, J. J. Strossmayera 29, Tel. [phone], [e-mail]

FRUK d.o.o., Virovitica 33 000, J. J. Strossmayera 23, Tel. [phone], [e-mail]

MARKOVIĆ OBRT ZA EL.USLUGE, Varaždin 42 000, Krešimira Filića 9, Tel. [phone], [e-mail]

RADAN ELEKTRONIK CENTAR d.o.o., Dubrovnik 20 000,

Ob. Pape I. Pavlall. 17, Tel. [phone],

[e-mail]

Tehno -Jelčić d.o.o., Šibenik 22 000,

VIII Dalmatinske Udarne Brigade 71, Tel. [phone]

SINGULI D.O.O., 21000 SPLIT-KAMEN

UL. 4. Gardijske brigade 43, Tel. [phone]

(within the business premises of ROBOT COMMERCE d.o.o. (TTTS))

[e-mail]

or call the singuli Call center: 072 700 707

Slovenian

Country of origin: China

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture. Example: “527” - The product was manufactured in week 27 of 2015.
