USER MANUAL MOP46 MPM

We wish you satisfaction from us- ing the product and invite you to check a wide range of other appli- ances

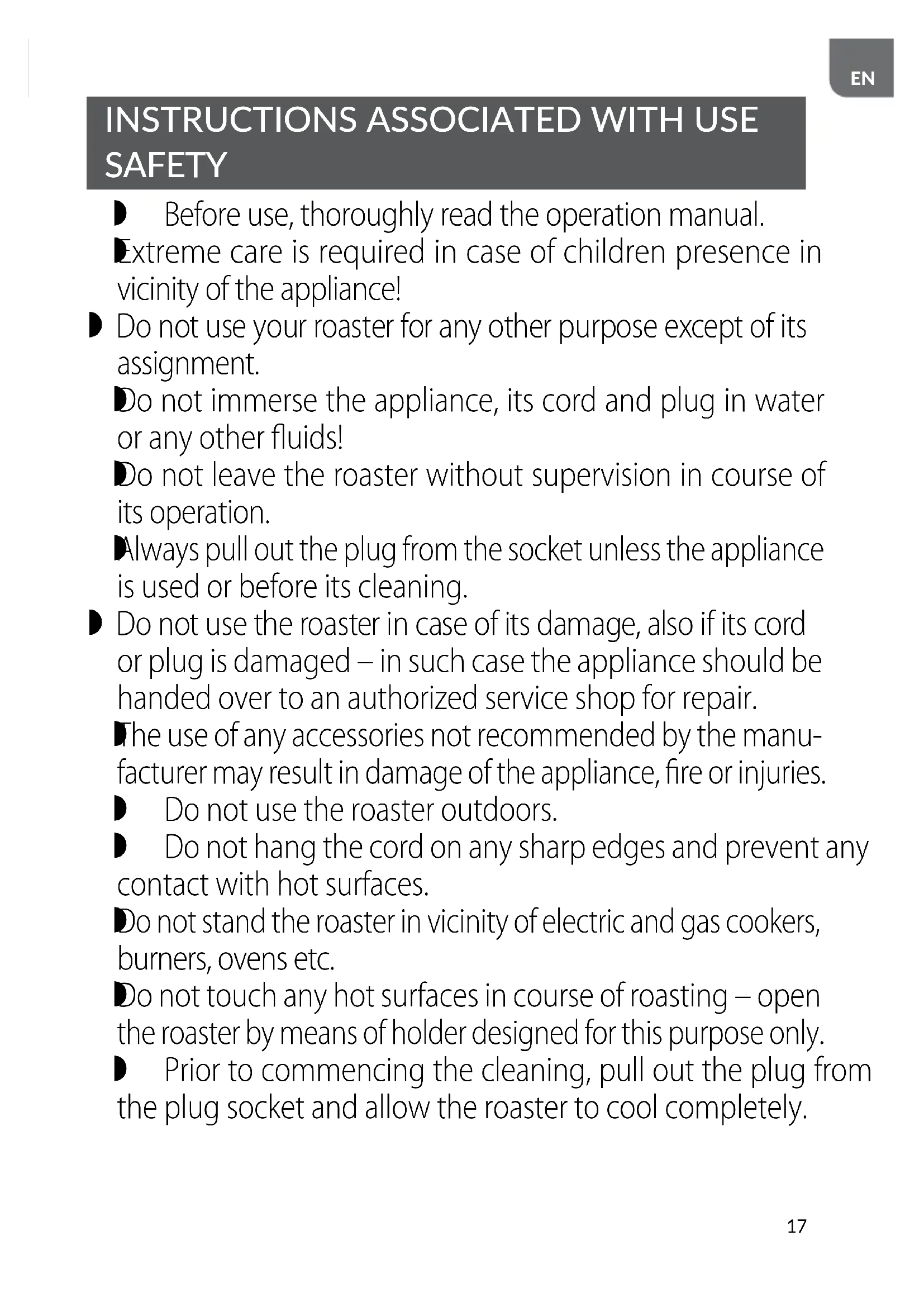

INSTRUCTIONS ASSOCIATED WITH USE

SAFETY Before use, thoroughly read the operation manual.

Extreme care is required in case of children presence in vicinity of the appliance! Do not use your roaster for any other purpose except of its assignment.

Do not immerse the appliance, its cord and plug in water or any other fluids!

Do not leave the roaster without supervision in course of its operation.

Always pull out the plug from the socket unless the appliance is used or before its cleaning. Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manu- facturer may result in damage of the appliance, fire or injuries. Do not use the roaster outdoors. Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.

Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.

Do not touch any hot surfaces in course of roasting – open the roaster by means of holder designed for this purpose only. Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.18

When opening the appliance in course of roasting, proceed carefully owing to hot damp from the area under the heating panels!!

The roaster should be connected into the socket with ground- ing pin!

This appliance is not intended for use by children under8 years of age and individuals with reduced physical, sensory or men- tal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Store the appliance and its cord out of reach of children under 8 years of age. Make sure that children do not play with the appliance. Use on a flat, stable surface.

The equipment is not designed to work with external sched- ulers or a separate control system.

Warning! Hot surface! Do not pull the plug by holding the power cord. Do not connect the power plug with wet hands. The temperature of surfaces may be higher when the ap

pliance is in use. This appliance is intended for household use only.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.19

Note! When placing the dough on the bottom heating plate make sure the baking mould is completely filled.

During baking process the excess dough may flow out of the appliance.

When waffles are ready, remove them carefully using wooden or plastic utensils.

Keep your children safe: do not leave any parts of the pack- aging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.). WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

WARNING! Oils and fats may burn when overheated. Please be careful!

5. Removable wae plates

6. Removable sandwich plates

7. Removable grilling plates

8. Heang plates release buon

PRIOR TO THE FIRST USE: ATTENTION! Before cleaning the heang plates make sure the appliance is unplugged!

1. Prior to the rst use of the roaster, thoroughly wash the heang panels of the roaster with the

cloth moistened with warm water and thoroughly wipe with dry cloth thereaer.

2. Stand the appliance on a at, stable and dry surface which is resistant to high temperatures.

3. Before using for the rst me, the hot plates must be properly condioned by running them hot.

Place the appliance on a rm, dry, level and smooth surface, plug the power cord to the mains. Leave it running for 10 minutes. Next, unplug the appliance from the mains and wait unl it cools down completely. The hot plates may smoke slightly during this process. This is natural and will no recur during further use. Wipe the hot plates with a damp cloth and wipe them dry. NOTE! Bread may burn! Therefore the appliance must not be used near or below curtains and in vicinity of other combusble materials! NOTE! The working surfaces of the appliance are heated up to extremely high temperatures! Touch the holders only! USE OF THE SANDWICH/WAFFLE MAKER/GRILL The plates (5),(6),(7) can be removed by pressing the plate release buons (8) on the appliance. To t the plates in the appliance, place them over the mounng holes and press. When you insert the plates properly, you will hear a click. NOTE! When opening the cover, proceed carefully owing to hot damp from the area under the heang panels! Depends on the product you want to prepare, place the sandwich/wae/grilling plates in the appliance.

1. Oil the heang plates (5) with buer, margarine or other fat.

2. Insert the plug into the socket – red cauon lamp (power supply) (1) and green cauon lamp (ther

mostat) (2) will go on. Close the cover of the appliance (3).

3. Prepare the sandwiches, dough for waes or products for grilling.

4. When the green indicator lamp (2) will go o, open the cover by pulling the latch (4) and put the

products on the heang plates. Gently close the cover and clamp with clip (4).

5. When checking the condion of products in course of their roasng, open the cover carefully

owing to hot damp escaping from the both sides of the appliance!

6. Open the cover and remove sandwiches/waes/grilled products using wooden or plasc spatula.

7. Before preparaon of the next products, always close the cover in order to maintain required tem

perature. The green cauon lamp (thermostat) will go on and o in course of roasng to indicate that required temperature is maintained.

8. Aer nished roasng pull out the plug from the plug socket and allow the appliance to cool com

pletely. NOTE! Do not use and metal and sharp knifes or forks, otherwise the damages of heang sur

faces are possible!21

CLEANING AND MAINTENANCE

1. Prior to commencing the cleaning (and aer nishing the roasng), pull out the plug from the plug

socket and allow the appliance to cool completely.

2. Thoroughly wipe the heang panels, clean the roaster edges using so cloth or towel. For ease of

cleaning, the heang plates may be disassembled.

3. If complete removal of any food residuals from the surface of heang panels is problemac, pour

some edible onto dirty surface and try to clean aer about 5 minutes. Your eorts will be success

4. Wipe the external surface of the roaster using wet cloth.

ATTENTION! Do not immerse the appliance in water or any other liquids! Do not wipe the inside of the appliance with acute, abrasive cloths or sponges, as this can damage the heang surfaces! TECHNICAL DATA: The technical parameters are given on the data plate of the product. Power cord lenght: 0,7 m NOTE! MPM agd S.A. reserves the right to introduce technical modicaons! Proper disposal of the product (waste electrical and electronic equipment) Marking on the product indicates that aer the service-life of the product expires, it should not be dis- posed with other type of municipal waste. Used equipment may have a negave impact on the environ- ment and health of people due to potenally containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should be handed-over to a point for collecon of electric waste. In order to obtain detailed informaon regarding the electric waste collecon points, the user should contact the municipal point of electric waste collecon or used equipment processing department.22
